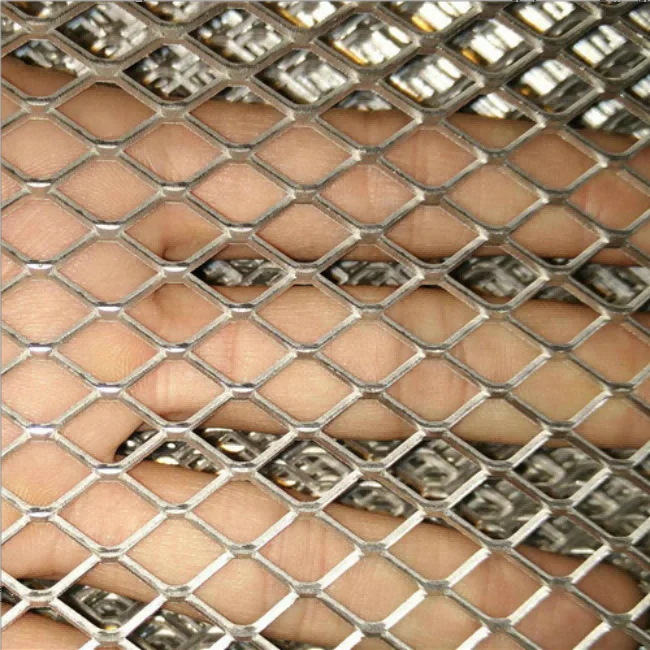

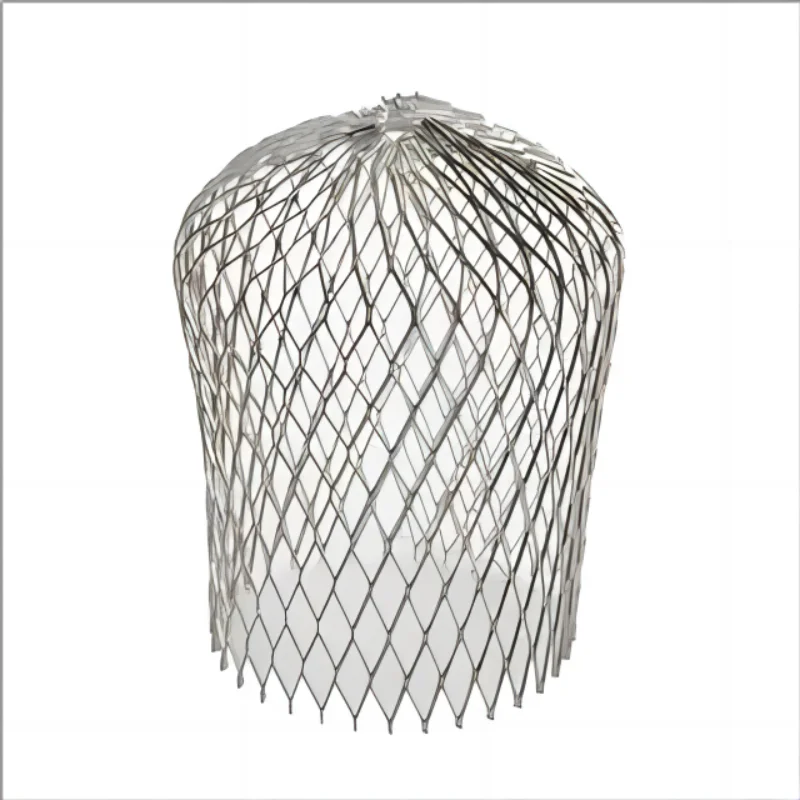

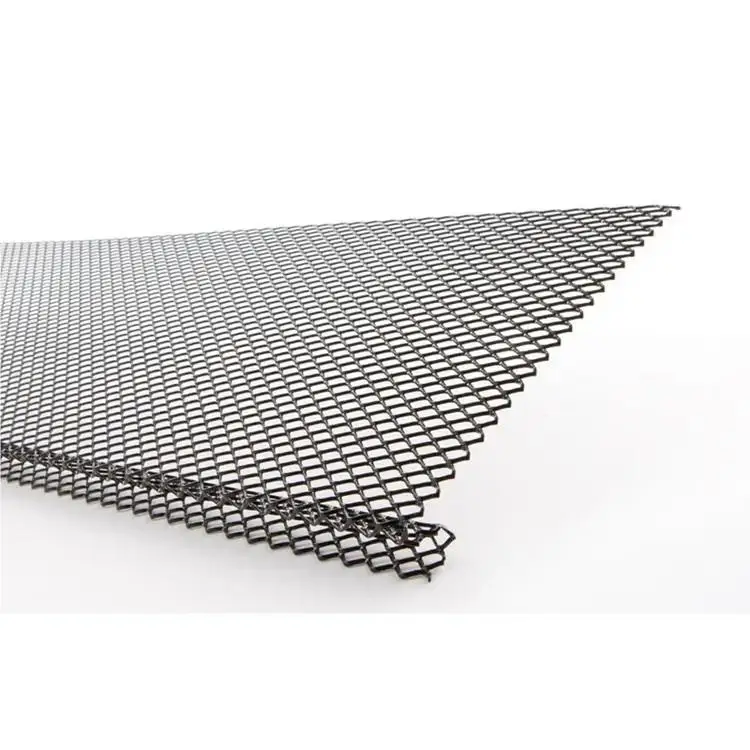

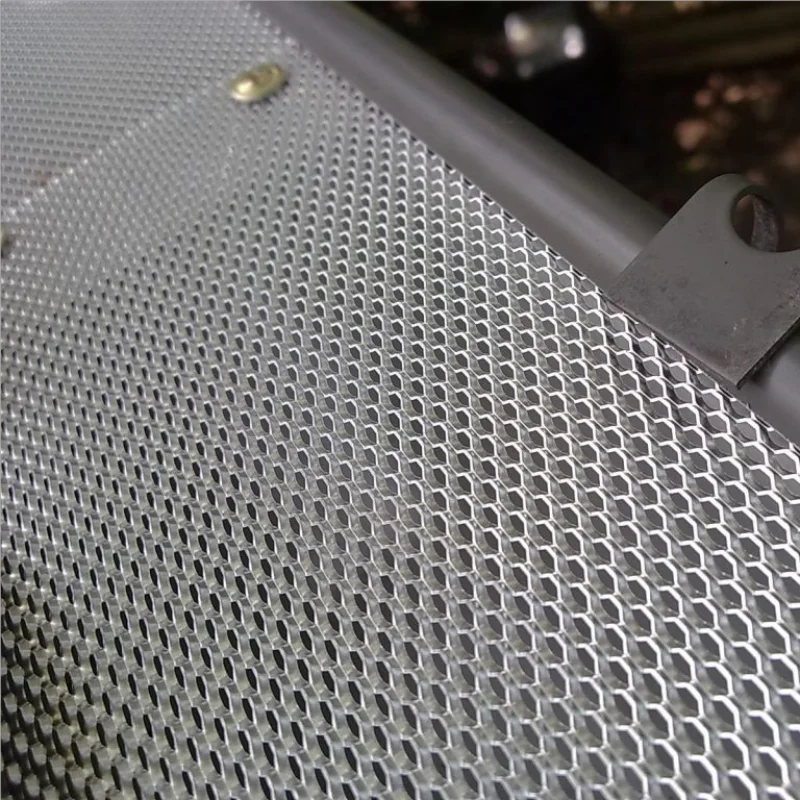

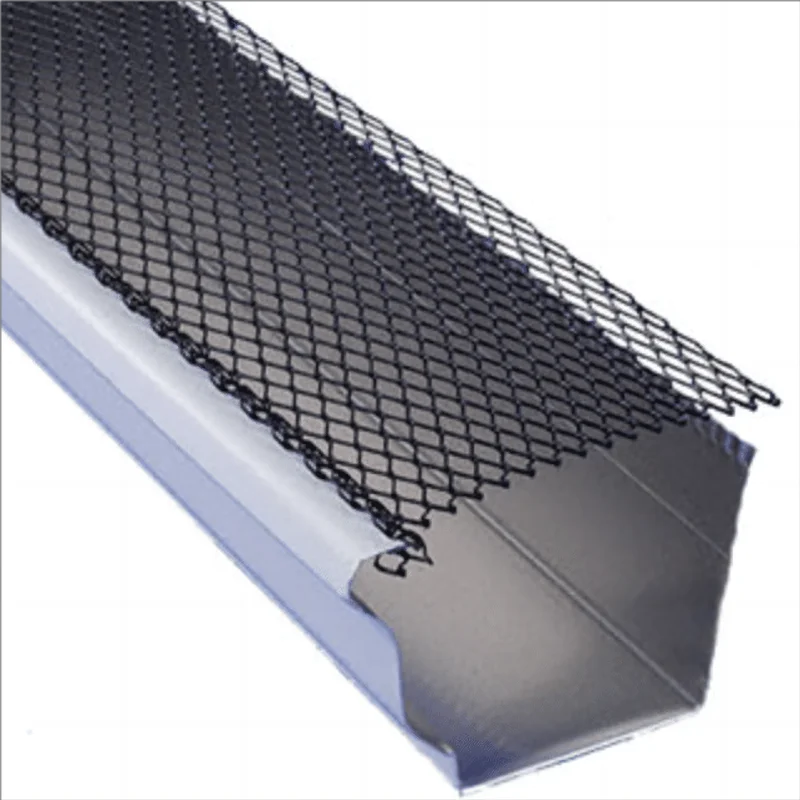

leaf filter gutter guards mesh roof gutter guard mesh aluminium gutter guard
leaf filter gutter guards mesh roof gutter guard mesh aluminium gutter guard
leaf filter gutter guards mesh roof gutter guard mesh aluminium gutter guard
leaf filter gutter guards mesh roof gutter guard mesh aluminium gutter guard
leaf filter gutter guards mesh roof gutter guard mesh aluminium gutter guard
leaf filter gutter guards mesh roof gutter guard mesh aluminium gutter guard
leaf filter gutter guards mesh roof gutter guard mesh aluminium gutter guard

leaf filter gutter guards mesh roof gutter guard mesh aluminium gutter guard

Share on (1601207988055):


Price:$12.00 - $20.00

Quantity:


Product Overview

Description





Expanded metal
Expanded metal is a type of sheet metal which has been cut and stretched to form a regular pattern (often diamond-shaped) of mesh-like material. It is commonly used for decoration, fences and grates, and as metallic lath to support plaster or stucco.
Expanded metal is stronger than an equivalent weight of wire mesh such as chicken wire, because the material is flattened, allowing the metal to stay in one piece. The other benefit to expanded metal is that the metal is never completely cut and reconnected, allowing the material to retain its strength.



Material
1.Stainless Steel         2.Low Carbon Steel
3.Galvanized steel      4.Aluminum Plate
5.Titanium Plate          6.Nickel Plate
7.Al-Mg Alloy Plate.    8.Copper
Expanded Types
Raised/Standard or Flattened.
Thickness
0.5-14mm
Hole Shape
Diamond,Hexagonal,Square,
Fan-Shaped,Gothic,Grating,Etc.
Sheet Size
1220*2440mm,1200*2400mm,1000*2000mm
Or Customized
Rolls Size
1*20m,Or Customized


Surface Treatment
Without treatment
Painted
Anodized (colour can be customized)
Pvc Coated(colour can be customized)
Powder coated(colour can be customized)
Galvanized: Electro galvanized or Hot-dipped galvanized


Category of expanded metal


Mini
Expanded Metal Mesh
Medium Expanded Metal Mesh
Heavy Duty Expanded Metal Mesh


Expanded Metal Types

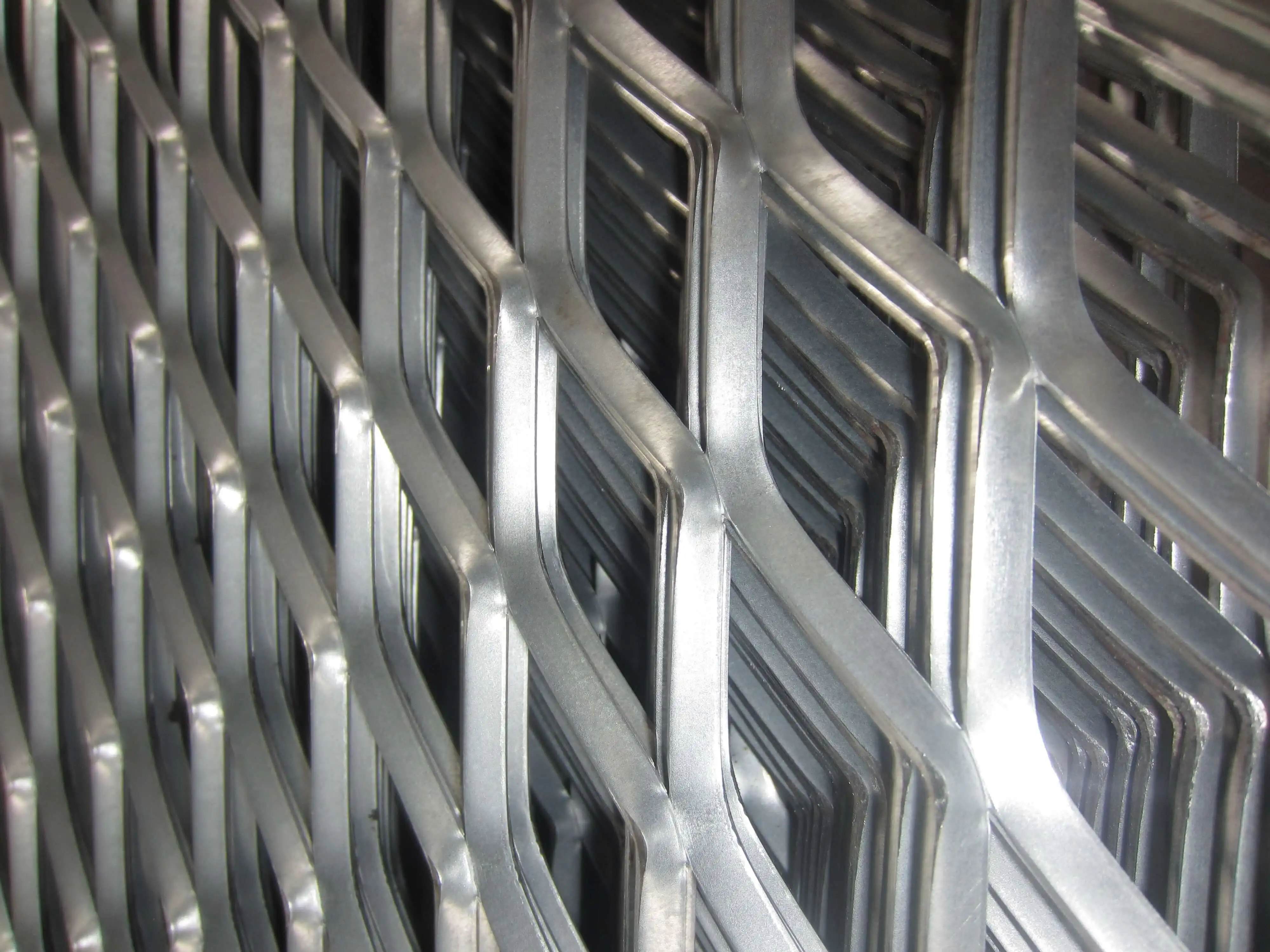

Standard (Raised) Expanded Metal
Raised expanded metal is also known as standard expanded metal, it has diamond openinas with slightly raised surface.

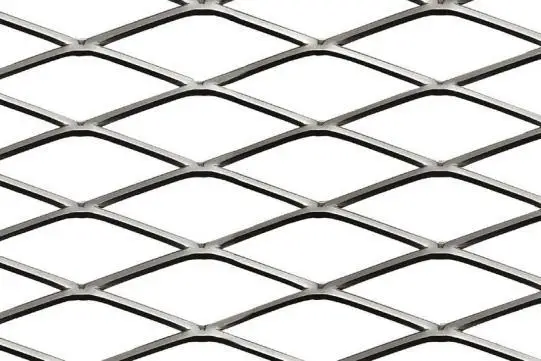

Flattened Expanded Metal
Flattened expanded metal is manufactured by passing the standard expanded sheet through a cold roll reducing mill forming diamond openings with flat surface.




Specifications
Strand Thickness
(mm)
SWD
(mm)
LWD
(mm)
Strand width
(mm)
Width
(m)
Length
(m)
Weight
(kg/m2)
0.5
2.5
4.5
0.5
0.5
1
1.8
0.5
10
25
0.5
0.6
2
0.73
0.6
10
25
1
0.6
2
1
0.8
10
25
1
0.6
2
1.25
1
10
25
1.1
0.6
2
1.77
1
15
40
1.5
2
4
1.85
1.2
10
25
1.1
2
4
2.21
1.2
15
40
1.5
2
4
2.3
1.5
15
40
1.5
1.8
4
2.77
1.5
23
60
2.6
2
3.6
2.77
2
18
50
2.1
2
4
3.69
2
22
60
2.6
2
4
3.69
3
40
80
3.8
2
4
5.00
4
50
100
4
2
2
11.15
4
60
120
4
2
7.5
4.0
4
80
180
4
2
10
3.0
4
100
200
4
2
12
2.5
4.5
50
100
5
2
2.7
11.15
5
50
100
5
1.4
2.6
12.39
5
75
150
5
2
10
3.0
6
50
100
6
2
2.5
17.35
8
50
100
8
2
2.1
28.26
Other hole patterns and size can be customized


Hole Patterns


Hexagonal Hole

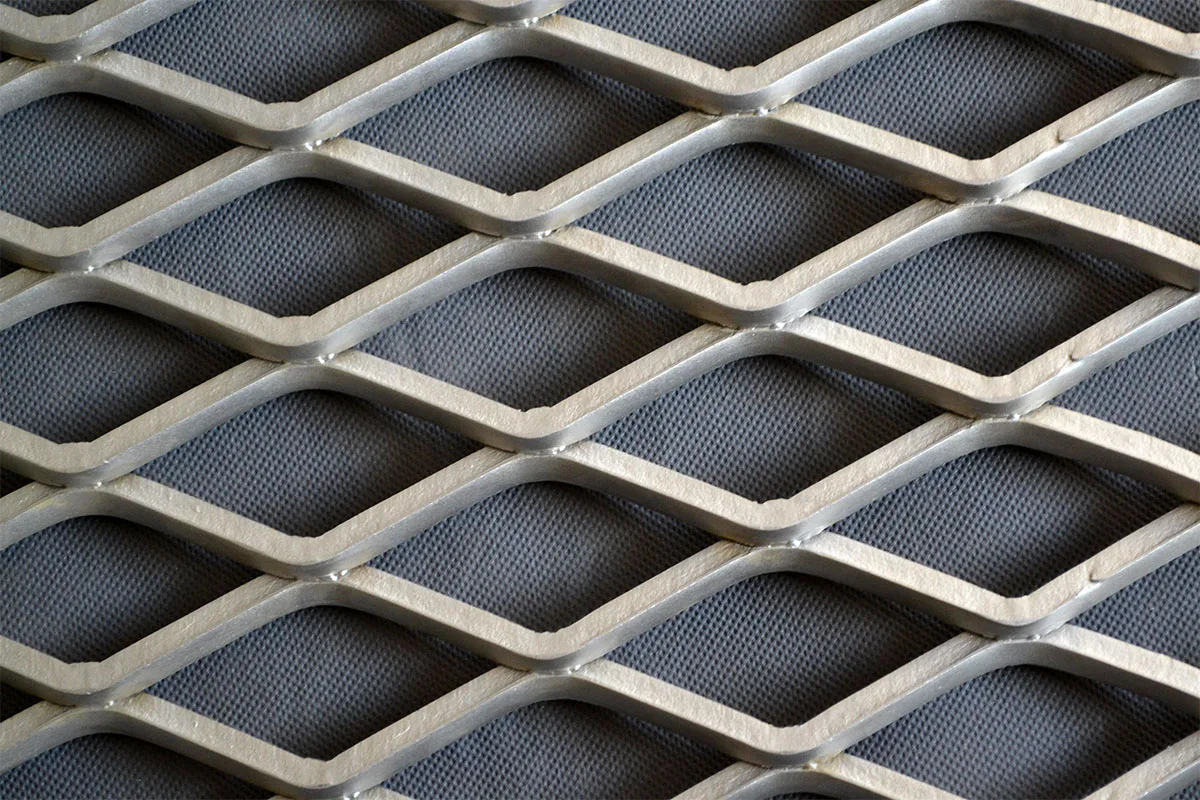

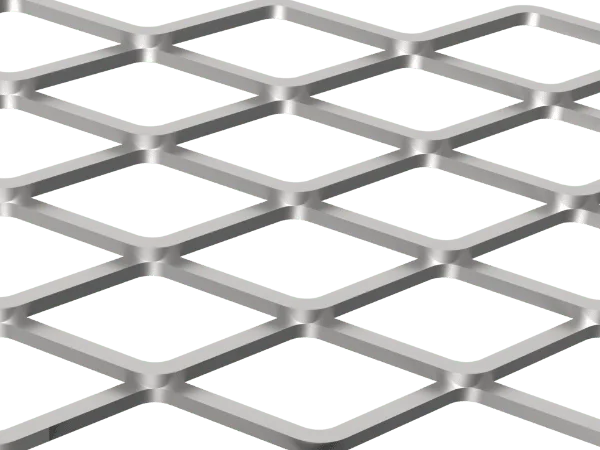

Diamond Hole


Grating
Decorative Hole


Square Hole
Gothic


Product Types & Advantages


ALUMINUM EXPANDED METAL
▪ Materials: aluminum, aluminum alloy.
▪ Hole shapes: diamond, hexagonal, square.
▪ Surface treatment: PVC coated, power coated, anodized.
▪ Colors: silver, red, yellow, black, white, etc.
▪ Thickness: 0.5 mm – 5 mm.
▪ Long opening: 3 mm – 100 mm.
▪ Short opening: 2 mm – 60 mm.
▪ Width: ≤ 3 m
▪ Package: iron pallet or wooden box.


DECORATIVE EXPANDED METAL MESH
▪ Materials: aluminum, Al-Mg alloy, low carbon steel, stainless steel, copper.
▪ Hole shapes: diamond, square, hexagonal, tortoise shell.
▪ Surface treatment: anodized, galvanized, PVC coated, spray painting.
▪ Colors: golden, red, blue, green or as requests.
▪ Thickness: 0.3 mm – 10.0 mm.
▪ Length: ≤ 4000 mm.
▪ Width: ≤ 1500 mm.
▪ Package: on steel pallet with waterproof cloth or in wooden box with waterproof paper.


EXPANDED METAL FENCE
▪ Materials: aluminum, stainless steel, carbon steel, aluminum alloy.
▪ Hole shapes: diamond, square, hexagonal, scale hole.
▪ Surface treatment: plastic-spraying, galvanized, PVC coated.
▪ Colors: red, white, yellow, black, silver,or as requests
▪ Thickness: 0.5 mm – 8.0 mm.
▪ Height: 640 mm – 6000 mm.
▪ Package: iron or wooden pallet and waterproof plastic or wooden case


STEEL EXPANDED METAL
▪ Materials: black steel, galvanized steel, stainless steel, aluminum.
▪ Hole shapes: diamond, hexagonal, square or special shapes.
▪ Surface treatment: plastic-spraying, galvanized, PVC coated
▪ Colors: silver, red, yellow, green,black, white, or as requests.
▪ Long way of opening: 3mm – 200 mm.
▪ Short way of opening: 2 mm – 80 mm.
▪ Thickness: 0.5 mm – 8 mm.
▪ Product Types:Rolls Or Sheet
▪ Package: pallet or wooden case with waterproof materials.




Applications


plaster or stucco

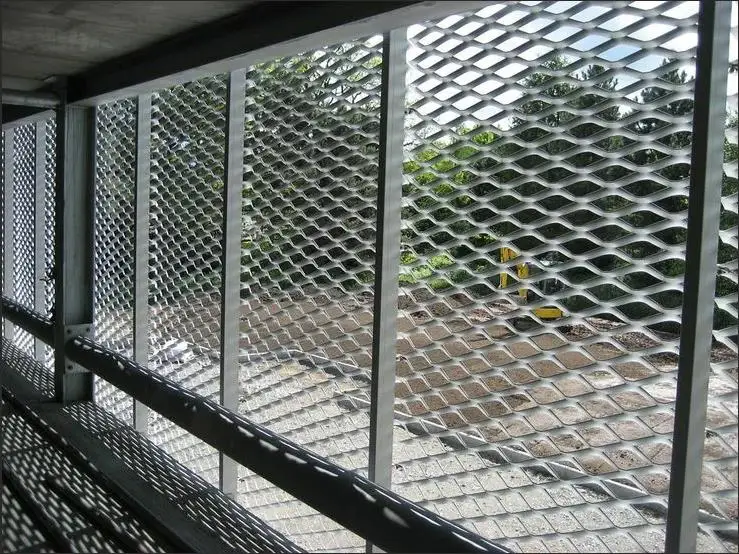

Railing,Stairs And Walkways


Fence & Guards

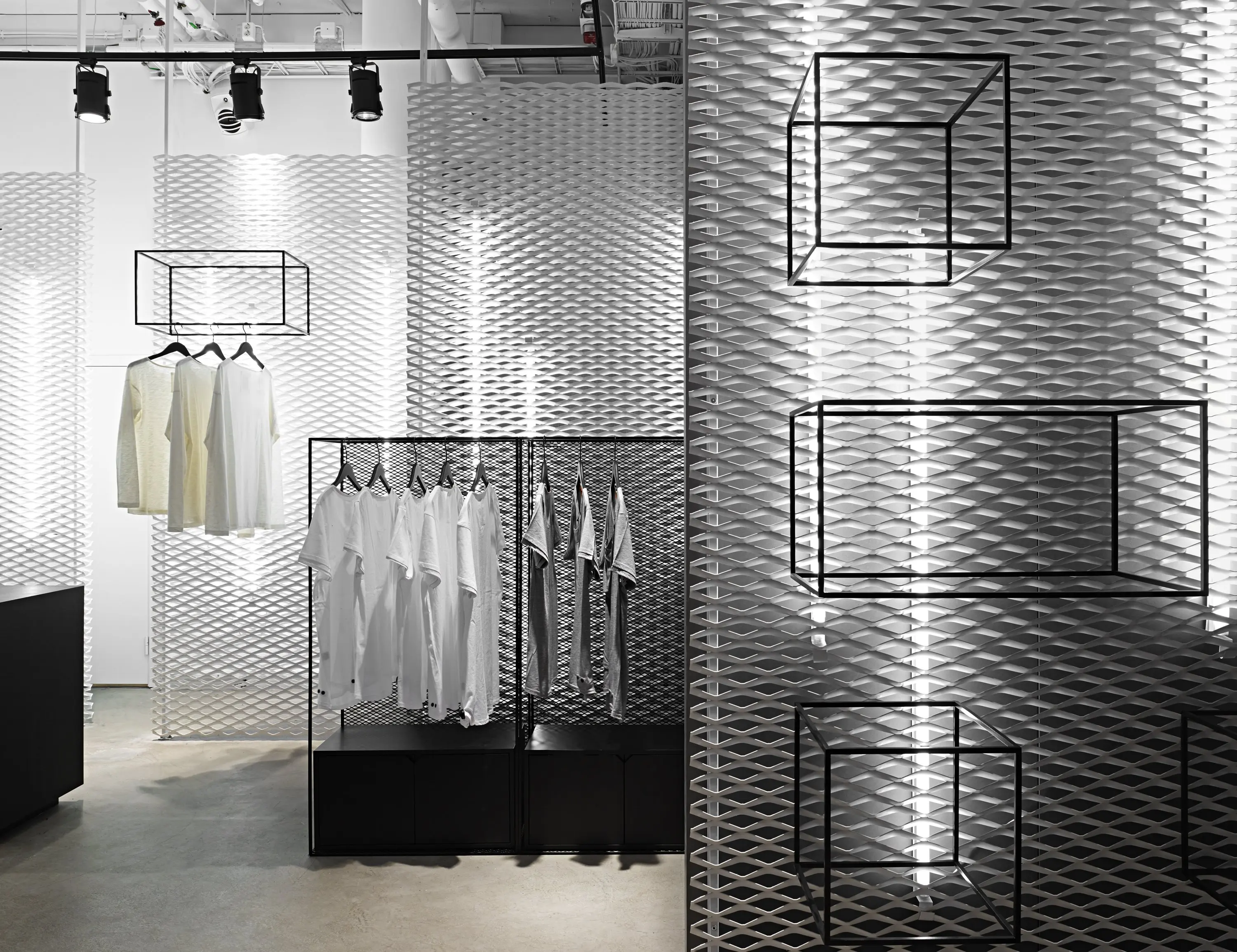

Decorative Facade Screen


Ceilings And Walls
Fuel Filters, Air Filters.

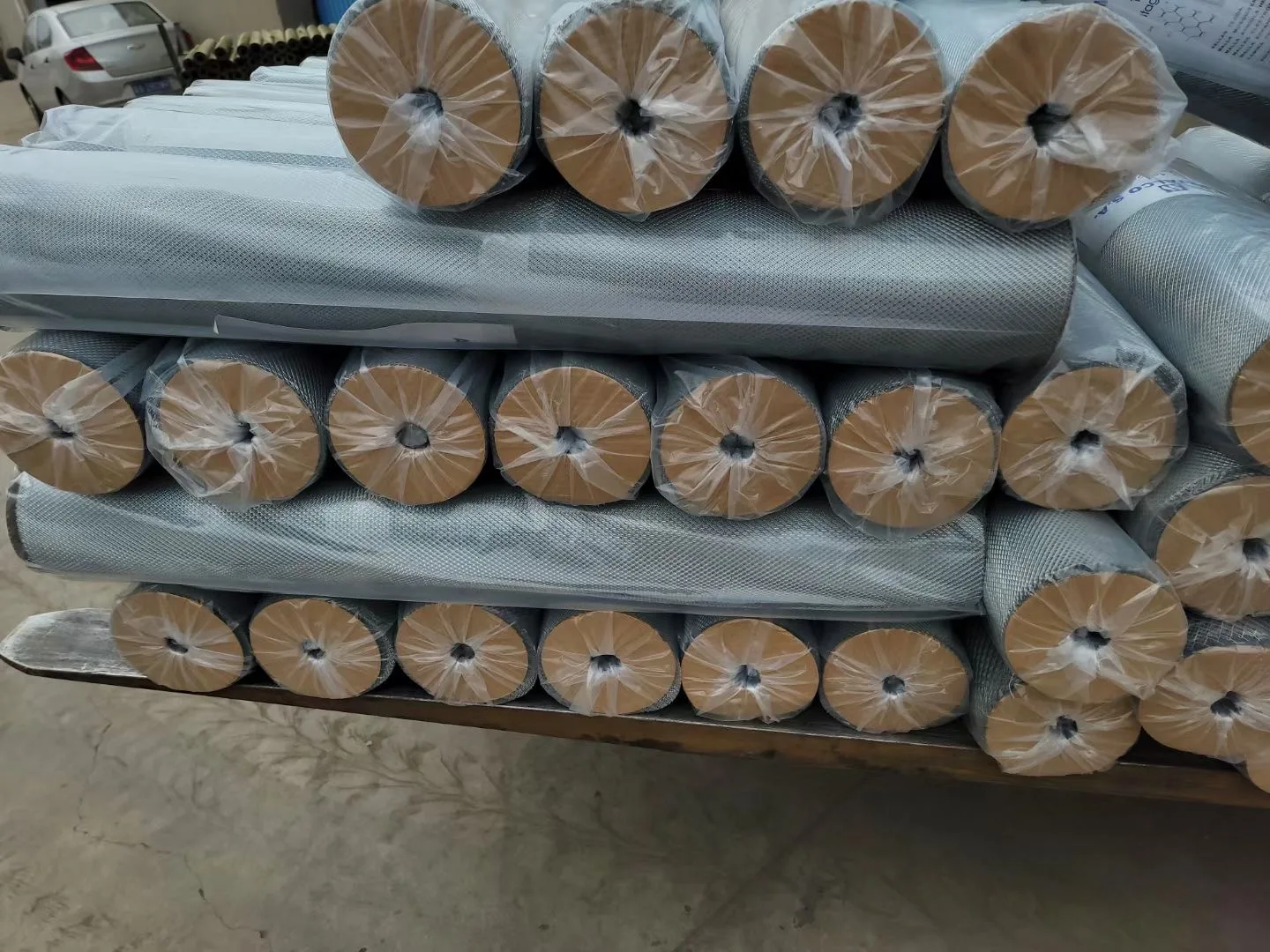

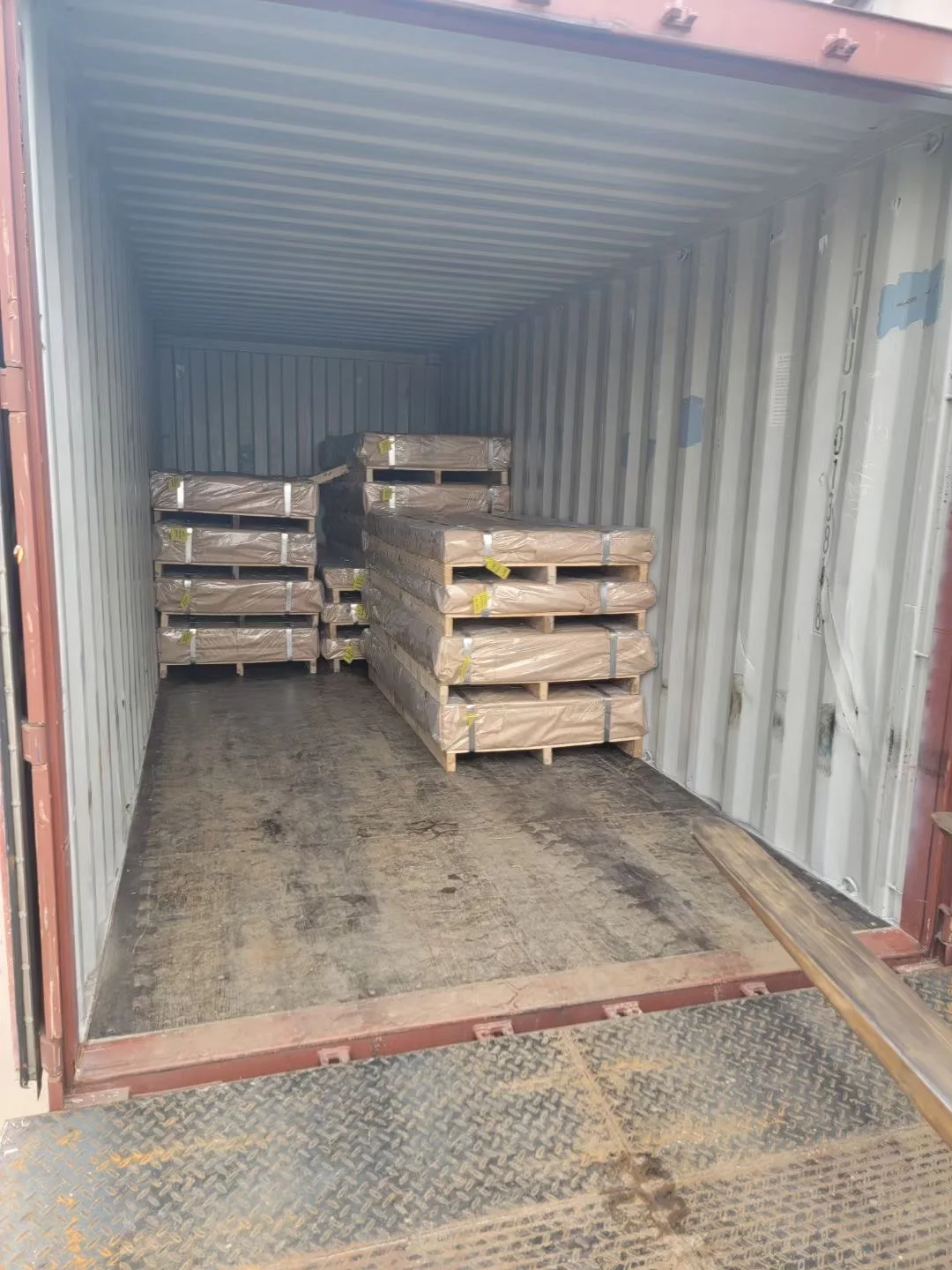

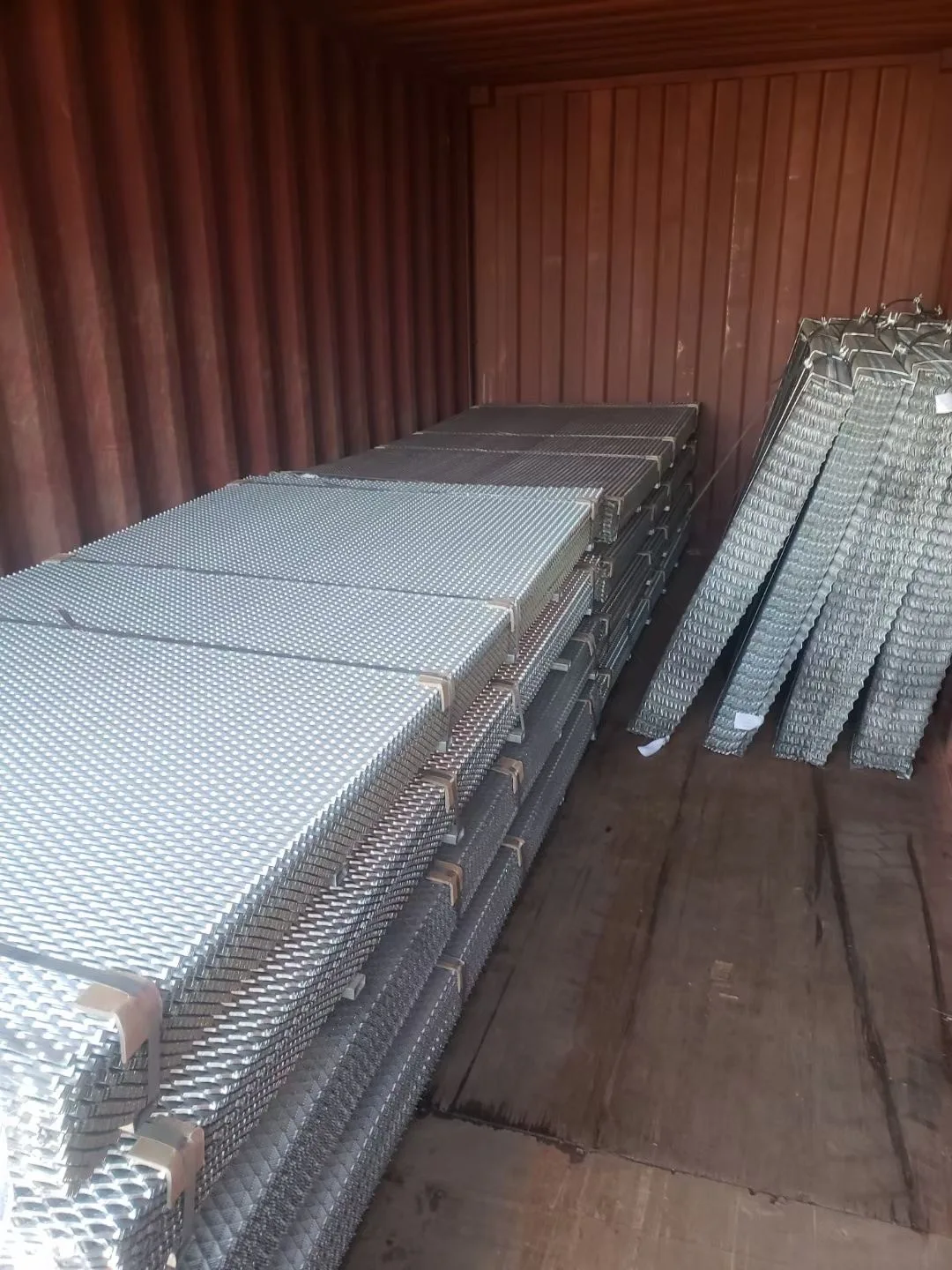

Packing&Shipping

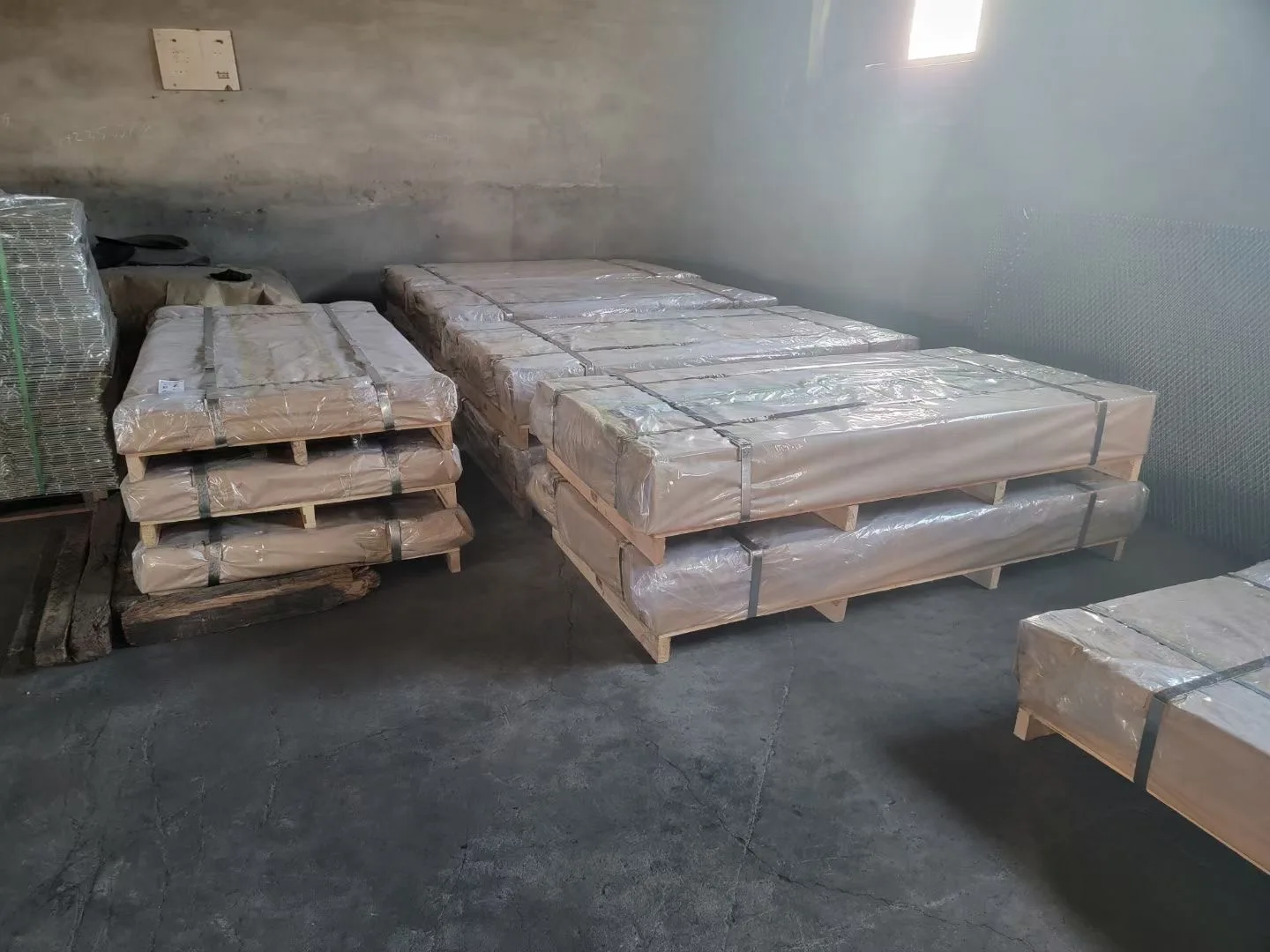

Packing

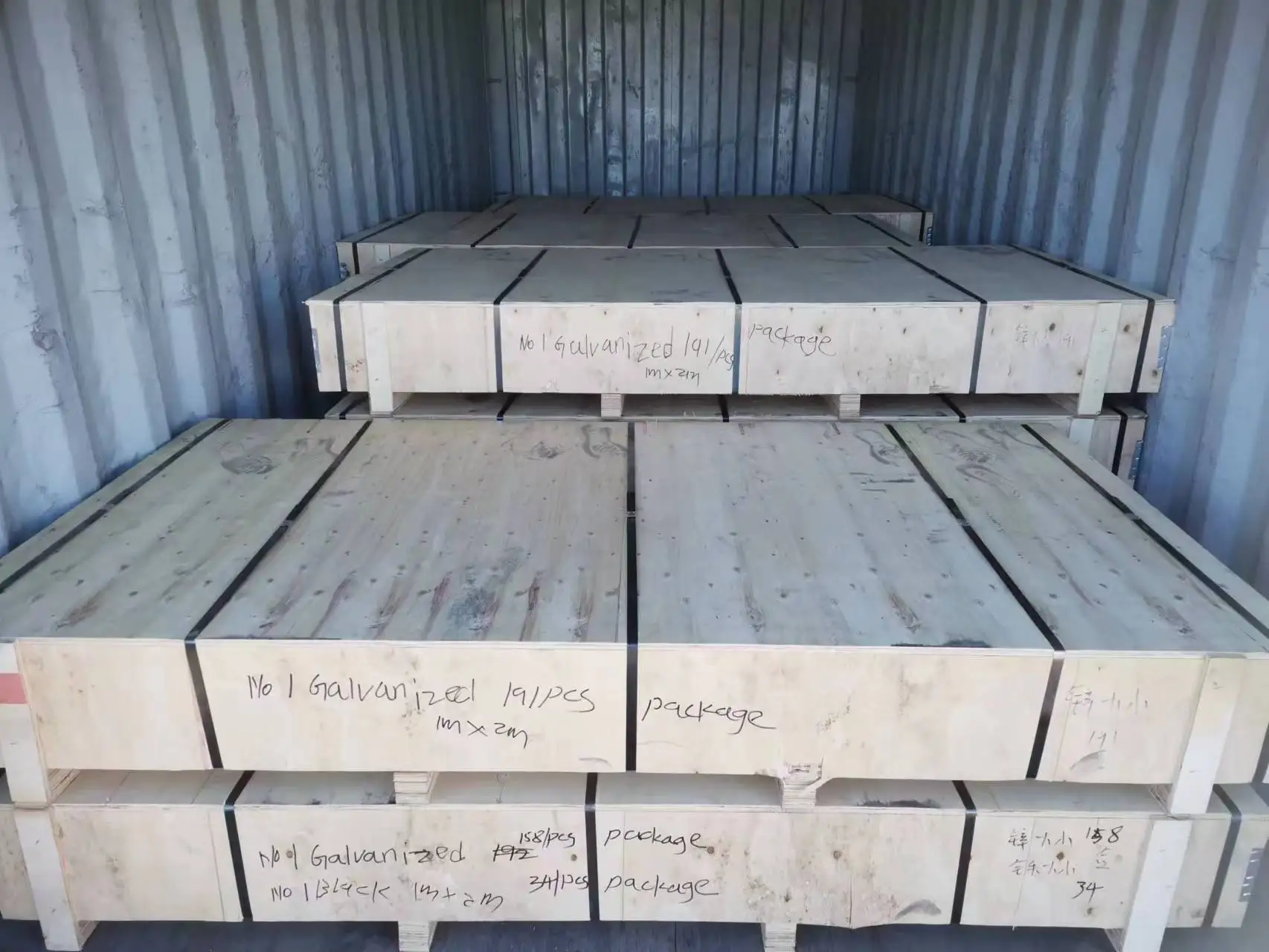

1.On Pallet With Waterproof Cloth.
2.In Wooden Case With Waterproof Paper.
3.In Carton Box.
4.In Roll With Woven Bag.
5.In Bulk Or In Bundle




Shipping
We will look for a professional transportation agent to deliver the products, so we are capable of delivery products to most ports all over the world.








Company Profile

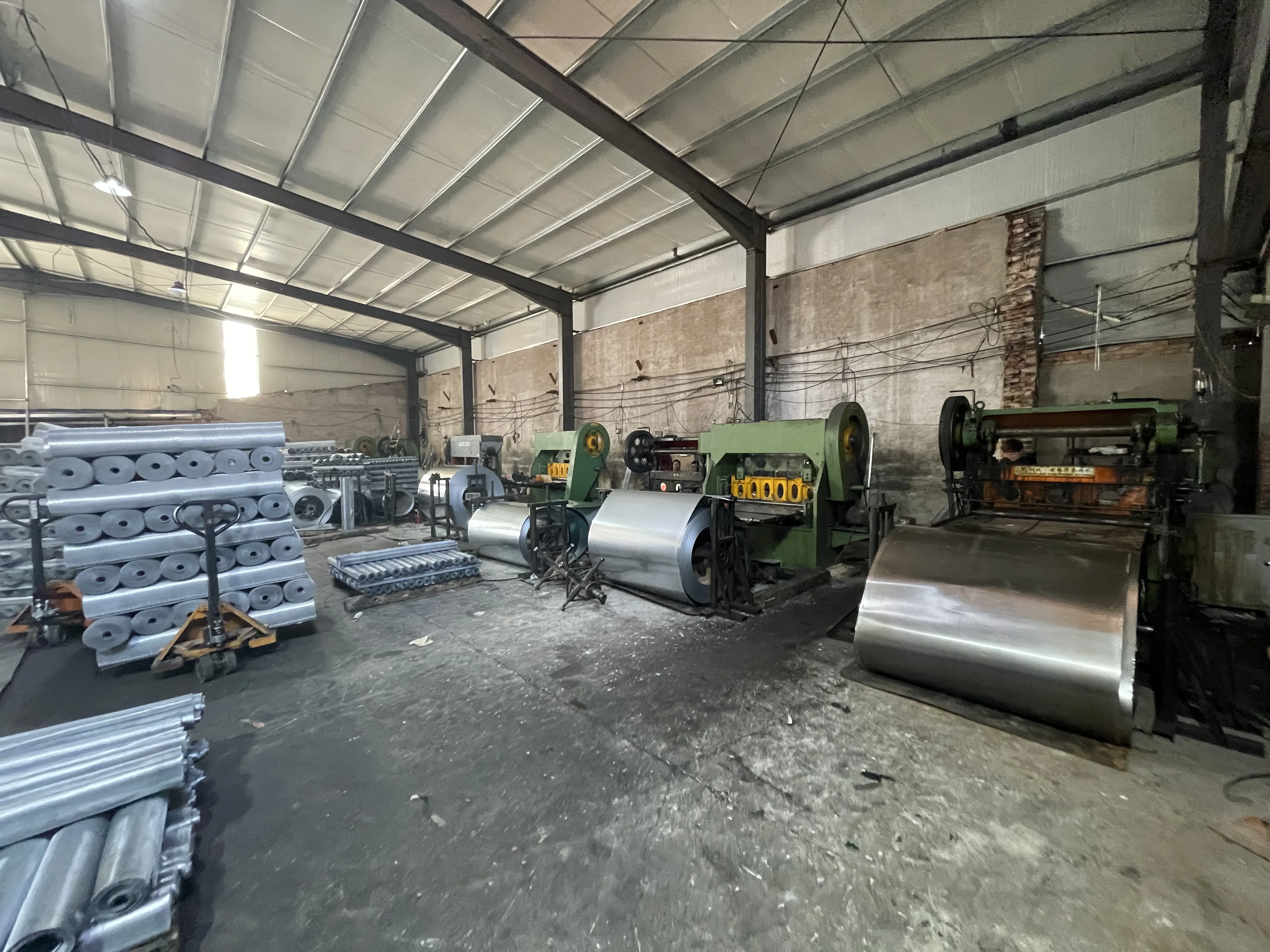

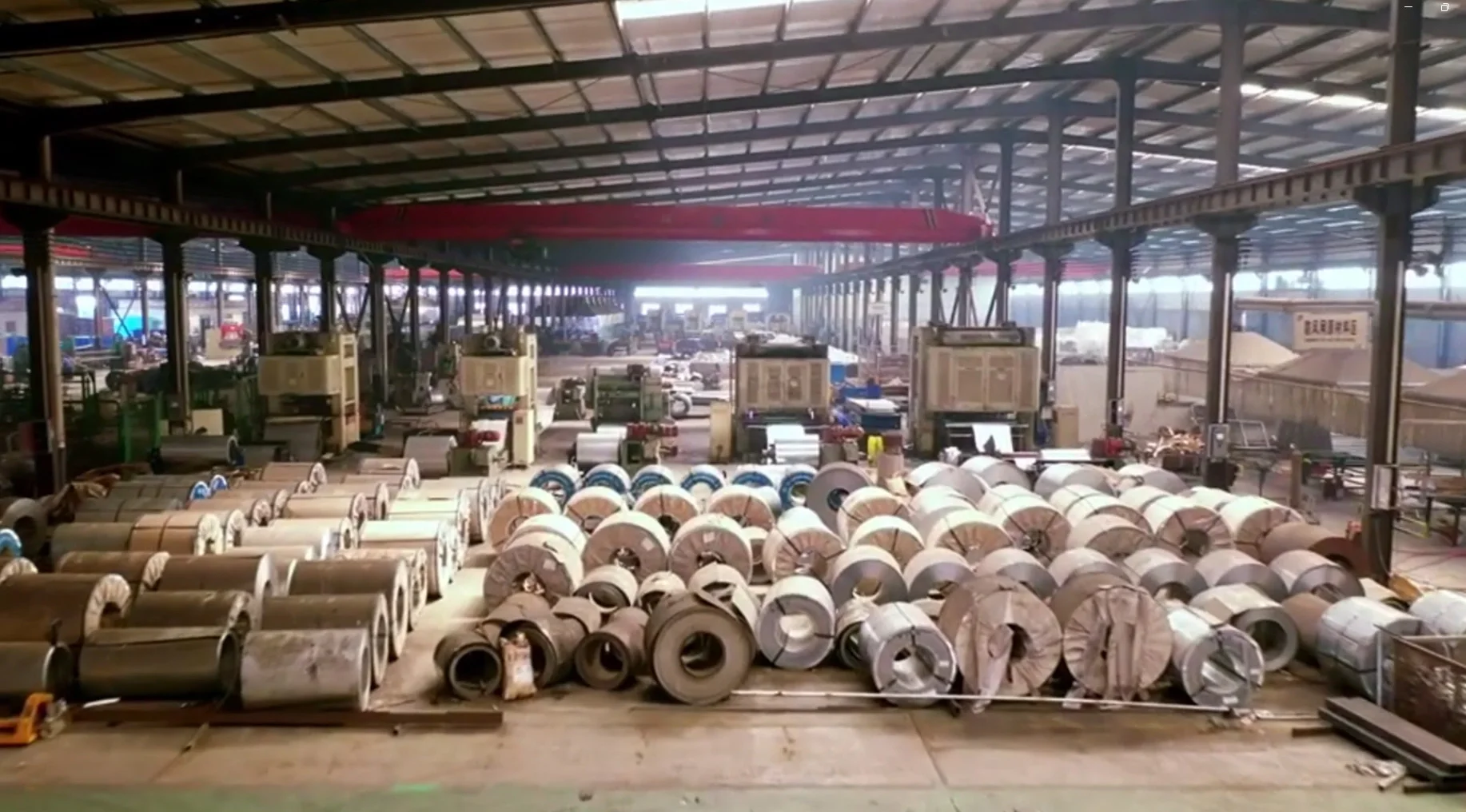

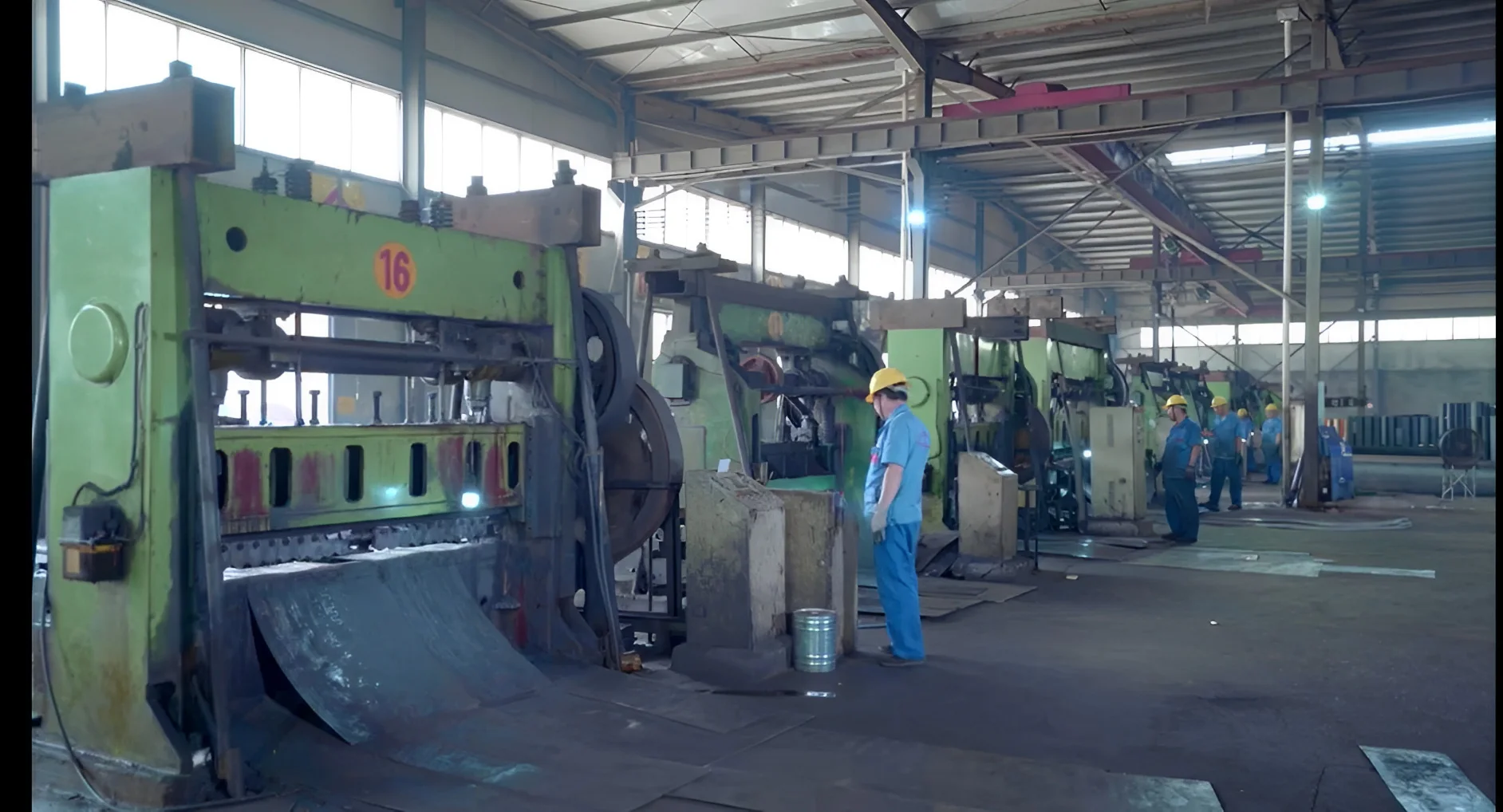

Hebei Tiedi International Trade Co., Ltd is the export company of Anping Tiedi Metal Products Factory. Our factory has been a leading manufacturer of metal wire mesh since 2000.We committed to providing high-quality products at competitive prices, and excellent customer service. Equipped with 50 sets of modern machinery that have advanced technology, we use certified raw materials from reputable manufacturers to produce a wide range of wire mesh products, including welded wire mesh, expanded metal mesh, perforated metal mesh, steel grating, concertina razor wire, stainless steel wire mesh, and other quality products. We are committed to building long-term relationships with our customers. Our commitment to quality and customer satisfaction has led to our success. We invite you to experience the difference that comes from working with a dedicated and experienced supplier.




FAQ


Q: Who are we?
For 23 years, our company has been dedicated to manufacture wire mesh products, which brings about rich experience. We have manufacturer Anping Tiedi Metal Products Co., Ltd and export company Hebei Tiedi International Trade Co., Ltd
Q: What are your advantages compared with others?
1.With our own factory to manufacture the products, we can ensure timely products delivery.
2.Owned factory, the same qualityproduct, the best price.
3.We have Professional staffs, let you enjoy comfortable and effective communication.
4.More efficientmanagement in every process.
5.We never cheat customers.
Q: How to Order Expanded Metal？
Please Specify:
1.Material: carbon steel, aluminum, stainless steel 316 or 304, etc.
2.Type: standard/raised, flattened, expanded metal grating.
3.Piece Size: width x length.
4.Opening Size：①SWO:Short way of opening ②LWO:Long way of opening
5.Strand Thickness strand width.
6.Hole Patterns
7.Quantity: number of pieces.
Q: Can I choose the material type for my expanded metal sheet?
A: Yes, there are many material options for your expanded sheet order. Expanded steel comes in both stainless steel expanded and carbon steel expanded. You can also choose aluminum expanded sheet.
Q: How do you control your quality?
1.Selecting good steel material and producing follow the standard
2.100% finished product test.
3.ISO Quality Management System
4.We accept inspection of products
Q: How do you deal with product quality?
Your products will be tested for quality before delivery. We will be responsible for the loss of our customers due to product quality problems.
