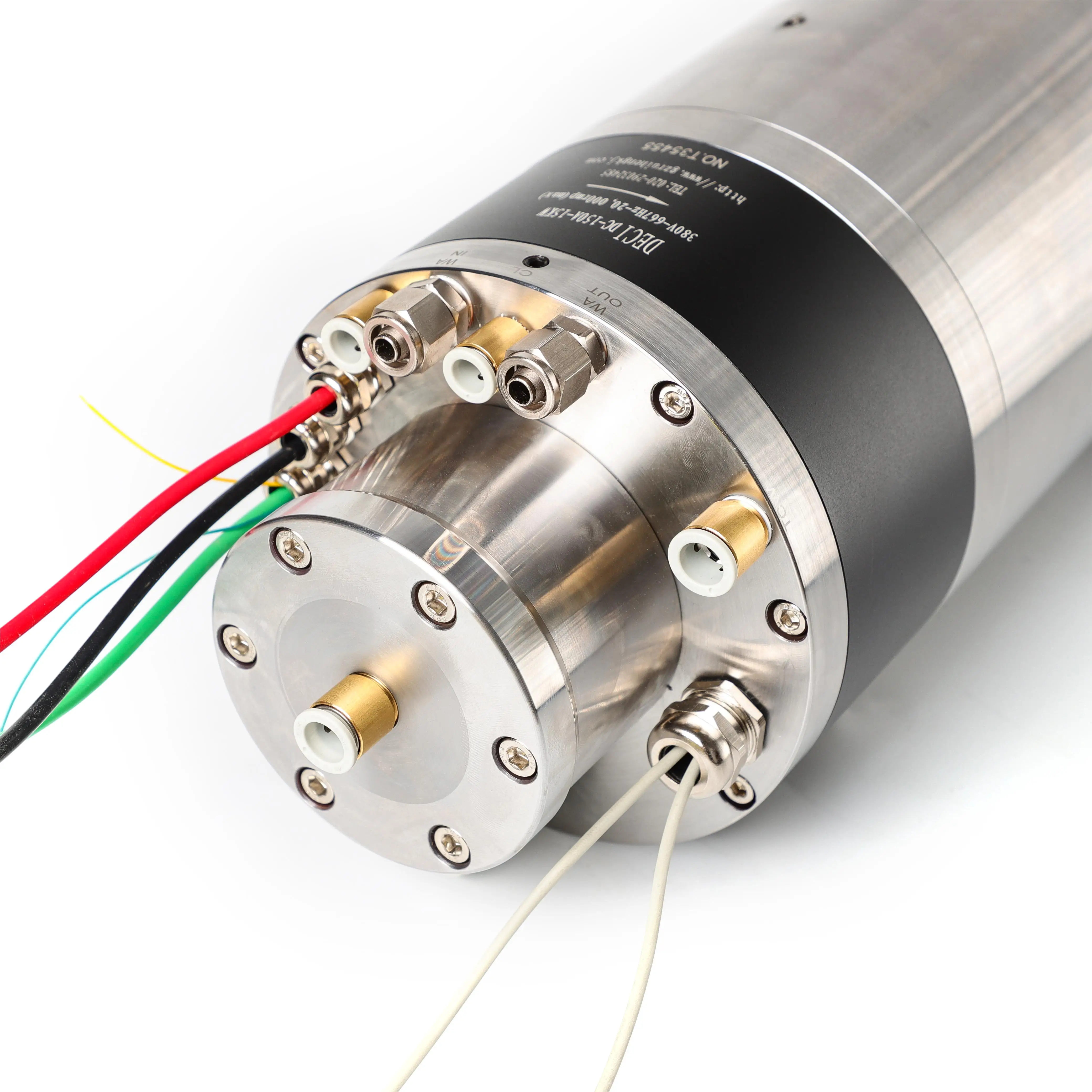

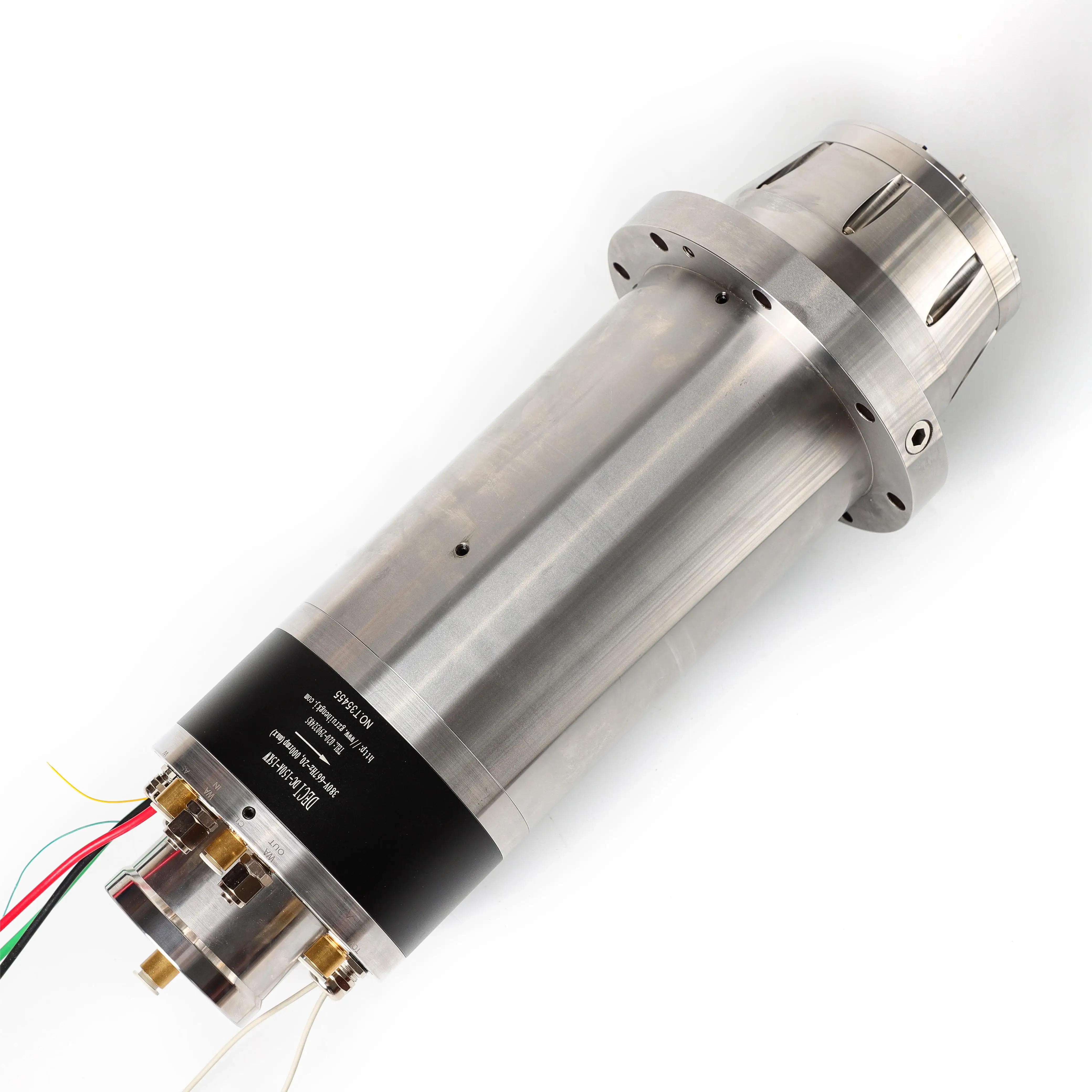

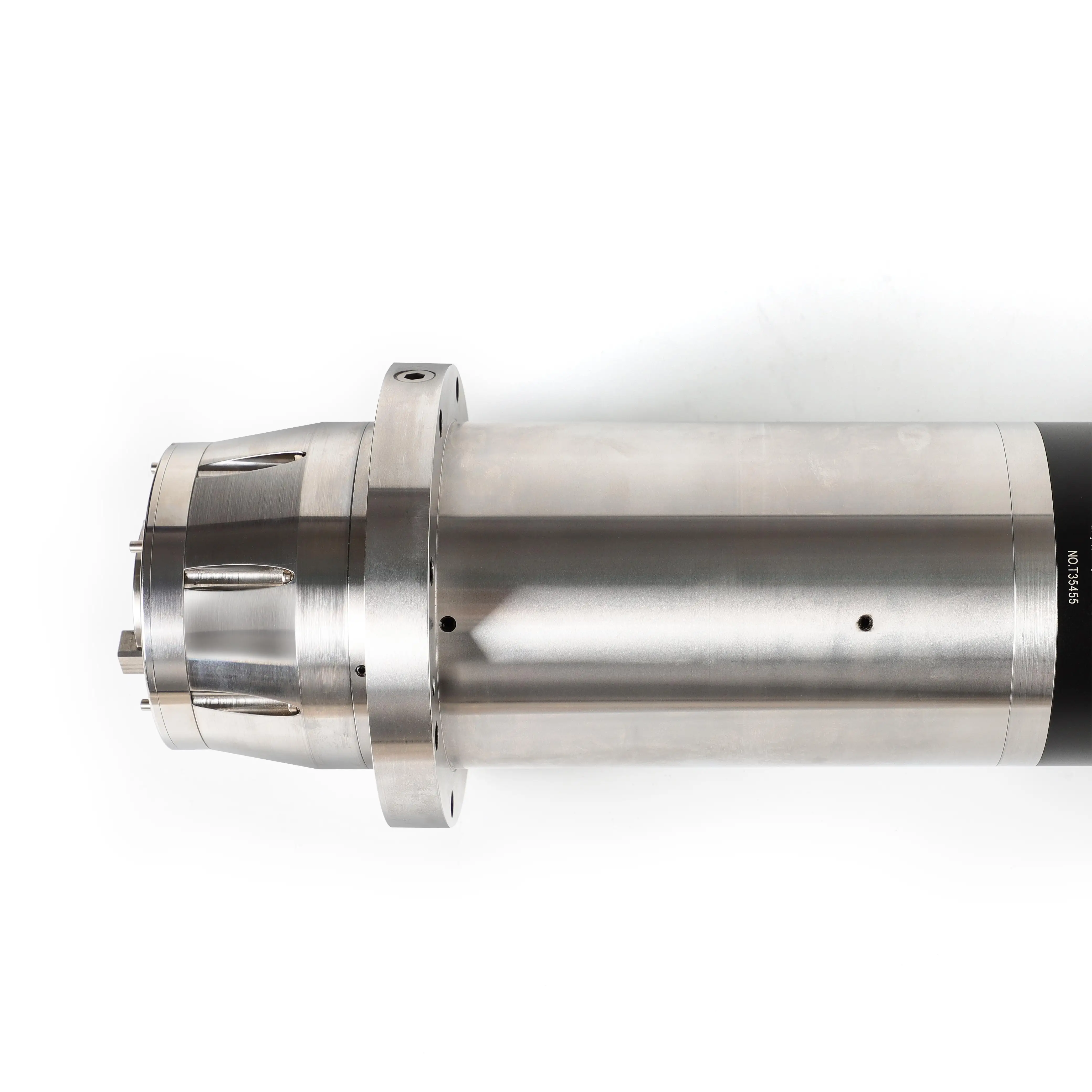

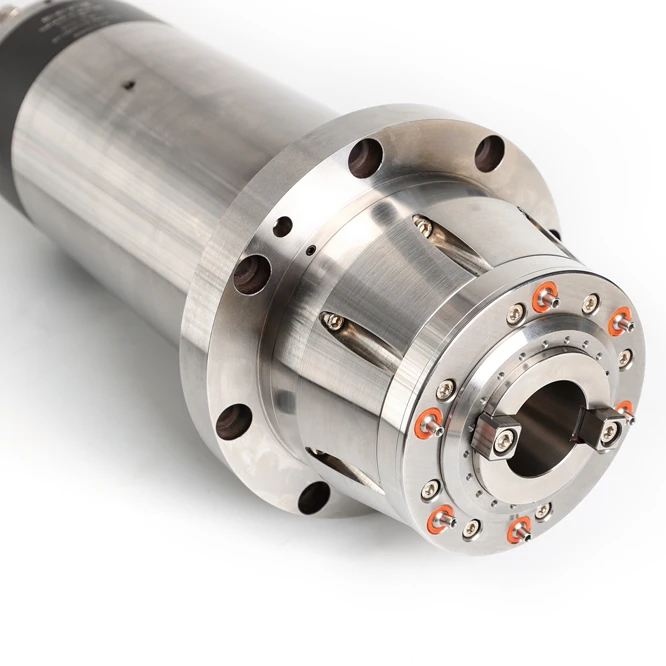

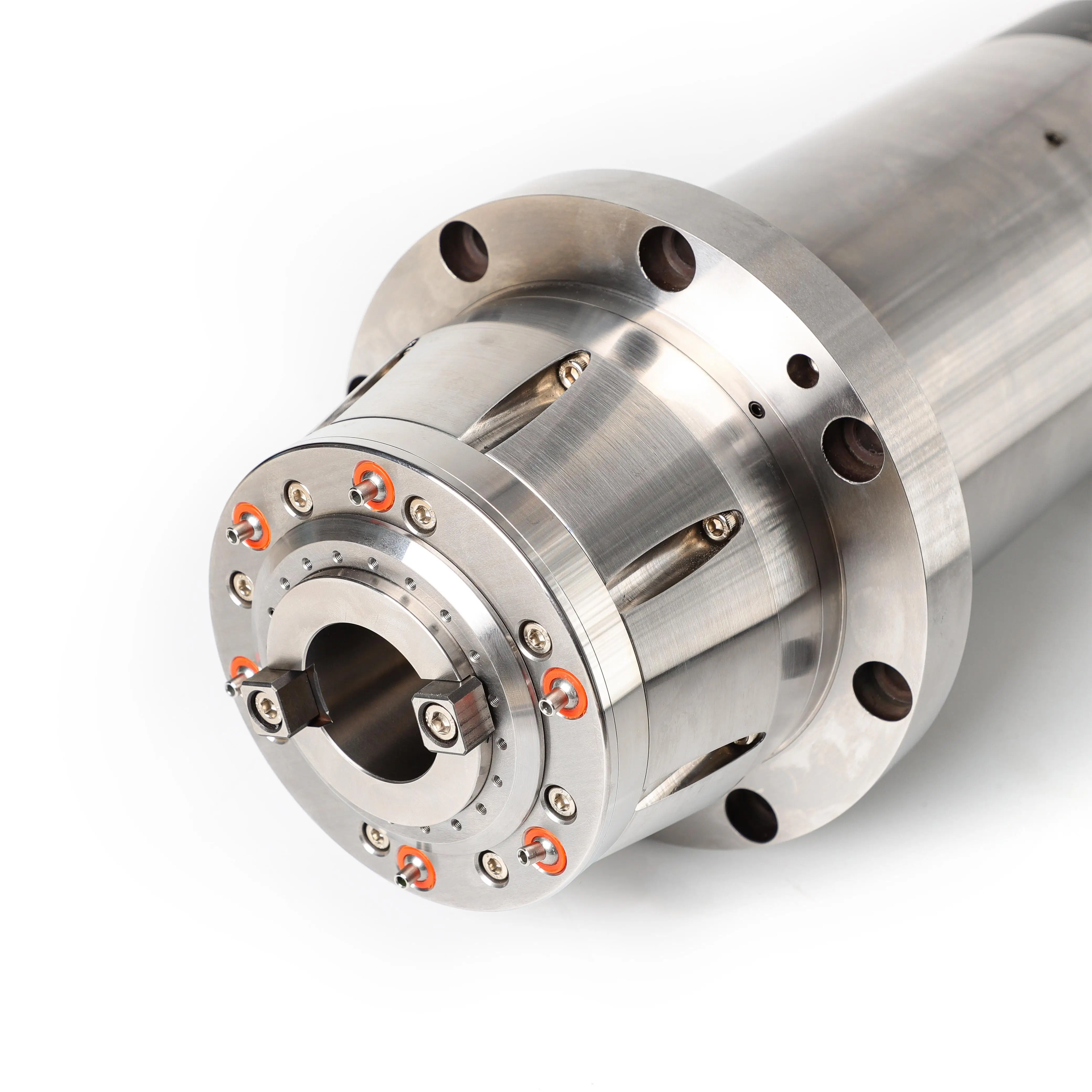

DECI BT40 15kw 18000rpm cnc router atc motorized electric engine spindle motor for cnc manufacturer metal drilling
- Category: >>>
- Supplier: Guangzhou Ruiheng Science & Technology Co. Ltd.
Share on (1601207999565):
Product Overview
Description
DC-150AYCZS-BT40 | ||||||
Parameters | ||||||
Moter Power(KW) | 20 | Rated voltage (V/AC) | 380 / 220 | |||
Maximum speed(Rpm) | 20000 | Maximum current (A) | 57 | |||
Maximum frequency (Hz) | 1000 | Torque (N·M) | 35 | |||
Technical parameters | ||||||
Shaft Rotation Accuracy (mm) | ≤ 0.001 | Tooling Releasing pressure (Kgf/cm²) | 50-80 | |||
Tooling Exchange Method | ATC | Front curtain pressure (Kgf/cm²) | 2.5-3.0 | |||
Tooling Pulling Force(≥N) | ≥6000 | Tool return pressure(Kgf/cm²) | 5.6-6.0 | |||
Tooling Connection | BT40 | Cooling method | Water / Oil mist | |||
Encoder (Optional) | Sin / cos, 1 vpp | Coolant Pressure (Kgf/cm²) | ≥ 2.5 | |||
Proximity switch | PNP | Bearing lubrication mode | Grease | |||
Balance Level | G1 | Tooling Installation Method | Flange / Clamp | |||
Vibration value (mm/s) | ≤ 0.8 | Weigh (Kg) | 50.5 | |||
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.
Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.
Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.
Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.
Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
A: We are the only factory for DECI brand.
Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.
Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.
Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.
Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
