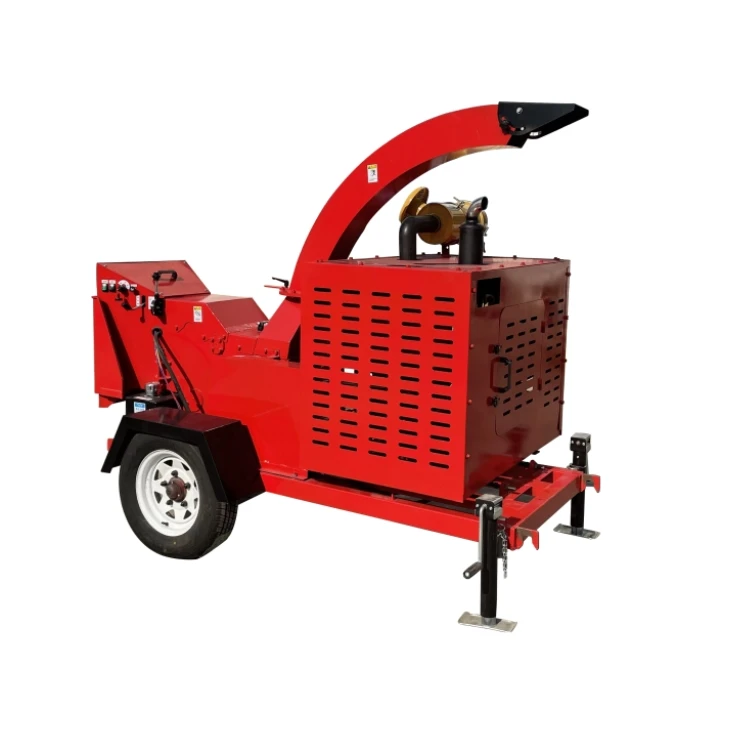

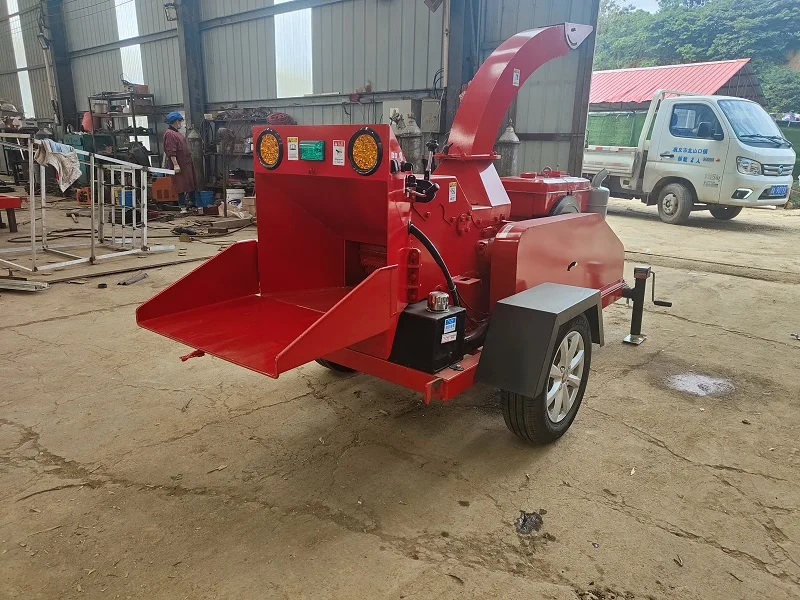

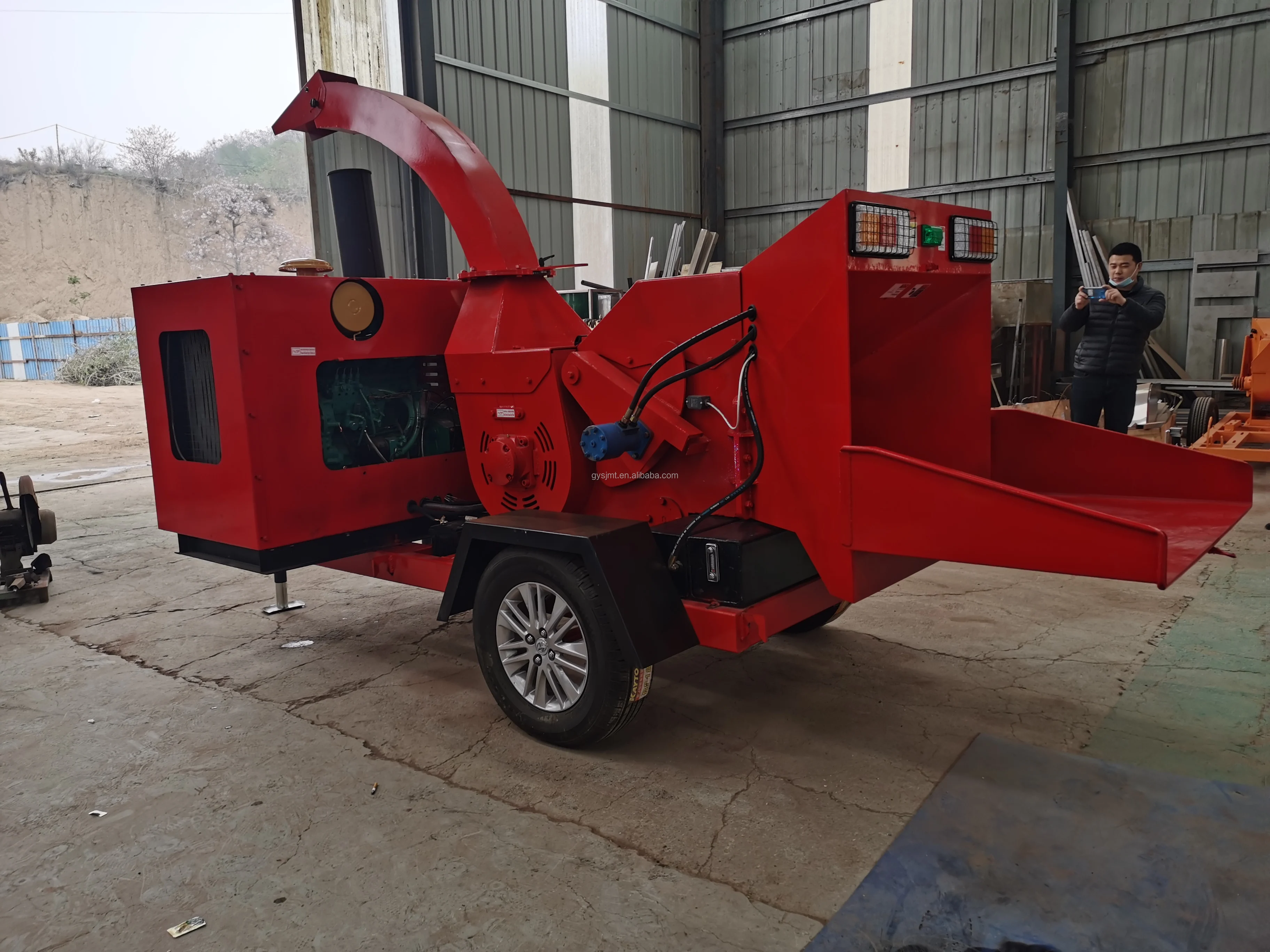

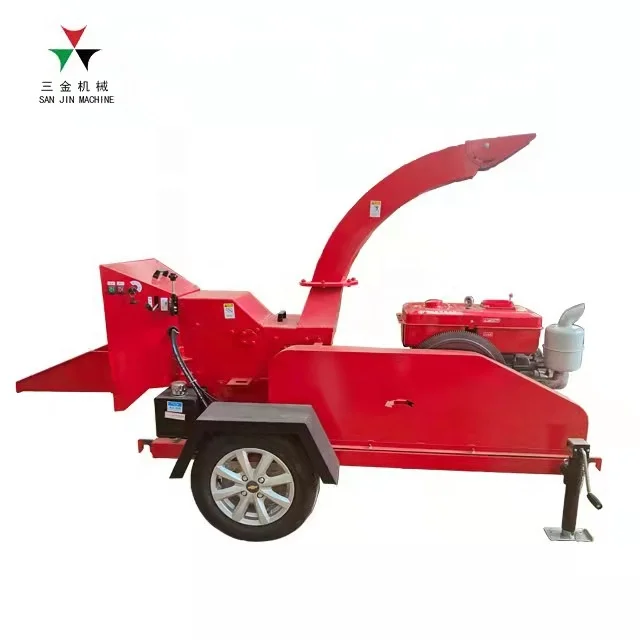

Hot sale 102hp self powered Diesel Wood Chipper Machine Hydraulic feeding Mobile wood chipper shredder
- Category: >>>
- Supplier: Gongyi Sanjin Charcoal Machinery Factory
Share on (1601208116320):
Product Overview
Description
No noise diesel engine electric waste hard wood chipper shredder
garden mobile tree branches crusher cutting machine 15hp price
THE TECHNICAL PARAMATERS
Model | 300 | 500 |
Electricity motor power | 22-40kw | 55kw |
Diesel engine power | 32-54HP | 120HP |
Output capacity | 1-2T/H | 5-7T/H |
Output size | 2-15mm | 2-15mm |
Max. diameter of raw material | 120mm | 250mm |
Inlet feeding size | 310*180mm | 460*380mm |
Number of blades | 5PCS (4pcs moving knives and 1pcs fixed knives) | 5PCS (4pcs moving knives and 1pcs fixed knives) |
Dimension | 2.3*1.25*1.65m | 4.2*2*2.6m |
Weight | 750kg | 2200kg |

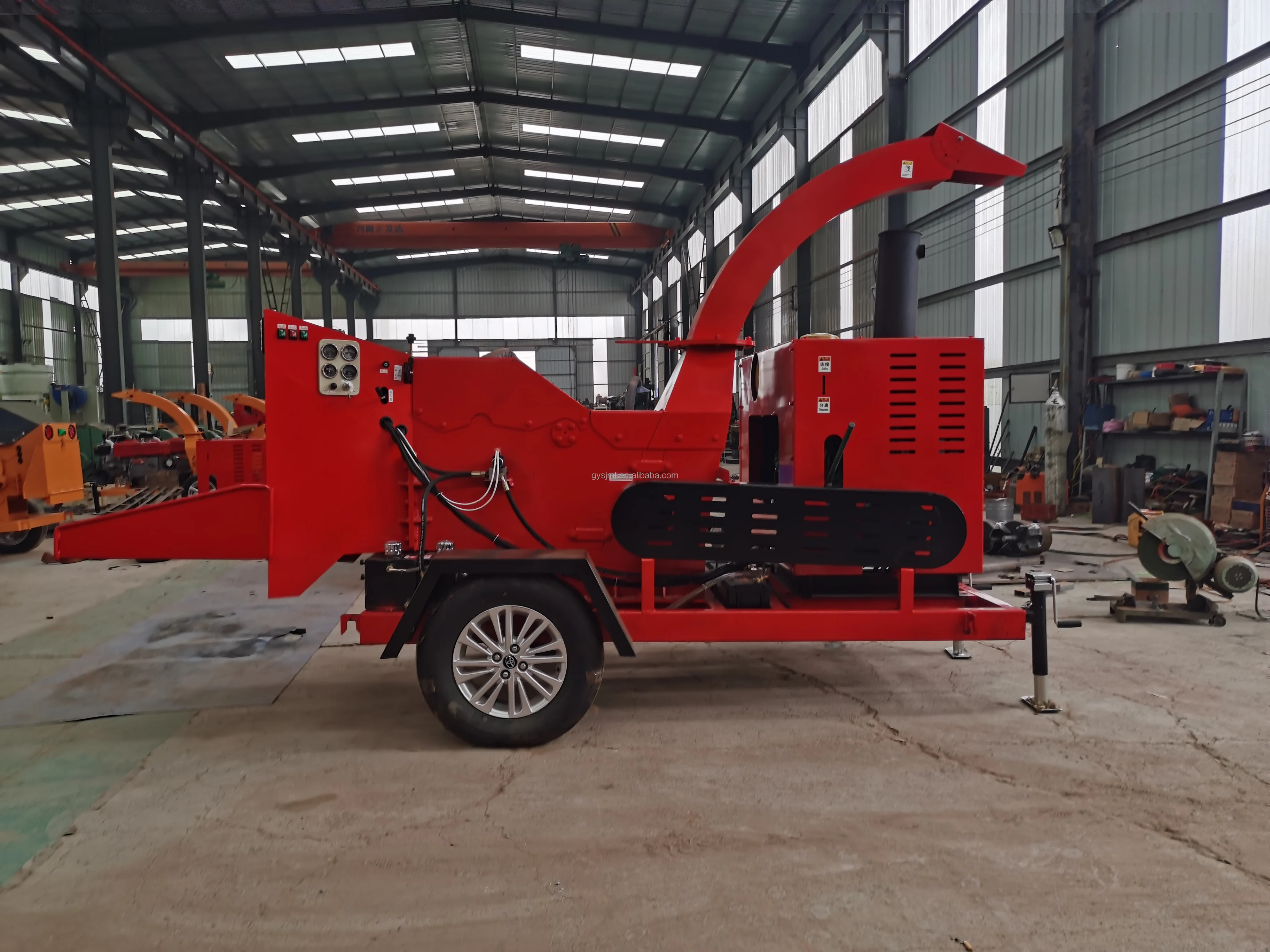

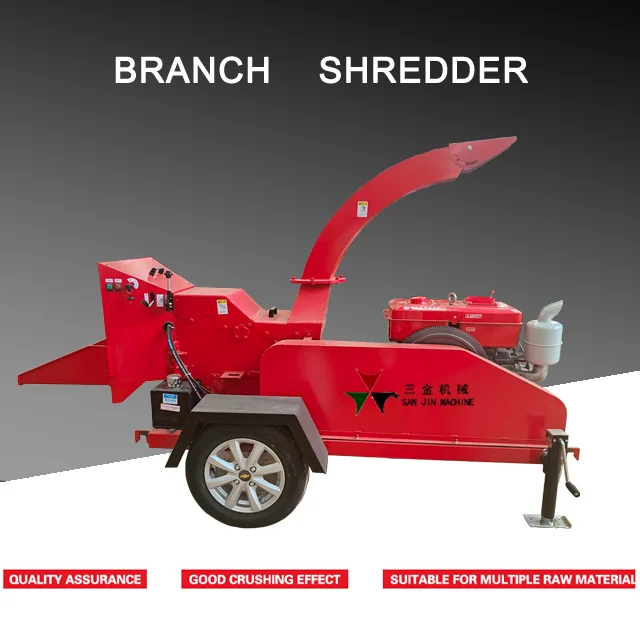

Tree Branch crusher:
Tree Branch crusher is the specially designed and highly efficient wood processing equipment which can process logs, wood sticks, tree branches and waste wood material into powder and sawdust one time. The size of powder can be adjusted according to different sizes of cutter.

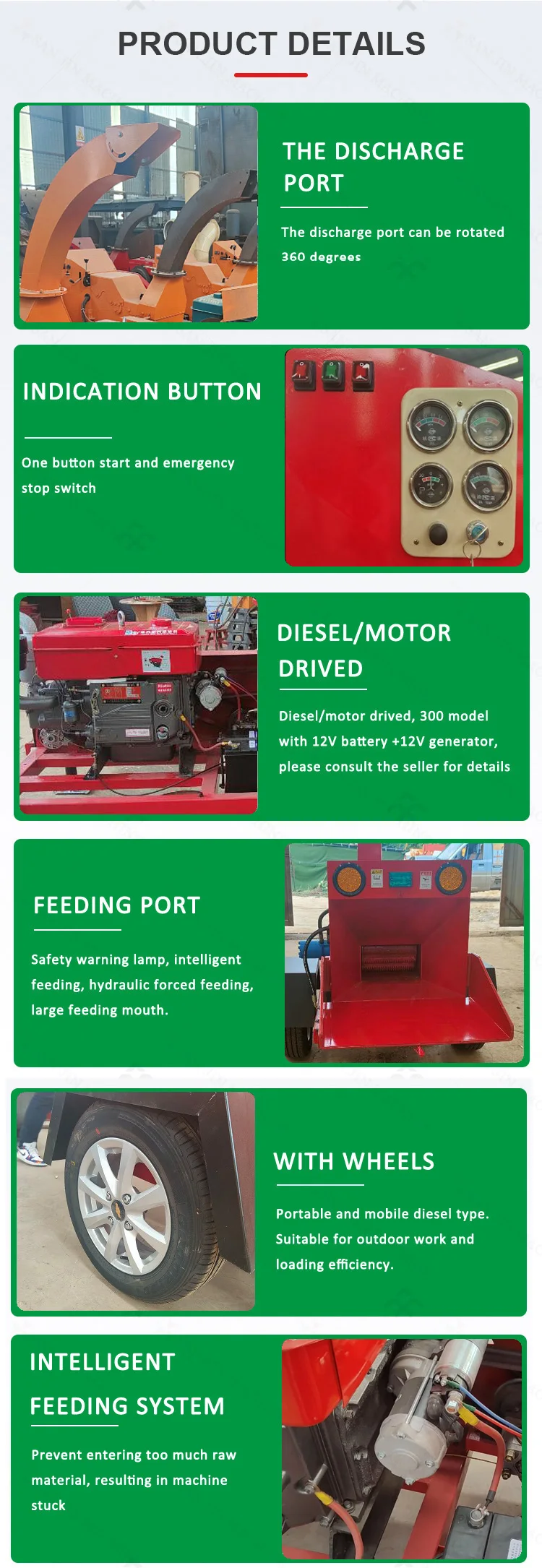

The Discharge Port:
Discharge height：360 degree adjustable steering, discharge outlet baffle design can flexibly control the range.
Intelligent Feed System:
Equipped with hydraulic intelligent feed system, when the feed diameter is greater than a certain value, the feed system starts pulse feed cutting, effectively prevent the material to rebound outward, to ensure the smooth operation of diesel engine, greatly improve the operator's safety and branch chip efficiency. Reduce manual and improve the grinding efficiency.
In addition,Feed roller can be reversed to prevent wood stuck cutter head.

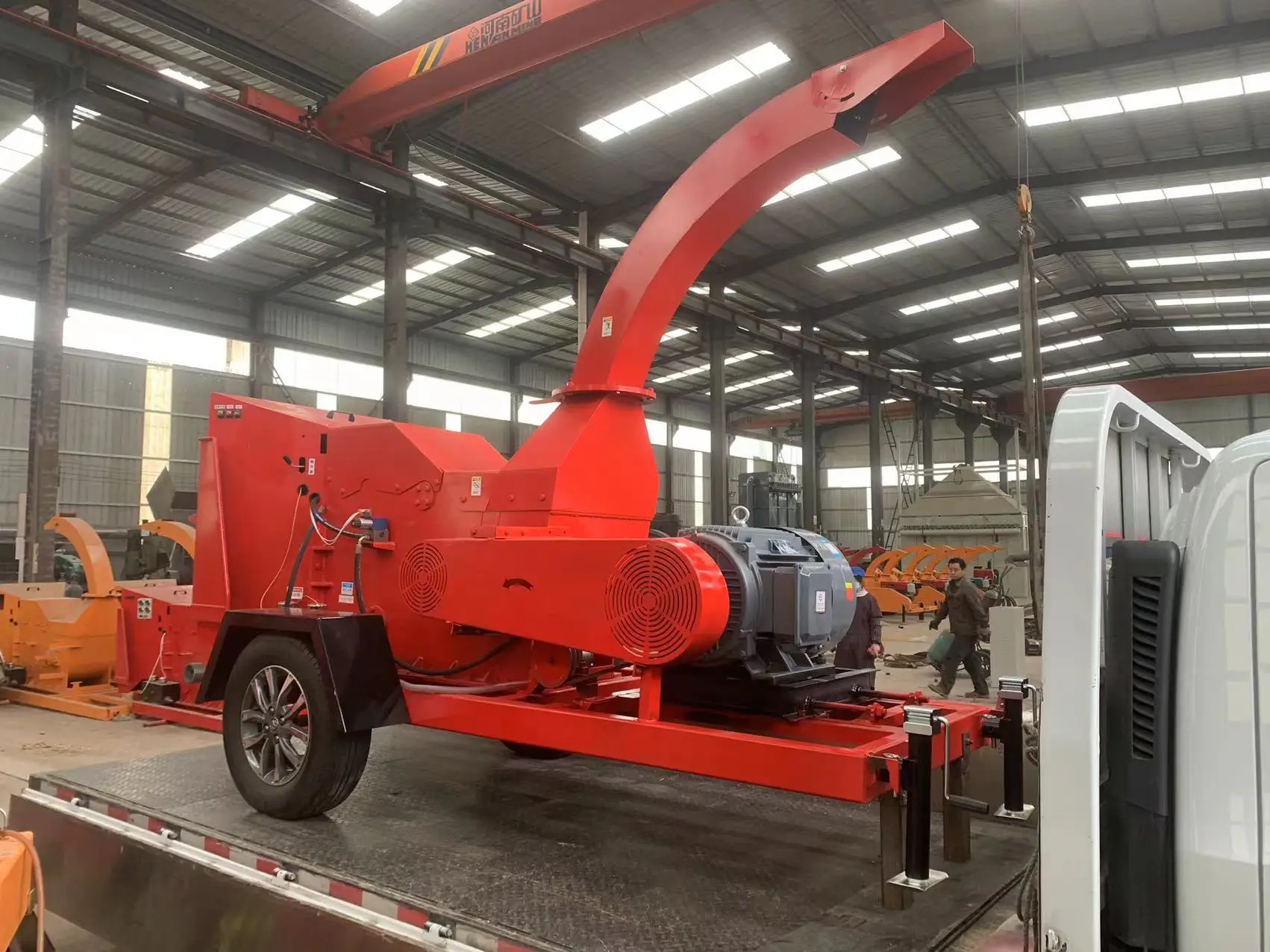

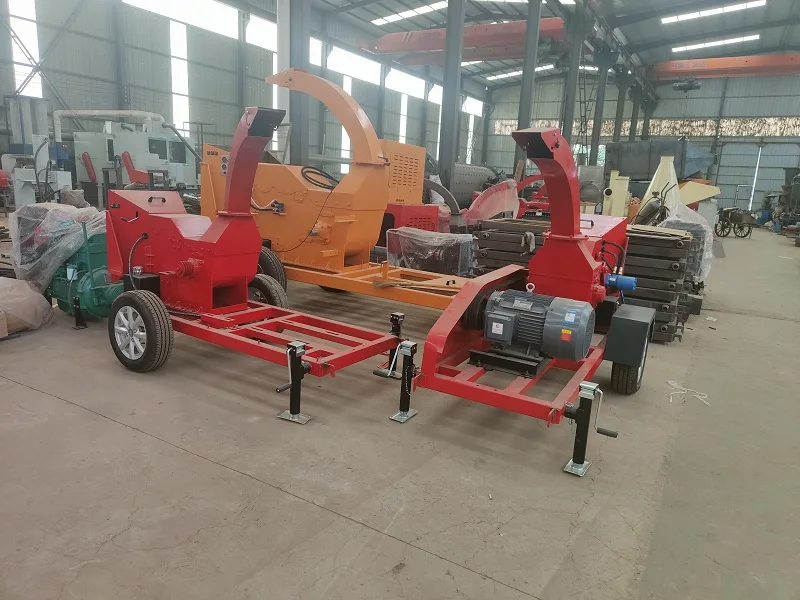

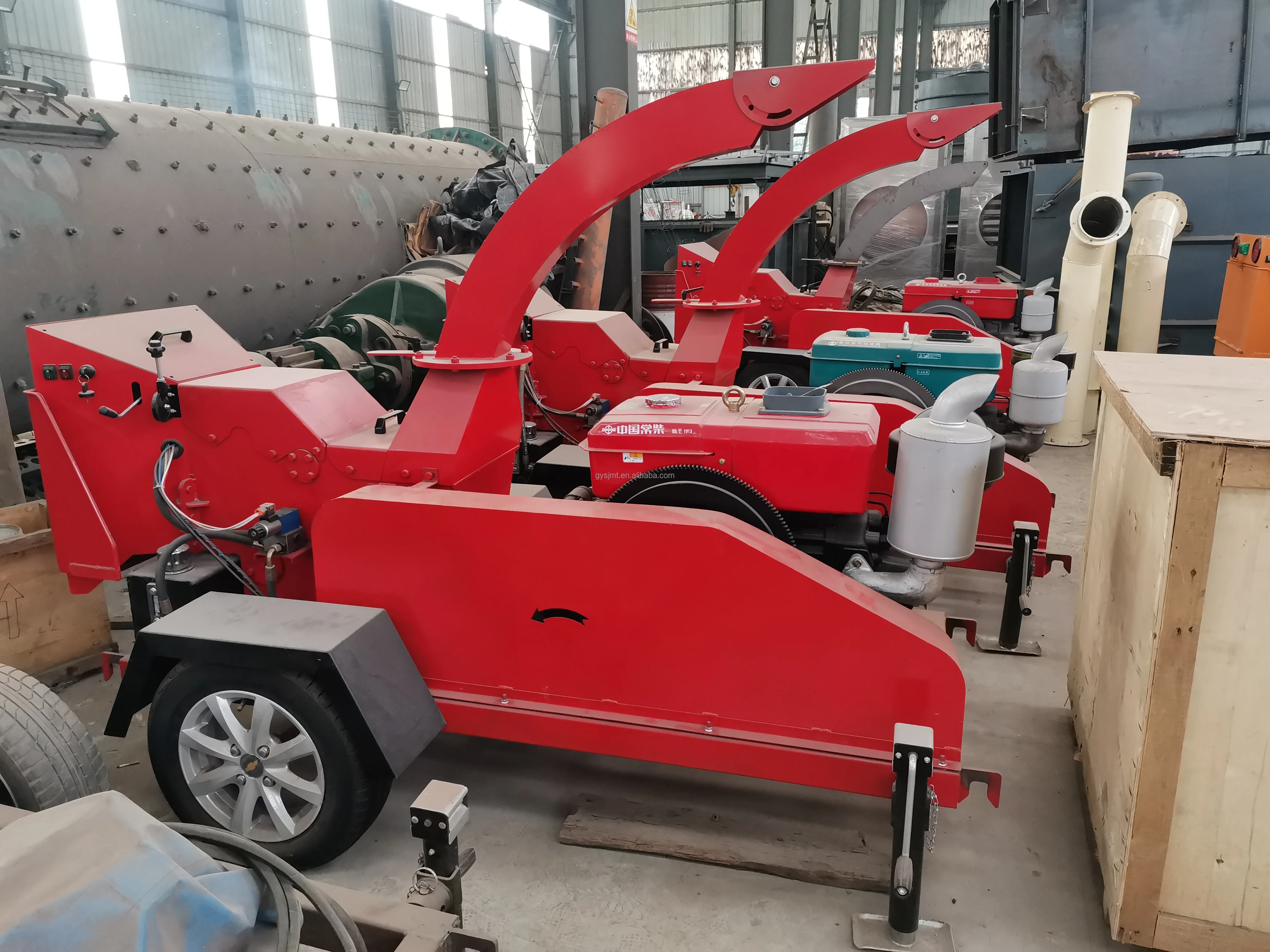

Diesel or Motor Drived:
Electric start, central control integrated operation, save labor, Emergency stop button is designed around feeding mouth to ensure operator safety. The engine is available in diesel and electric, with wheels for more mobility, more convenient.
RAW MATERIALS
The wood crushers are for grinding the Biomass like straw, coconut shell , stalk and wood chip, tree branch and forest waste to be powder of less than 3-5mm, which is right size before pellets or briquette. It is also ideal machine for farming material like dry or fresh seeding of yam, peanut, rice and other plants, husks, maize, wheat, beans of all.
Wood Log
Straw
Fresh branches
THE FINAL PRODUCTS
WIDE APPLICATION
This machine is mainly used in garden construction, garbage classification, nursery, park, farm, orchard, forest and so on. It adopts dragging and hanging design, can be dragged and hung by truck, the crushed materials are directly sent to the back of the truck, greatly reducing the transportation cost.
Forest Farm
Green Belt Trim
Grape Orchard
Garden Pruning
Farm
Breeding Base

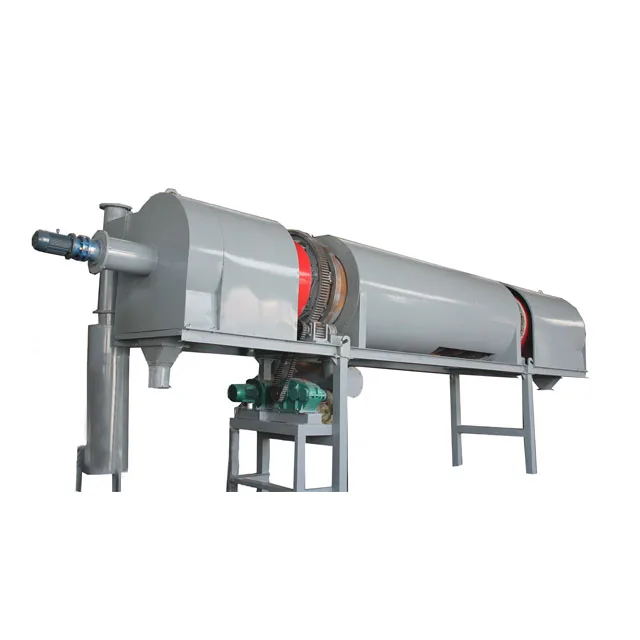

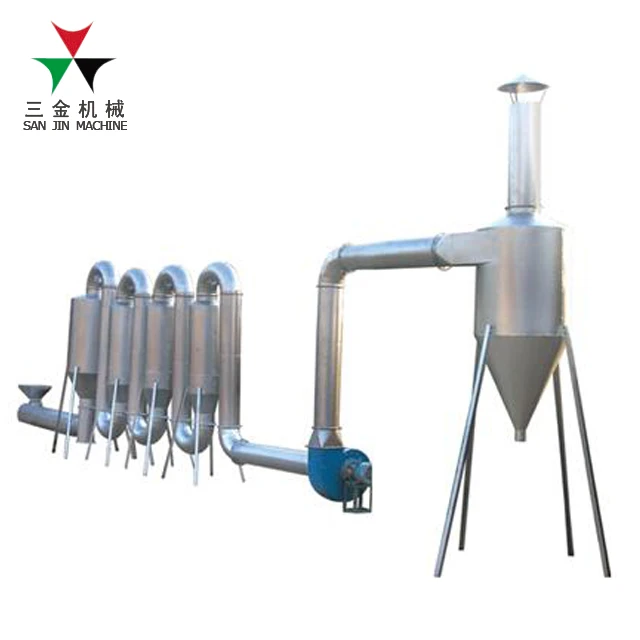

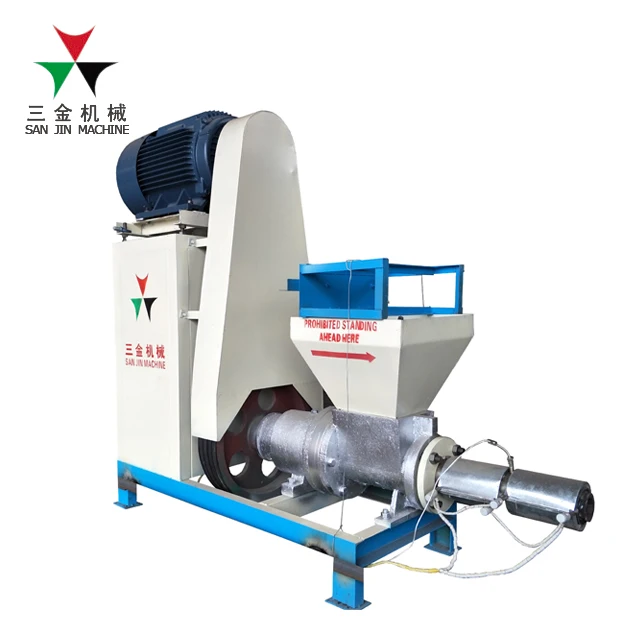

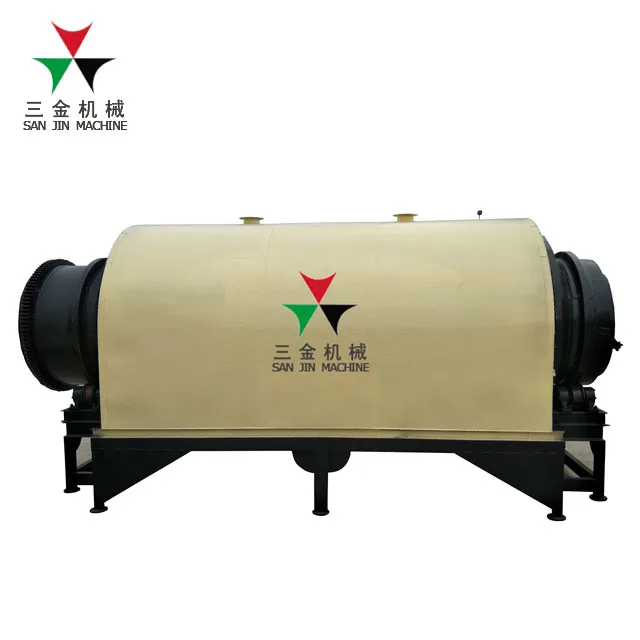

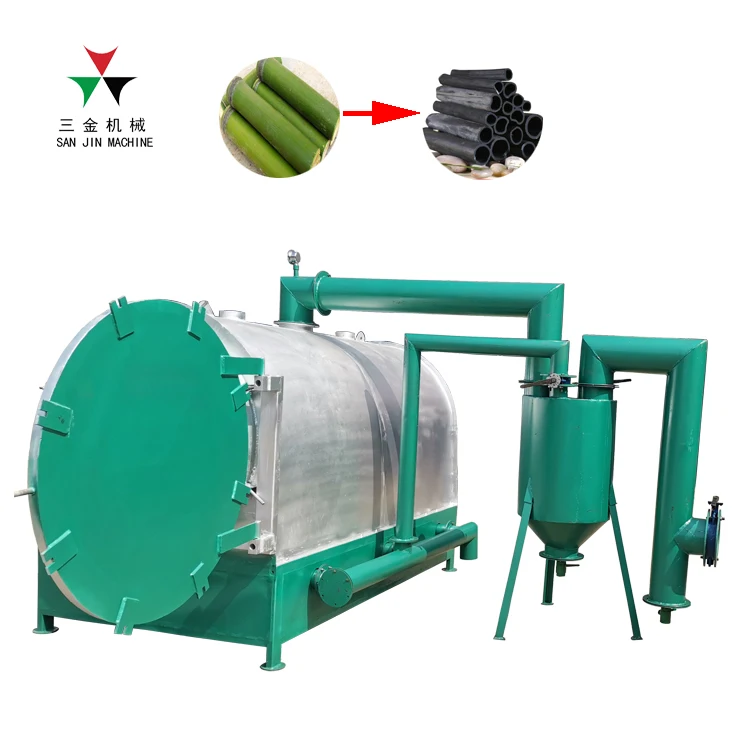

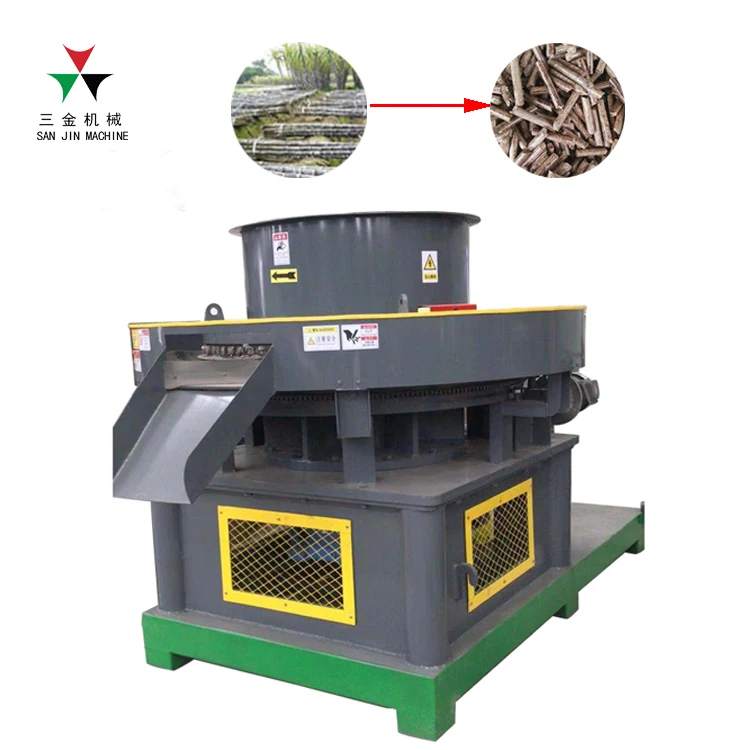

OTHER SUPPORTING PRODUCTS
1.What is the main material of this machine ?
It used to crush wood branches, wood logs, bamboo, straw, coconut shell , stalk and wood chip, tree branch and forest waste etc.
2.What is the finished product?
The output of this machine is very high, it can reach 1-10T per hour. The finished product is wood chips of various sizes, and the size of wood chips can be adjusted.
3.What are the main applications of this machine?
.It is suitable for fruit farm, forest farm, tea factory, nursery, garden, etc. The wood crusher is also suitable for parks, schools, enterprises, urban communities, branches, branches, leaves crusher, it can be used for edible mushroom substrate.
4.What are the advantages of this shredder?
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
5.What vulnerable parts does the machine have?
Blades and belts. Beyond that, nothing else.
