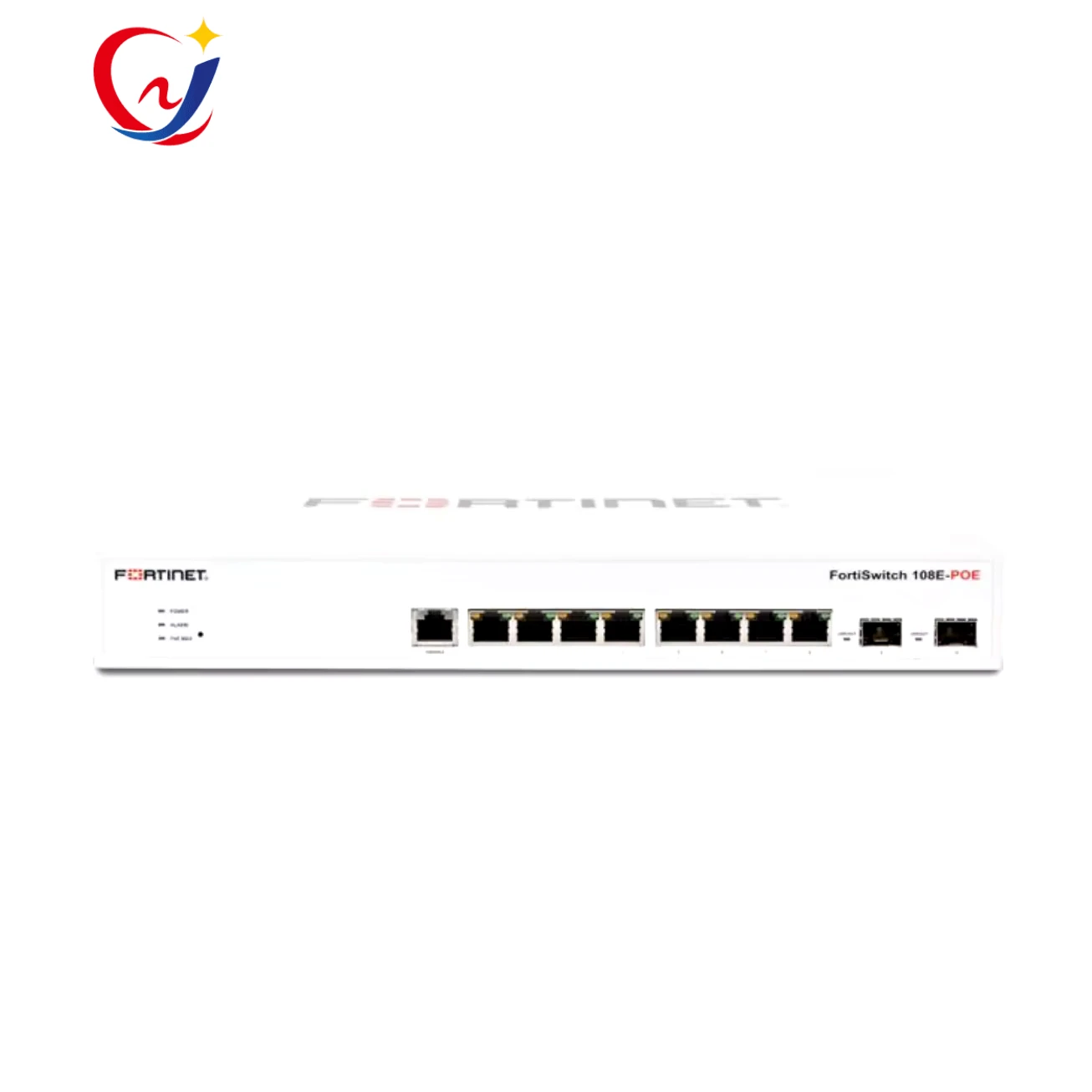

Fortinet FortiSwitch 100 Series Layer 2 FortiGate switch controller compatible PoE switch FS 108E POE
- Category: >>>
- Supplier: Wuhan Tengxin Technology Co. Ltd.
Share on (1601208149386):
Product Overview
Description
Products Description
FS-108E-POE Specification | |
General | |
Device Type | Switch - 8 ports - managed |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 4 x 10/100/1000 (PoE ) 2 x Gigabit SFP 4 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE |
PoE Budget | 65 W |
Performance | Switching capacity: 20 Gbps | Packet forwarding rate: 14.88 Mpps | Latency: 4 µs |
Capacity | VLANs supported: 4000 | Link aggregation groups: 8 | Total link aggregation groups: 8 |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | Yes |
Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
Authentication Method | RADIUS |
Features | Flow control, auto-negotiation, port mirroring, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Jumbo Frames support, STP Root Guard, fanless, Link Aggregation Control Protocol (LACP), DHCP client, Management Information Base (MIB), 512KB packet buffer, 802.1x authentication, Storm Control, Back Pressure Support, Link Aggregation, Management Information Base (MIB) II, Guest VLAN, STP BPDU Guard, IPv6 management, VLAN Tagging, FortiLink Mode, MAC Access Bypass (MAB), Telnet server |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX |
RAM | 256 MB DDR3 SDRAM |
Flash Memory | 32 MB |
Status Indicators | Power, alarm, link/activity |
Expansion / Connectivity | |
Interfaces | 4 x 1000Base-T RJ-45 PoE | 2 x Gigabit LAN SFP | 1 x console RJ-45 management | 4 x 1000Base-T RJ-45 |
Power | |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
Power Consumption Operational | 5.19 Watt |
Miscellaneous | |
MTBF | >10 years |
Compliant Standards | UL, VCCI, BSMI, CB, FCC, RoHS2, RCM |
Dimensions | |
Width | 13 in |
Depth | 8.2 in |
Height | 1.7 in |
Manufacturer Warranty | |
Service & Support | Limited warranty - lifetime |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 158 °F |
Company Profile
Packing & Delivery
FAQ
Q1: What's your advantages? A1: We are premium selected partner and a professional supplier in network equipment field more than ten years. We supply original products with good price to customers. We have professional sales team provide 24 hours free-consulting, and we also have professional technical team and after-sales department.
Q2: How about the warranty? A2: 1 Year warranty.
Q3: what's the MOQ for your products? A3: 1piece.
Q4: What's the payment terms? A4: Pre T/T or paypal or west union or Alibaba Trade Assurance order.
Q5: What's the package? A5: Original packing. For the outside, we will pack it in an empty box to protect from damaged during transportation, and ensure you will receive the goods in good condition.
| Product Features | |
| Function | LACP, QoS, SNMP, Stackable, VLAN Support |
| Place of Origin | China |
| Products Status | Stock |
| Product Name | FS-108E-POE |
| Ports | ≥ 28 |
| Transmission Rate | 10/100/1000Mbps |
| Communication Mode | Full-Duplex & Half-Duplex |
| Switch Capacity | 3.2Tbps/32Tbps |
| Private Mold | NO |
| Model Number | FS-108E-POE |
