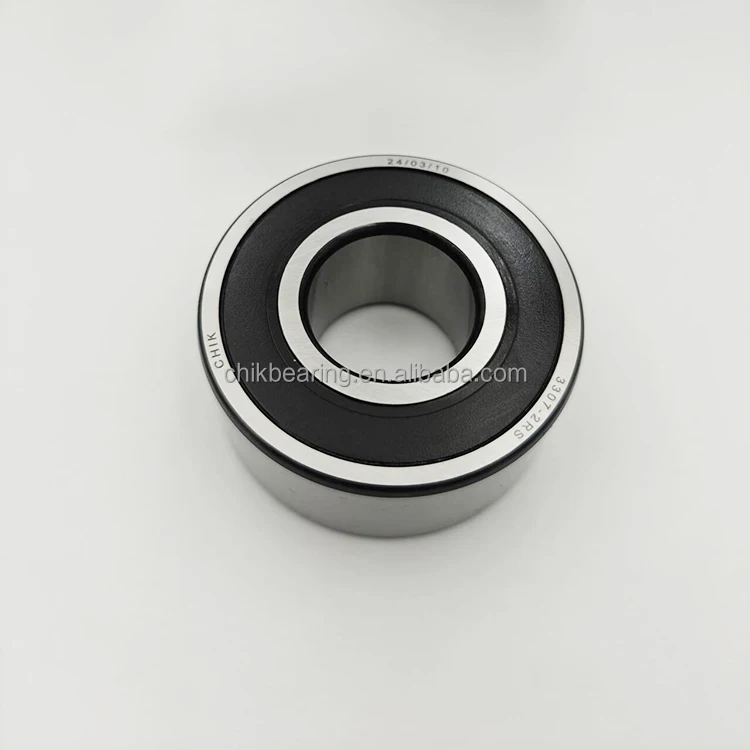

P6 grade 3306 A Double row angular contact ball bearing
- Category: >>>
- Supplier: Shandong CHIK Bearing Co. Ltd.
Share on (1601208169249):
Product Overview
Description
PRODUCT INFO.
1.P6 grade 3306 A Double row angular contact ball bearing
Deep groove ball bearing open and sealed | ||
1 | Brand | CHIK or OEM |
2 | Bearing Name | High quality deep groove ball bearing open,sealed(ZZ,RS,2RS) |
3 | Size | Inner size:10-400mm; Outer size 30-500mm |
4 | Weight | 0.1-40kgs |
5 | Material | GCr15 steel,carbon steel,stainless steel etc. |
6 | Hardness | 58-62HRC |
7 | Seal type | open,sealed(ZZ,RS,2RS) |
8 | Precision grade | P0,P2,P5,P6,P4 |
9 | Vibration level | Z1V1,Z2V2,Z3V3 |
10 | Clearance | C0,C2,C3,C4,C5 /ABEC-1,ABEC-3,ABEC-5 |
11 | Cage type | brass;steel plate,nylon,aluminium alloy etc. |
12 | Packing: | Pallet,wooden case,commercial packaging or as customers' requirement. |
13 | Ball Bearings Feature | Long-life with high quality; |
14 | Application | gearbox,auto,reduction box,engine machinery,mining machinery,bicycles,etc |
15 | Payment terms | FOB,CFR,CIF,EXW |
16 | Delivery time | Ship out within 3 days after receive the payment (Small QTY); Ship out within 20-30 days after receive the payment (20"GP) |
17 | Certificate | CE ISO9001 |
| CHIK DOUBLE ROWS DEEP GROOVE BALL BEARING | |||||
| 3000 | 3001 | 3002 | 3003 | 3004 | 3005 |
| 3006 | 3007 | 3008 | 3200 | 3201 | 3202 |
| 3203 | 3204 | 3205 | 3206 | 3207 | 3208 |
| 3209 | 3210 | 3211 | 3212 | 3213 | 3214 |
| 3215 | 3216 | 3217 | 3218 | 3219 | 3220 |
| 3221 | 3222 | 3224 | 3302 | 3303 | 3304 |
| 3305 | 3306 | 3307 | 3308 | 3309 | 3310 |
| 3311 | 3312 | 3313 | 3314 | 3315 | 3316 |
| 3317 | 3318 | 3319 | 3320 | 3322 | |
| 3800 | 3801 | 3802 | 3803 | 3804 | 3805 |
| 3806 | 3807 | 3808 | 3809 | 3810 | 3811 |
| 3812 | 3813 | 3814 | 3815 | 3816 | 3817 |
| 3818 | 3819 | 3820 | |||
| 63308-2Z/YA | 63300-2Z/YA | 63209-2Z/YA | 63204-2Z/YA | 63203-2Z/YA | 63201-2Z/YA |
| 63200-2Z/YA | 4000WB-2RS | 426X2WB-2RS/YA2 | 4001X2WB-2RS/YA2 | 400X2WB-2RS/YA2 | 408X2WB-2RS/YA2 |
| 406X3WB-2RS | 4O6WB-2RS/YA2 | 610960 | 44908-2RS/P6 | 4404X3 | 44907-2RS/P6 |
CHIK 3300 SERIES BALL BEARING LIST
3302 3056302 3302-ZZ 3056302-ZZ 3302-2RS 3056302-2RS
3303 3056303 3303-ZZ 3056303-ZZ 3303-2RS 3056303-2RS
3304 3056304 3304-ZZ 3056304-ZZ 3304-2RS 3056304-2RS
3305 3056305 3305-ZZ 3056305-ZZ 3305-2RS 3056305-2RS
3306 3056306 3306-ZZ 3056306-ZZ 3306-2RS 3056306-2RS
3307 3056307 3307-ZZ 3056307-ZZ 3307-2RS 3056307-2RS
3308 3056308 3308-ZZ 3056308-ZZ 3308-2RS 3056308-2RS
3309 3056309 3309-ZZ 3056309-ZZ 3309-2RS 3056309-2RS
3310 3056310 3310-ZZ 3056310-ZZ 3310-2RS 3056310-2RS
3311 3056311 3311-ZZ 3056311-ZZ 3311-2RS 3056311-2RS
3312 3056312 3312-ZZ 3056312-ZZ 3312-2RS 3056312-2RS
3313 3056313 3313-ZZ 3056313-ZZ 3313-2RS 3056313-2RS
3314 3056314 3314-ZZ 3056314-ZZ 3314-2RS 3056314-2RS
3315 3056315 3315-ZZ 3056315-ZZ 3315-2RS 3056315-2RS
3316 3056316 3316-ZZ 3056316-ZZ 3316-2RS 3056316-2RS
3317 3056317 3317-ZZ 3056317-ZZ 3317-2RS 3056317-2RS
3318 3056318 3318-2RS 3056318-2RS 3322 3056322
3319 3056319 3319-2RS 3056319-2RS
3320 3056320 3320-2RS 3056320-2RS
II. DEEP GROOVE BALL BEARINGS TYPE
CHIK SINGLE ROW DEEP GROOVE BALL BEARING are most frequently used bearing type. They are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. Due to their low frictional torque, they are suitable for high and even very high speeds and are robust in operation, little maintenance. Due to the raceway geometry and the balls used as rolling elements, deep groove ball bearings can support relatively high radial loads, as well as small axial loads.
CHIK DOUBLE ROW DEEP GROOVE BALL BEARING corresponds in design to single row deep groove ball bearings. They are designed for high to very high speeds and are used where the load carrying capacity of single row deep groove ball bearings is not sufficient. Double row deep groove ball bearings are wider than single row deep groove ball bearings of the same bore and outside diameter but have a significantly higher load carrying capacity.

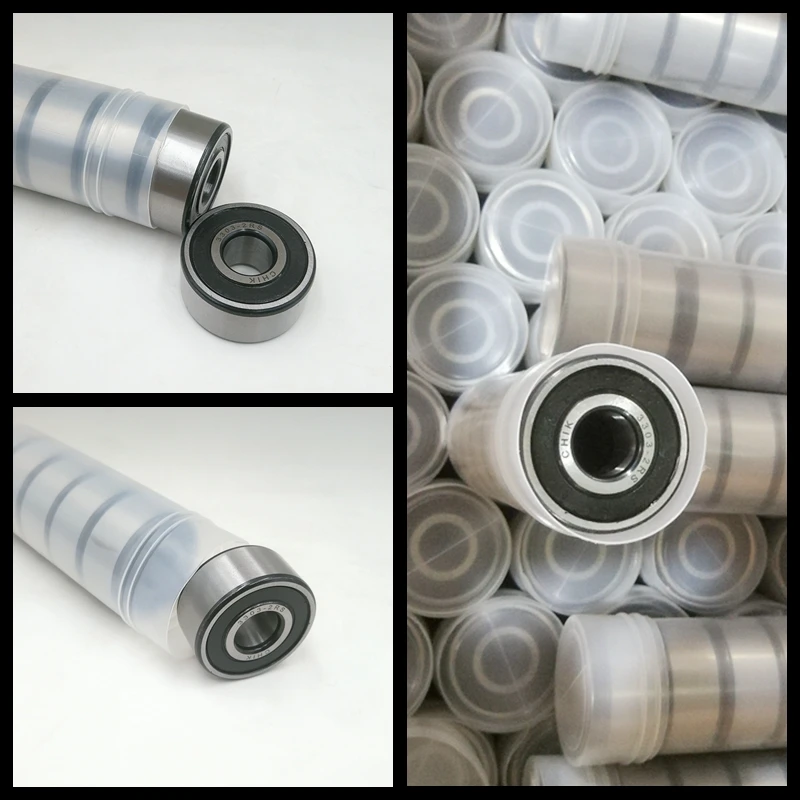

III. CHIK BEARING PACKAGING & SHIPPING&PAYMENT
1) Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2) Small sizes:Plastic Tube + Carton
3) Big sizes:Wooden Case
1)Less than 45 KGS, we will send by express. (Door to Door, Convenient)
2)Between 45 - 200 KGS, we will send by air transport. (Fastest and safest, but ?expensive )
3)More than 200 KGS, we will send by sea. (Cheapest and usual)
