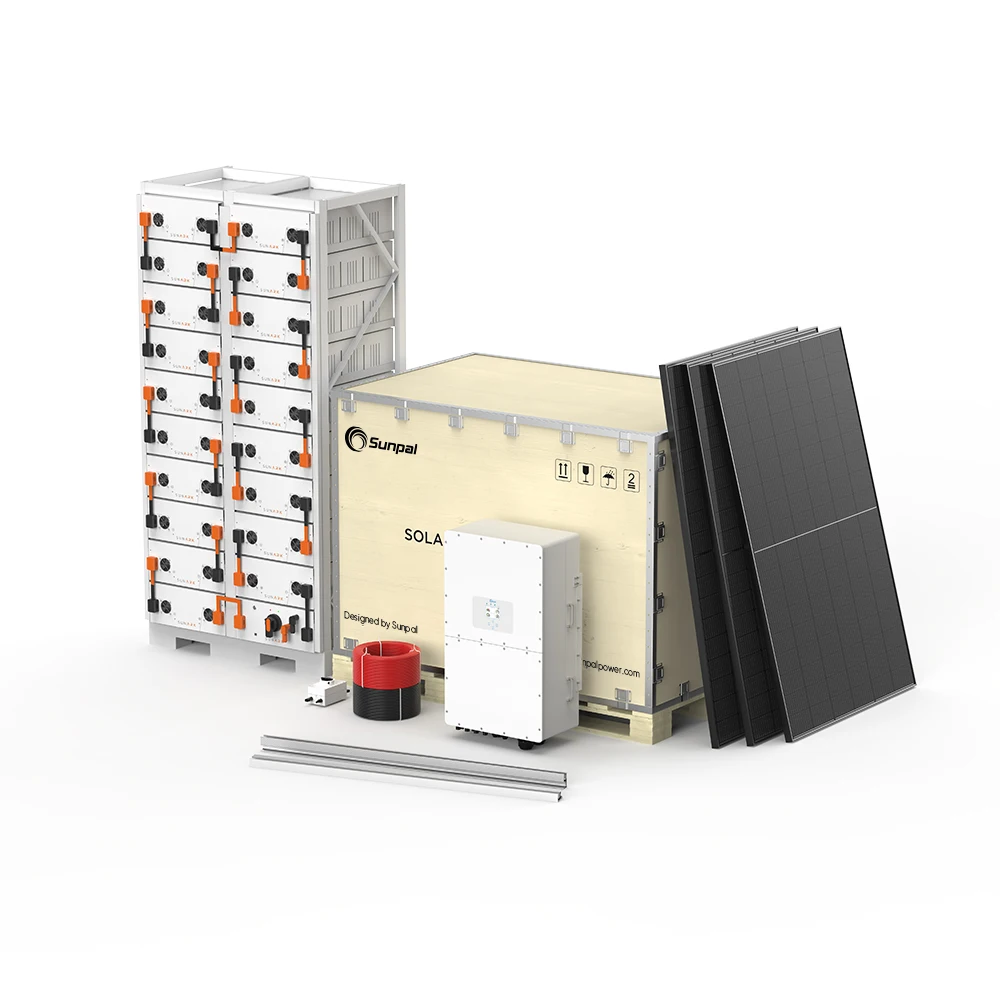

Deye SUN 40K SG01HP3 EU BM4 Hybrid Solar Power Inverter 40kW 40000W 40Kva Three Phase Solar Inverter
- Category: >>>
- Supplier: Sunpal Power Co. Ltd.
Share on (1601208178456):
Product Overview
Description

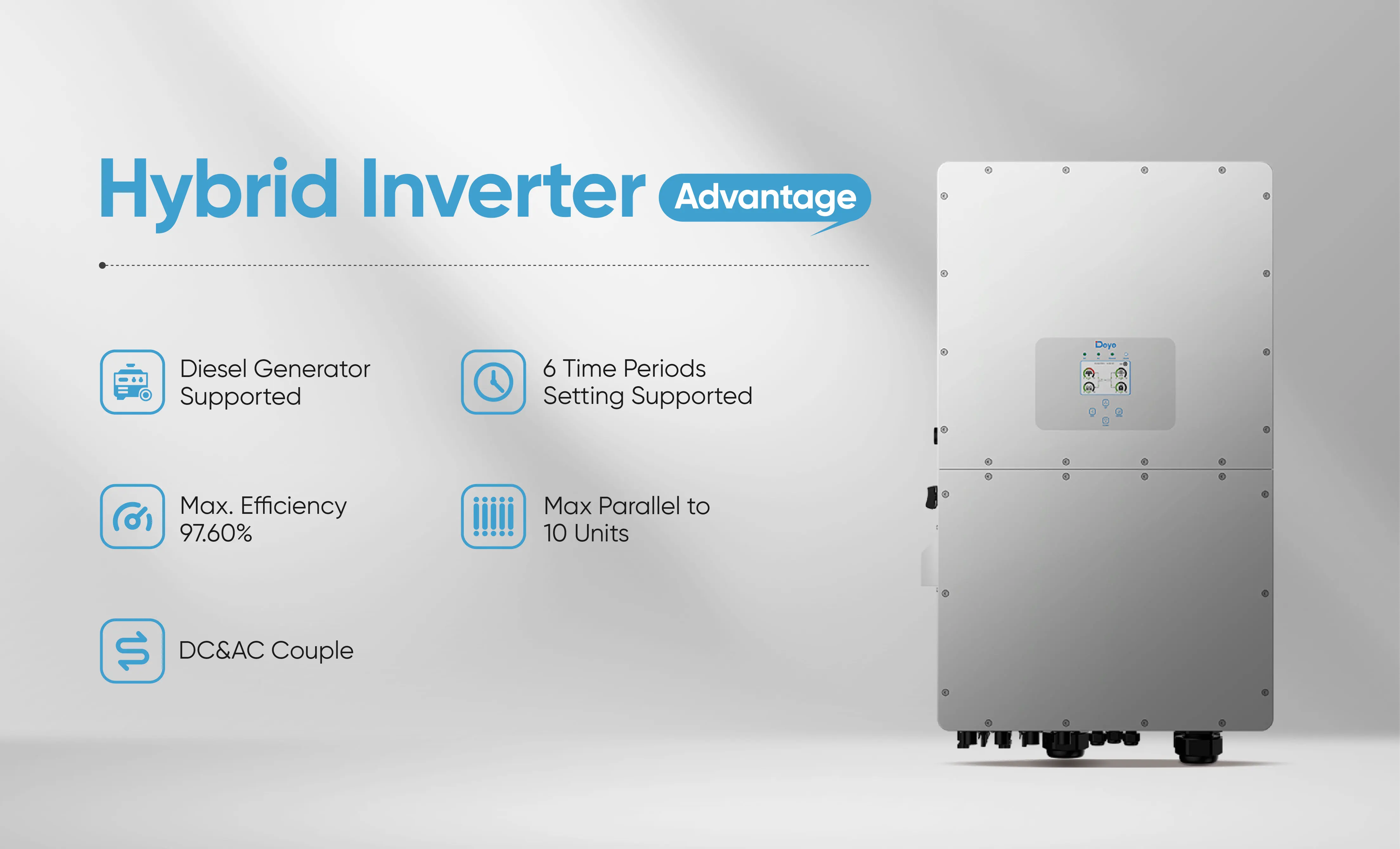

Product Description
*100% unbalanced output；each phase /AC couple to retrofifit existing solar system
*Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
*Max. charging/discharging current of 100A/High voltage battery, higher efficiency
*6 time periods for battery charging/discharging/Support storing energy from diesel generator
*Max. charging/discharging current of 100A/High voltage battery, higher efficiency
*6 time periods for battery charging/discharging/Support storing energy from diesel generator
Working Modes
Selling First
This Mode allows hybrid inverter to sell back anyexcess power produced by the solar panels to the grid.
Zero Export to Load
Hybrid inverter will only provide power to the backupload connected. The hybrid inverter will neither provide
Zero Export To CT
Hybrid inverter will not only provide power to the backup load connected
but also give power to the home load connected power to the home load nor sell power to grid.
but also give power to the home load connected power to the home load nor sell power to grid.
Model | SUN-29.9K-SG01HP3-EU-BM3 | SUN-30K-SG01HP3 -EU-BM3 | SUN-35K-SG01HP3 -EU-BM3 | SUN-40K-SG01HP3 -EU-BM4 | SUN-50K-SG01HP3 -EU-BM4 | |||||
Battery Input Data | ||||||||||
Battery Type | Lithium-ion | |||||||||
Battery Voltage Range(V) | 160-800 | |||||||||
Max.Charging Current(A) | 50+50 | |||||||||
Max.Discharging Current(A) | 50+50 | |||||||||
Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||||||||
Number of battery input | 2 | |||||||||
PV String Input Data | ||||||||||
Max DC Input Power（W） | 38870 | 39000 | 45500 | 52000 | 65000 | |||||
Max DC Input Voltage（V） | 1000 | |||||||||
Start-up Voltage（V） | 180 | |||||||||
MPPT Voltage Range（V） | 150-850 | |||||||||
Rated DC Input Voltage(V) | 600 | |||||||||
Max Input Short-Circuit Current（A） | 55+55+55 | 55+55+55+55 | ||||||||
Max Operating PV Input Current（A） | 36+36+36 | 36+36+36+36 | ||||||||
No.of MPP Trackers/No.of String Per MPP Tracker | 3/2+2+2 | 4/2+2+2+2 | ||||||||
AC Input/Output Data | ||||||||||
Rated AC Input/Output Active Power（W） | 29900 | 30000 | 35000 | 40000 | 50000 | |||||
Max AC Input/Output Apparent Power （VA） | 29900 | 33000 | 38500 | 44000 | 55000 | |||||
Peak Power (off-grid)（W） | 1.5 times of rated power,10s | |||||||||
Rated AC Input/Output Current（A） | 45.4/43.4 | 45.5/43.5 | 53.1/50.8 | 60.7/58.0 | 75.8/72.5 | |||||
Max AC Input/Output Current（A） | 45.4/43.4 | 50/47.9 | 58.4/55.8 | 66.7/63.8 | 83.4/79.8 | |||||
Max. Three-phase Unbalanced Output Current（A） | 60 | 60 | 60 | 70 | 83.4 | |||||
Max Continuous AC Passthrough (grid to load)（A） | 200 | |||||||||
Rated Input/Output Voltage/Range(V) | 220/380V，230/400V 0.85Un-1.1Un | |||||||||
Grid Connection Form | 3L+N+PE | |||||||||
Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | |||||||||
Power Factor Adjustment Range | 0.8 leading-0.8 lagging | |||||||||
Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||||||||
DC Injection Current | <0.5%ln | |||||||||
Efficiency | ||||||||||
Max Efficiency | 97.60% | |||||||||
Euro Efficiency | 97.0% | |||||||||
MPPT Efficiency | ＞99% | |||||||||
Equipment Protection | ||||||||||
Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch Overvoltage Load Drop Protection, Residual Current (RCD) Detection, Surge protection level | |||||||||
Surge Protection Level | TYPE II(DC), TYPE II(AC) | |||||||||
Interface | ||||||||||
Communication Interface | RS485/RS232/CAN | |||||||||
Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | |||||||||
General Data | ||||||||||
Operating Temperature Range | -40℃+60℃,＞45℃ Derating | |||||||||
Permissible Ambient Humidity | 0-100% | |||||||||
Permissible Altitude | 2000m | |||||||||
Noise | ≤ 65 dB(A) | |||||||||
Ingress Protection(IP) Rating | IP 65 | |||||||||
Inverter Topology | Non-Isolated | |||||||||
Over Voltage Category | OVC II(DC),OVC III(AC) | |||||||||
Cabinet size（W*H*D）[mm] | 527*894*294（Excluding connectors and brackets） | |||||||||
Weight[kg] | 80 | |||||||||
Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||||||
Type Of Cooling | Intelligent air cooling | |||||||||
Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | |||||||||
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||||||

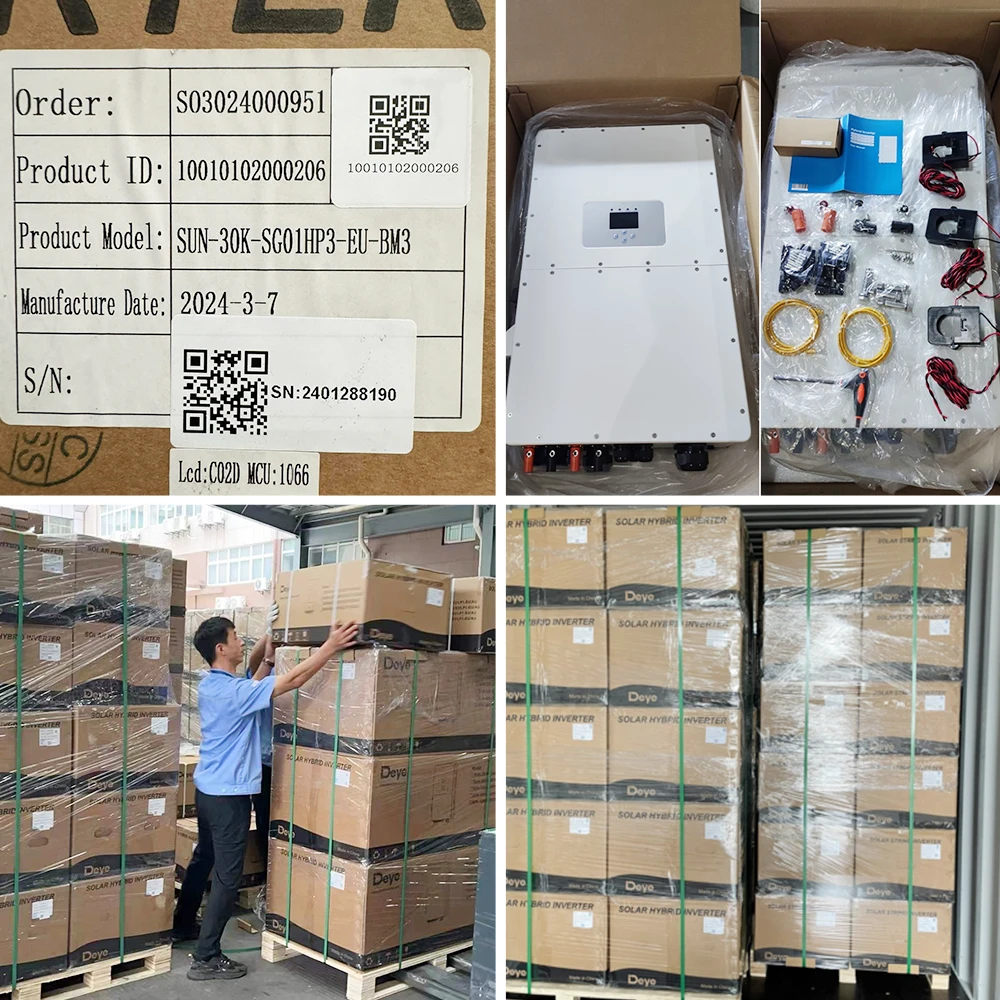

Details Images & Packing
Compatible Lithium Battery
* Strong Expansibility: Support 16 modules in parallel
*Stronger Compatibility: Cover all mainstream protocols and match most mainstream inverters 1C discharge
*Long Life: 4 times long static and 8 consistency screening make the battery more durable
*Safety & Reliability: Nano-coating and self-healing technology construct the LFP channel to add a firewall to the battery

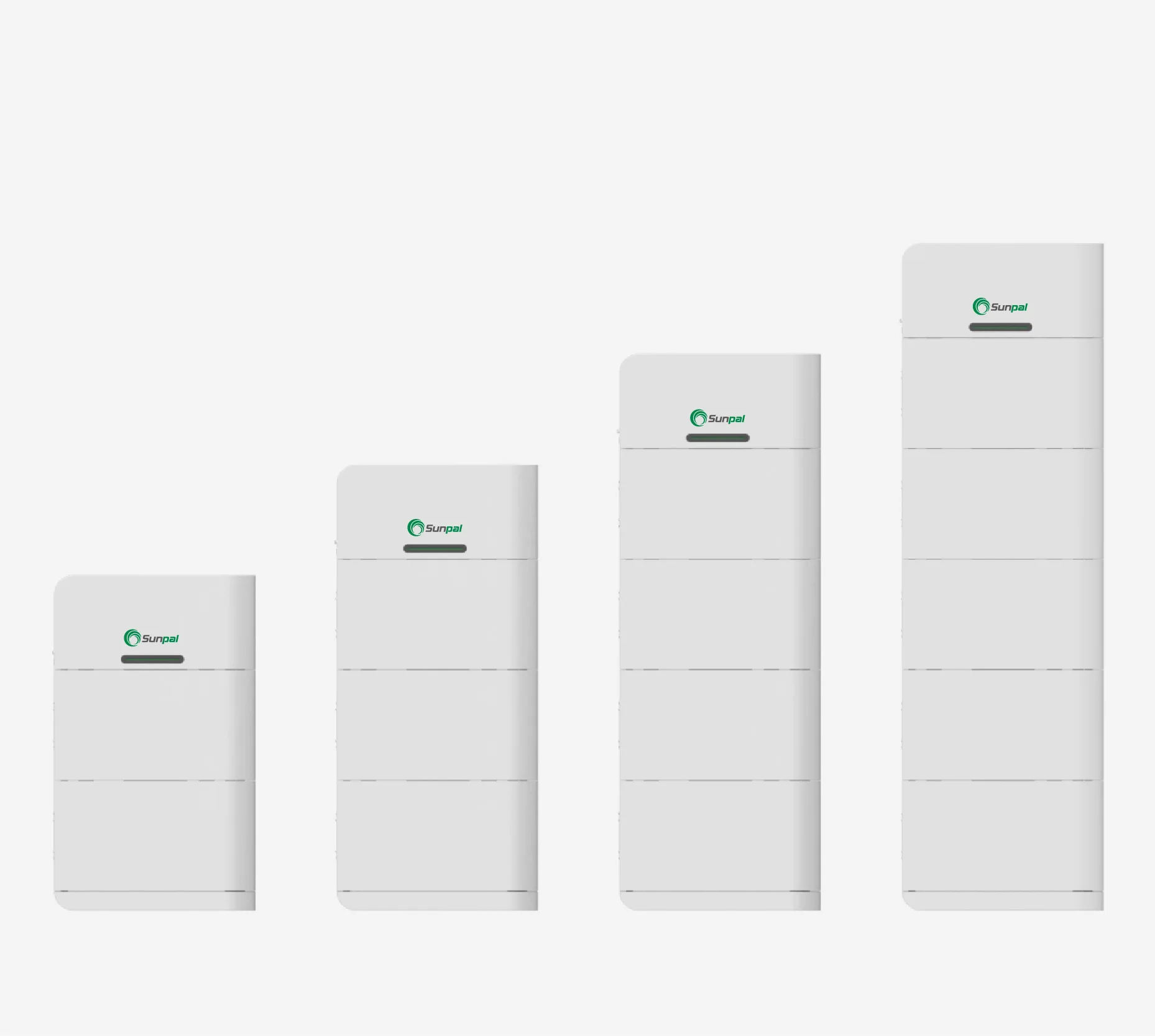

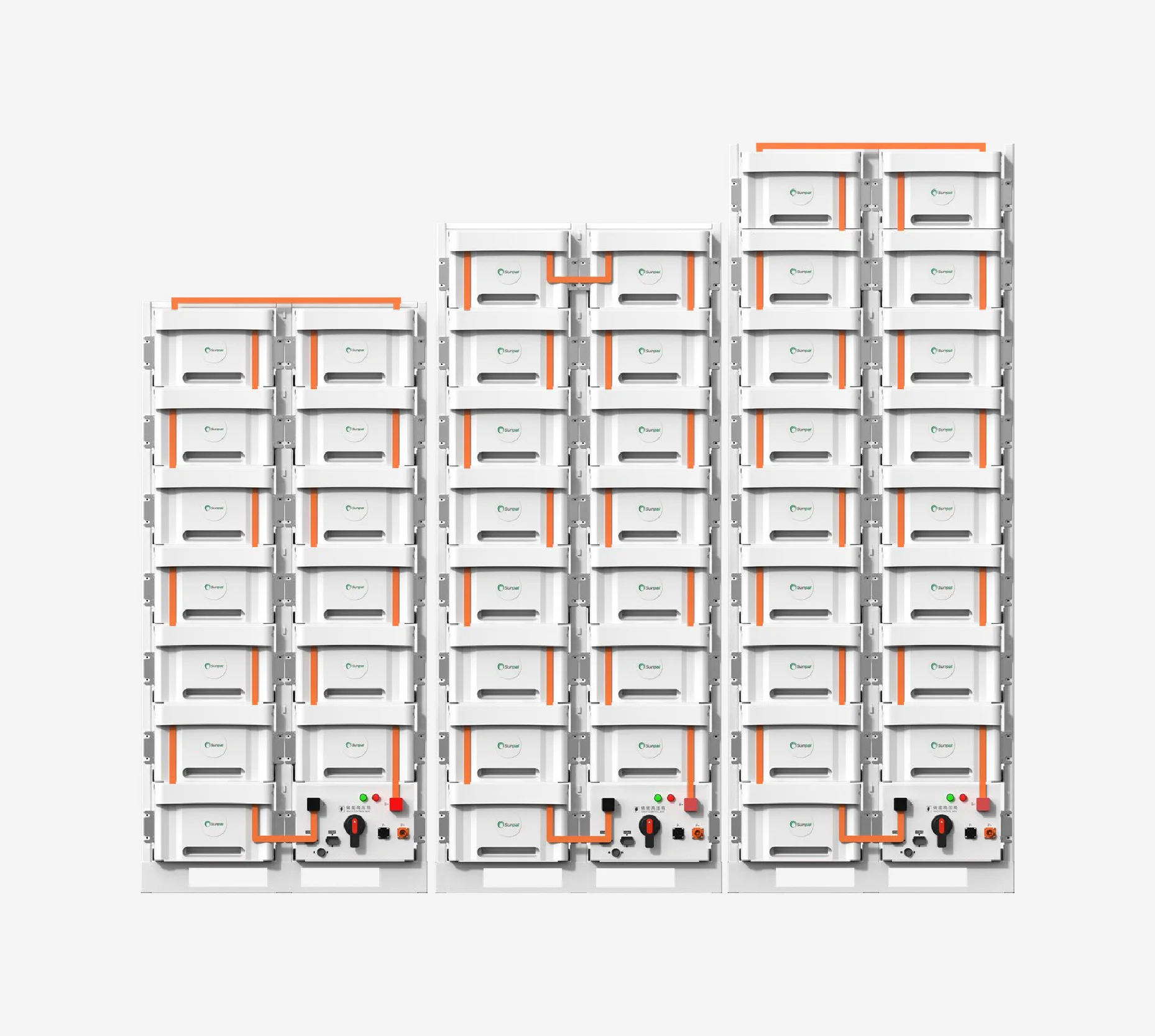

Sunpal HV Lifepo4 Battery
*Quick Customization of Electricity
*Patented Modular Plug Design
*Easy Installation Flexible Expansion
*Emergency-Backup and Off-Grid Functionality
*Long cycle life 6000 cycles
*Safety first Smart BMS system

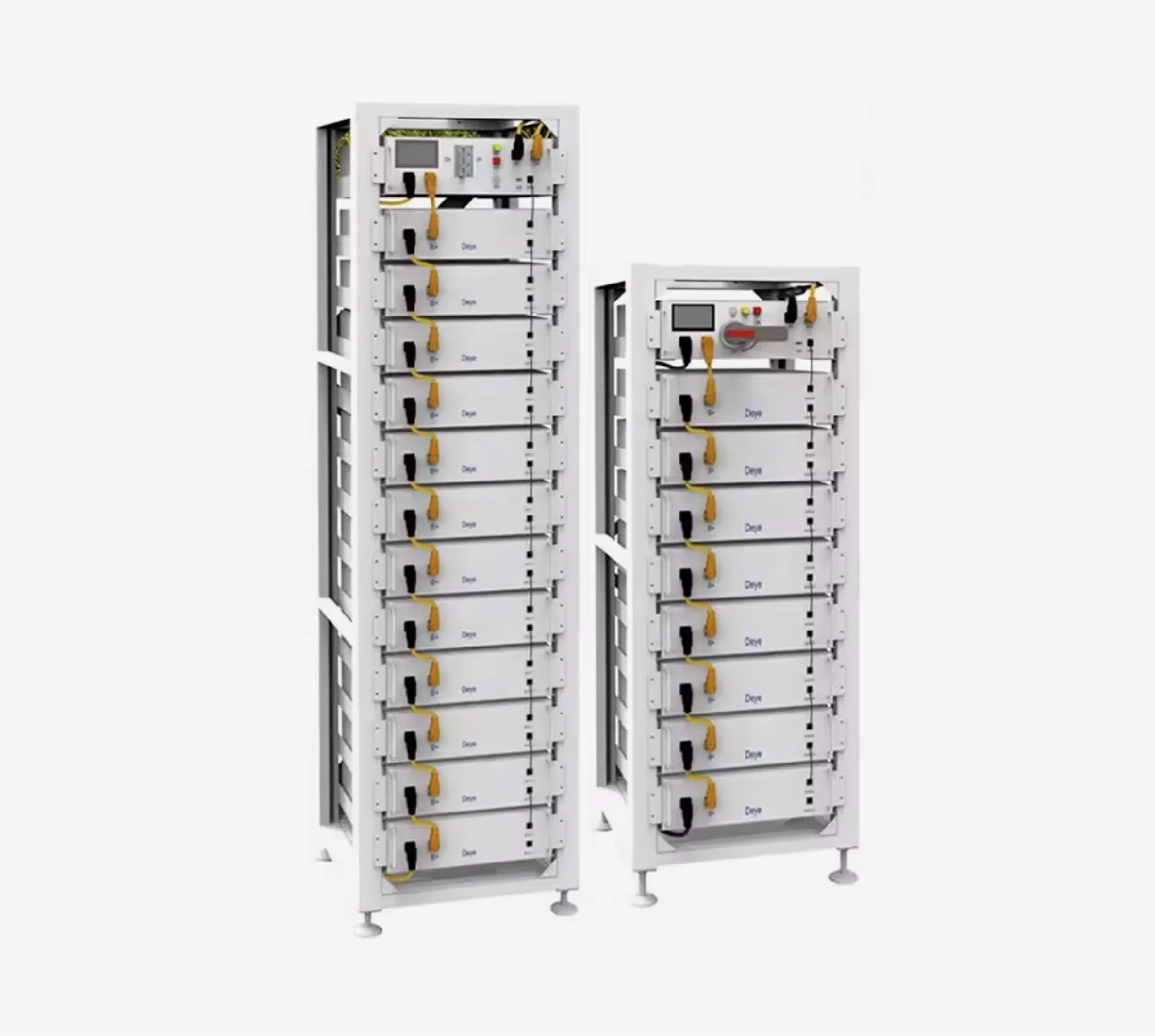

Deye HV Lifepo4 Battery
* Quick installation standard of 19-inch embedded designed module is comfortable for installation and maintenance
* The system can automatically manage the charge and discharge state and balance the current and voltage of each cell
* The whole module is non-toxic, non-polluting and environmentally friendly
* Support USB upgrade wifi upgrade(optional), remote upgrade
* Compatible with Deye inverter
* The system can automatically manage the charge and discharge state and balance the current and voltage of each cell
* The whole module is non-toxic, non-polluting and environmentally friendly
* Support USB upgrade wifi upgrade(optional), remote upgrade
* Compatible with Deye inverter
Company Profile
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products, mainly in charge of solar panels, solar batteries, solar inverter and a complete solar system.
Sunpal is accredited as Batch I Smart Manufacturing Plant by Jiangsu Government, the Witness Laboratory Accreditation Certificate (WMTC) by CE.ISO Laboratory Certificate by TUV SUD. Sunpal focused on research and manufacture of solar battery since the year 2005, we have exported our various kinds of battery to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.
Sunpal is accredited as Batch I Smart Manufacturing Plant by Jiangsu Government, the Witness Laboratory Accreditation Certificate (WMTC) by CE.ISO Laboratory Certificate by TUV SUD. Sunpal focused on research and manufacture of solar battery since the year 2005, we have exported our various kinds of battery to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.

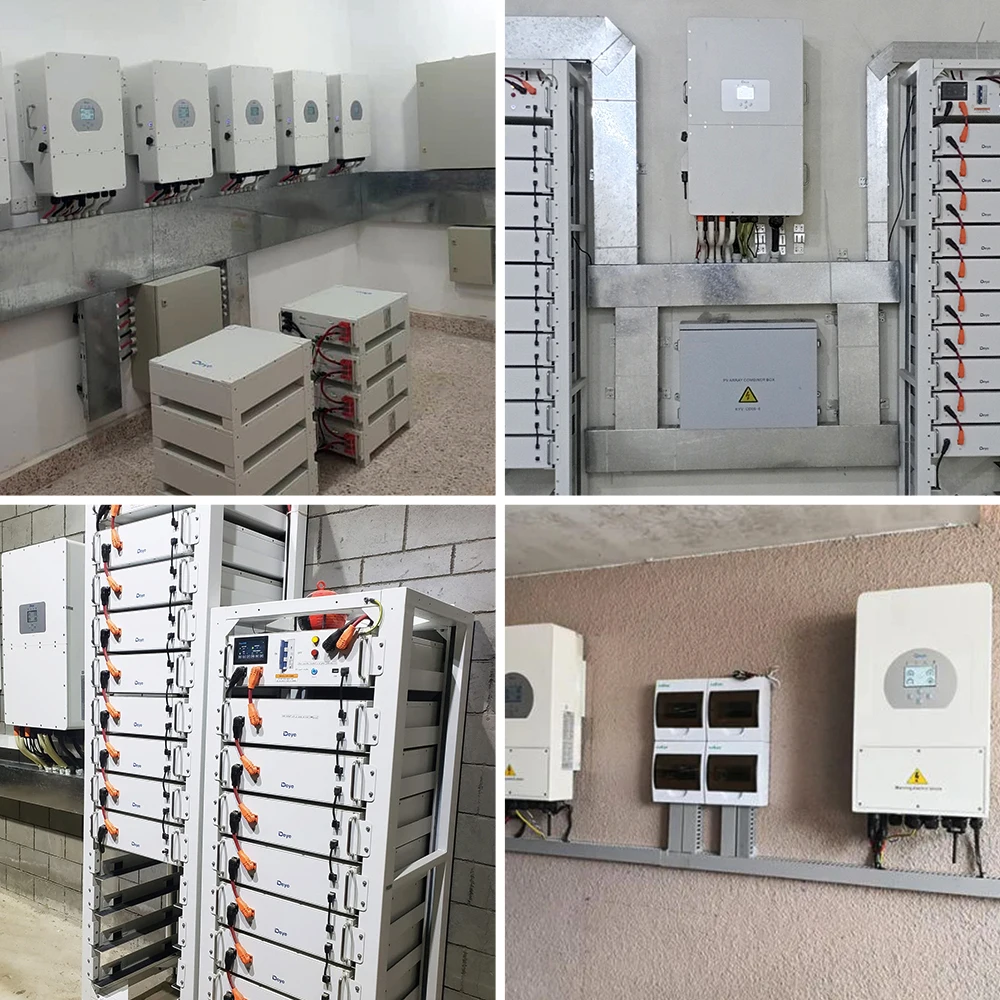

Project Case
