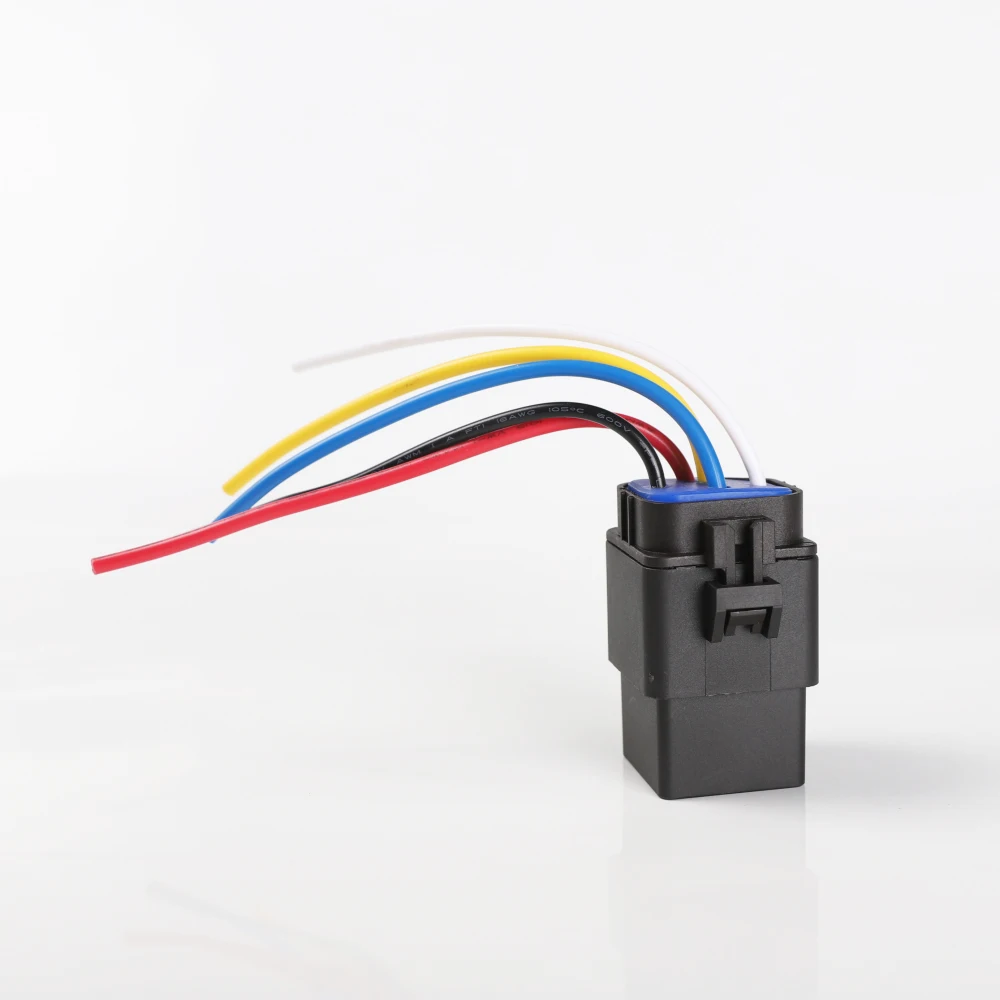

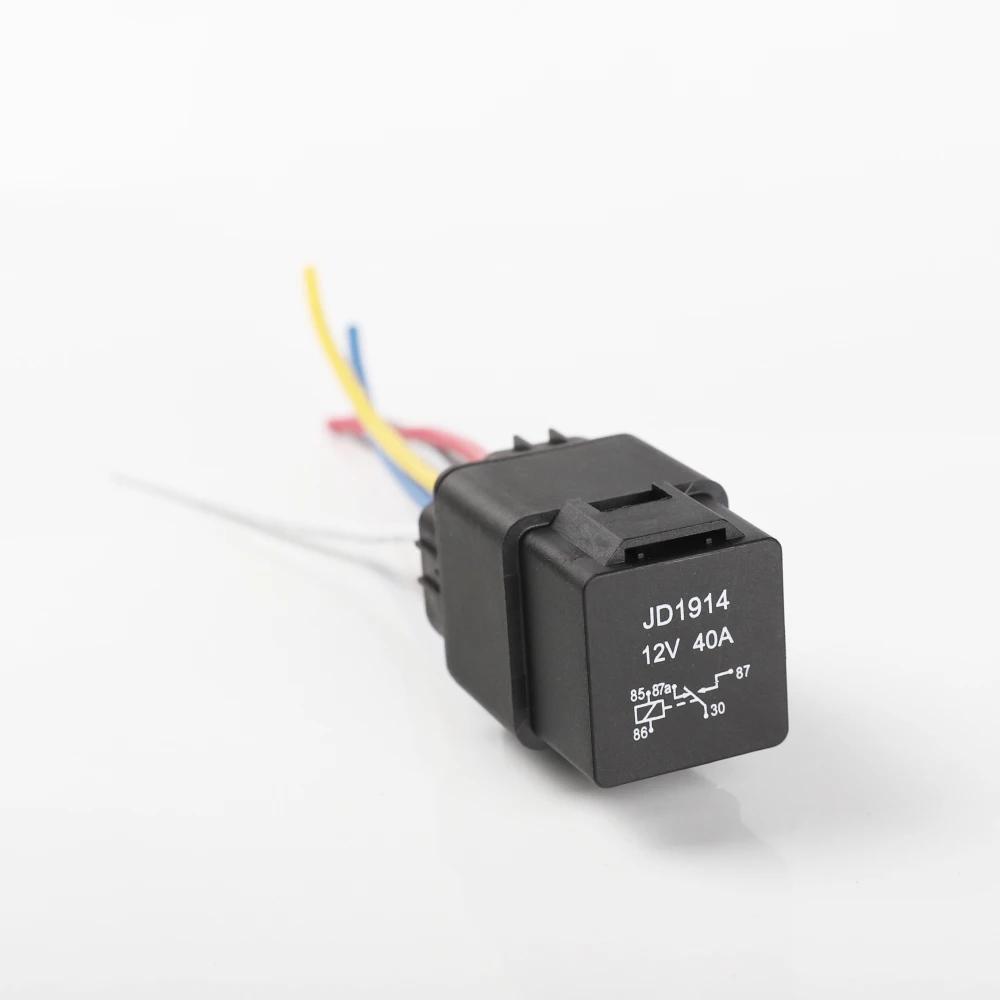

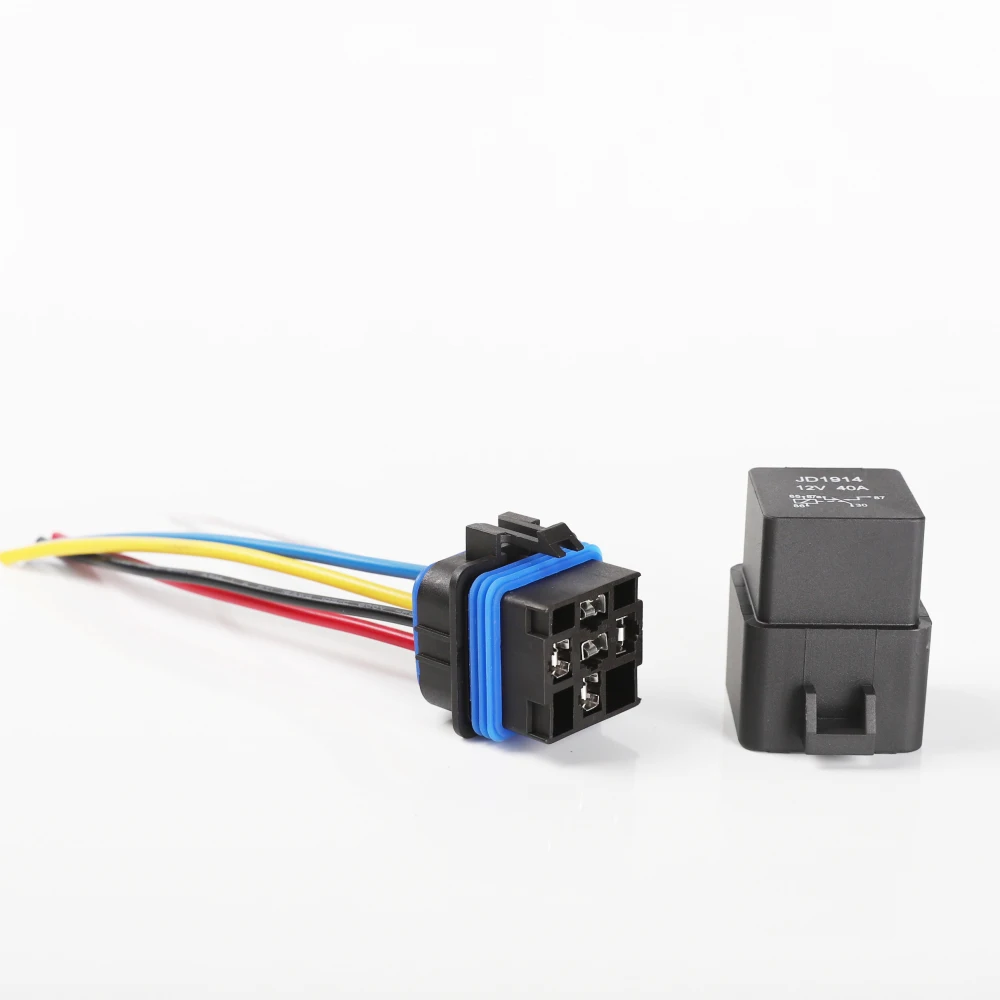

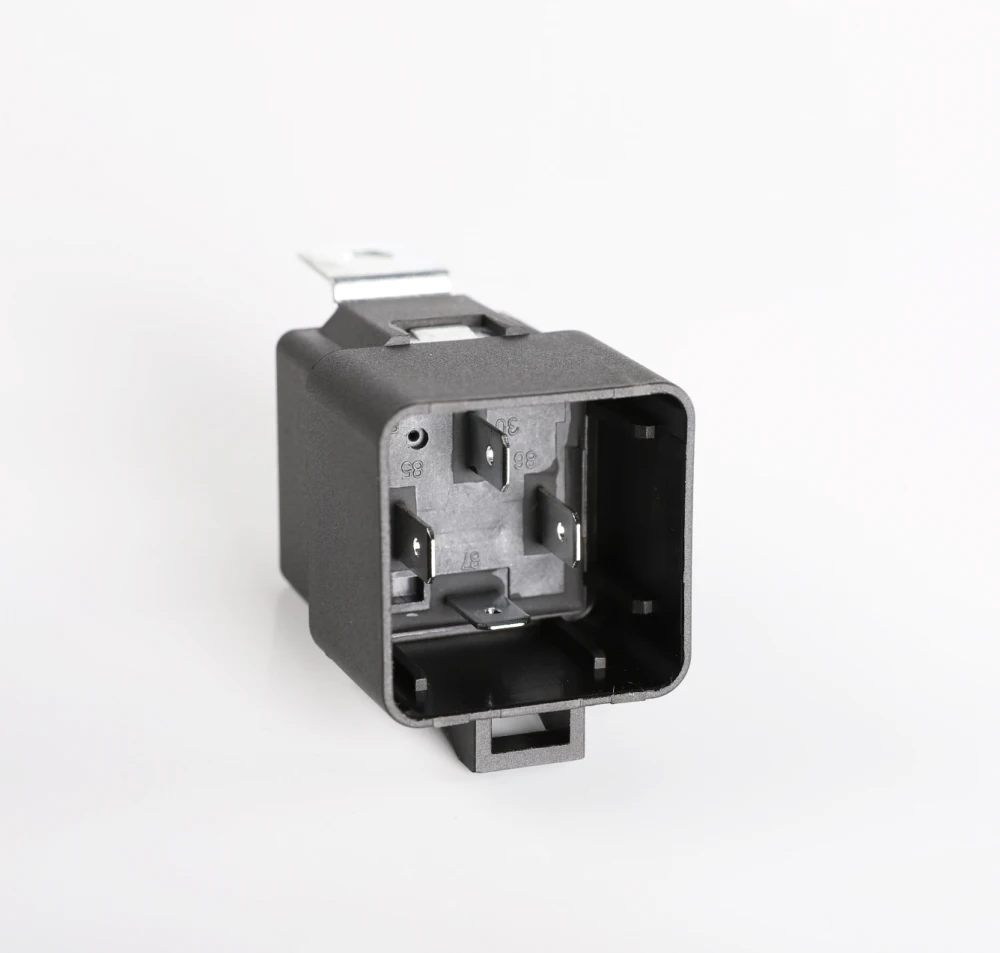

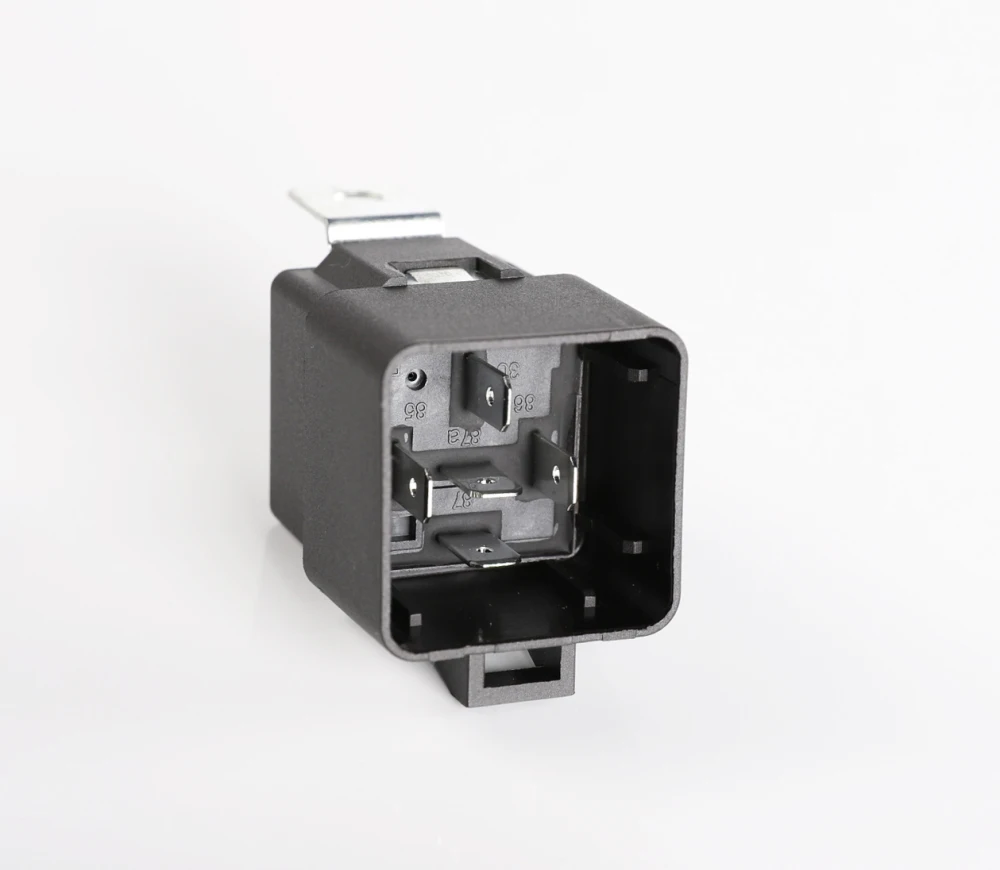

SPDT 5 Pins Waterproof auto relay 12V 40A Heavy Duty Relay Kit and Harness Set For Automotive Car
- Category: >>>
- Supplier: Yueqing Langshuo Auto Parts Co. Ltd.
Share on (1601208229704):
Product Overview
Description
Products Description
Automotive relays
40A switching capability
1 form A, 1 form C contact form
plastic sealed and dust protected type available

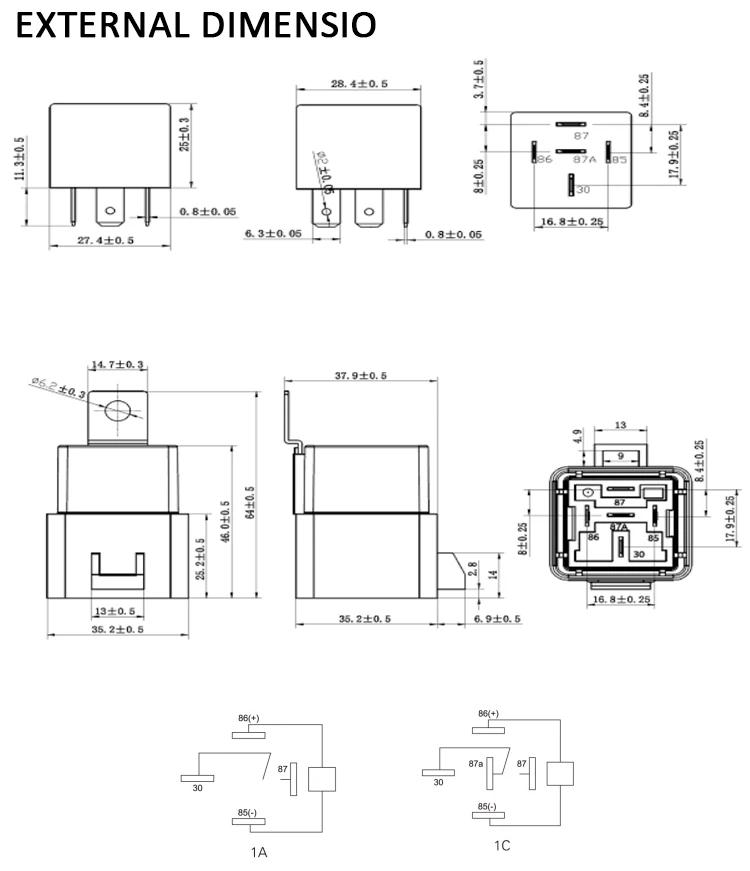

Outline dimensions: 35.2*35.2*46mm
Specification | ||
Contact Form | 1A, 1C | |
Contact Material | AgSno2 | |
Max Operating Current | 40A | |
Max Operating Voltage | 27VDC | |
Rated Load (Resistive Load) | 1A: 40A 13.5VDC 20A 27VDC 1C: NO/NC 40/30A 13.5VDC 20A/15A 27VDC | |
Insulation Resistance | 100MΩ | |
Dielectric Strength (Coil and Contact) | 500VAC/M | |
Ambient Temperature | -40°C~+85°C | |
Operate/Release Time | 10ms/10ms | |
Mechanical Life | 1 X106 | |
Electrical Life | 1 X105 | |
Terminal Type | Quick-connect type | |
Coil Ratings | ||||||||||||||||
Standard | Normal voltage (VDC) | Pick-up voltage (VDC) | Drop-out voltage (VDC) | Coil resistance (Q±10%) | Parallel resistance (Q±5%) | Equivalent resistance (Q±10%) | Power consumption | Max allowable overdrive voltage (VDC) | ||||||||
20 °C/85 °C | ||||||||||||||||
12 | 8.4 | 1.2 | 90 | - | - | 1.6 | 20.2/15.7 | |||||||||
12 | 8.4 | 1.2 | 80 | 680 | 79.5 | 1.8 | 20.2/15.7 | |||||||||
24 | 16.8 | 2.4 | 360 | - | - | 1.6 | 40.5/31.5 | |||||||||
24 | 16.8 | 2.4 | 320 | 2700 | 317.6 | 1.8 | 40.5/31.5 | |||||||||
Company Profile

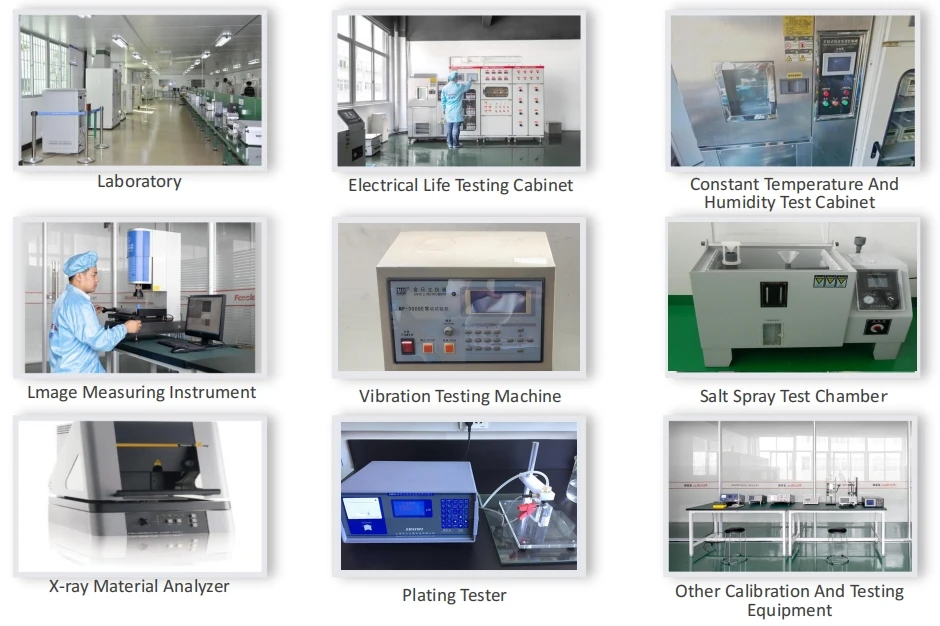

Verification Capability

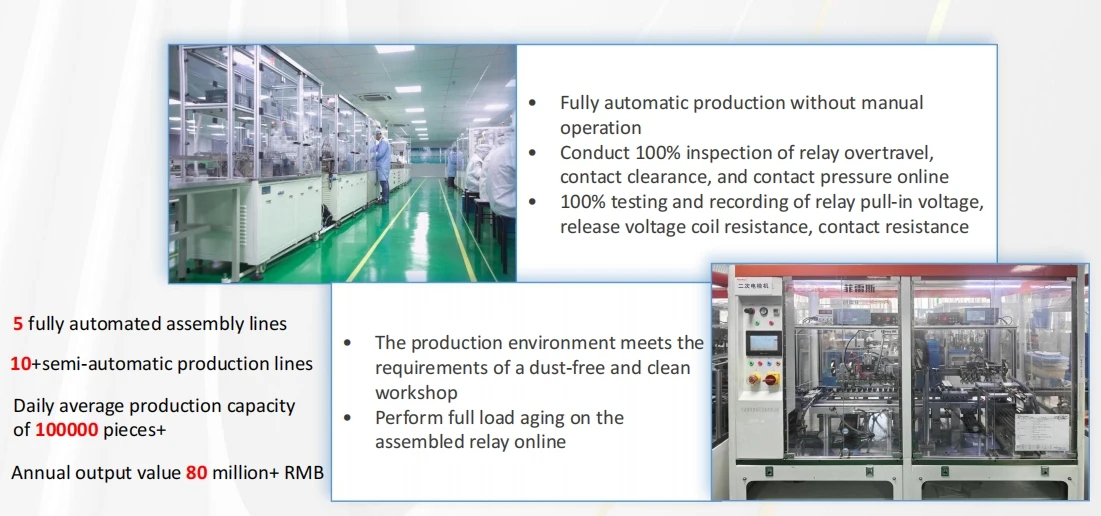

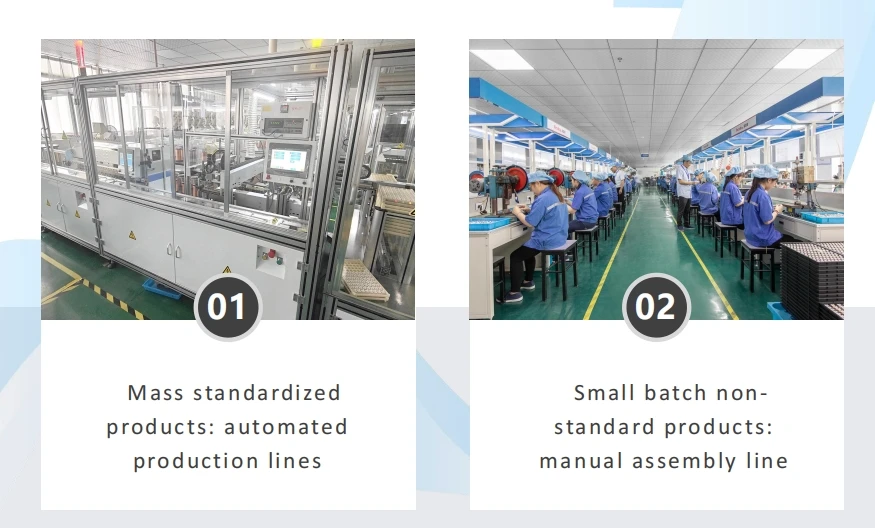

Production Line

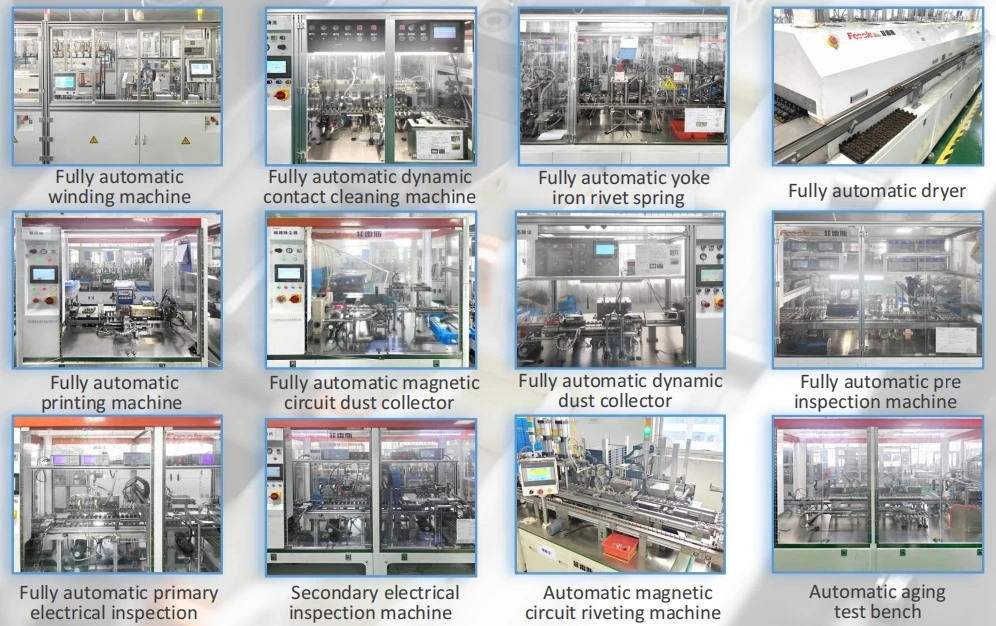

Highlight Devices
FAQ
Q1. Can I have sample for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A: Sample needs 3-9 days, mass production time needs 1-2 weeks.
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Sample needs 3-9 days, mass production time needs 1-2 weeks.
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
