china customized car bushings cnc machined sway bar bushing stainless steel suspension sf 1s bushing

Product Overview

Description

please directly send details inquiry to Ms.Susan Shi, email

Material: 1. Steel + Bronze powder + PTFE + Pb + Polymer 2. Steel + Bronze powder + PTFE + Polymer - Normally Used 3. Bronze + Bronze powder + PTFE + Polymer 4. Stainless steel + Bronze powder + PTFE + Polymer 5. Stainless steel + PTFE + Polymer 6. Carbon steel + Sintered bronze powder + PTFE + MoS2

Structure	PTFE with lead/Cu/Fibre : 0.01-0.03mm
	Porous bronze : 0.2-0.3mm
	Steel backing : 0.7-2.3mm
	Tin-plating 0.005mm or copper plating 0.008mm



Type	Load capacity(N/mm2)			PV limit(N/mm2*m/s)		Speed limit (in oil)	Temp.limit	μ Frictio Coef.	Themal conductivity	Linear expansion
	Static	Dynamic	Oscillating	Oil	Dry	(m/s)	(℃)		(W/MK)

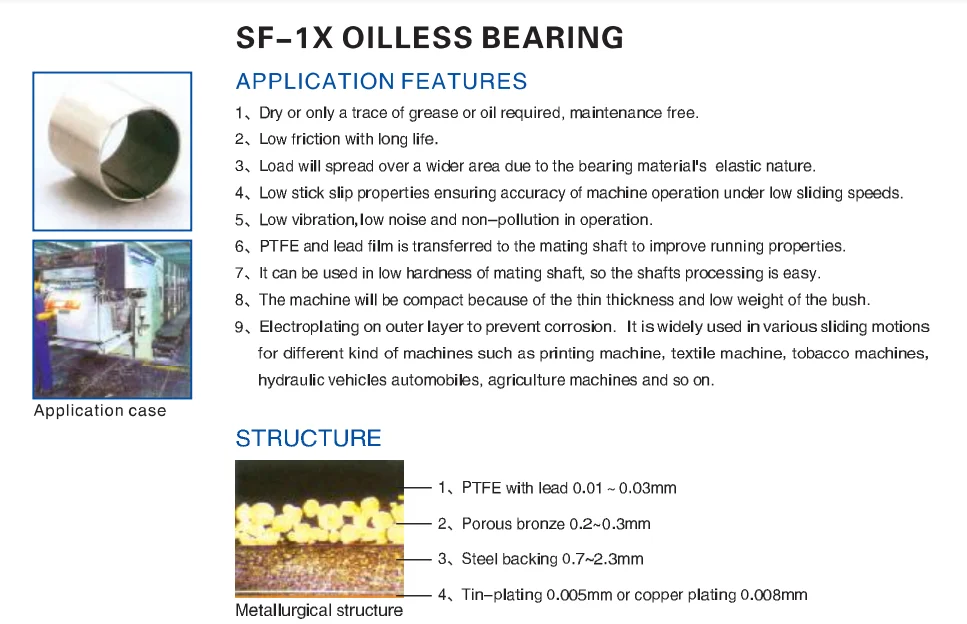

SF-1X	250	140	60	50	3.6	5.0	-195~270	0.04~0.20	13	11*10(-6)/k

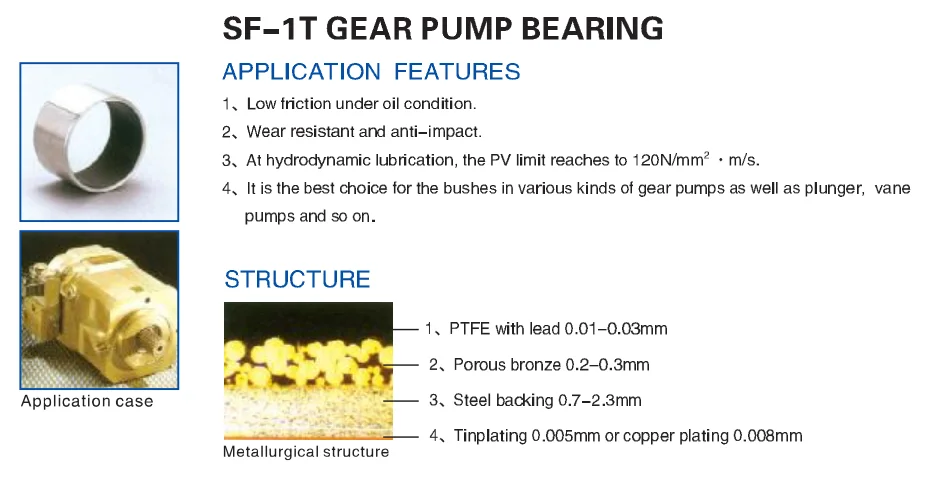

SF-1T	250	140	60	60	4.3	10	-195~260	0.03~0.18	13	11*10(-6)/k

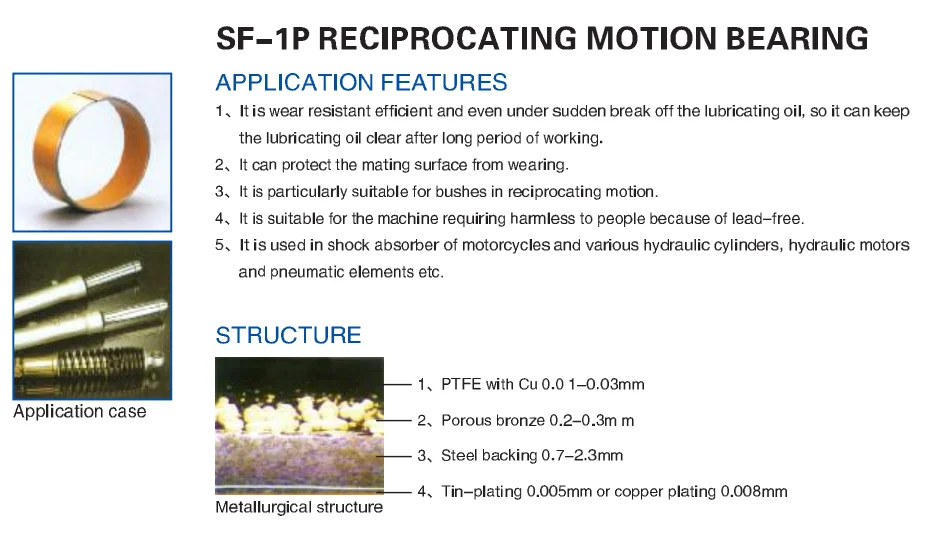

SF-1P	250	140	60	50	1.8	2.5	-195~270	0.04~0.20	13	11*10(-6)/k

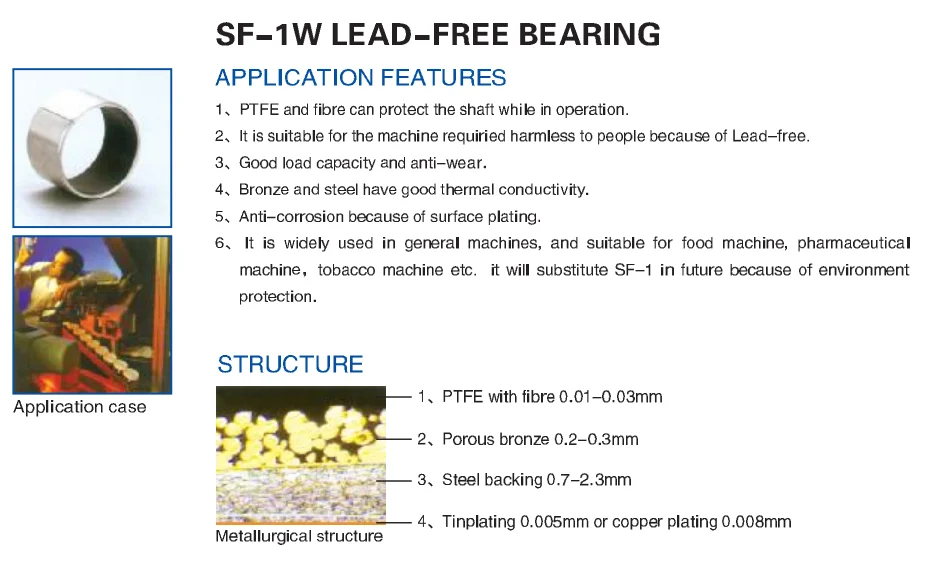

SF-1W	250	140	60	50	3.6	5.0	-195~300	0.04~0.20	13	11*10(-6)/k

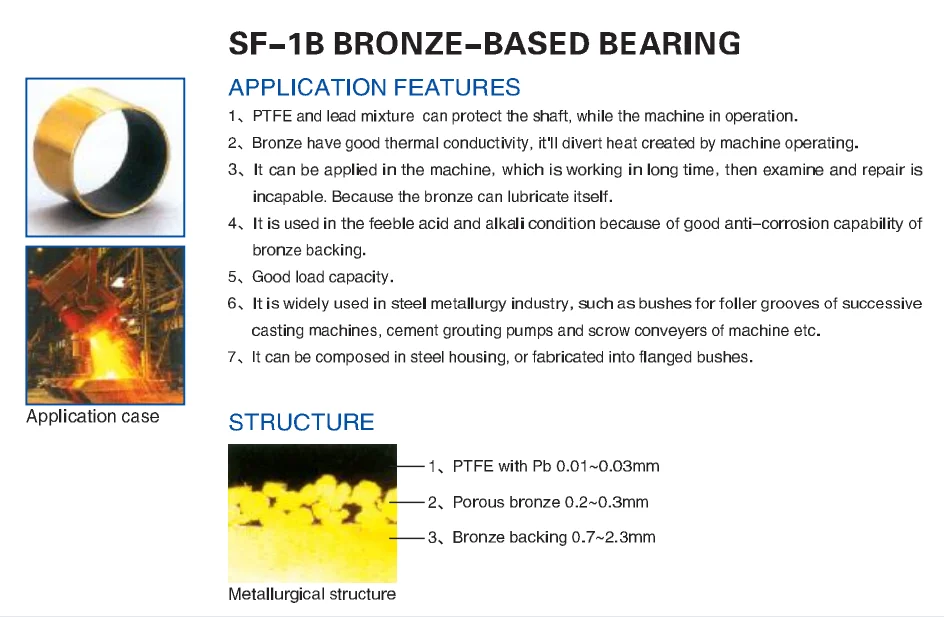

SF-1B	250	140	60	60	4.3	5.0	-195~270	0.04~0.18	18	21*10(-6)/k

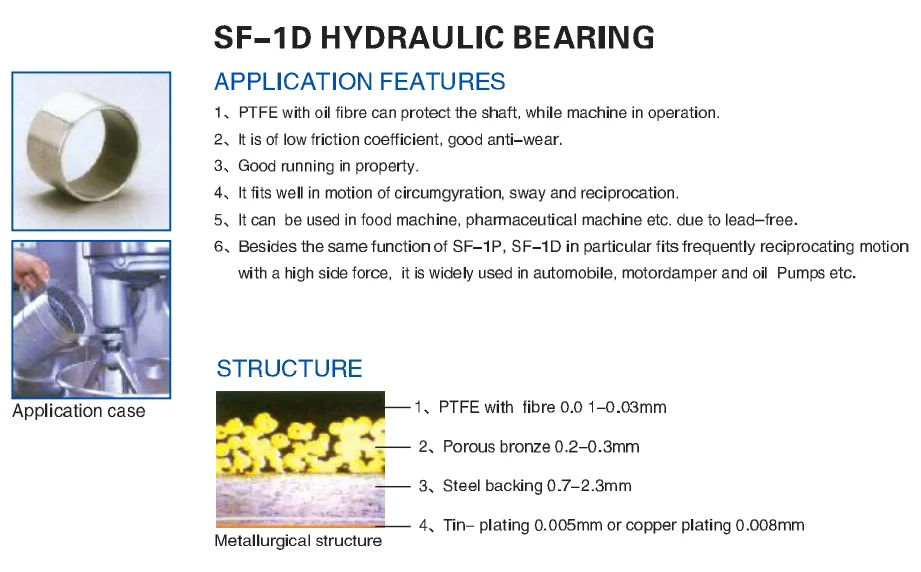

SF-1D	250	140	60	50	3.8	3.0	-195~270	0.04~0.18	16	15*10(-6)/k

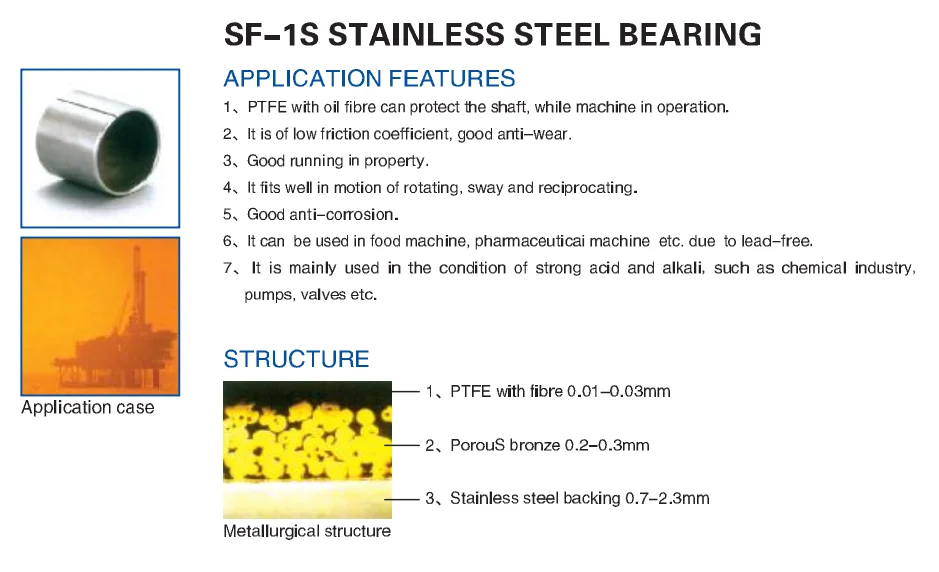

SF-1S	250	140	60	50	3.6	4.5	-195~270	0.04~0.20	16	15*10(-6)/k

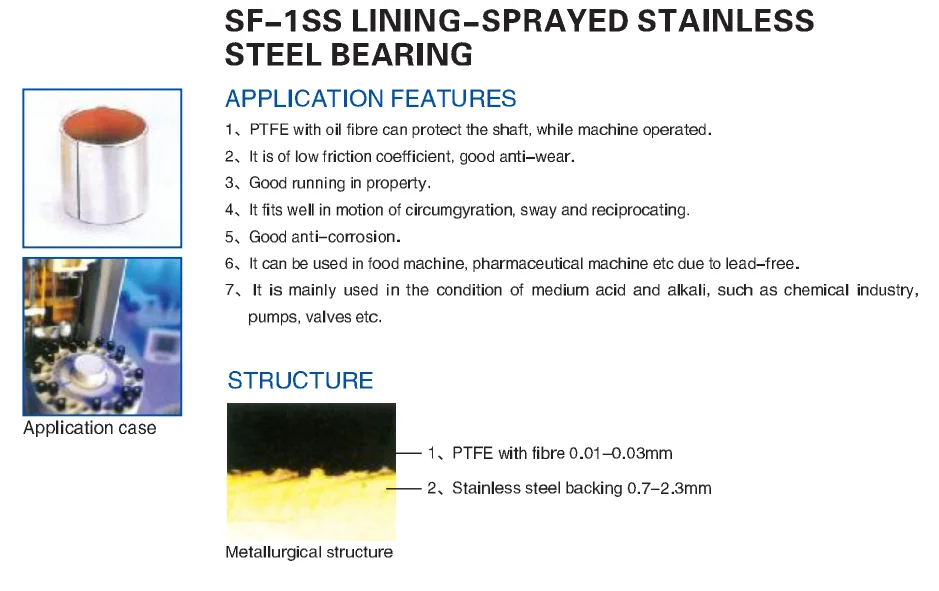

SP-1SS	250	140	60	40	3.0	2.5	-195~270	0.04~0.25	13	15*10(-6)/k

Application:

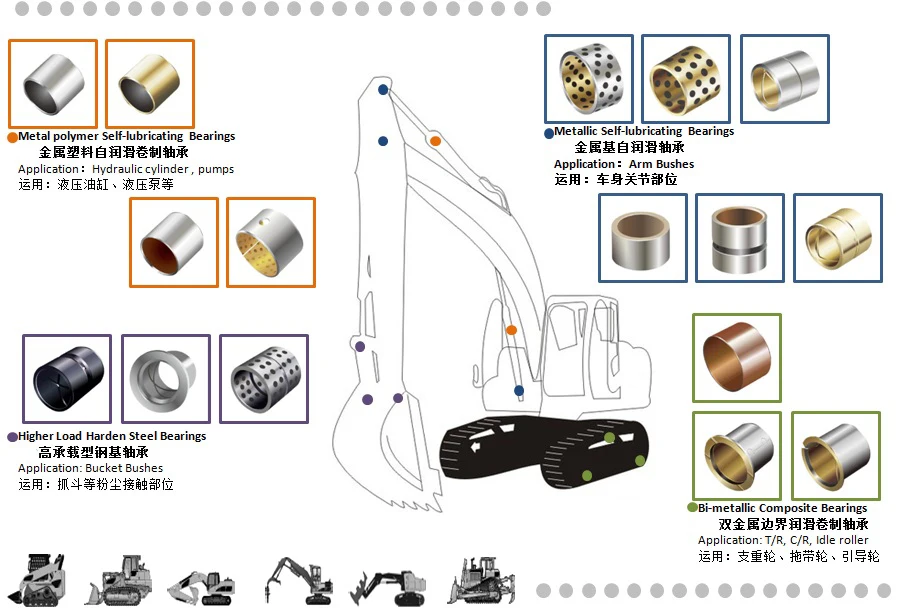

Automotive:
McPherson struts and shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches, gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.

Industrial:
Aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines-metal, plastic and rubber, office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and ramways, textile machinery, valves, etc.







DX SF-2 BUSHING (POM)

Material: 1. Steel + Bronze powder + POM + Pb 2. Steel + Bronze powder + POM - Normally Used

Structure	POM with/without lead : 0.3-0.5mm
	Porous bronze : 0.2-0.3mm
	Steel backing : 0.4-2.2mm
	Tin-plating 0.005mm or copper plating 0.008mm

Application:

Automotive:
Steering gear, power steering, pedal bushes, seat slides, king-pin bushes, tailgate pivots, brake caliper bushes, etc.
Industrial:
Mechanical handling and lifting equipment, machine slides, hydraulic cylinders, hydraulic motors, ski-lifts, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, etc.





BIMETAL BUSHING

Material: 1. Steel + Bronze alloy (CuPb10Sn10) + PTFE 2. Steel + Bronze alloy (CuPb10Sn10) 3. Steel + Bronze alloy (CuSn4Pb24) 4. Steel + Bronze alloy (CuPb24Sn) 5. Steel + Alloy stage (AlSn20Cu) 6. Steel + Bronze alloy (CuPb30)

Application: Mechanical handling and lifting equipment, hydraulic cylinders, agricultural equipment, off highway equipment.  Construction machines,chassis,apron wheels etc.



BRONZE GRAPHITE BUSHING

Material:

1. CuZn25Al6Fe3Mn3 + Graphite

2. ZCuAl9Fe4Ni4Mn2 + Graphite

3. ZCuSn5AlPb5Zn5 + Graphite

4. ZCuSn10Zn2 + Graphite

5. HT250# Cast Iron + Graphite

6. CuZn25Al6Fe3Mn3 (High-stress Brass)

Application: solid brass bearing is widely used in successive casting machine, mineral mountain machinery, shipping, steam turbine etc



WRAPPED BRONZE BUSHING

Material:

1. CuSn8P / CuSn8

2. CuSn6.5P / CuSn6.5

3. CuZn31Si

4. Bronze(graphite inside)

5. All kinds of brass,copper,bronze material

Industrial: Widely used in construction machinery, agricultural machinery and so on.

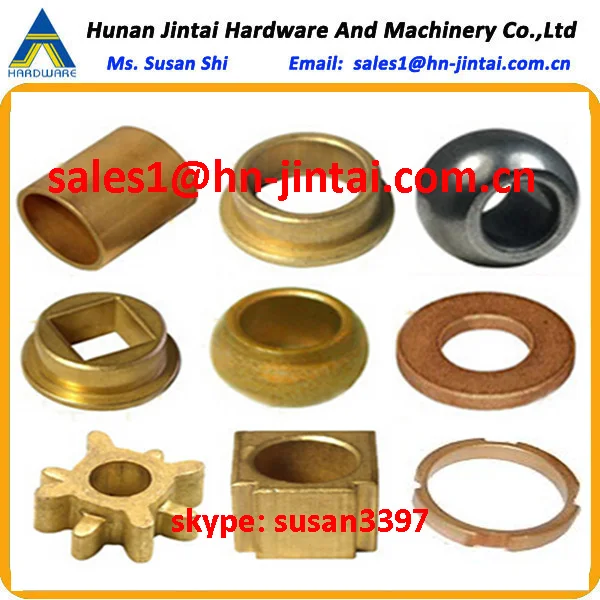

SINTERED BRONZE BUSHING MOTOR FAN BUSHING CAST IRON BEARING



Performance index	Data
Maximum load capacity	150 N/mm2
Temperature range	-60~+200 ℃
Maximum sliding speed	2.5 m/s
Alloy material	CuSn6-6-3
Maximum PV value	2.45 N/mm2*m/s





OTHER SLIDE BEARING
