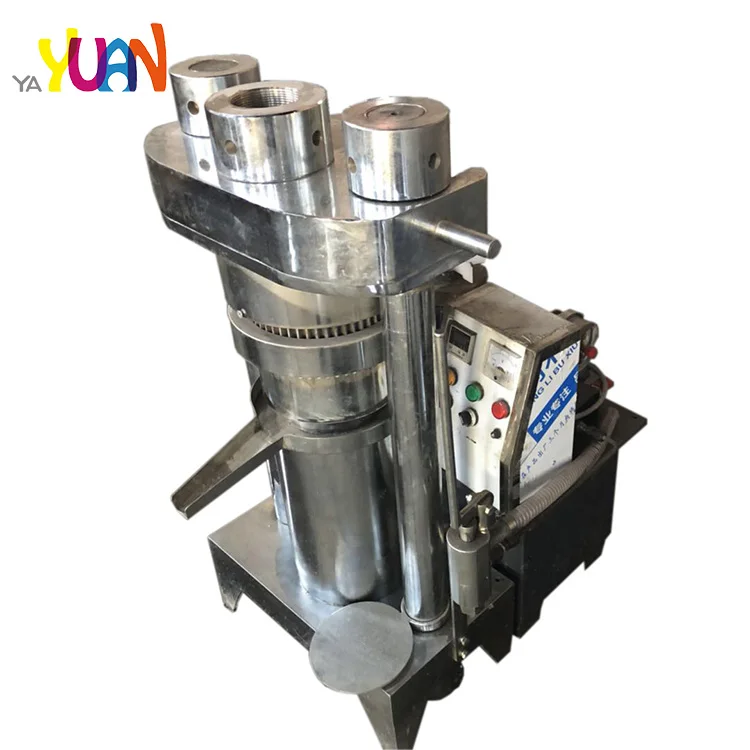

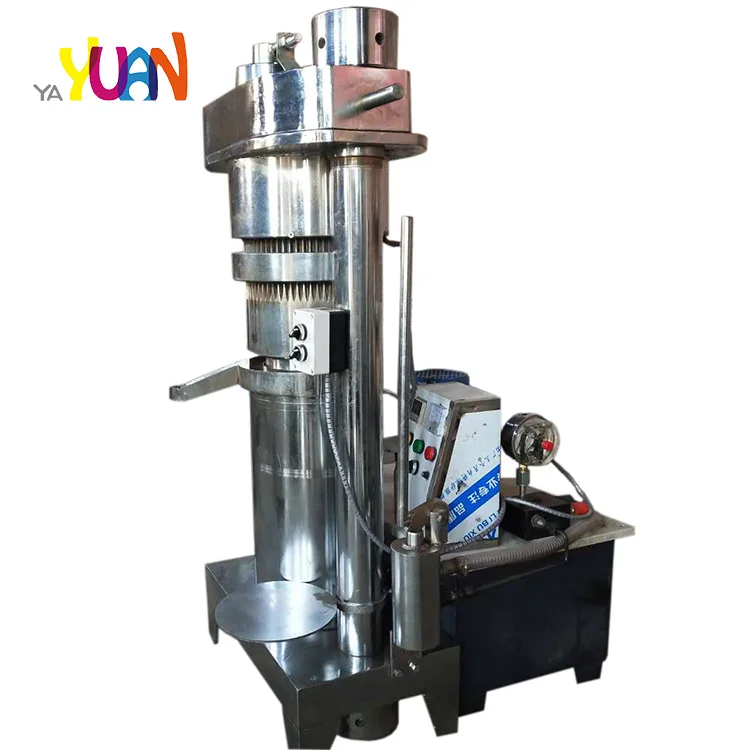

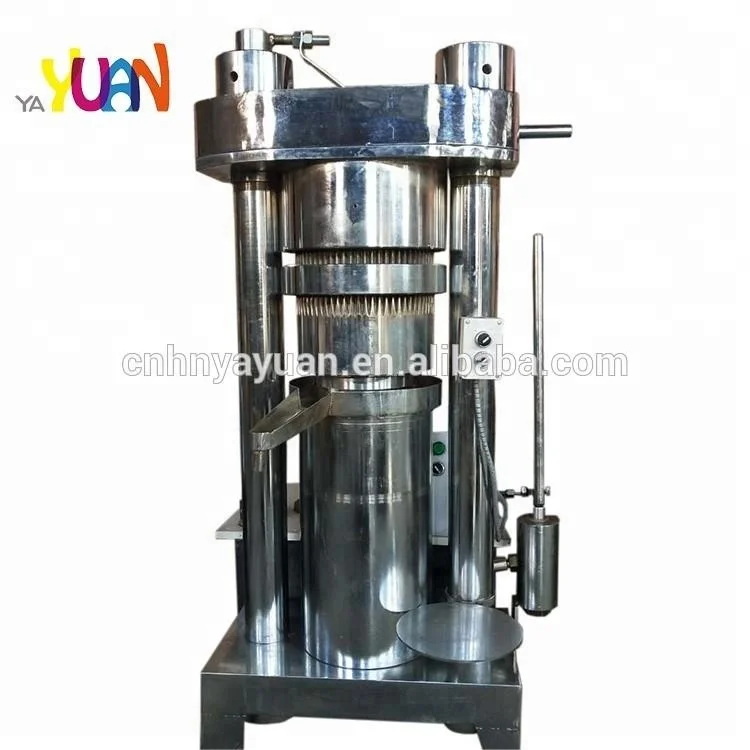

The hydraulic oil press machine adopts pure physical pressing and has a high oil output rate. It can be cold-pressed and hot-pressed for a wide range of applications.In the cold pressing process, no temperature is generated, and the organic components of the oil are not destroyed. Therefore, the quality of the oil is good, the impurities are few, and the value of the oil cake is high.

Hot pressing:Sesame, peanut, rapeseed, wheat germ, corn germ, flax,etc
Cold pressing:Walnut, pine nuts, almonds, olives, nuts, camellia seeds,etc

The quality of raw materials is the key to determining the oil output rate of the hydraulic oil press machine,such as Seed varieties and fullness, impurity content,etc.
The following oil rate is for reference only.
Oilseeds | Oil output (%) |
Peanut | 40-50 |
Soybean | 13-17 |
Rapeseed | 35-42 |
Sesame | 45-55 |
Sunflower seeds | 46-50 |
Cottonseed | 15-25 |
Camellia seeds | 28-35 |
Flax seeds | 35-38 |
Pepper seeds | 20-22 |
Corn germ | 25-35 |
Walnut | 45-55 |
Tung seeds | 34-37 |
Cashew nuts | 30-35 |
Olives | 16-20 |
Almond | 40-50 |

1, Physical pressing does not produce temperature, does not destroy the organic components of the oil.
2, Good oil quality, less impurities, wide application.

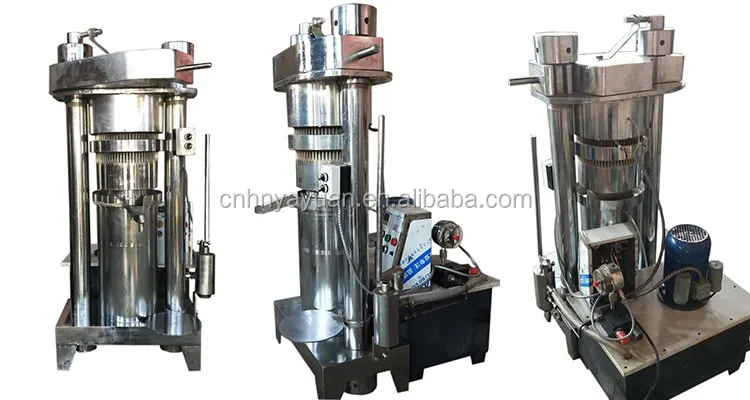

Different types of oil press machine parameters
The following table parameters are for reference only
Model | 6YZ-150 | 6YZ-180 | 6YZ-230 | 6YZ-260 | 6YZ-320 |
Dimension(mm) | 400*500*850 | 500*650*1050 | 600*850*1360 | 650*900*1450 | 800*1100*1550 |
Weight(kg) | 250 | 750 | 1050 | 1400 | 1800 |
Max working pressure(Mpa) | 55 | 55 | 55 | 55 | 50 |
Motor Power(kw) | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 |
Heater power(kw) | 2 | 2 | 2 | 2 | 2 |
Heating temperature range(℃) | 70-100 | 70-100 | 70-100 | 70-100 | 70-100 |
Barrel capacity(kg) | 2 | 4 | 8 | 11 | 15 |
Cake diameter(mm) | 150 | 180 | 230 | 260 | 320 |
Hydraulic oil press production line

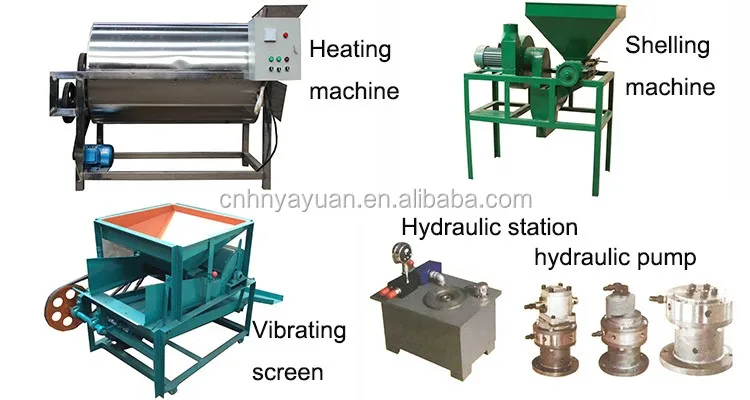

Related auxiliary equipment


Yayuan Company is located in Gongyi City, which has convenient transportation, beautiful mountains and rivers, a long history, and outstanding people.The company has strong strength. After years of efforts, it has developed into a modern enterprise integrating the science, industry and trading.
The company has advanced production equipment and first-class technical talents. According to the different conditions proposed by customers. We can design product solutions that meet the actual needs of customers, and provide pre-sales, sales, and after-sales full-service, which can solve actual production for customers and Any problem in operation.
Our company adheres to the principle of honesty , and serves our customers as our purpose. We are constantly pioneering and innovating so that our products are well received by customers both at home and abroad.Welcome friends from all over the world to visit our company and discuss cooperation.

1,Quality assurance period is 1 year for the whole machine, but the failures caused by operational errors are the responsibility of the customer.
2,We will test all machines before shipment to ensure that the equipment you receive is normal.
3,We have technical personnel to abroad to install and commission, and train your workers until they can be produced independently.
4,You can contact us at any time if you have problems .
5,Special sizes can be custom-made specially.

Packaging details: sea worthy wooden case or iron box ,or container
Delivery Time:7~10 days after deposit
Supply ability:100 Set/Sets per Month
Port:Qingdao

91.8% Response Rate
91.8% Response Rate
91.8% Response Rate
How many kinds of Oil crops can be pressed by the machine? A: Our machine can press Soybeans, Peanuts, Sesame Seeds, Rapeseed, Sunflower Seeds, Pine Nuts, Flax Seeds, Walnuts, Cashews, Corn Germ, Nuts, Olives, Camellia Seeds, Cotton Seeds and so on. | ||||||
2,What can we do if you don not operate the machine? A:We will provide instructions and teach you until you can . | ||||||
3,What can we do when the machine doesn't work? A:We will focus on your needs all the time and serve you with all-round carefulness and consideration, even send our engineer to serve you until the problem be done. | ||||||
