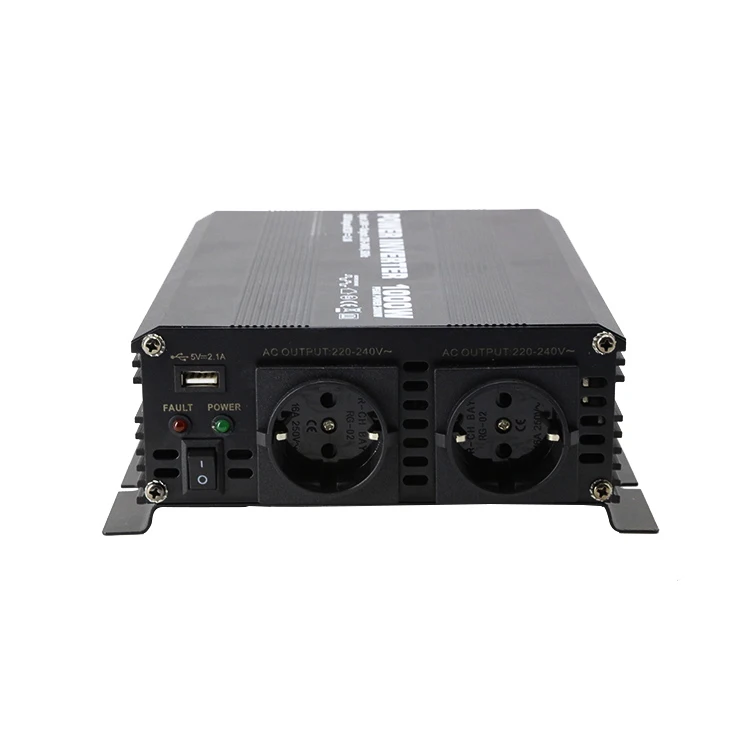

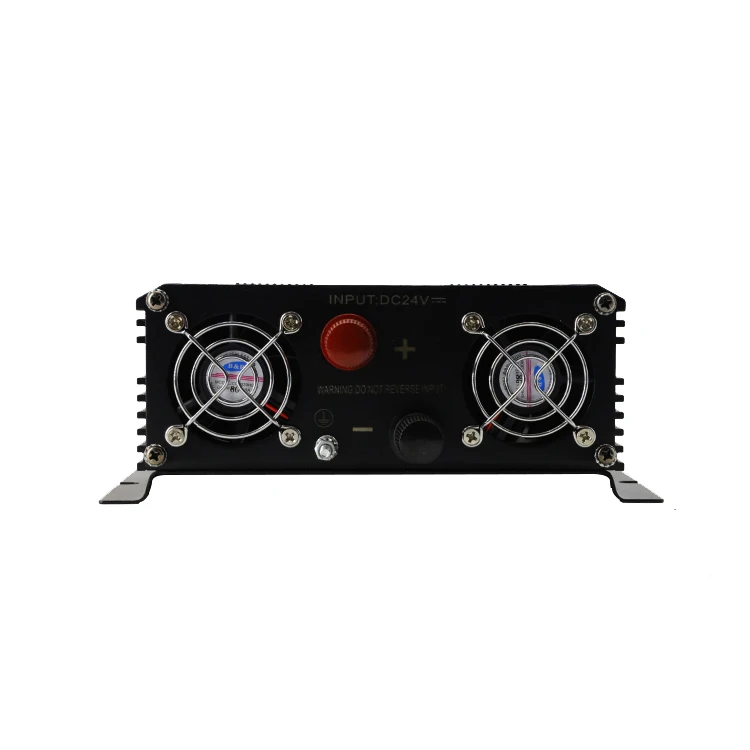

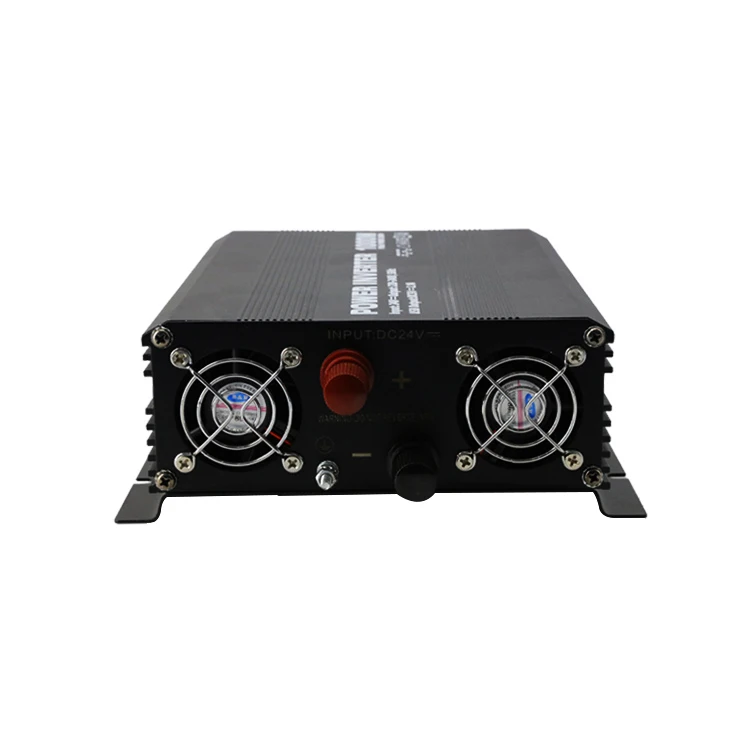

1000W Modified Sine Wave Power Inverter 12/24 DC to 100 220V AC 50Hz 60Hz Off grid Power Converter
1000W Modified Sine Wave Power Inverter 12/24 DC to 100-220V AC 50Hz 60Hz Off-grid Power Converter
1000W Modified Sine Wave Power Inverter 12/24 DC to 100-220V AC 50Hz 60Hz Off-grid Power Converter
1000W Modified Sine Wave Power Inverter 12/24 DC to 100-220V AC 50Hz 60Hz Off-grid Power Converter
1000W Modified Sine Wave Power Inverter 12/24 DC to 100-220V AC 50Hz 60Hz Off-grid Power Converter

1000W Modified Sine Wave Power Inverter 12/24 DC to 100 220V AC 50Hz 60Hz Off grid Power Converter

Share on (1601208306392):


Price:

Quantity:


Product Overview

Description













MODEL
NM1K-112
NM1K-124
NM1K-148
NM1K-212
NM1K-224
NM1K-248
Output
AC Voltage
100/110/120VAC
220/230/240VAC
Rated Power
1000W
Surge Power
Load 120~150%(3min.);2000W（3sec;resistive)
Frequency
50/60Hz ±3Hz
AC Regulation
±5%
±10%
Waveform
Modified Sine Wave
Standard Receptacles
USA/British/Franch/Schuko /UK/Australia/Universal etc. optional
LED Indicator
Green for power on, red for faulty status
USB port
5V 2.1A
5V 2.1A
------
5V 2.1A
5V 2.1A
------
Input
No Load Current Draw
≤0.80A
≤0.60A
≤0.50A
≤0.80A
≤0.60A
≤0.50A
DC Voltage
12VDC
24VDC
48VDC
12VDC
24VDC
48VDC
Voltage Range
10.5~15VDC
21~30VDC
42~60VDC
10.5~15VDC
21~30VDC
42~60VDC
Efficiency(Typ.)
89%~94%
Fuse
40A×3
20A×3
10A×3
40A×3
20A×3
10A×3
Remote Control
Function (optional）

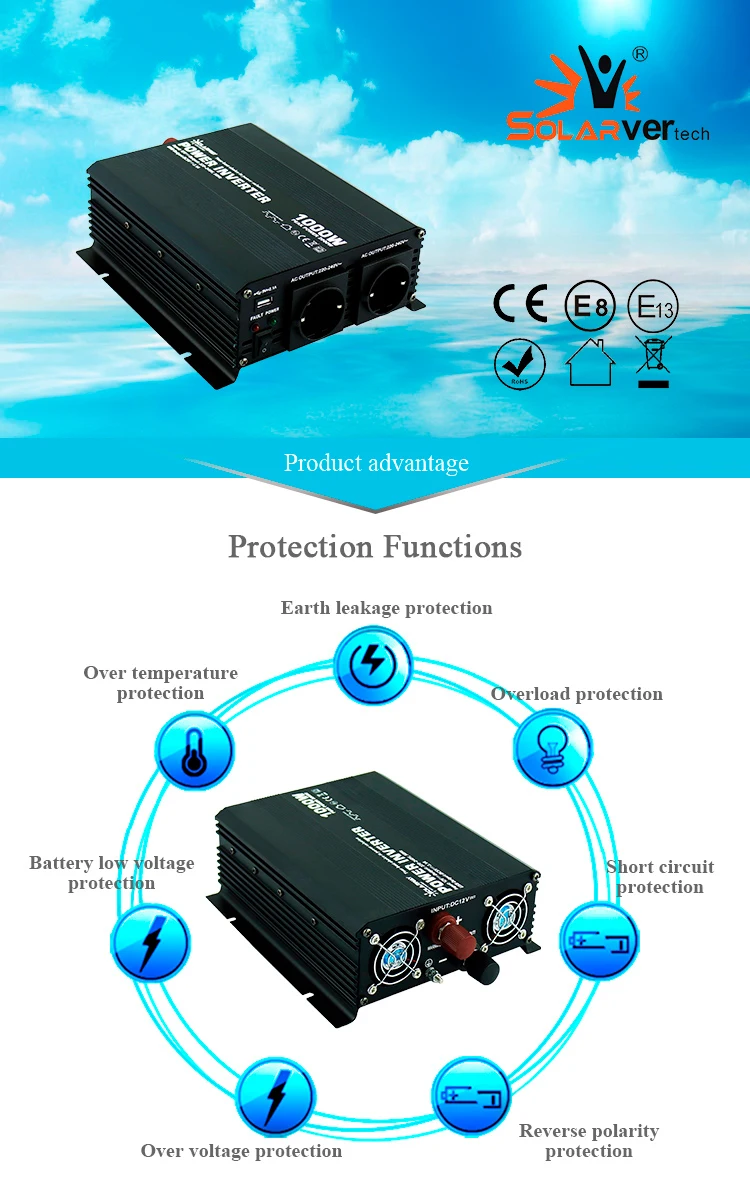

Protection
BAT. Low Alarm
10.5±0.5VDC
21±1.0VDC
42±2.0VDC
10.5±0.5VDC
21±1.0VDC
42±2.0VDC
BAT. Low Shutdown
10±0.5VDC
20±1.0VDC
40±2.0VDC
10±0.5VDC
20±1.0VDC
40±2.0VDC
Over Load
Shut down output voltage , restart to recover
Over Voltage
15.5±0.5VDC
31±1.0VDC
62±2.0VDC
15.5±0.5VDC
31±1.0VDC
62±2.0VDC
Over Temperature
Shut down output voltage , recover automatically after temperature goes down
Output Short
Shut down output voltage , restart to recover
DC Input Reverse Polarity
By fuse
Earth Fault
Shut off o/p when the load has electrical leakage
Soft Start
Yes, 3-5 Seconds
Environment
Working Temp.
0~+50℃
Working Humidity
20~90%RH non-condensing
Storage Temp.& Humidity
-30~+70℃,10~95%RH
Safety & EMC
Safety Standards
Certified UL 458(only for "GFCI" receptacles)
Certified EN 60950-1; 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013.
Isolation Resistance
I/P-O/P:100M Ohms/500VDC
EMI Conduction &
Radiation
Certified FCC class A
Certified EN 62040-2:2006,EN61000-3-2; EN61000-3-3;
EMS Immunity
------
Certified IEC61000-4-3, IEC61000-4-6
E-MARK
------
Certified ECE RIO.05:2014
Others

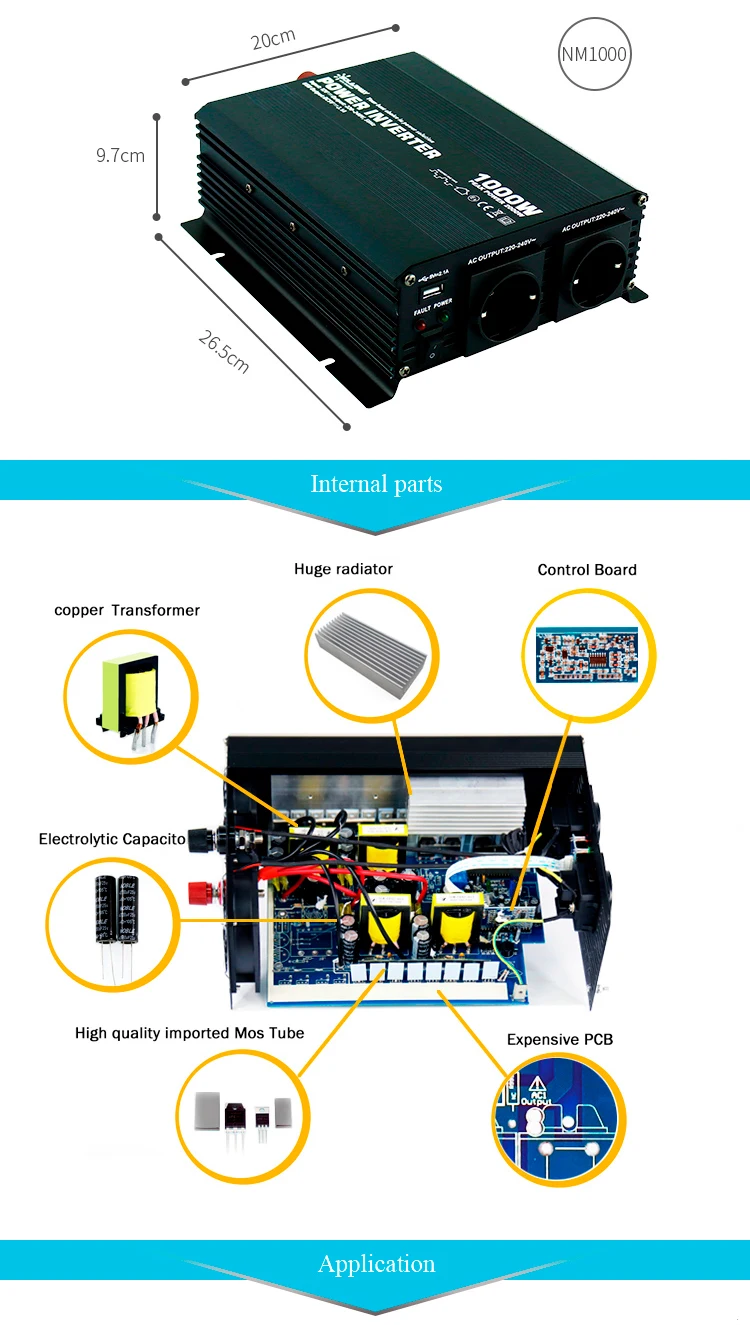

Dimension(L×W×H)
265×200×96.5mm
Packing
2.7kg;6pcs/17kg/0.072m³
Cooling
Load control fan or by thermal control fan
Application
Home and Office appliances, Portable Power Equipment, Vehicle,Yacht and Off-Gid Solar
power systems…etc.
