Vacuum Lifter for Handling Stone Slabs and Ceramic Tiles
- Category: >>>
- Supplier: Henan Eternalwin Machinery Equipment Co. Ltd.
Share on (1601208334502):
Product Overview
Description
Product Description

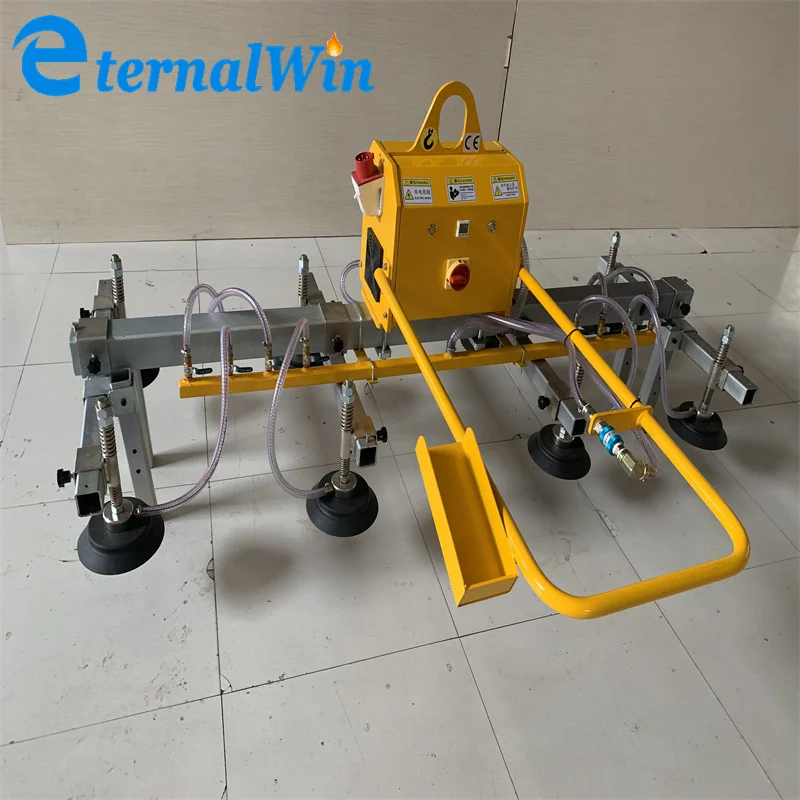

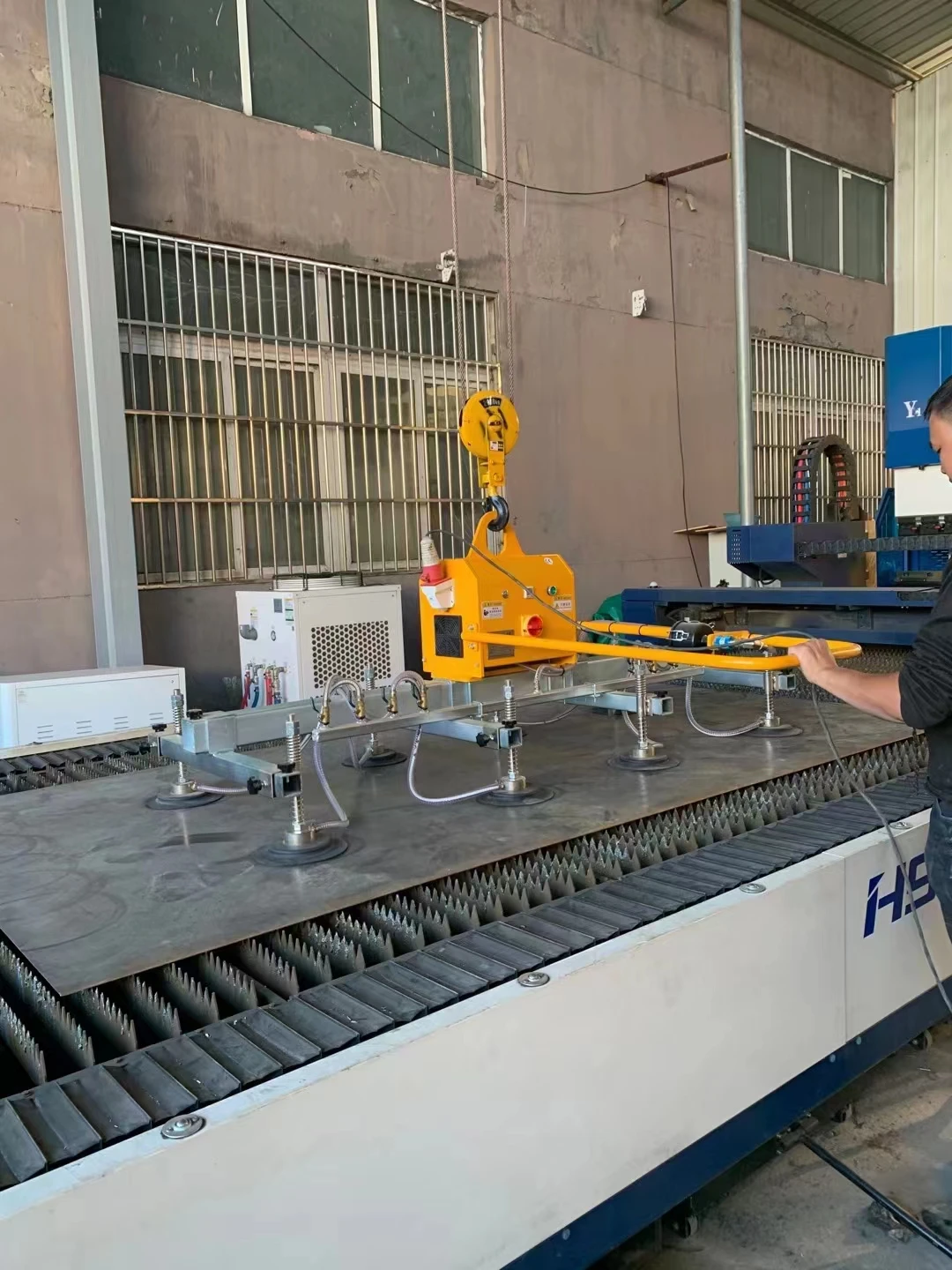

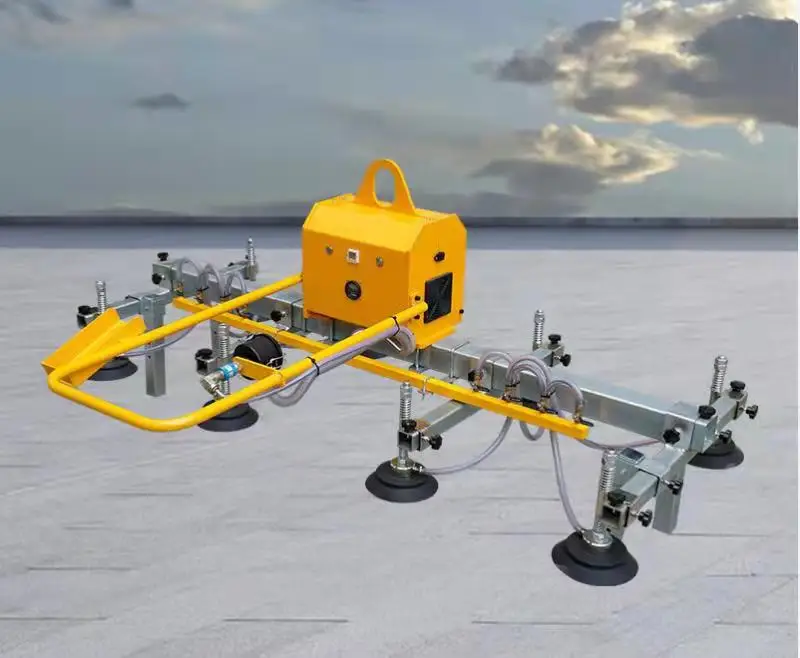

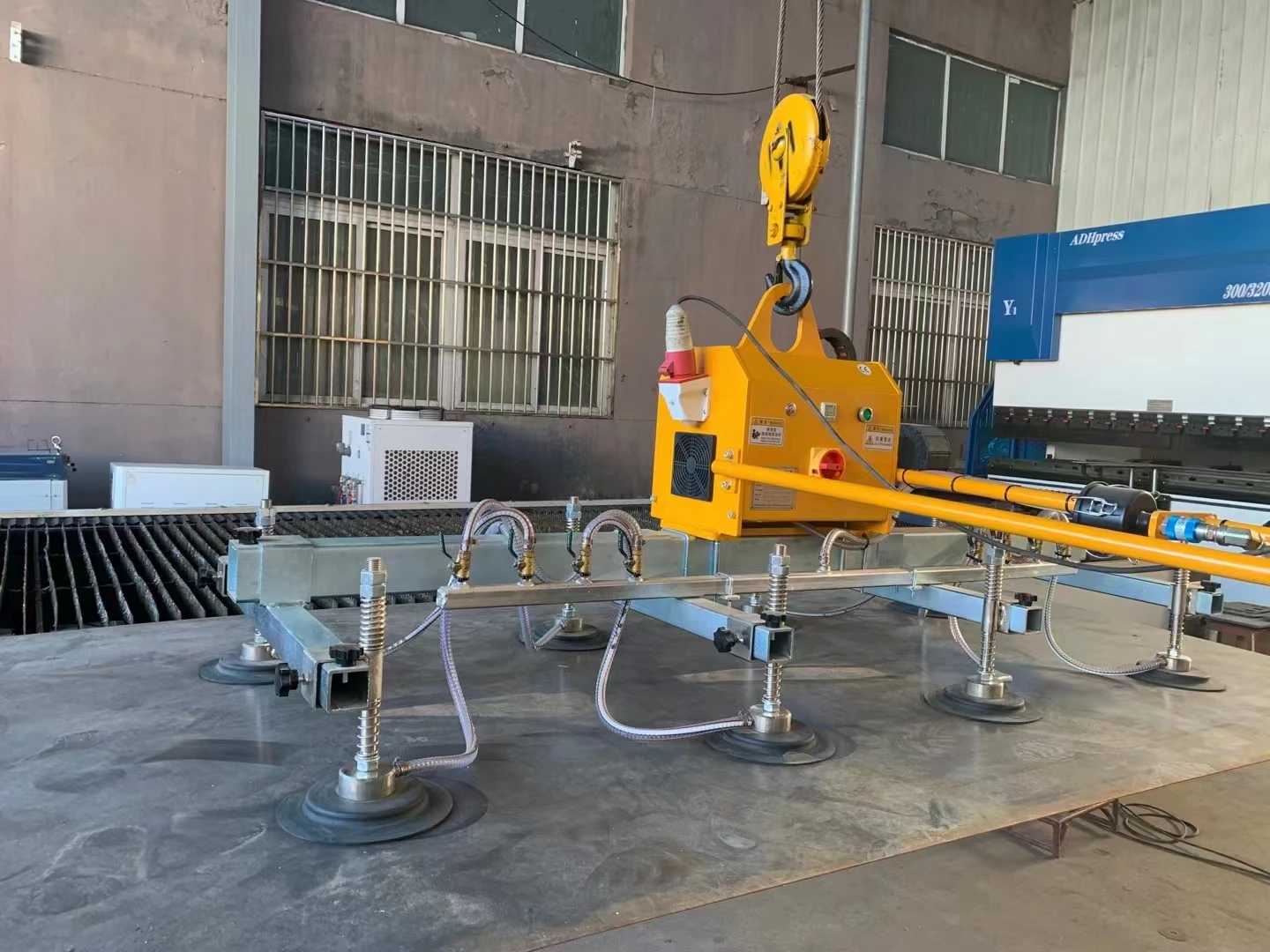

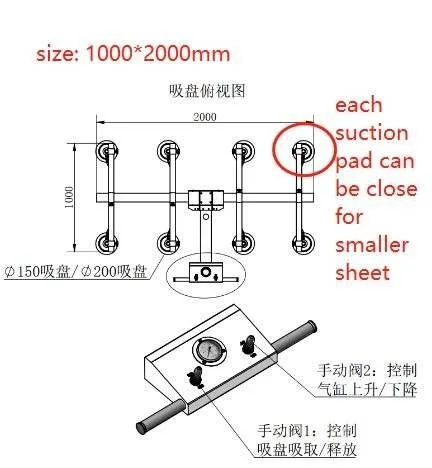

SSUPY series vacuum lifter is used for loading and unloading of various processing machines, such as laser cutting machine, plasma cutting machine, and shearing machine. It is suitable for flat plates such as aluminum plates, stainless steel plates, iron plates, and acrylic plates. Energy saving, environmentally and easy to operate,with adjustable cups ,and each cup with a manual ball valve to control opening and closing, easy to handle different sizes plates,the cup rod is equipped with double springs up and down. When the plate is uneven, the spring plays a cushioning role to make the cup's force uniform to ensure the safety and reliability of the vacuum lifter. The ends of main beam has been sealed by plate welding,used as vacuum storage tank. When the equipment is suddenly shut down, it is guaranteed that the plate can be reliably adsorbed at least 20 minutes.Japan Panasonic Vacuum Pressure Switch, assemble high sensitivity buzzer alarm unit. If don’t reach the setting pressure, then light up the yellow light to inhale in time. Motor: 380V, 3P, 50Hz Air source: no need Power: 350W | ||||||||
Packing & Delivery
Company Profile
we have glass vacuum lifter, panel lifter, vacuum lifter robot and movable trolley.
Features and advantages:1. The use of American THOMAS DC vacuum pump and maintenance free battery, without additional air source or power supply, convenient and practical, high safety.
2. Rear wheel drive, rear wheel steering, walking and direction adjustment is more convenient.
3. Adjustable suction cup distance, adapt to various sizes of glass.
4. Large capacity battery, continuous working time up to 24 hours.
5. The use of hydraulic components are stable and reliable, the speed of movement can be controlled according to the operation rod.
6. Specially designed for glass installation side movement adjustment, to realize the left and right fine tuning of the glass.
7. Lateral torsion function, can pass through the narrow corridor or porch.
8. The large size of the tire ensures good passing performance and easy handling of rough roads.
9. Compact overall structure, easy to operate and maintain, easy access to elevators and minivans, convenient transportation.
10. Easy to charge, equipped with intelligent charger, convenient to replenish power at any time.
11. The surface of the machine is painted with high anti-corrosion function.
12. Electric suction and deflation, it only takes 4-6 seconds to absorb a piece of glass, efficient and convenient, electric turnover 180°, manual rotation 360°.
13 imported silica gel suction cup to protect the glass surface without scratches. And each sucker is equipped with an independent air valve.
14. Two independent suction systems, when one system fails, the other can replace work.

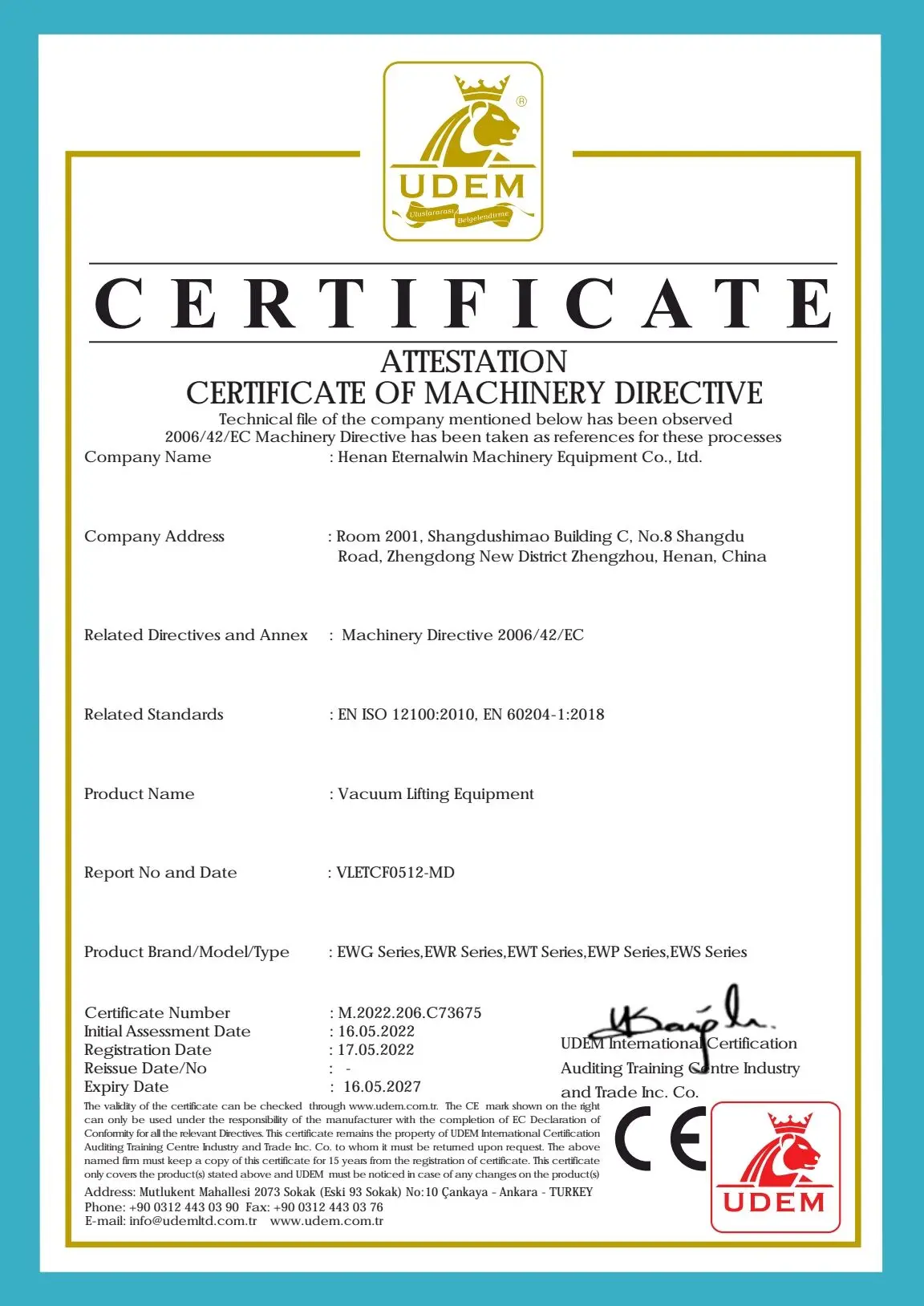

Certifications
