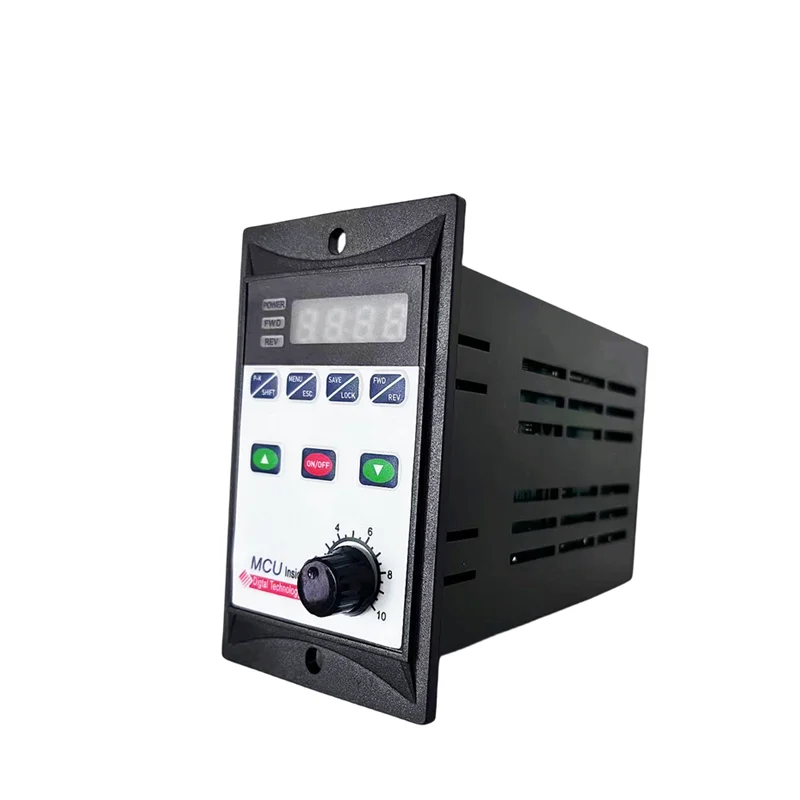

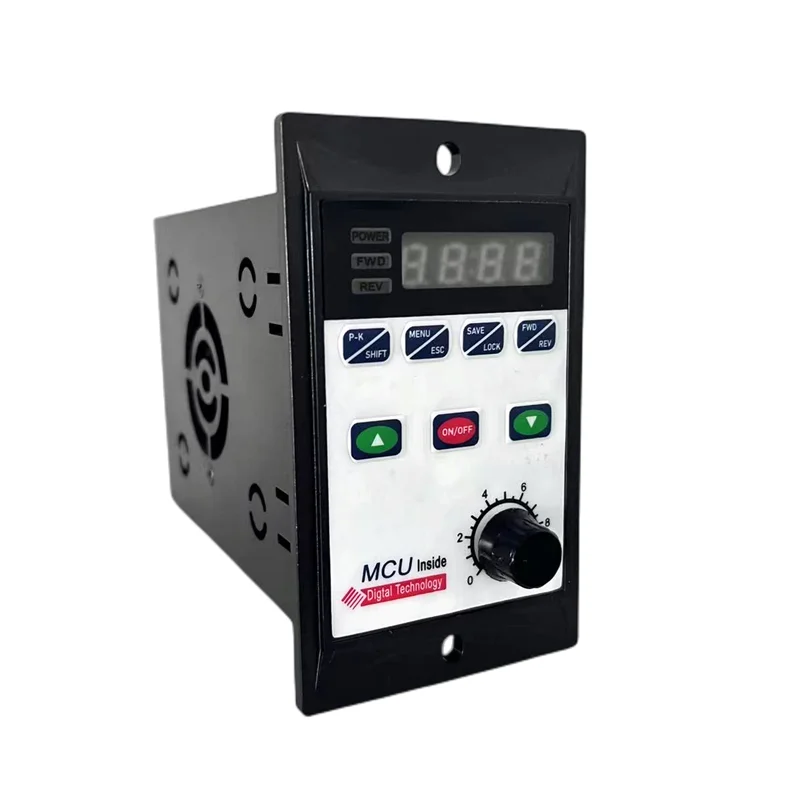

T22 mini inverter 220V 0.75kw 1hp 0.5hp vfd single phase to 3 phase motor speed controllers ac drive
T22 mini inverter 220V 0.75kw 1hp 0.5hp vfd single phase to 3 phase motor speed controllers ac drive
T22 mini inverter 220V 0.75kw 1hp 0.5hp vfd single phase to 3 phase motor speed controllers ac drive
T22 mini inverter 220V 0.75kw 1hp 0.5hp vfd single phase to 3 phase motor speed controllers ac drive
T22 mini inverter 220V 0.75kw 1hp 0.5hp vfd single phase to 3 phase motor speed controllers ac drive
T22 mini inverter 220V 0.75kw 1hp 0.5hp vfd single phase to 3 phase motor speed controllers ac drive
T22 mini inverter 220V 0.75kw 1hp 0.5hp vfd single phase to 3 phase motor speed controllers ac drive

T22 mini inverter 220V 0.75kw 1hp 0.5hp vfd single phase to 3 phase motor speed controllers ac drive

Share on (1601208339247):


Price:$21.30

Quantity:


Product Overview

Description



Product Description


T22-750W-12-H VFD /AC Drive
(Upgrade Version of T13-750W-12-H)

Main Application: Packing Machinery, Ice Cream Machinery, Medical Machinery (like Mask production line), Conveyor Production Line and many other general purpose equipments. Pls check with us for more application information.

Use of the environment
Power supply: Single Phase AC 220v ± 20%
Temperature: -10 ℃ ~+55 ℃
Humidity: 0 % ~65 %

RS485 communication is standard.




T22 Series is single-phase AC220V input, drives three-phase AC220V motor, and the frequency output is 0HZ—130.0HZ. In order to increase the output voltage, this product uses SVPWM modulation method, and the carrier frequency is 8.0KHZ. Suitable for 750W motors, the maximum output power is 1100W. The inverter can change the V/F curve arbitrarily by setting the V/F compensation frequency and the voltage ratio at this frequency. By setting the highest value of the V/F curve, according to the load conditions, the efficiency of the use of electric energy can be maximized, the heating of the motor can be reduced, and the service life of the motor and the inverter can be extended.


Details Images

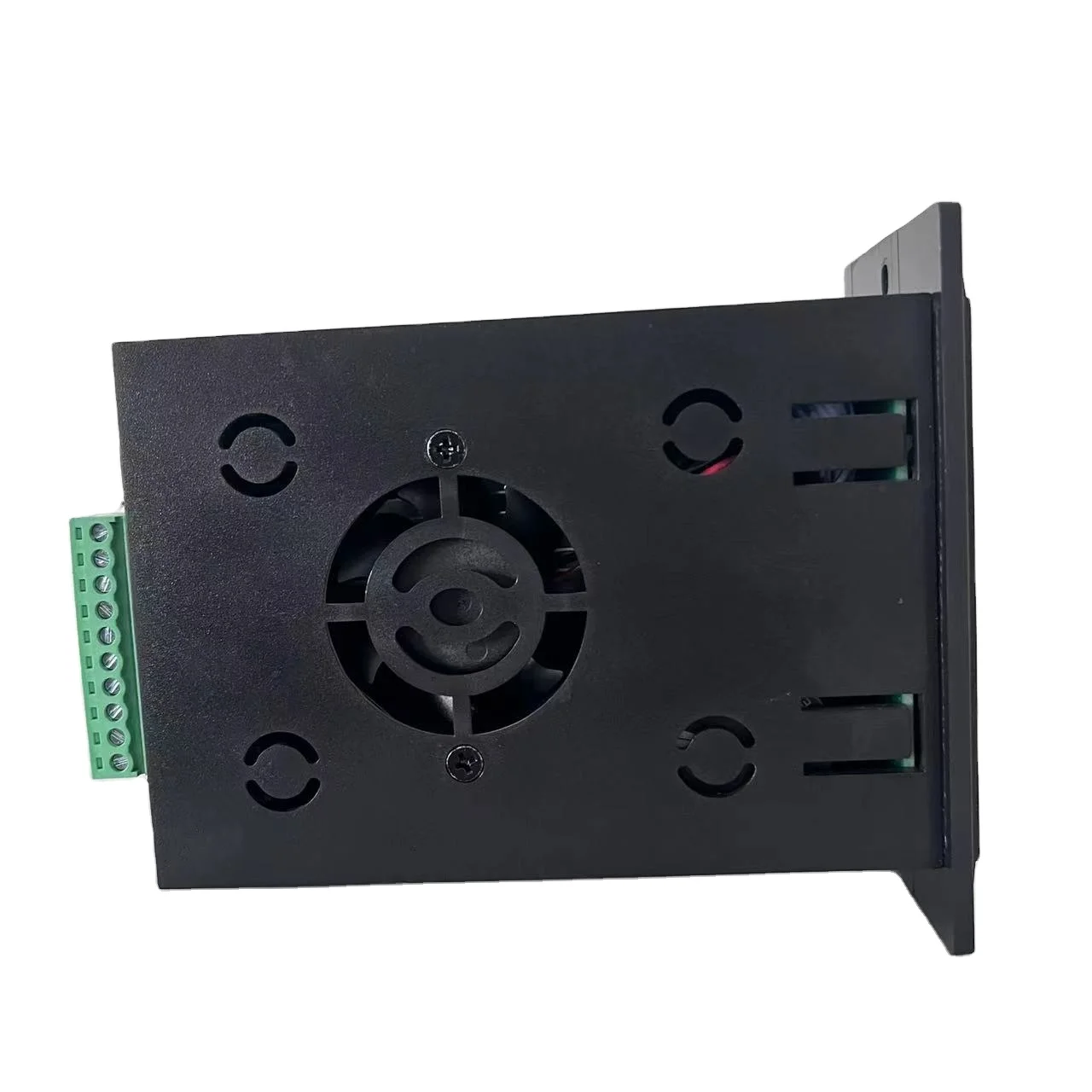

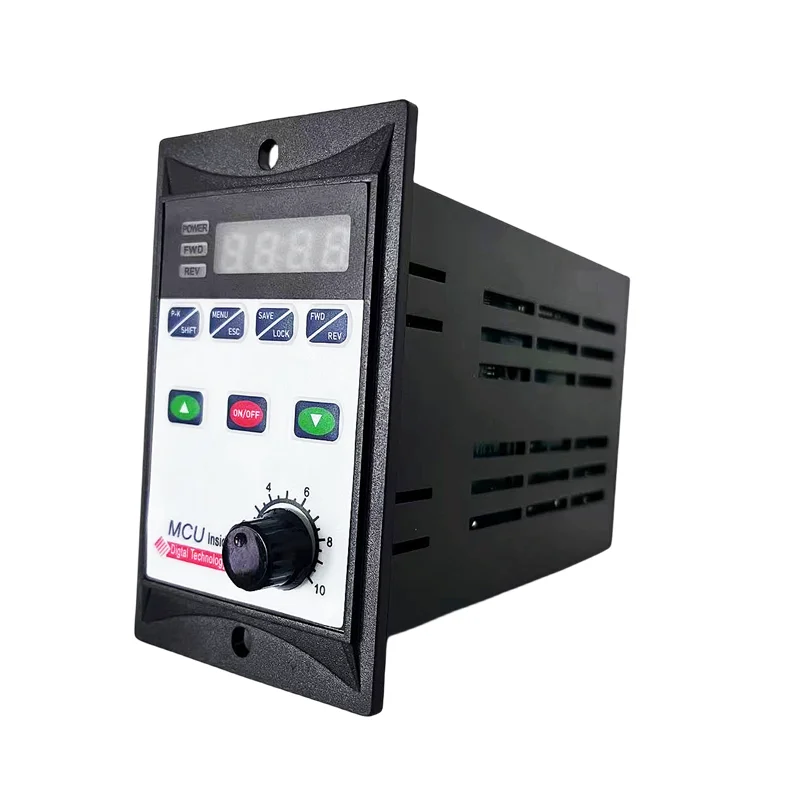

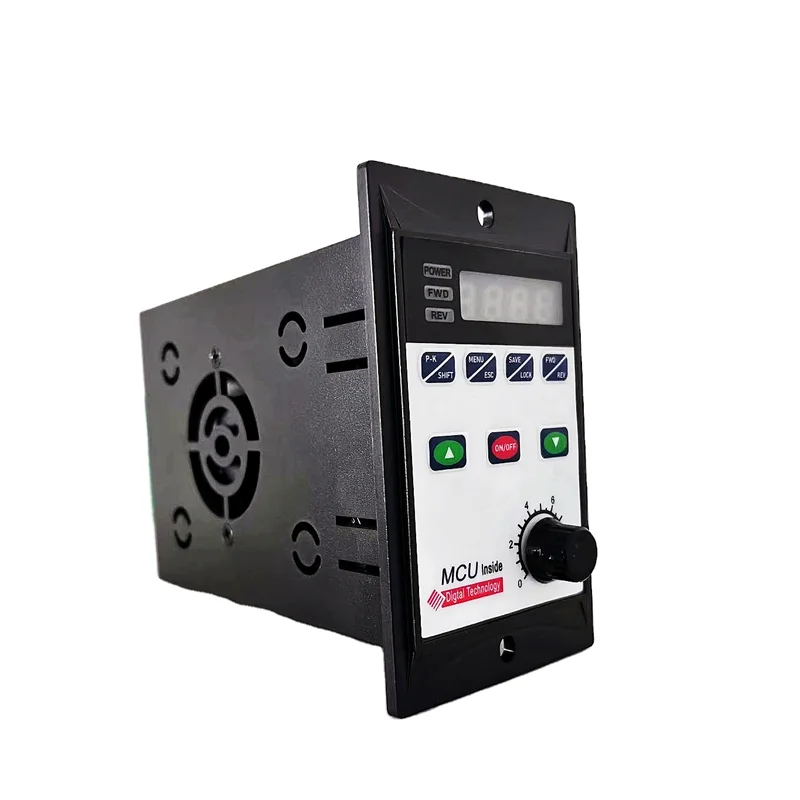

Product details display for T22 series 2-1
Product details display for T22 series 2-2


Product packaging


Carton packing 1

Carton packing 2
Carton packing 3


Products Description

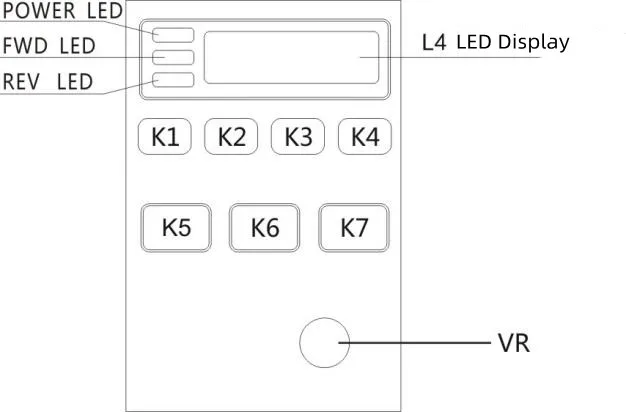

K1: shift/query function parameter display key (P-K/SHIFT).
K2: Enter the parameter setting key (MENU/ESC).
K3: Lock/unlock button (SAVE/LOCK). Short press to lock/long press 3S to unlock.
K4: Forward and reverse switching button (FWD/REV).
K5: Speed ​​adjustment minus key/data setting minus (↓).
K6: start/stop/fault recovery/data setting save key (RUN/STOP/OK)
K7: speed control plus button/data setting plus (↑).
V R: potentiometer: panel speed potentiometer button (invalid when external port, RS485 given frequency).

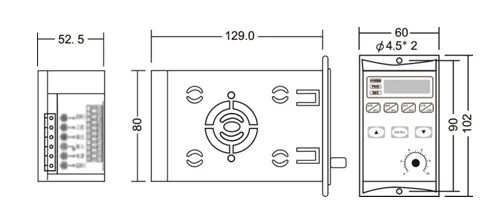

Product specifications

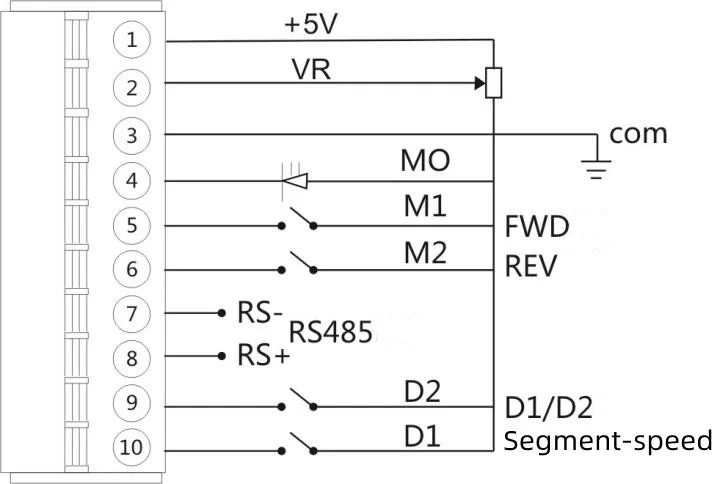

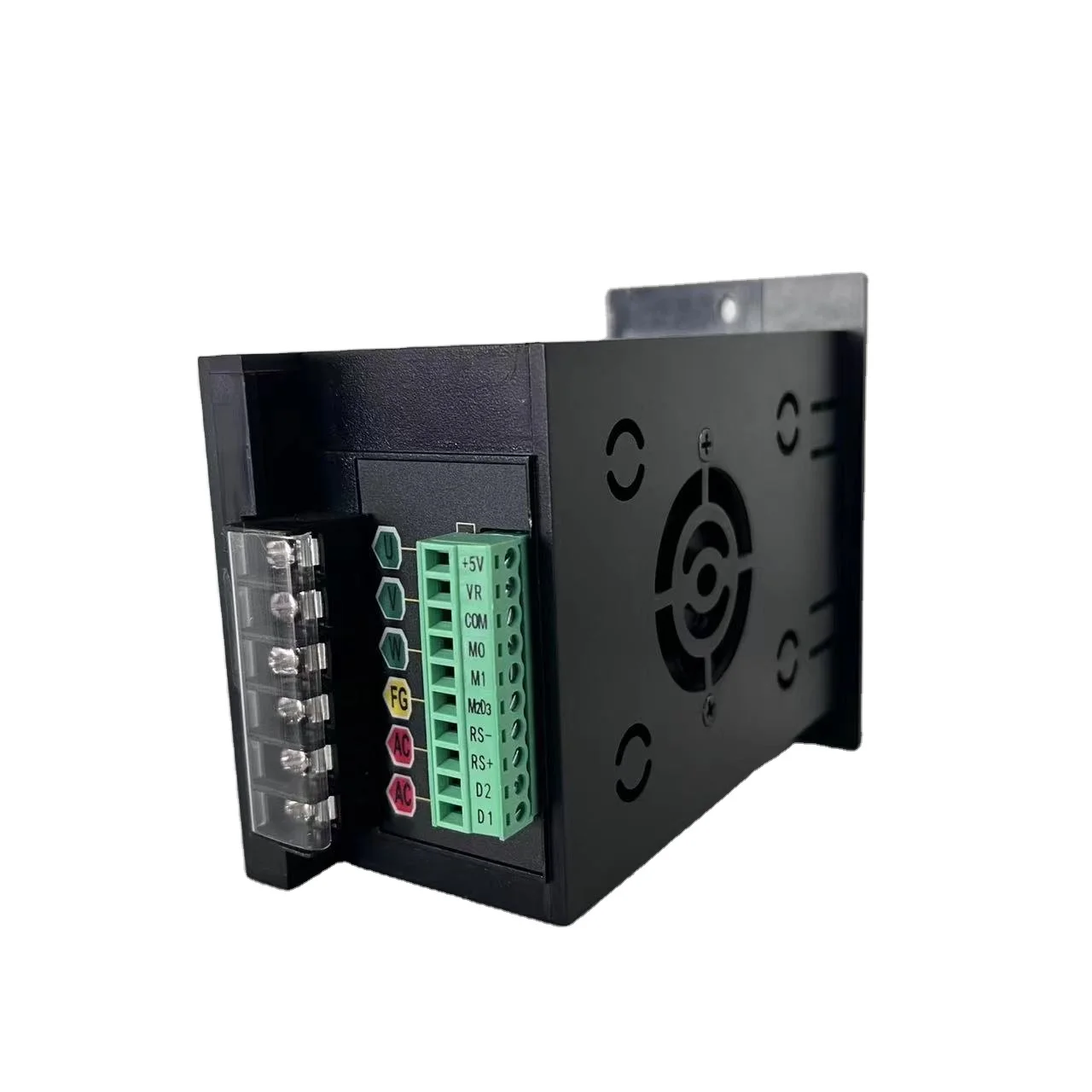

External Terminal Control chart
Serial number
Representative
Function
1
+5v
+5v External adjustable power output
2
VR
External potentiometer input End
3
GND
COM Public Port
4
MO
LED set port
5
M1
MI FWD Function
6
M2
MI REV Function
7
rs485-
Communication RS485 interface-
8
rs485+
Communication RS485 interface+
9
D2
Segment-speed Terminal 2
10
D1
Segment-speed Terminal 1




other products




Company Profile


FMZ Profile
Shanghai FMZ Industry Co., Ltd specializes in R&D, manufacture, sales and professional technical services upon industrial
automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft starter, HMI, motor servo, PLC and other general parts.
Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil,plastics, chemicals, municipal project and other industries.
We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world.
About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning,operation or problem shot and offer free training.
Our business philosophy is to ‘Always be with you and enjoy success together.






FAQ


1.what's the payment term?
T/T,L/C,D/P,WEST UNION,CASH Alibaba
2.what's the delivery time?
3-15 days.
3.what is the standard of package?
Export standard package or special package according to customer.
4.what is the warranty?
18 months after delivery.
5.what is the export experience?
Europe(Denmark,Poland,Russia,etc),Middle East(Iran,SA,UAE,etc),south
America(Mexico,Columbia,Brasil,etc),Asia(India,Pakistan,Bangladesh,Vietnam,Thailand,Indonesia,Malaysia,etc),Afria(Kenya,Zimbabwe,Negeria,etc)
6.What is trade Term?
EX-Works, FOB China, CFR & CIF
7.Do you accept OEM business?
 We accept OEM under your autherization.
8.what about the aftersales service?
We have one mature after-sales service team. Normally we offerquick technical support via email or online talking tools like
whatsapp, wechat or others. If urgent or necessary, we also can send our technician to your site with full-time support.
9.Do you accept OEM/ODM service request?
OEM or ODM service is available
10.Is it training available for your technician?
Yes, Definitely we warmly welcome your technician to acceptrelated maintenance and repair training in our factory. We will help
arrange the hotel and food .
