automatic rotary screen printing machine for t shirts nonwoven bags textile serigraphic 4 colors garment silkscreen automatic
- Category: >>>
- Supplier: Dongguan Hoystar Machinery Co. Ltd.
Share on (1601208360873):
Product Overview
Description
Product Description
T-Shirts carousel screen printing machine Automatic 4 Color Screen Printer For T-Shirts Non-woven Bags Textile
What is this screen printing machine application for ?
It is suitable for printing Tshirt, neck label, garment tagless, paper bag, non-woven bag, canvas bag, tote bag, kraft bag, sleeve, jean pockets, underwear, insole, can cooler/koozies, textile, fabric, shoe pad, textile caps……and so on
Technical Parameter
Max.printing size | 400*500mm |
Pallet size | 500*600mm |
Max.screen frame | 580*680mm |
Total stations | 10 pcs |
Flash dryer | 4 sets |
Electric power | 4 sets * 6KW/set |
Voltage | 220V Single phase |
Air pressure | 6-8 Bar |
Dimension | 3600*3600*1650mm |
Weight | 1200kg |
Details Images

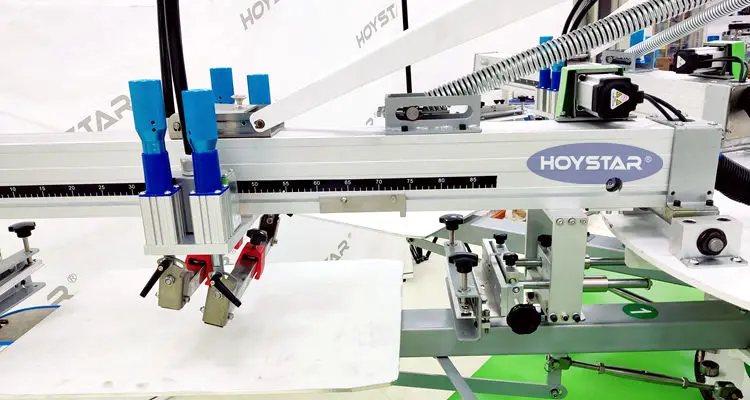

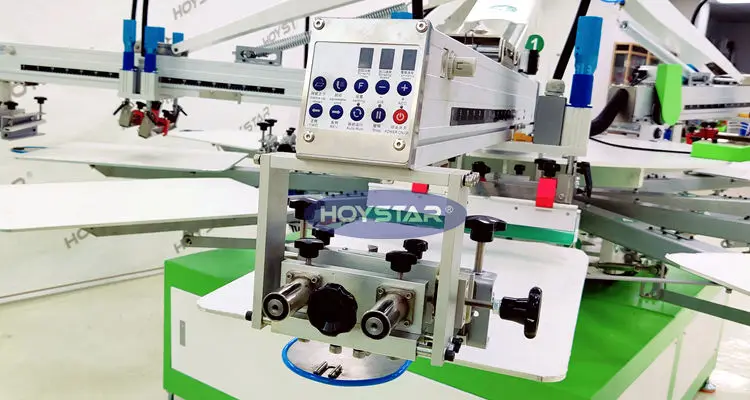

Separately Digit control panel and micro adjust for each printing head

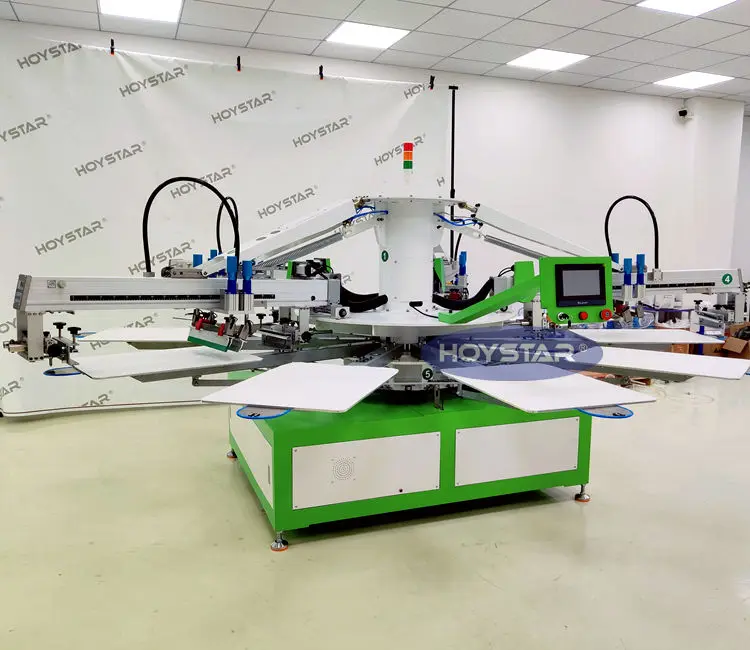

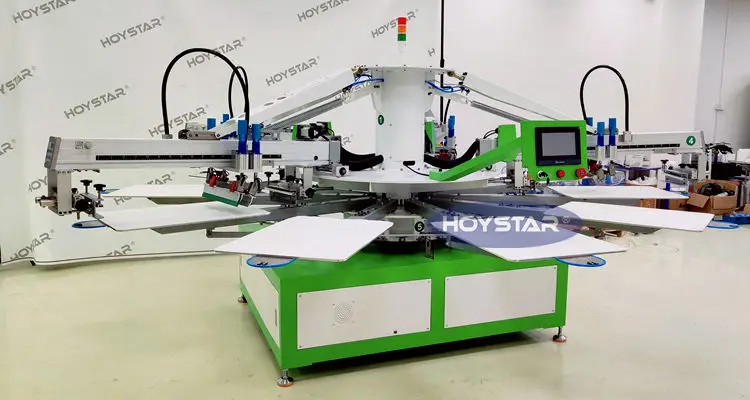

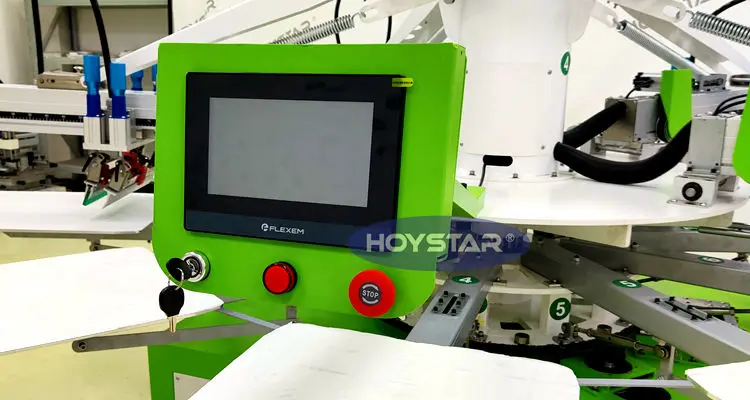

PLC program and touch screen control panel

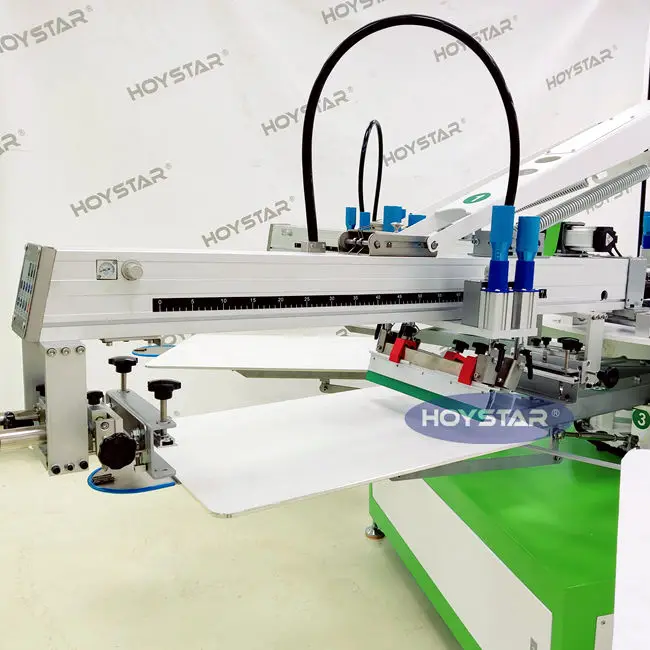

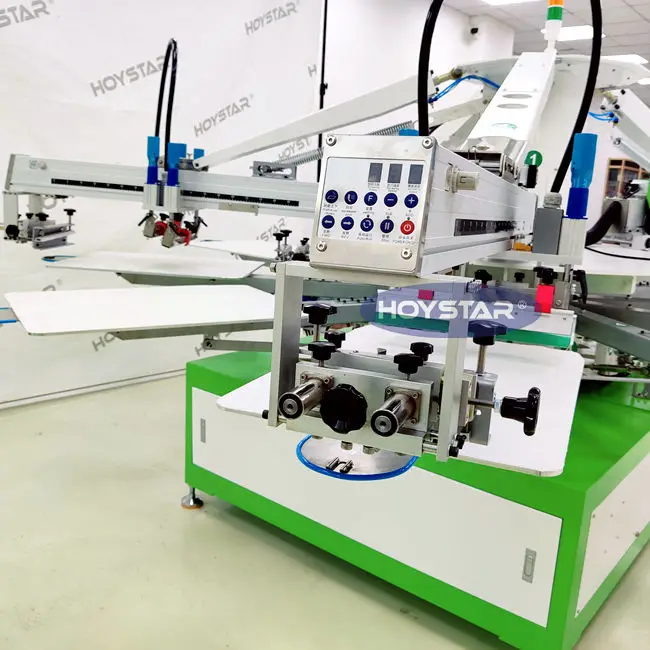

Automatic printing head

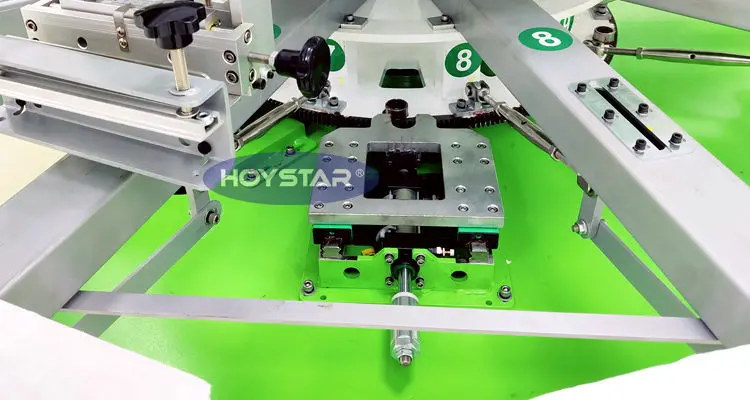

Table position

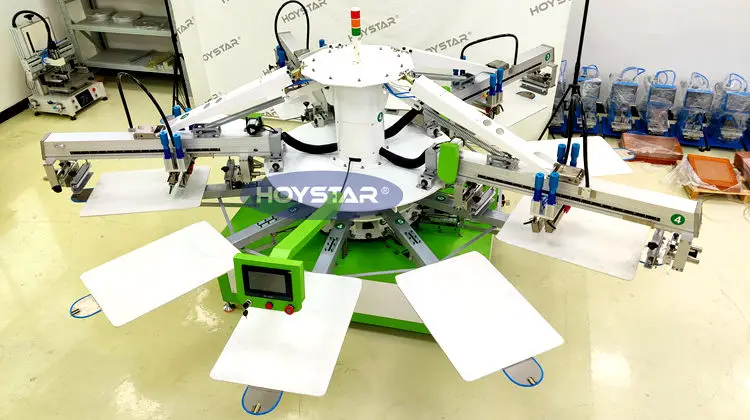

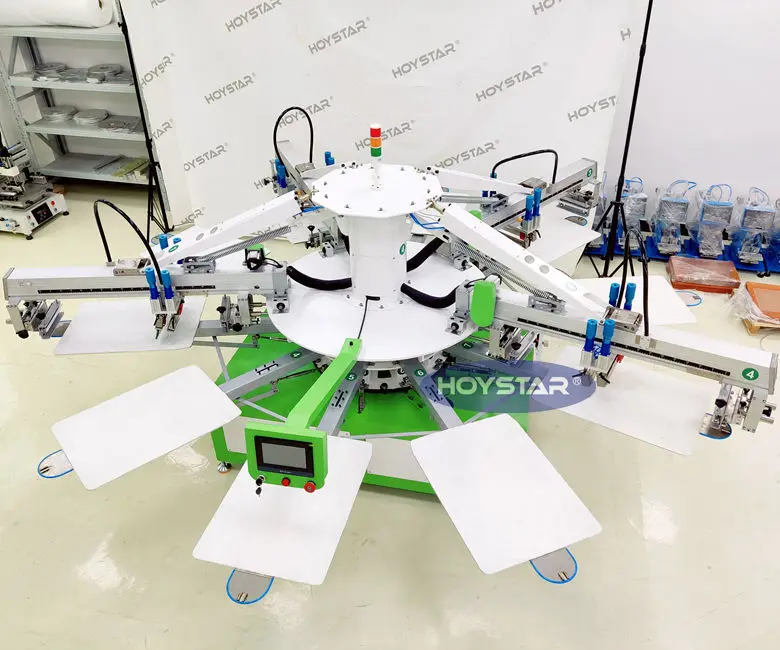

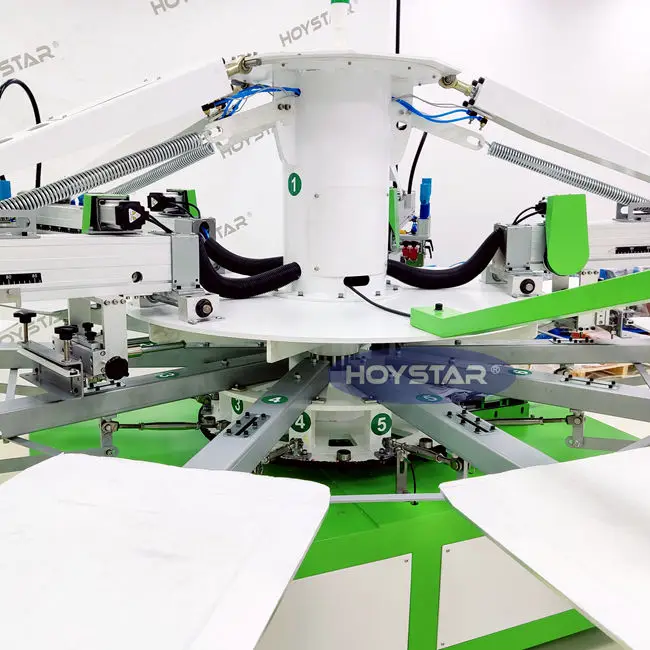

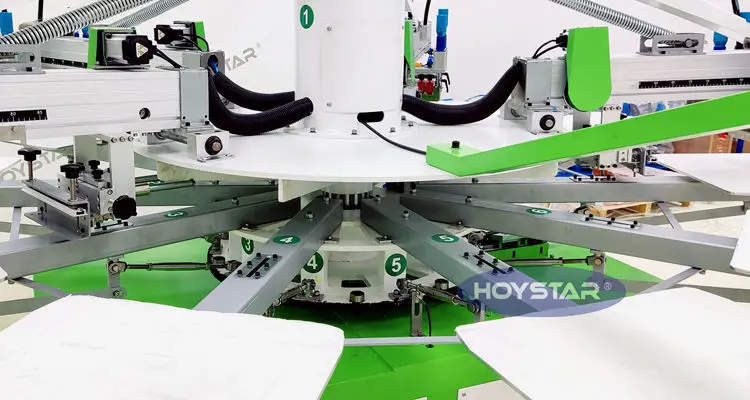

Rotary worktable driving by servo motor
Features
1. Printing head adjustable and set up by separately control panel
2. Flash dryer adjustable separately for each color
3. Printing head drying by electric servo motor
4. Worktable Automatic positioning
5. PLC program and Touch Screen Control Panel
6. Micro adjust for chromatography printing precision
7. Every print head control panel separately adjustment
2. Flash dryer adjustable separately for each color
3. Printing head drying by electric servo motor
4. Worktable Automatic positioning
5. PLC program and Touch Screen Control Panel
6. Micro adjust for chromatography printing precision
7. Every print head control panel separately adjustment
Printed Sample Show
Packing & Delivery
Package material | by wooden case |
Leading time | please communication with supplier directly |
Package dimension | 10CBM |
Shipping way | 1600kg |
