HNOC Drinking Yoghurt Milk Pasteurization Tank 100l Process Machine Dairy Yogurt Production Line
- Category: >>>
- Supplier: Henan Ocean Machinery Equipment Co. Ltd.
Share on (1601208366389):
Product Overview
Description
Product Description
Introduction
The configuration process of the yogurt production line: low-temperature storage (refrigeration tank) - filtration (single/double filtration) - preheating (preheating tank), homogenization (high-pressure homogenizer), sterilization (pasteurization tank), cooling (precooling tank), fermentation (yogurt fermentation tank), low-temperature storage (refrigeration tank), filling (bag, bottle, cup filling machine). The fermented yogurt is liquid yogurt, also called stirred yogurt, which needs to be stored at a low temperature of 2-6℃ and has a shelf life of 7-14 days.
Feature
Automated Control System: Features a PLC control system and touchscreen interface that simplifies operations and enhances monitoring, significantly reducing human errors and ensuring stability and efficiency in production.
Pasteurization Machine: Utilizes a double-jacket design with automatic temperature control for efficient sterilization, preserving the nutritional value and flavor of the yogurt while extending its shelf life.
Fermentation Tank: Equipped with an automatic stirring device in a stainless steel tank, it ensures the yogurt has a fine texture and uniform consistency during fermentation.
CIP Cleaning System: The automatic cleaning function reduces the need for manual cleaning, prevents cross-contamination, and upholds high hygiene and safety standards.

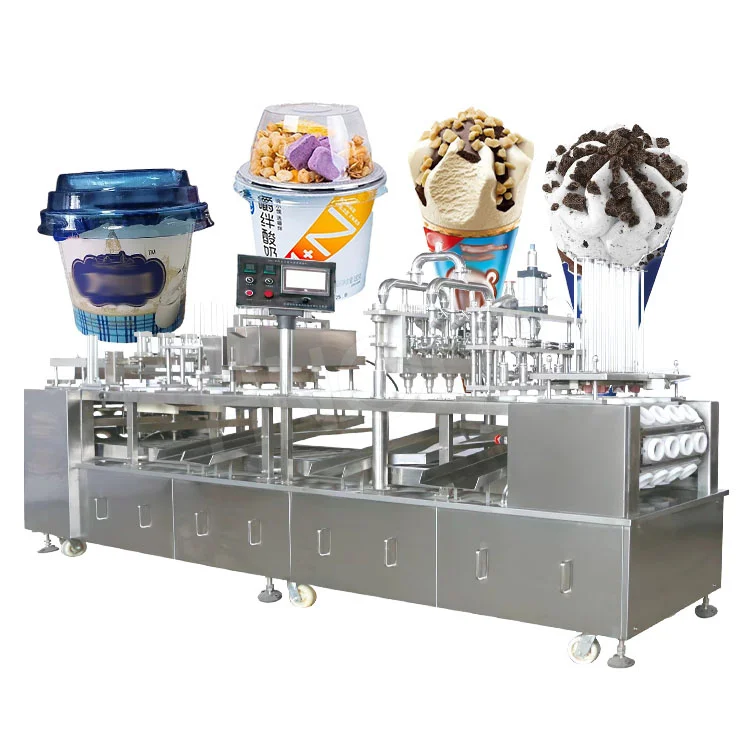

Filling and Sealing Machine: Uses aseptic filling technology adaptable to various packaging specifications, ensuring high efficiency in filling while maintaining the quality of sealing, preventing leaks, and preserving the freshness and safety of the yogurt.
The configuration process of the yogurt production line: low-temperature storage (refrigeration tank) - filtration (single/double filtration) - preheating (preheating tank), homogenization (high-pressure homogenizer), sterilization (pasteurization tank), cooling (precooling tank), fermentation (yogurt fermentation tank), low-temperature storage (refrigeration tank), filling (bag, bottle, cup filling machine). The fermented yogurt is liquid yogurt, also called stirred yogurt, which needs to be stored at a low temperature of 2-6℃ and has a shelf life of 7-14 days.
Feature
Automated Control System: Features a PLC control system and touchscreen interface that simplifies operations and enhances monitoring, significantly reducing human errors and ensuring stability and efficiency in production.
Pasteurization Machine: Utilizes a double-jacket design with automatic temperature control for efficient sterilization, preserving the nutritional value and flavor of the yogurt while extending its shelf life.
Fermentation Tank: Equipped with an automatic stirring device in a stainless steel tank, it ensures the yogurt has a fine texture and uniform consistency during fermentation.
CIP Cleaning System: The automatic cleaning function reduces the need for manual cleaning, prevents cross-contamination, and upholds high hygiene and safety standards.
Filling and Sealing Machine: Uses aseptic filling technology adaptable to various packaging specifications, ensuring high efficiency in filling while maintaining the quality of sealing, preventing leaks, and preserving the freshness and safety of the yogurt.
Recommend Product

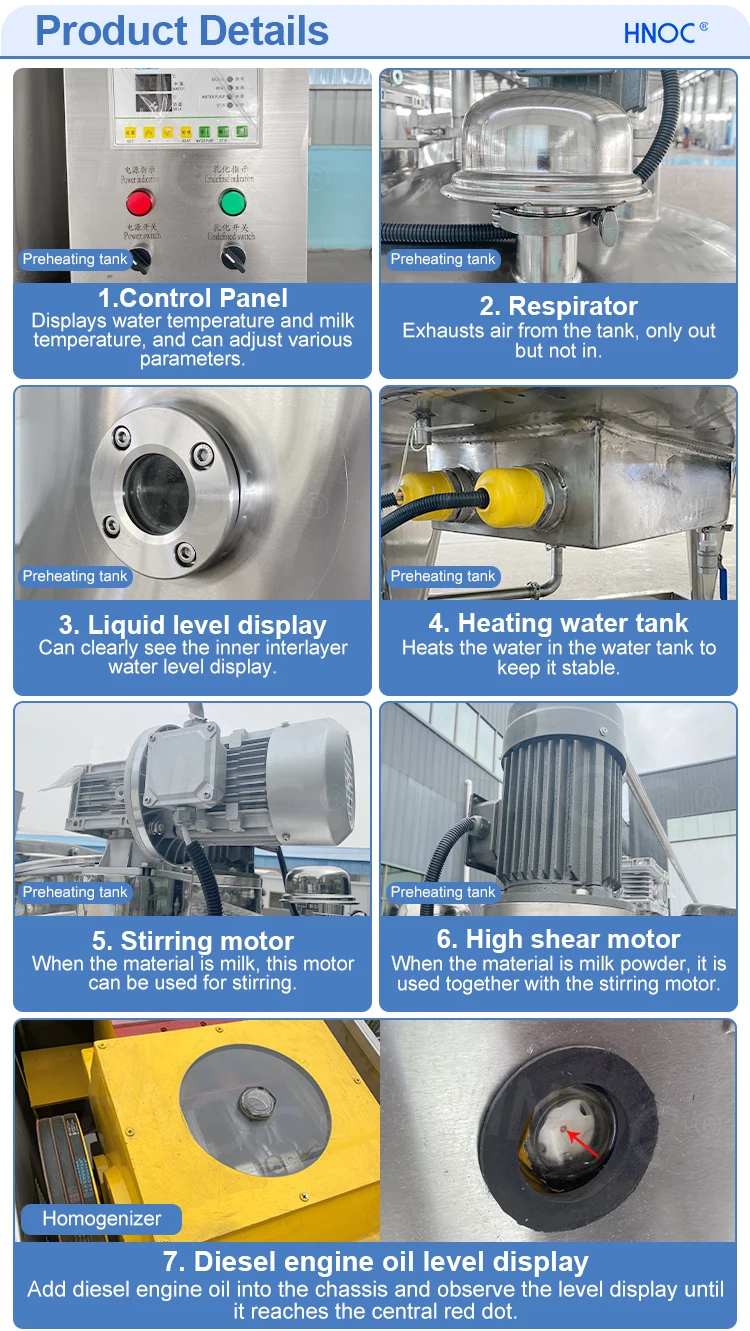

Product Details
Product Parameters

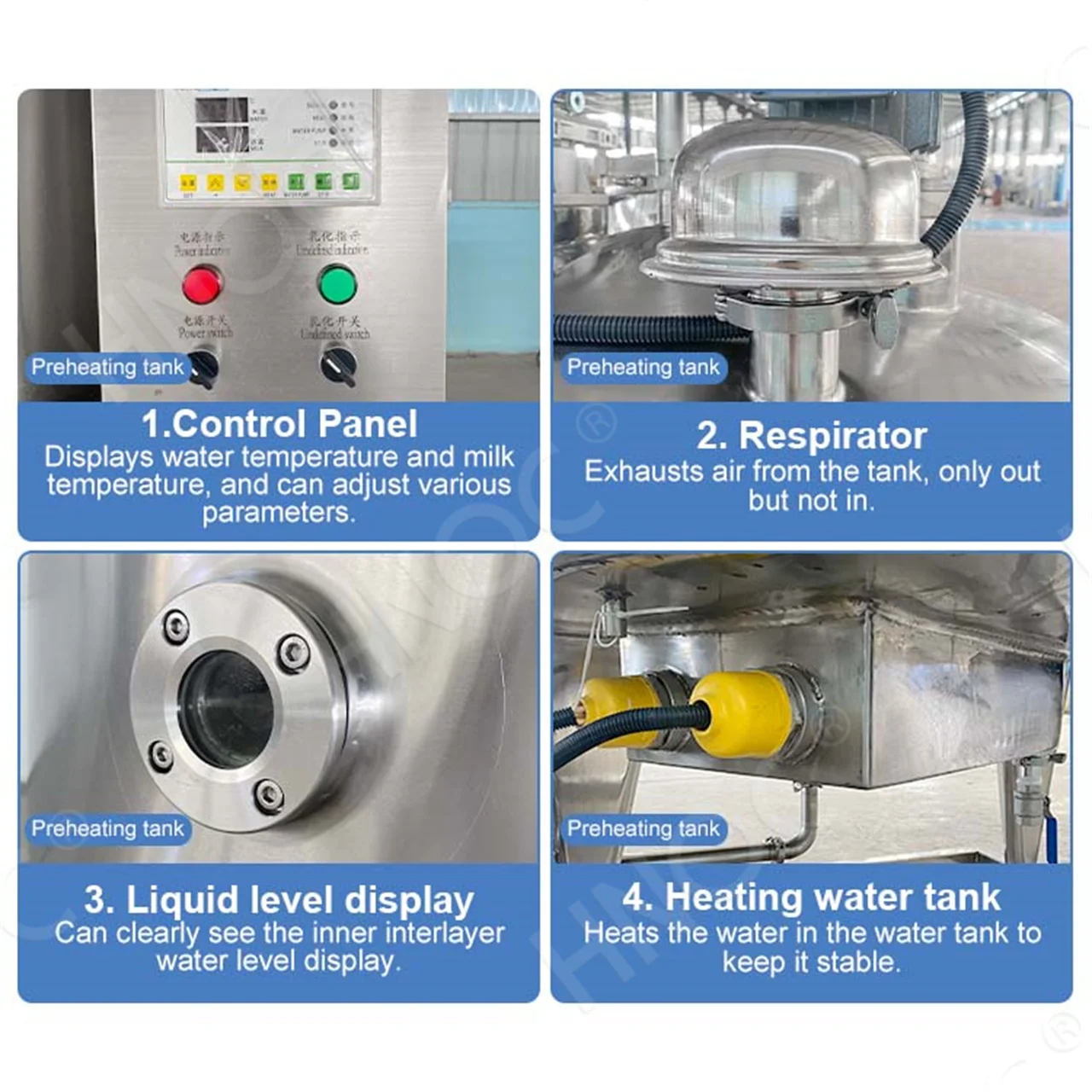

Machine name | Preheating tank |
Material | SUS304 |
Power supply | 380v 50Hz |
Heating power | 18kw |
Installation size | 1200*1000*1550mm |

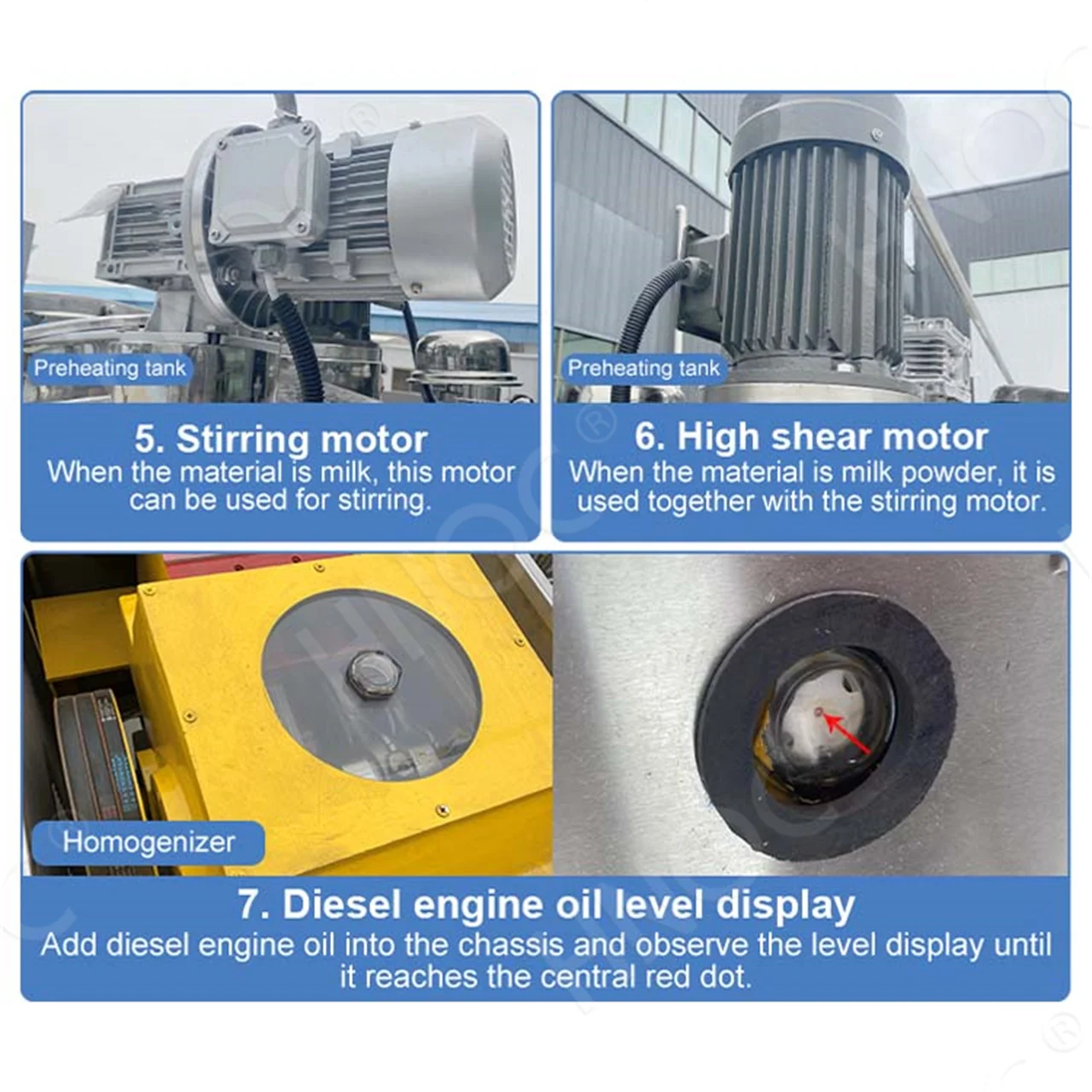

Stirring motor | 0.37kw |
Stirring speed | 36r/min |
Working pressure | 0.09 Mpa |
Maximum temperature | Liquid boiling point under local air pressure (such as the boiling point of plains and plateaus is different) |
Material inlet and outlet diameter | φ38mm |
Machine name | Double filter |
Filtration capacity | 3t/h |
Applicable temperature | ≤120℃ |
Filter aperture | 200 mesh |
Working pressure | ≤0.2MPa |
Filter material | 304 stainless steel |
Filtration accuracy | 200 (mesh/in) |

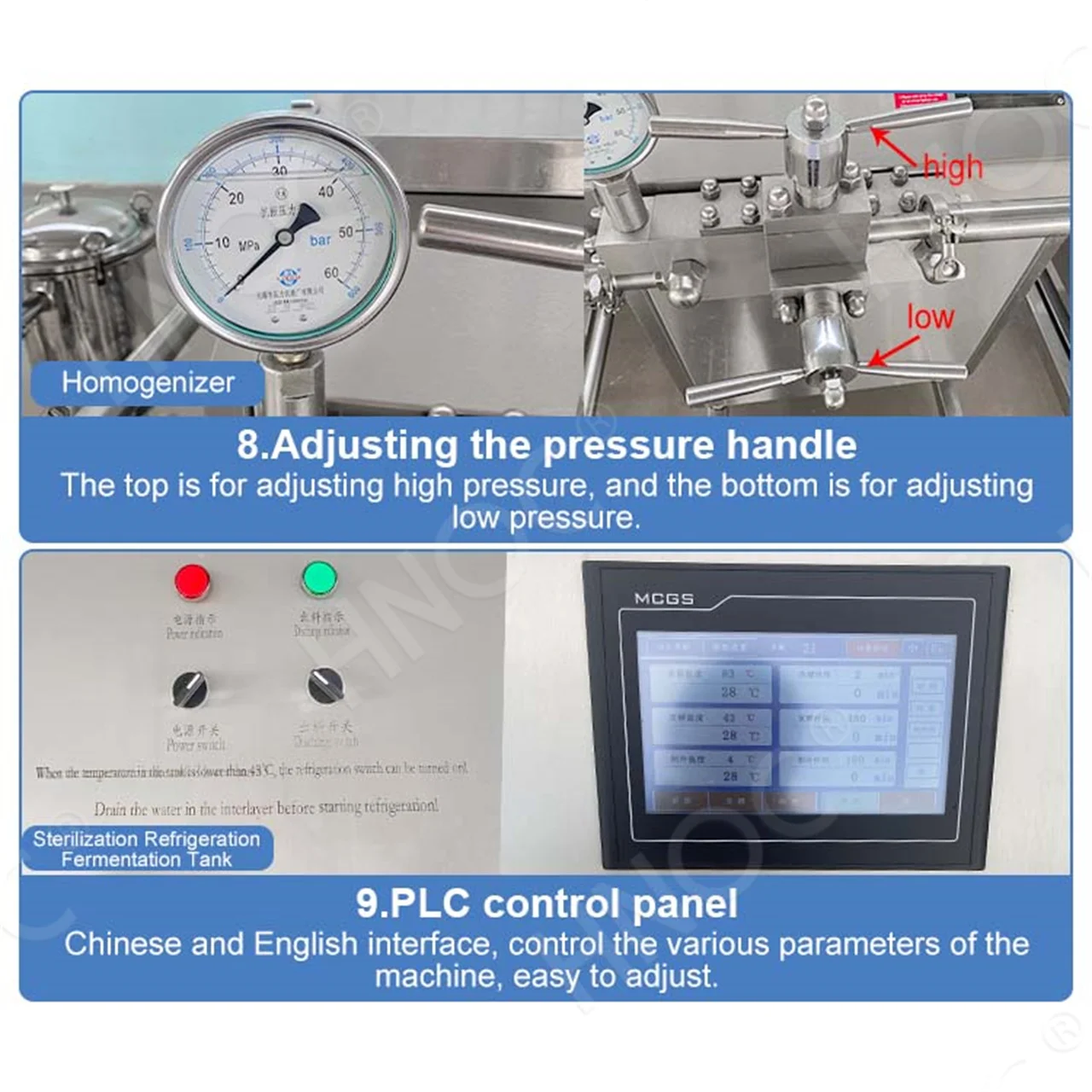

Machine name | Homogenizer |
Output | 500L/H |
Maximum pressure | 25Mpa |
Motor power | 4kw |
Motor speed | 1400R/min |
Dimensions | 1010*616*980mm |
Machine name | Pasteurizer |
Material | SUS304 |
Power supply | 380v 50Hz |
Heating power | 18kw |
Installation size | 1200*1000*1550mm |
Stirring motor | 0.37kw |
Stirring speed | 36r/min |
Working pressure | 0.09 Mpa |
Maximum temperature | Liquid boiling point under local air pressure (such as the boiling point of plains and plateaus is different) |
Material inlet and outlet diameter | φ38mm |
Machine name | Fermentation tank |
Material | SUS304 |
Power supply | 380v 50Hz |
Heating power | 18kw |
Installation size | 1200*1000*1550mm |
Stirring motor | Stirring motor |
Stirring speed | 36r/min |
Working pressure | 0.09 Mpa |
Maximum temperature | Liquid boiling point under local air pressure (such as the boiling point of plains and plateaus is different) |
Material inlet and outlet diameter | φ38mm |
Machine name | CIP circulation/cleaning system |
Water tank | 300L |
Alkali tank | 300L |
Acid tank | 300L |
Heating power | 15kw*3=45kw |
Cleaning pump power | 1.5kw |
Cleaning pump flow | 5T/h |
Dimensions | 3000*900*2000mm |
Maximum temperature | Liquid boiling point under local air pressure (such as the boiling point of plains and plateaus is different) |
Material inlet and outlet diameter | φ38mm |
Machine name | Milk pump |
Voltage | 380V/three-phase/50hz |
Flow rate | 1T/H |
Material inlet and outlet | φ38 |
Power | 0.37kw |

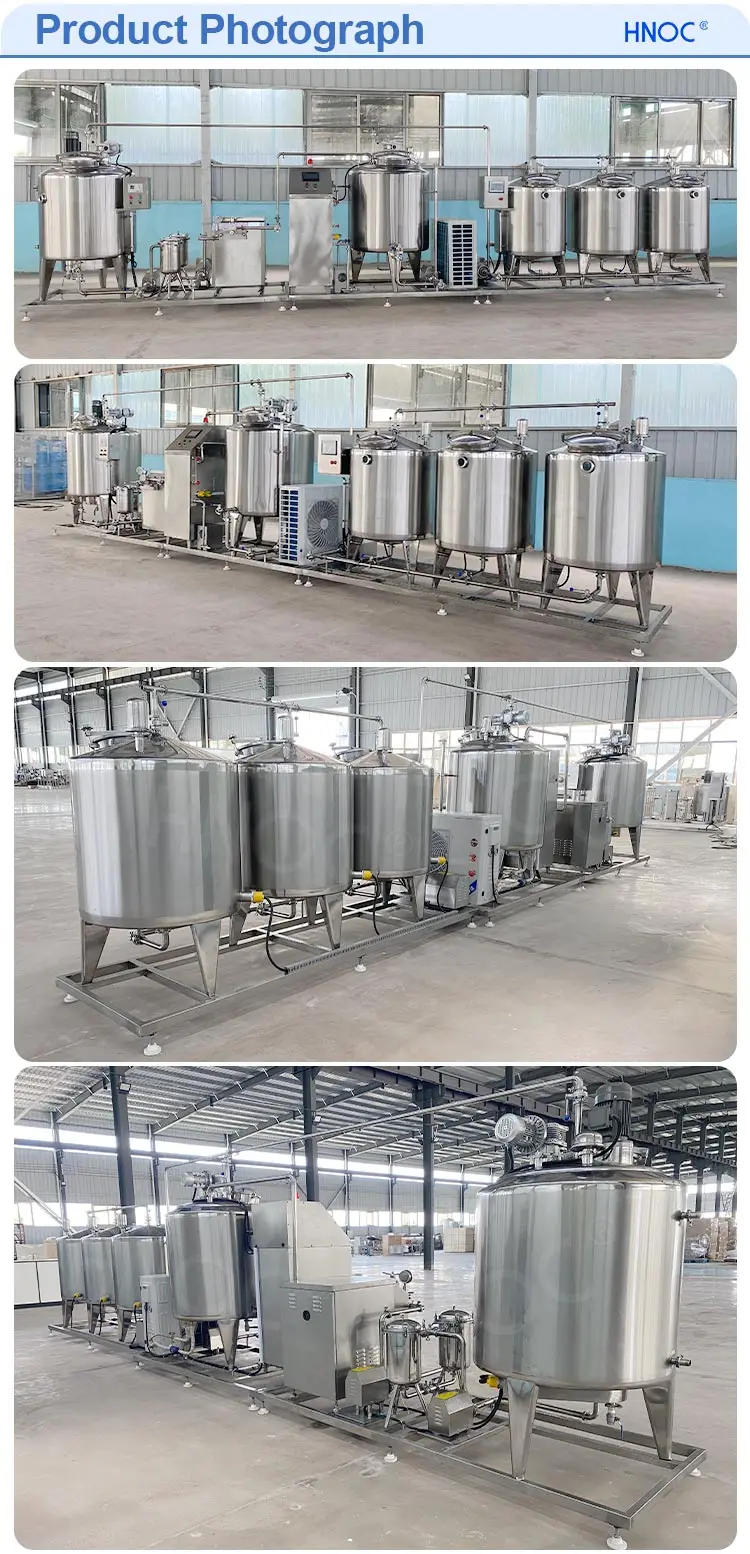

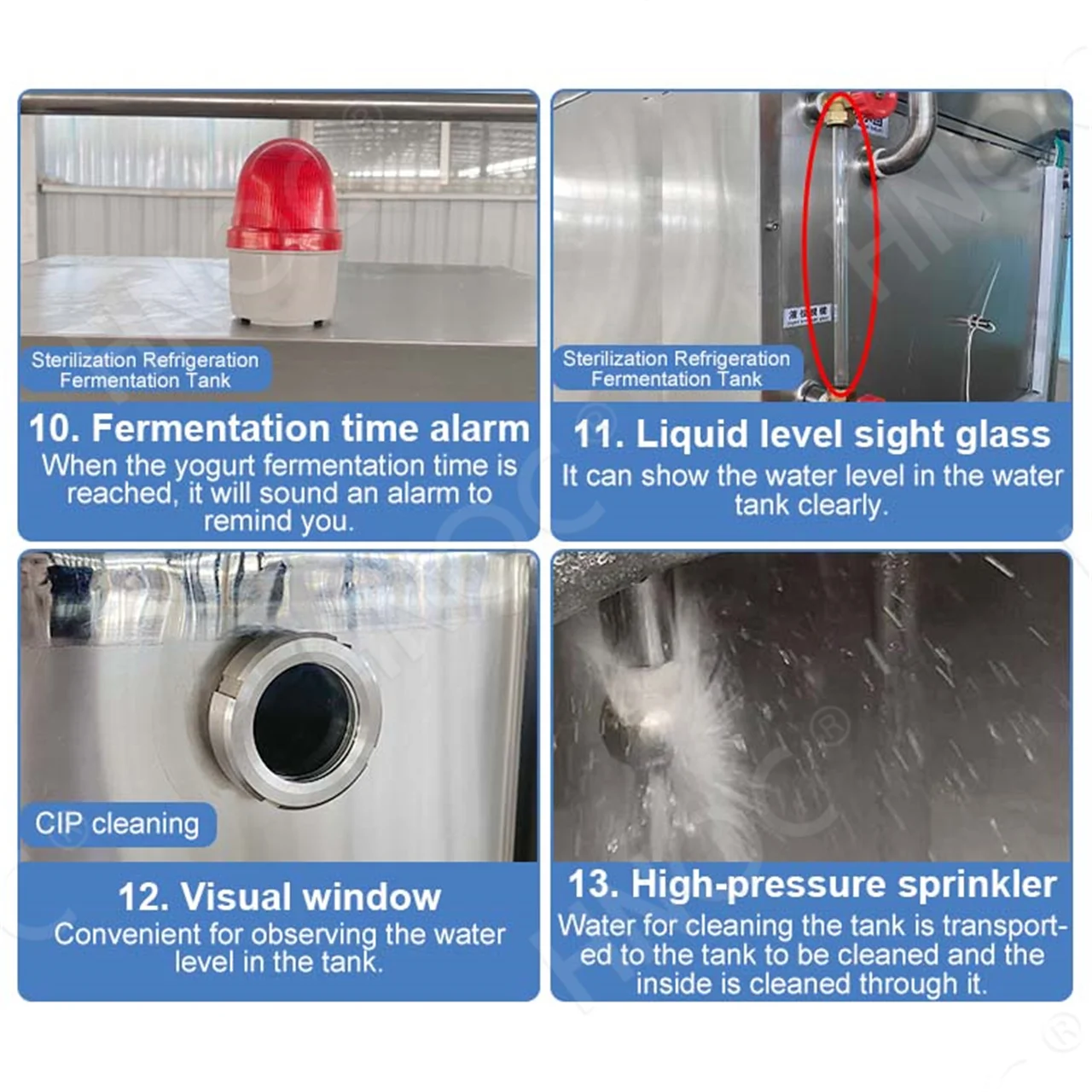

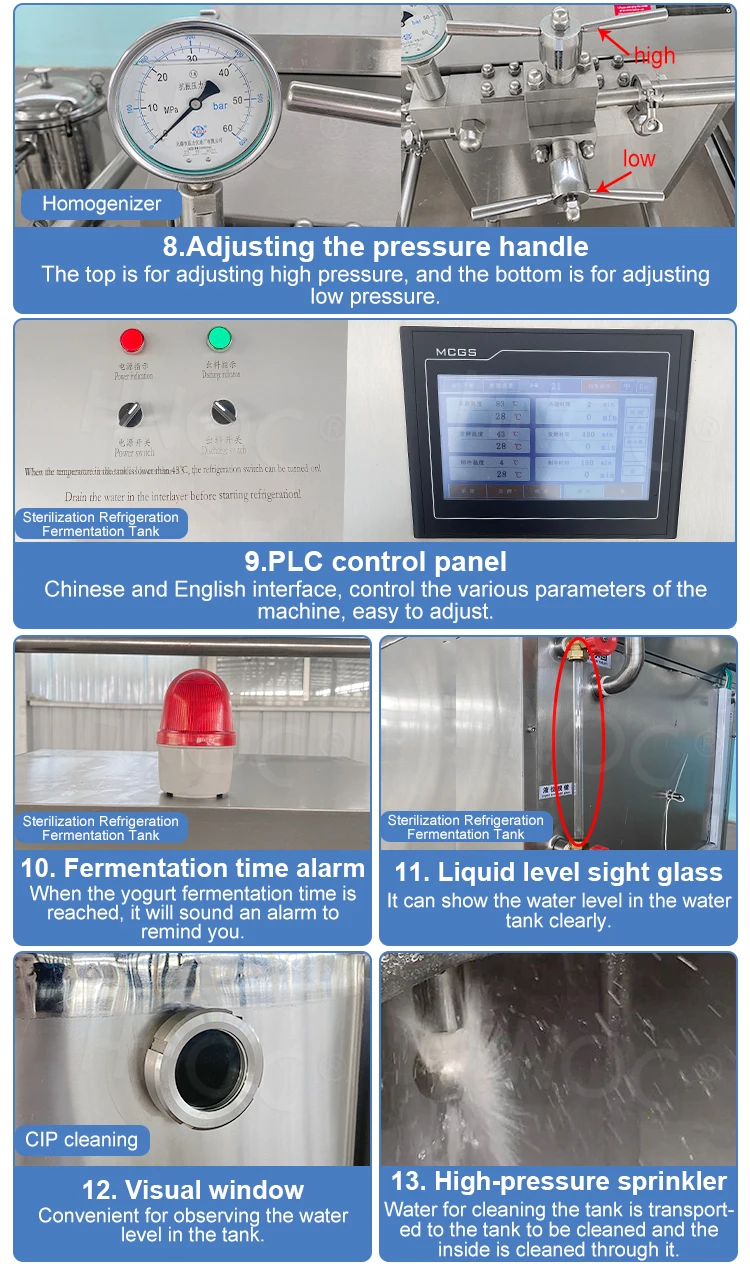

Product Photograph

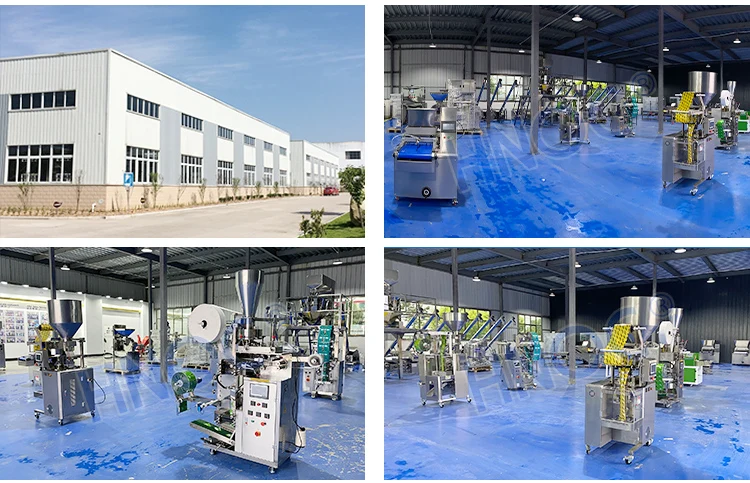

Company Information
1. 24-hour communication service.
2. Fast logistics provides you with smooth delivery service; if you are not familiar with customs clearance, we can provide you with door-to-door delivery (DDU&DDP).
3. One-year warranty, lifetime technical support and free staff training.
4. New design or product recommendation.
5. Participate in international expositions and negotiate face-to-face with customers.
6. If you come to China, please provide a formal invitation.
7. Front desk service, help you book the hotel.
8. Support local after-sales service.
2. Fast logistics provides you with smooth delivery service; if you are not familiar with customs clearance, we can provide you with door-to-door delivery (DDU&DDP).
3. One-year warranty, lifetime technical support and free staff training.
4. New design or product recommendation.
5. Participate in international expositions and negotiate face-to-face with customers.
6. If you come to China, please provide a formal invitation.
7. Front desk service, help you book the hotel.
8. Support local after-sales service.
F A Q
Q1: What's your company after- sales service?
A1: Our machine will be checked three times before shipment to ensure that the machine itself has no problems. If the machine has some problems under incorrect operation:
1. improper operation problem, we will solve all the usage problems by video call.
2. machine parts problem, we will send you accessories to ensure the normal use of the machine.
3. In addition, our engineers go abroad every year to help customers solve
problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company .
3. In addition, our engineers go abroad every year to help customers solve
problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company .
Q2: Do you provide any warranty about your equipment?
A2: One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure
that the machine is in the best condition when it arrives at your address. Some
minor problems of the machine are usually caused by incorrect operation by
novices, so we provide a full set of English instruction videos and common problem
solving videos,To help users better understand it. On the other hand, we put a set
of spare parts in the toolbox of the machine in advance. During your use, if you
need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to
arrive at your door. During use, if you have any questions, we can make a video
call at any time.
that the machine is in the best condition when it arrives at your address. Some
minor problems of the machine are usually caused by incorrect operation by
novices, so we provide a full set of English instruction videos and common problem
solving videos,To help users better understand it. On the other hand, we put a set
of spare parts in the toolbox of the machine in advance. During your use, if you
need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to
arrive at your door. During use, if you have any questions, we can make a video
call at any time.
Q3: How to transport without customs clearance experience ?
A3: We have reliable forwarder agent which can ship items to you by sea/air/
Express to your home. We will help you choose the most suitable shipping
service.
Express to your home. We will help you choose the most suitable shipping
service.
Q4: Does your company provide training?
A4: Yes, we provide a series of instructional videos and after-sales service
videos,supporting Chinese, English, French, Spanish, and Arabic.
videos,supporting Chinese, English, French, Spanish, and Arabic.
Q5: Differences from other brands in China?
A5: We are not only selling machines, we pay more attention to after-sales service.We have always believed that the customer's reputation is the best
advertisement.We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
advertisement.We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
