High quality deep groove ball bearing 16005 A 2Z ball bearing 16005 2Z
- Category: >>>
- Supplier: Jinan Kaidong Bearing Co. Ltd.
Share on (1601208367277):
Product Overview
Description
Product Description
High quality deep groove ball bearing 16005-A-2Z ball bearing 16005-2Z

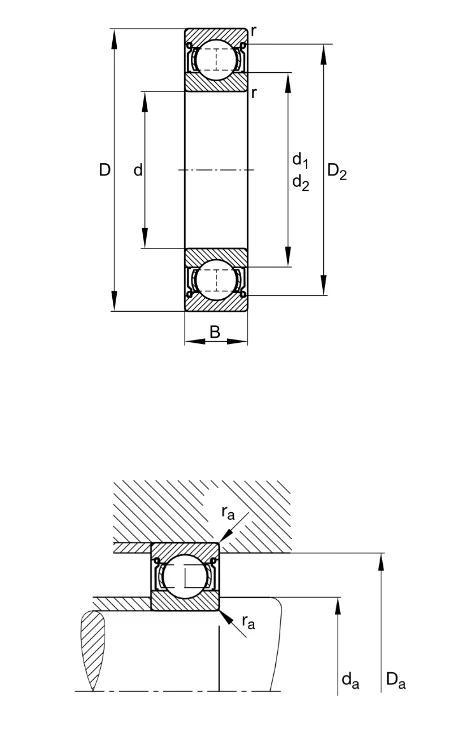

Item Number | 16005-A-2Z | ||
d | 25 mm | Bore diameter | |
D | 47 mm | Outside diameter | |
B | 8 mm | Width | |
da min | 27 mm | Minimum diameter shaft shoulder | |
Da max | 45 mm | Maximum diameter of housing shoulder | |
ra max | 0.3 mm | Maximum fillet radius | |
rmin | 0.3 mm | Minimum chamfer dimension | |
D1 | 40.4 mm | Shoulder diameter outer ring | |
D2 | 42.87 mm | Caliber diameter outer ring | |
d1 | 32.5 mm | Shoulder diameter inner ring | |
≈m | 55 g | Weight | |
Packing & Delivery
Packaging Details :
1 . Industrial tube packing + cartons + pallets
2 . Individual colorful or white box + carton + pallets
3 . As the clients ' requirement
Transportation :
1 . Less than 45 KGS, we will send by express. (Door to Door, Convenient)
2 . 45 - 200 KGS , we will send by air transport . (Fastest and safest, but expensive)
3 . More than 200 KGS, we will send by sea . ( Cheapest and common use )
Payment :
1 . TT, Western Union or Payment,100% payment.
2 . TT, Western Union or Payment,30% in advance as deposit,70% is paid before shipment.
3 . L/C:40% TT in advance,60% confirmed irrevocable L/C at sight.
1 . Industrial tube packing + cartons + pallets
2 . Individual colorful or white box + carton + pallets
3 . As the clients ' requirement
Transportation :
1 . Less than 45 KGS, we will send by express. (Door to Door, Convenient)
2 . 45 - 200 KGS , we will send by air transport . (Fastest and safest, but expensive)
3 . More than 200 KGS, we will send by sea . ( Cheapest and common use )
Payment :
1 . TT, Western Union or Payment,100% payment.
2 . TT, Western Union or Payment,30% in advance as deposit,70% is paid before shipment.
3 . L/C:40% TT in advance,60% confirmed irrevocable L/C at sight.
Company Profile
Jinan KaiDong Bearing Co,Ltd . It is devoted on this filed for many years, Established in 2000, it is located in Tianqiao District of jinan and is specialized in manufacturing the bearings.
With an experienced and professiong team, we have exported our producted to many countries and regions all over the world. especially Europe and other country. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
With an experienced and professiong team, we have exported our producted to many countries and regions all over the world. especially Europe and other country. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q:Why do we choose your company?
A:Our company has been a professional bearing manfacture for many years.we have our bearing factory,therefore we have advantage in quality control and price.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q:Why do we choose your company?
A:Our company has been a professional bearing manfacture for many years.we have our bearing factory,therefore we have advantage in quality control and price.
