HC 12 433Mhz SI4463 Wireless Transparent Transmission Serial Port Module 1000m

Share on (1601208448568):


Price:$1.89 - $2.28

Quantity:


Product Overview

Description





Products Description

Products Description

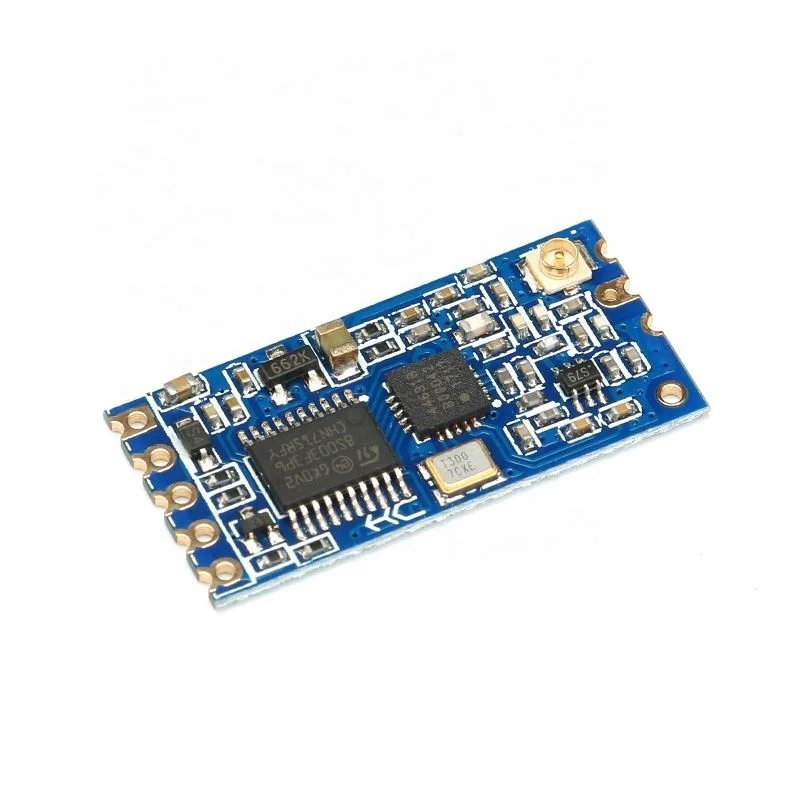

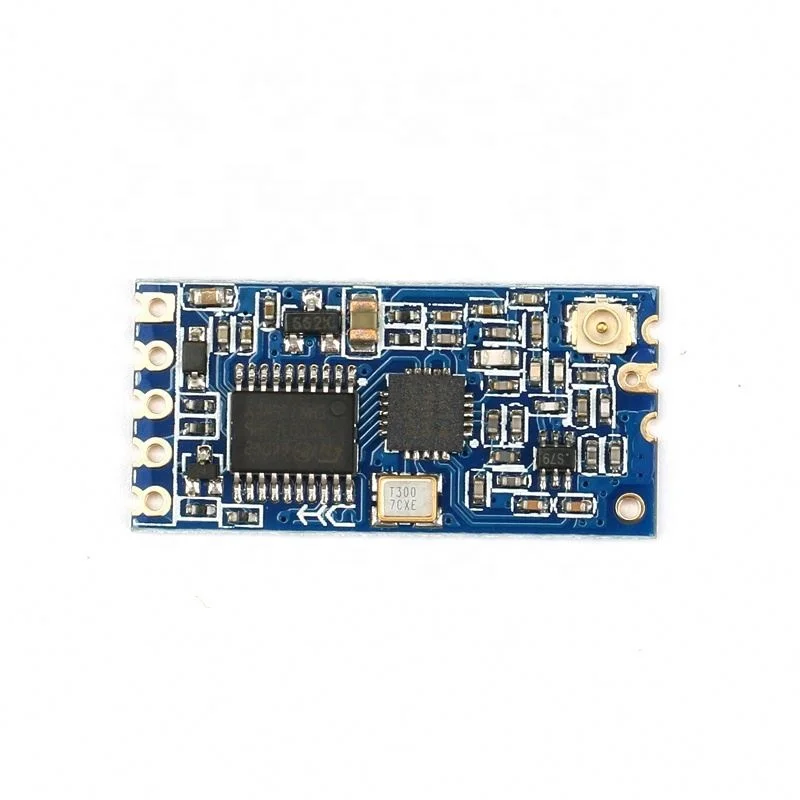

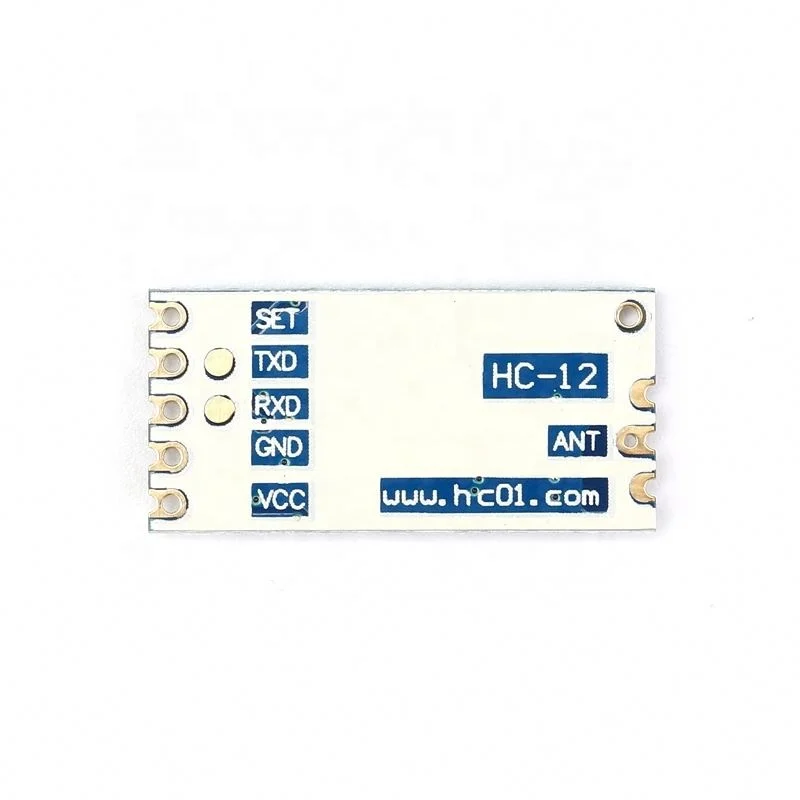

HC-12 433Mhz SI4463 Wireless Transparent Transmission Serial Port Module 1000m Replace BT with Antenna

Power supply voltage : 3.2 V -- 5.5 V.(if the modules working long hours in emission state, suggested that when the power supply
voltage is greater than 4.5 V , you need concatenating a 1N4007 diode to avoid module built-in LDO got fever)

Default communication distance : about 600 m (communication distance is adjustable up to 1000 m, air baud rate 5000 BPS).

Default idle current: 16 ma (modules in different working mode of different current).

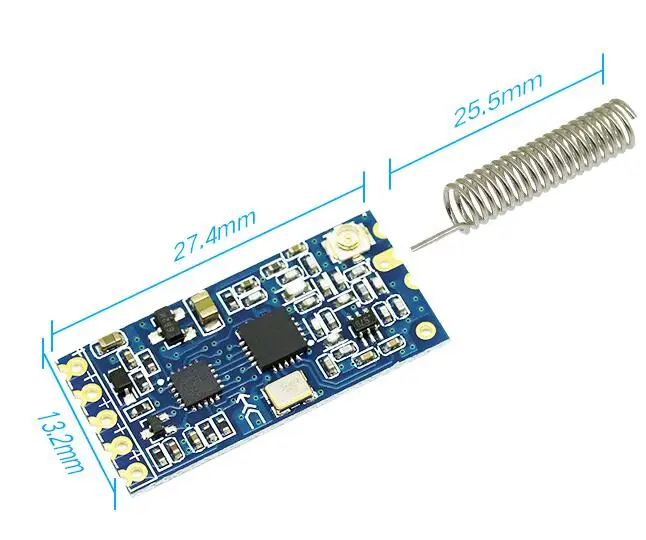

Module size: 27.8mm*14.4mm*4mm.

Operating frequency range (433.4 473.0 MHz, as many as 100 communication channel) maximum 100 mw fired power (can be set)

Module supporting software upgrades.

Default factory Settings: working mode FU3, baud rate 9600 BPS, communication channel CH001 (433.4 M)









Detailed Images

Detailed Images
