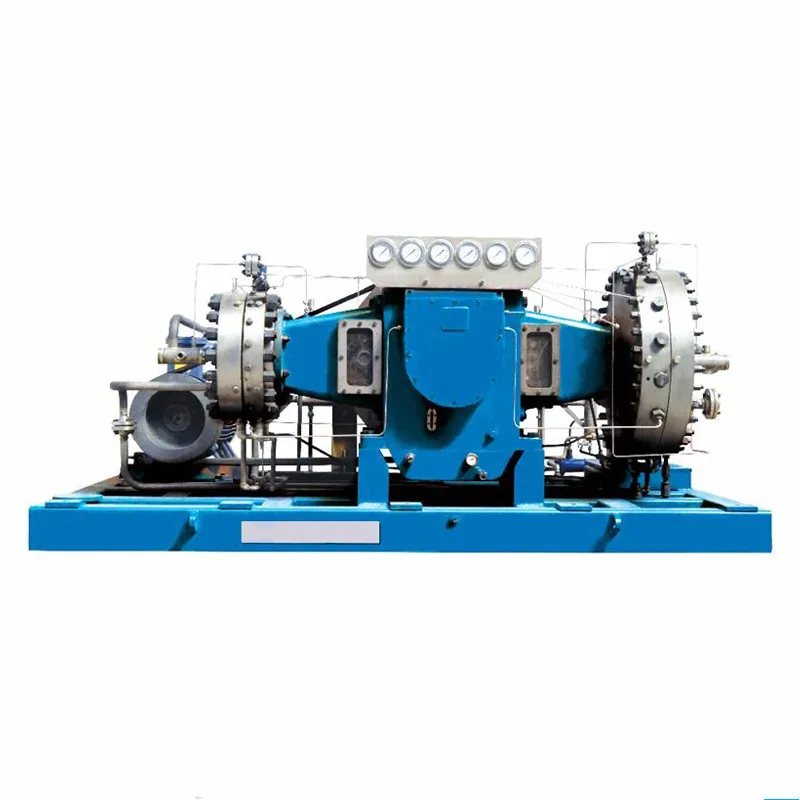

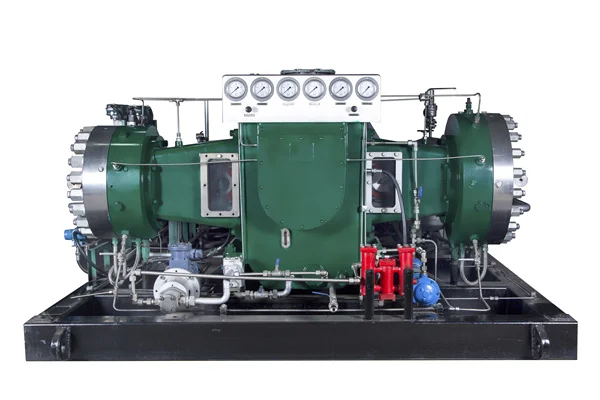

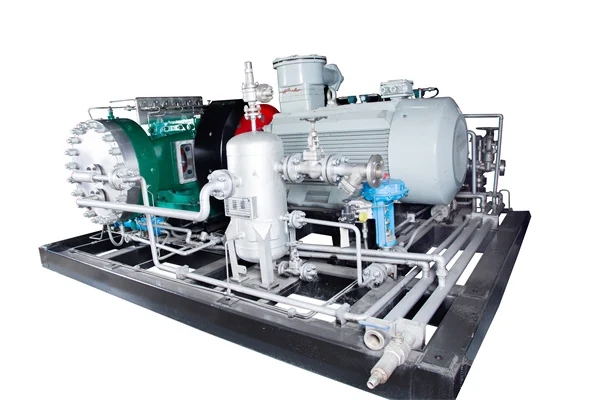

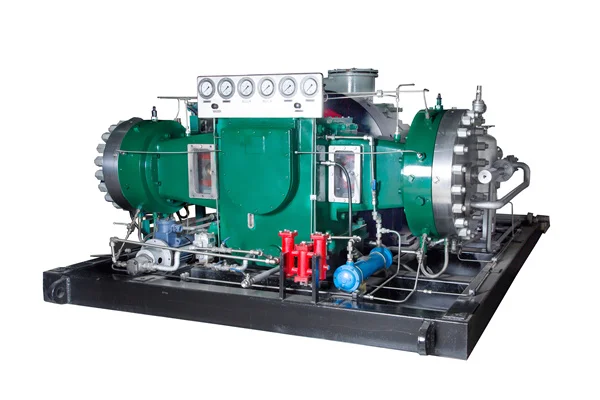

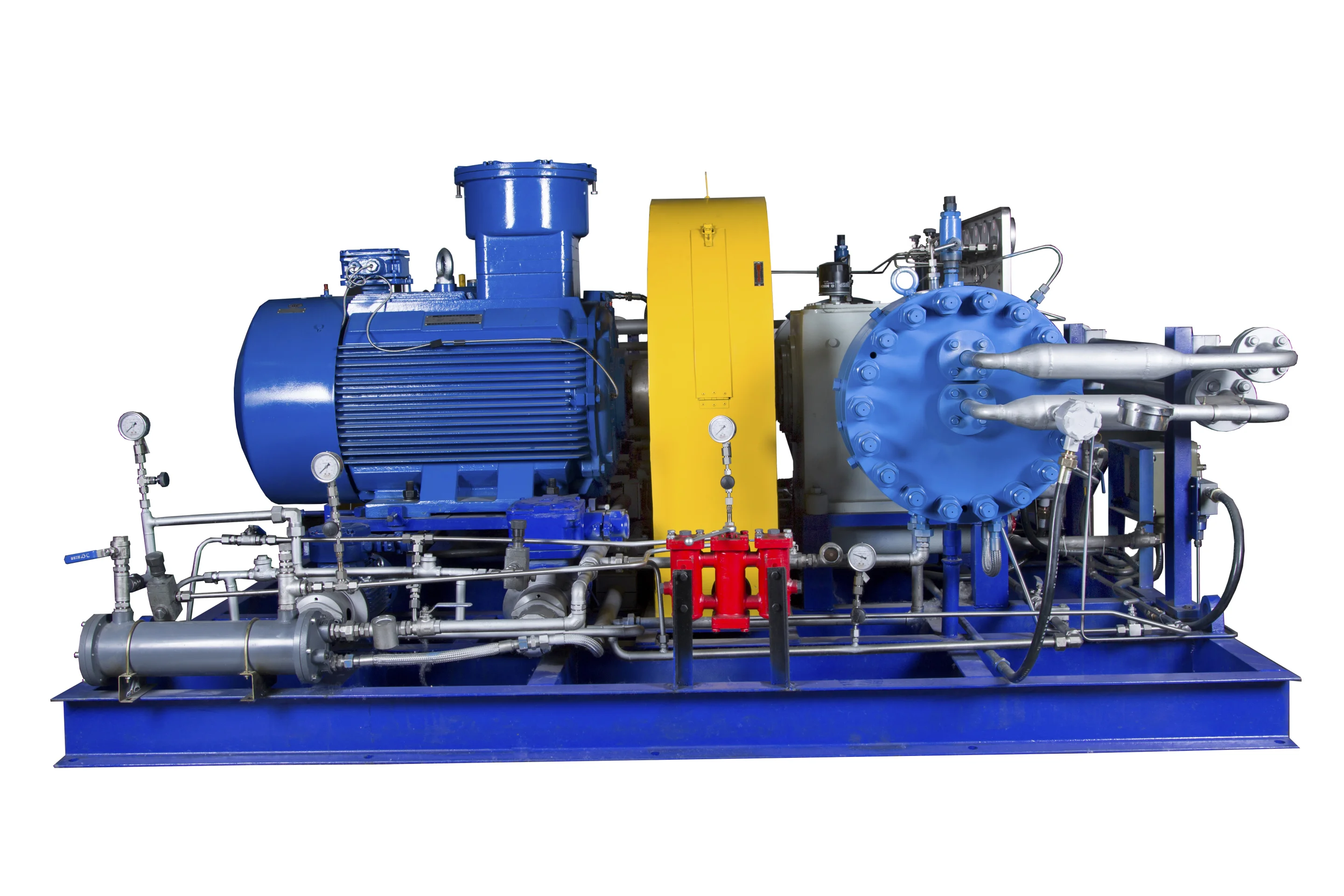

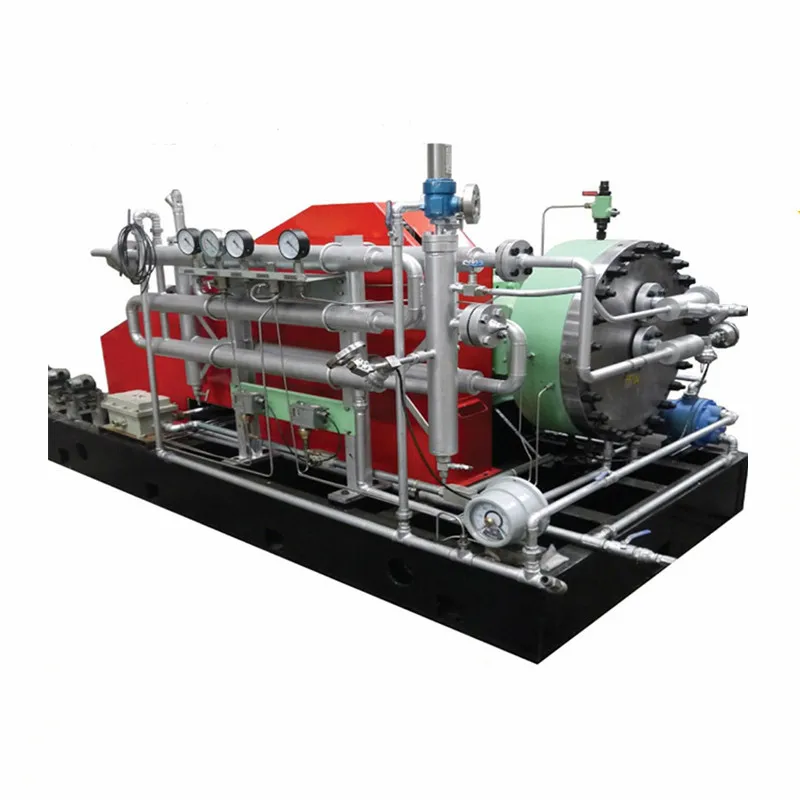

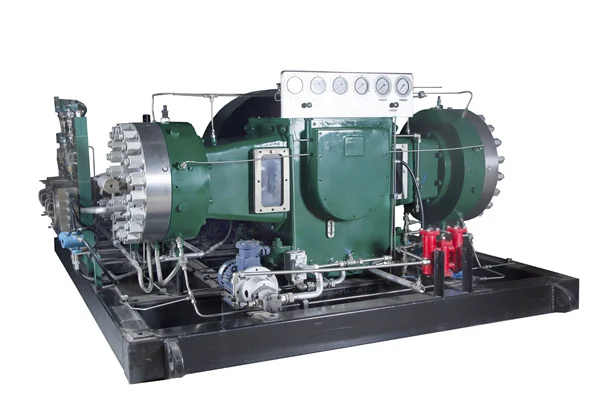

High Pressure Argon Chlorine Hydrogen Gas Diaphragm Compressor for Cylinder Filling Plant



Products Description


We Produce helium, oxygen, hydrogen ,nitrogen gas compressors and etc . Available with 1,500 psi to 60,000 psi operating pressure ;
 3 hp to 100 hp motor.;
Suitable for gas leak and pneumatic testing, chemical processing, hot isostatic pressing, instrument calibration and air bag inflator filling applications. Compressors can be
customized for specific pressures, capacities and applications.

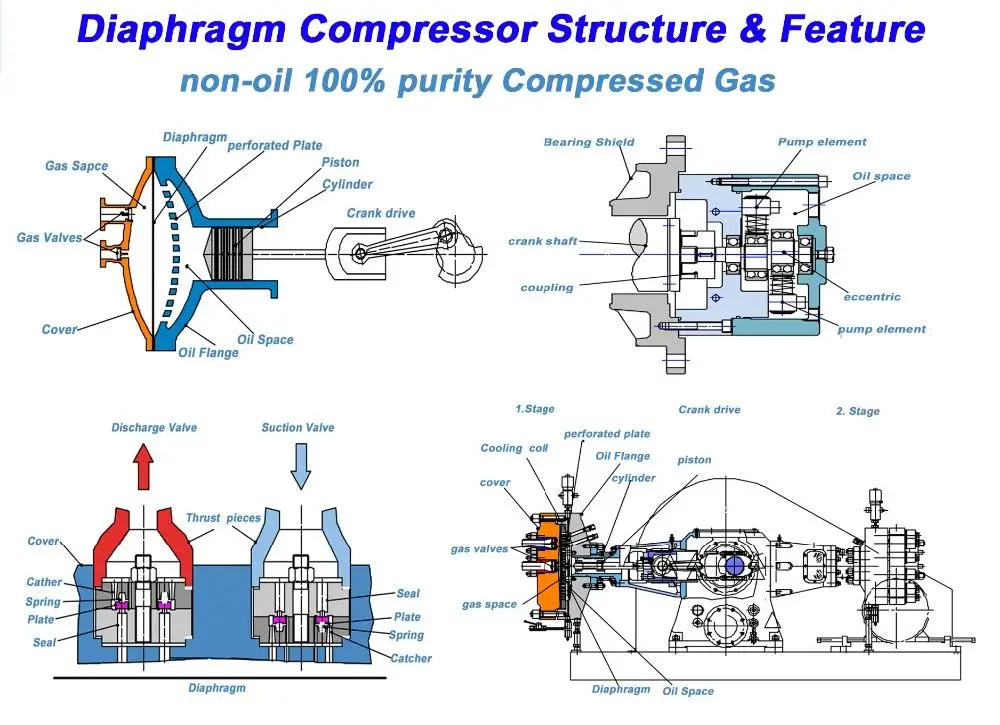

GD Type Diaphragm Compressor
Structural:D type
stroke: 130mm~210mm Max piston force: 40KN~160KN
Max discharge pressure: 100MPa
Flow range: 30~2000Nm3/h
Cooling method: air/water


Product features:
1. Good sealing performance:
Diaphragm compressor is a kind of special structure positive displacement compressor, the gas does not need lubrication, good sealing performance, the compression medium does not contact with any lubricant, will not produce any contamination in the compression process, Especially suitable for high purity (99.9999% above), rare, highly corrosive, toxic ,harmful, flammable , explosive and radioactive gas compression, transportation and bottle filling.
2.Cylinder heat dissipation performance is good:
Compressor cylinder heat dissipation performance is good, close to isothermal compression, can use high compression ratio, suitable for compression of high pressure gas.


The Diaphragm Compressor is a positive displacement compressor with a special structure. It is the highest level compression method in the gas compression field. This compression method has no secondary pollution and has very good protection for the compressed gas. It has a large compression ratio, has good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high-purity, rare and precious, flammable, explosive, toxic and harmful, corrosive, and high-pressure gases. This compression method is usually designated internationally to compress high-purity gases, flammable and explosive gases, toxic gases, and oxygen. and many more.


Product Paramenters




Model

Cooling water consumption (t/h)

Displacement (Nm³/h)

Intake pressure (MPa)

Exhaust pressure (MPa)

Dimensions L×W×H(mm)

Weight (t)
Motor Power (kW)
GD-120/4-80
3.0
120
0.4
8.0
3000×1600×1400
4.0
30
GD-130/0.98-11
3.0
130
0.098
1.1
3000×1800×1600
4.0
30
GD-150/2-20
3.0
150
0.2
2.0
3000×1800×1600
4.0
37
GD-100/0.1-5
4.0
100
0.01
0.5
2800×1500×1500
3.0
18.5
GD-100/5.5-200
5.0
100
0.55
20
3200×2000×1600
4.5
45
GD-80/0.12-4
5.0
80
0.012
0.4
2800×1600× 1500
3.8
15
GD-60/0.3-6
4.0
60
0.03
0.6
2800×1600×1500
4.0
15
GD-70/0.1-8
3.8
70
0.01
0.8
3000×1600×1250
5.0
18.5
GD-40/0.02-160
5.0
40
0.02
16
2800×1460×1530
3.0
22
GD-100/0.5-6
2.0
100
0.05
0.6
3000×2000×1560
6.0
18.5
GD-36/1-150
4.0
36
0.1
15
3000×1500×1500
4.0
45
GD-35/0.7-300
4.0
35
0.07
30
3000×1600×1500
4.0
22
GD-500/15-35
4.5
500
1.5
3.5
3000×2000×1700
4.0
45
GD-150/15-210
4.5
150
1.5
21
3200×1700×1600
4.0
45
GD-120/8-220
4.5
120
0.8
22
3200×1700×1600
3.8
45
GD-100/9
4.5
100
0.0
0.9
3200×1700×1800
4.5
22
GD-100/1.5-150
4.5
100
0.15
15
3200×1700×1800
4.5
45
GD-40/30
4.5
40
0.0
3.0
3200×1700×1800
4.0
18.5
GD-200/10-15-90
4.5
200
1.0-1.5
9.0
3200×1800×1600
4.0
37
GD-100/7-150
4.0
100
0.7
15
3000×1800× 1600
4.0
55
GD-25/-0.1-47
4.0
25
-0.01
4.7
3000×1800×1600
4.0
15
GD-45/0.5-100
4.0
45
0.05
10
3000×1800×1600
4.0
30
GD-30/0.1-160
4.0
30
0.01
16
3000×1800×1600
4.0
18.5
GD-120/2.5-70
4.0
120
0.25
7.0
3000×1800×1600
4.0
37
GD-135/10-210
4.0
135
1.0
21
3000×1600×1400
4.0
37
GD-60/40-350
4.5
60
4.0
35
3000×1800×1600
4.0
30
GD-95/10-350
4.0
95
1.0
35
3000×1600×1400
4.0
37
GD-220/11-90
4.0
220
1.1
9.0
3000×1800×1600
4.0
37
GD-300/15-220
4.5
300
1.5
22
3600×2200×1700
5.0
75
GD-300/13-210
5.0
300
1.3
21
3500×2300×1800
6.0
75
GD-120/12-350
6.5
120
1.2
35
3500×2300×1600
8.5
45
GD-165/10-250
8.0
165
1.0
25
3500×2300×1500
8.5
55
GD-120/8-350
6.5
120
0.8
35
3500×2300×1600
8.5
45
GD-800/210-320
8.0
800
21
32
3500×2300×1500
8.5
37
GD-420/8-39
6.5
420
0.8
3.9
3600×2500×1700
6.0
75
GD-370/20-200
4.5
370
2.0
20
3600×2200×1700
5.0
75
GD-350/18-210
4.5
350
1.8
21
3600×2200×1700
5.0
75
GD-300/8-120
4.5
300
0.8
12
3600×2200×1700
5.0
75
GD-308/4
10.0
308
0
0.4
4200×3200×2600
10.0
55
GD-180/8.5
5.0
180
0
0.85
4200×3200×2600
10.0
55

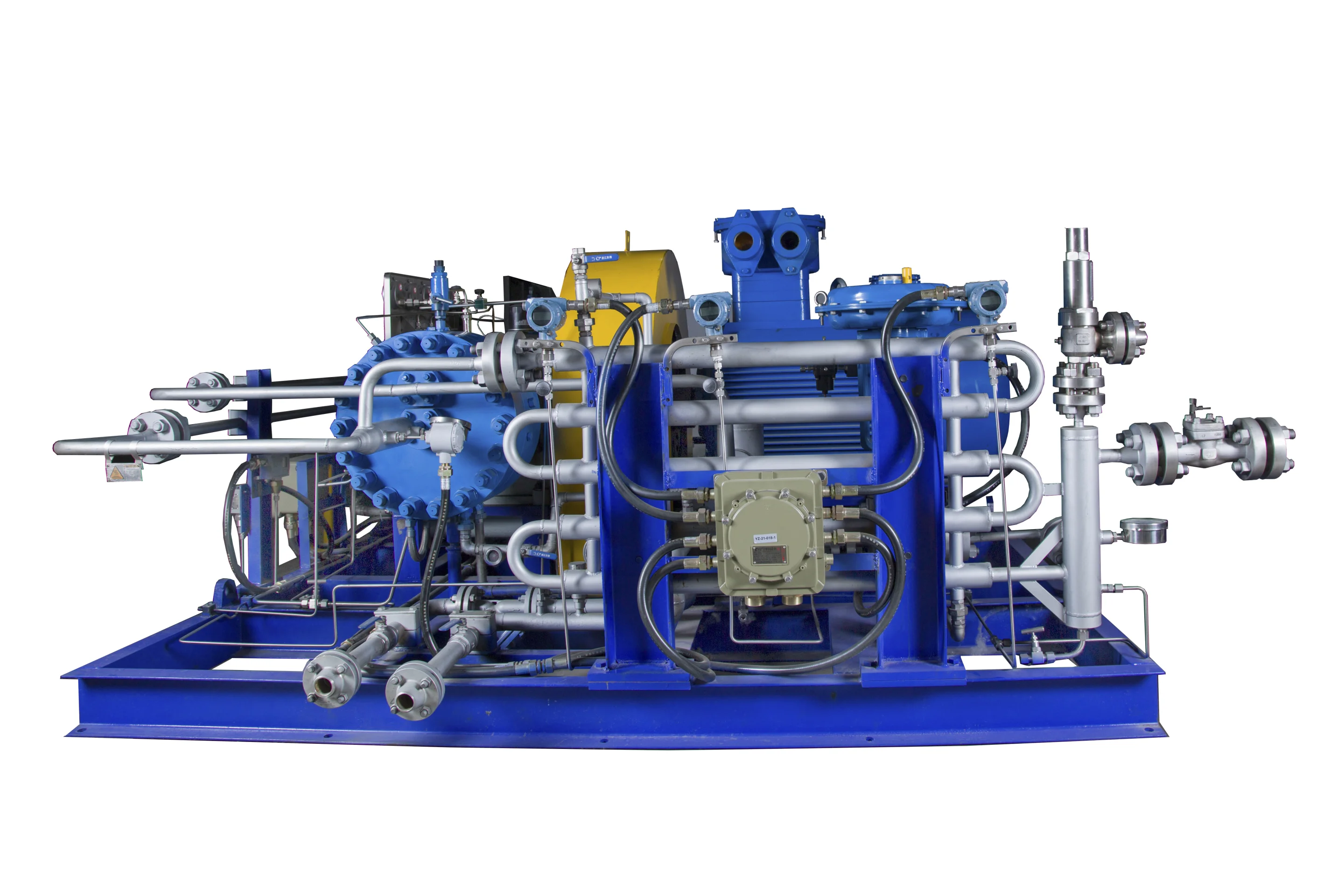

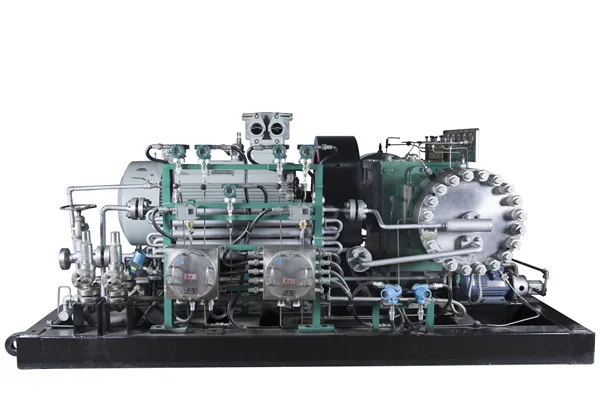

Reference Pictures




Company Profile






OUR COMPANY


Company Introduction
Xuzhou Huayan Gas Equipment Co., Ltd. is a leading supplier of gas compressors in China. Located in the Economic Development Zone of Xuzhou City, China, covers an area of 92,000m2, including 15,000m2 office building, 18,000m2 workshop, 3,000m2 staff canteen, and more than 50% green area. Create a beautiful and comfortable working environment for 90 employees.
Since the production of gas compressors in 1965, the company has accumulated rich experience. The factory has a comprehensive
skilled staff and more than 70 sets of processing and testing equipment, which can complete the whole production process from raw
material inspection, feeding, processing, assembly, testing, packaging, storage, shipping, etc., forming an annual output of 500
sets of all kinds of gas compressors.


Customer Photos


We sincerely invite friends from all over the world to visit our factory and exchange ideas.



Certifications


Our company's products have passed ISO9001, 14001 and CE certificates, and we can also provide relevant certificates that meet customer national requirements.
.


Packing & Delivery


Our packaging boxes are all standard export wooden boxes.







FAQ


1.How to get a prompt quotation of gas compressor ?
1)Flow Rate/Capacity : ___ Nm3/h
2)Suction/ Inlet Pressure : ____ Bar
3)Discharge/Outlet Pressure :____ Bar
4)Gas Medium :_____
5)Voltage and Frequency : ____ V/PH/HZ

2.How long is delivery time ?
Delivery time is around the 30-90 days .

3.What about the voltage of products? Can they be customized?
Yes, the voltage can be customized according to your inquire.

4.Can you accept OEM orders?
Yes, OEM orders is highly welcome.

5.Will you provide some spare parts of the machines?
Yes, we will .
