Gerber /Bom PCBACustomized solution OEM/ODM PCBA Supplier One stop PCB services
- Category: >>>
- Supplier: Yuwei Electronic Technology (Wuhan) Co. Limited
Share on (1601208463372):

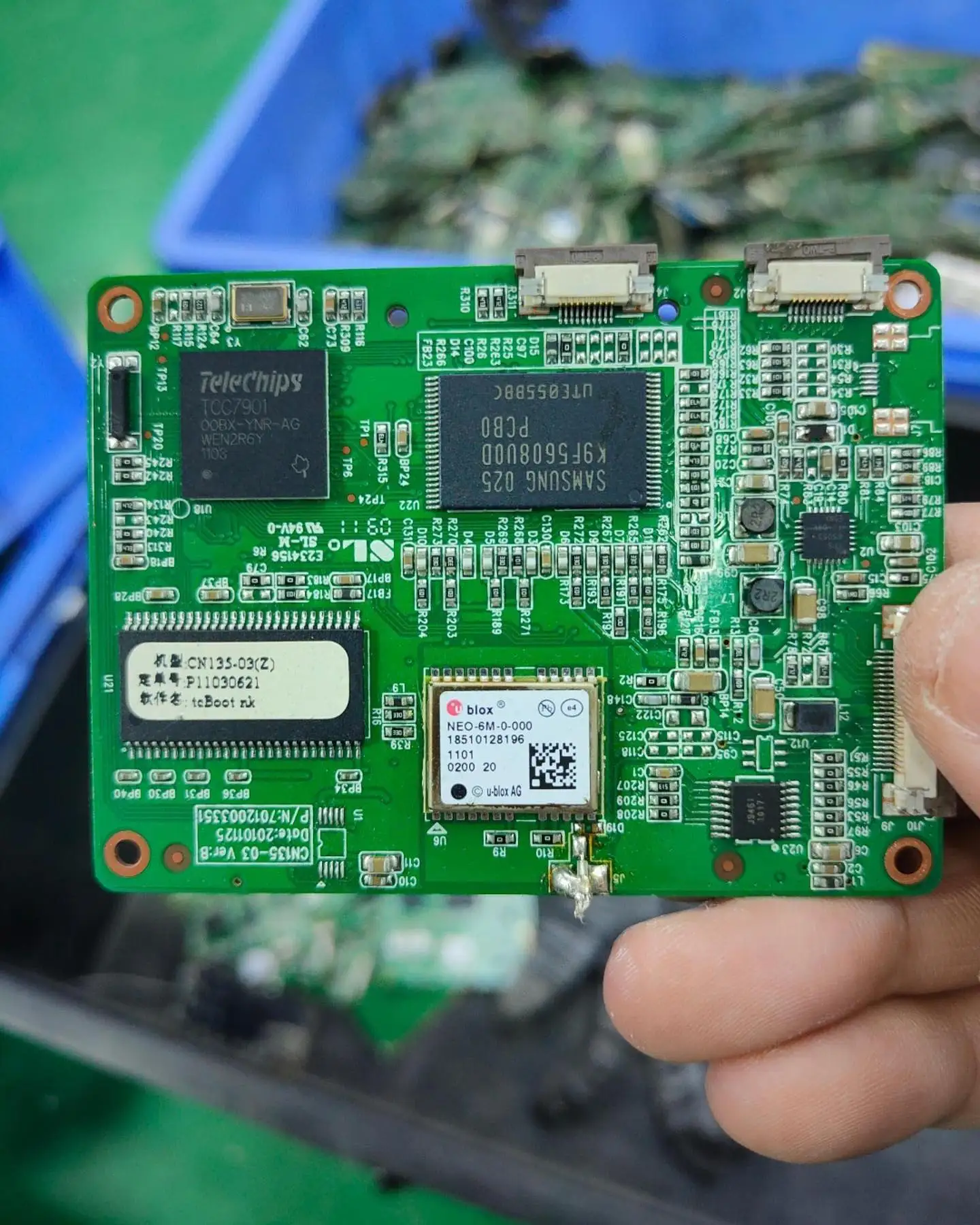

Product Overview
Description
Title goes here.
Yuwei Electronic Technology is a hardware outsourcing solution (EMS) service provider for high-precision and high-reliability electronic products focusing on "multiple varieties, samples and small batches, fast delivery".
It is a one-stop service integrating PCB design, PCB production, electronic component procurement, PCBA samples and batch patch and assembly.
It can effectively improve customer R&D efficiency, reduce R&D costs, and meet customers' various flexible customization needs.
It is a one-stop service integrating PCB design, PCB production, electronic component procurement, PCBA samples and batch patch and assembly.
It can effectively improve customer R&D efficiency, reduce R&D costs, and meet customers' various flexible customization needs.

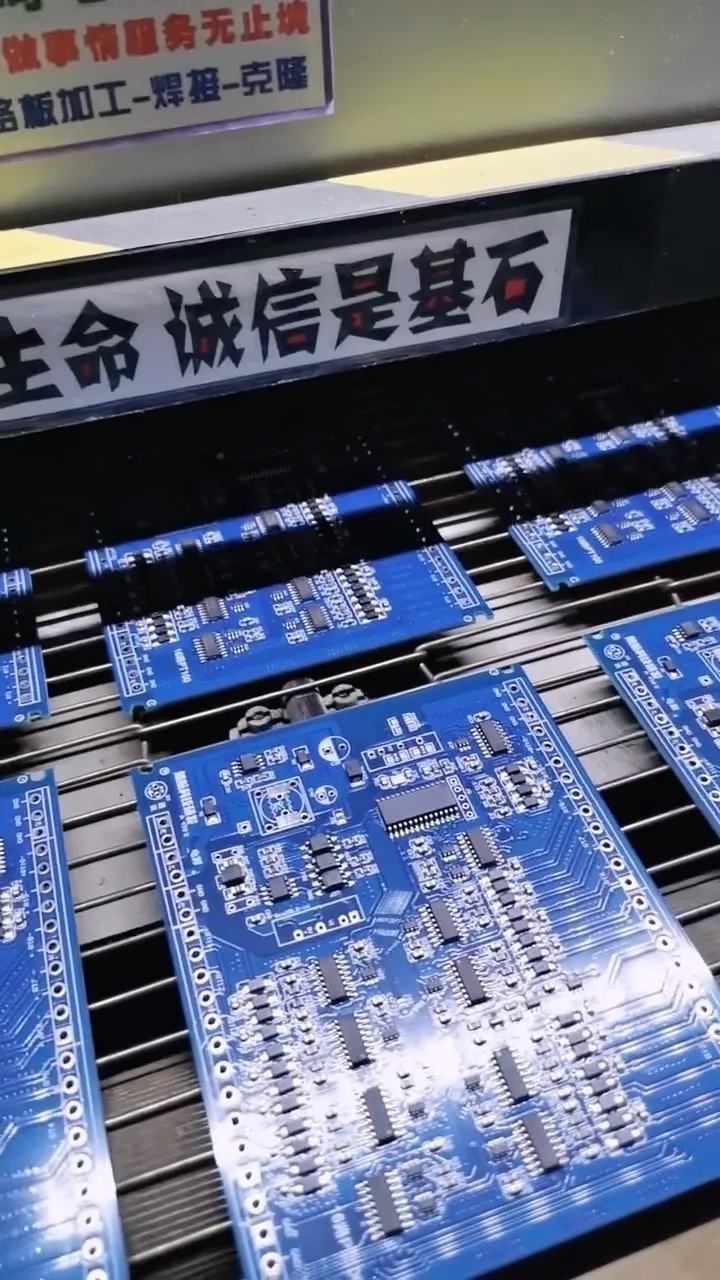

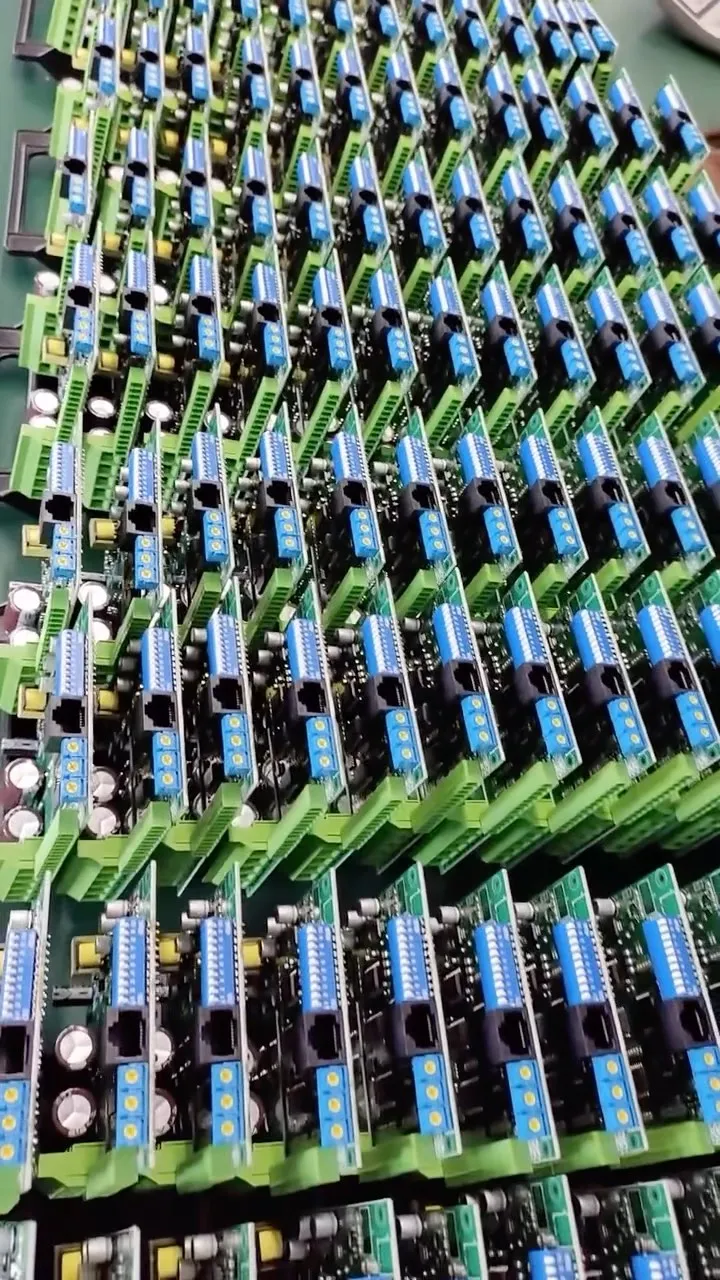

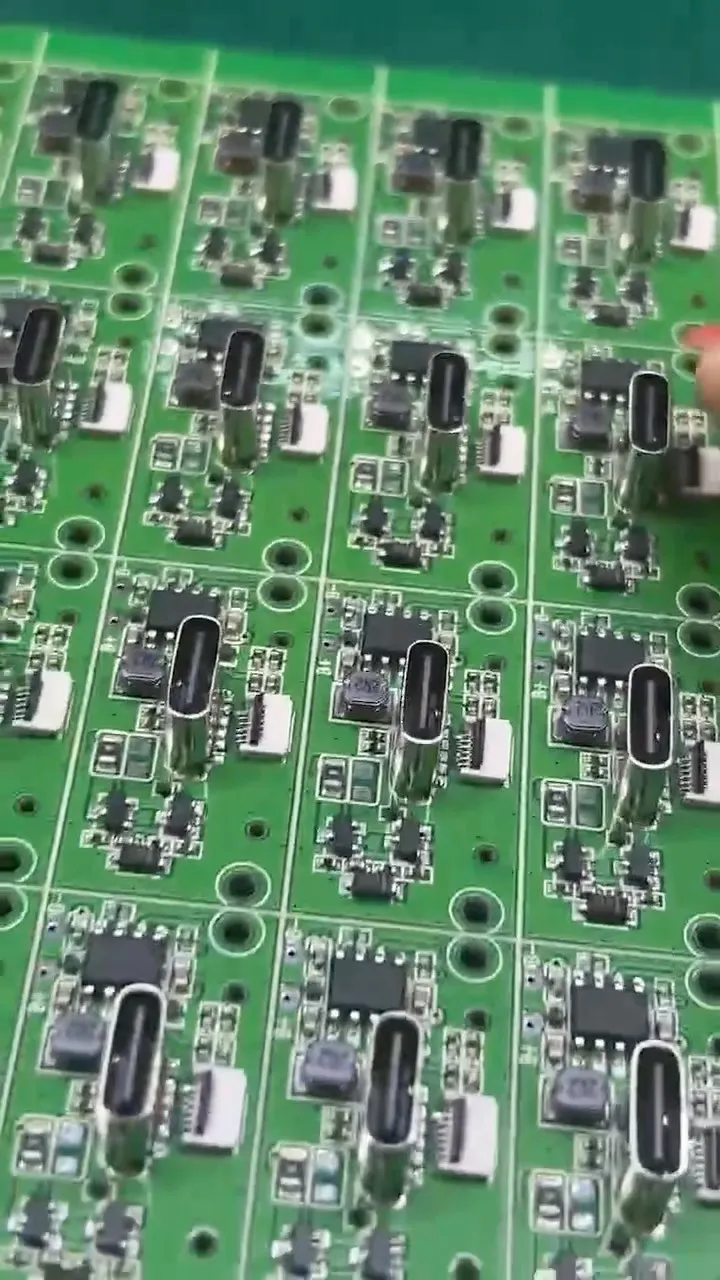

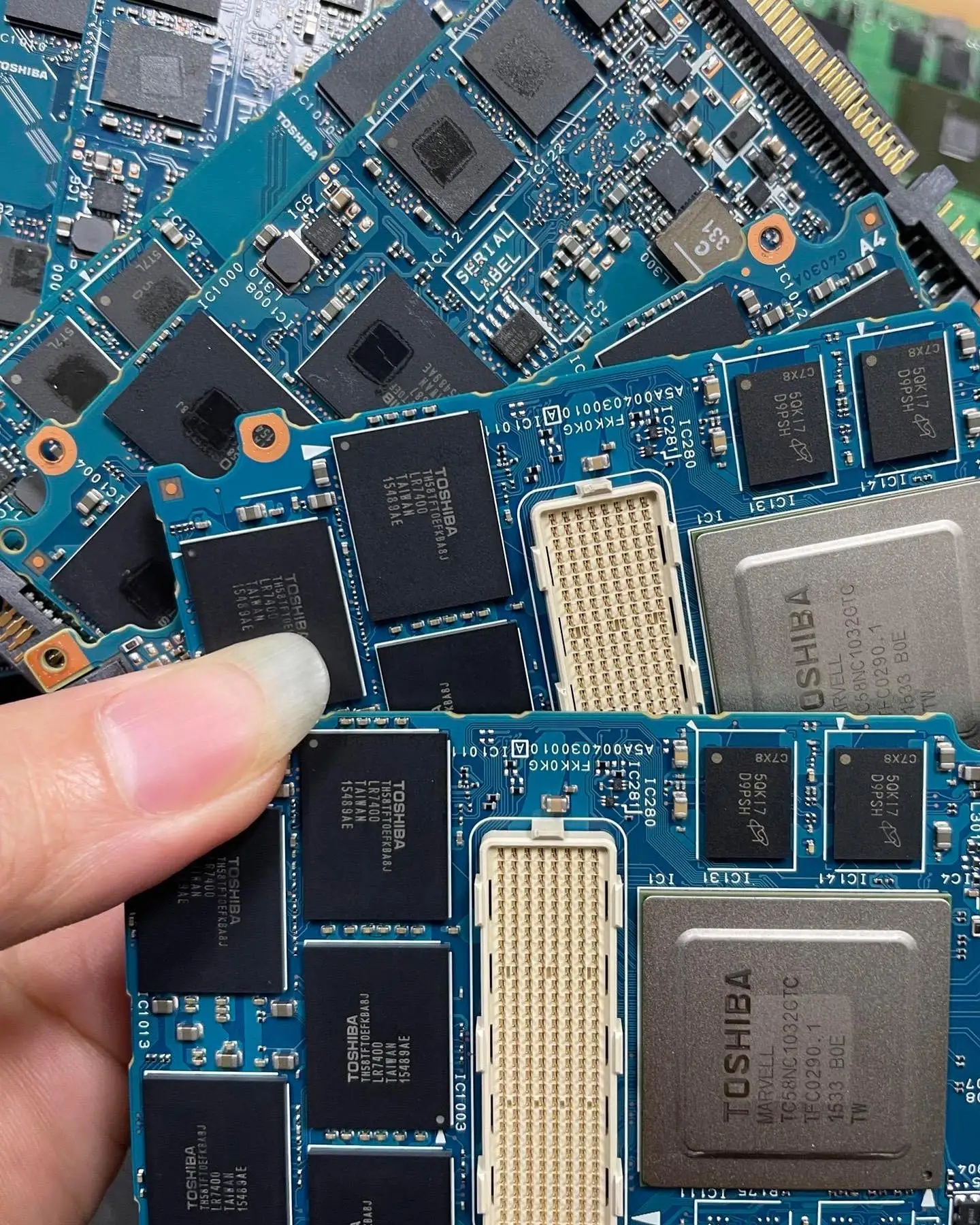

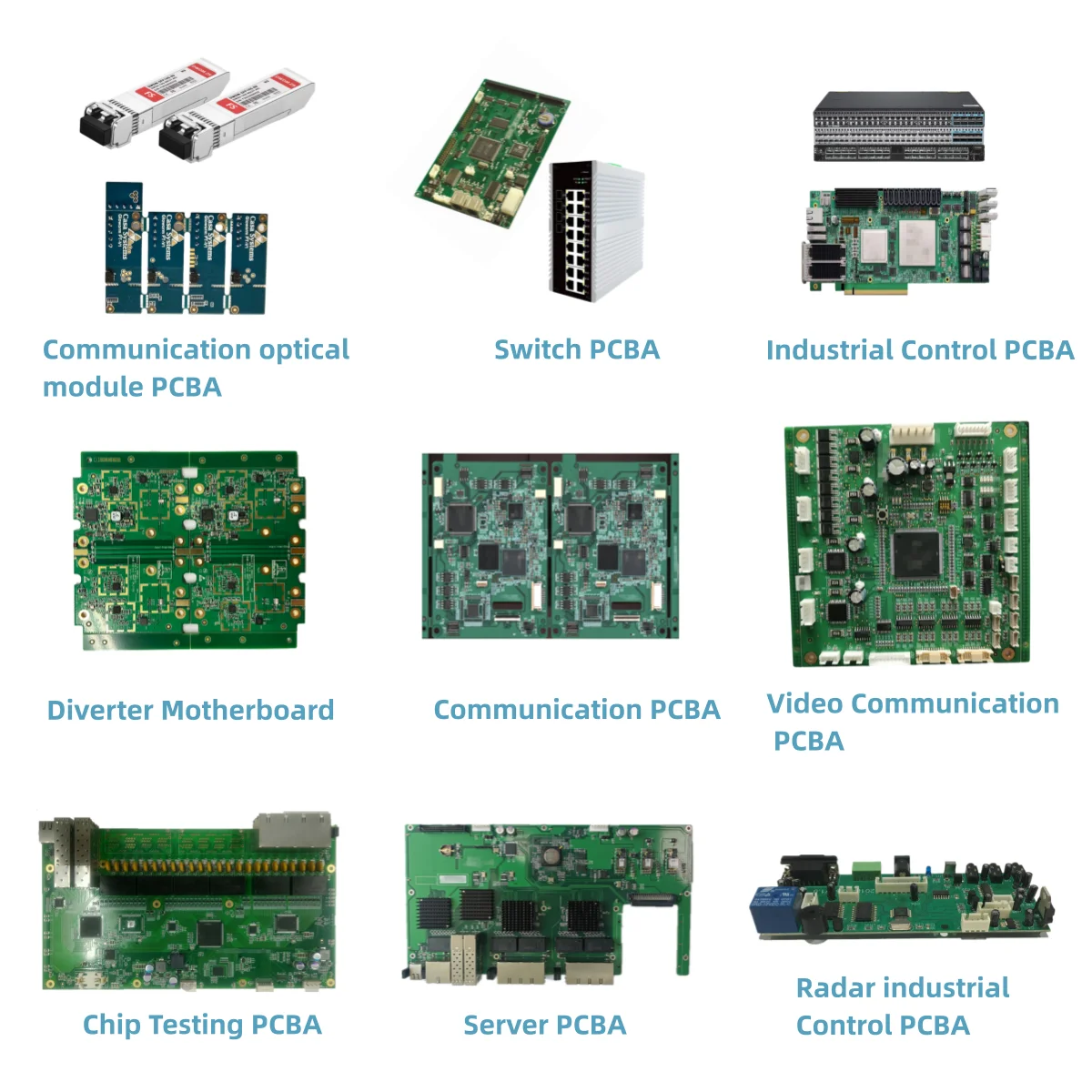

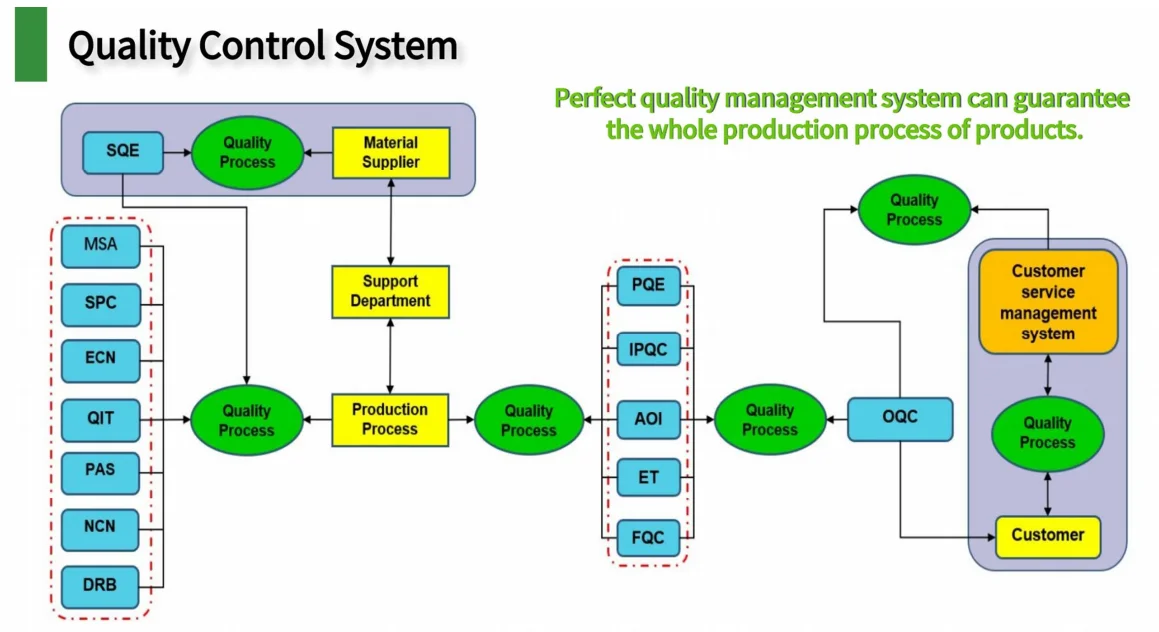

Quality Management System:
We have passed ISO9001: 2015, ISO13485, IATF16949, UL and other system certifications, implements strict product process control, and has sound quality control processes such as IQC, IPQC, and OQA, providing customers with products and services that meet their requirements.
Factory history

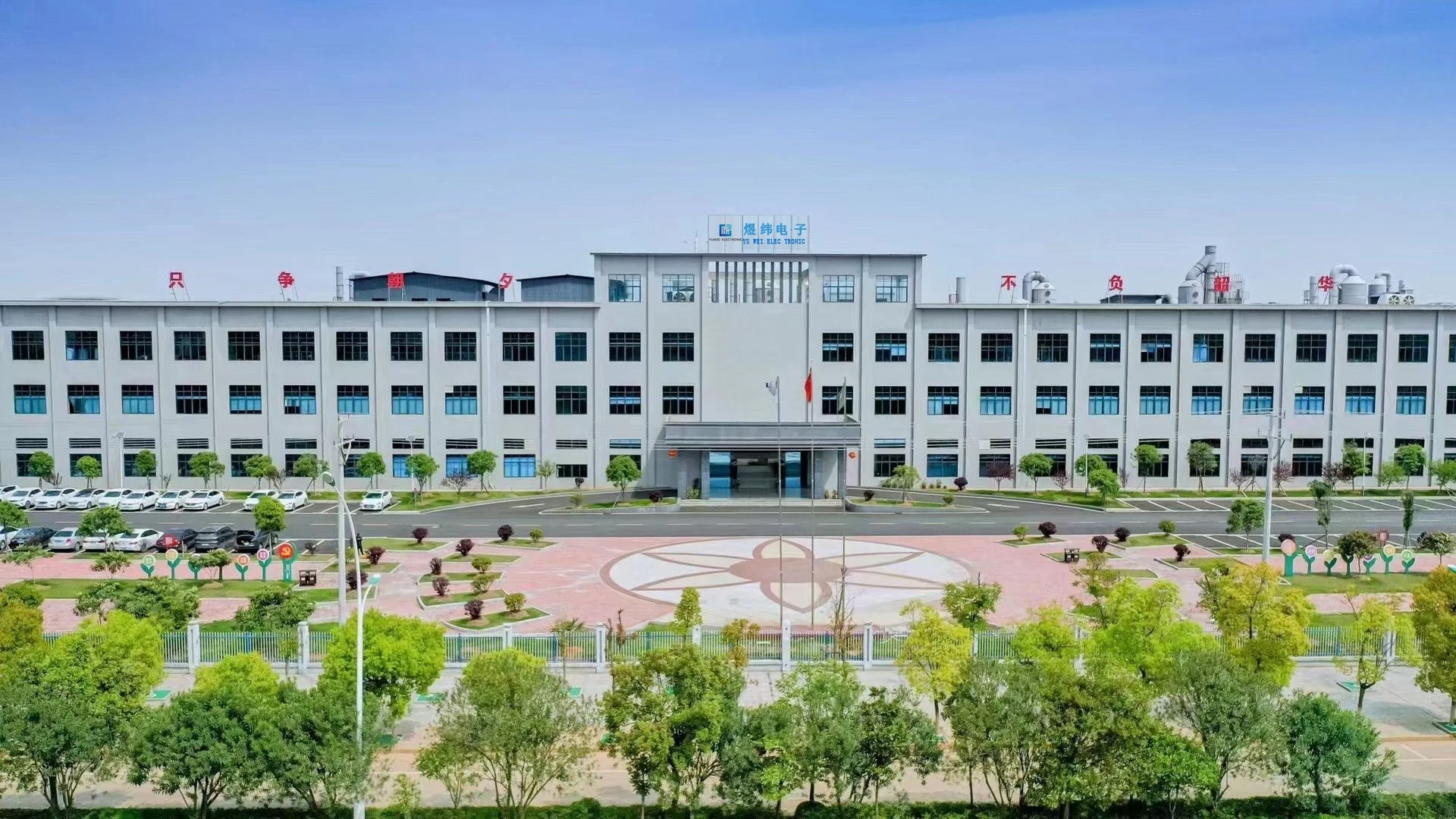

Our factory started production in 1999. with nearly 800 employees, mainly produce FPC, rigid flexible PCB, samples and small batches of Rigid PCB,rigid batch orders.mainly serving industries such as industrial control, automotive electronics, new energy, communication servers, etc.
The factory workshop covers an area of 2500平米. It's suitable for multiple varieties, models, and batch production. The quality and delivery requirements of high reliability and precision industrial products products.
5 SMT production lines (batch * 2, sample * 2, sample and batch * 1)
2 DIP production lines (batch * 1, sample * 1), 1 assembly line
SMT samples produce 15-22 orders per day; Installation points: 3 million points
SMT mass production daily SMT mount points: 5 million points
SMT mass production daily SMT mount points: 5 million points
Production cycle
①PCB design cycle only takes 1-2 weeks |
②PCB samples delivered in 3-7 daysPCB small batch delivered in 7-15 days |
③PCBA(BOM+SMT+DIP) PCBA samples are delivered in 48~72 hoursPCBA small batch are delivered in 96-120 hours |
④One-Stop Service(PCB+BOM+SMT+DIP) PCBA samples are delivered in 7-10 daysPCBA small batch are delivered in 10-15 days |
Electronic Component Procurement Services
The procurement of electronic components has achieved the unity of supply chain management and data, with a strong supply channel for components, eliminating barriers between various businesses, and accelerating customer response, order delivery, and service efficiency
Capabilities
ltem | Advanced | ||
Layer Count | Max layer Count | 48L | |
Board Thickness | Max PCB Thickness | 6.45mm | |
Min PCB Thickness | 0.1mm | ||
Finished Size | Max Finished Size | 24.5*47inch | |
Max Base copper Weight | Iinner | 12oz | |
Outer | 12oz | ||
Min Trace/spacing | Iinner | 50/50um | |
Outer | 45/45um | ||
Drilling Size | Min Mechanical Drilling | 6mil | |
Miin Mechanical Via Pad | Iinner | 0.40mm | |
Outer | 0.35mm | ||
Min BGA Pitch | Min BGA Pitch | 0.35mm | |
PCB Aspect Ratio | Max PCB Aspect Ratio | 20:1 | |
Solder Mask Dam | Min Solder Mask Dam | 2.5mil | |
Core Thickness | Min Core Thickness | 0.05mm | |
Bow & Twist | Min Bow & Twist | 0.50% | |
lmpedance Tolerance | Min lmpedance Tolerance | ±8% | |
FAQ
1. How many SMT lines do you have?
We currently have four SMD lines, the smallest SMD package is 01005
2.What's PCB layers you can produce？
Rigid board: 1-48 layers; Rigid-flexible board: 2-20 layers; Flexible board: 1-12 layers
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .It can be delivered anywhere in the world
4.What is the average delivery time?
Prototypes usually takes about 5-10 days depending on product type.Small&Middle volume usually takes about 20 days.
5.What's PCB Layout Tools you use?
EDA Tools:Altium、Cadence、Mentor PADS、Ansoft HFSS/Siwave、Hyperlynx、CST…….
We currently have four SMD lines, the smallest SMD package is 01005
2.What's PCB layers you can produce？
Rigid board: 1-48 layers; Rigid-flexible board: 2-20 layers; Flexible board: 1-12 layers
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .It can be delivered anywhere in the world
4.What is the average delivery time?
Prototypes usually takes about 5-10 days depending on product type.Small&Middle volume usually takes about 20 days.
5.What's PCB Layout Tools you use?
EDA Tools:Altium、Cadence、Mentor PADS、Ansoft HFSS/Siwave、Hyperlynx、CST…….
Simulation Tools:ADS、HFSS、Siwave、Hyperlynx、Sigrity、Flotherm
6.The difference between PCB, SMT and PCBA？
PCB: Printed Circuit Board
SMT: Surface Mount Technology, the abbreviation of Surface Mounted Technology
PCBA: The abbreviation of Printed Circuit Board Assembly, which means that the PCB blank board is processed by SMT patch or DIP plug-in, referred to as PCBA
SMT: Surface Mount Technology, the abbreviation of Surface Mounted Technology
PCBA: The abbreviation of Printed Circuit Board Assembly, which means that the PCB blank board is processed by SMT patch or DIP plug-in, referred to as PCBA
7.How do you control your product quality?
We have professional personnel on each production line to carry out strict quality control. And professional QC and QA teams. Passed ISO9001 and IATF16949 product control certificate and ROHS product test report
8.What are our raw material price and quality advantages?
The PCB materials used in our factory are all in compliance with IPC standards. There are domestically produced materials and foreign-produced materials. If the customer does not have material model requirements, we will give priority to using our domestically produced materials, so that the price of the materials is relatively cheap.
9.Can you make pcb according to my sample board?
If you only have one sample board in hand, we can also help you extract production documents through your sample board, then help you mass production
10.Can you help with design?
Yes, we have a professional design team. If you have only one idea, we can help you implement the schematic design, the circuit diagram design, the Gerber file design. Build a professional team for you according to your needs.
11.How do you ensure our long-term business relationship?
We are sincerely hoping to establish the good long-term business relationship with our esteemed clients, so we will do our best to guarantee our customers' benefit, stable quality and competitive prices are essential,and we are also provide our increasingly advanced technology for our clients to meet the increasing needs in the current markets
12.PCB storage cycle
The storage period of PCB is mainly distinguished by surface treatment.
HAL, LF-HAL, Immersion Gold or ENIG surface process: shelf life 1 year
OSP, Immersion Silver, Immersion Sn: shelf life 6 months
Storage conditions: temperature 20-28 ℃, humidity ≤80%, vacuum packaging
HAL, LF-HAL, Immersion Gold or ENIG surface process: shelf life 1 year
OSP, Immersion Silver, Immersion Sn: shelf life 6 months
Storage conditions: temperature 20-28 ℃, humidity ≤80%, vacuum packaging
13.Baking parameters before SMT patch
Requirements: The temperature is 120±5℃, generally baked for 2 hours, starting from the time the temperature reaches the baking temperature.
Temperature and time:
1. For the sealed and unsealed products with a manufacturing date within 2 months and more than 5 days, bake at 120±5℃ for 1 hour.
2. For the manufacturing date between 2 and 6 months, bake at 120±5℃ for 2 hours.
3. For the manufacturing date between 6 months and 1 year, bake at 120±5℃ for 4 hours.
4. The baked circuit board must be mounted within 5 days, and the unfinished ones need to be baked for another hour
before they can be put on the machine.
Temperature and time:
1. For the sealed and unsealed products with a manufacturing date within 2 months and more than 5 days, bake at 120±5℃ for 1 hour.
2. For the manufacturing date between 2 and 6 months, bake at 120±5℃ for 2 hours.
3. For the manufacturing date between 6 months and 1 year, bake at 120±5℃ for 4 hours.
4. The baked circuit board must be mounted within 5 days, and the unfinished ones need to be baked for another hour
before they can be put on the machine.
Why Choose Us
1.One-stop Service
▪ Design ability: Professional design team
▪ Production capacity: The workshop in Dongguan Base covers an area of 100000 square meters, with a monthly production capacity of 100000 square meters
2.Quality contral
▪ 500+ strong team
▪ 100% test
▪Professional QC and QA team
▪ 100% test
▪Professional QC and QA team
3.Service ability
▪ Give the quotation within 1h and ship within 3 days
▪ 24h customer service online
▪All kinds of flexible cooperation
▪ 24h customer service online
▪All kinds of flexible cooperation
4.Quality certification
▪We passed ISO9001 ISO13485 UL and IATF16949 product control certificate and ROHS product test report.
▪Visual inspection:X-ray detection,ultrasonic detection,optical detection,electrical performance test,hot and cold shock test
. ▪Automatic crimping equipment,Resistance forming machine,apacitor foot clipper,Bulk device forming machine,Resistance/cap acitor forming machine,Automatic pipe cutting machine,Automatic dispensing machine,Fully automa dividing machine
5.Satisfaction guarantee
Worry-free after-sales.We support a full refund for any quality problems.Reissue to you in your next order or credit directly to your bank card account
