Small Energy Consumption High Efficiency And Favorable Price Sand Gravel Cleaning And Debris Removal Spiral Sand Washing Machine
- Category: >>>
- Supplier: Henan Shaolin Heavy Machines Co. Ltd.Henan Ltd.
Share on (1601208472704):
Product Overview
Description
Product Description
Product Introduction
It is mainly used for pre-classification and inspection grading in the grinding circuit of mineral processing and sand and gravel plant, as well as desliming and dewatering in sand washing operations. According to the number of spirals, it can be divided into two types: single spiral and double helix, and according to the different depth of immersion of spiral blades into the overflow surface, it can be divided into two types: high weir type and sinking type. The former is used for ore classification with a temperature flow particle size of 0.83-0.15mm, and the latter is used for ore classification of 0.15-0.07mm.
Specification
Specifications And Models | FG1000 | FG2000 | FG2400 | |
Spiral Diameter （mm） | 1000 | 2000 | 2400 | |
Sink Length （mm） | 6500 | 8400 | 9200 | |
Spiral Speed （r/min） | 5.0-8.0 | 3.0-3.5 | 2.5-4.0 | |
Production Capacity(t/h) | Return To Sand | 675-1080 | 3240-5400 | 9300-14900 |
Production Capacity(t/h) | Overflow | 110 | 400 | 1160 |
Hydraulic Slope(°） | 14-18.5 | 14-18.5 | 14-18.5 | |
Spiral Weight（t） | 1.9 | 7.1 | 10.2X2 | |
Motor Power（kw） | Transmission Motors | 5.5 | 11 | 15X2 |
Motor Power（kw） | Lift The Motor | 2.8 | 2.8X2 | |
Dimensions（mm） | 7100X1330X2390 | 10000X2570X4468 | 10800X5400X4700 | |
Weight（kg） | 4000 | 35500 | 45800 |

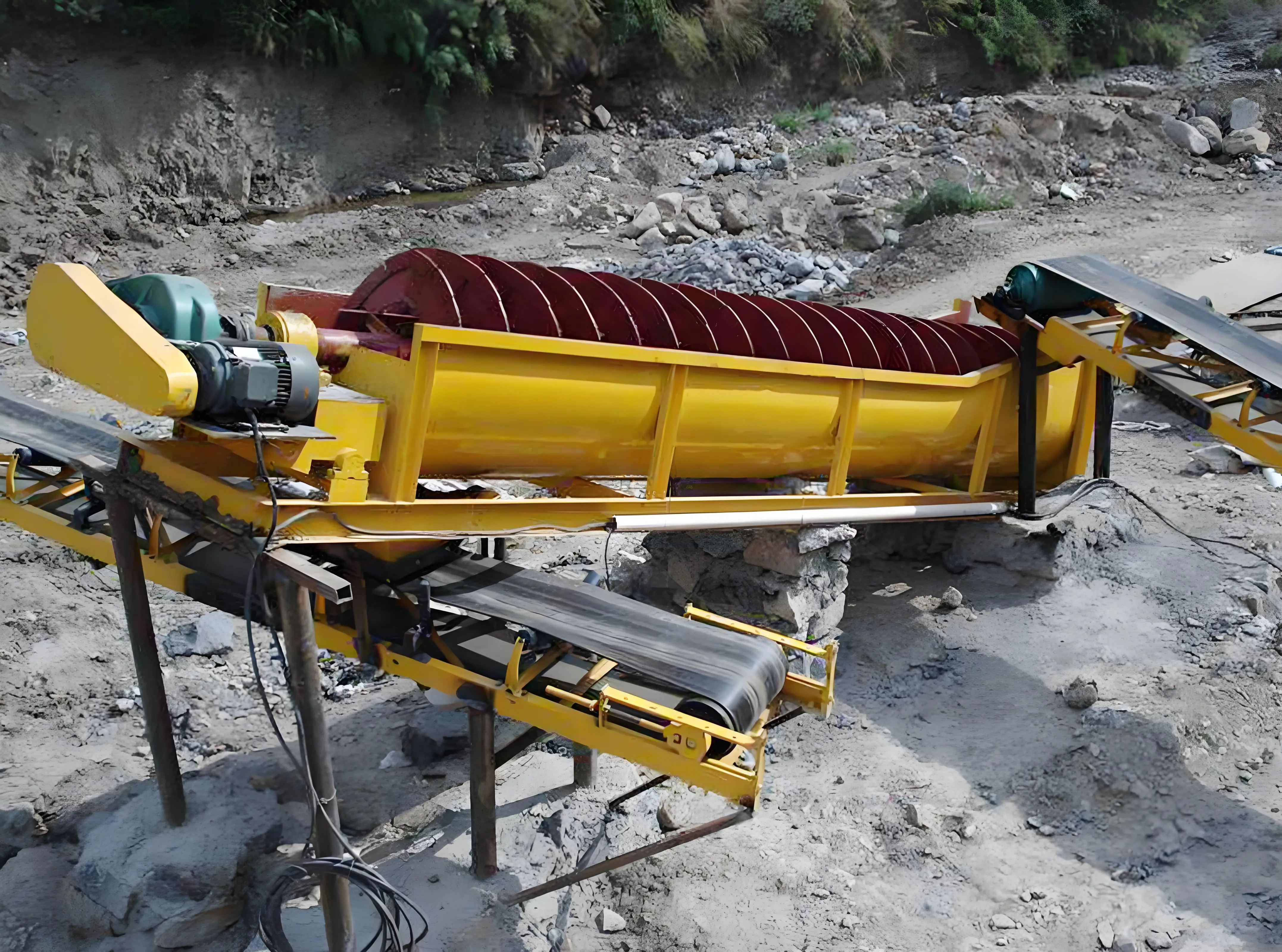

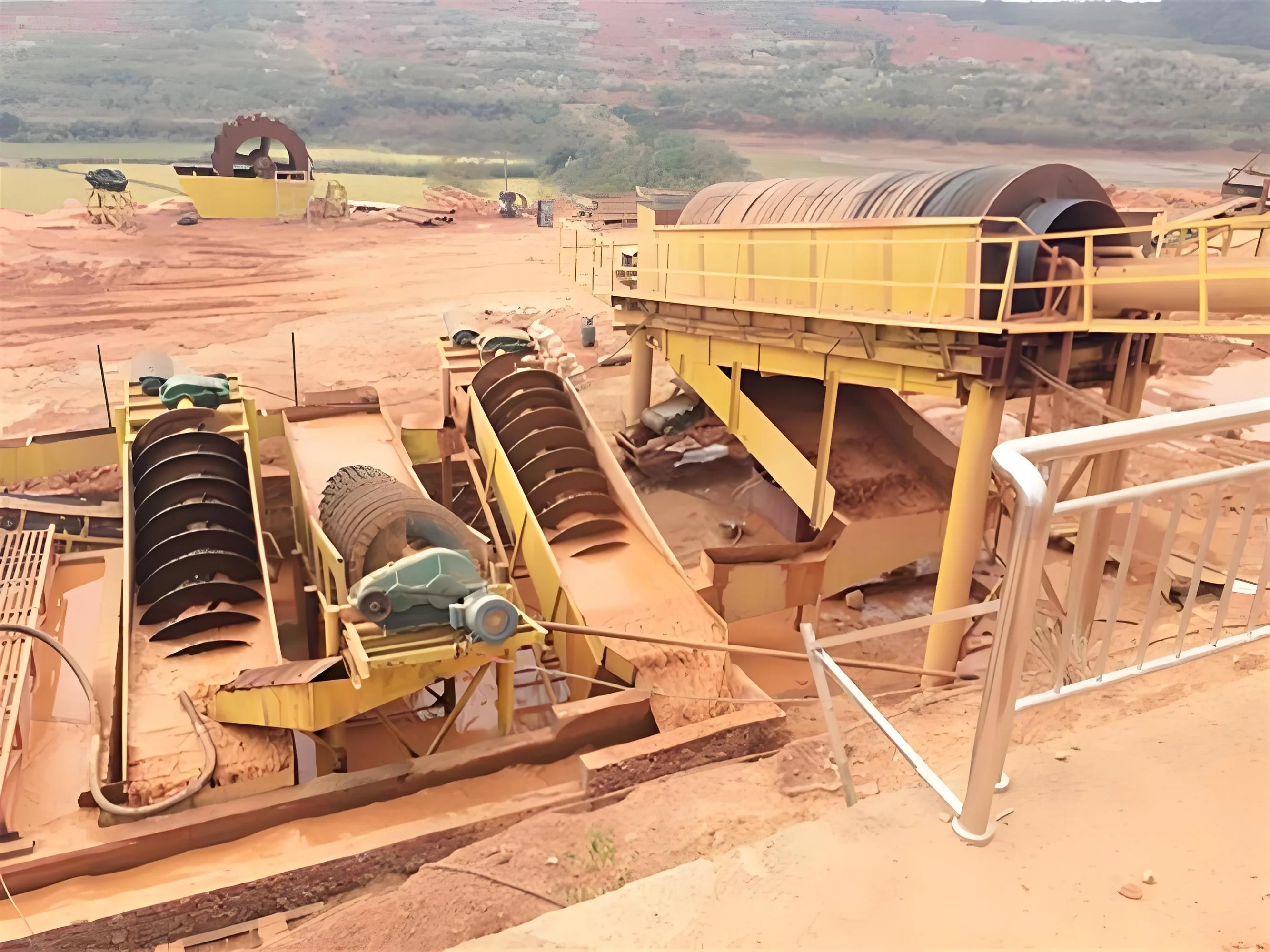

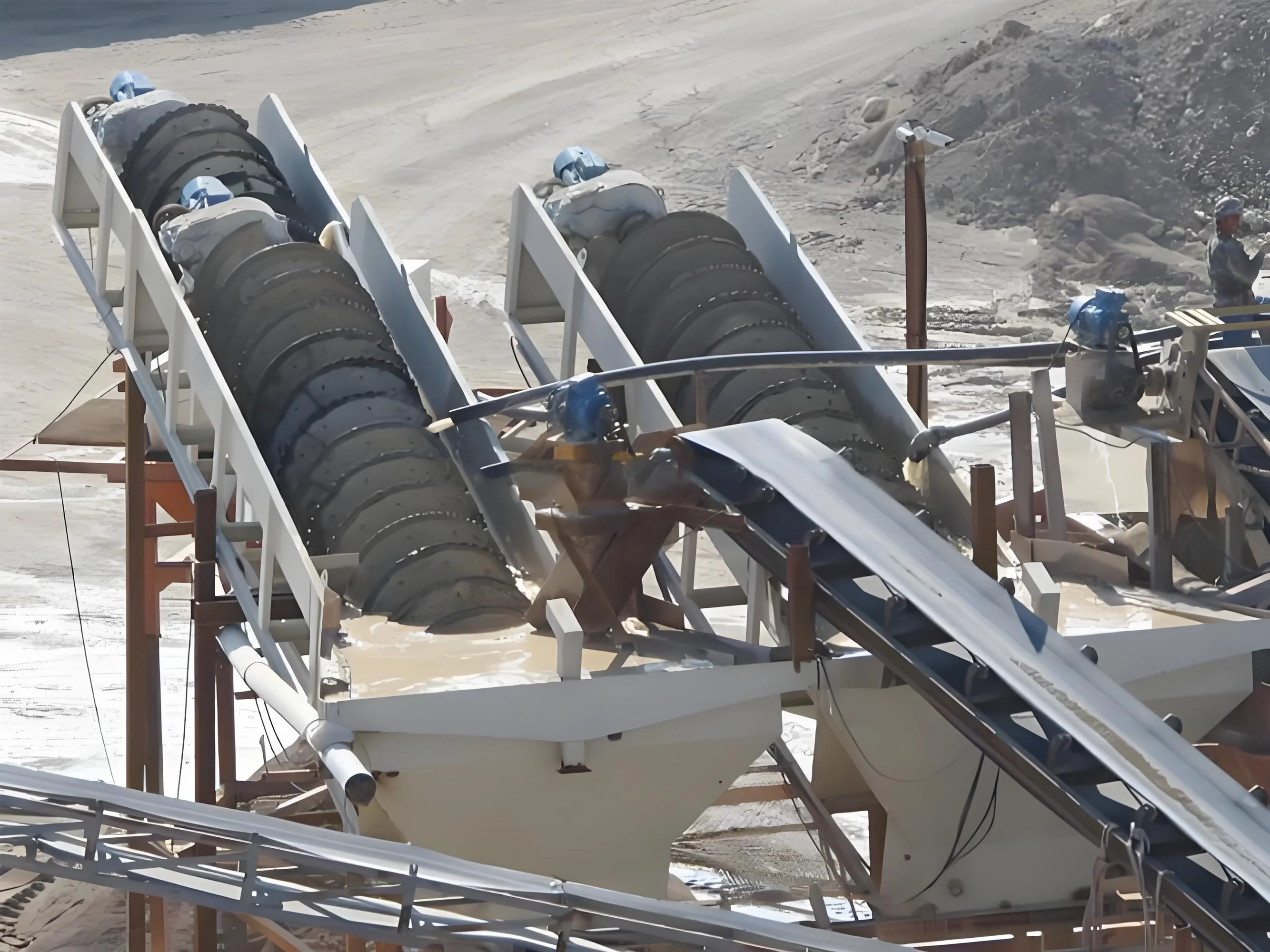

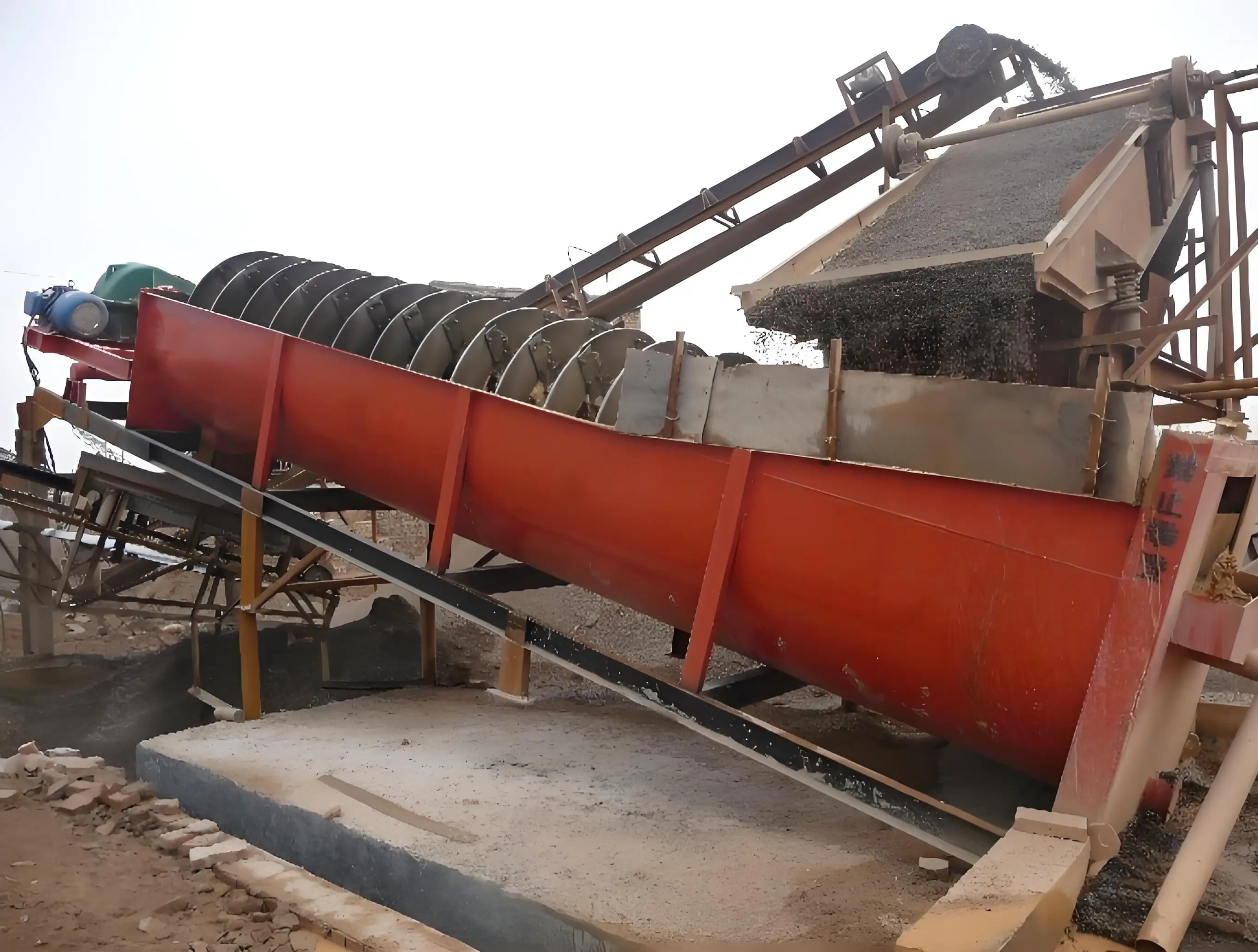

Pictures from the scene
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1. Q: Are you a factory or trading company?
A: We are factory direct sales source manufacturer.
2. Q: How can I see the effect of the product I want?
A: You can tell me what you need. I'll find it and shoot a trial video for you at the factory
3. Q: Are the wearing parts of the crushing equipment durable?
A: First of all, the wearing parts need to be replaced within a certain period of time. I can give you the factory price of the parts
4. Q: Is it easy to replace the wearing parts of the crushing equipment?
A: Yes, we can provide you with a video guide if you need.
5. Q: How does this machine work?
A: They are usually assembled and ready to use at the time of delivery. Video instructions will be provided if required.
A: We are factory direct sales source manufacturer.
2. Q: How can I see the effect of the product I want?
A: You can tell me what you need. I'll find it and shoot a trial video for you at the factory
3. Q: Are the wearing parts of the crushing equipment durable?
A: First of all, the wearing parts need to be replaced within a certain period of time. I can give you the factory price of the parts
4. Q: Is it easy to replace the wearing parts of the crushing equipment?
A: Yes, we can provide you with a video guide if you need.
5. Q: How does this machine work?
A: They are usually assembled and ready to use at the time of delivery. Video instructions will be provided if required.
