  • High configuration and high precision Press brake manufacture WE67K series hydraulic synchronized automatic Bending Machine

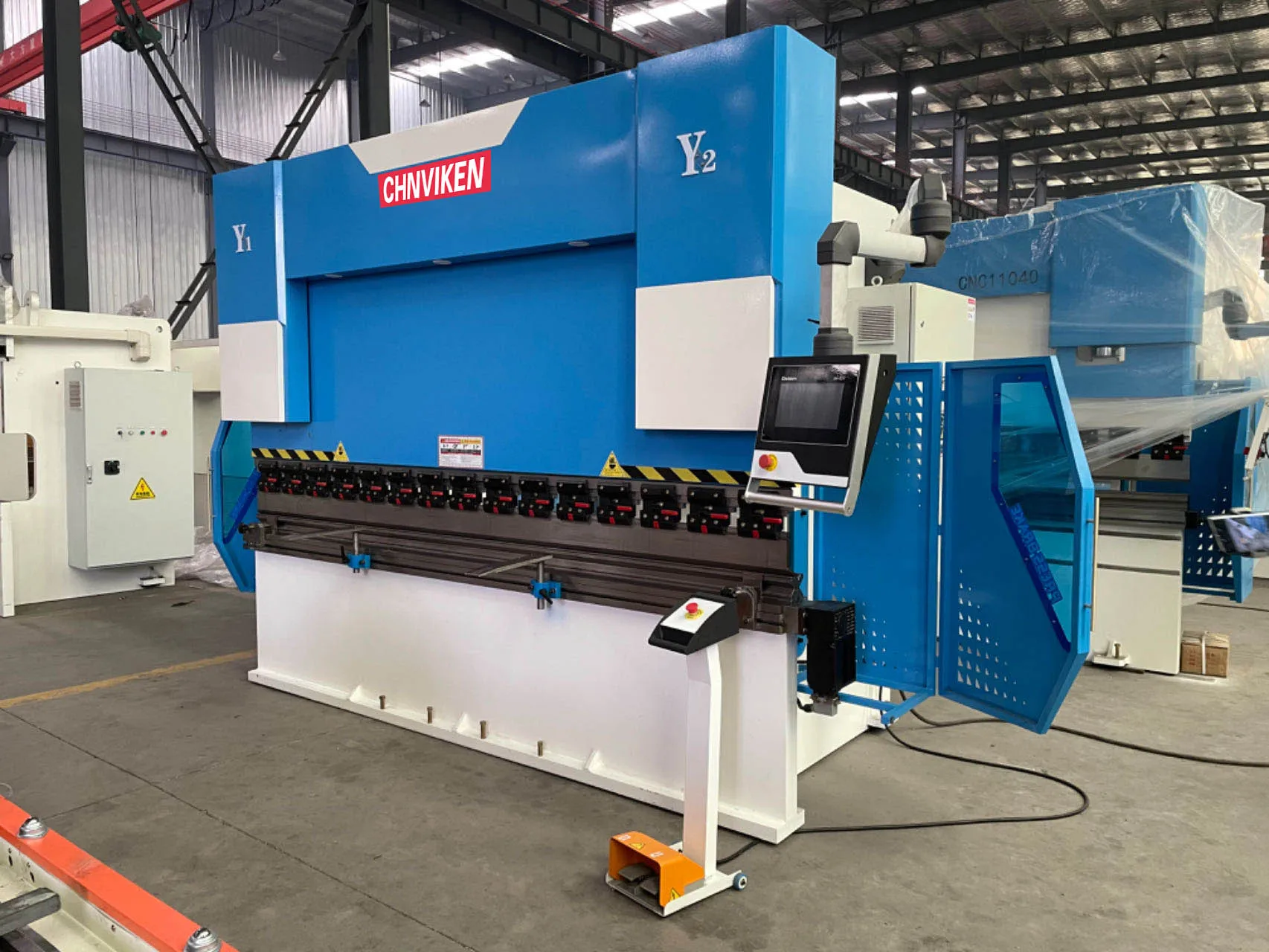

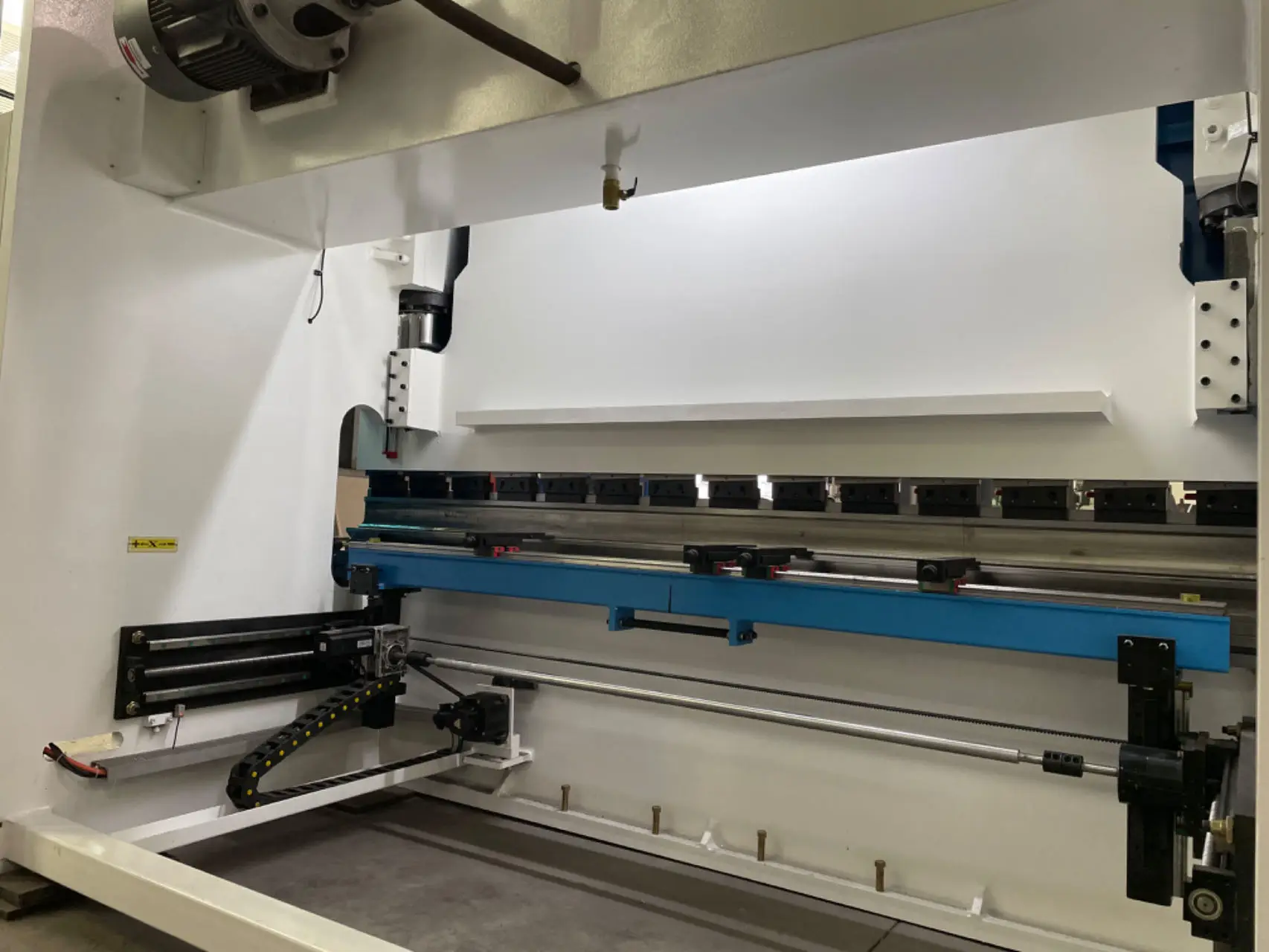

High configuration and high precision Press brake manufacture WE67K series hydraulic synchronized automatic Bending Machine
High configuration and high precision Press brake manufacture WE67K series hydraulic synchronized automatic Bending Machine
High configuration and high precision Press brake manufacture WE67K series hydraulic synchronized automatic Bending Machine
High configuration and high precision Press brake manufacture WE67K series hydraulic synchronized automatic Bending Machine
High configuration and high precision Press brake manufacture WE67K series hydraulic synchronized automatic Bending Machine
High configuration and high precision Press brake manufacture WE67K series hydraulic synchronized automatic Bending Machine
High configuration and high precision Press brake manufacture WE67K series hydraulic synchronized automatic Bending Machine

High configuration and high precision Press brake manufacture WE67K series hydraulic synchronized automatic Bending Machine

Share on (1601208474434):


Price:$19,000.00 - $20,000.00

Quantity:

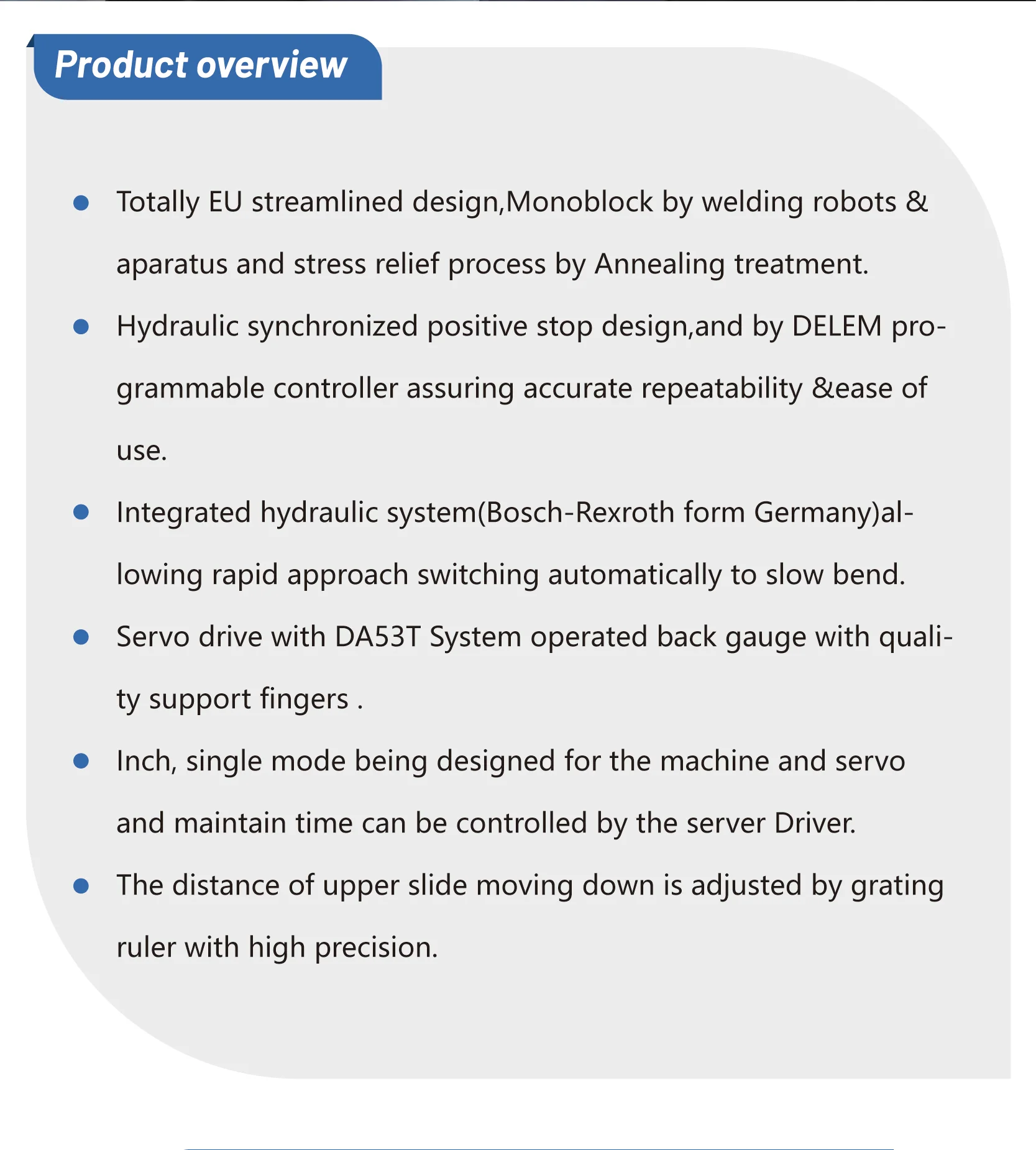

Product Overview

Description
















































































Bending Capability80/3200100/3200100/4000125/3200125/4000160/3200160/4000
Nominal Force(KN)800100010001250125016001600
Worktable Length(mm)3200320040003200400032004000
Column Distance(mm)2650261031002610310026003050
Throat Depth(mm)250320320320320320320
Ram Stroke(mm)120120120120120180180
Main Motor Power(KW)5.57.57.57.57.51111

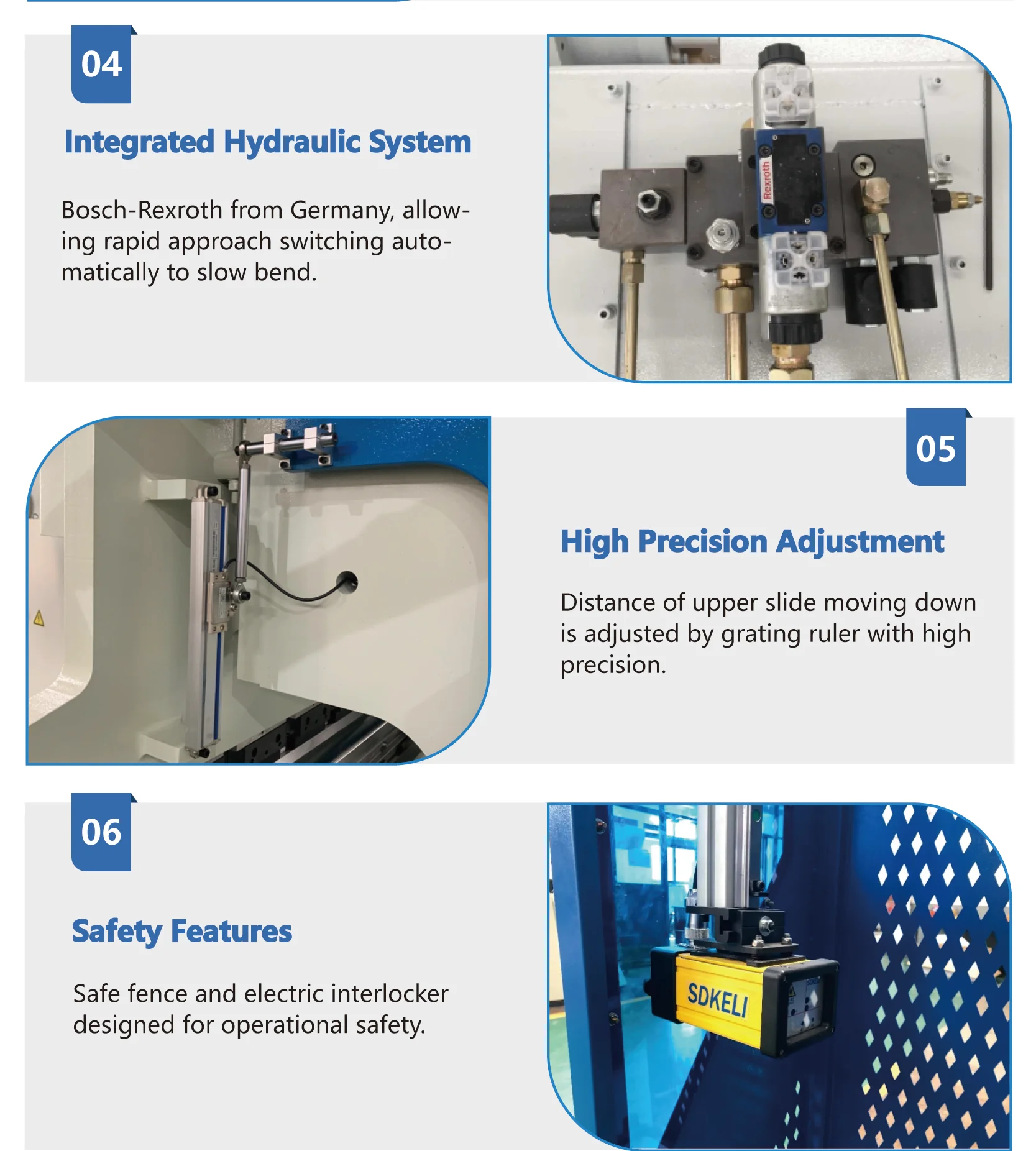

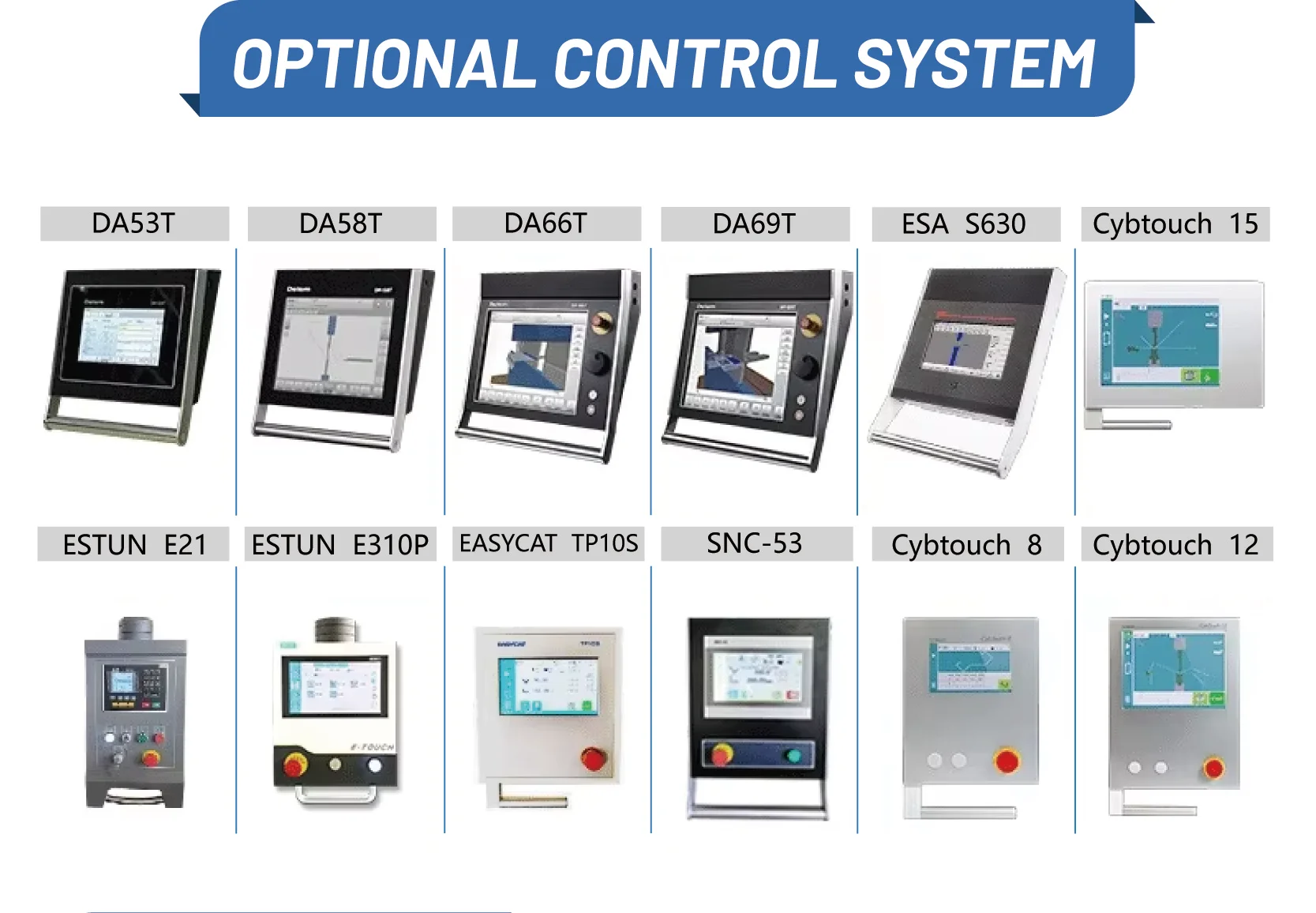

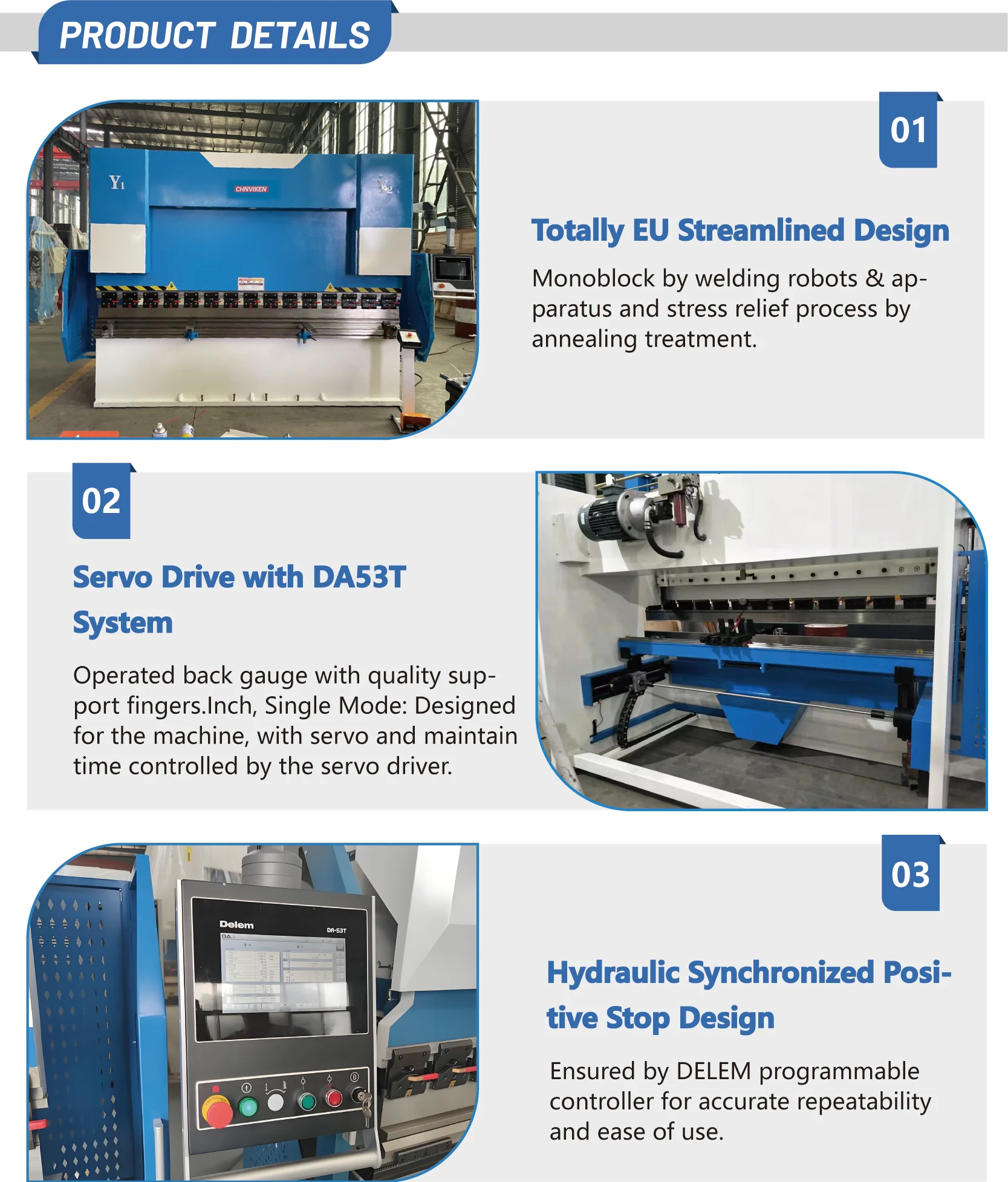

(3)_20240709093515_20240709093504





































































No.


Component Name


Details



1

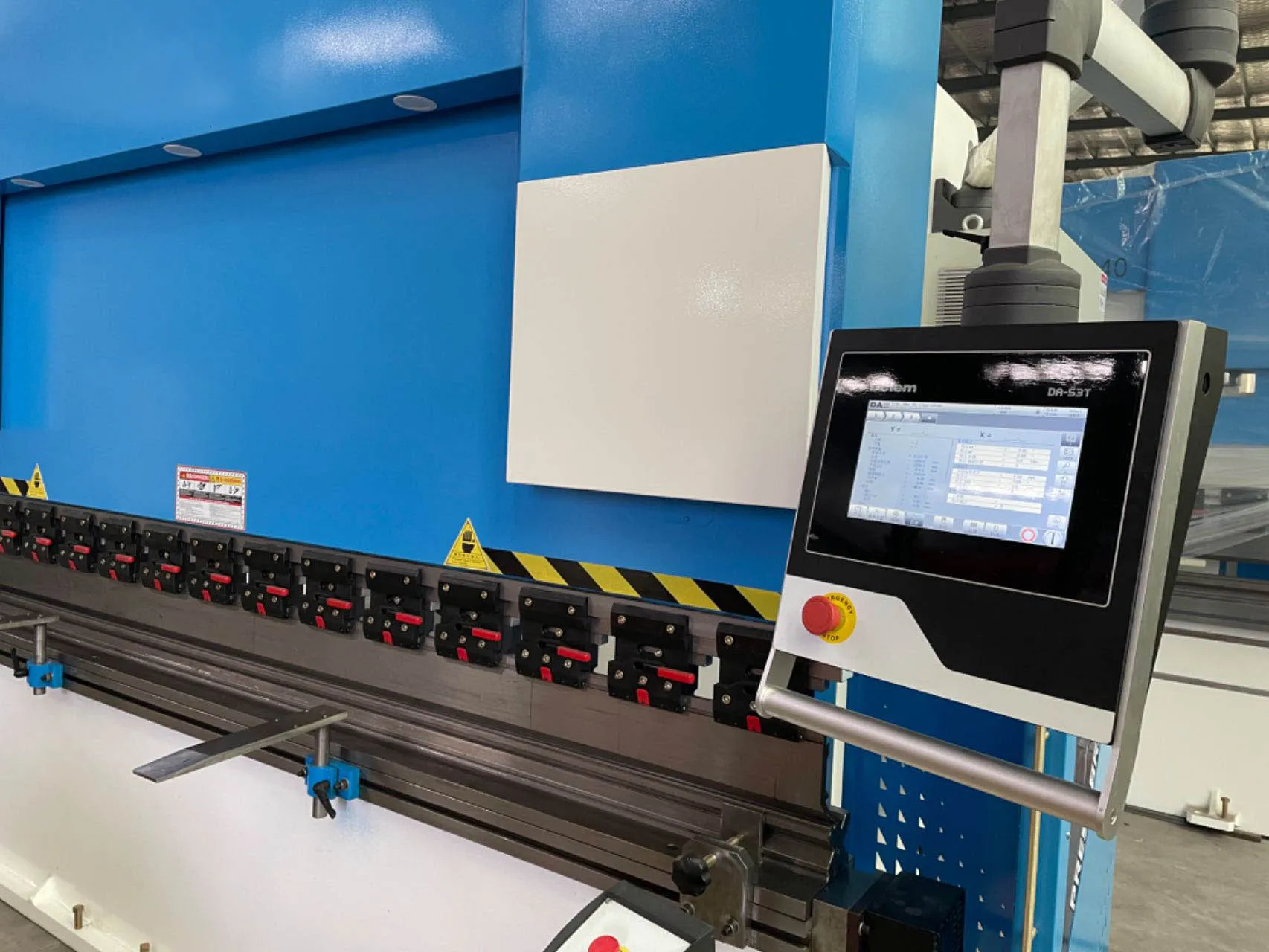

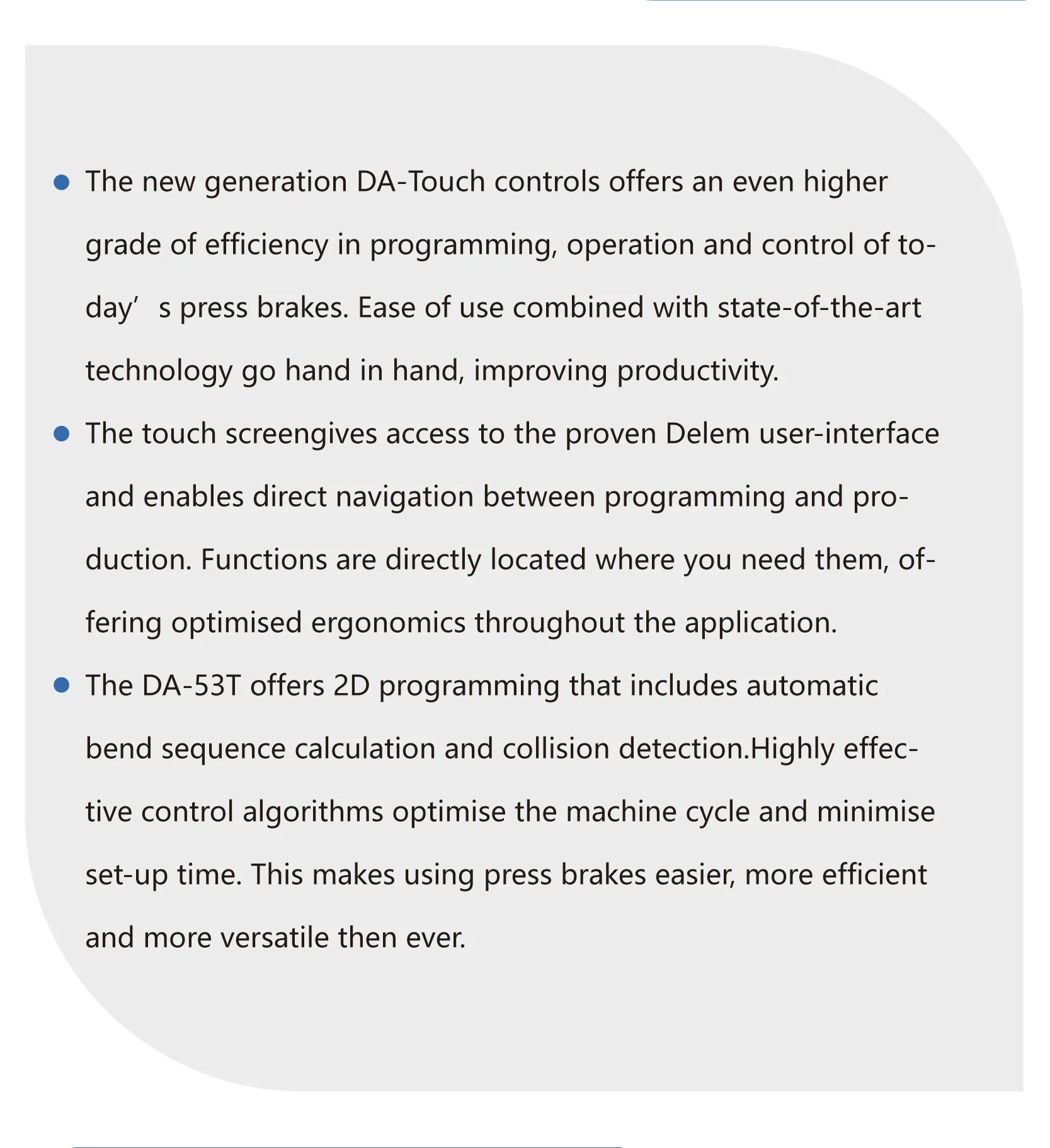

 Controller



DELEM DA53T


2


Main Motor


Siemens Main Motor


3


Hydraulic system


RexRoth, Germany


4


Oil pump


Sunny, America


5


Electrical components


Schneider, France


6

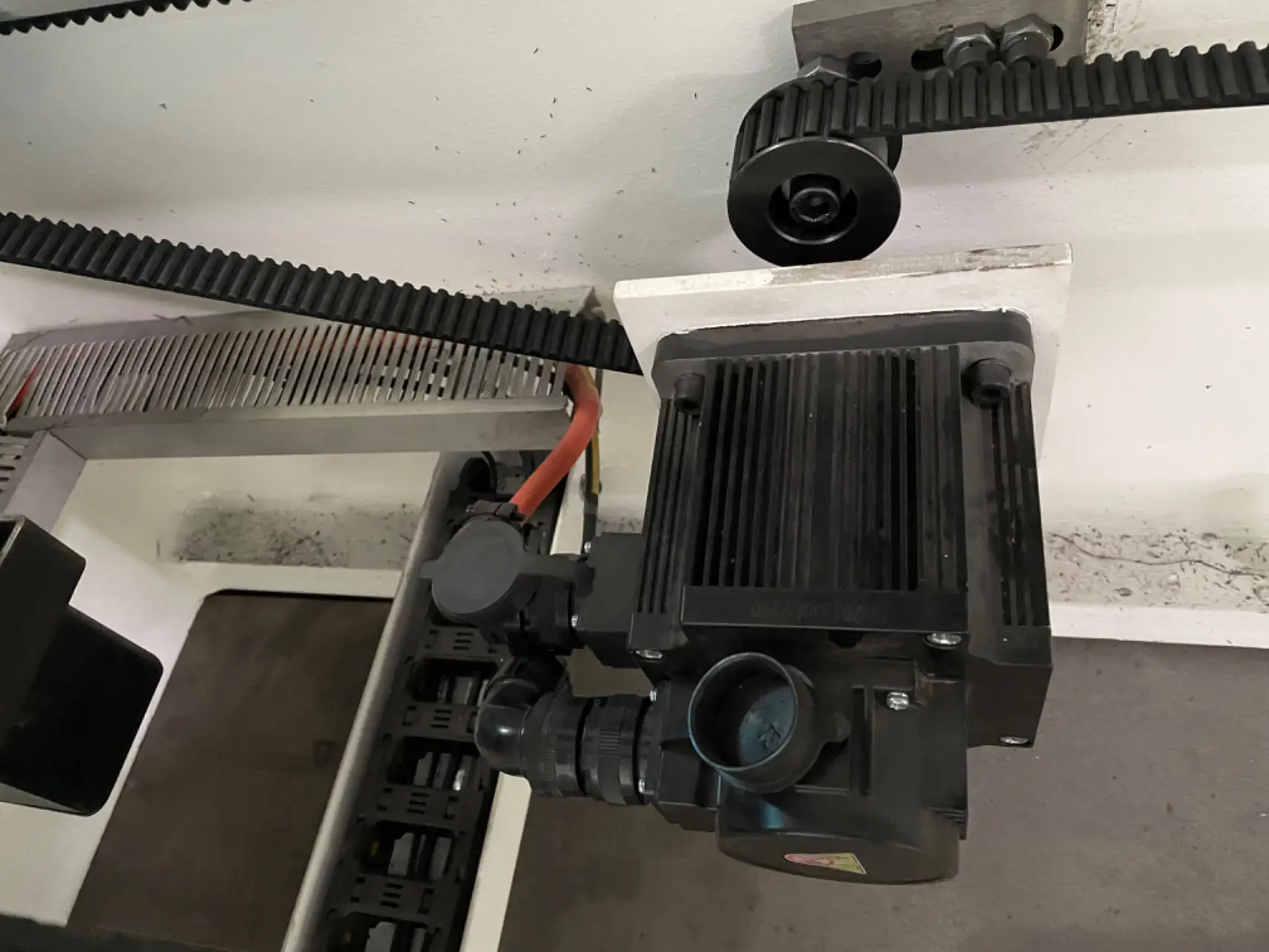

Servo motor and driver


Estun, China Nanjing


7


Grating ruler


GIVI, Italy


8

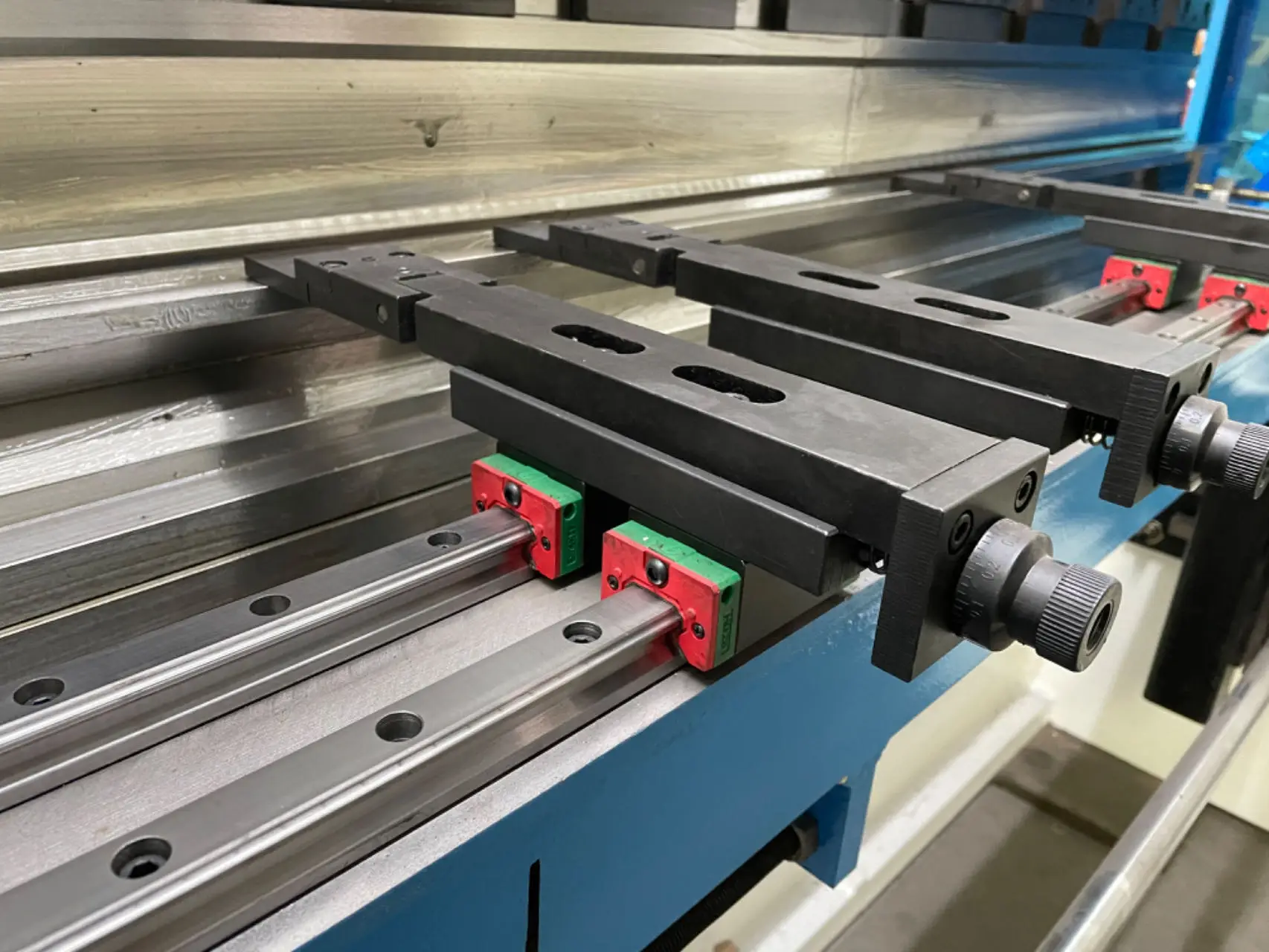

Ball screw linear guide rail


HIWIN, China Taiwan



9




Hydro-cylinder




VIKEN



10


Bear


NSK, China Shanghai


11

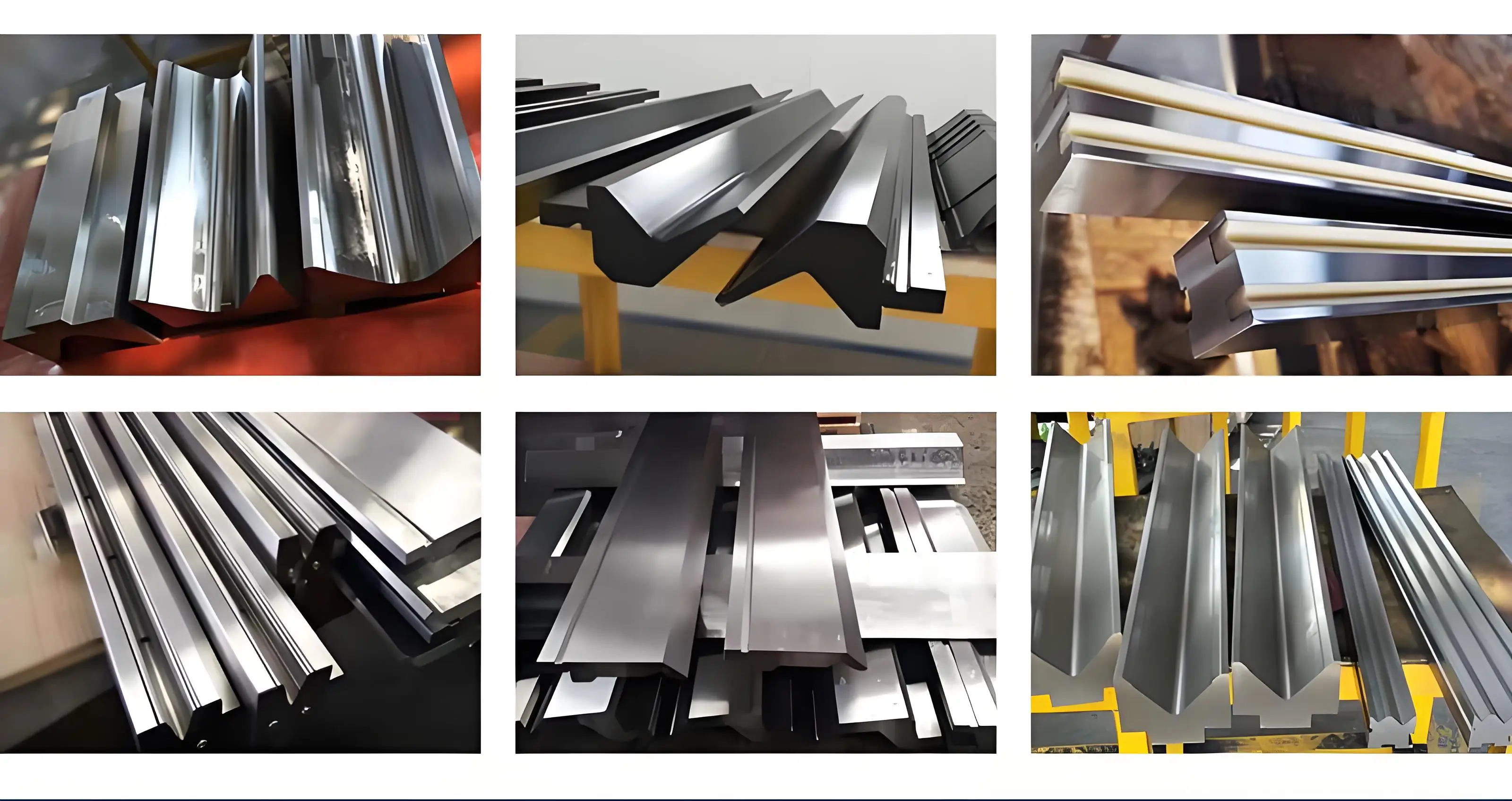

Punch and Die


42CrMo Material

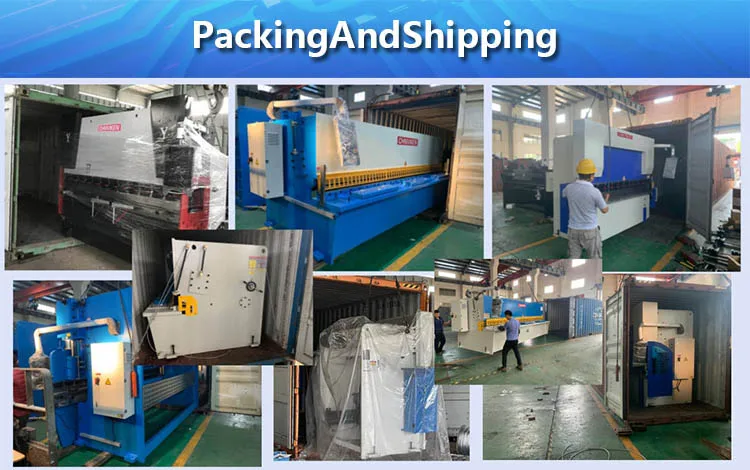

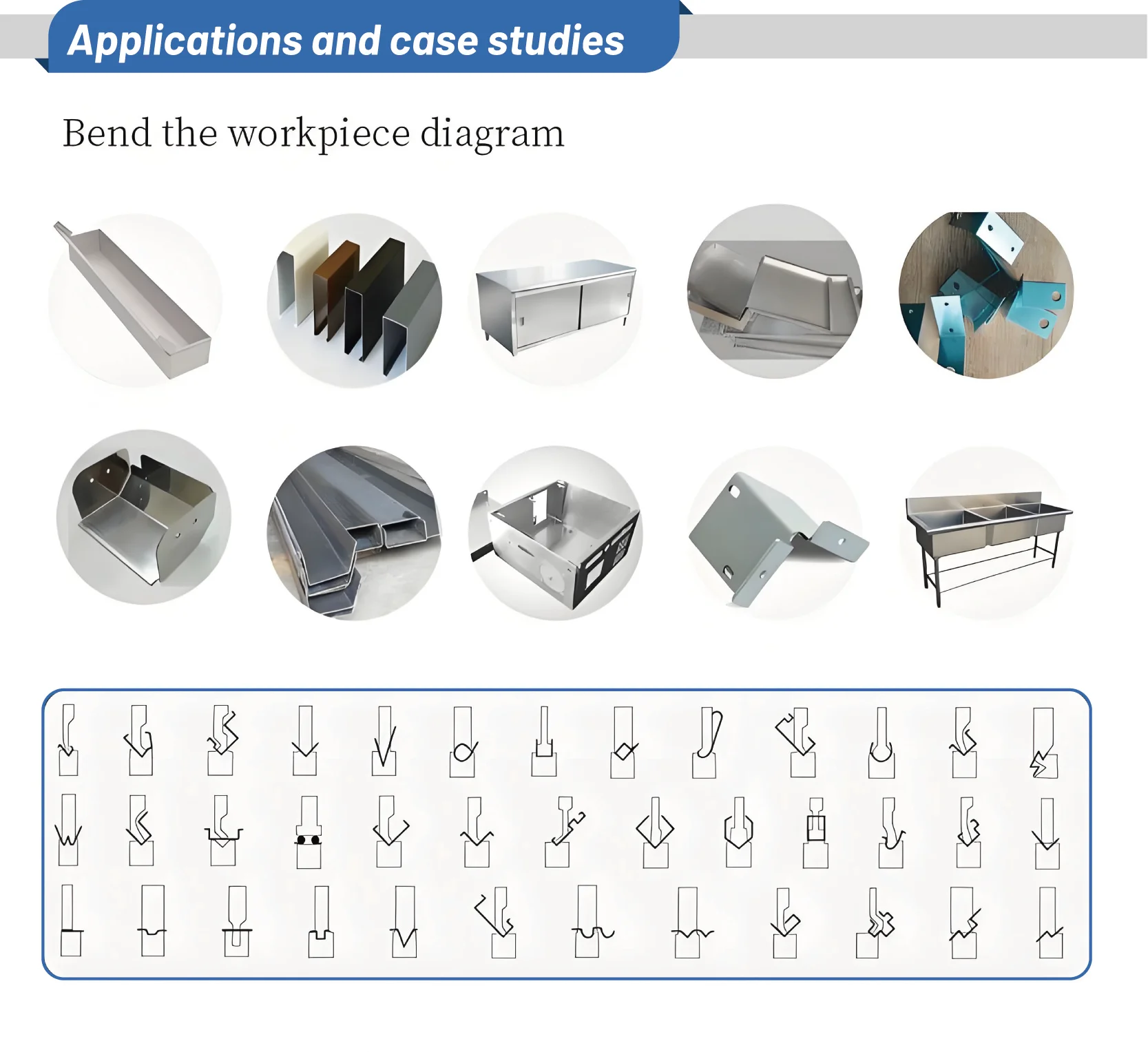

_2024070909352013152124130113304124206(1)16050656photobank (12)
