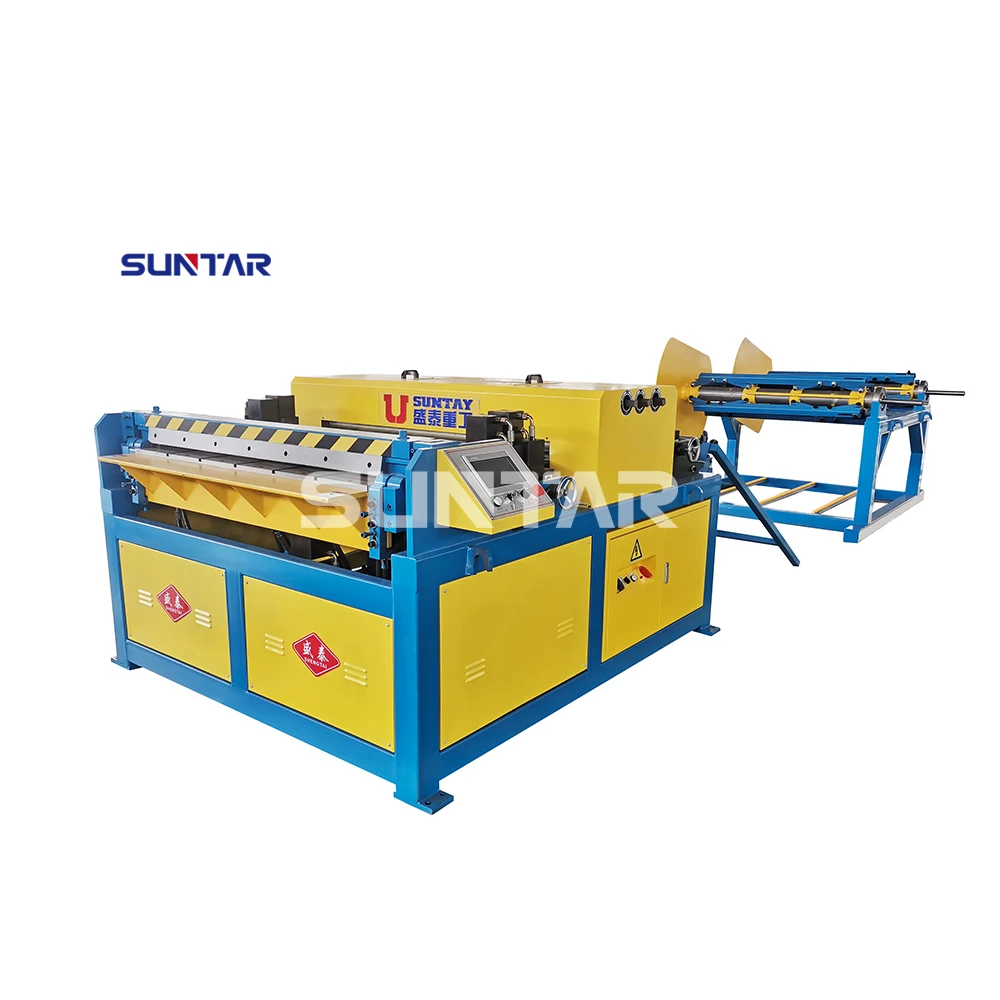

Suntay New Auto HVAC Duct Making Machine Efficient 3 Line HVAC Duct Production Equipment

Share on (1601208482438):


Price:$7,000.00 - $10,000.00

Quantity:


Product Overview

Description









Product Introduction
Function

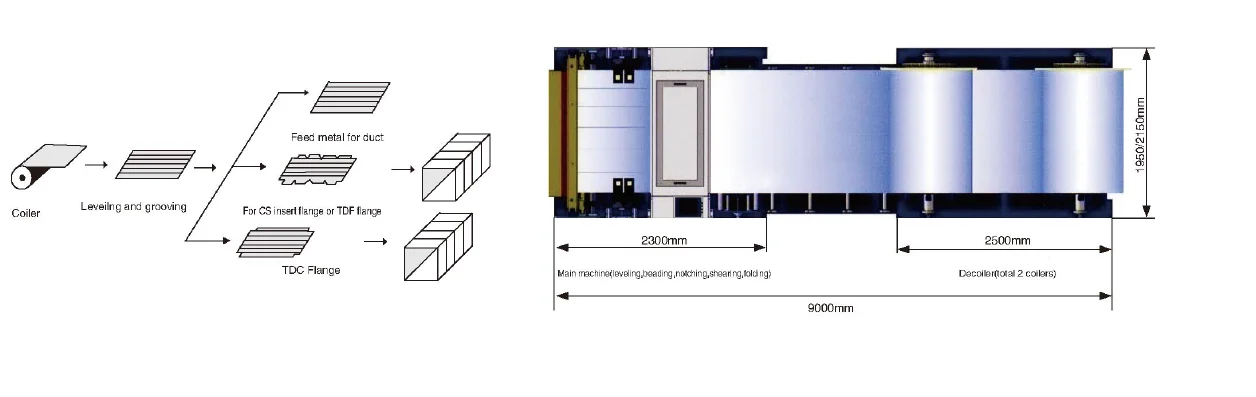

Duct production line 3 can drive blanking for duct. Meantime, it’s very suitable for multi-production like TDF/angle
steel/inserted flange forming; the angle steel flange and inserted flange can be bent into square-shaped pipe automatically.

Performance Features

*Aluminium alloy suspension arm makes the machine easy to operate.
*The build-in control cabinet reduces wiring as a whole structure and makes it easy to move.
*The imported configuration is very stable and comfortable to use.

Main Import Configuration
*Germany Siemens/Mitsubishi CNC system +Schneider electrical system
*Beijing Huade or hydraulic system from Taiwa
*Japan Omron encoder

Basic Configuration

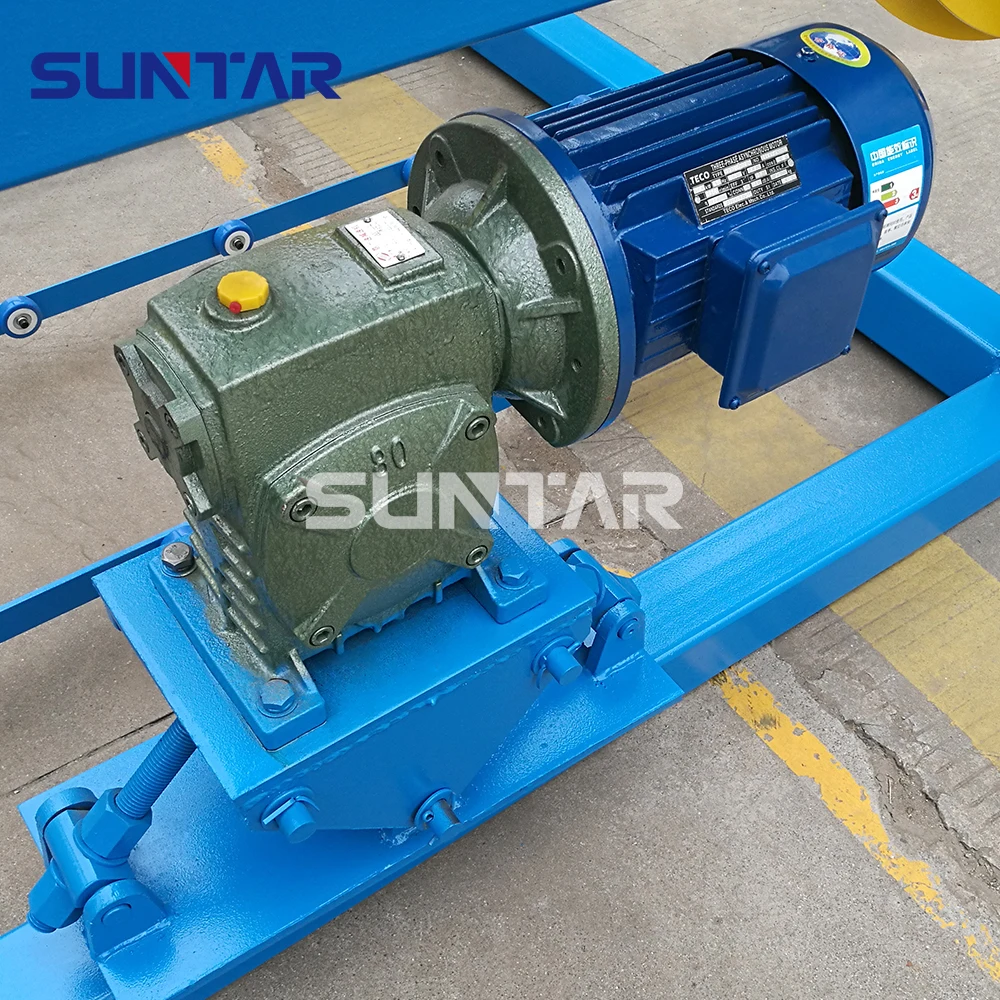

* One electric coil cradle (two material trays)
* One set of leveling and beading equipment

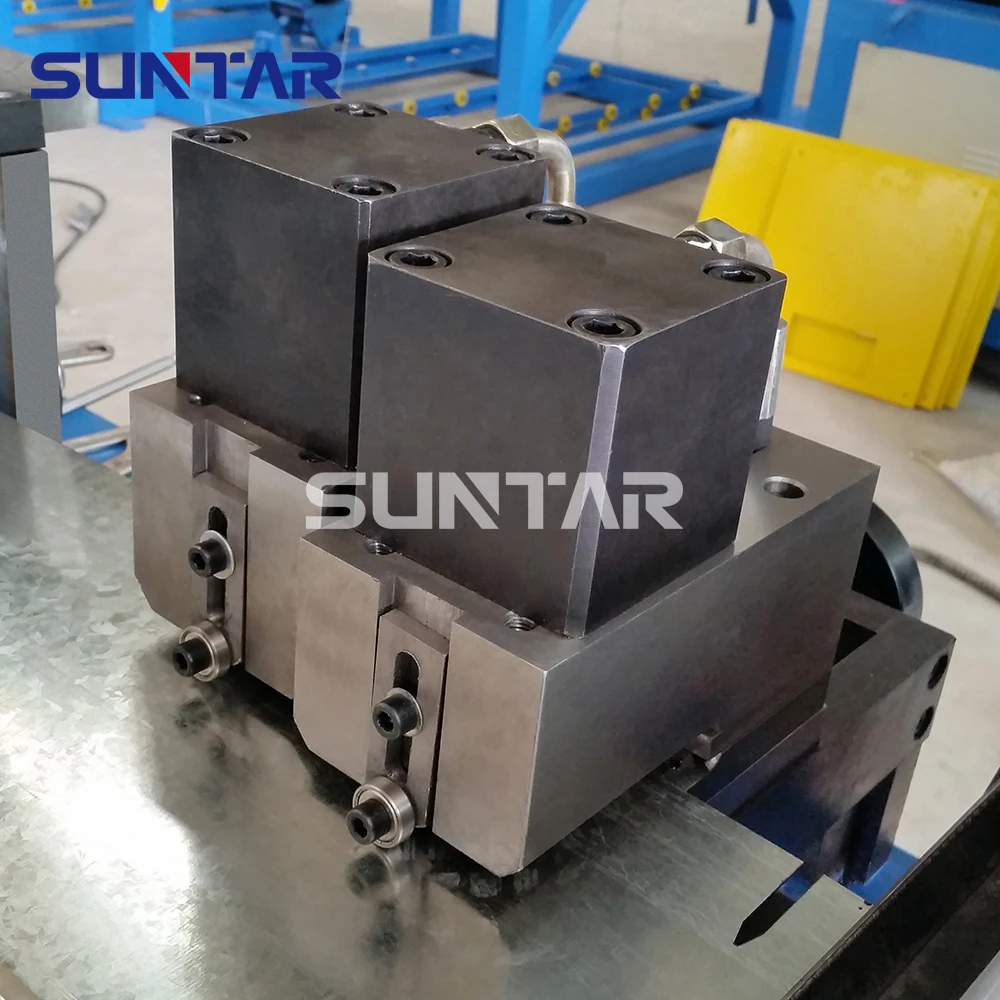

* Hydraulic angle-shearing machine with four sets of die

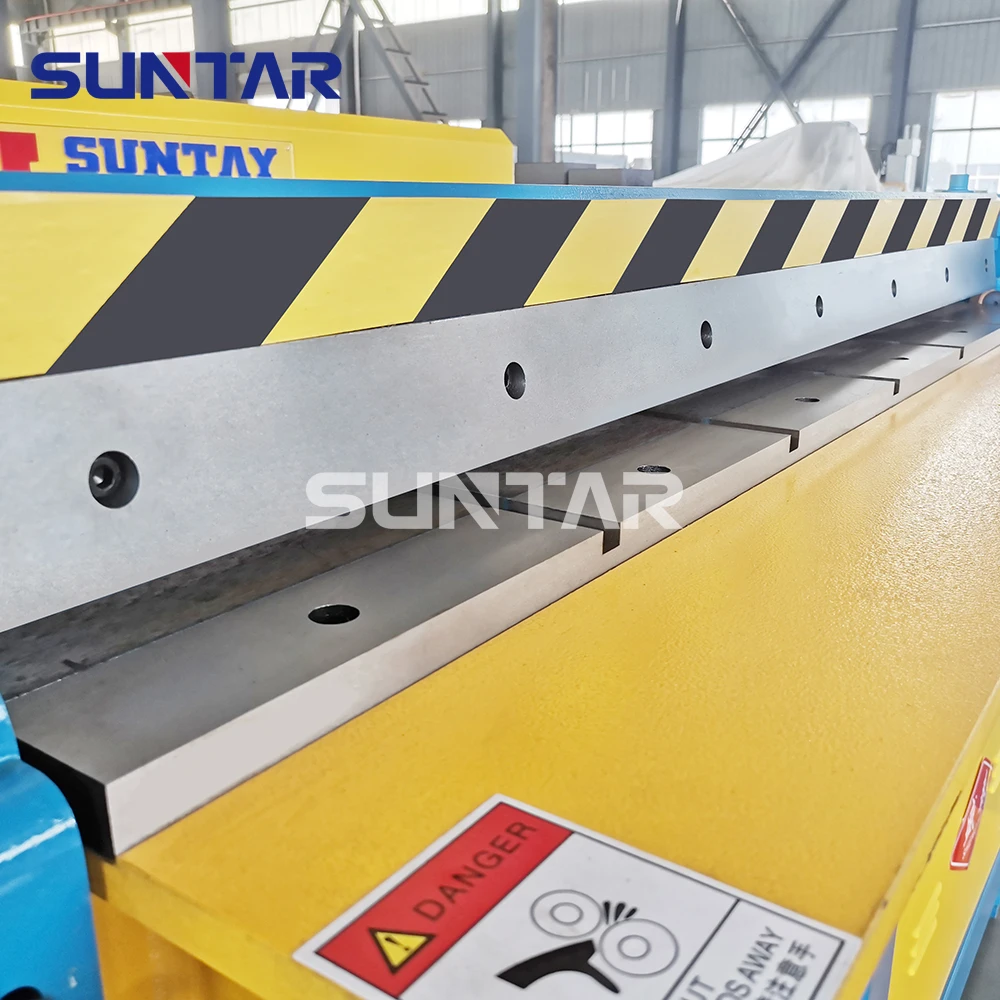

* Hydraulic sheet-shearing machine, hydraulic bending machine, hydraulic press machine

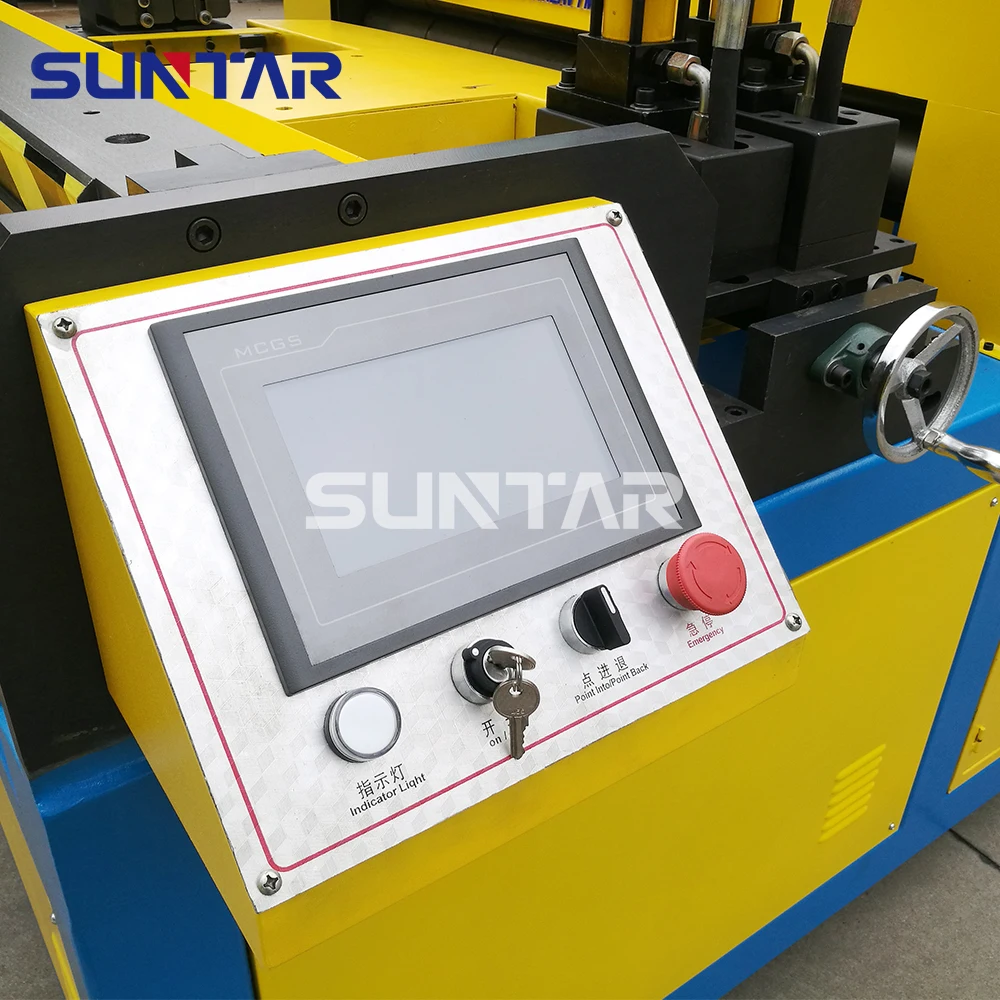

* A set of CNC computer control system and production software

Main Technical Parameters


Modle
Sheet thickness(mm)
Max width(mm)
Max working speed(m/min)
Coiler max weight(T)
Dimensions(m)
L*W*H
Power(kw)
Weight
(T)
ADL-3-1250
0.5-1.2
1250
15
7
2200*1950*1300
2500*1950*1600
8
3.5
ADL-3-1500
0.5-1.2
1500
15
7
2200*2150*1300
2500*2150*1600
8
4
