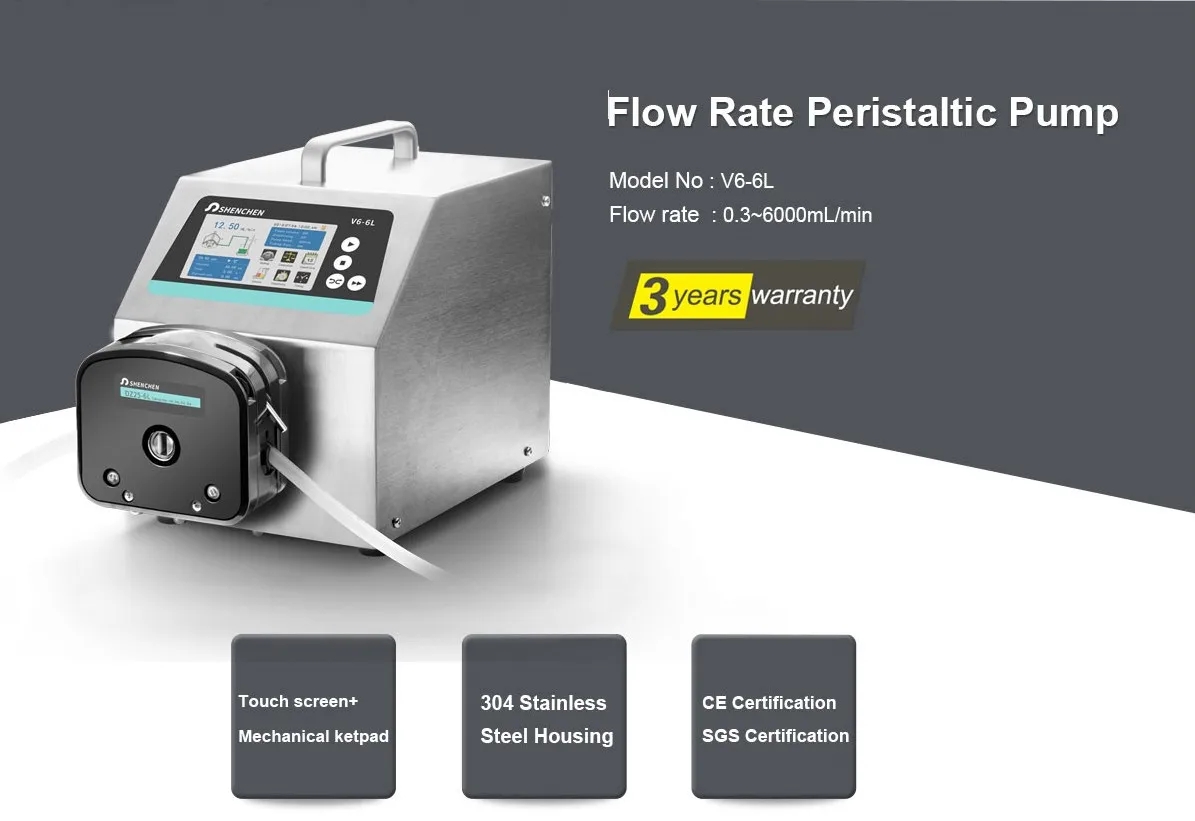

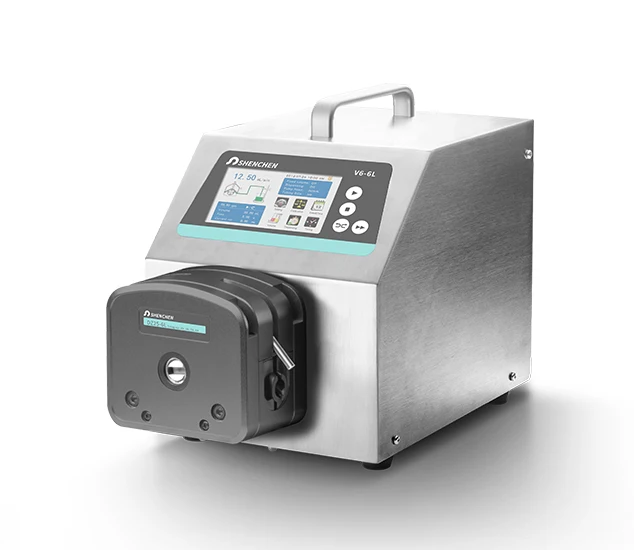

Shenchen Lotion Filling Peristaltic Pump High Viscosity Honey Peristaltic Pump
- Category: >>>
- Supplier: Baoding Shenchen Precision Pump Co. Ltd.
Share on (1601208484093):
Product Overview
Description
Product Description
Features:
★ Intelligent flow rate industrial peristaltic pump.

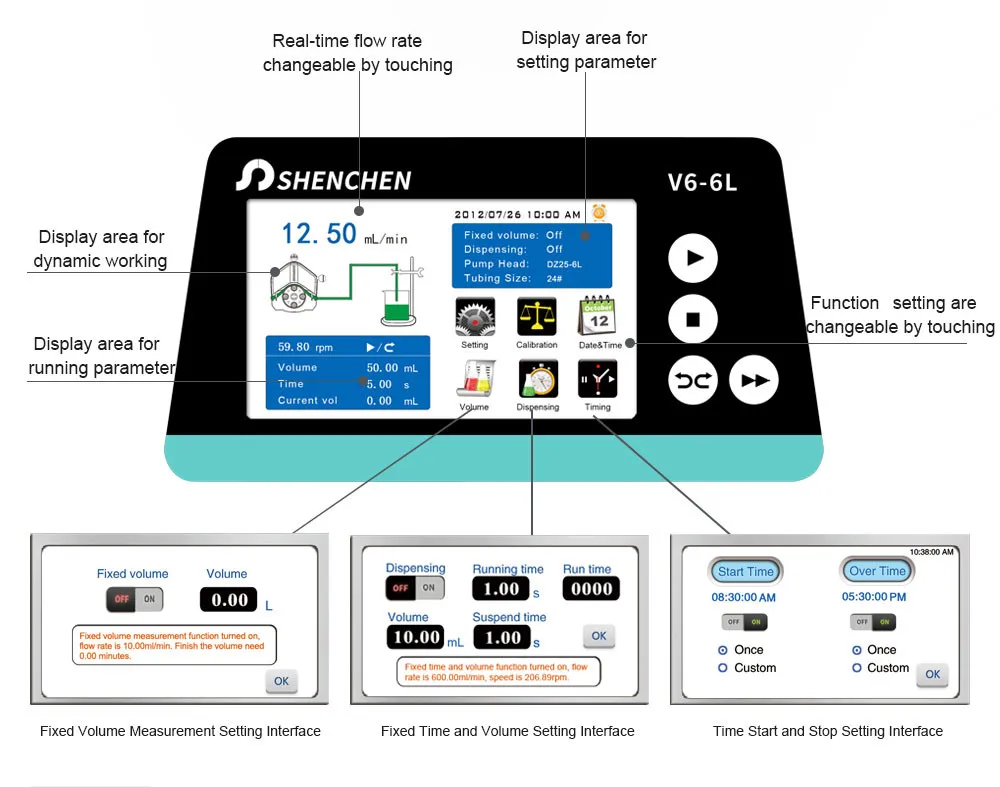

★ Many setting parameters could be displayed in the same screen.
★ Intelligent calibration and online micro adjusting function.
★ 3 kinds of working mode: fixed volume metering, fixed time and volume, timer start and stop.

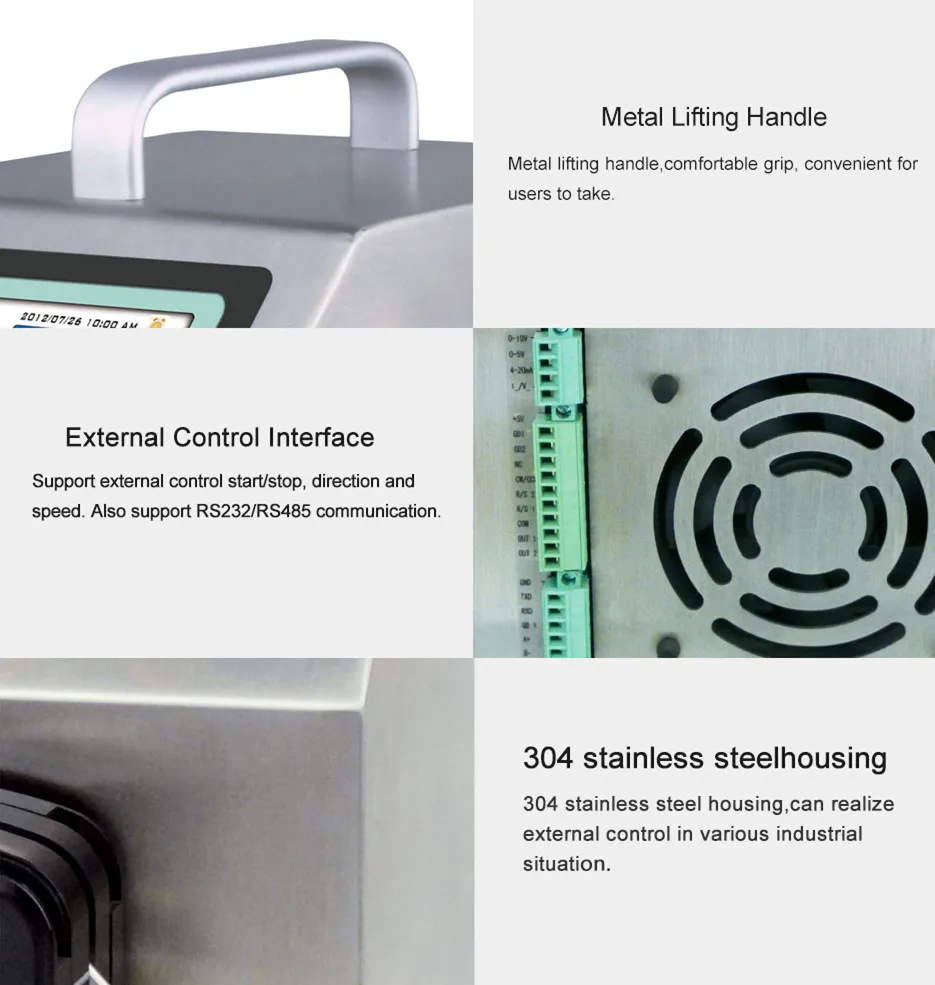

★ 304 stainless steel housing.
★ Circuit board three layers of paint spraying process, dust proof, moisture proof, anti-static, corrosion resistance.
Detail
OSD
Other Detail

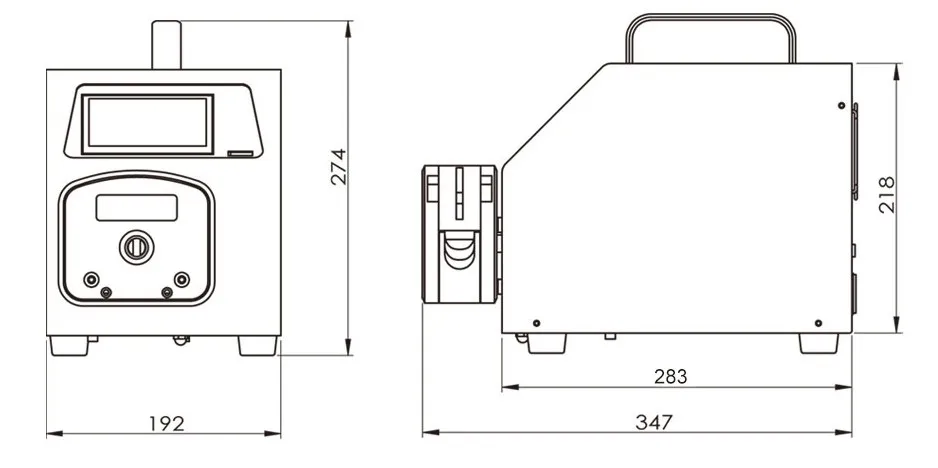

Product Dimension Drawing (Unit: mm)

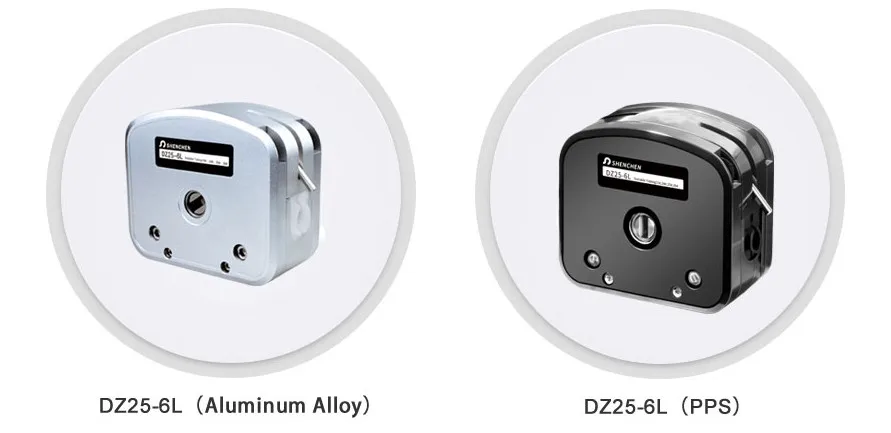

Pump Head
Product Composition and Flow Rate Range
Drive | Motor Type | Pump Head | Tubing Size | Speed Range (rpm) | Flow Rate (mL/min) |
V6-6L | Closed-loop stepper motor | DZ25-6L | 15#, 24#, 35#, 36# | 0.1~600 | 0.3~6000 |
Product Parameters
Flow rate range | 0.3~6000 mL/min |
Speed range | 0.1~600 rpm |
Speed resolution | 0.01 rpm |
Flow rate resolution | 0.01 mL |
Flow rate accuracy | ＜±0.5% |
Back suction angle | 0-360° |
Motor type | Closed-loop stepper motor |
Display | Industrial grade 4.3'' color LCD display |
Control method | Touch screen and mechanical keypad |
Keypad lifetime | 300,000 times |
External speed control signal | 0-5V, 0-10V, 4-20mA |
Start/stop, direction signal | Passive switch signal, such as foot pedal switch Active switch signal: 5V-24V |
Communication interface | RS232, RS485 support MODBUS protocol (RTU mode) |
Output interface | Output motor working status (Open-collector output) |
Power supply | AC 220V±10% 50Hz/60Hz (standard) AC 110V±10% 50Hz/60Hz (optional) |
Drive dimension | 283mm×192mm×218mm |
Drive weight | 7.85kg |
Power consumption | ＜180W |
Environment temperature | 0-40℃ |
Relative humidity | ＜80% |
