pneumatic screen printing machine for nonwoven bag paper kraft bag screen printers machine dimpression sur sac en plastique
- Category: >>>
- Supplier: Dongguan Hoystar Machinery Co. Ltd.
Share on (1601208629745):
Product Overview
Description
Product Description

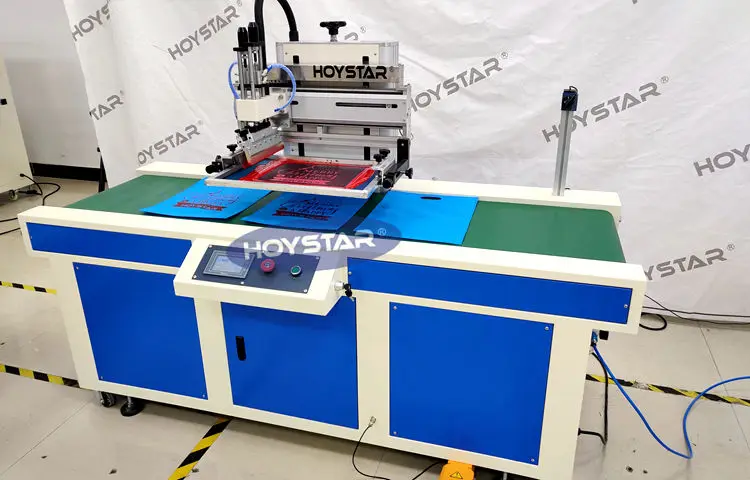

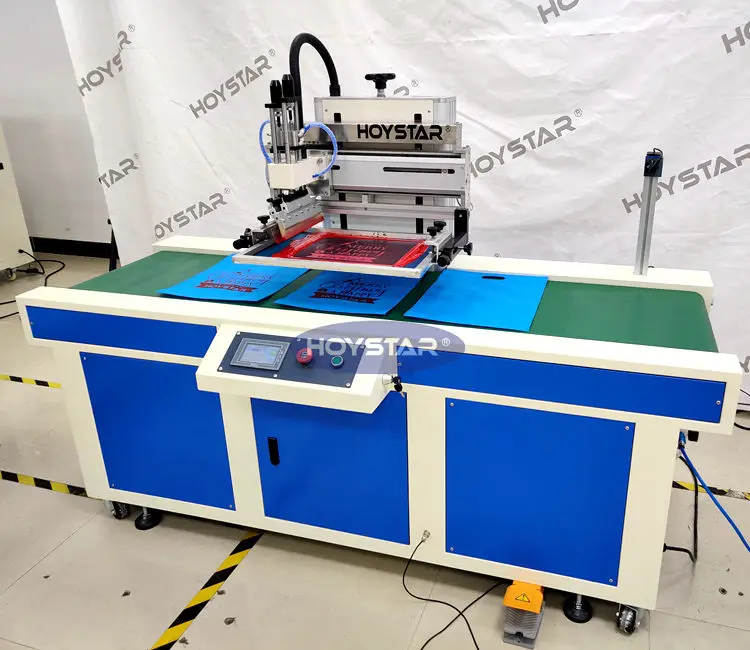

Non-Woven Bag Screen Printing Machine For Paper Bag Screen Printer
What is this screen printing machine application for ?
It is widely application for printing kinds of bags such as:
Paper bag, Canvas Bag, Non-Woven Bag, PE bag, Plastic Bag, Cotton Bag, Kraft Bag.....etc.
But also suitable for printing kinds of thin/light flat material such as:
Paper sheet, paper board, pvc sheet, PET film, membrane switch, cardboard, plastic panel, textile, …..and so on
Paper bag, Canvas Bag, Non-Woven Bag, PE bag, Plastic Bag, Cotton Bag, Kraft Bag.....etc.
But also suitable for printing kinds of thin/light flat material such as:
Paper sheet, paper board, pvc sheet, PET film, membrane switch, cardboard, plastic panel, textile, …..and so on
Technical Parameter
Max.printing size | 200*300mm |
Max.screen frame size | 390*570mm |
Screen frame lifting height | max.150mm |
Conveyor belt table size | width 500mm*length 2000mm |
Voltage | 220V 1 Phase 50HZ |
Air pressure | 6-8 Bar |
Dimension | 2000*950*1500mm |
Weight | 280kg |
Dimension | 1000*700*1480MM |
Layes | 50 layers total |
using line | 6*3MM |
Grids dimension | 100*100MM |
The height between two layers | 25MM |
Casters | normal casters |
Netting | plating |
Backbone | painting |
Details Images

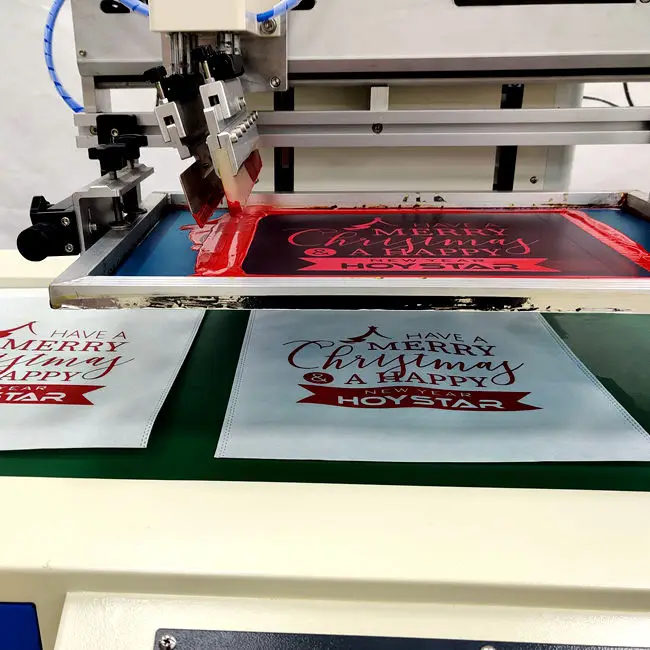

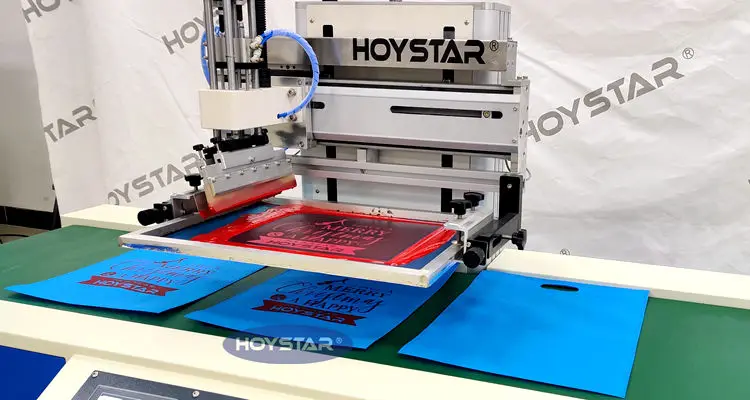

Automatic Printing head

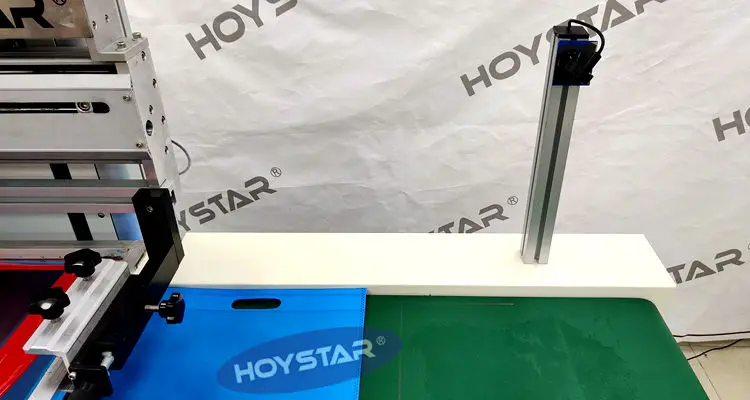

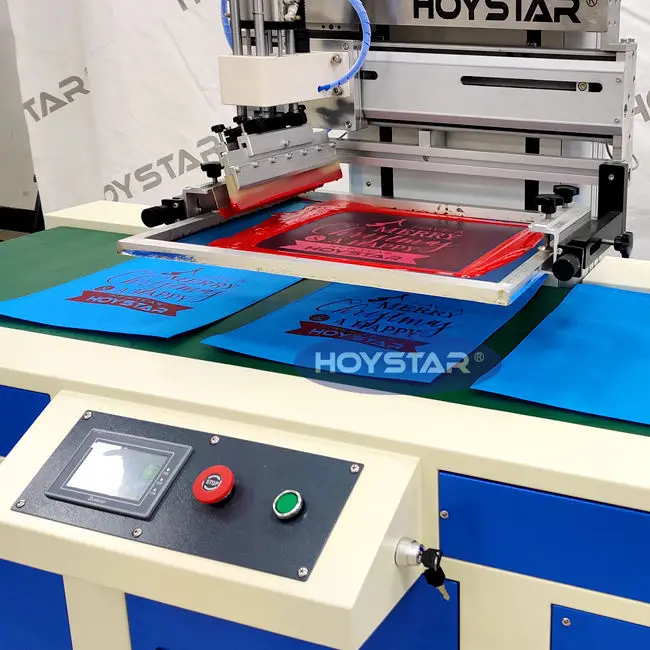

Table position

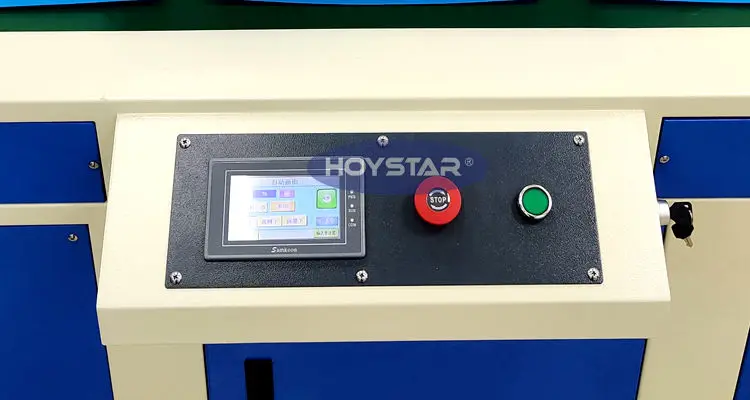

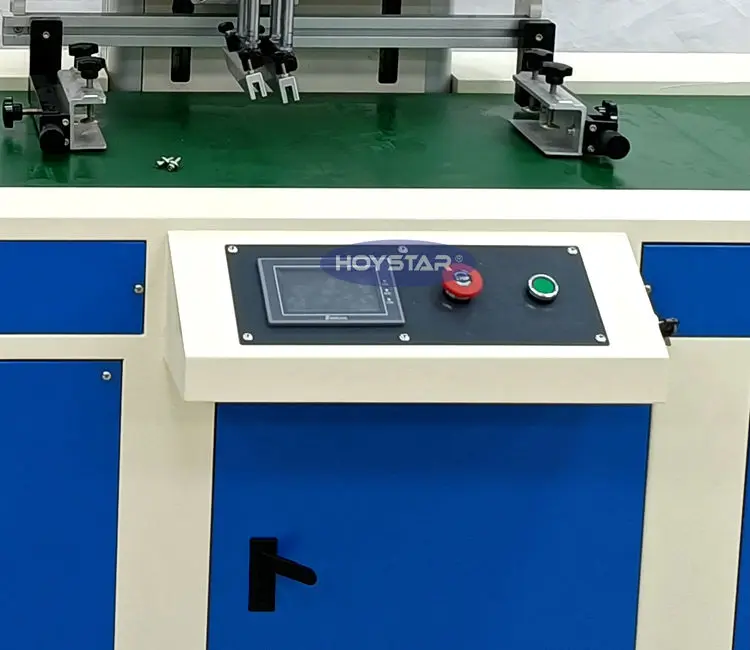

PLC program and touch screen control panel

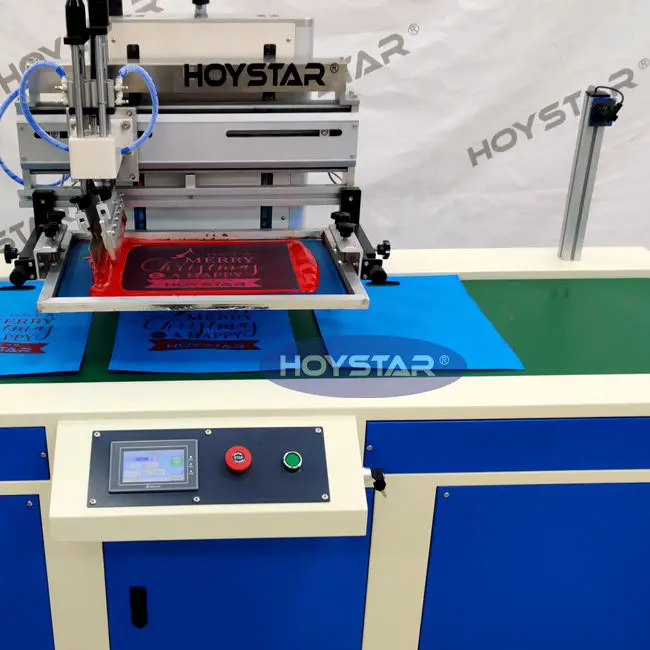

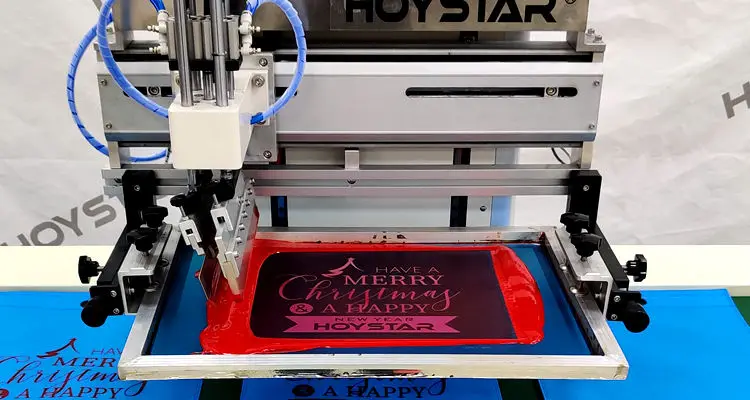

screen printing ink blade/squeegee up/down by pneumatic
Features
* Automatic laser positioning point fix bag to correct position
* Conveyor belt material Teflon, electric motor driving speed can set up
* With PLC program and Touch Screen Control Panel, simple and easy to operate
* Printing head driving by pneumatic air cylinder

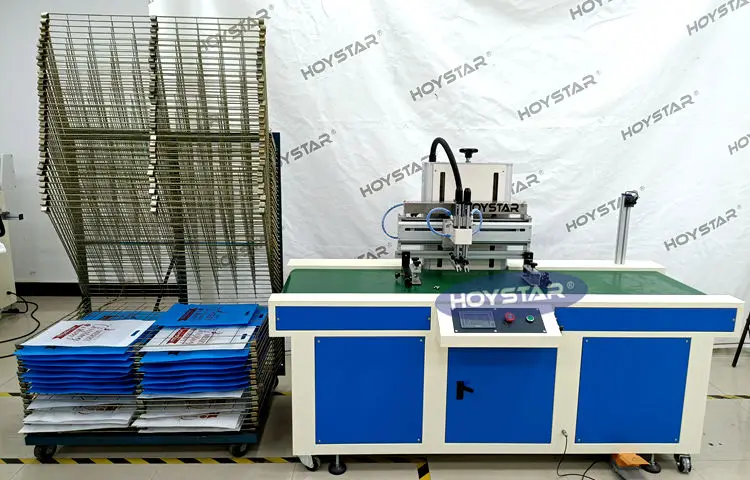

* machine can connect with drying rack or conveyor belt drying oven directly
* Conveyor belt material Teflon, electric motor driving speed can set up
* With PLC program and Touch Screen Control Panel, simple and easy to operate
* Printing head driving by pneumatic air cylinder
* machine can connect with drying rack or conveyor belt drying oven directly

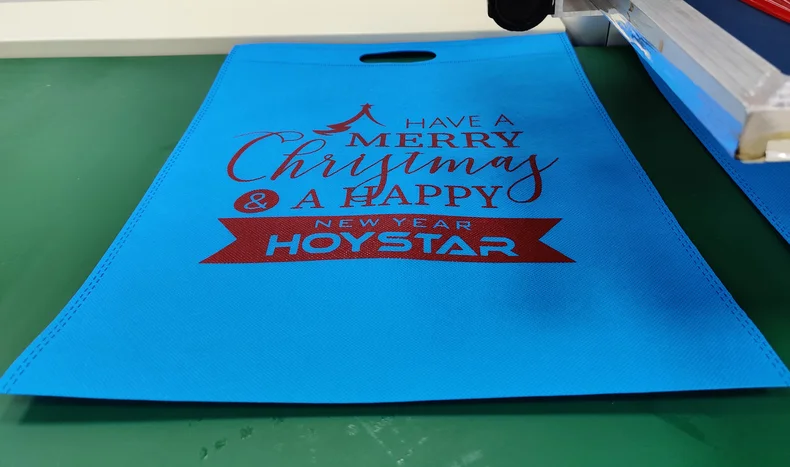

Printed Sample Show
Packing & Delivery
Package material | by wooden case |
Leading time | please communication with supplier directly |
Package dimension | 2100*1100*1650mm |
Shipping way | 350kg |
