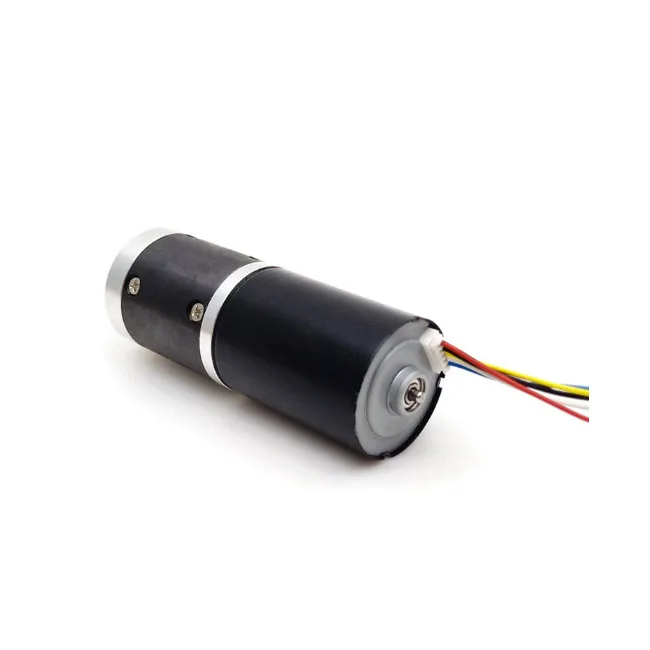

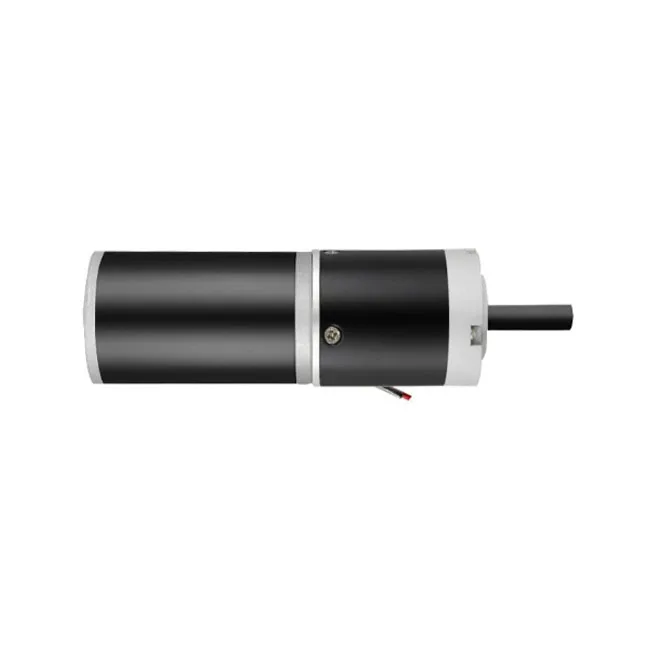

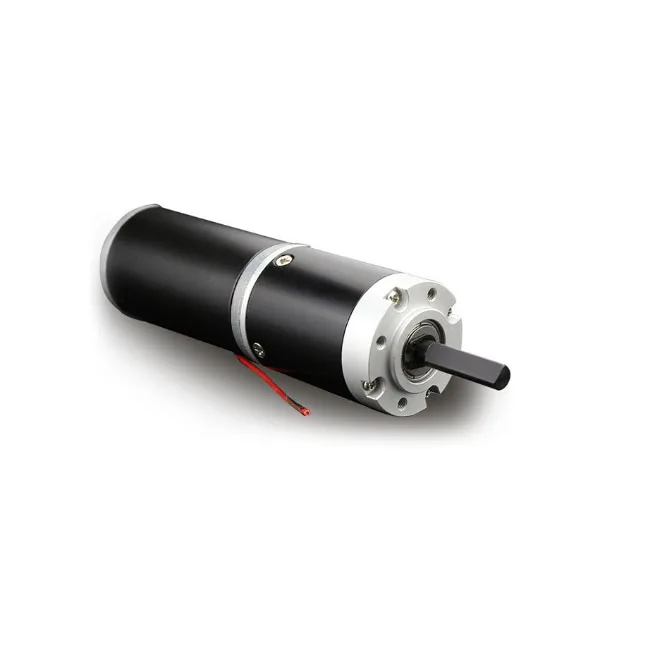

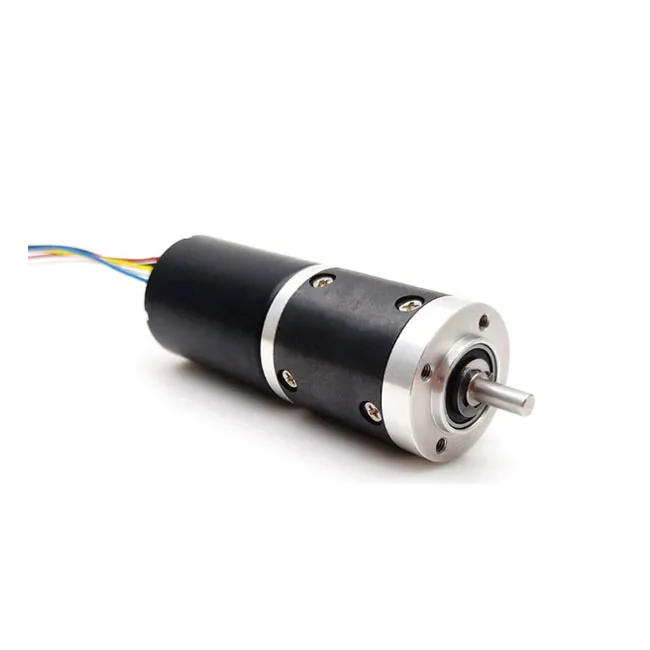

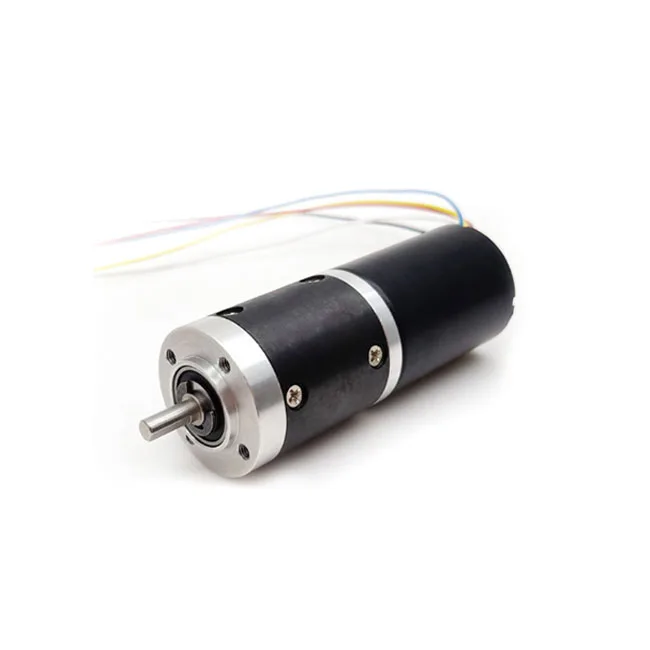

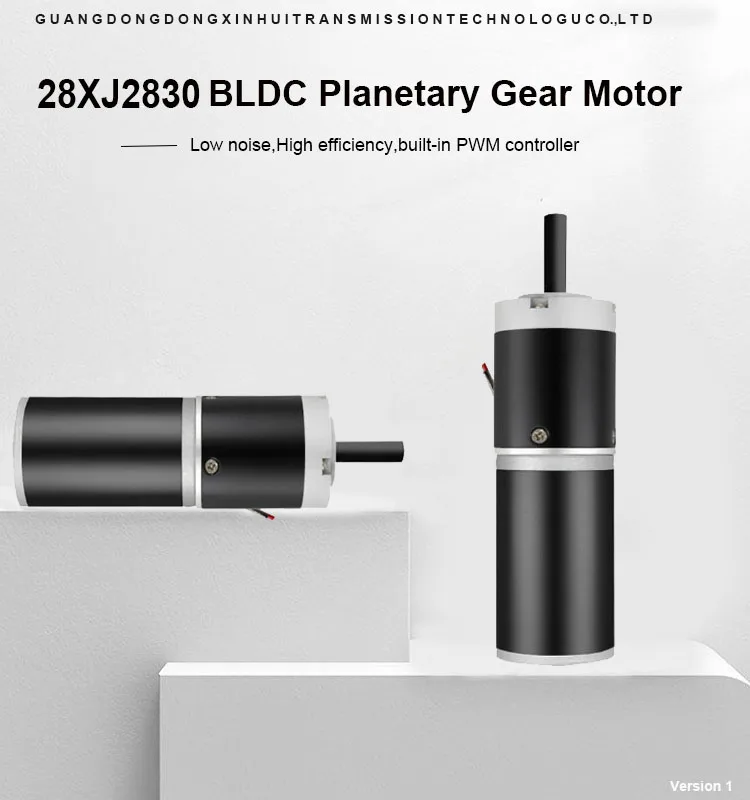

High torque planetary 28XJ2830 12v 24v brushless motor generator with encoder
- Category: >>>
- Supplier: Guangdong Xinhui Transmission Technology Co. Ltd.
Share on (1601208656399):
Product Overview
Description
description
Properties
1.Brushless models,long worklife.
2.High end materials to application.
3.High speed and high torque.
4.built-in PWM controller.
Gear MOTOR Technical Data
| Reduction ratio | 4 | 19 | 27 | 51 | 100 | 189 | 264 | 369 | 516 | 720 |
| 12v | 1200 | 260 | 180 | 96 | 50 | 25 | 18 | 13 | 9 | 7 |
| 1050 | 220 | 155 | 80 | 42 | 22 | 16 | 11 | 8 | 6 | |
| 0.3 | 1.3 | 1.8 | 3.0 | 6 | 10 | 13 | 18 | 20 | 20 | |
| 24v | 1200 | 260 | 180 | 96 | 50 | 25 | 18 | 13 | 9 | 7 |
| 1100 | 230 | 160 | 85 | 42 | 23 | 17 | 12 | 8 | 6 | |
| 0.3 | 1.3 | 1.8 | 3.0 | 6 | 10 | 13 | 18 | 20 | 20 |
MOTOR Technical Data
| Model | Rated Voltage | No load | Rated | Stall | |||||
| Speed | Current | Speed | Torque | Current | Power | Torque | Current | ||
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A | |
| XH2838-1250 | 12.0 | 5000 | 140 | 4200 | 100 | 550 | 4.3 | 750 | 3.2 |
| XH2838-2450 | 24.0 | 5000 | 90 | 4400 | 100 | 300 | 4.5 | 960 | 2.1 |

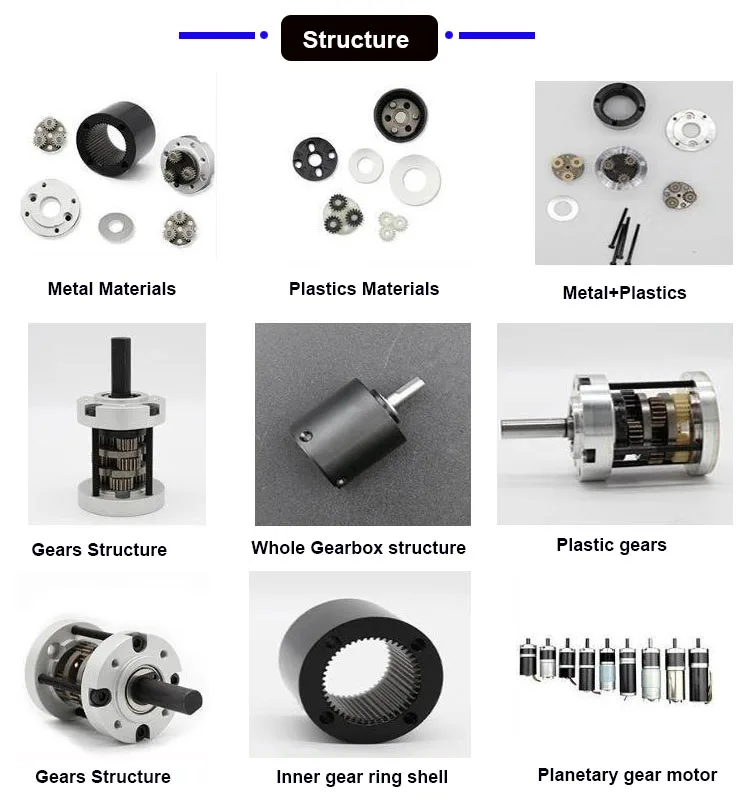

Customized types
Details

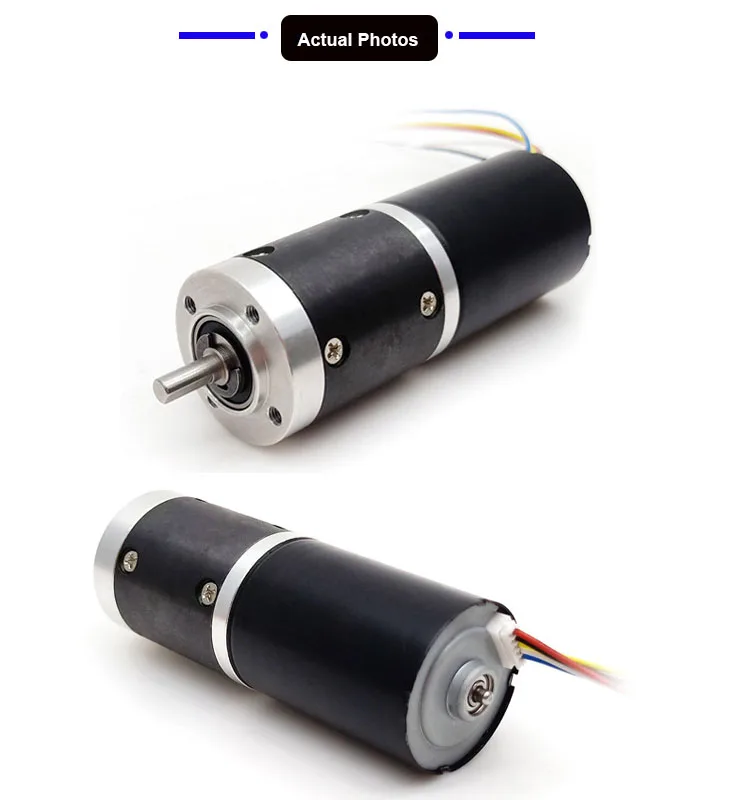

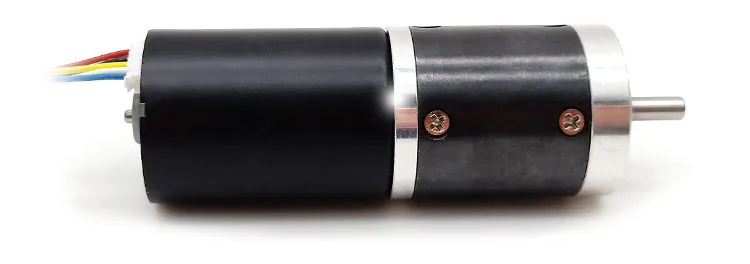

Actual Photos
Application
Application
it can be widely applied for mower,vacuum cleaner,balance car,drlling,electrical car....
Company Information

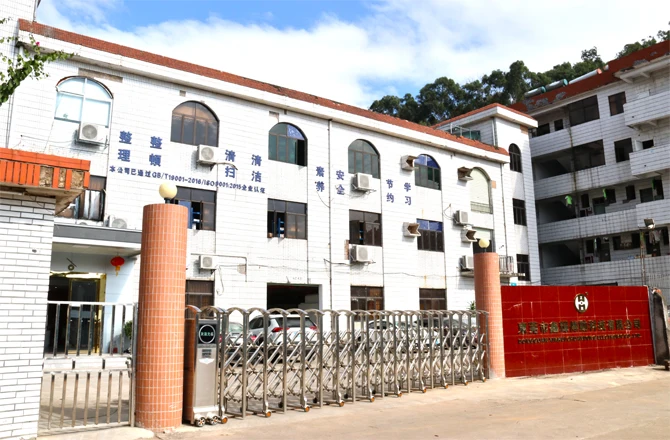

Company profile
Xinhui motor company founded in 2000year,focused R&D service,5QC,20 engineers,200workers,8 production lines,full production facilities,there are available catalog of products as like DC MOTOR,DC REDUCER MOTOR,DC WORM GEAR MOTOR,DC PLANETARY MOTOR,MINI PUMP,BRUSH MOTOR AND BRUSHLESS MOTOR,all items have stocks to samples.
Presently,our models have covered more than 80 countries as like Japan,UK,USA,AU,Korea....
achieved highly praise amony clients.
expecting our energy can radiate all over the world,realize to win-win each other.
Exhibition
Certificates
Approved by CE,ROHS,UL and ISO 9001 system.
Team Activities
Packaging&Shipping
Packaging
generally,50pcs one carton,the exactly depends on the customers requests.
Payment terms
Paypal,Western union,TT,moneygram,TT...
30% in advance,70% balance of payment before shipment.
Shipping
1)we have 20years experienced forwarder(DHL,FEDEX,UPS,TNT...) agency to shipment,so the most competitive price can be supplied if you're prefer.
2)of course,you can select what you appointed courier to shipment.
RFQ
RFQ
Q1:what's your MOQ?
A1:10pcs.
Q2:what's you lead time?
A2:generally,5-7days to samples order,7-10days to batches order.
Q3:what's the rpm?
A3:1000-20000rpm can be customized
Q4:Can be customized to D shaft?
A4:of course,you can,while you need supply the exactly size to the length of shaft.
Q5:What's your payment terms?
A5:Paypal,TT,and western union,of course,if you're worry about the money of security,it is better select the Alipay.
Q6:What's your lead time?
A6:Generally,5-7days to samples order,7-10days to batches order.
Q7:How to ensure my money in security?
A7:Pls rest assure,we have 20years exprienced to production,and achieved high praised among clients from abroad and at home,of course,you also can select alipay to payment.
