Product Overview
Description
Product Description

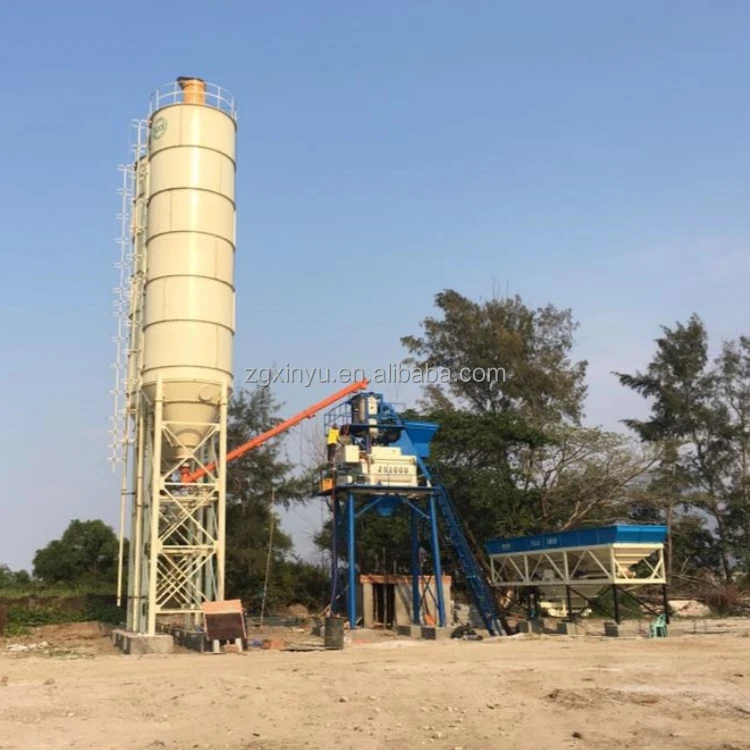

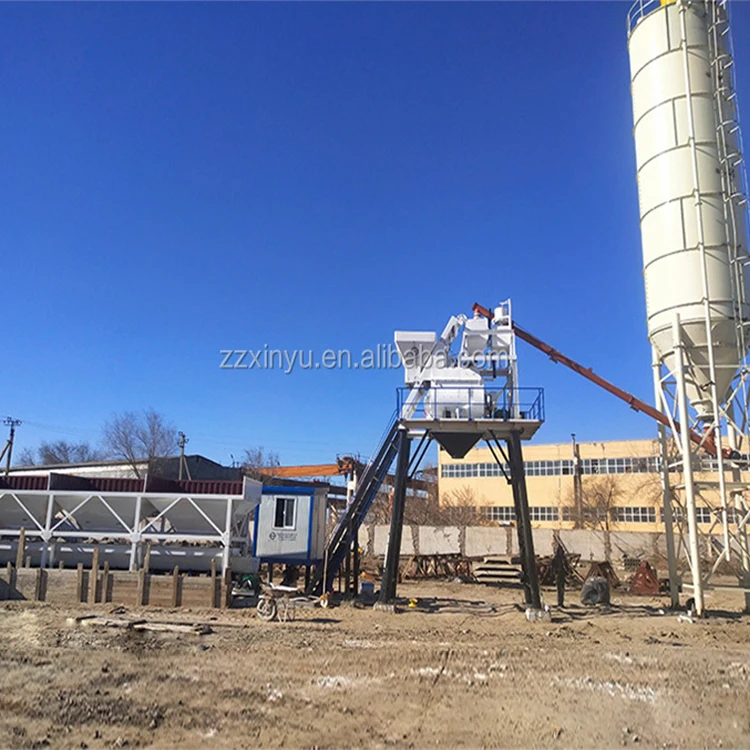

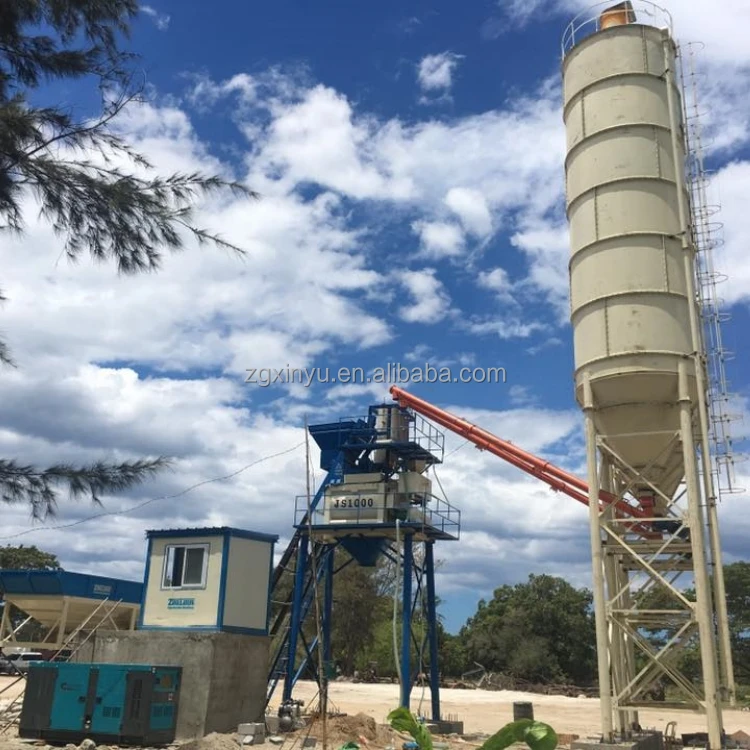

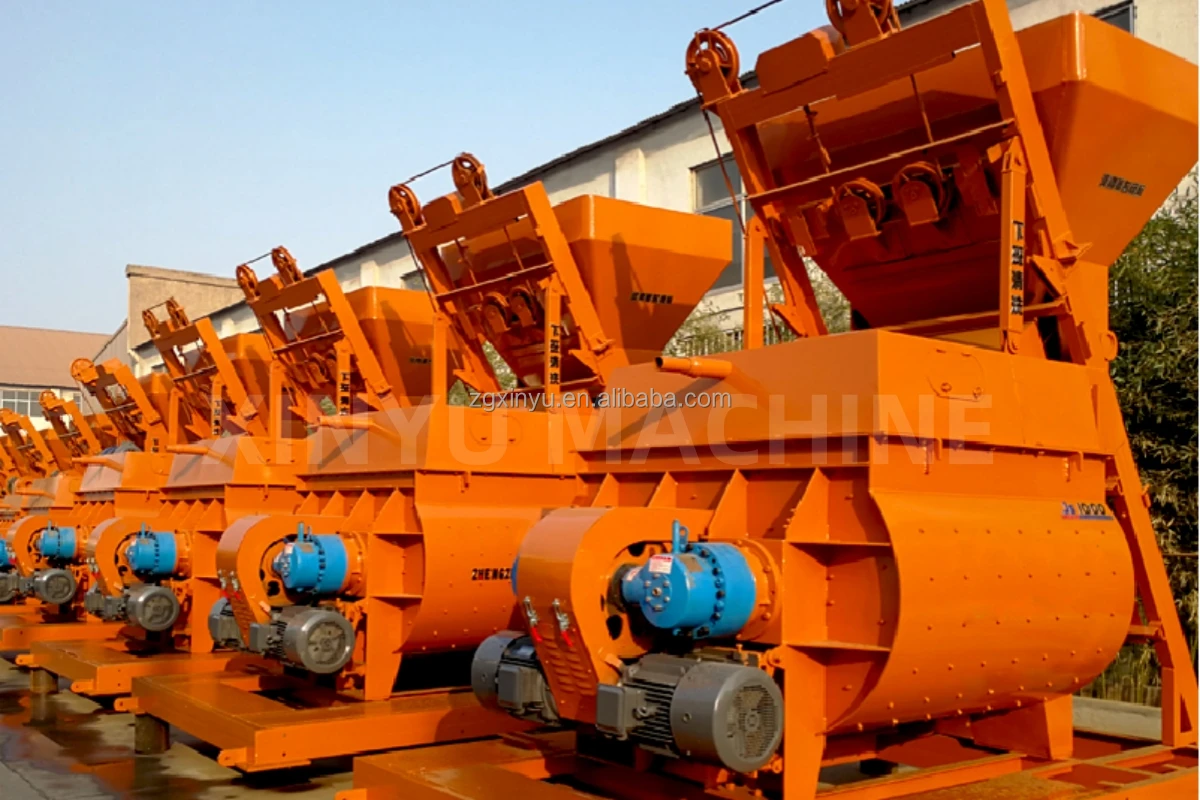

XINYU HZS series concrete batching plant with twin shaft forced mixing concrete mixer is very popular in all the countries and regions. It is stationary with two main types. One is skip hopper feeding and the other one is belt conveyor feeding.

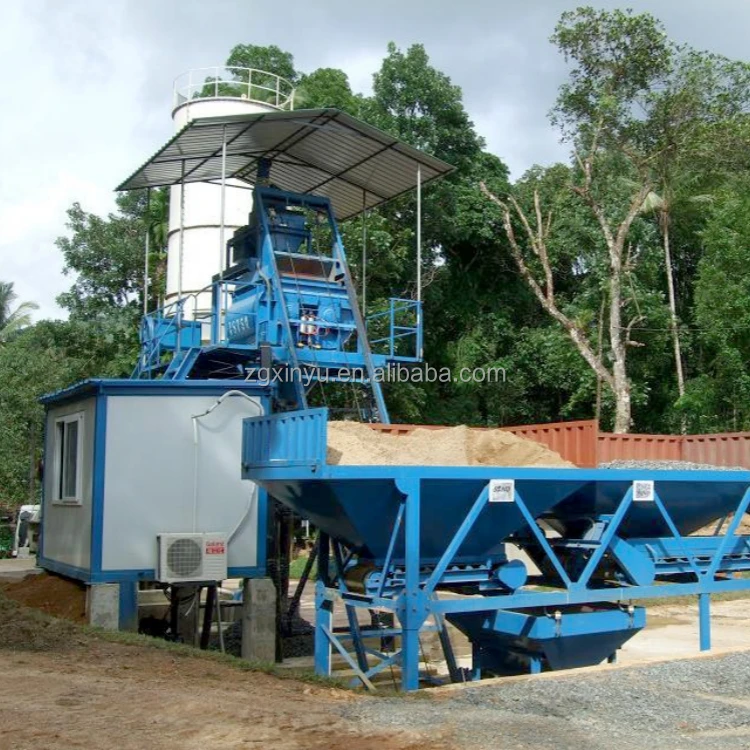

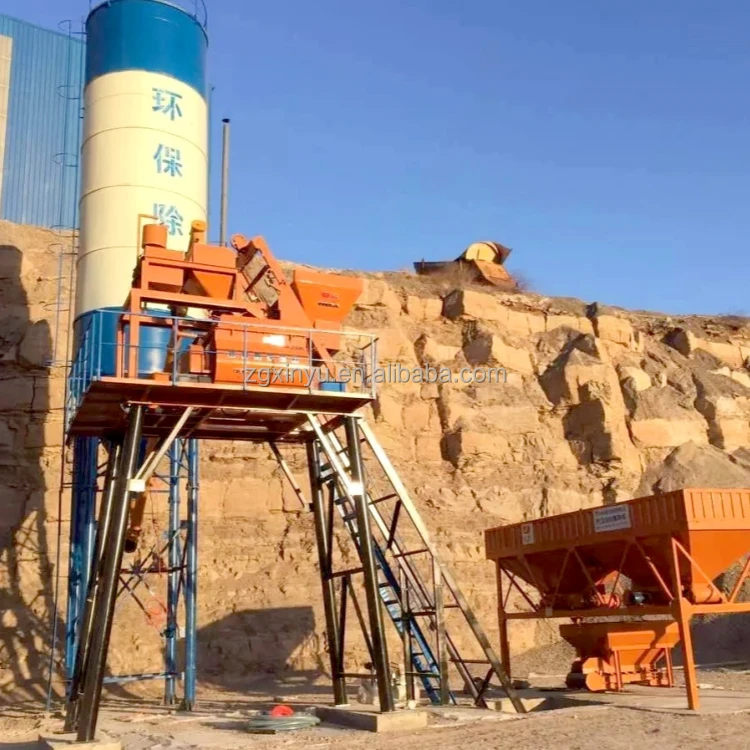

Skip hopper feeding type has the advantages of small area, easy to install and remove. Its price is cheaper and easy to maintain.

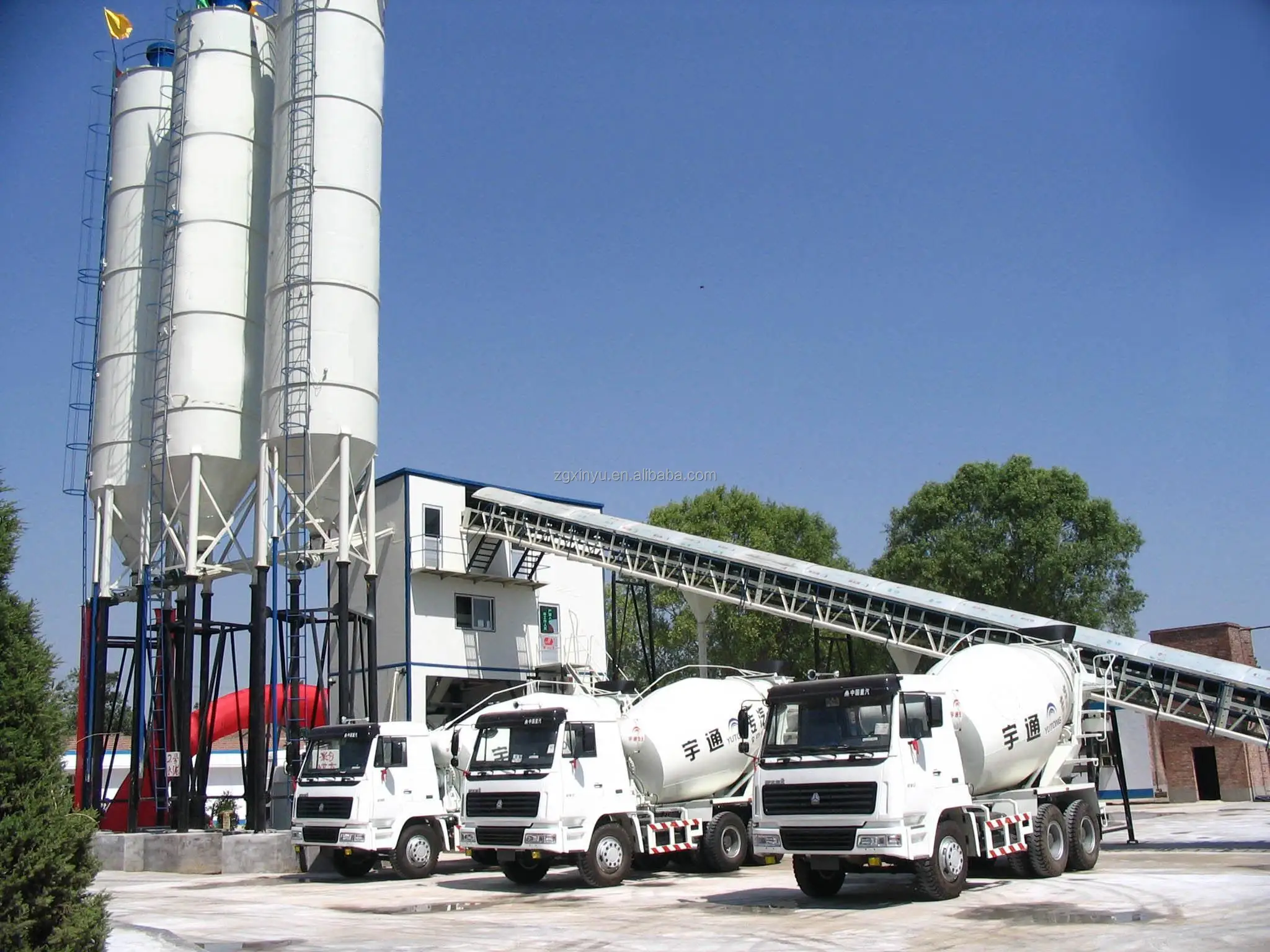

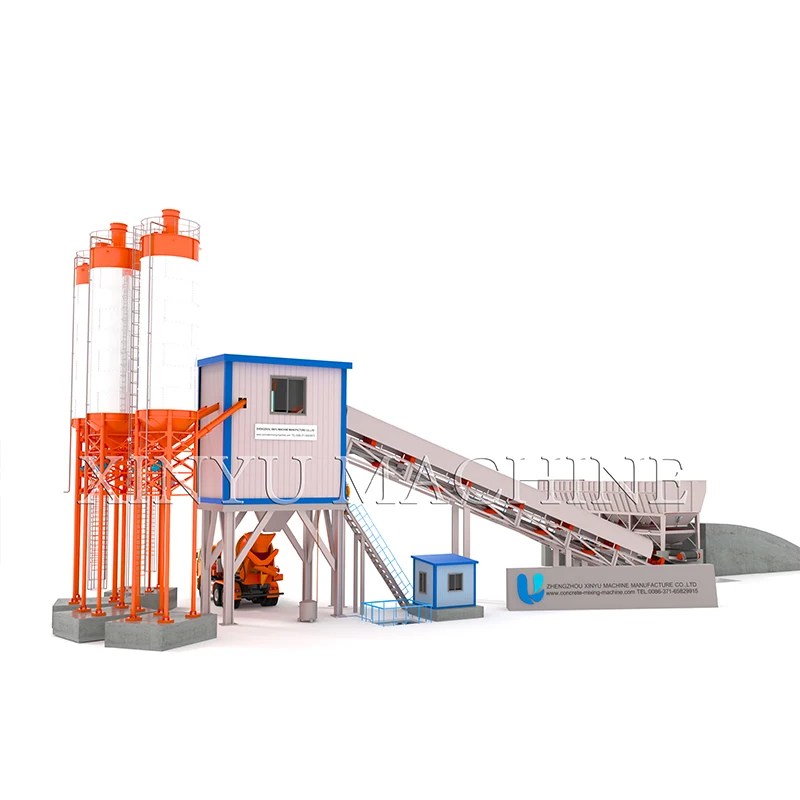

Belt conveyor feeding type covers a bigger area and has a very high efficiency of concrete mixing, which is the ideal machine for concrete selling, and big construction such as skyscraper, road and bridge.
Skip hopper feeding type has the advantages of small area, easy to install and remove. Its price is cheaper and easy to maintain.
Belt conveyor feeding type covers a bigger area and has a very high efficiency of concrete mixing, which is the ideal machine for concrete selling, and big construction such as skyscraper, road and bridge.
Product Details

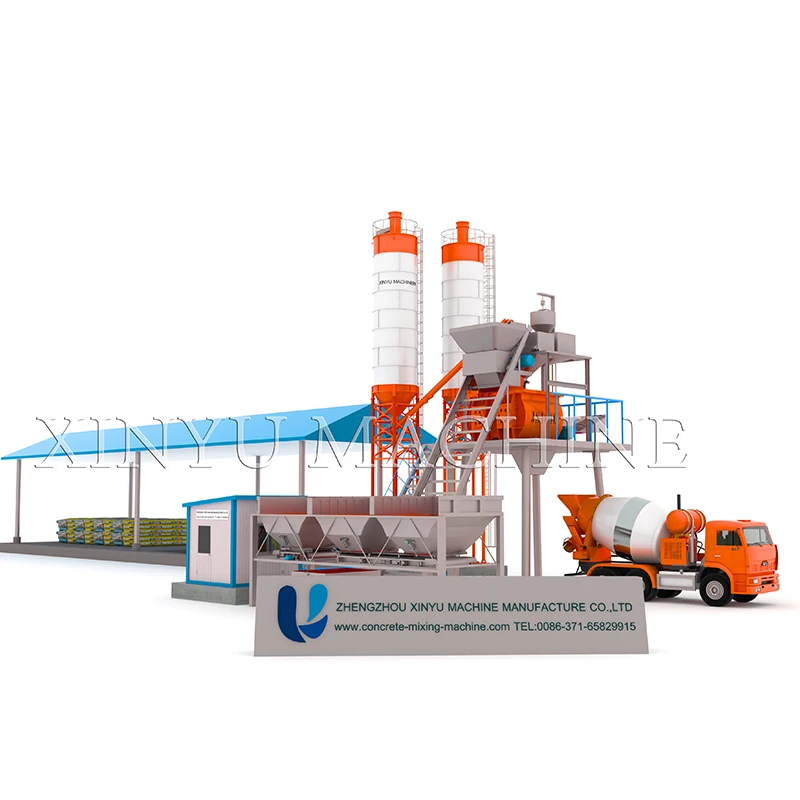

Concrete batching plant consists of batching system, mixer and electric control system, belt conveyor etc, which is professional equipment for ready mix concrete production, such as plasticity/dry concrete.XINYU concrete mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.
Project
Specification
Model | HZS25 | HZS35 | HZS50 | HZS75 | |||
Capacity (m3/h) | 25 | 35 | 50 | 75 | |||
Aggregate Size (mm) | 60/80 | 60/80 | 60/80 | 60/80 | |||
Mixing System | JS500 | JS750 | JS1000 | JS1500 | |||
Aggregate System | P800 | P1200 | P1600 | P2400 | |||
Aggregate batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 | |||
Charge volume | 800L | 1200L | 1600L | 2400L | |||
Discharge volume | 500L | 750L | 1000L | 1500L | |||
Aggregate bin quantity | 2 /3 /4 sorts | 3 / 4 sorts | 3 / 4 sorts | 3 /4 sorts | |||
Aggregate feeder | Bucket(Skip hopper) | ||||||
Discharging height | 1500-3800mm | ||||||
Control system | Auto computer | ||||||
Weighing system | water,cement,additive | ||||||
Model | HZS60 | HZS90 | HZS120 | HZS150 | |||
Capacity | 60m3/h | 90m3/h | 120m3/h | 180m3/h | |||
Mixing system | Twin shaft concrete mixer | ||||||
Aggregate feeder | Belt conveyor | ||||||
Discharging height | 3800mm | 3800mm | 3900mm | 4000mm | |||
After-sale service | Erection & commissioning, operator training | ||||||
Warranty | 12 months after erection | ||||||
Concrete mixer | JS1000 | JS1500 | JS2000 | JS3000 | |||
Discharging volume | 1000L | 1500L | 2000L | 3000L | |||
Charging volume | 1500L | 2250L | 3000L | 4500L | |||
Mixing circle | 72s | ||||||
Max. mixing size | 80/60mm | ||||||
Aggregate batching machine | PLD1600 | PLD2400 | PLD3200 | PLD4800 | |||
Storage bins quantity | 2 or 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts | |||
Aggregate scale hopper | 1600L | 2400L | 3200L | 4800L | |||
Weighing system | Water, Cement, Additive | ||||||
Weighing precision | ±1% | ||||||
Air system | Air compressor, etc | ||||||
Control system type | Computer auto-control module (PLC can be optional item) | ||||||

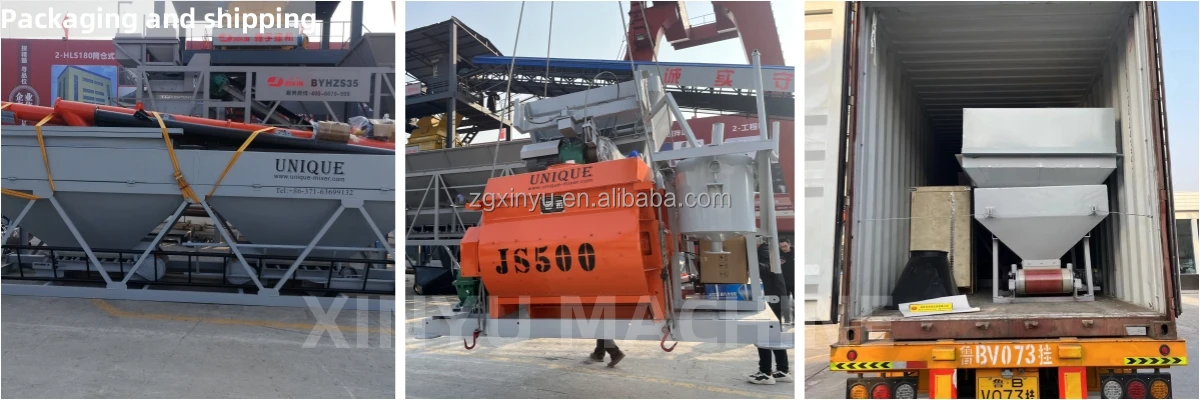

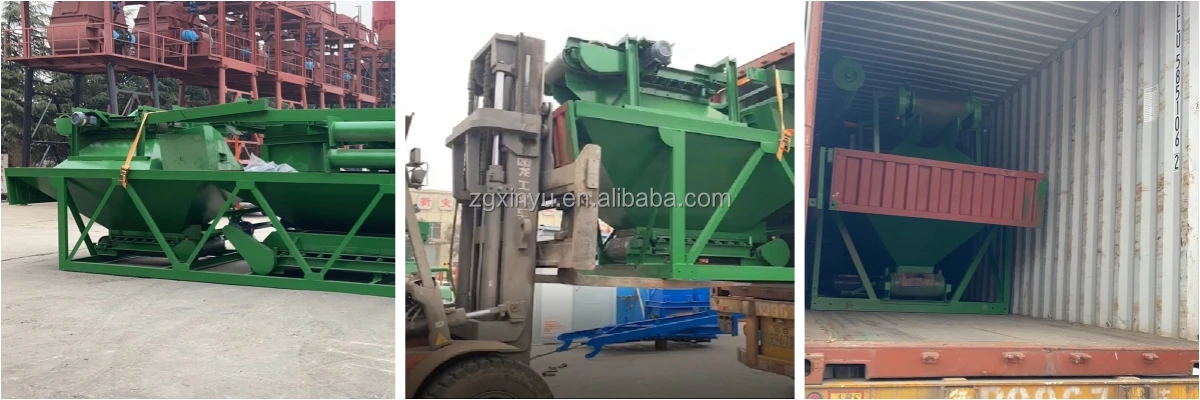

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhengzhou Xinyu Machine Manufacture Co., Ltd is the specialized corporation which produces large and medium construction equipment products. We specialize in the production of concrete mixing plant, asphalt mixing station, JS series twin shaft concrete mixer, concrete block making machine and tower crane.
With nearly 20 years of development, successfully completed the original accumulation of capital. Our company covers an area of 126,000 square meters, with 78 million yuan in fixed assets and the employees are more than 1000. We have abundant economic strength, strong technical force, huge sales network and perfect after-sales service. Use the technical strength, advanced technology, continuous product upgrades to make the quality of the products more perfect, more applicable. We not only have good sales in the domestic market, but also exported to Russia, Kazakhstan, Mongolia, and Viet Nam and other countries.
With nearly 20 years of development, successfully completed the original accumulation of capital. Our company covers an area of 126,000 square meters, with 78 million yuan in fixed assets and the employees are more than 1000. We have abundant economic strength, strong technical force, huge sales network and perfect after-sales service. Use the technical strength, advanced technology, continuous product upgrades to make the quality of the products more perfect, more applicable. We not only have good sales in the domestic market, but also exported to Russia, Kazakhstan, Mongolia, and Viet Nam and other countries.
FAQ
Q:Do you have set up an independent factory?
A:We have our own factory. Has the specialized cement machinery product equipment factory, also has the large-scale cement drain
pipe production factory.
Q:What can you do for us?
A:1. Before sales can be targeted to give some constructive Suggestions.
2.Make a specific plan for your needs.
3. After sales reference specific products, different products have different services. Refer to the specific product description.
Q: Can you do the basic design for us?
A: Yes, we have a professional team with rich experience in basic design of cement pipe making equipment with CAD software. You
just need to tell us your ideas and requirements, and we will provide you with the most perfect design.
Q:Can your engineers train our workers in our factories?
A:Yes, we have a very large engineering installation team that can train and instruct your workers to operate the installation
equipment.
Q:If we provide the parameter requirements, can we make it to order?
A:We provide customized services as long as you provide the appropriate drawings and product requirements.
Q:How long is your lead time?
A:Our delivery time varies according to the quantity of the order, usually around 15 days.
A:We have our own factory. Has the specialized cement machinery product equipment factory, also has the large-scale cement drain
pipe production factory.
Q:What can you do for us?
A:1. Before sales can be targeted to give some constructive Suggestions.
2.Make a specific plan for your needs.
3. After sales reference specific products, different products have different services. Refer to the specific product description.
Q: Can you do the basic design for us?
A: Yes, we have a professional team with rich experience in basic design of cement pipe making equipment with CAD software. You
just need to tell us your ideas and requirements, and we will provide you with the most perfect design.
Q:Can your engineers train our workers in our factories?
A:Yes, we have a very large engineering installation team that can train and instruct your workers to operate the installation
equipment.
Q:If we provide the parameter requirements, can we make it to order?
A:We provide customized services as long as you provide the appropriate drawings and product requirements.
Q:How long is your lead time?
A:Our delivery time varies according to the quantity of the order, usually around 15 days.
