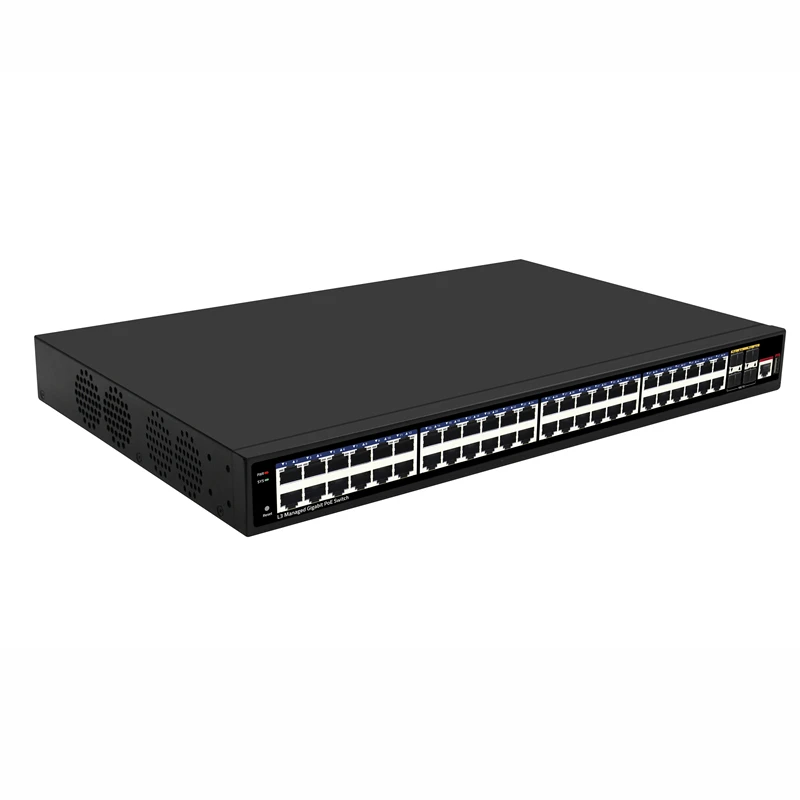

48 ports managed PoE switch with 4*10g SFP layer 3 managed 10G uplink with routing
48 ports managed PoE switch with 4*10g SFP+ layer 3 managed 10G uplink with routing
48 ports managed PoE switch with 4*10g SFP+ layer 3 managed 10G uplink with routing
48 ports managed PoE switch with 4*10g SFP+ layer 3 managed 10G uplink with routing
48 ports managed PoE switch with 4*10g SFP+ layer 3 managed 10G uplink with routing
48 ports managed PoE switch with 4*10g SFP+ layer 3 managed 10G uplink with routing
48 ports managed PoE switch with 4*10g SFP+ layer 3 managed 10G uplink with routing

48 ports managed PoE switch with 4*10g SFP layer 3 managed 10G uplink with routing

Share on (1601208726080):


Price:$280.00 - $320.00

Quantity:


Product Overview

Description



Product Description




Factory price 10g uplink network switch 48 port poe network switch with management

52-port 10 Gigabit uplink 48-port Gigabit Layer 3 managed Ethernet PoE switch. Support 48 * 10/100/1000 adaptive electrical ports, 4 * 10 Gb SFP+ ports, 1 console port, and 1 USB serial port. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection; The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. Advanced security functions and advanced quality of service (QoS), can be used as core layer, distribution layer or access layer switch with high density port switch stacking and easy management, are ideal for various commercial network applications.。


Feature
* Support IEEE 802.1d、IEEE 802.1w、IEEE 802.1s、IEEE 802.1p、IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3z、IEEE 802.3ab、IEEE802.3ae standards;
* L3 management, support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2；
* Support STP/RSTP/MSTP(ERPS), Support loop detection and self-healing, support remote loopback monitoring and control（3ah OAM）;Support IPV4/IPV6
* Genius PoE, PoEpower supply priority, PoE watchdog, PoE port power supply and power configuration, PoE time management
* Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;
* Support IP address+ MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;
* Lightning Protection：Common mode ≥6 KV, static : contact ≥6KV, air ≥8KV


System Infomation




Specification


I/O Interface
Power Input
AC100-240V/50-60Hz
Ethernet
48* 10/100/1000Mbps POE Ports (Ports 1-4 support BT Power Supply)
4* 10G SFP+ Port
1* RJ45 Console Port
1* USB serial Port
Performance
Bandwidth
176Gbps
Packet Forwarding Rate
131Mpps
DDR SDRAM
512MByte
Flash Memory
32MByte
Buffer Memory
16Mbit
MAC Address
32K
Jumbo Frame
10Kbytes
VLANs
VLAN range 1-4094, with a maximum active VLAN of 4K
Standard
Network Protocol
IEEE802.3 Ethernet MAC Protocol
IEEE802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae 10G Ethernet
IEEE802.3x Flow Control
IEEE 802.3az Energy-efficient Ethernet
IEEE 802.3ad Standard method for performing link aggregation
IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1D Spanning Tree Protocol(STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1Q （VLAN Bridge Operation）
IEEE 802.1p （VLAN Label）
IEEE 802.1X Client/Server Access Control and Authentication Protocol
POE Standard
IEEE802.3af (15.4W).
IEEE802.3at (30W),
IEEE802.3bt (90W)
Industry Standard
EMS: EN61000-4-2 (ESD),
EN61000-4-5 (Surge)
Network Medium
10Base-T : Cat3, 4, 5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)
Certification
Safety Certificate
CE, FCC, RoHS
Environment Standard
Working Environment
Working Temperature：0~40°C
Storage Temperature：-40~70°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~95%，non-condensing
Function Indicator
Indicator
PWR (Power Indicator), SYS (system Indicator), Link (Link Indicator), ACT (ACT Indicator)
PWR
On: Powered On
Off: Powered Off
SYS
On: System On
Flashing: System Off or Failed
Link/ACT
On: Link Connecting
Flashing: Data Transmitting
Off: Link Off
Physical Specification
Structure Size
Product Dimensions: 440*360*44.5mm
Package Dimensions: 580*440*120mm
Product N.W: 5.78KG
Product G.W: 7.06KG
Packing Info
Carton Dimensions: 600*460*278mm
Packing Quantity: 2Pieces
Packing weight:15.1 KG
Power Voltage
Working Voltage: AC100-240V 50/60Hz
Power Supply: 52V 15.3A / 13V 7.15A
Power Consumption
POE Total Power：maximum 780W
Mainboard power consumption：57.2W
Package List
Switch: 1 set; instruction manual: 1 set; certificate of quality: 1 set; power cord: 1 set; serial cable: 1 set; mounting ear: 1
pair


L3 Function
IPv4
IPv4 VLAN Interface
IPv4 Static Routes
ARP
IPv6
IPv6 VLAN Interface
IPv6 Static Routes
IPv6 ND
RIP
V1/V2
OSPF
Router-ID
Authentication
v2
L2 Function
Port
Port Switch
Port Description
Port Speed
Port Duplex
Port Flow Control
Jumbo, Up to 10K
Support 10G/2.5G (2023.3.2)
Fiber Module(DDM)
Link Aggregation
Supports load balance policy;
Base on MAC and IP-MAC
Static and Dynamic Group
Supports LACP
Up to 8 groups
Storm Control
Boardcast
Unknown Multicast
Unknown Unicast
Port Mirroring
One to one monitor
Many to one monitor
Ingress/Egress/Both
Up to 4 session groups
Port Security
MAC Address Constraints
Port Security MAC Address
Protect/Restrict/Shutdown
Port Isolation
support
Port Rate-limit
support
Loopback Detection
support
VLAN
Access/Trunk/Hybrid
VLAN Tunnel （Q-in-Q Tunnel）
Congurable VID from 1 - 4094;
Max. 4K static VLAN groups
Voice VLAN
MAC VLAN
Surveillance VLAN
协议VLAN / Protocol VLAN
GVRP
MAC Address
Dynamic Address
Static Address
Filtering Address
Spnning Tree Protocol
STP/RSTP/MSTP
BPDU Filter
BPDU Guard
Edge Port
ERPS
Only SFP port
ALL Port
LLDP
LLDP
LLDP MED
Multicast
IGMP Snnoping
IGMP V1/V2/V3
Router Port
Static IGMP group address
IGMP groups filtering
Querier
MLD Snooping
MVR
QoS
Traffic classification based, Strict priority and WRR
Port Priority
802.1P Priority
IP TOS Priority
IP DSCP Priority
Supports up to 8 queues per port
Priority Remarking
PoE
PoE Configuration
PoE Temperature
PoE Type/Level/Power/Voltage/Current
PoE Switch
PoE Watchdog
PoE power AF/AT adaptation
IEEE 802.3bt，compatible with IEEE 802.3af/802.3at PoE
PoE Schedule
support
PoE Port Timer Reboot
support
Services
DHCP
DHCP Server
IP Pool
Static Binding
DHCP Relay
Option 43
Access Protocol
HTTP
HTTPS
Telnet
SSHv2
Manager ACL
Session Timeout
Password Retry Count
Silent Time
Security
AAA
RADIUS
TACACS+
802.1X
Base on port/MAC/local/WEB
DHCP Snooping
Global/VLAN
Option 82
Circuit ID
IP Source Guard
support
Dynamic ARP Inspection
support
DoS
support
ACL
MAC ACL
IPv4 ACL
IPv6 ACL
Diagnostics
Syslog
Logging Message
Remote Server
Ping
support
Traceroute
support
Copper Test
support
UDLD
support
Managemnet
Manager Access
Console
HTTP/HTTPS
Telnet
SSH
SNMP
Manager IP
Static Address
DHCP Client
Supports IPv4 and IPv6 address
Manager VLAN
DNS
Time Synchronization
SNTP
Manual Time
SNMP
V1/V2C/V3
Community
V3 User
Group
Trap Host
SNMP MIB
RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2863 Interface MIB
LLDP
Private MIB
RMON
Statistics
History
Event
Alarm
User
support
Firmware
Double Image; Swap between Active and Alternate firmware image.
Firmware Upgarde
Configuration
Upload and download
Upload and download via USB interface
Save
support
Restart
support
Factory Defaults
support
Standards Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt PoE++ Power over Ethernet Plus Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2

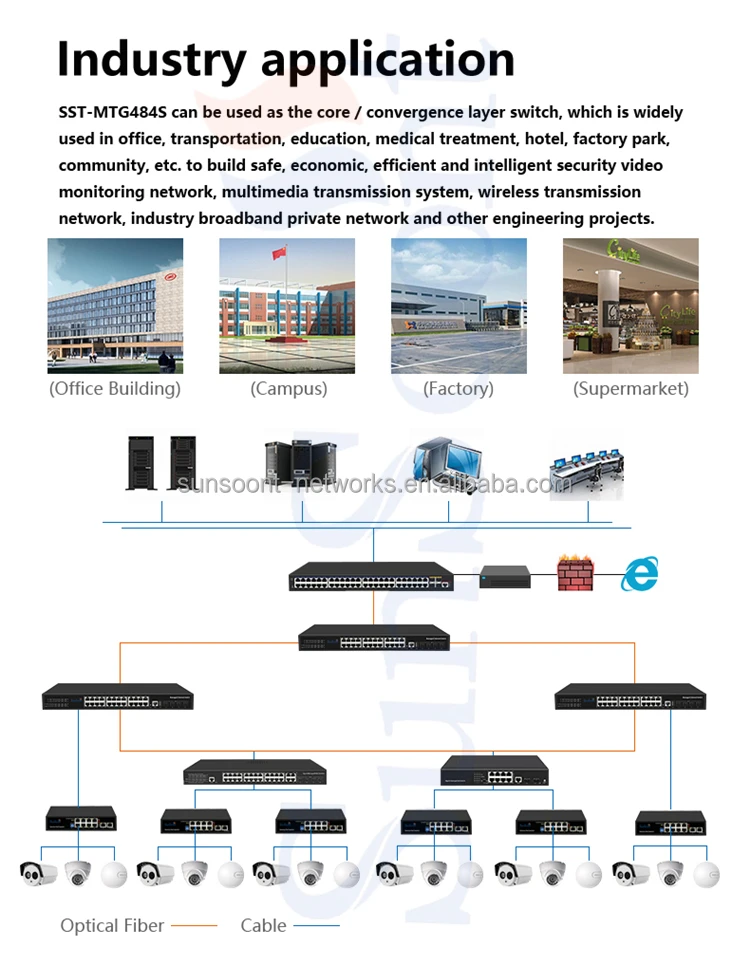

Product Application




Packing & Delivery




Company Profile






Shenzhen Sunsoont Technology Co, . Ltd. was established in Shenzhen, China, is a professional optical fiber network communications equipment production, R&D and sales in one of the manufacturers, our main products include POE switches, industrial Ethernet switches, fiber switches, fiber media converter, wireless network devices and other communication products.

As a national high-tech enterprise, we have a number of scientific research patents, and strictly abide by ISO9001 and CE, ROHS
international standards in the production process. The company has 4, 000 square meters of industrial plant and nearly technical
team, 4 production lines, a complete set of testing aging equipment, perfect production process and strict inspection process, and
a sufficient inventory, to ensure the product reliability and rapid market response.

The company not only owns its own brand "SUNSOONT", but also a large number of professional OEM/ODM production bases in the industry, providing all-round design and manufacturing solutions for customers at different levels of domestic and international
demand, and providing cost-effective products and services!
