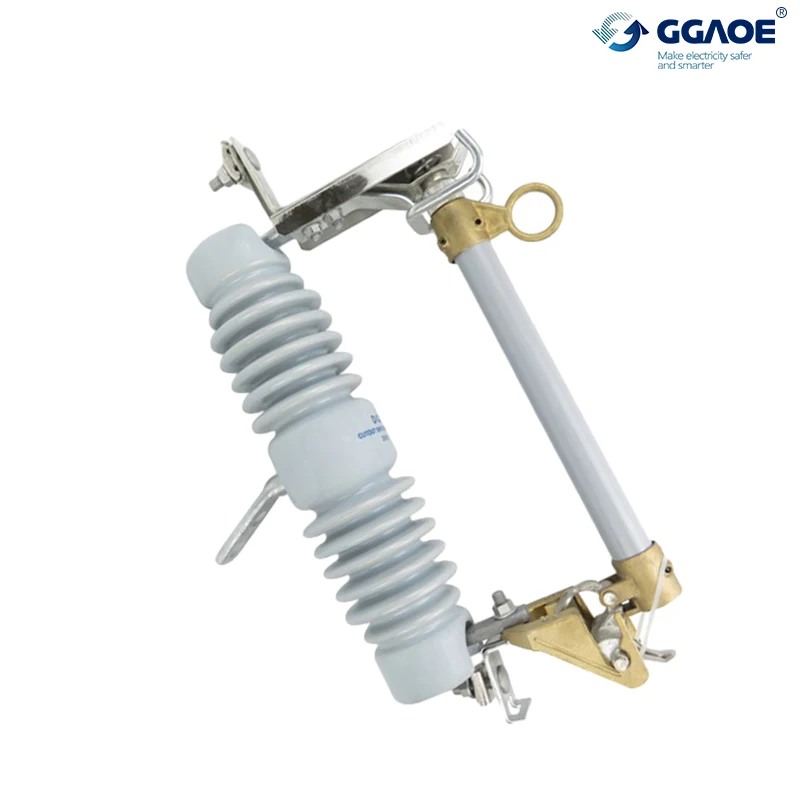

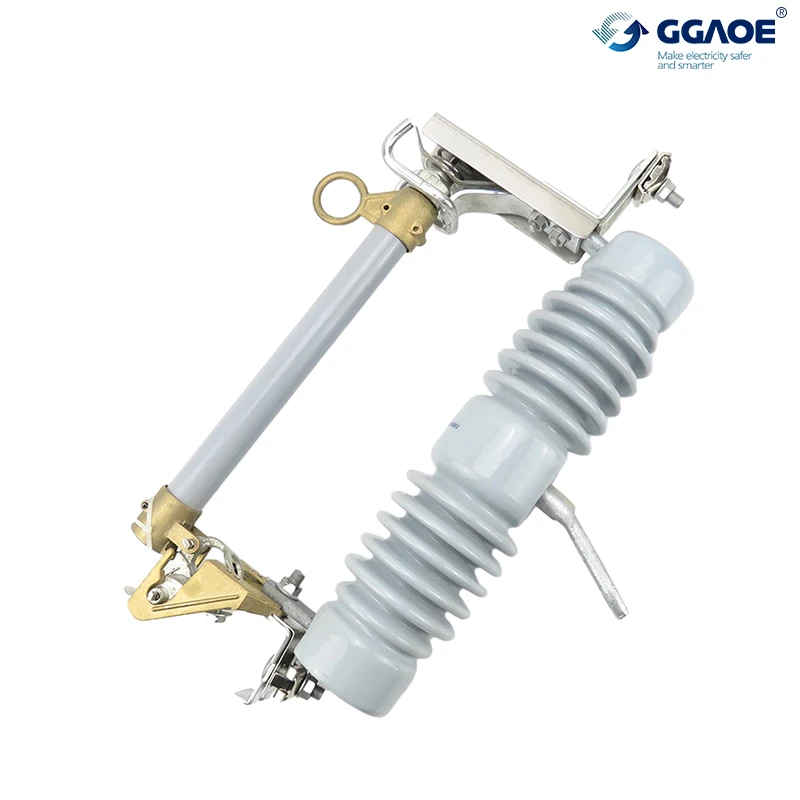

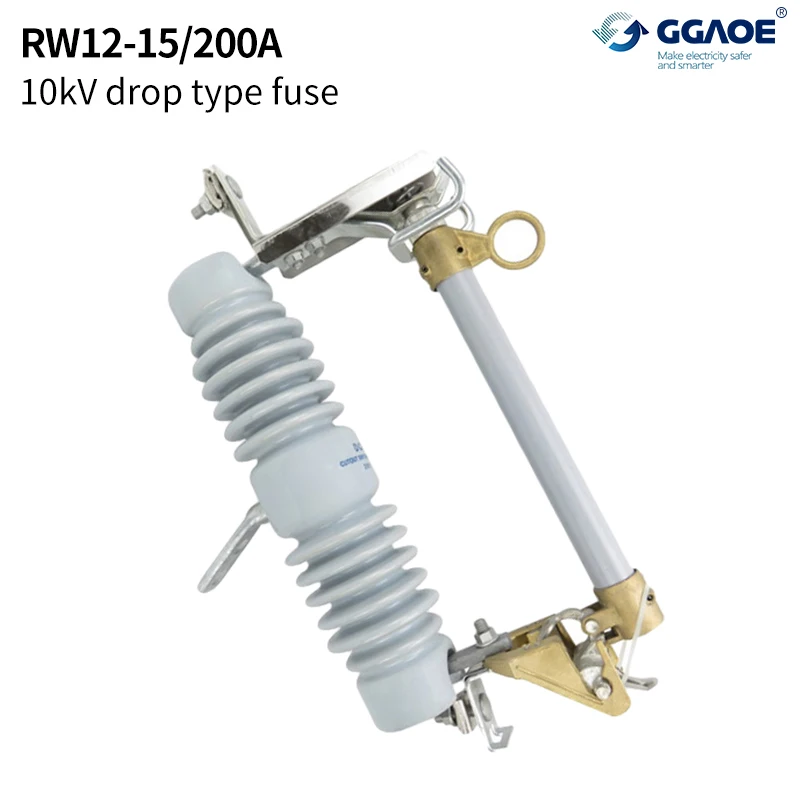

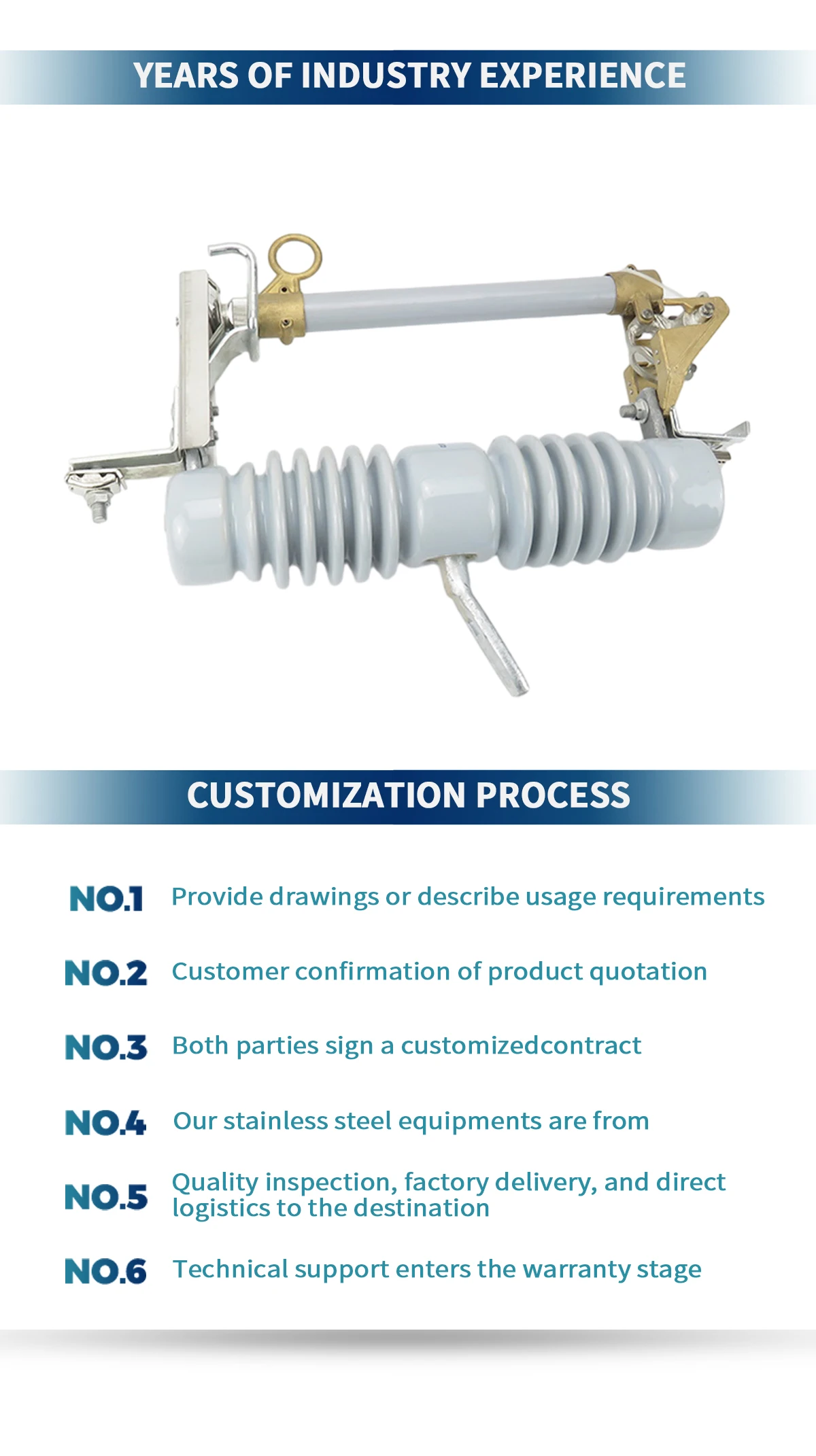

RW12 Series 15 27KV Outdoor High Voltage Distribution Protection Device Drop out Fuse
- Category: >>>
- Supplier: Zhejiang Jugao Electric Power Equipment Co. Ltd.
Share on (1601208736014):
Product Overview
Description
Products Description
overview

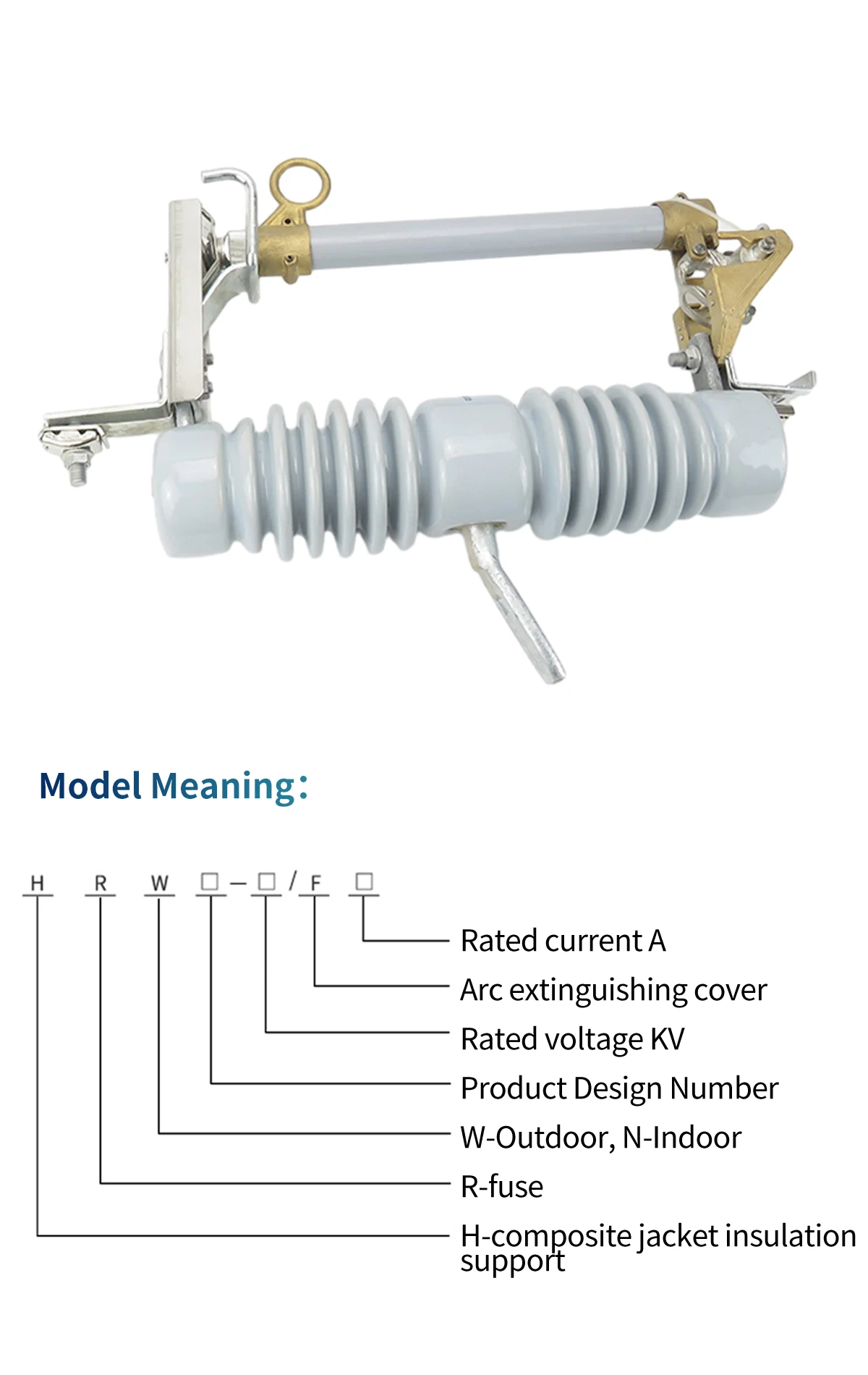

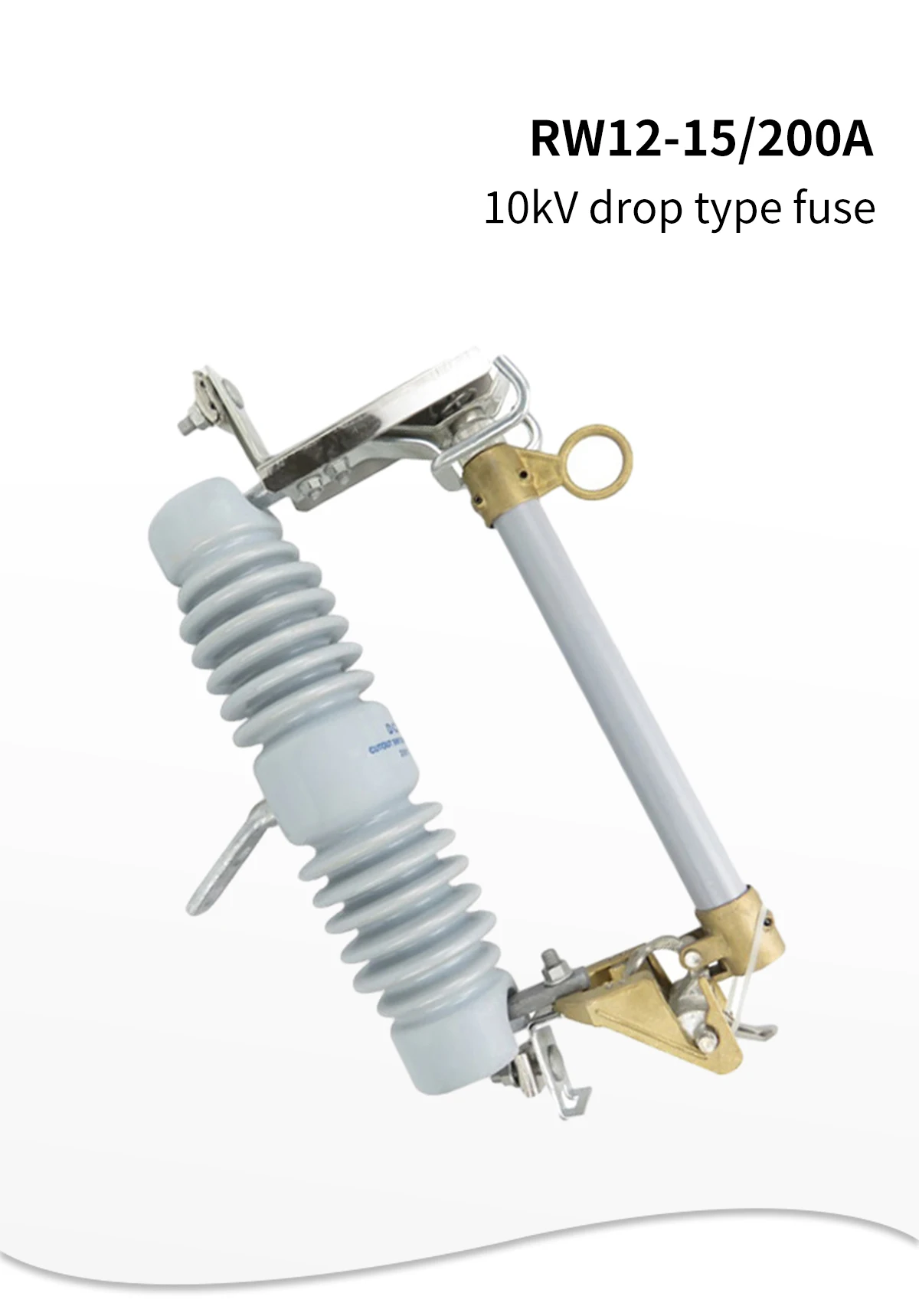

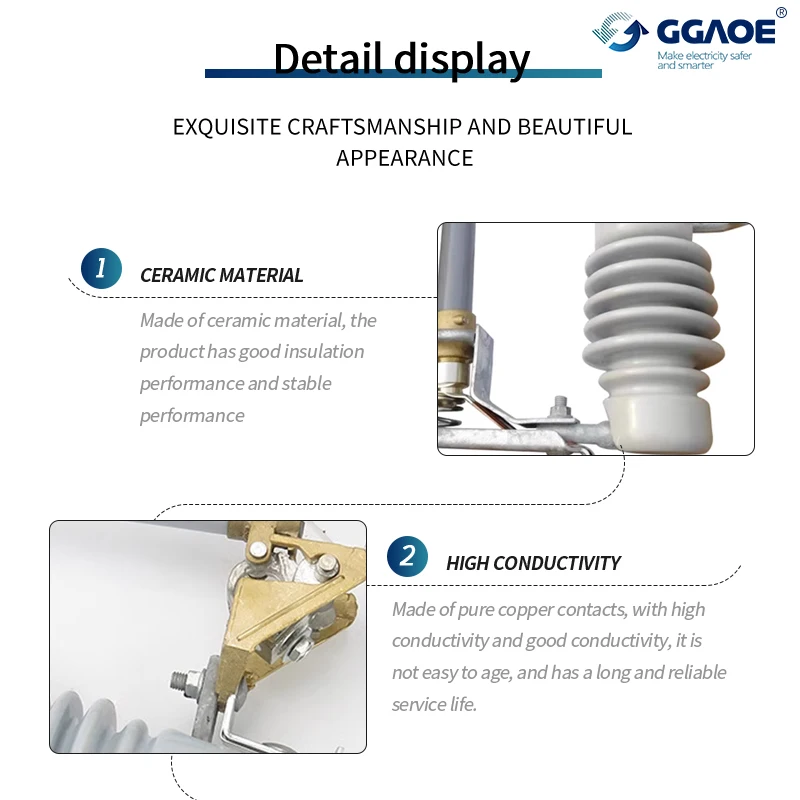

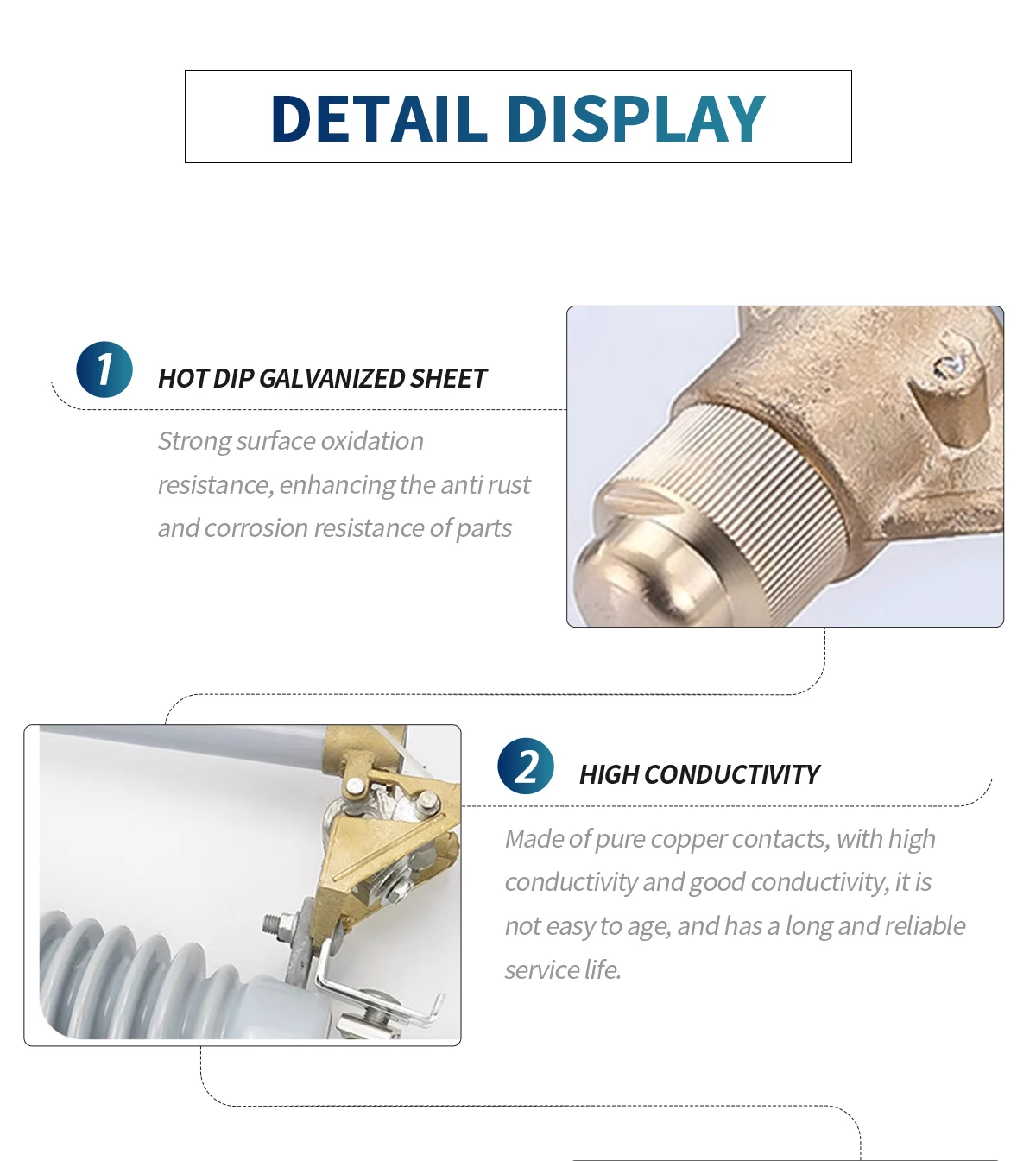

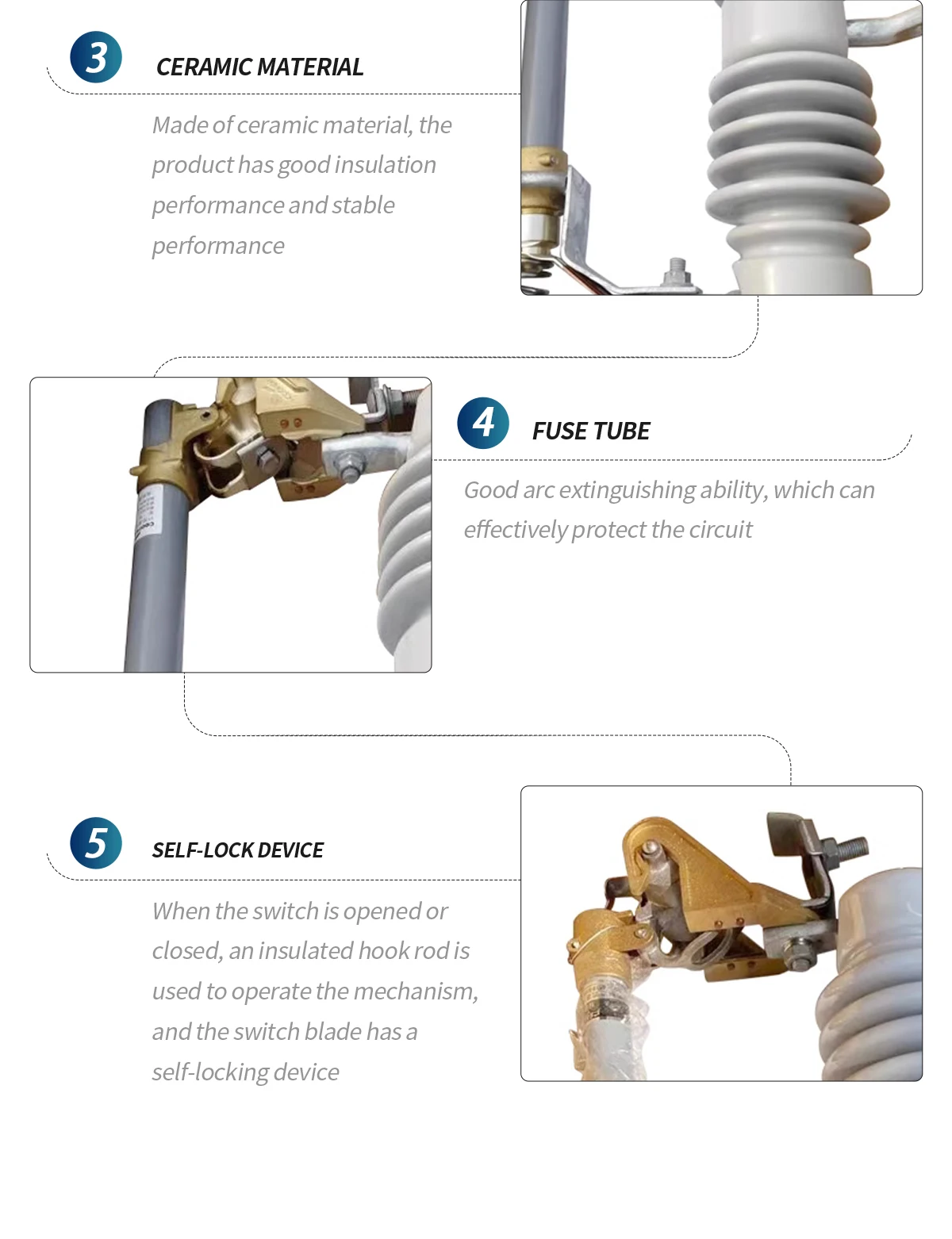

RW12-15 (F) outdoor high voltage AC drop fuse (hereinafter referred to as "fuse") is applicable to the outdoor overhead distribution systems with a rated frequency of 50Hz and rated voltage of 10kV. It is used as a protective element of circuit or electrical equipment in case of overload or short circuit fault of a power system. When traveling normally, the fuse is connected in series in the power line, the fuse is in a tensioned state, and the movable joint is locked. When the line fails, the fault current causes the fuse to blow, the movable joint is released, the fuse tube is quickly dropped, and the circuit is cut off, which plays a role in safety protection for the maintenance of the line and equipment. The load type fuse is added with elastic contact and arc extinguishing cover on the basis of the ordinary type, which is used to open and close the load current in the power system.
The fuse shall comply with technical standards such as GB / T 15166.3 - 2008 high voltage AC fuses - Part 3: injection fuses, DL /T 640 - 1997 outdoor AC high voltage drop tested fuses and fuse links ordering technical conditions.
The fuse shall comply with technical standards such as GB / T 15166.3 - 2008 high voltage AC fuses - Part 3: injection fuses, DL /T 640 - 1997 outdoor AC high voltage drop tested fuses and fuse links ordering technical conditions.
Technical Parameters | ||||||||||
No. | Item | Unit | Parameters | |||||||
1 | Rated Frequency | Hz | 50 | |||||||
2 | Rated Voltage | kV | 12 | |||||||
3 | Rated Current for Fuse of the same family | A | ≤100 | ≤200 | ||||||
4 | Rated Breaking Current | kA | 12.5 | 16 | ||||||
5 | Rated Short-Time Power Frequency Withstand Voltage | To Earth (Dry) | kV/min | Jan-42 | ||||||
Fracture (Dry) | Jan-49 | |||||||||
To Earth (Wet) | 1月30日 | |||||||||
Fracture (Wet) | Jan-36 | |||||||||
6 | Lightning Impulse Withstand Voltage | To Earth | kV | 75 | ||||||
Fracture | 85 | |||||||||
7 | Creepage Distance | mm | Not less than 300 (d-level) | |||||||
8 | Mechanical Life | Times | 500 | |||||||
Note: If the altitude is over 1000m, the rated insulation level should be modified as appropriate. | ||||||||||
Ordering Instructions:
The following technical information should be provided when placing an order: Main wiring scheme number, purpose and single line system diagram, rated voltage and rated current rated short-circuit breaking current/distribution room layout plan and arrangement and configuration diagram of switchgear;
Requirements for control measurement and protection functions of switchgear, as well as requirements and schematic diagrams for other interlocking and automatic devices;
The models specifications and quantities of the main electrical components inside the switchgear;
When the switchgear is used in special environmental conditions; detailed instructions should be provided when placing an order;
Requirements for control measurement and protection functions of switchgear, as well as requirements and schematic diagrams for other interlocking and automatic devices;
The models specifications and quantities of the main electrical components inside the switchgear;
When the switchgear is used in special environmental conditions; detailed instructions should be provided when placing an order;
