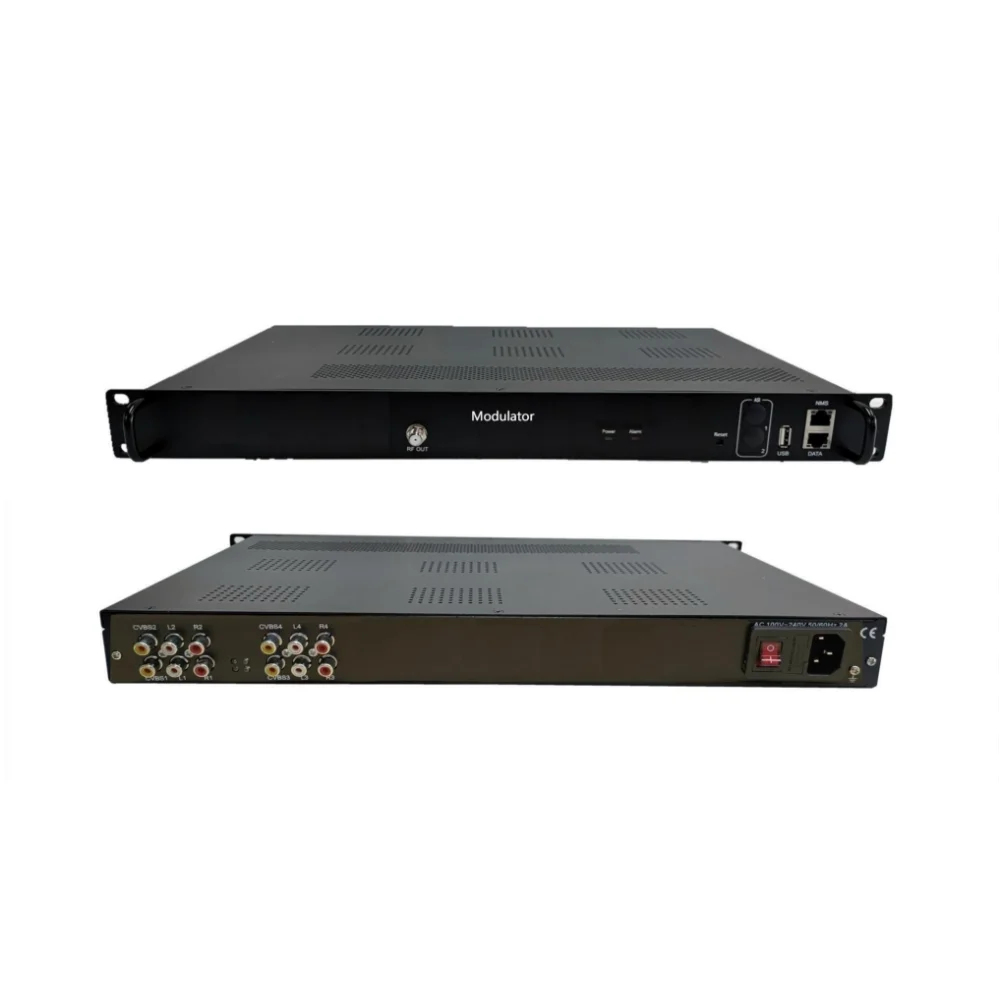

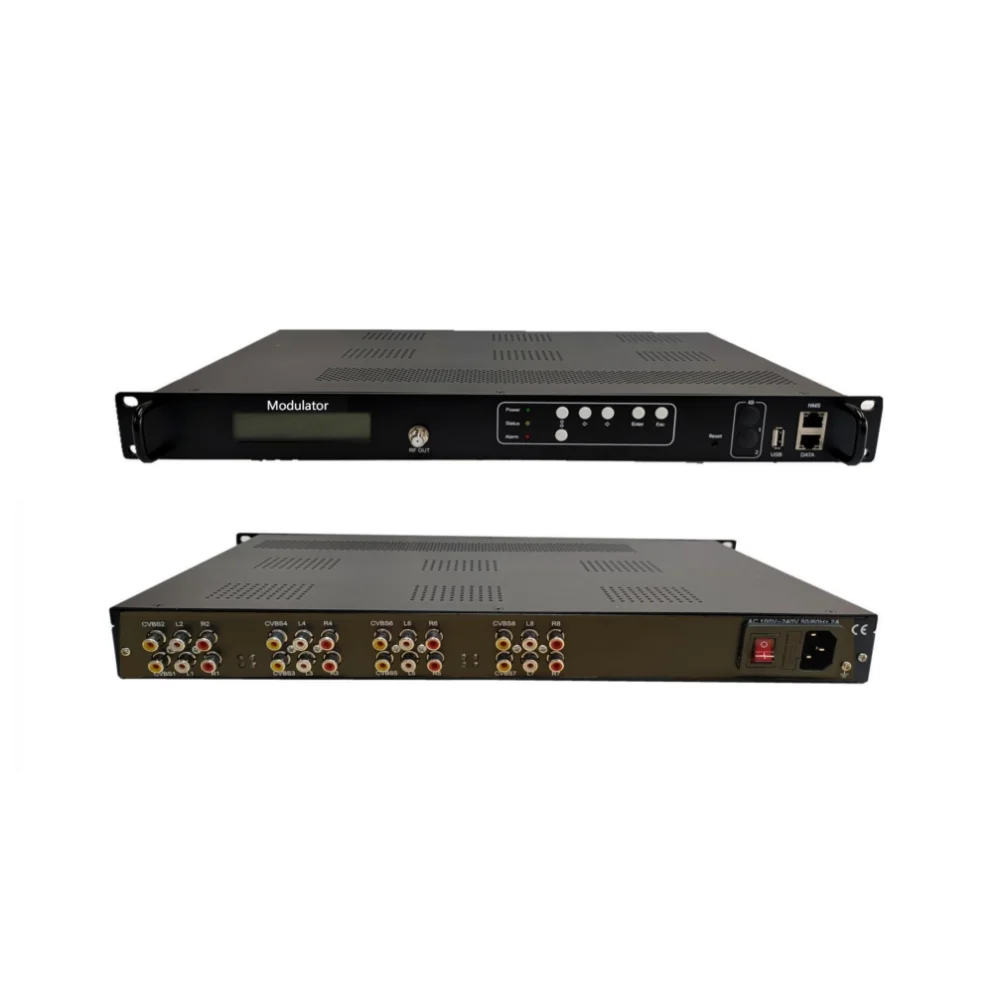

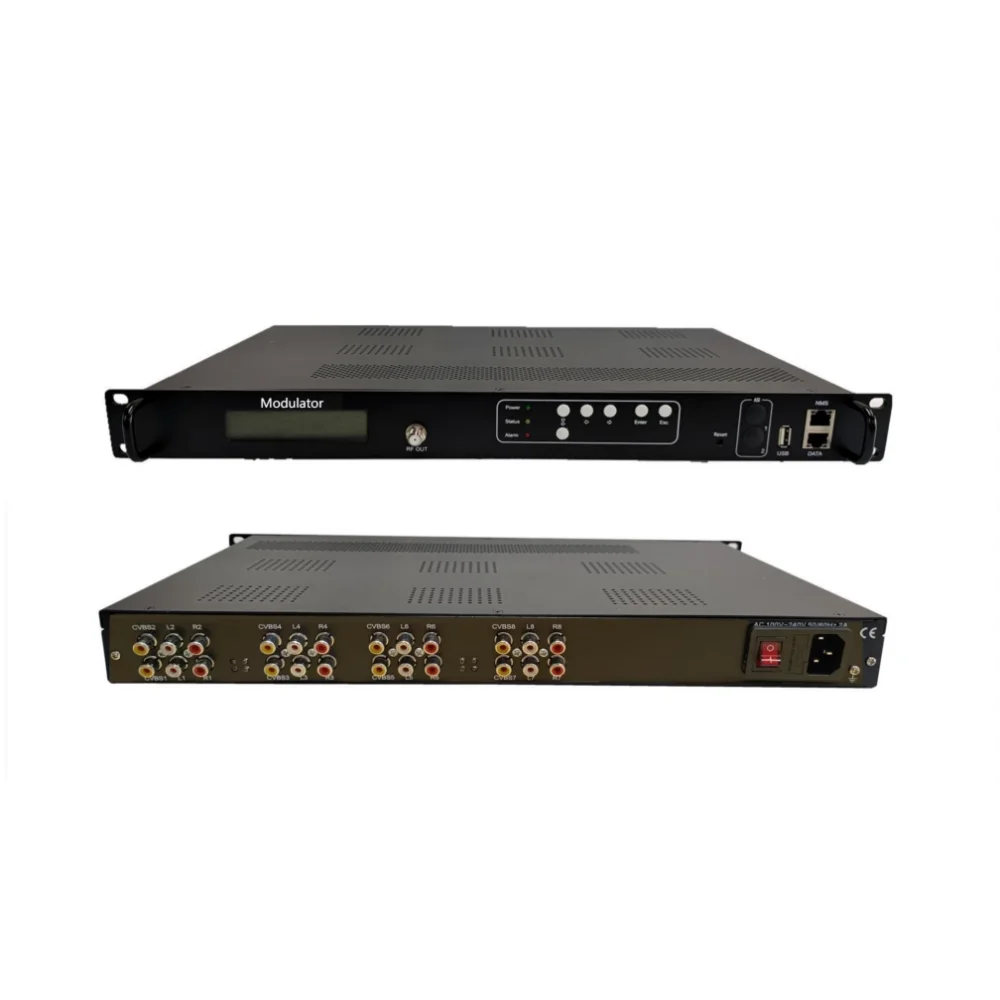

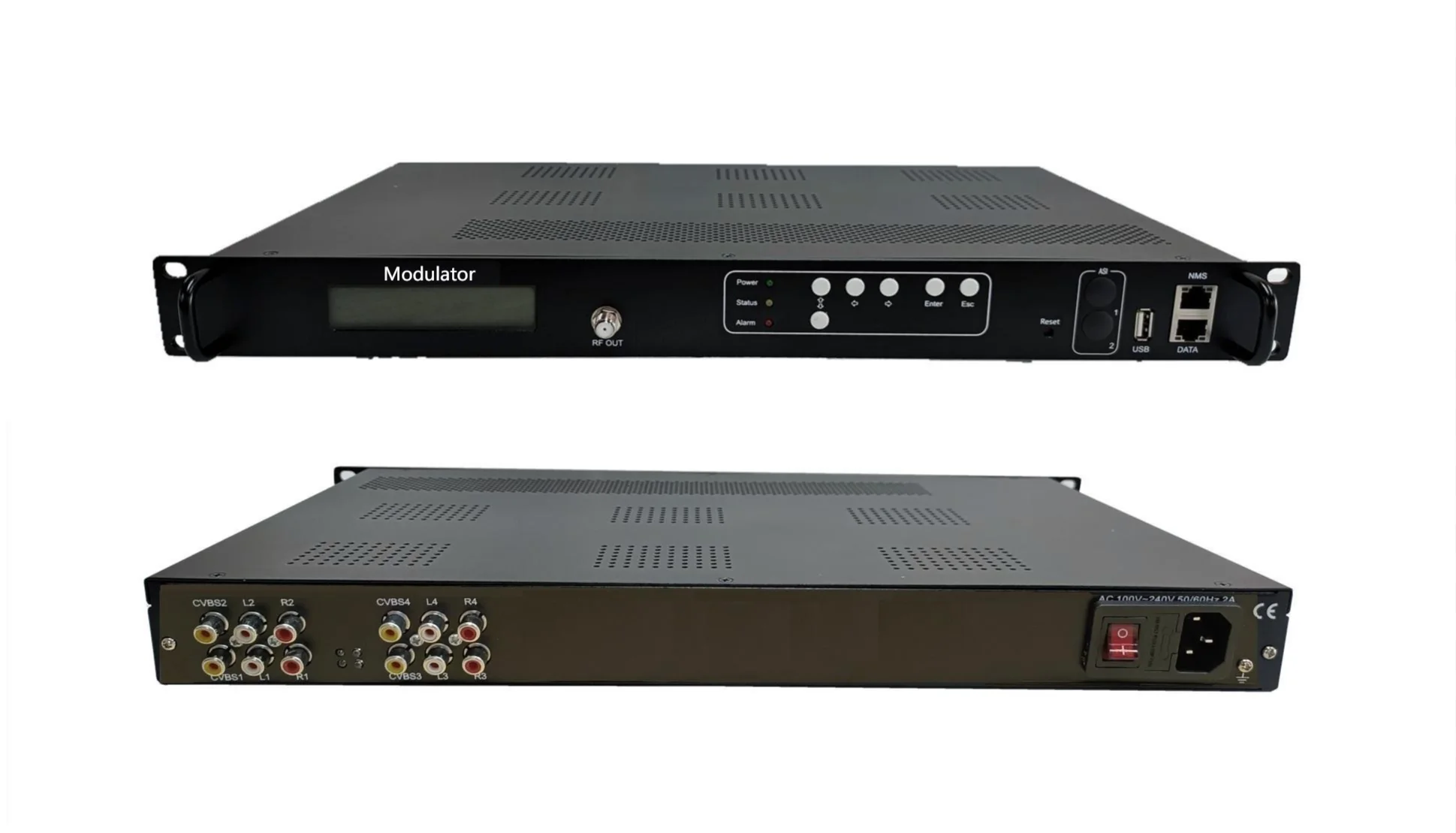

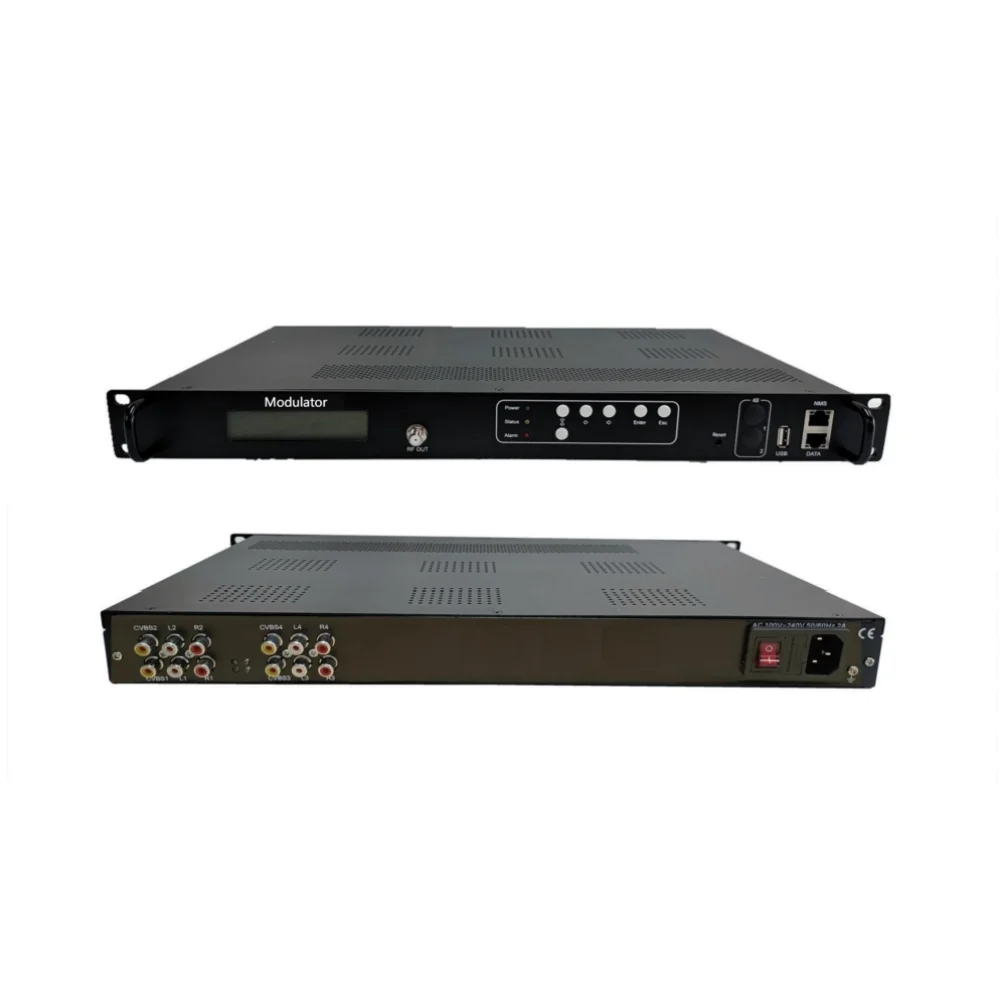

4/8 AV to RF CVBS Encoder Modulator DVB-C DVB-T ISDBT ATSC MPEG-2 SD Encoder Modulator


Product Description




Summary


The HPR8401SM series is the latest cost-effective SD encoder modulator. It supports 4 / 8 CVBS inputs, 1 channel Gigabit IP input / output; 4 channel (ATSC, ISDBT, DTMBT, DVB-C/-T) output, MPTS and SPTS output. With high integration, great performance and low cost, integrating a complete front-end system functions, this device is highly welcomed in small digital TV transmission systems such as hotels, clubs, hospitals,etc.


Key Features


* 4 / 8 channels CVBS input
* 1 Gigabit IP input/output, 128 SPTS and 1 MPTS output, UDP/RTP protocol (multicast)
* All standard modulation (ATSC, ISDBT, DTMBT, DVB-C/-T) output optional.
* Support 2* ASI input/output (optional )
* Web network management
* Support online software upgrading


Specification


Input
4/8 CVBS
ASI input (optional)
128 IP address input
Output
RF output 4 frequencies（DVB-C/DVB-T/ATSC/ISDBT/DMBT）
ASI output (optional)
IP output（128 SPTS/1 MPTS）IP output over UDP and RTP protocol
Modulation Mode
DTMB
4 DTMB
Standard
DTMB GB20600-2006
Constellation
4QAM、16QAM、32QAM、64QAM
MER
≥40dB
RF frequency
96~864MHz，1kHz step
RF output level
-35dBm~-5dBm，0.1dB step
DVB-T
4 DVB-T
Standard
EN300744
FFT
2K
Bandwidth
6M, 7M, 8M
Constellation
QPSK, 16QAM, 64QAM
Guard Interval
1/4, 1/8, 1/16, 1/32
FEC
1/2, 2/3, 3/4, 5/6, 7/8
MER
≥42 dB
RF frequency
96~864MHz, 1KHz step
RF output level
-35~ -5dBm, 0.1db step
DVB-C
4 DVB-C
Standard
EN300 429/ITU-T J.83A/B/C
MER
≥40db
RF frequency
96~864MHz, 1KHz step
RF output level
-35~-5dBm , 0.1dBm step
SR
5.0Msps~7.0Msps, 1ksps step
Constellation
16/32/64/128/256QAM
Bandwidth
8M
ATSC
4 ATSC
Standard
ATSC A/53
MER
≥40dB
RF frequency
96~864MHz, 1KHz step
Constellation
8VSB
ISDBT
4 ISDBT
Standard
ARIB STD-B31
FFT
2K
Constellation
DQPSK, QPSK, 16QAM, 64QAM
FEC
1/2, 2/3, 3/4, 5/6, 7/8
Hierarchical mode
A
Bandwidth
6M
Video Encoding
Encode Format
MPEG-2
Code Rate
1Mbps~13Mbps（each channel)
Input port
CVBS
Resolution
Input :
720x576i/720x480i （PAL/NTSC)
Output :
720×576 / 720×480（PAL/NTSC）
544×576 / 544×480（PAL/NTSC）
480×576 / 480×480（PAL/NTSC）
352×576 / 352×480（PAL/NTSC）
352×288 / 352×240（PAL/NTSC）
176×144 / 176×112（PAL/NTSC）
Audio Encoding
Rate Mode
CBR
Encode Format
MPEG1 Layer2
Sample Rate
48KHz
Bit Rate
64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps, 384kbps
System
Web/NMS
中文/English
Miscellaneous
Dimensions
440mm×270mm×40mm
Weight
3-5 kg
Temperature
0~45℃(Operation)；-20~80℃(Storage)
Voltage range
AC100~240V，50/60Hz
Power consumption
<30W


Related Products




Packing&Shipping


Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
