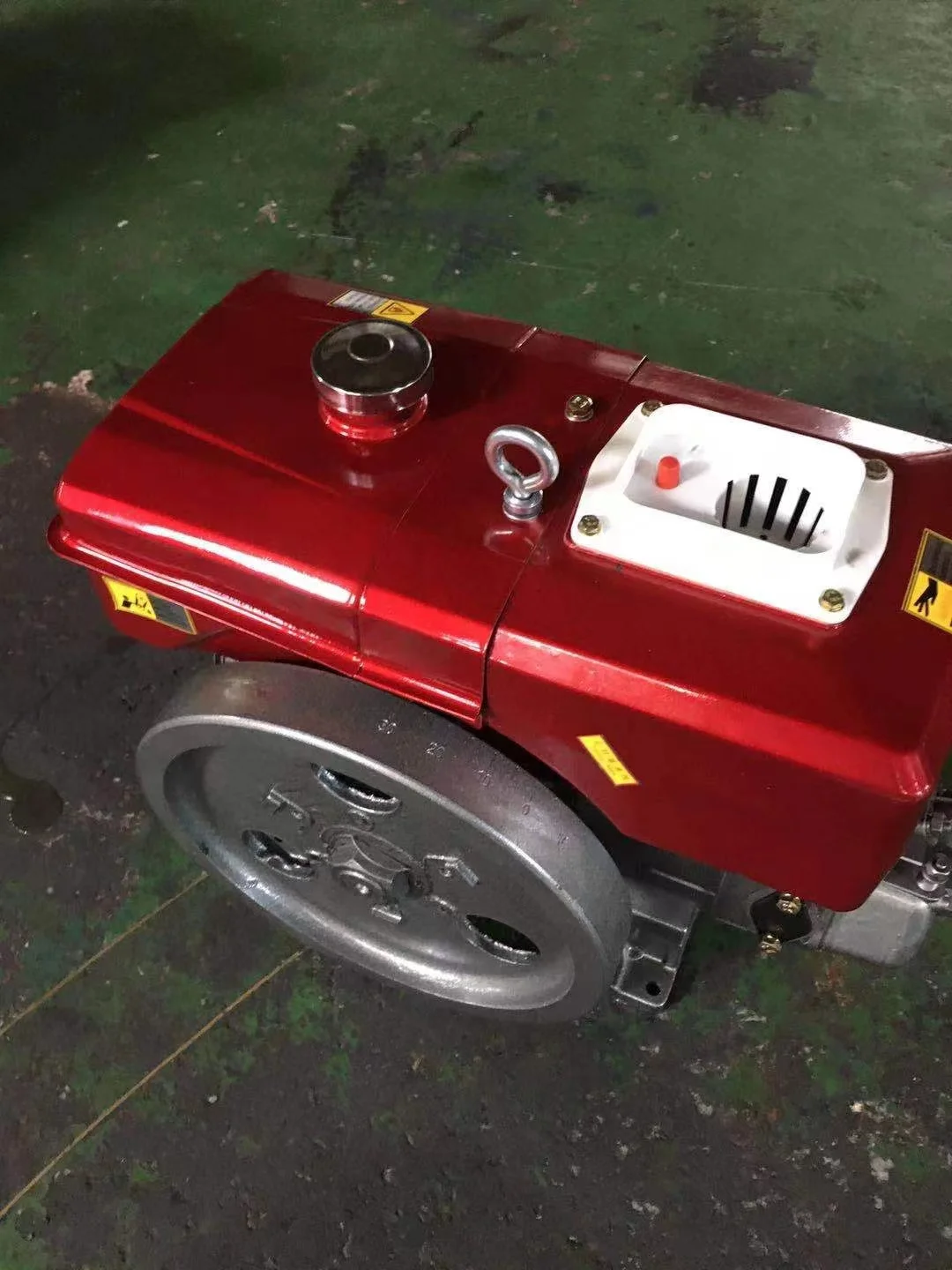

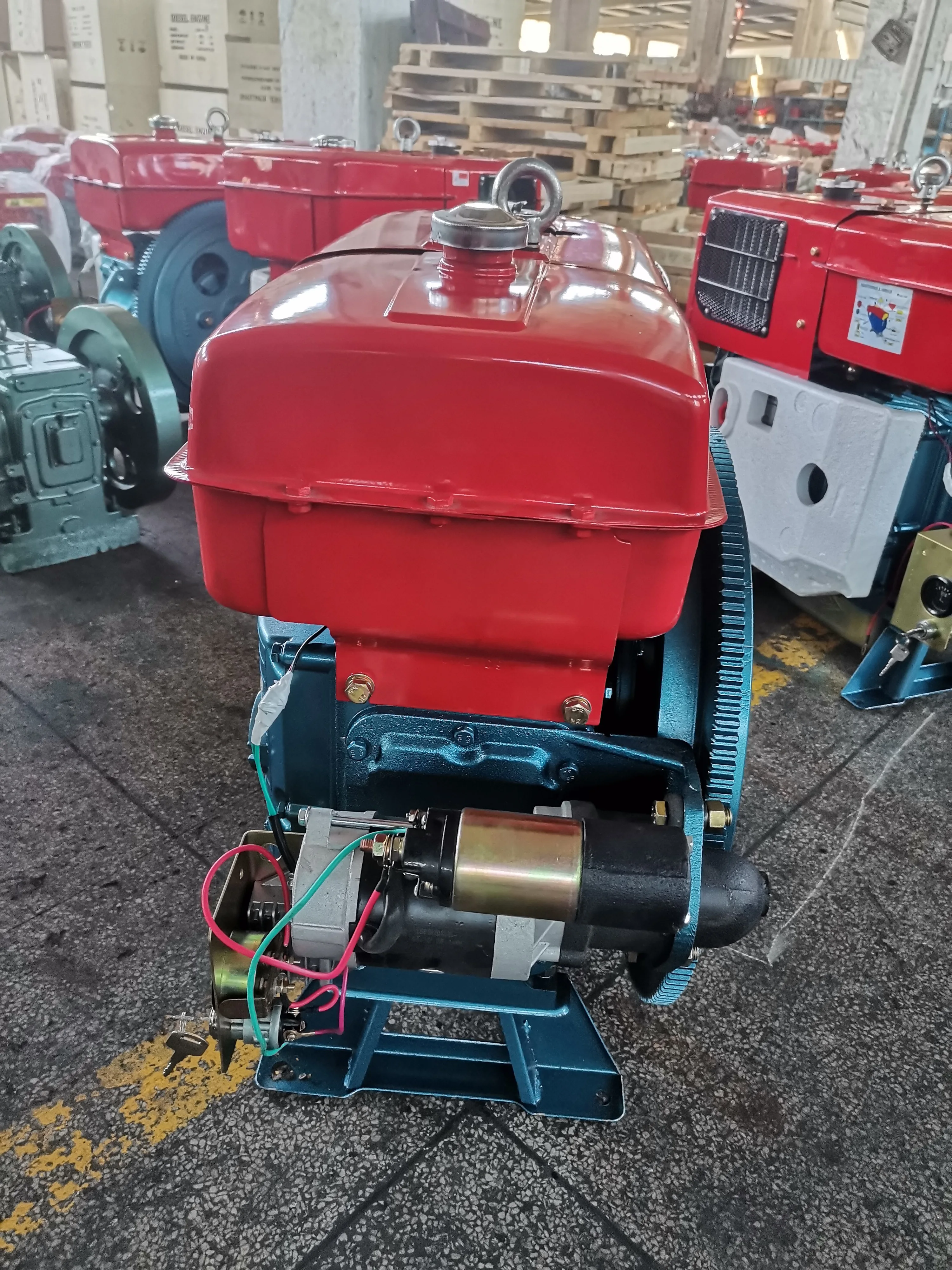

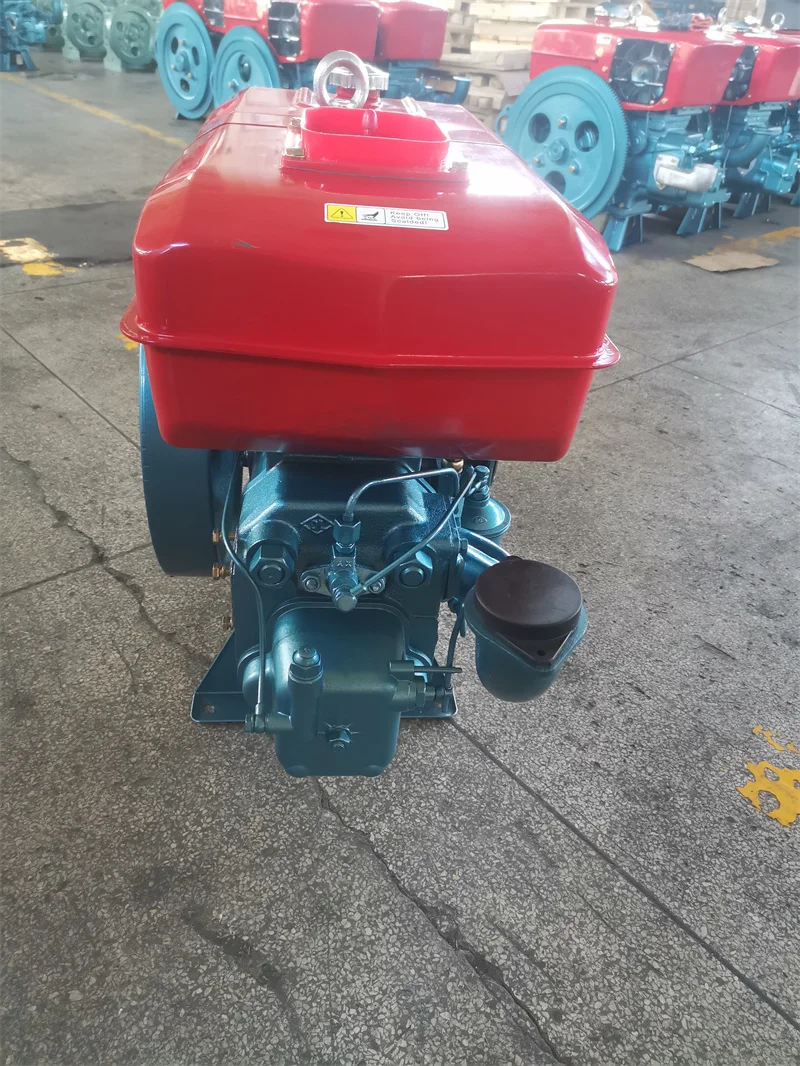

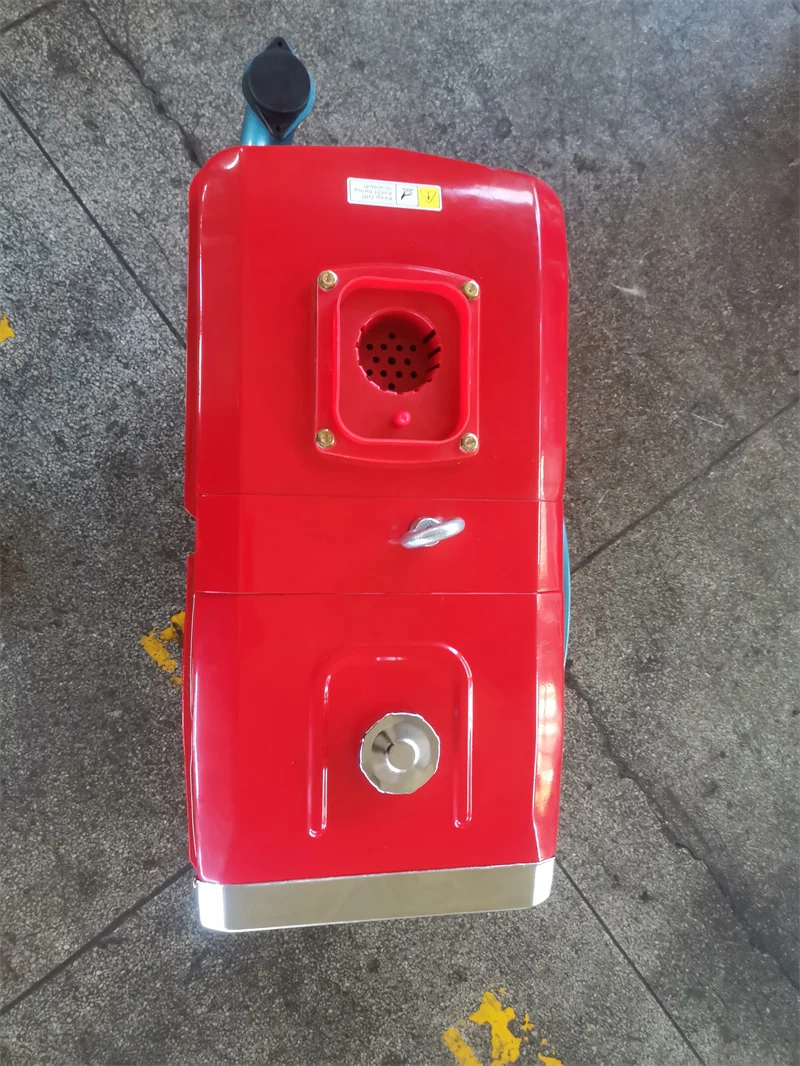

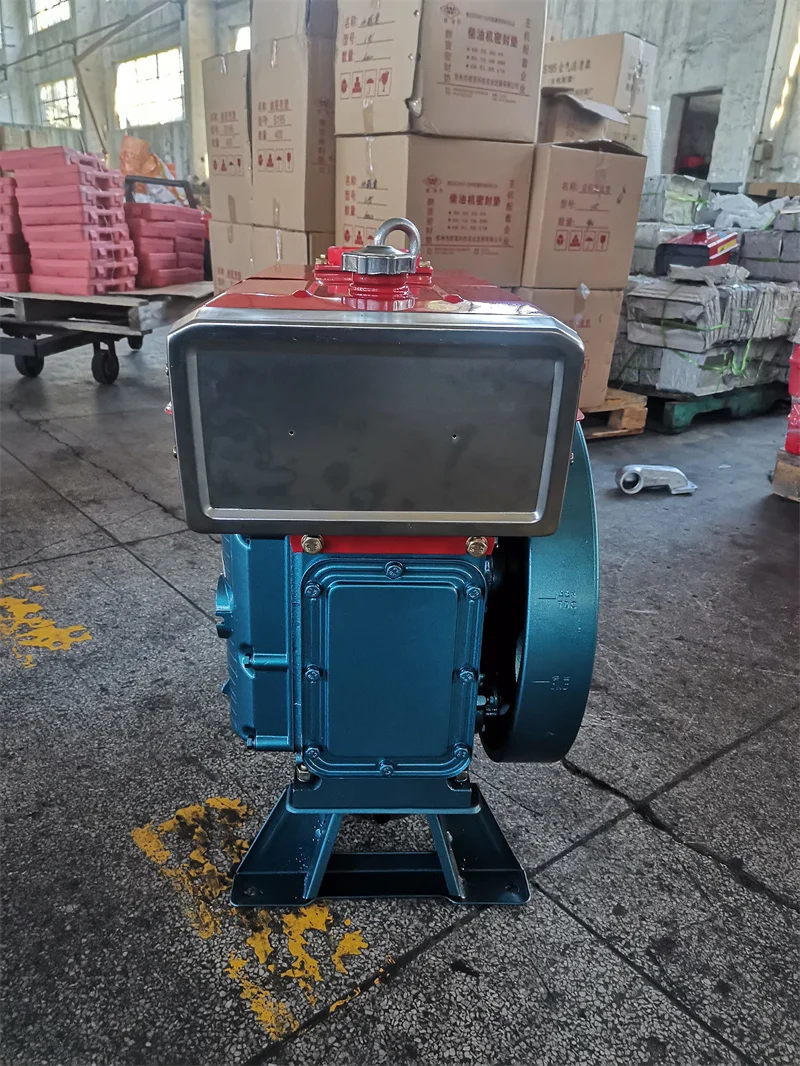

Cheap Diesel Engine 24HP ZS1115 water cooled diesel engine 24hp
- Category: >>>
- Supplier: Yancheng Chuanghong International Co. Ltd.
Share on (1601208797485):
Product Overview
Description
Diesel Engine Main Features
1) The new redesign appearance makes the Diesel Engine more beautiful
2) Large capacity fuel tank, makes it can work with a longer time
3) Single shaft balance is adopted to make Diesel Engine work more balanced
4) Low fuel consumption makes Diesel Engine more economical
5) Adopting oil bath type air filtration, is better adapt to the bad working environment
6) Excellent startup performance, make startup more easy.
| Specification: | ||||||
| Model | ZS1115 | ZS1115N | ZS1115D | ZS1115ND | ZS1115WP | |
| Type | Single-cylinder,Horizontal,4-cycle | |||||
| Combustion | Direct Injection | |||||
| Bore×Stroke(mm) | 115×115 | 115×115 | 115×115 | 115×115 | 115×115 | |
| Displacement(L) | 1.194 | 1.194 | 1.194 | 1.194 | 1.194 | |
| Compression Ratio | 17:01 | |||||
| Output/Speed(HP/rpm) | 24/2200 | 24/2200 | 24/2200 | 24/2200 | 24/2200 | |
| Cooling System | Evaporative | Radiator | Evaporative | Radiator | Evaporative | |
| Lubrication System | Combined Pressure and Splash | |||||
| Starting Method(kg) | Hand Cranking | Hand Cranking | Starting Motor | Starting Motor | Hand Cranking | |
| Net Weight(kg) | 180 | 180 | 185 | 185 | 185 | |
| Packing Size(mm) | L | 900 | 900 | 900 | 900 | 900 |
| W | 440 | 440 | 440 | 440 | 440 | |
| H | 760 | 760 | 760 | 760 | 760 | |
| 20FT unit | 96 | 96 | 96 | 96 | 96 | |
