single phase acid resistant centrifugal impeller magnetic titanium pump used in chemical industry
single phase acid-resistant centrifugal impeller magnetic titanium pump used in chemical industry
single phase acid-resistant centrifugal impeller magnetic titanium pump used in chemical industry
single phase acid-resistant centrifugal impeller magnetic titanium pump used in chemical industry
single phase acid-resistant centrifugal impeller magnetic titanium pump used in chemical industry
single phase acid-resistant centrifugal impeller magnetic titanium pump used in chemical industry
single phase acid-resistant centrifugal impeller magnetic titanium pump used in chemical industry

single phase acid resistant centrifugal impeller magnetic titanium pump used in chemical industry

Share on (1601208881872):


Price:$1,880.00

Quantity:


Product Overview

Description





PRODUCTS


INTRODUCTION





ITM Magnetic titanium pump


Product introduction


ITM magnetic pump applies modern magnetic principle and adopts push-pull magnetic circuit structure to realize non-contact transmission of moment, thus changing seal to static seal, and thoroughly solves the leakage problem of ordinary pump. Our magnetic pump products are designed according to 1S02858 and 1S03661 standards and have reached the advanced level of domestic similar products. ITM magnetic pump is especially suitable for petrochemical, pharmaceutical and other fields with inflammable, explosive and highly toxic media.

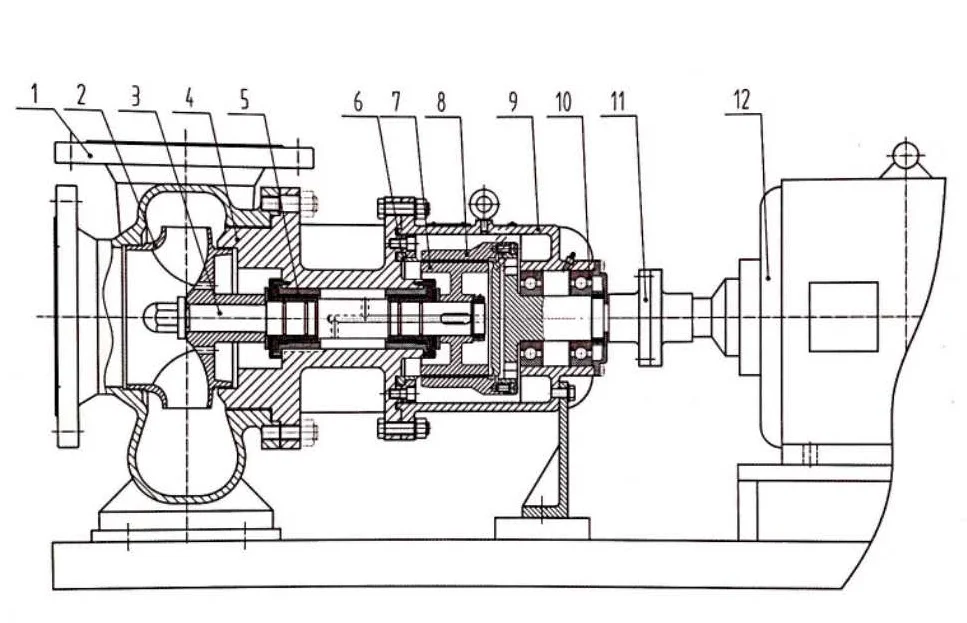

ITM Magnetic titanium pump structural drawing





ITM Magnetic titanium pump Main parts


1-Pump body 2-The impeller 3-shaft 4-Bearing box 5-Sliding bearing assembly 6-Isolated set of


7-Internal magnetic rotor assembly   8-External magnetic rotor assembly    9-bracket


10-Rolling bearing assembly   11-coupling   12-The motor

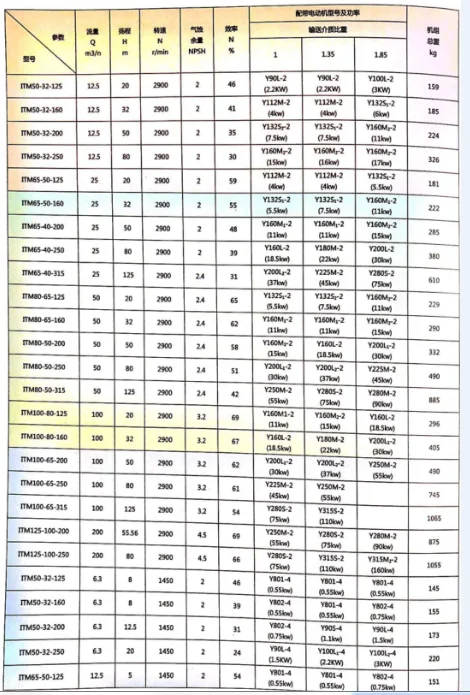

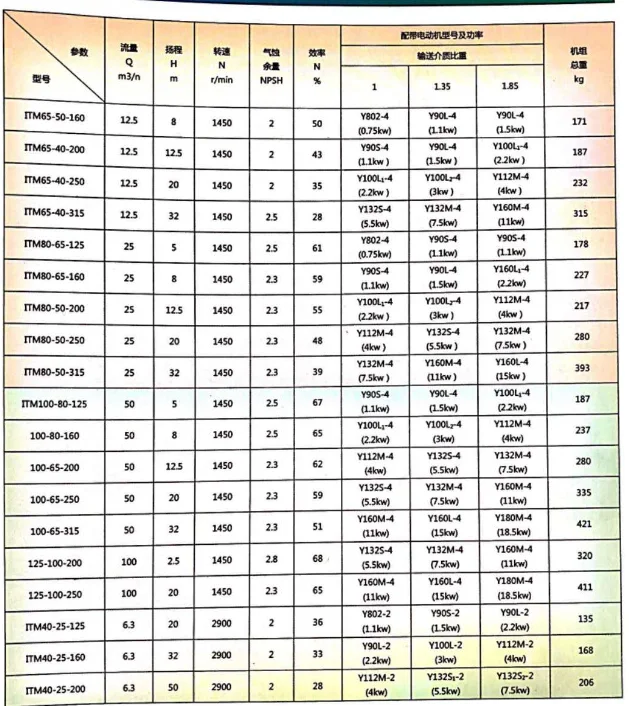

ITM Magnetic titanium pump performance sheet








.jpg









FAQ


Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:





Baoji Rowlyn Metal Materials Co., Ltd.
+86-18292722517(WhatsApp)
+86-14709273392(wechat)
