Industrial tea milk cocoa masala powder spray dryer machine instant coffee powder making machine
- Category: >>>
- Supplier: Henan Carde Machinery Equipment Co. Ltd.
Share on (1601208887393):
Product Overview
Description
Products Description
Mini Industrial Milk Powder Making Machine Egg Coffee Lab Spray Dryer drying machinespray dryer is a kind of continuous atmospheric dryer.Use pneumatic or electric atomization device to make liquid high-speed centrifugal spray as fog droplet, make these fog droplet contact with the hot air in the drying chamber and instantaneous drying.

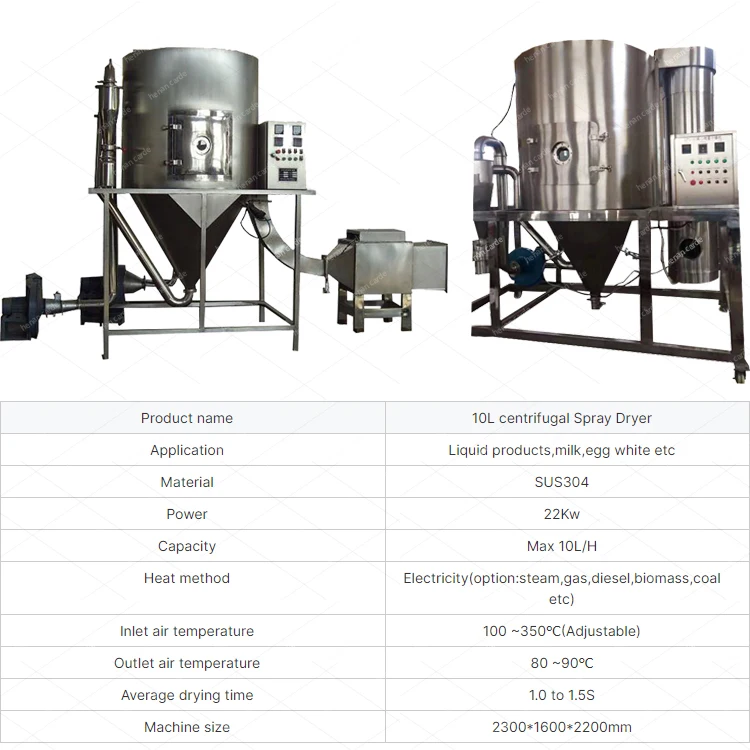

Product Paramenters
Product name | 10L centrifugal Spray Dryer |
Application | Liquid products,milk,egg white etc |
Material | SUS304 |
Power | 22Kw |
Capacity | Max 10L/H |
Heat method | Electricity(option:steam,gas,diesel,biomass,coal etc) |
Inlet air temperature | 100 ~350℃(Adjustable) |
Outlet air temperature | 80 ~90℃ |
Average drying time | 1.0 to 1.5S |
Machine size | 2200*1500*2900mm |

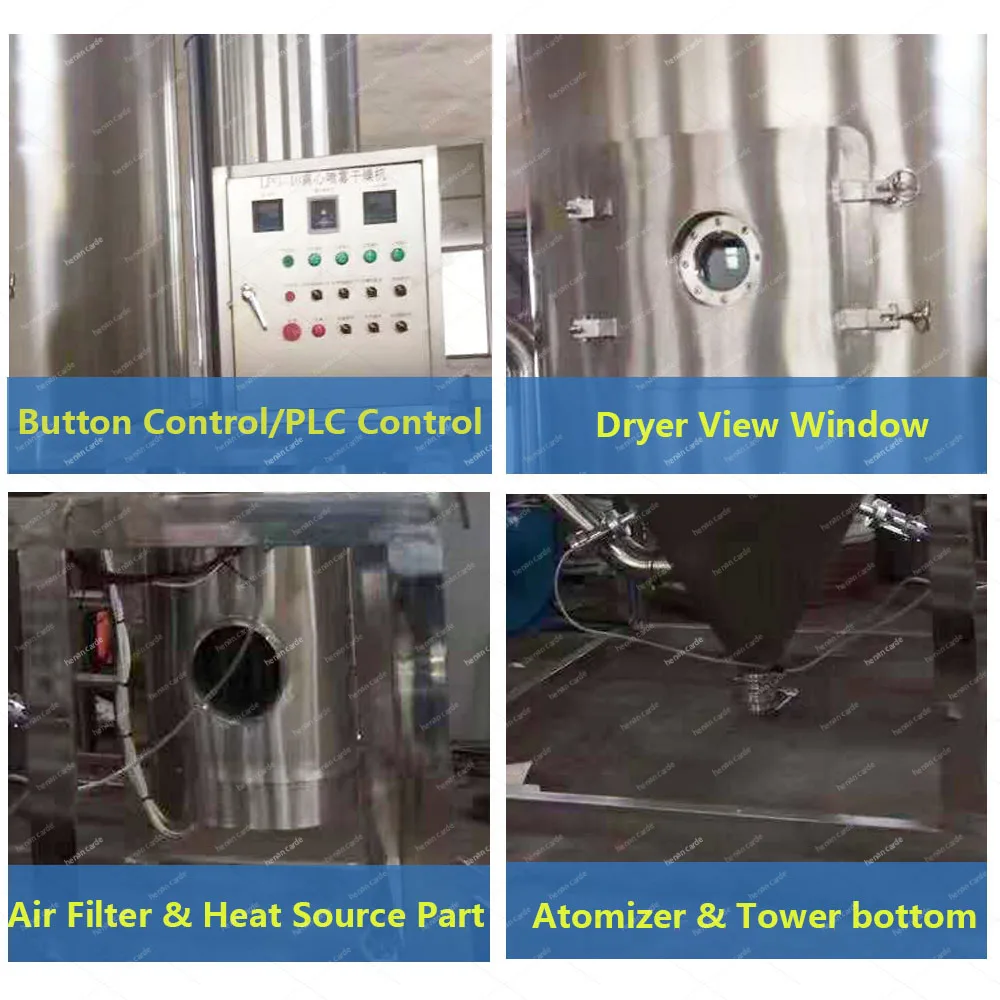

Details Images
Product Process
1. After the air passes through the filter and the heating device, it enters the hot air distributor on the top of the drying room, and the hot air passing through the hot air distributor evenly enters the drying room and rotates in a spiral shape. | ||||||||
2. At the same time, the material liquid is sent to the centrifugal spray head (atomizer) installed at the top of the drying chamber, and the material liquid is sprayed into performance mist droplets. | ||||||||
3. The contact surface area of the material liquid and the hot air is greatly increased, and the water evaporates quickly, and the finished product is dried in a very short time. | ||||||||
4. The powder is recovered by the collection tube at the bottom of the dryer, and the exhaust gas is discharged by the centrifugal fan. | ||||||||
Application
Fat-rich milk powder, sorghum, cocoa milk powder, milk replacer powder, egg white (yellow), food and plant juice, Oatmeal, chicken juice, coffee, instant tea, flavorings, meat, protein, soy, peanut protein, hydrolysate, etc. | ||||||||
Corn syrup, corn starch, glucose, pectin, maltose, etc. | ||||||||
AB, ABS emulsion, urea resin, phenolic resin, dense (urea) formaldehyde resin, polyethylene, polyvinyl chloride and the like. | ||||||||
Sodium fluoride (potassium), basic dye pigments, dye intermediates, compound fertilizers, formaldehyde silicic acid, catalysts,sulfuric acid agents, amino acids, white carbon black, and the like. | ||||||||
Alumina, ceramic tile material, magnesium oxide, talcum powder. | ||||||||
Our Advantages
1. Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively. | ||||||||
2. PLC control system, make your research more easier and efficient. | ||||||||
3. Build in oil-free air compressor, without any noise. | ||||||||
4. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly. | ||||||||
5. Narrow size distribution, more than 95% of the dry powders are in the same range of particles. | ||||||||
6. Innovative tower wall purging device, improves the material recycling rate. | ||||||||
7. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient. | ||||||||
8. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds. | ||||||||
9. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time. | ||||||||
