Microwave Shrimp Dryer Seafood Snacks Drying Sterilization Ripening Machine

Our factory is specialized manufacture in food dehydrator machine more than 10 years , there have few types dryer equipment to meet different material and capacity require. can provide 85% mature material drying solution.

Moringa Herb Mint Leaf microwave dryer has the function of thawing, sterilization, curing, and drying. The color and nutritional content of the material remain unchanged. Microwave drying time is fast. It is used to dry food, mealworm, wood, building materials, cardboard, black soldier fly larvae, spice, leaf, chili, powder, etc.

Dryer feature:

1. The equipment can be used in two ways, manual and automatic circulation.

2. The box body is made of 1.5mm thick 304 stainless steel plate, which is sturdy and durable.

3. Microwave power: ≥30kw, total power ≥40kw.

4. The function of preventing the equipment from being turned on by mistake to protect the equipment.

5. Digital variable frequency sealed microwave power supply, which can save energy by 20%.

6. The equipment and electrical appliances are equipped with voltage stabilizing device, integrated design, and the operation is more durable and stable.

7. The equipment structure is reasonable, the heating is uniform, and the sterilization effect is better. The uniformity and practicability of domestic manufacturers are about 10% higher than that of domestic manufacturers.

8. Teflon conveyor belt, thick mesh belt, high temperature resistance, corrosion resistance, no fire.

9. Temperature monitoring system.

10. Equipment, machinery and electrical safety standards, microwave leakage standards, are strictly implemented in accordance with national standards, and all have EU CE certification.

Moringa Herb Mint Leaf Drying Machine main use of the role of microwave energy, so that the material within the water molecules directional high-frequency reciprocating movement, resulting in water molecules friction with each other to form a heating body, so that the entire material to form a heating body to achieve fast,uniform and efficient drying of water.

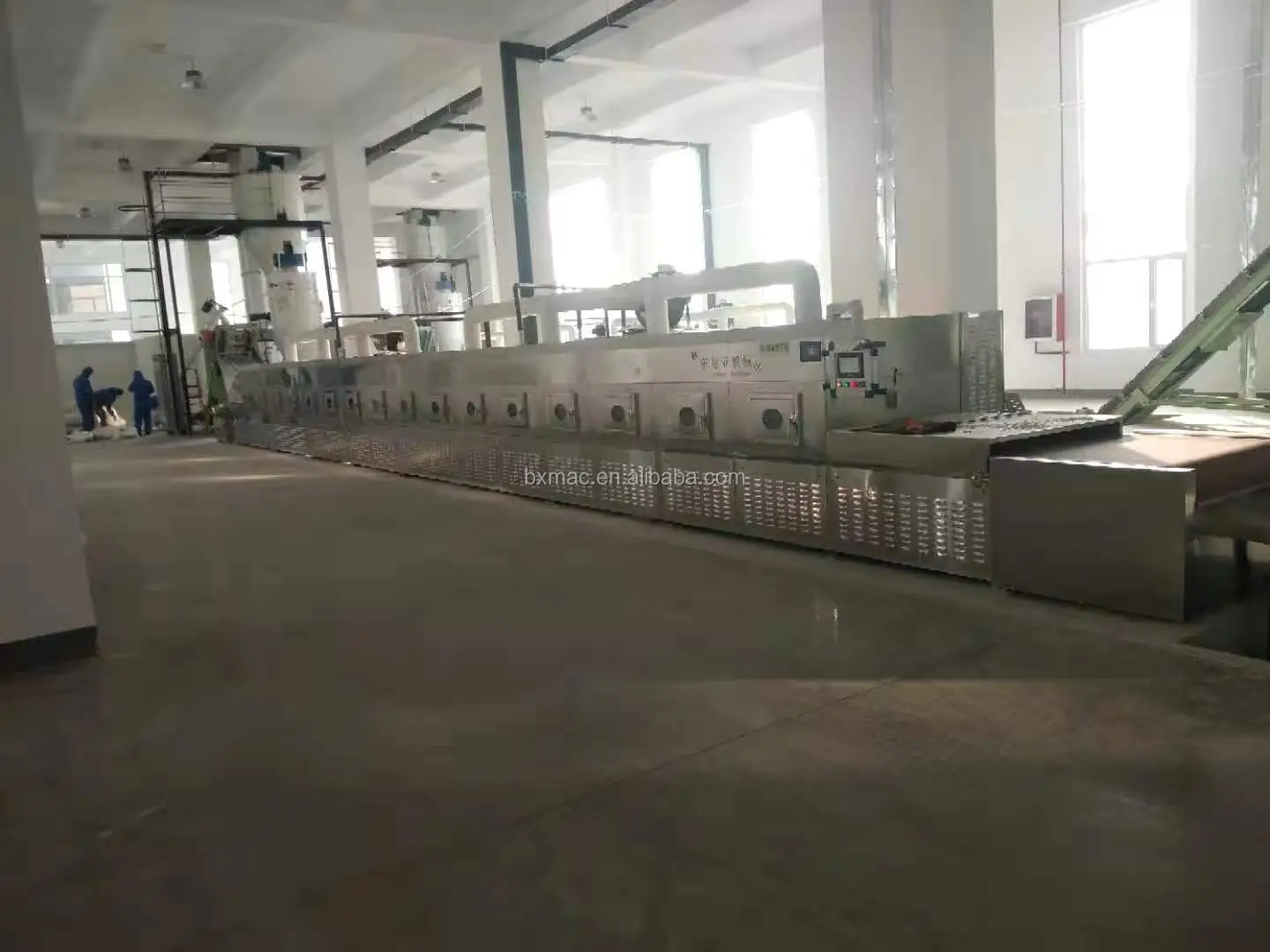

The 30kw microwave dryer machine description:

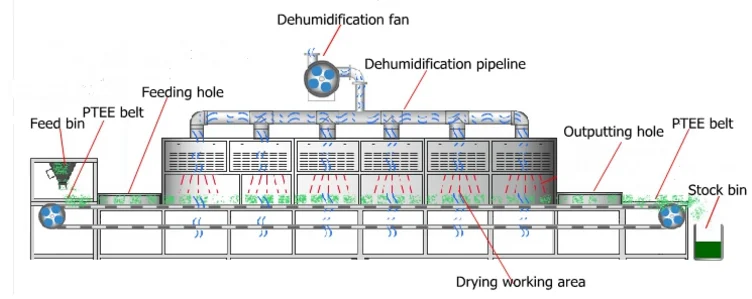

1Equipment structure transmission system, microwave leakage suppressor, microwave heating box, power supply system. Electrical control and detection, heat and moisture removal system.

Material → microwave suppressor → microwave heating box → microwave suppressor → discharge → enter the next process

2. Equipment size: 8500*1600*1500mm.

3. 4 microwave heating cabinets.

4. The microwave feeding method is uniform feeding at the top.

5. The height of the suppressor opening: 80mm.

6. The length of the head and tail is 1000mm each.

7. The width of the conveyor belt is 750mm.

8. The distance between the upper plane of the conveyor belt and the ground is 750±50mm (adjustable).

9. The motor is 1.5kw, and the speed can be adjusted by frequency conversion.

10. The magnetron adopts air cooling method, and the working input current of each magnetron is 5-7A.

11. Stainless steel round pipes are used for dehumidification pipes, which are connected to the equipment before leaving the factory.

12. Working environment: Seasonal room temperature, relative humidity ≤85%, no corrosive gas around, no flammable and explosive gas.

13. Three-phase five-wire system, the zero line is as thick as the phase line, 380v±5%, 50Hz±1%

MICROWAVE DRYER Moringa Herb Leaf DRYING PROCESSING DESCRIPTION :

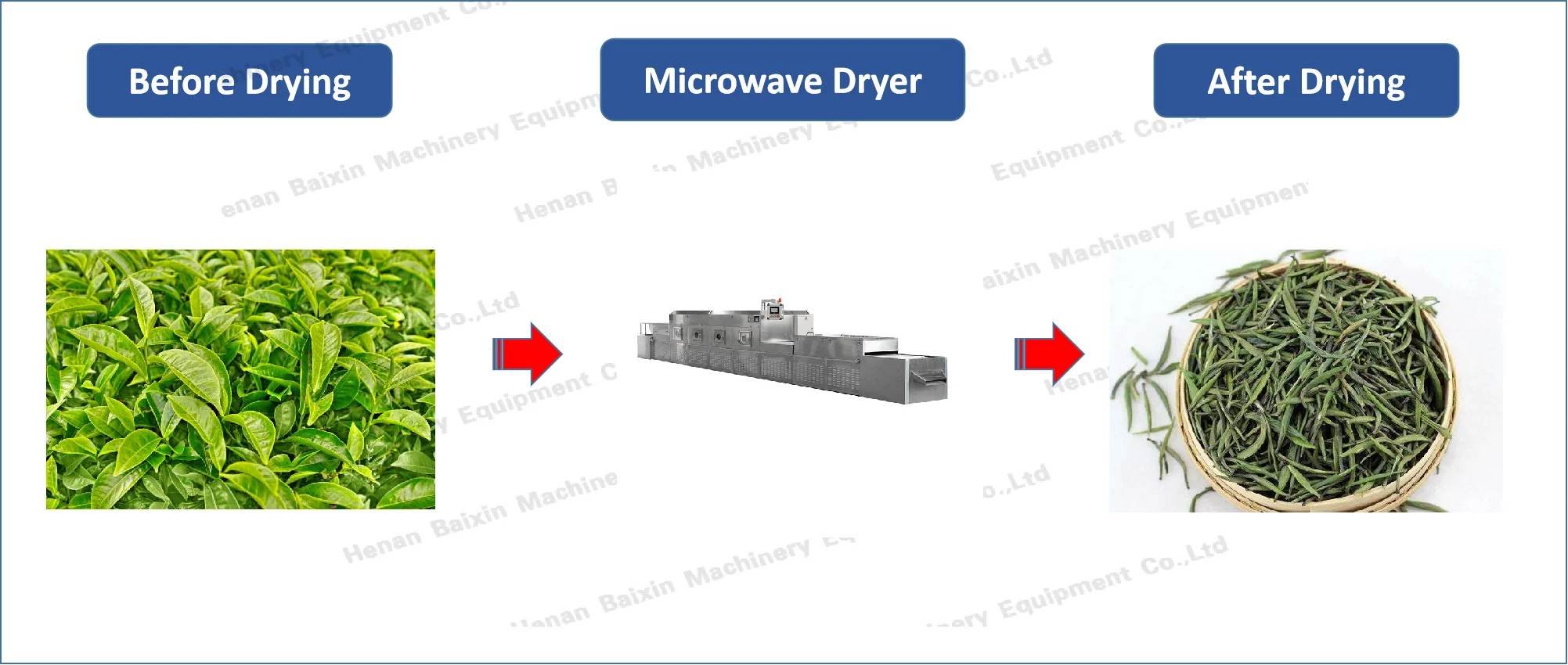

How to dry leaf by microwave dryer machine:

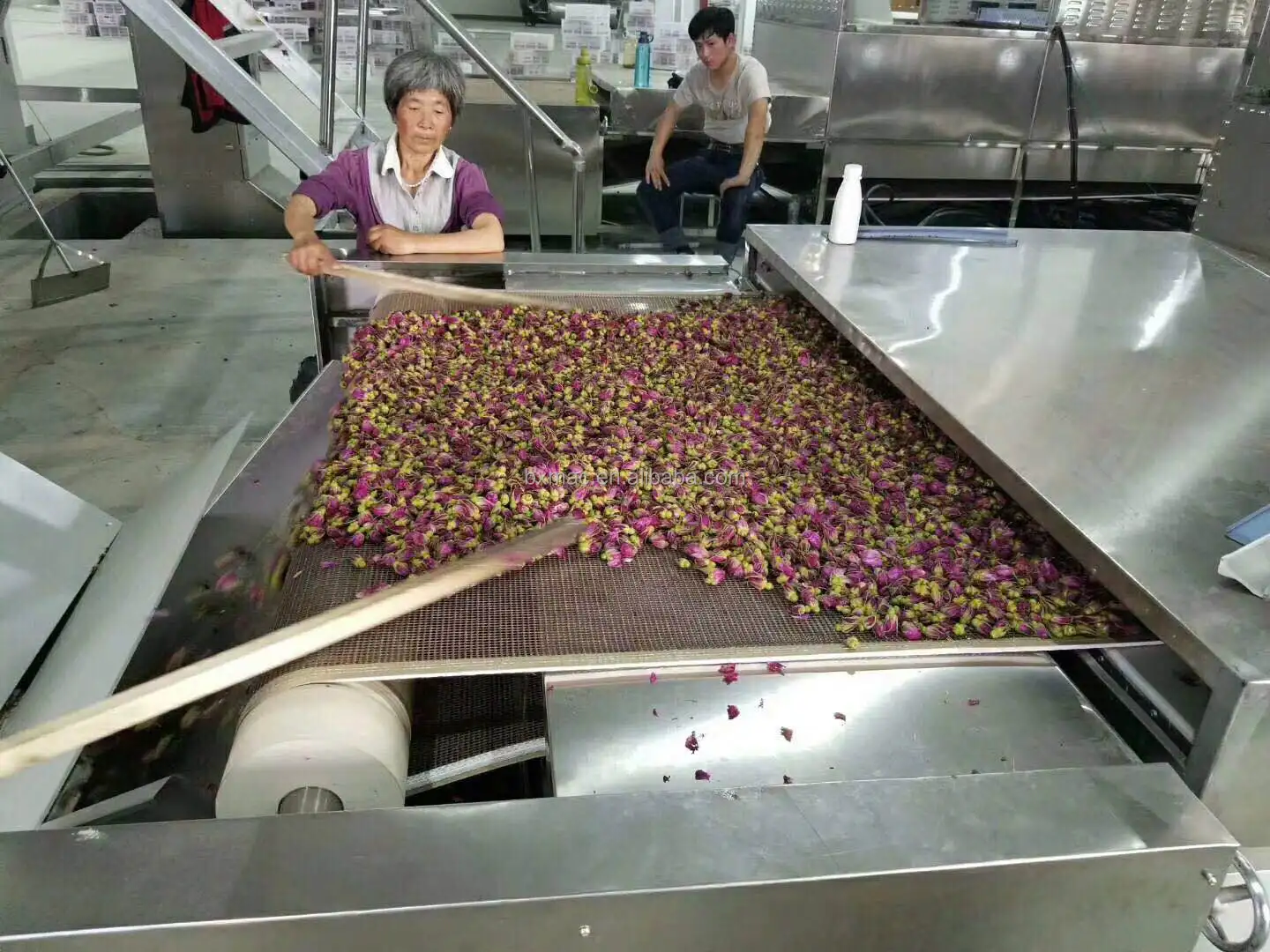

Place the materials on the conveyor belt of the microwave dryer. The materials are dispersed on the conveyor belt through a homogenizing device on the conveyor belt. During the operation of the equipment, the microwave generator generates microwaves. The materials enter the heating chamber through the conveyor belt. At this time, the water and bacteria in the materials evaporate under the action of microwave energy to achieve the purpose of sterilization and drying. The drying time is 5-10 minutes. The dried materials are discharged from the discharge port.

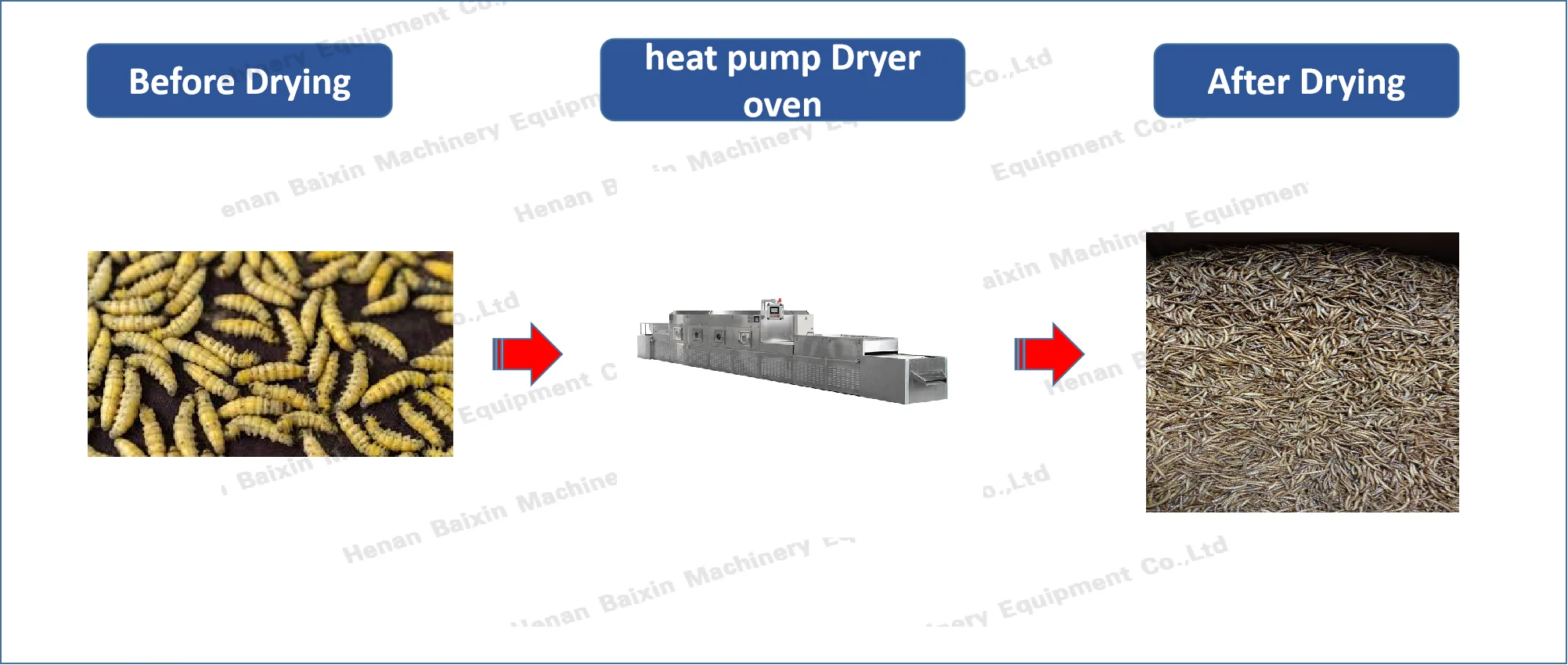

DRYING EFFECT COMPARASION :

Advantages of tunnel microwave dryer

1:Fast processing efficiency:

It takes about few minutes to complete the process from feeding to discharging. The processing efficiency is fast and the effect is good.

2:Uniform drying effect.

Moringa Herb Mint Leaf microwave dryer can make all parts of the material have the same effect.

3:Drying and sterilizing simultaneously,tunnel type design, cover small area, continuous production,

4:Clean and sanitary: it will not pollute the material, nor change the color, fragrance, and nutritional content of the material.

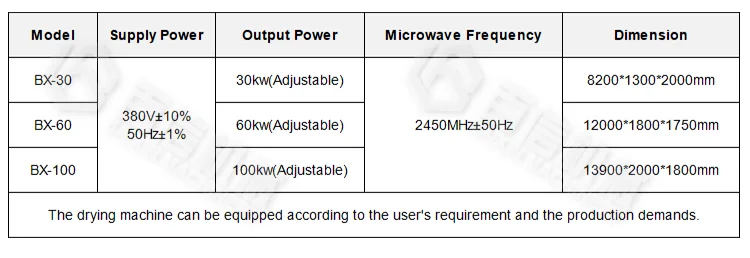

Microwave Moringa Herb Mint Leaf dryer machine have many size to meet different capacity require, we will according to your input capacity , material moisture change require etc to customize machine for you.

welcome to contact us and leave details requirement . we will quote you as soon as possible.

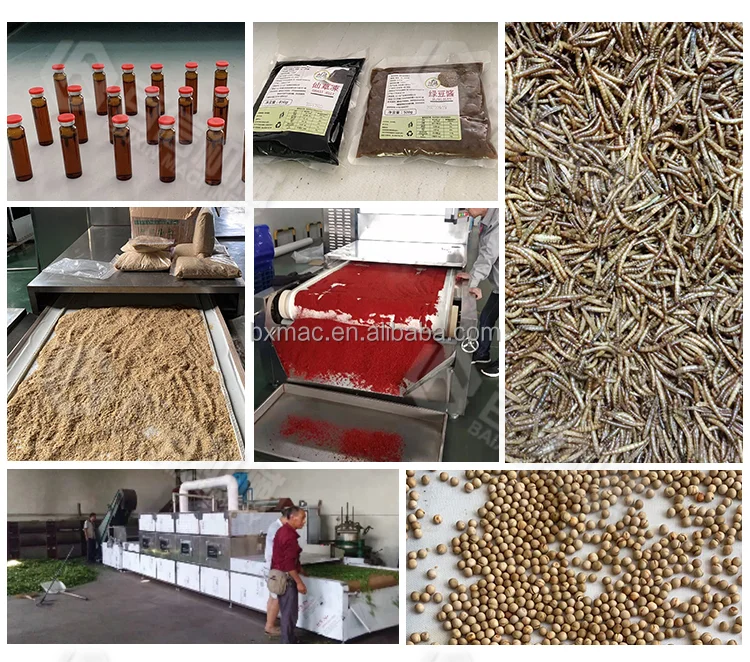

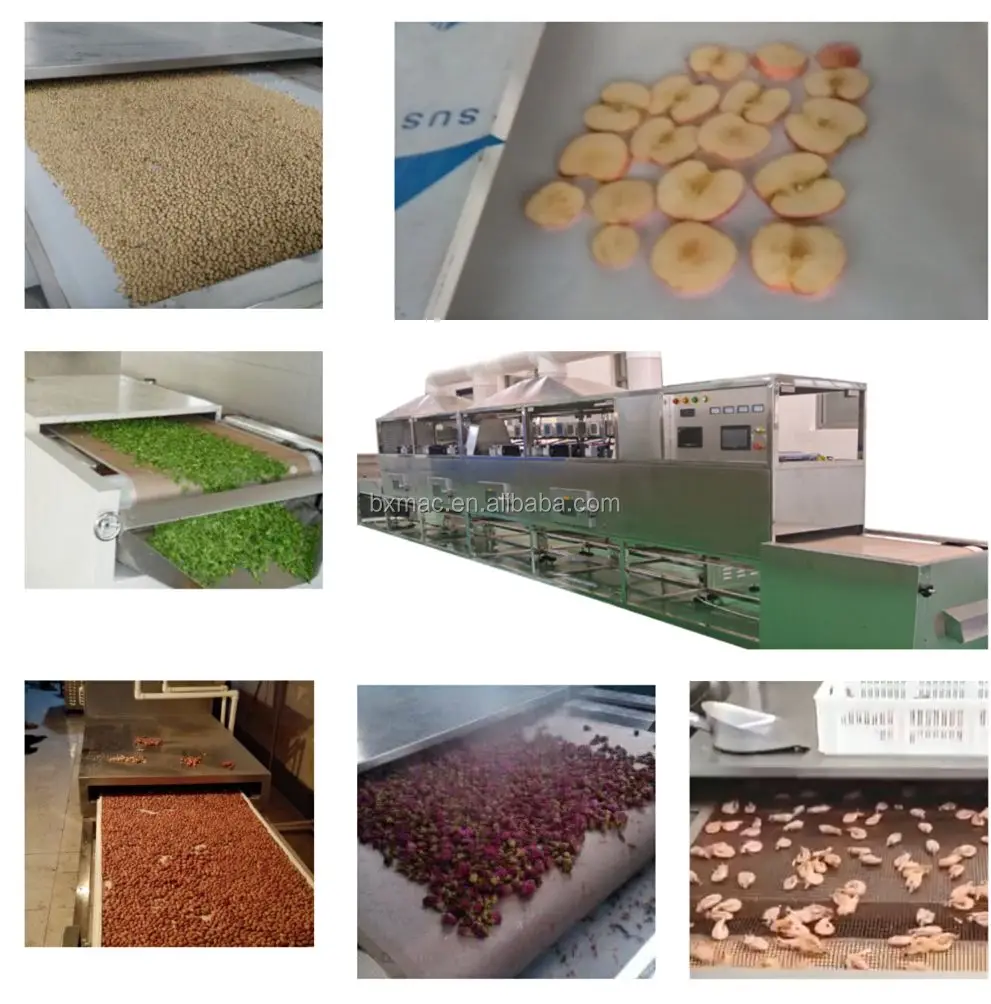

Application of microwave dryer machine

The microwave dryer machine can be used in many application, like

agriculture,industry, seafood, grain, herbs,construction, paper products,seasoning,mineral industry,etc.

1:Dry vegetables: like radish, lettuce, pumpkin, carrots, spinach, cassava,etc.

2:Dry fruits:like apple, lemon, mango slices, peach,apricots,etc.

3:Dry meat: like sausage, beef, duck, etc.

4:Dry seafood:fish, shrimp, seaweed,etc.

5:Others it can dry noodle, wooden ,stick incense,herbs , etc.

Your product is not listed above? We are ready to meet any new challenge! Contact us for free product testing!

this machine not only can drying , also can use for sterilization .

Fruits and Vegetables, Pastas, Tea, Flowers and Leaves, Nuts and seeds, Herbs and Spices, Meat and Petfood, Seafood.

It can be used for drying fresh food separately or even together without worry of mixed fragrance.

Your product is not listed above? We are ready to meet any new challenge! Contact us for free product testing!

produce time :15-20 working days after receive deposit.

package: wood box package or load into container directly..

Henan Baixin Machinery Equipment Co.,Ltd is a set of technology development, manufacturering, operating services as one of the high-paying technology state import enterprises, the central plains regions is the largest drying equipment, food equipment research and development and production base. Products are exported to the world more than 90 countries and regions, favored by customers. Its comprehensive strength ranks among the best in China's drying industry.

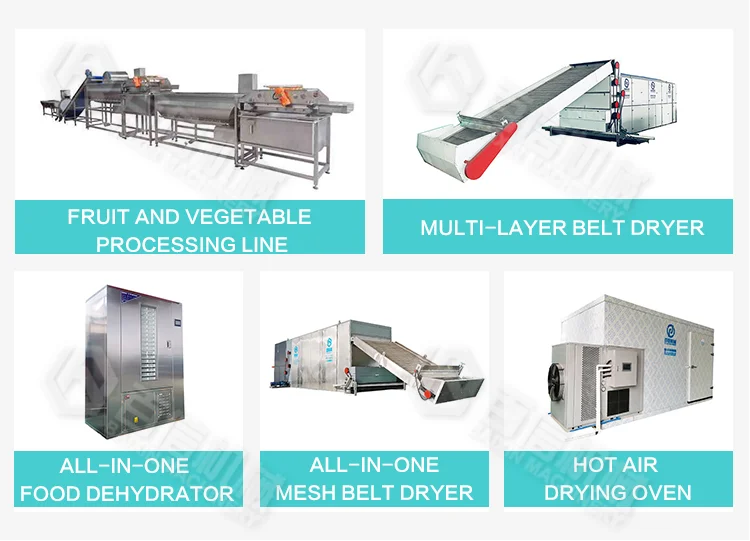

The main products are continuous mesh belt dryer, heat pump dryer, drying ovens, microwave sterilization dryer equipment, vegetables & fruits processing line, such as slicing machine, peeling machine, packaging machine, grinder, so on. Equipments is wide used in agriculture, industry, food, and other industries, to meet the existing more than 85% of raw materials, drying and deep processing.
