Post Pounder Excavator Pile Hammer Post Driver Easy Post Fence and Sign Pile Installation 434 F2 Hydraulic Jack Hammer
- Category: >>>
- Supplier: Yantai Baicai Machinery Co. Ltd.
Share on (1601208956492):
Product Overview
Description
Hot-selling Skid Steer Post Driver
High Quality Excavator Mounted Hydraulic Post Pounder for Skid Steer and Excavator
Application Field
☞ Mining:Mining,secondary breaking.
☞ Metallurgy:Clearing slag,demolition of furance and foundation.
☞ Road:Repairing,breaking,foundation work.
☞ Raliway:Tunneling demolition of bridge.
☞ Construction:Demolition of building and reinforced concrete.
☞ Ship reparing:Clearing alam and rust from the hull.
☞ Others:Breaking frozen mud.
☞ Mining:Mining,secondary breaking.
☞ Metallurgy:Clearing slag,demolition of furance and foundation.
☞ Road:Repairing,breaking,foundation work.
☞ Raliway:Tunneling demolition of bridge.
☞ Construction:Demolition of building and reinforced concrete.
☞ Ship reparing:Clearing alam and rust from the hull.
☞ Others:Breaking frozen mud.
YLB 680 MODEL POST DRIVER
Excavator or Loader Tonnage: 4-7 ton
Weight: 450 kgs
Working Flow: 40-70L/min
Working Pressure: 100-140 Bar
Impact Rate: 500-800 Bmp
Hose Dia: 1/2 Inch
Tool Dia.: 68mm
If you need other model, please contact Kathy, I am glad to choose a new model for you, only need your machine model or tonnage
In America

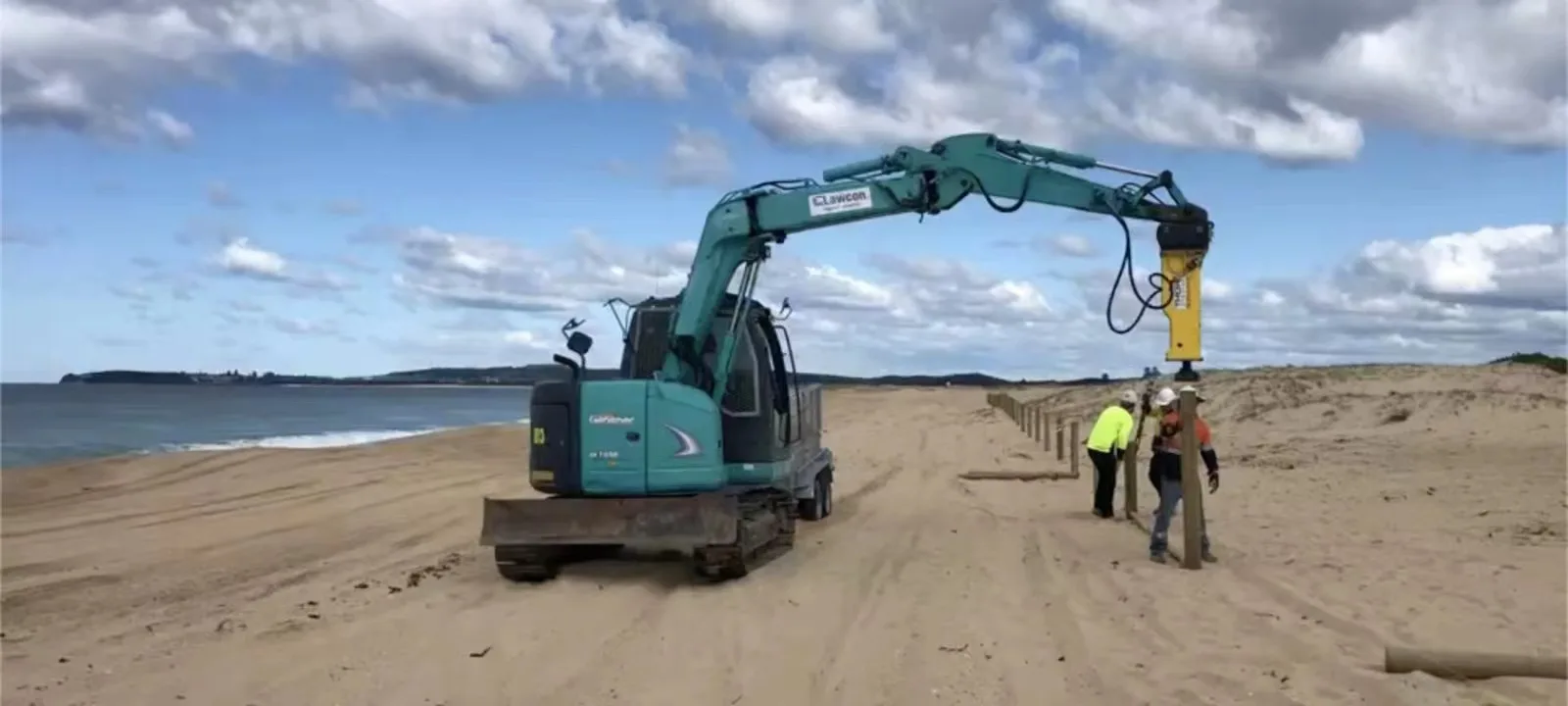

In Australia

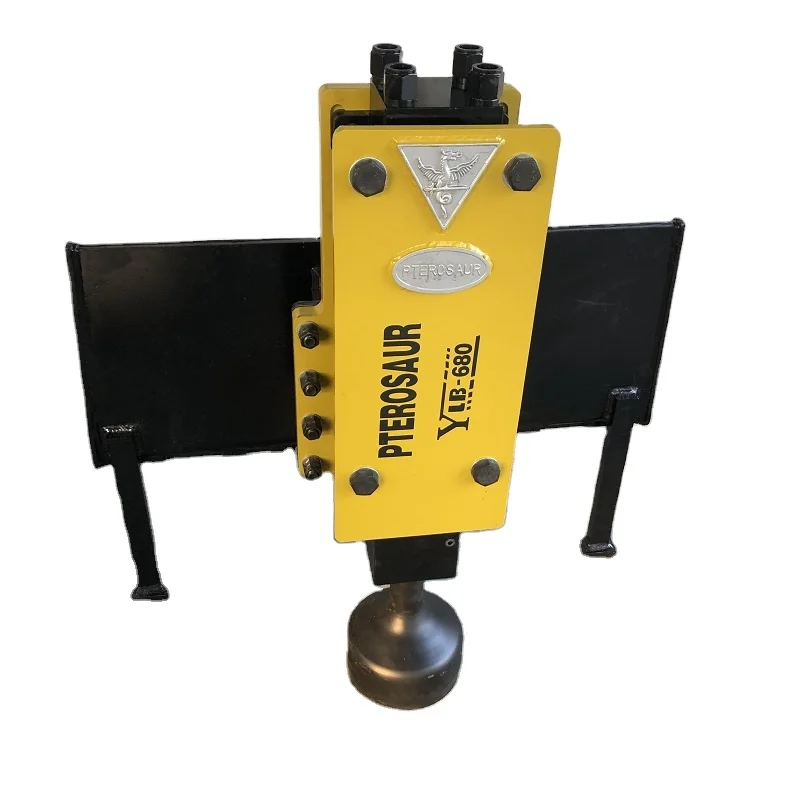

Chisel with a bowl
for 120mm fence or steel diameter
Support customization
for 250mm fence or steel diameter
Support customization

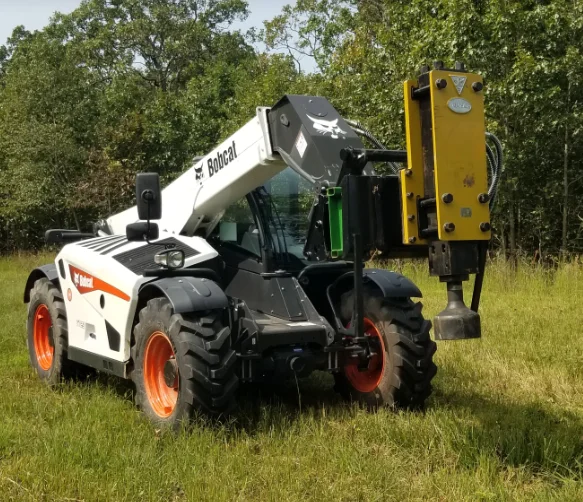

Post driver for skid steer loader

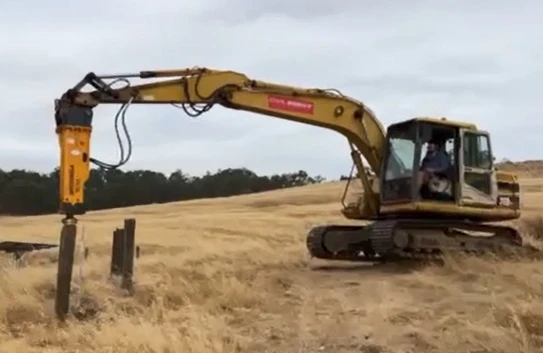

Post pounder for excavator
Standard Configuration
Standard Accessories:
*Chisels * 2 pcs or 1 pc chisel with bowl
*Seal kit * 1 set
*Hydraulic Oil Hoses * 2 pcs
*Tool Box with necessary maintenance tools x* 1 set
*Nitrogen Charging Kit with Pressure Gauge * 1 set
*Nitrogen Bottle * 1 set
* User's Manual * 1 set
*Hydraulic Oil Hoses * 2 pcs
*Tool Box with necessary maintenance tools x* 1 set
*Nitrogen Charging Kit with Pressure Gauge * 1 set
*Nitrogen Bottle * 1 set
* User's Manual * 1 set
SOOSAN breakers technical data
Model | Excavator tonnage | Operating Weight Box/Open/Side | Working Flow | Working Pressure | Impact Rate | Hose Dia. | Tool Dia. | |||||||
(ton) | (kgs) | (L/min) | (bar) | (bpm) | (inch) | (mm) | ||||||||
Light Type Hydraulic Breakers | ||||||||||||||
YLB450 (SOOSAN 20) | 0.8-3 | 120/100/80 | 15-30 | 90-120 | 600-1200 | 1/2 | 45 | |||||||
YLB530 (SOOSAN 30) | 2.5-4.5 | 180/152/130 | 25-50 | 90-120 | 550-1000 | 1/2 | 53 | |||||||
YLB680 (SOOSAN 40) | 4-7 | 350/320/300 | 40-70 | 100-140 | 500-800 | 1/2 | 68 | |||||||
YLB750 (SOOSAN 43) | 6-9 | 435/400/396 | 50-90 | 120-150 | 450-800 | 1/2 | 75 | |||||||
YLB1000 (SOOSAN 50) | 11-16 | 860/820/760 | 80-120 | 160-180 | 350-700 | 3/4 | 100 | |||||||
Medium Type Hydraulic Breakers | ||||||||||||||
YLB1350 (SOOSAN 70) | 18-21 | 1780/1720/1650 | 100-150 | 180-210 | 350-600 | 1 | 135 | |||||||
YLB1400 (SOOSAN 81) | 20-26 | 1825/1780/1750 | 130-170 | 190-220 | 350-500 | 1 | 140 | |||||||
YLB1500 (SOOSAN 100) | 25-30 | 2300/2230/2100 | 150-210 | 210-230 | 300-450 | 5/4 | 150 | |||||||
YLB1550 (SOOSAN 121) | 28-35 | 2850/2780/2600 | 170-220 | 220-240 | 300-450 | 5/4 | 155 | |||||||
Heavy Type Hydraulic Breakers | ||||||||||||||
YLB1650 (SOOSAN 131) | 30-40 | 3560/3350/3200 | 200-260 | 230-250 | 250-400 | 5/4 | 165 | |||||||
YLB1750 (SOOSAN 151) | 35-45 | 3990/3850/3750 | 210-260 | 240-260 | 250-350 | 5/4 | 175 | |||||||
Production Procedure
Control valve-15CrMo
Do grinding process with high precision.
Piston-20Cr2Ni4
Do grinding process. It will have good concentricity. It will reduce the piston scratch problem.
Cylinder inner-20CrMo
61.8HRC hardness. Main body is resistant to deformation, ripping, or scratching
We produce all kinds of accessories for breakers, each part is strictly quality controlled including the raw material, heat treatments, size and production technology, etc. All adopt best raw material in the Chinese market purchasing from large steel mill.
Main body including front head, cylinder body, back head: 20CrMo
Front cover and inner bushing: 20CrMo Piston: 20Cr2Ni4
Though bolts, side bolts, Rod Pin, Chisel: 42CrMo
Control valve: 15CrMo
Seal kit: NOK and Parker brand made in Japan and America

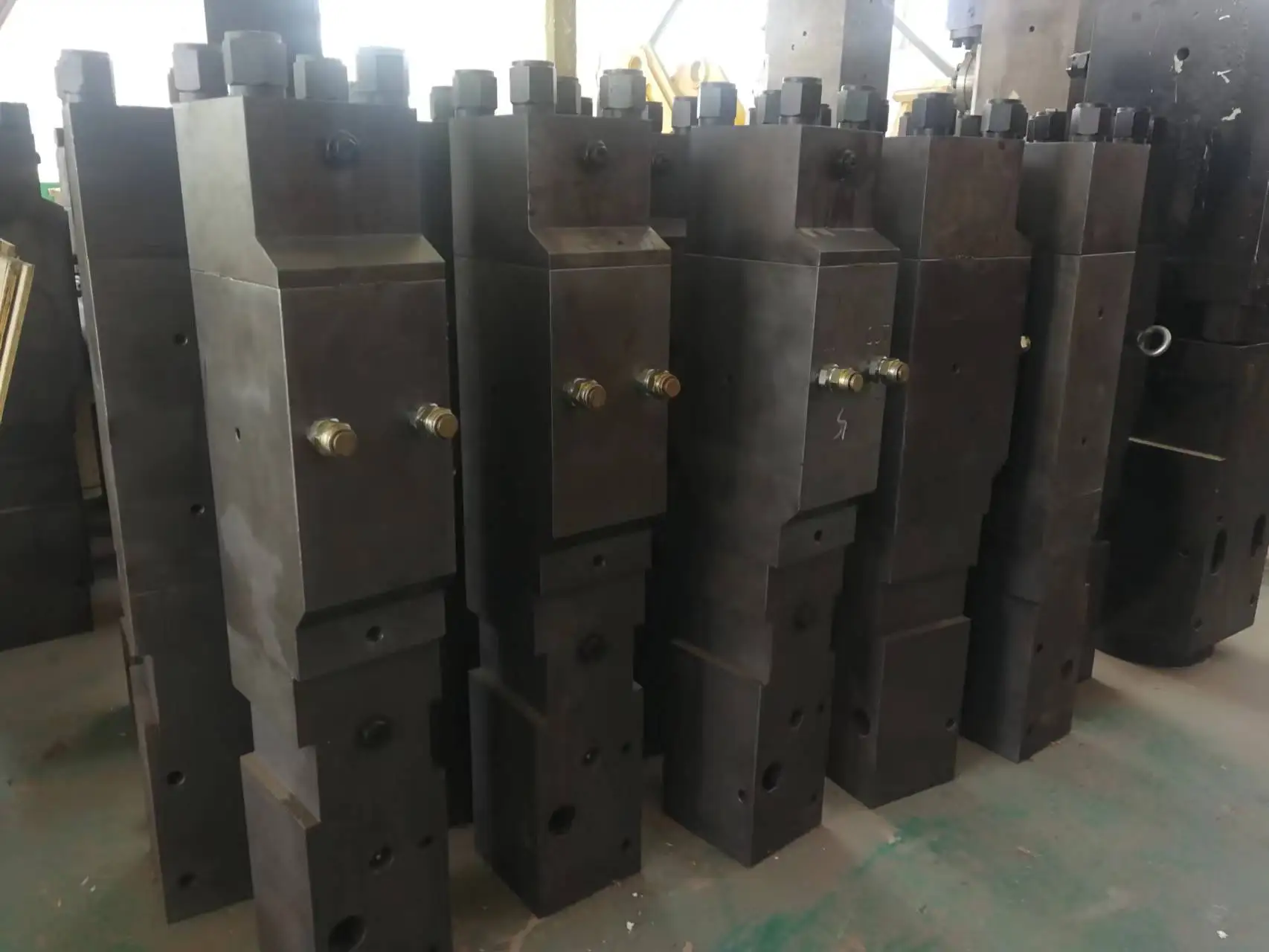

Cylinder-20CrMo
Cylinder-20CrMo
Brackets-Q345 steel
Bushing-20CrMo
Imported DONGYANG brand breaker from Korea since 1998 and participate in the Shanghai Bauma exhibition together, and as Korean brand stable supplier now with positive reviews
Always hire Korea Engineers to study Korean technology to produce SOOSAN and FURUKAWA series breakers
Specialized in R&D Heavy-duty hydraulic breakers. already successfully developed breakers with 210 mm and 230 mm diameter. Chisel
Comments from Customers
A harsh working environment can test the quality of a product. Feel free to contact me to view more customer reviews. Our hydraulic breakers are mostly used in mines and quarries for round-the-clock work.
How to make your money and goods safe?
We can make a deal through Alibaba, and draft an assurance order, you can pay it through credit card and bank transfer. It can protect your side interests. You also track the shipping information of your goods
Packing
1. Inner is stretch film
2. Outside is export wooden case
3. As per customer's request
Delivery time: Usually 3-7days after down payment. We could arrange ocean or air transportation according to your request from any port of China.
2. Outside is export wooden case
3. As per customer's request
Delivery time: Usually 3-7days after down payment. We could arrange ocean or air transportation according to your request from any port of China.
Factory in a Glance
Our Service and RFQ
You deserve a good a good sales and service person and product.
1. 7Days*24Hours after-sales service by email and phone2. Providing local market information and trends and how to develop market
3. Your inquiry will be replied in 24 hours during working days
4. Our customer-oriented sales and technical team are always at your service
5. Warranty: 18 months warranty for hydraulic breaker, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).
Q: Are you a manufacturer?
A: Yes, our factory was established in 2004 and we have ability to trading
Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.
Q: Can you provide customers' design?
A: Sure, we can provide OEM and ODM services. Also, we can design new appearance for you
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T, Western Union accepted, other terms can be negotiated.
Q: How about the delivery time?
A: 5-15 workdays after the payment, depending on your quantity.
Q: How about the package?
A: All wrapped by stretch film, packed by pallet or polywood case.
