Bangzheng Suit cutting machine lady suit cnc cutting machine
- Category: >>>
- Supplier: Shandong Bangzheng Machinery Equipment Co. Ltd.
Share on (1601208956804):
Product Overview
Description
Product Description
clipping height | 1-11 cm | ||||||
Effective cropping width | 1700mm | ||||||
Effective cutting length | Automatic feeding unlimited length | ||||||
Automatic feeding unlimited length | Automatic feeding unlimited length | ||||||
Way of transporting the knife | Way of transporting the knife | ||||||
cutting speed | 0-60m/min | ||||||
Cutting knife grinding | Double wheel counter-rotating grinding | ||||||
Adsorption method | Frequency conversion vacuum constant pressure control mode | ||||||
safety devices | automatic induction | ||||||
using electric | Three-phase AC380V/50Hz/25Kw | ||||||
operation panel | touch control panel | ||||||
clipping parameters | Input LAN, USB | ||||||
Device weight | About 4500Kg | ||||||
Other functions | Mobile cutting device, automatic feeding device, pattern scanning, adsorption bed | ||||||
operating system | Supports the overall rotation of the nesting chart, knife-edge conversion, single-piece recutting, one-key deletion of overlapping areas (supports removal of repeated lines), automatic multi-layer cutting bed for residual cloth cutting, automatic cloth spreading machine, and air floatation table | ||||||
1. The nesting system adopts computer design, which effectively combines manual and computer automation to improve the nesting efficiency;
2. It can realize zero-distance cutting and effectively save raw materials;
3. Computer-controlled automatic cutting, replacing a large number of workers, to achieve mass production;
4. The pieces cut by the equipment have high cutting precision and can be directly sewn, effectively improving the sewing efficiency of lathe workers;
5. The cutting machine control software supports multi-source data formats: it can directly receive common clothing design and typesetting software, etc.;
6. The unique algorithm and motion control technology realize the seamless connection of straight lines and arcs with high cutting precision;
7. The device adopts automatic sharpening technology. The sharpening time can be designed according to the characteristics of the fabric to effectively prolong the service life of the tool;
8. No need to print and save paper plates, high reuse rate, easy to manage plate making;
9. The replacement of consumables is simple and the replacement cost is low;
10. High degree of automation and simple operation.
2. It can realize zero-distance cutting and effectively save raw materials;
3. Computer-controlled automatic cutting, replacing a large number of workers, to achieve mass production;
4. The pieces cut by the equipment have high cutting precision and can be directly sewn, effectively improving the sewing efficiency of lathe workers;
5. The cutting machine control software supports multi-source data formats: it can directly receive common clothing design and typesetting software, etc.;
6. The unique algorithm and motion control technology realize the seamless connection of straight lines and arcs with high cutting precision;
7. The device adopts automatic sharpening technology. The sharpening time can be designed according to the characteristics of the fabric to effectively prolong the service life of the tool;
8. No need to print and save paper plates, high reuse rate, easy to manage plate making;
9. The replacement of consumables is simple and the replacement cost is low;
10. High degree of automation and simple operation.
Product advantages

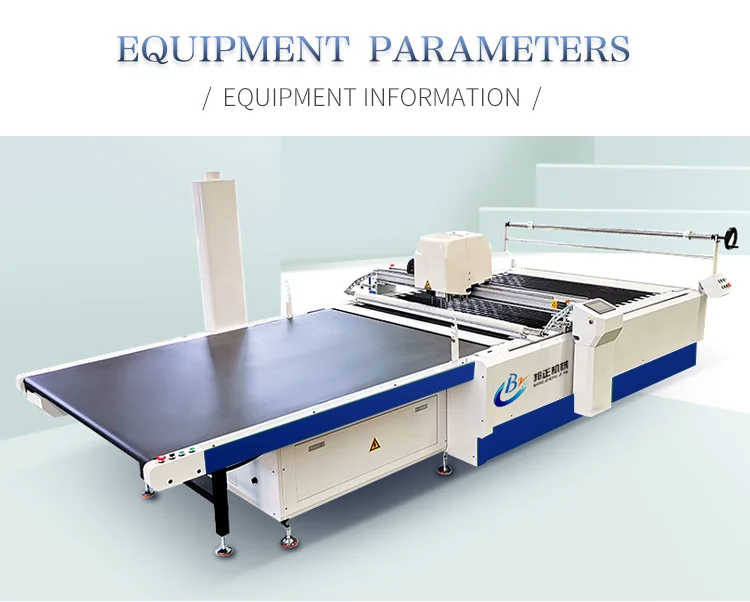

Product parameters
Product model: GSD-1825 | ||||||||
Cutting height: 1-11cm (after adsorption) | ||||||||
Effective cutting width: 1800mm | ||||||||
Effective cutting length: 2500mm | ||||||||
Tool transport method: reciprocating tool transport | ||||||||
Operating speed: 0-1000mm | ||||||||
Cutter grinding: double-wheel counter-rotating grinding (automatic grinding) | ||||||||
Adsorption mode: variable frequency vacuum constant pressure control mode | ||||||||
Safety device: automatic sensing | ||||||||
Power supply: three-phase AC380V/50Hz 25Kw | ||||||||
Operating computer: ordinary computer, Windows7 | ||||||||
Operation panel: touch control panel | ||||||||
Cropping parameters: input LAN, USB | ||||||||
Unit weight: about 3000Xg | ||||||||
Standard assembly function: 1. Automatic adjustment of cutting speed 2. Cutting vacuum secondary compensation (follow-up filmcovering air supply) 3. Inductive safety protection device 4. Automatic sharpening device | ||||||||
Operating system: support the overall rotation of the layout diagram, knife edge conversion, single piece re-cutting, one-key deletion of overlapping areas (support the removal of duplicate lines), and residual cutting | ||||||||

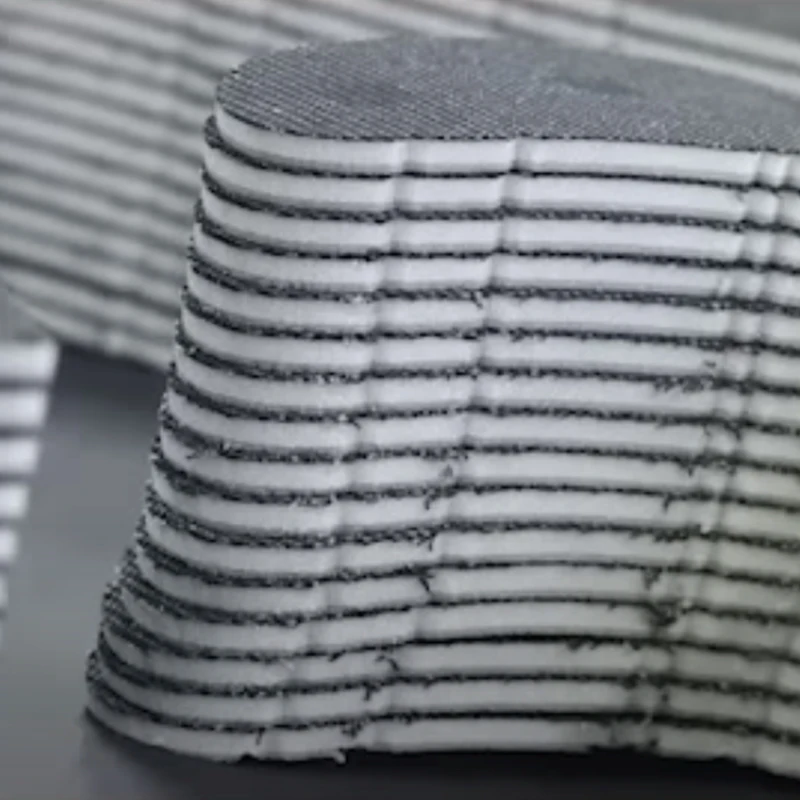

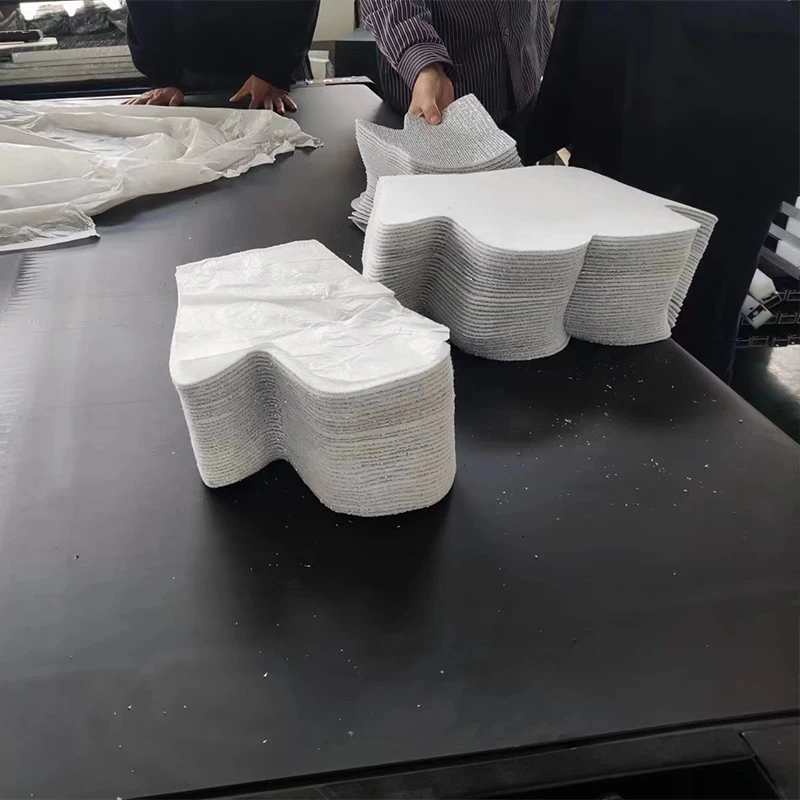

product display
Scenario shows

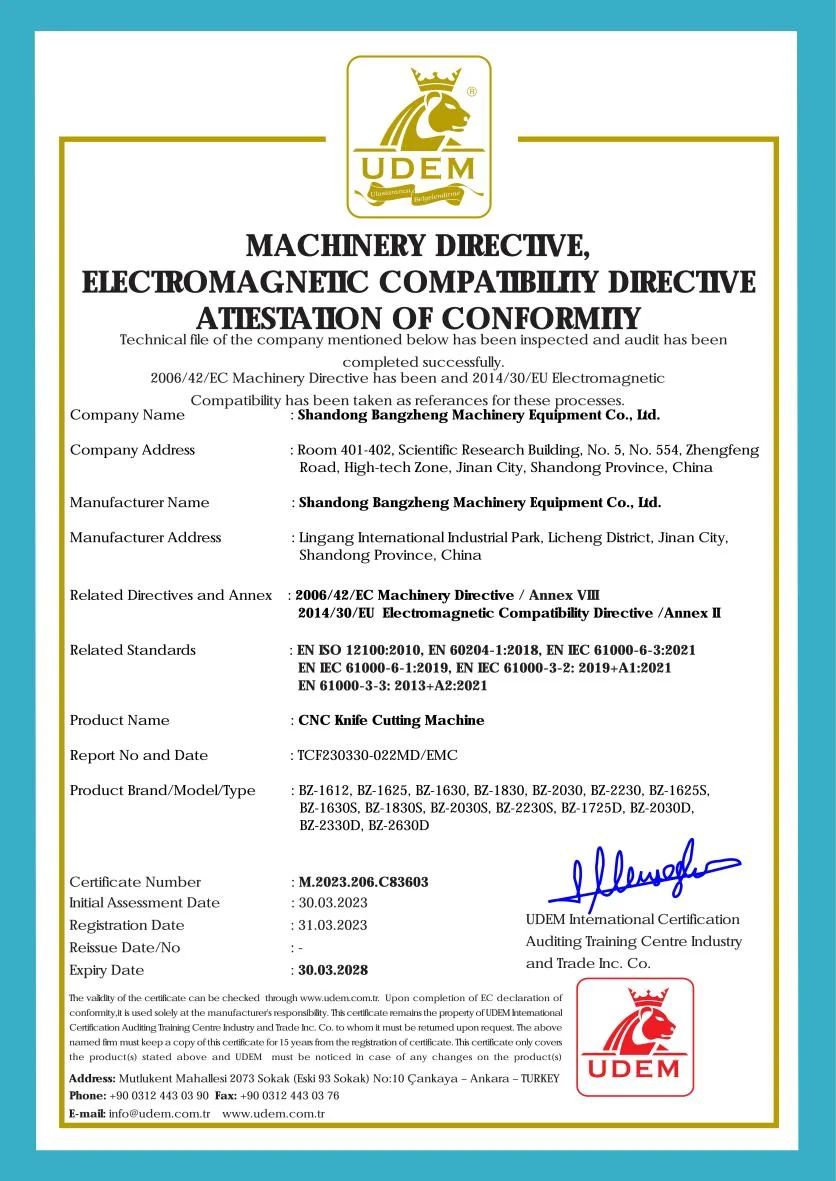

Enterprise honor

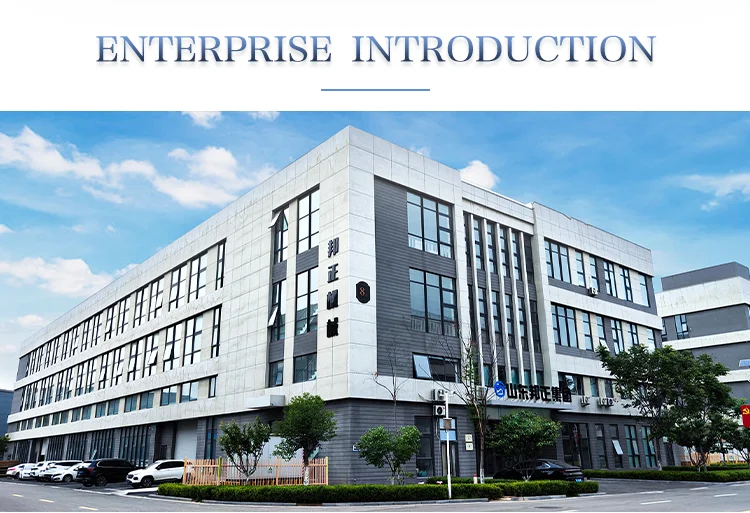

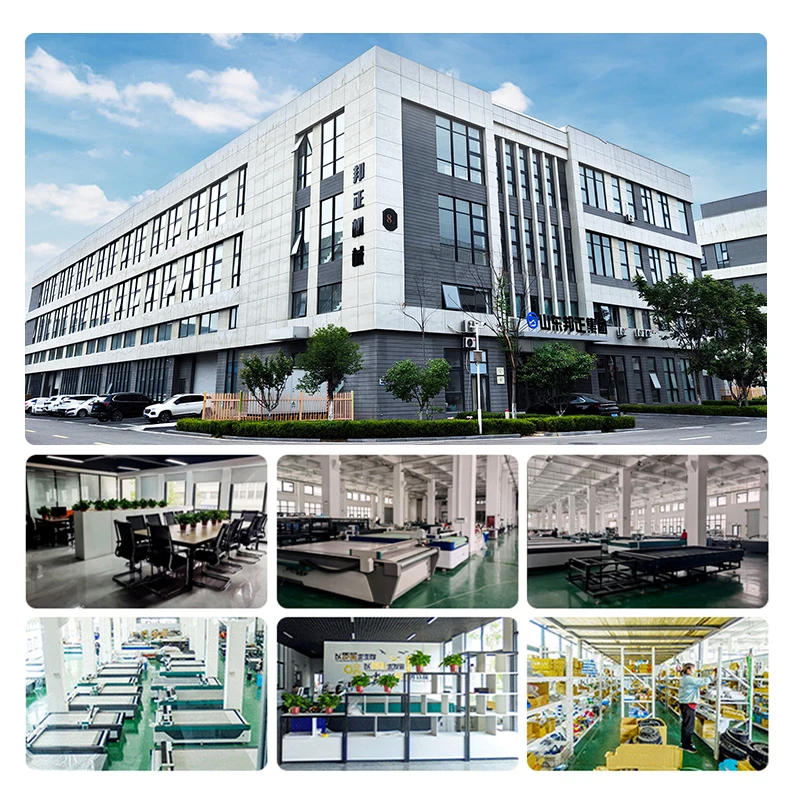

Company Profile Shandong Bangzheng Group is a physical factory specializing in flexible material cutting. As a professional manufacturer with many years of industry experience, we have built a solid reputation for quality and reliability. Our company is dedicated to providing superior cutting solutions for a wide range of applications, including automotive, aerospace, electronics, fashion and more. We have a team of highly skilled specialists who are dedicated to delivering cutting edge technology and unparalleled customer service. The state-of-the-art cutting machines we manufacture ensure our clients can handle complex projects with ease. Additionally, we invest in ongoing employee training and development, allowing us to stay ahead of industry trends and provide the highest level of service to our clients. At Shandong Bangzheng Group, we take pride in our commitment to quality. We work closely with our customers to understand their unique cutting needs and develop custom solutions that meet their specific requirements. Our goal is to exceed our clients' expectations by providing flexible and reliable cutting services to enhance their business operations. If you are looking for a reliable cutting solution provider for your business, Shandong Bangzheng Group is the right choice. We are your partner in success and stand by our commitment to quality and reliability in all our services. Contact us today to learn more about our cutting services and how we can help you achieve your business goals.
Packing and shipping
FAQ
Q: Are you a factory or a trading company?
A: We are a factory, we have the right to import and export, many customers come to visit our factory every year, you are welcome to come to our factory at any time.
Q: How can I tell if this cutting machine is suitable for me?
A: First, you should share something about the material to be processed (length*width*height, breathable or not) and other specific requirements, such as additional drawing function, punching function, etc. We will make the first round of udgment based on our experience. If necessary, we'll make a demo clip for you, then we'll share the video with you and discuss possible solutions.
Q: Is it easy to operate this machine for the first time?
A: We will send you English manual and guide video, it can teach you how to operate the machine. If you still can't learn how to use it, we can talk by phone, email or other contact methods.
Q: Is there any after sales service?
A: We have integrated after sales service. Besides our own experienced engineers, we also offer local after sales service through the help of our agents. All this will make you convenient.
