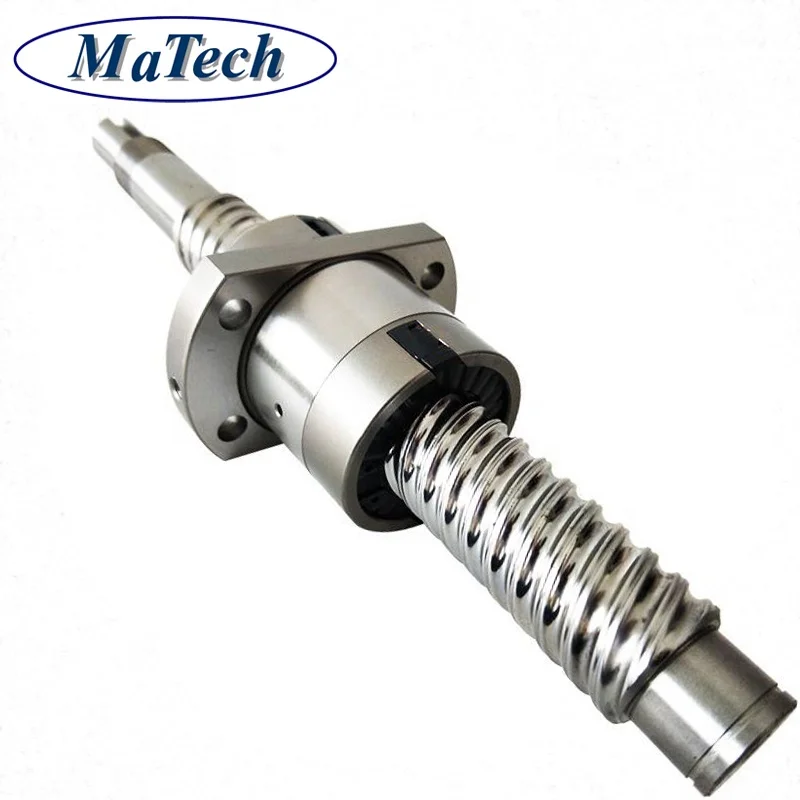

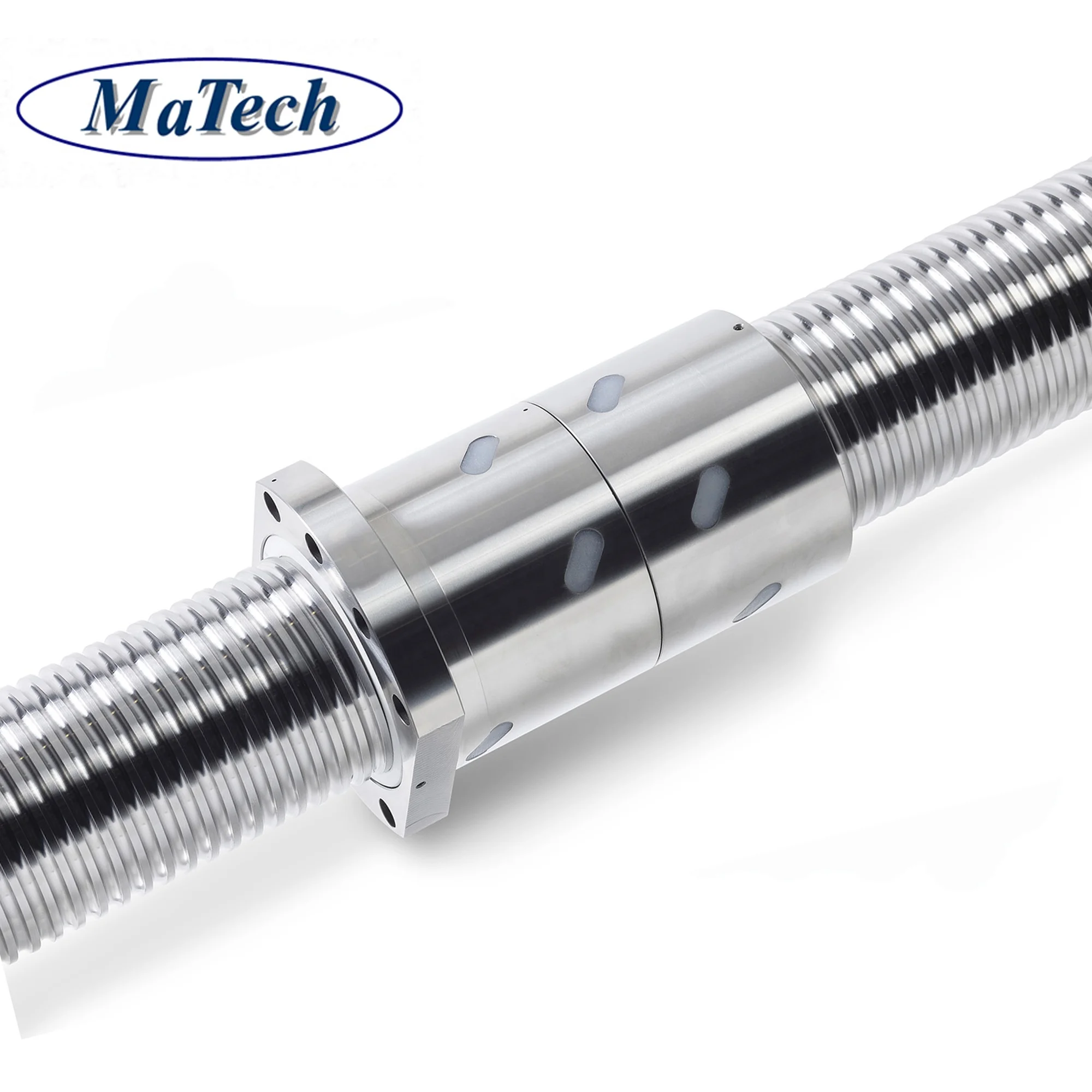

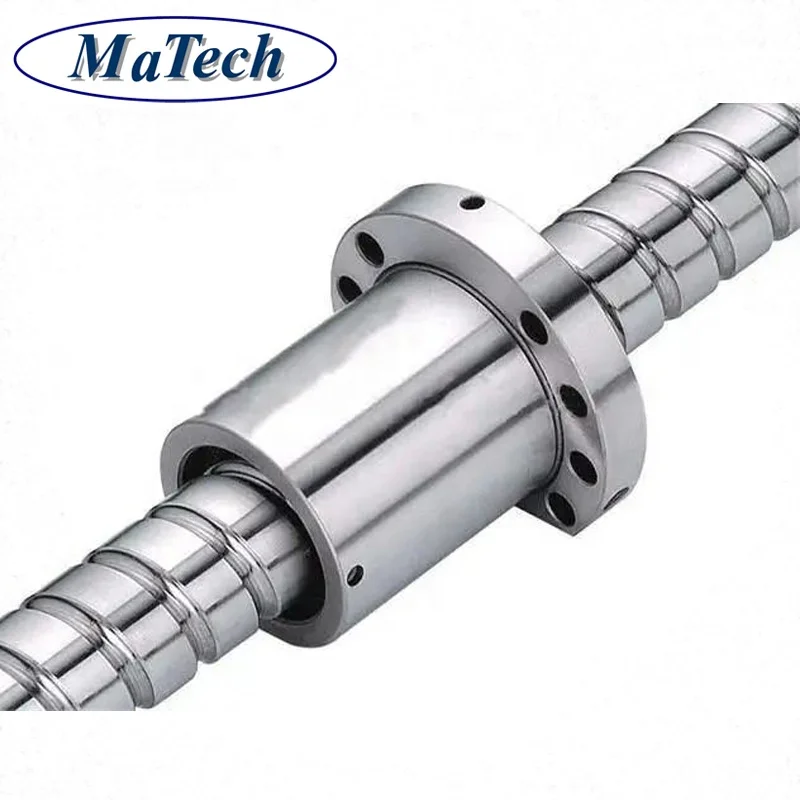

Matech Factory Custom based on drawing Precision Ball Screw Cnc Linear Rail Guide Rail 2 Axis
- Category: >>>
- Supplier: Shanghai Matech Machinery Manufacture Corporation Ltd.
Share on (1601209043784):
Product Overview
Description
Product Description
Item Name | Matech Factory Precision Ball Screw Cnc Linear Rail Guide Rail 2 Axis |
Material | Bearing steel, alloy steel, GCr15 and so on |
Grade | C7, C5, C3 for ball screw with external return tube |
Length | From 10mm to 10000mm for ball screw with external return tube, can be customized based on customers requirement |
Flange Type | No cutting, Single Cutting, Double Cutting |
Nut type | Single or double nuts |
Produce Code | Ground, Rolled for ball screw with external return tube |
Production Process | Cold Rolling, CNC Grinding, Whirling Milling |
Feature | High stiffness High efficiency High load & speed High Precision & low noise |
Application | CNC machine, 3D printing machinery, chemical machinery, woodworking machinery, engraving machines, window machines, high speed machinery, semi-conductor equipment, robot, railways, automation applicationand etc |
Our Services | Custom ball screw with external return tube based on drawings or samples |
Delivery Time | 3 days for sample order, bulk order need to be negotiated |
Products shown here are made to the requirements of specific customers and are illustrative of the types of manufacturing capabilities available within MATECH group of companies.
MATECH policy is that none of these products will be sold to 3rd parties without written consent of the customers to whom the tooling, design and specifications belong.
Ball screw according to GB classification there are P class and T class, that is, transmission class and positioning class, the accuracy level has 1, 2, 3, 4 ..... Several kinds, foreign products generally do not distinguish transmission or positioning, all to C0 ~ C10 or specific values.
In general, general-purpose machinery or ordinary CNC machinery selected C7 (any 300 stroke within the positioning error ± 0.05) or below, high-precision CNC machinery selected C5 (± 0.018) above C3 (± 0.008) below, optical or detection machinery selected C3 above.
In general, general-purpose machinery or ordinary CNC machinery selected C7 (any 300 stroke within the positioning error ± 0.05) or below, high-precision CNC machinery selected C5 (± 0.018) above C3 (± 0.008) below, optical or detection machinery selected C3 above.
Ball screw bearing specifications selection
(1) Determine the positioning accuracy;(2) Determine the lead of the ball screw bearing by the motor and the speed requirement;
(3) Check the nut size to determine the stroke and related data of the shaft end of the screw bearing;
(4) Determine the average axial force and speed by load and speed distribution (acceleration and deceleration);
(5) Determine the pre-pressure from the average axial force;
(6) Determine the dynamic load rating by life expectancy, axial load and speed;
(7) Determine the outer diameter of the screw bearing and the nut form by the basic dynamic load rating, lead, critical speed, and DmN value limit;
(8) The outer diameter, nut, preload, and load determine the rigidity (machine design);
(9) Ambient temperature, total length of the nut to determine the thermal variation and cumulative lead;
(10)Screw bearing rigidity, thermal variation position to determine the pre-tension;
(11)Maximum machine speed, temperature rise time, and screw bearing specifications determine motor drive torque and specifications.
↓ ↓ ↓ ↓ ↓ ↓
Click here to get a free quotation!The basic difference between lead screws vs ball screws is that a ball screw uses ball bearings to eliminate the friction between the nut and screw and lead screws.
Lead screws use deeper helical threads and a mating nut, which is usually made of a polymer composite or bronze.
