100X 16Q water tank automatic replenishment valve flange water level control valve ductile iron remote control float valve
- Category: >>>
- Supplier: Henan Chengxiang Import And Export Co. Ltd.Henan Ltd.
Share on (1601209065974):
Product Overview
Description
Certifications
Products Description

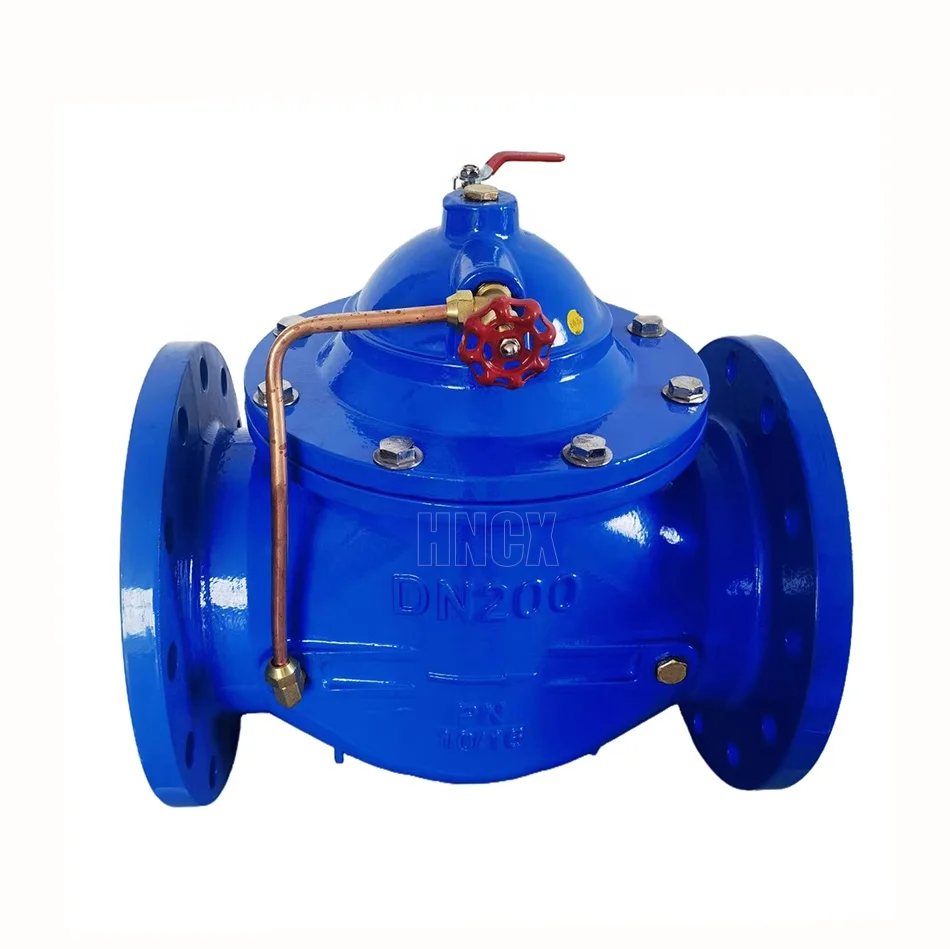

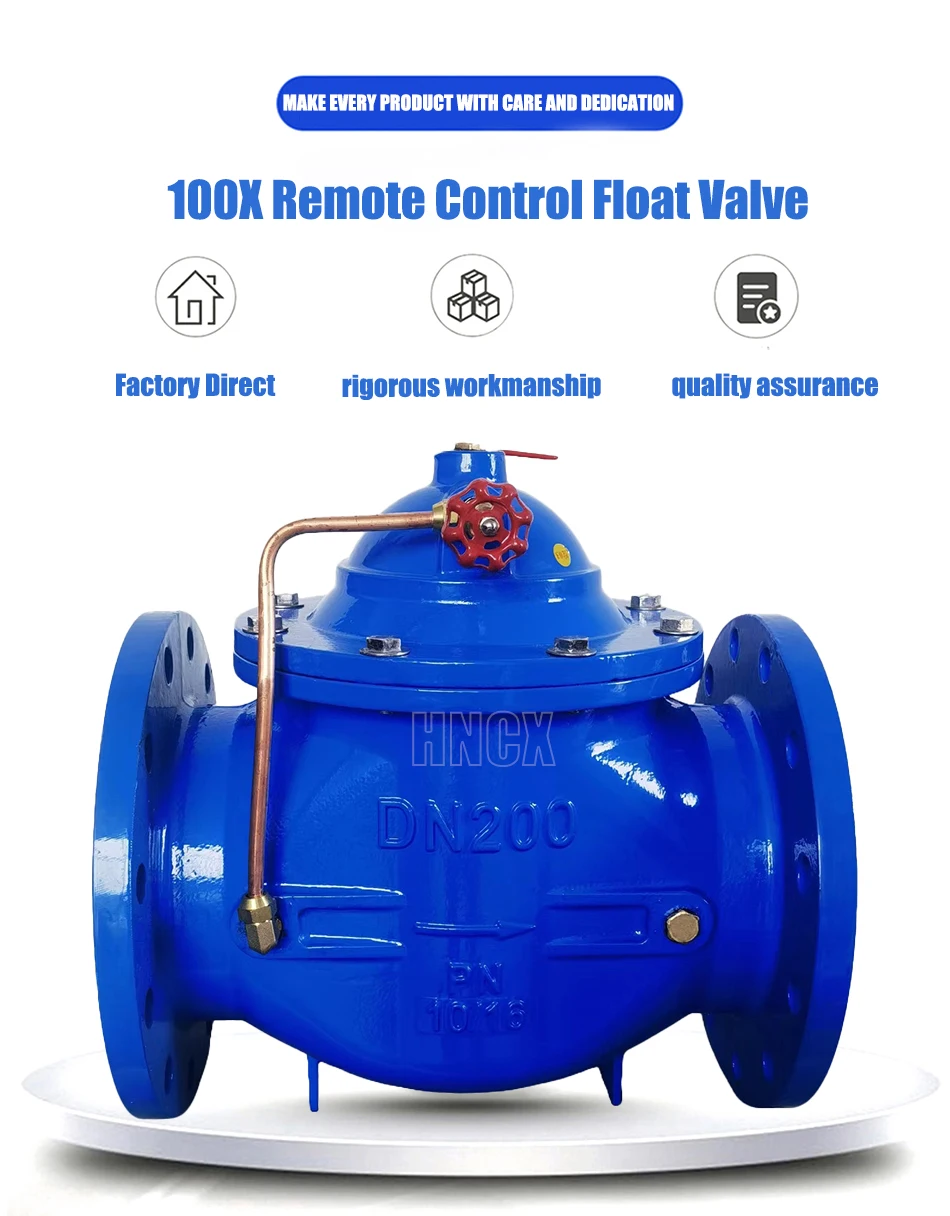

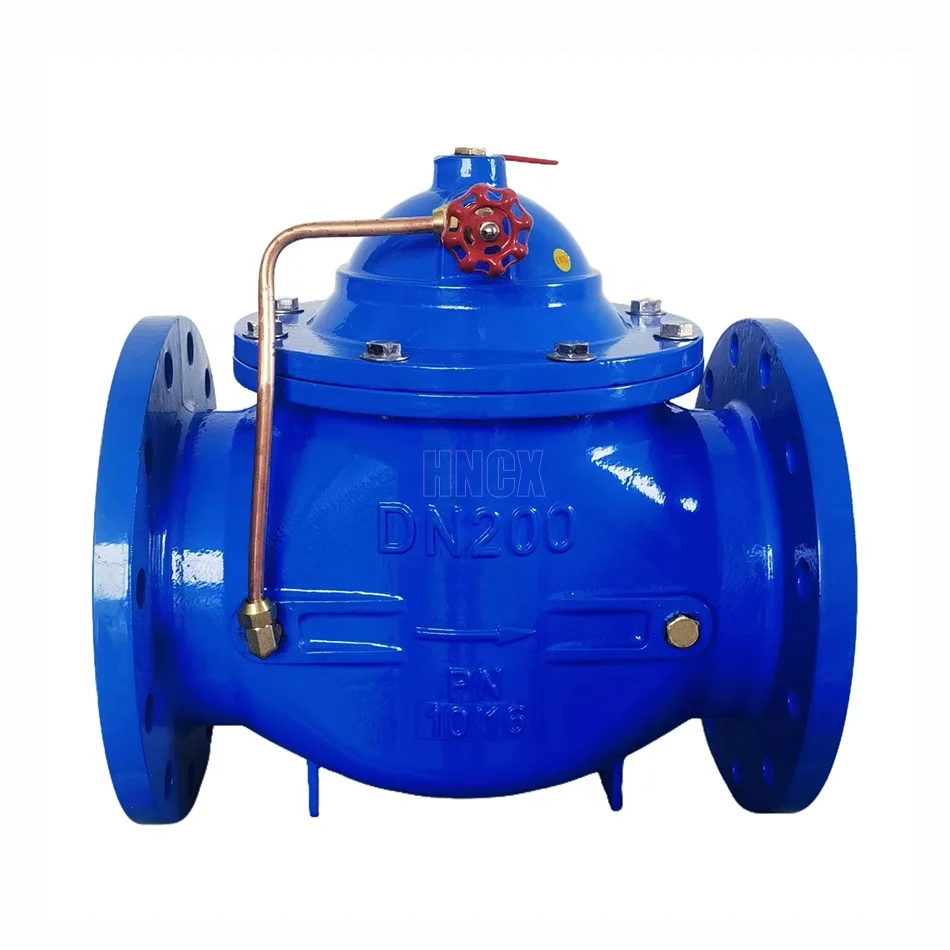

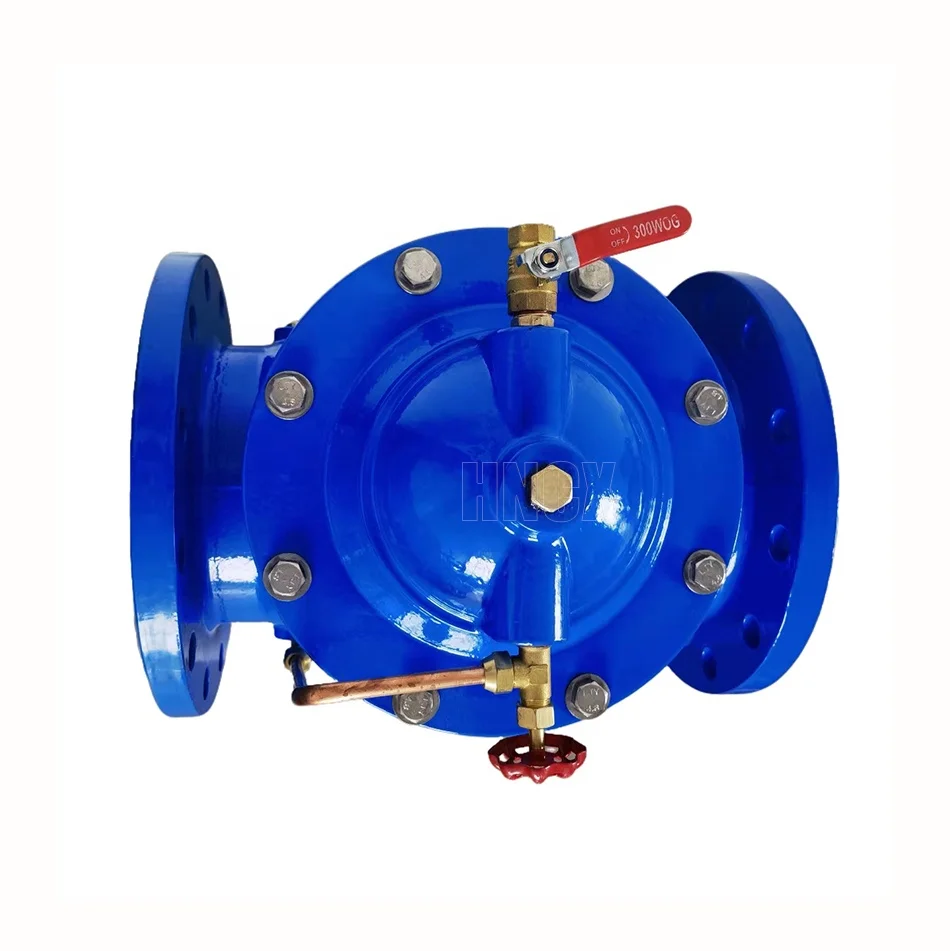

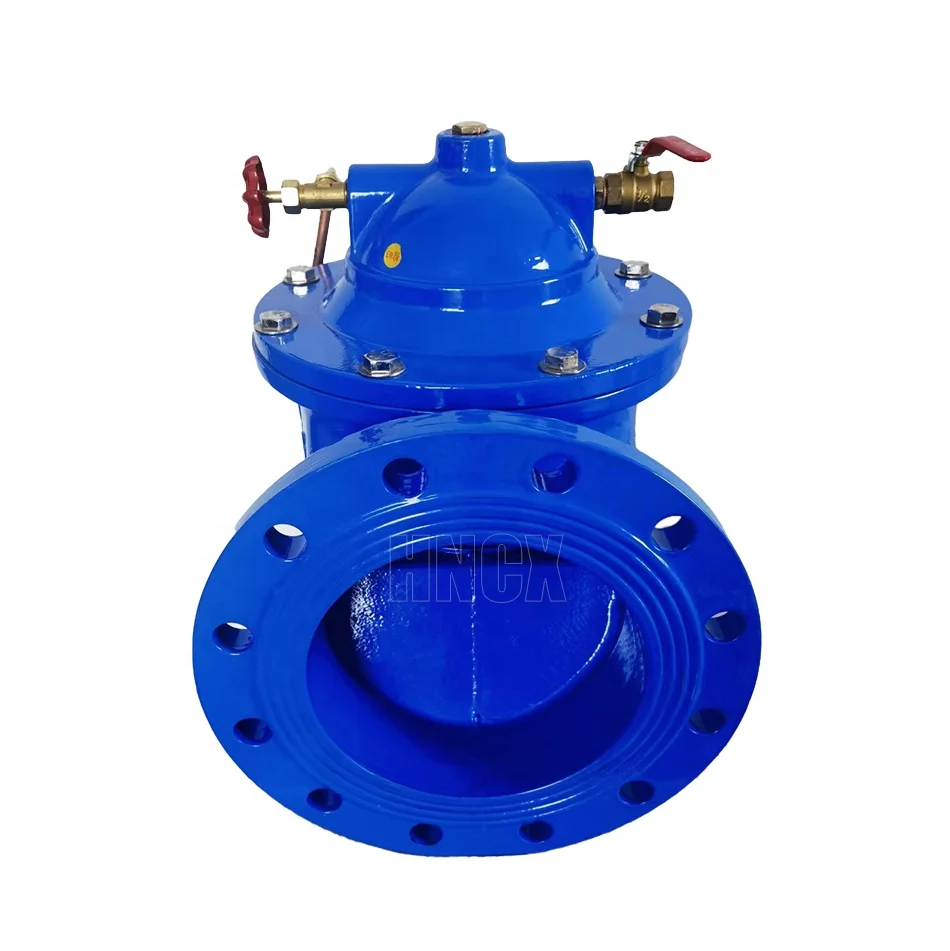

100X Remote Control Float Valve
I. Product Overview of 100X Remote Control Float Valve
100X Remote Control Float Valve is a hydraulic control valve to control the level of water pool. Using the water pressure upstream of the pipeline to push the valve to rise, open the valve, water supply to the pool; when the pool page reaches the required height, the float rises under the action of buoyancy, thus closing the valve and cutting off the pipeline to the pool discharge. When the pool discharged water, the float down, open the upper chamber of the circulation, at this time, the upstream pressure and make the valve flap rise, open the valve, so that the pipeline continues to supply water to the pool. This valve, the float moves quickly, because the control accuracy is high, flexible and durable, the water level is not disturbed by water pressure and close tightly without leakage.
Second, 100X remote control float valve technical parameters
1.nominal pressure: 1.0MPa, 1.6MPa, 2.5MPa
2. Shell test pressure: P = 1.5PN
3. Seal test pressure: P=1.1PN
4. Applicable medium: water
5. Applicable temperature: 0-80°C
100X Remote Control Float Valve is a hydraulic control valve to control the level of water pool. Using the water pressure upstream of the pipeline to push the valve to rise, open the valve, water supply to the pool; when the pool page reaches the required height, the float rises under the action of buoyancy, thus closing the valve and cutting off the pipeline to the pool discharge. When the pool discharged water, the float down, open the upper chamber of the circulation, at this time, the upstream pressure and make the valve flap rise, open the valve, so that the pipeline continues to supply water to the pool. This valve, the float moves quickly, because the control accuracy is high, flexible and durable, the water level is not disturbed by water pressure and close tightly without leakage.
Second, 100X remote control float valve technical parameters
1.nominal pressure: 1.0MPa, 1.6MPa, 2.5MPa
2. Shell test pressure: P = 1.5PN
3. Seal test pressure: P=1.1PN
4. Applicable medium: water
5. Applicable temperature: 0-80°C
Third, 100X remote control floating ball valve structure size
DN | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
L | 150mm | 160mm | 180mm | 200mm | 203mm | 216mm | 241mm | 292mm |
DN | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
L | 330mm | 356mm | 495mm | 622mm | 698mm | 787mm | 914mm | 978 |
Product application
Our factory valve products project installation site

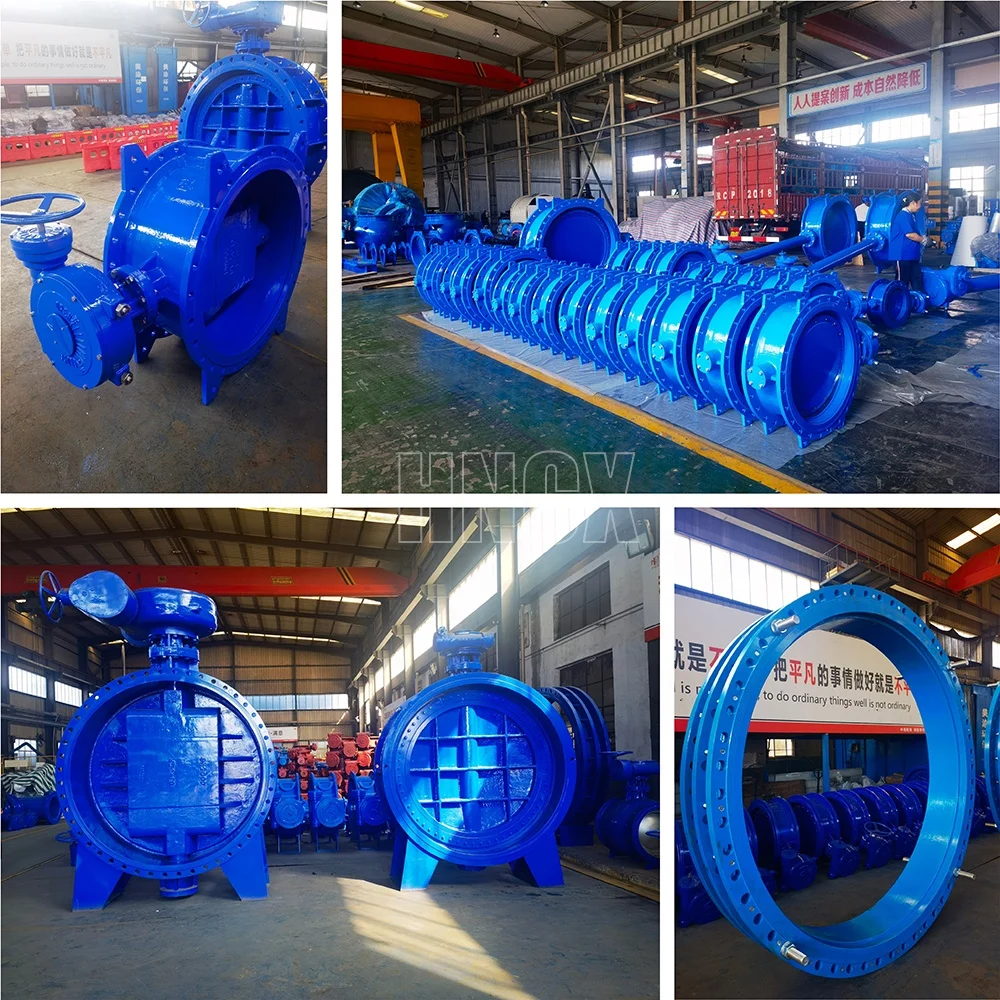

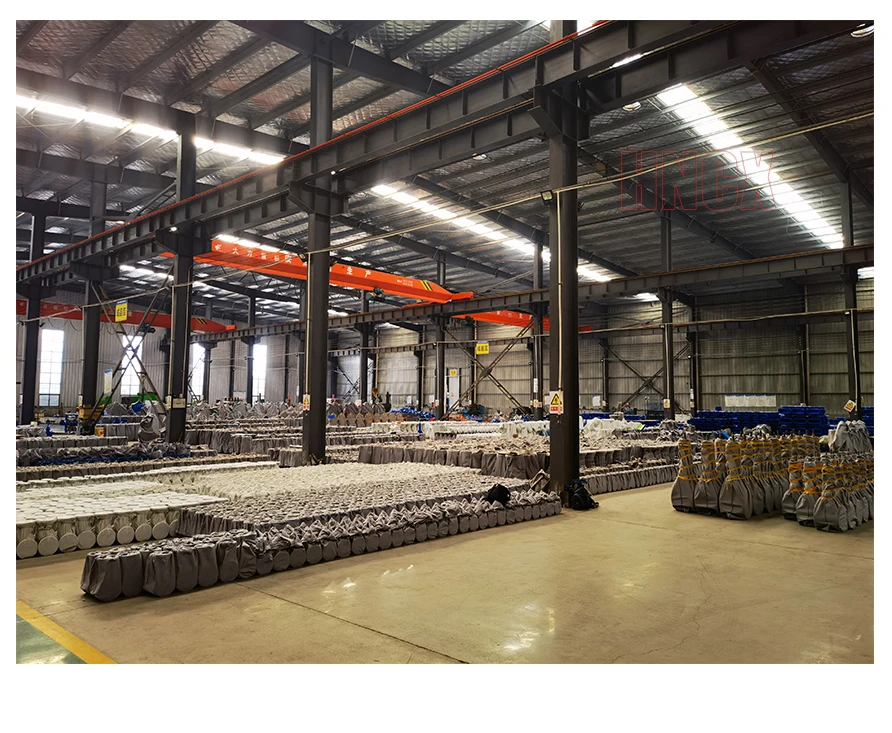

Factory display
Company Profile
Henan Chengxiang Import and Export Co., Ltd., Factory founded in 1988, covers an area of 26600 square meters, is located in Zhengzhou, the national central city, China's logistics and transportation center, and the historical and civilized city of the Yellow River. For more than 30 years, Henan Chengxiang based on quality, strengthen management, advocating credibility, customer first business philosophy. Since its inception, the international leadership as the goal of progress, all the way forward, never stop!
From Zhengzhou, to the world!
As a modern industrial valve manufacturing enterprise integrating scientific research, manufacturing, sales and service of valves, we have strong technical force and modern quality inspection and testing center. Henan Chengxiang's main products cover two-way metal hard seal butterfly valve, two-way double eccentric soft seal butterfly valve, top-mounted full bore soft and hard double seal hemispherical valve, two-way metal hard seal rotary ball valve, elastic seat seal gate valve, telescopic joints and other series of products. Caliber from DN100 to DN4000. Products through TS (special equipment production license) ISO9001 (quality management system certification) ISO14001 (environmental management system certification) ISO45001 (occupational health and safety management system certification) and other certification. Business scope extends to more than 160 countries and regions around the world.
Henan Chengxiang, a leading valve manufacturer at home and abroad, is positioned to provide customers with customized advice, services and the most suitable solutions and project requirements for you. Choose the most efficient manufacturing method to produce a variety of parts. Using the best technology to assemble a finished product, which is supported by a complete set of fully equipped mechanical workshop, to ensure the quality of our valves. Our highly skilled team takes strict control over the entire manufacturing and assembly process. From rough casting inspection, dimensional processing accuracy, surface treatment verification, functional assembly operation and control, all the way to post-assembly performance, pressure test, and final inspection before packaging, let us provide customers with a full range of services.
Take the customer's demand as the direction and the customer's satisfaction as the standard. Henan Chengxiang, which always adheres to customer-oriented, has formulated a perfect customer service system, which can provide diversified 24-hour full-process service before, during and after sales. Thanks to the strict requirements for quality and service, Henan Chengxiang has continuously won the trust of users and created a new height of the brand.
Henan Chengxiang's goal is to use our expertise and passion to become a trusted choice for all customers!
From Zhengzhou, to the world!
As a modern industrial valve manufacturing enterprise integrating scientific research, manufacturing, sales and service of valves, we have strong technical force and modern quality inspection and testing center. Henan Chengxiang's main products cover two-way metal hard seal butterfly valve, two-way double eccentric soft seal butterfly valve, top-mounted full bore soft and hard double seal hemispherical valve, two-way metal hard seal rotary ball valve, elastic seat seal gate valve, telescopic joints and other series of products. Caliber from DN100 to DN4000. Products through TS (special equipment production license) ISO9001 (quality management system certification) ISO14001 (environmental management system certification) ISO45001 (occupational health and safety management system certification) and other certification. Business scope extends to more than 160 countries and regions around the world.
Henan Chengxiang, a leading valve manufacturer at home and abroad, is positioned to provide customers with customized advice, services and the most suitable solutions and project requirements for you. Choose the most efficient manufacturing method to produce a variety of parts. Using the best technology to assemble a finished product, which is supported by a complete set of fully equipped mechanical workshop, to ensure the quality of our valves. Our highly skilled team takes strict control over the entire manufacturing and assembly process. From rough casting inspection, dimensional processing accuracy, surface treatment verification, functional assembly operation and control, all the way to post-assembly performance, pressure test, and final inspection before packaging, let us provide customers with a full range of services.
Take the customer's demand as the direction and the customer's satisfaction as the standard. Henan Chengxiang, which always adheres to customer-oriented, has formulated a perfect customer service system, which can provide diversified 24-hour full-process service before, during and after sales. Thanks to the strict requirements for quality and service, Henan Chengxiang has continuously won the trust of users and created a new height of the brand.
Henan Chengxiang's goal is to use our expertise and passion to become a trusted choice for all customers!
FAQ
Q:Who are we?
A:Our factory is headquartered in Zhengzhou Xingyang, founded in 1988, has rich experience in valve manufacturing, focusing on valve R & D, production and sales for more than 30 years!
Q:Can I order valve samples?
A:Of course. We welcome you to order samples for test and quality check.
Q:How do we ensure quality?
A:Before mass production, it is always the pre-production samples;
Always perform final inspection before shipment;
Q:Can you provide OEM or ODM services?
A:Yes, we have a professional valve technical team that can customize according to your specific requirements!
Q:What are your terms of delivery?
A:We accept EXW, FOB, CFR, DAP, etc. You can choose the one that is most convenient for you.
Q:Why Choose Us?
A:We have our own powerful factory to save you the intermediate price difference
We have been focusing on the field of valves for 36 years and have accumulated rich production experience. It helps us to provide better products and solutions to our customers.
Q:What is your shipment and delivery time?
A:By sea or air. Delivery is usually 7 to 14 days, depending on the quantity of your order.
Q:What's your packing method?
A:Wrap the product with plastic film first, then pack it into wooden cases.
A:Our factory is headquartered in Zhengzhou Xingyang, founded in 1988, has rich experience in valve manufacturing, focusing on valve R & D, production and sales for more than 30 years!
Q:Can I order valve samples?
A:Of course. We welcome you to order samples for test and quality check.
Q:How do we ensure quality?
A:Before mass production, it is always the pre-production samples;
Always perform final inspection before shipment;
Q:Can you provide OEM or ODM services?
A:Yes, we have a professional valve technical team that can customize according to your specific requirements!
Q:What are your terms of delivery?
A:We accept EXW, FOB, CFR, DAP, etc. You can choose the one that is most convenient for you.
Q:Why Choose Us?
A:We have our own powerful factory to save you the intermediate price difference
We have been focusing on the field of valves for 36 years and have accumulated rich production experience. It helps us to provide better products and solutions to our customers.
Q:What is your shipment and delivery time?
A:By sea or air. Delivery is usually 7 to 14 days, depending on the quantity of your order.
Q:What's your packing method?
A:Wrap the product with plastic film first, then pack it into wooden cases.
