Fully Automatic Dry Powder Milk Powder Mixing And Packing Machine Production Line
- Category: >>>
- Supplier: Shanghai Xiaoteng Automation Equipment Co. Ltd.
Share on (1601209084738):
Product Overview
Description
Fully Automatic Power Filling Packing Line
Products Description
Whole Packing Line include Bottle feeding turntable——Air blowing machine——Powder filling machine——Induction sealing machine——capping machine——Labeling machine.
The automatic bottle turntable is mainly used in the previous process of the filling production line, with the conveyor belt to complete the stacking, sorting and automatic orderly bottle into the conveyor belt of the next process, and has the role of buffer, is an indispensable auxiliary equipment of the automatic production line. The machine body is made of high-quality stainless steel, easy to clean and maintain. This machine is suitable for round bottle supply.
Air blowing machine is used after the empty bottle enters the bottle tipper in order, it will turn to 180° along the spiral cavity of the bottle tipper, so that the bottle or jar mouth faces down through the guardrail channel. When the photoelectric detects that there is , the air blow needle will start to blow for cleaning. After cleaning, it will enter another bottle tipper again, and the bottle or jar will also turn 180° to return to the original state and move to next machine.
Linear powder filling machine, This series machine is a new-designed that we make it on placing the old rotary filling type machine. Dual auger filling within straight machine main-assist fillers and the originated Feeding system can keep the high-precision and take off the tiring cleaning of the rotary type. It can do the accurate weighing & filling work, and also could combined with other machines to buildup a whole bottle-packing production line. This machine could be used in filling milk powder, albumen powder, condiment, dextrose, rice flour, cocoa powder, solid drink...
Induction Sealing Machine working principle is that under the action of high-frequency electromagnetic field, the aluminum foil generates a huge eddy current and rapidly heats up, melts the adhesive film of the lower layer of the aluminum foil and bonds with the bottle mouth, so as to achieve the purpose of fast non-contact airtight sealing. The main power element is mounted on a large radiator, and is cooled by forced air, and the heating sensor is cooled by circulating water.
High speed capping machine, When the bottle enters the capping process, after the cap size of the corresponding bottle is confirmed and adjusted, the bottle clamping mechanism will clamp the corresponding bottle body, reverse rotate the cap through the lower cap to adjust the bottle cap and enter to capping station, tighten the bottle cap through the corresponding capping wheel, and test the eligibility of the capping through the photoelectric detection device. Unqualified will be removed, and qualified will proceed to the next process.
Applicable Products
Detailed Picture

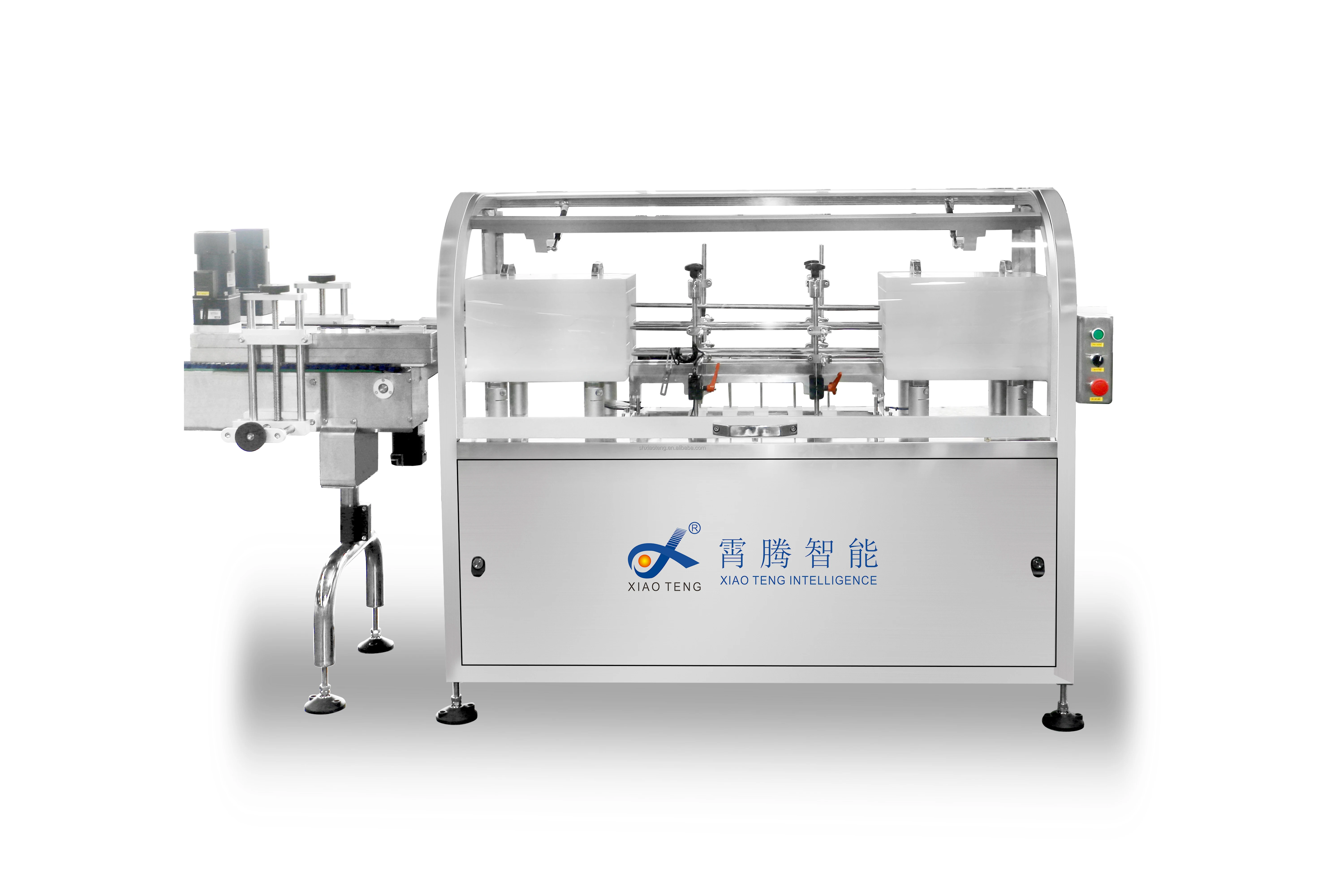

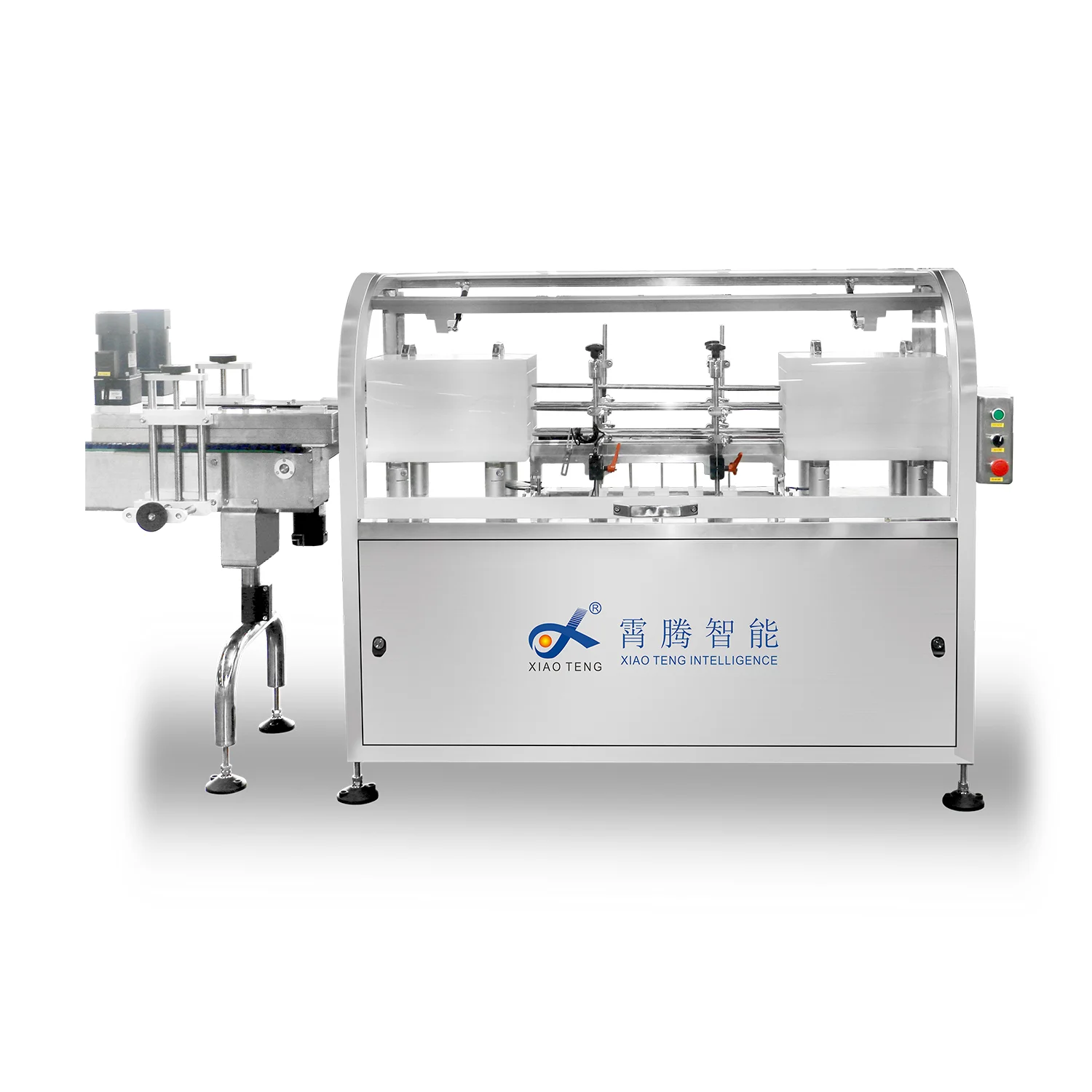

Air Blowing Machine
Easy to operate and adjust, compatible with a variety of different sizes of bottles.
The new bottle tilter is made of ultra-high molecular weight polyethylene material, which is simple in structure and occupies small space, and is more suitable for working in a narrow space.

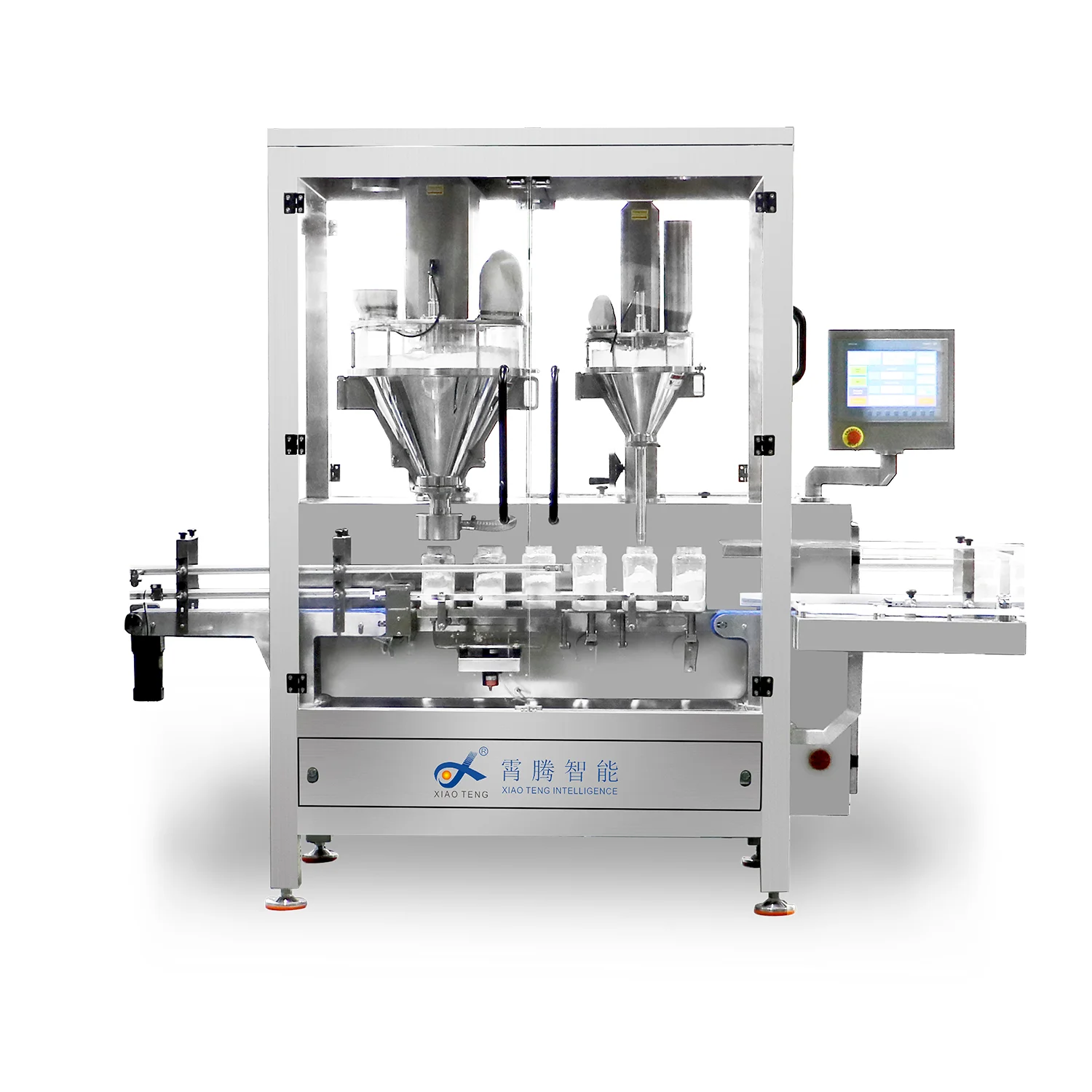

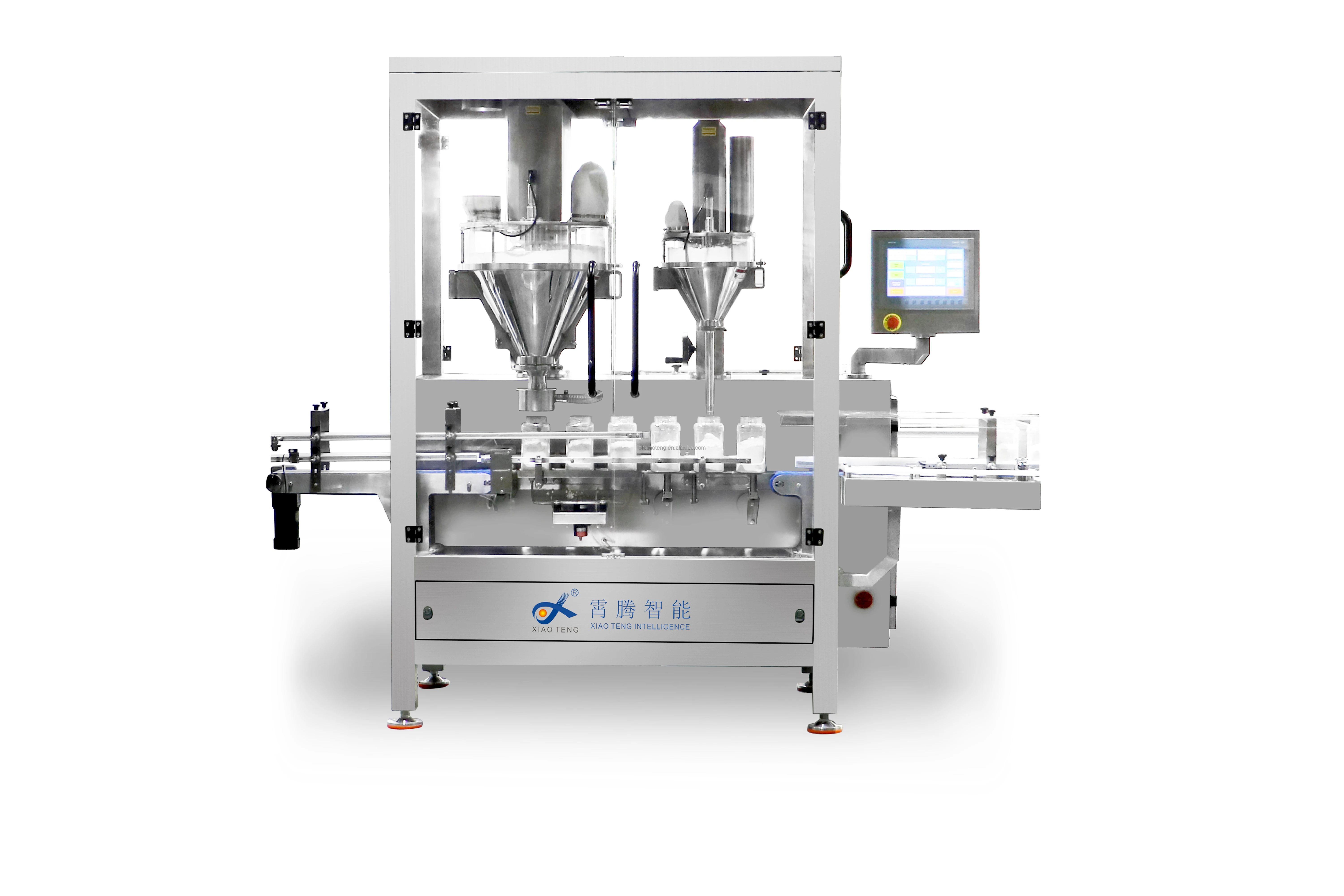

Powder Filling Machine
One line dual fillers, Main & Assist filling to keep work in high-precision.
Bottle-up and horizontal transmitting is controlled by servo and pneumatic system, be more accurate, high speed.
The handwheel make the change of different size bottles and volume to be easily.
Dust-collecting cover meet the pipeline and protect environment to pollution.

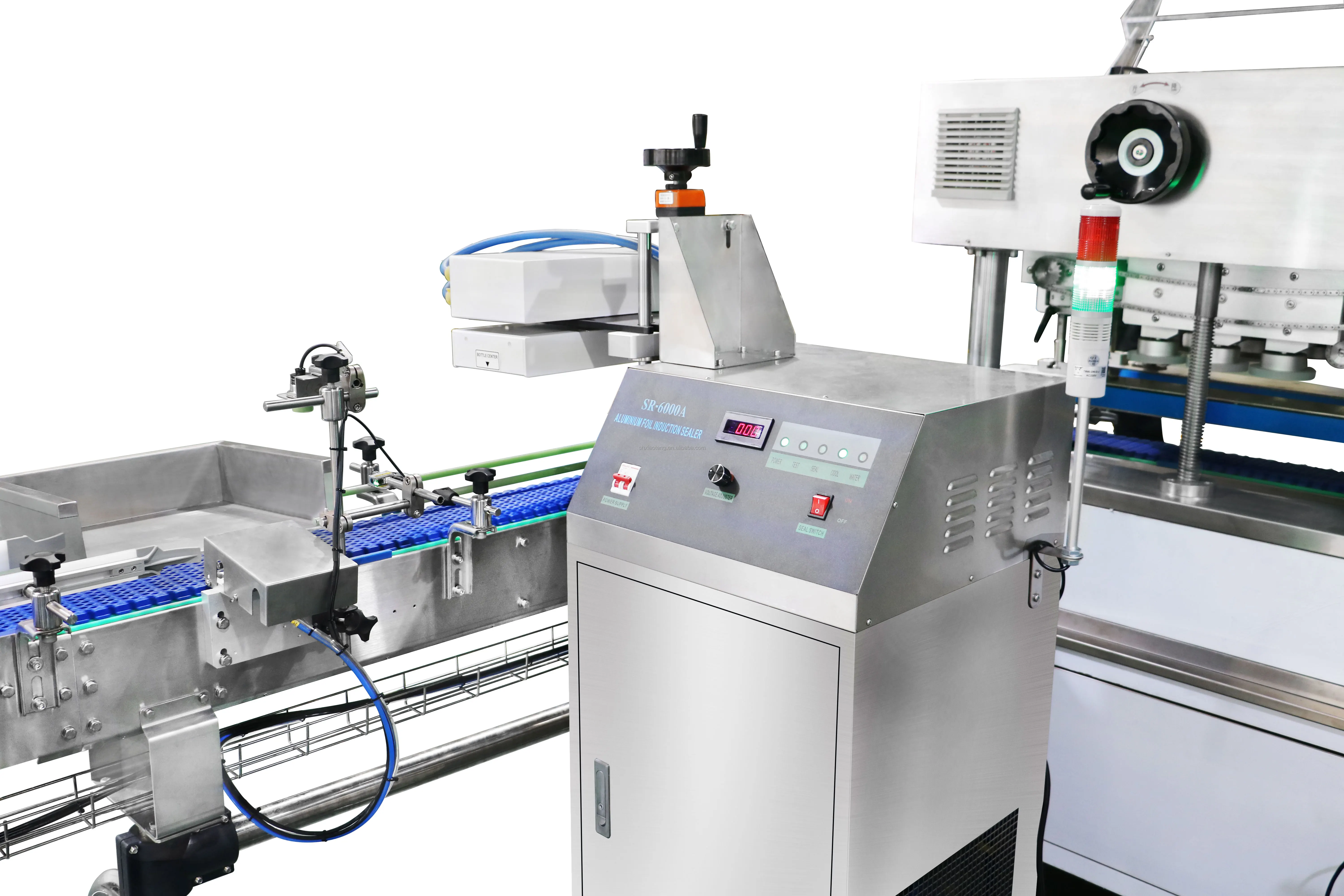

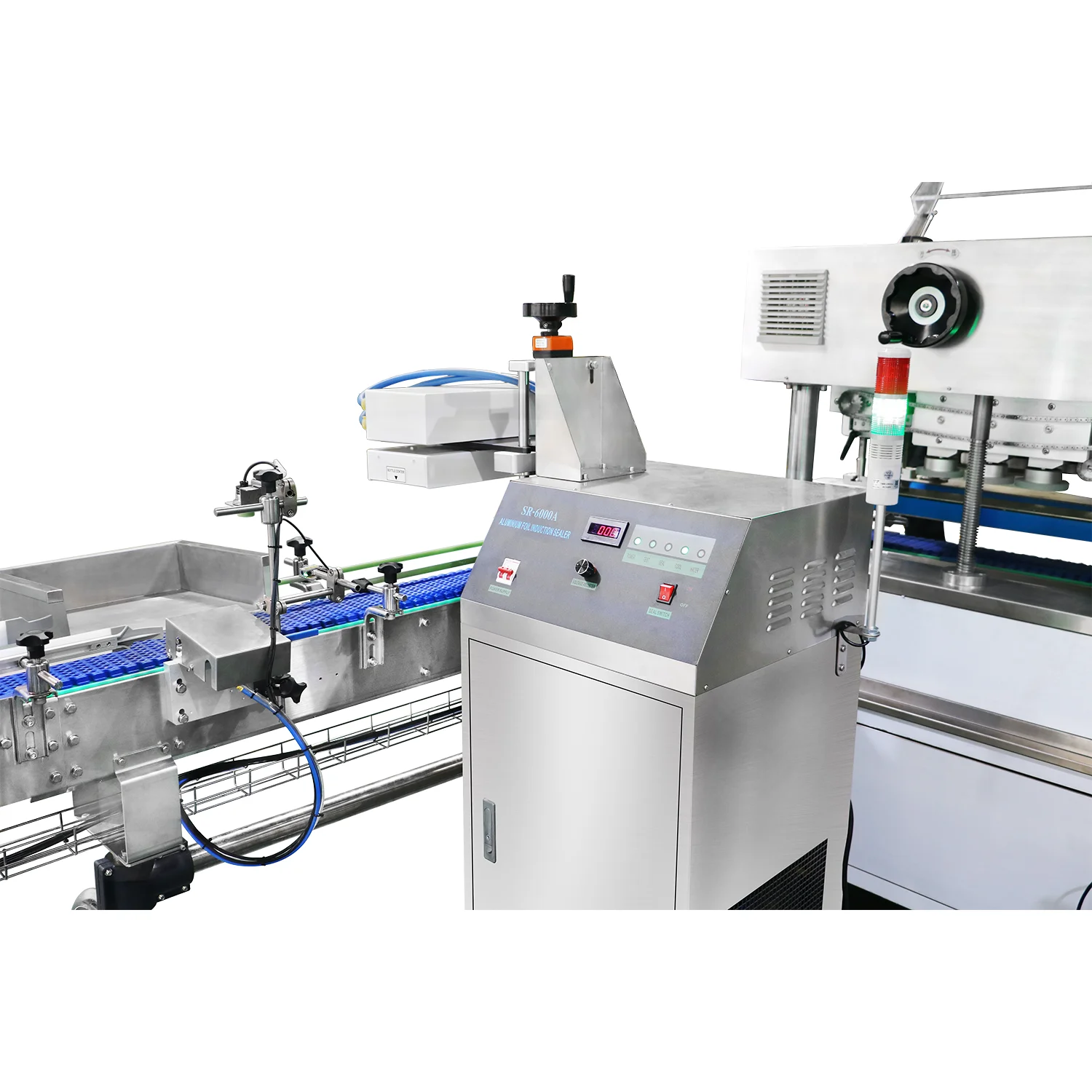

Induction Sealing Machine
Foil induction sealing machine, to seal the foil on container mouth, widly used in food, medicine, daily chemical industries.
Under the action of high-frequency electromagnetic field, the aluminum foil generates a huge eddy current and rapidly heats up, melts the adhesive film of the lower layer of the aluminum foil and bonds with the bottle mouth, so as to achieve the purpose of fast non-contact airtight sealing.

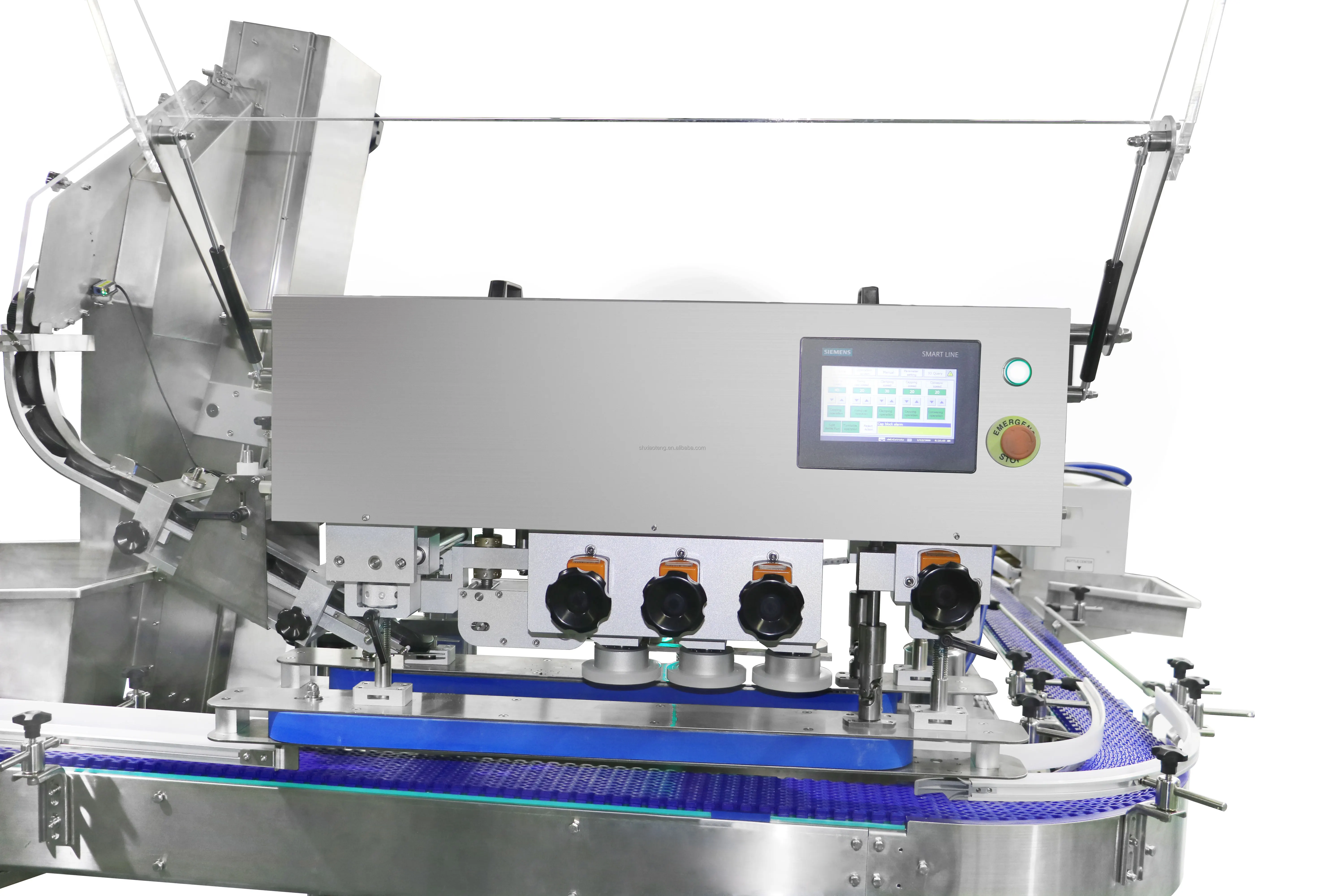

Capping Machine
High speed screw capping machine, The range of applicability is very wide, standard equipment is suitable for bottle cap diameter φ15mm-65mm.
Equipped with cap feeding hoist, With photoelectric control device, the bottle motor stops without cover and reports errors on the screen
No need to replace the mold, only need to slightly adjust can be achieved, simple and convenient operation.
Technical Parameters
Product Name | Automatic Powder Filling Line |
Applicable Product | Powder products (Milk Powder, Medicine,food,condiments) |
Filling Range | 10-5000g |
Production Capacity | 1-60 bottles/min |
Powder Supply | AC380V 50HZ 6KW |
Accuracy | 0.5g-1g |
Compressed Airr | 0.4-0.7MPA |

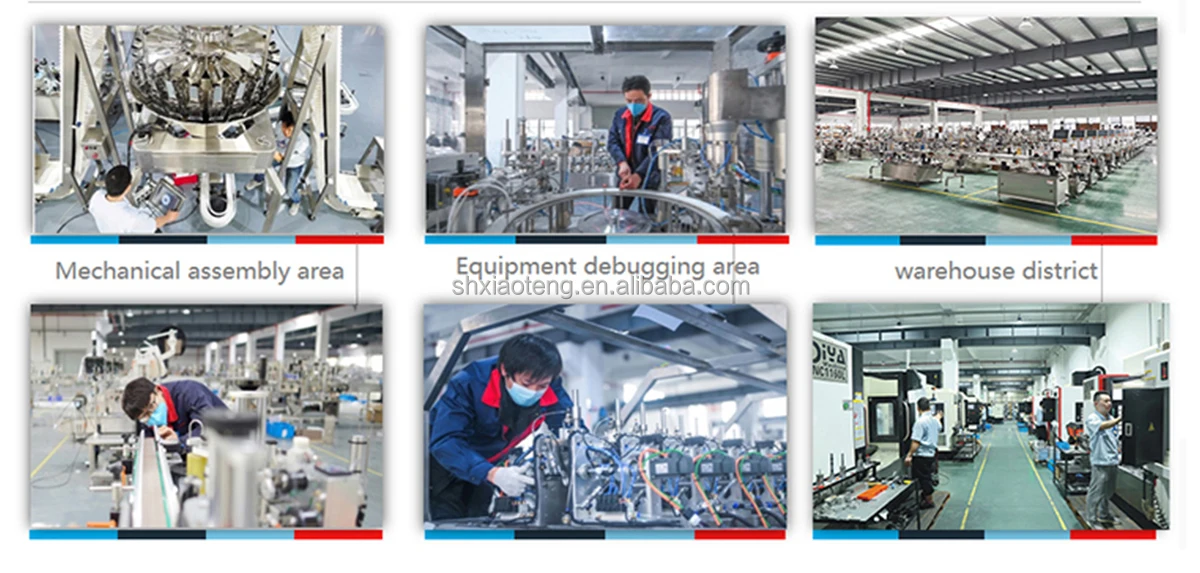

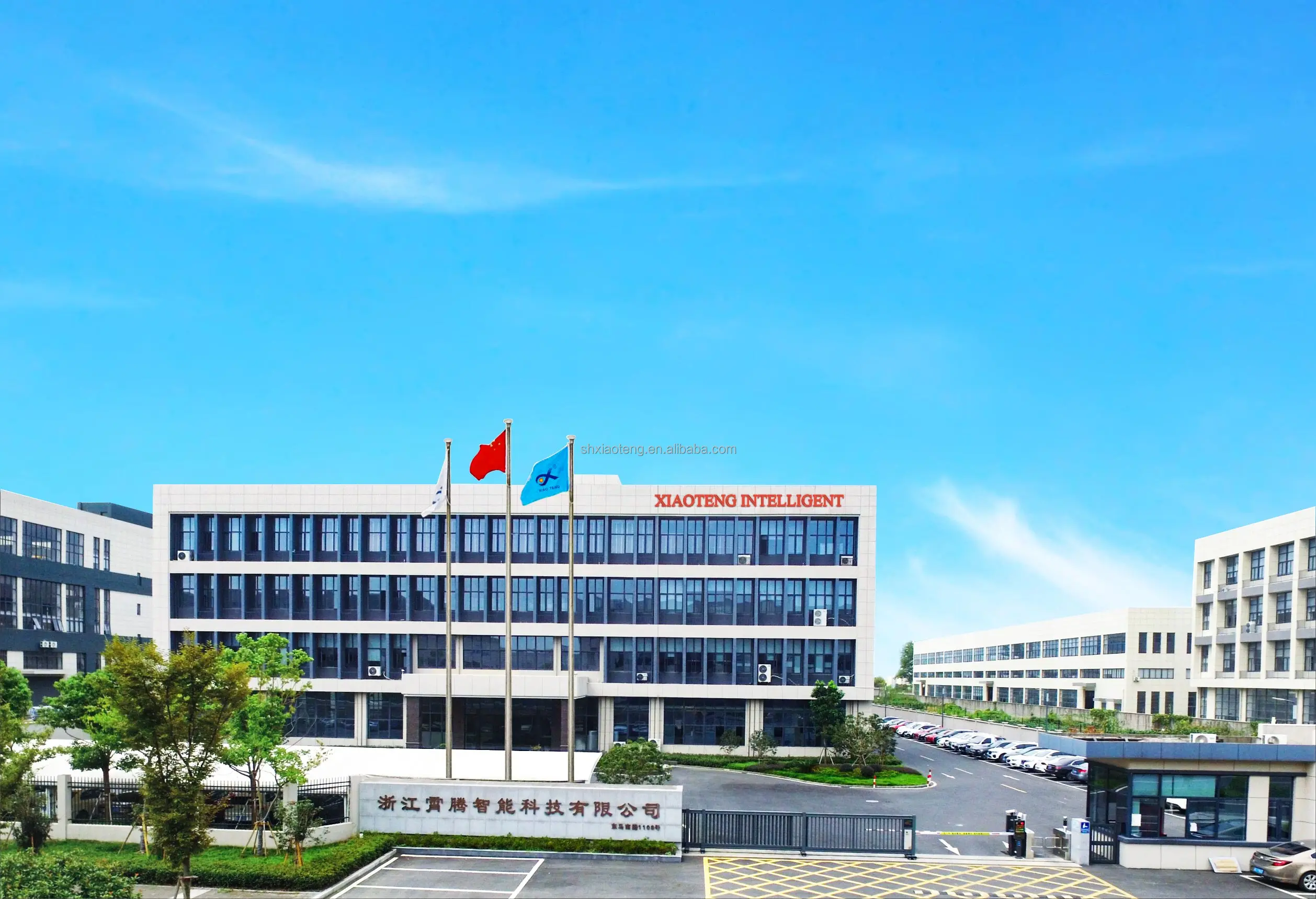

Company Profile
Shanghai Xiaoteng Automation Equipment Co.,Ltd
Zhejiang Xiaoteng Intelligent Technology Co.,Ltd
Shanghai Xiaoteng Automation Equipment Co., LTD., founded in 2009, is a high-tech enterprise integrating the research and development, design, production, sales and service of automatic packaging machinery.
The company's main products are liquid,paste, powder and other bottling and bagging production lines, including bottling, filling, rotating (rolling) cover, sealing, cansealing, labeling, weighing, packing, THREE-DIMENSIONAL membrane charter and other major equipment, widely used in medicine, daily chemicals, food, seasoning, hardware, stationery, automotive electronics and other industries. Since its establishment, the company has been focusing on the development of automated packaging, providing customers in various industries with professional, personalized, customized packaging solutions.
