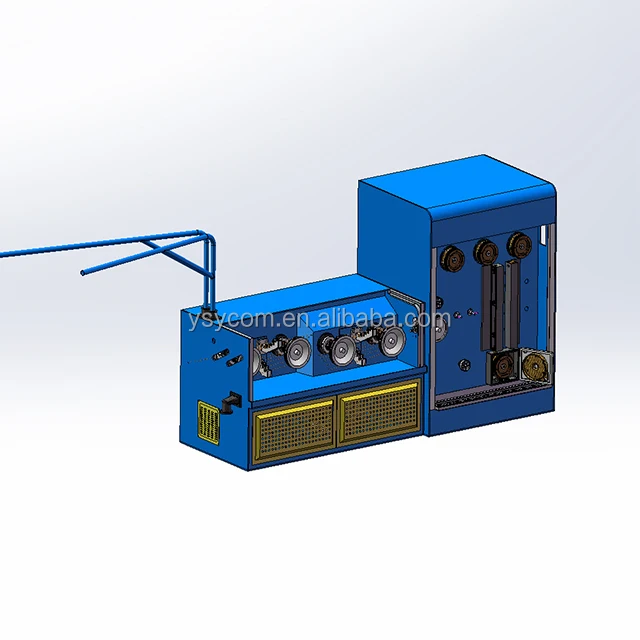

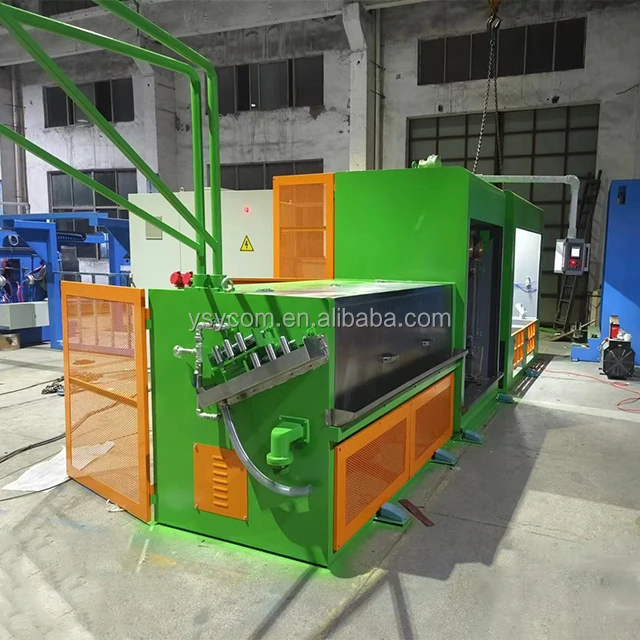

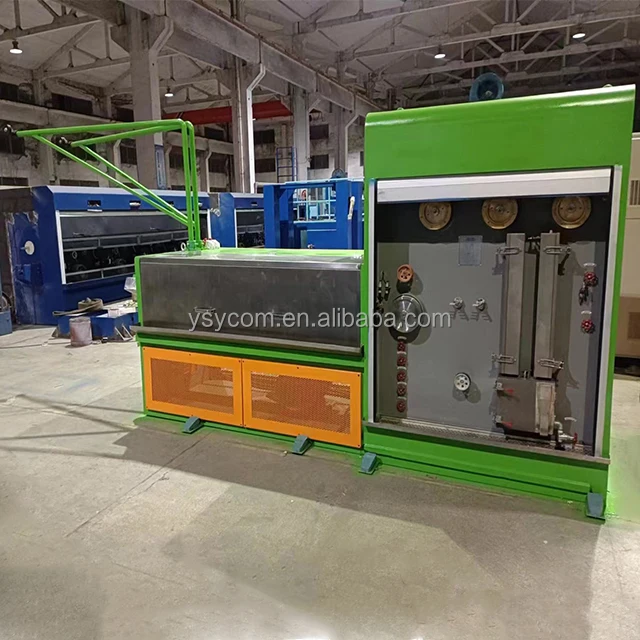

YSY 24 2DT Double head Fine Wire Drawing Machine With Annealer
- Category: >>>
- Supplier: Suzhou YSY Technology Co. Ltd.
Share on (1601209108552):
Product Overview
Description

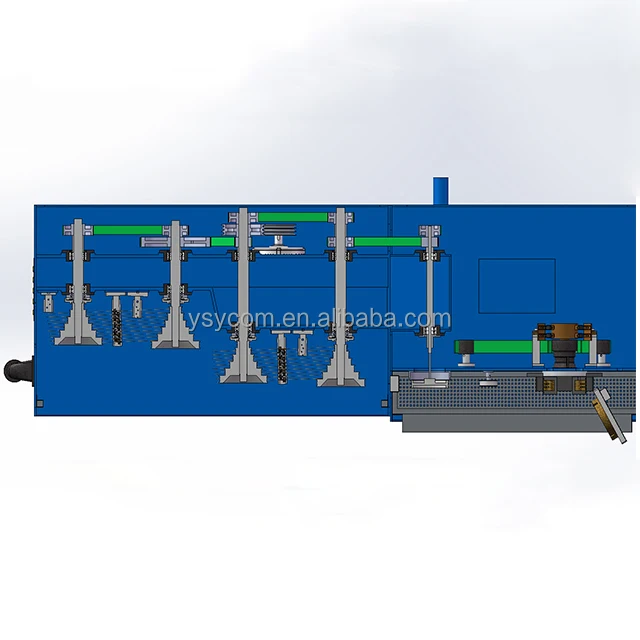

The high-speed double-headed copper wire drawing machine is used to draw a copper wire from “0.6-1.05mm” into “0.15- 0.50mm”. The drawing drum adopts a tower wheel structure, with continuous drawing, online annealing, balanced matching of mechanical and electrical speeds, easy operation, and coiling and winding.

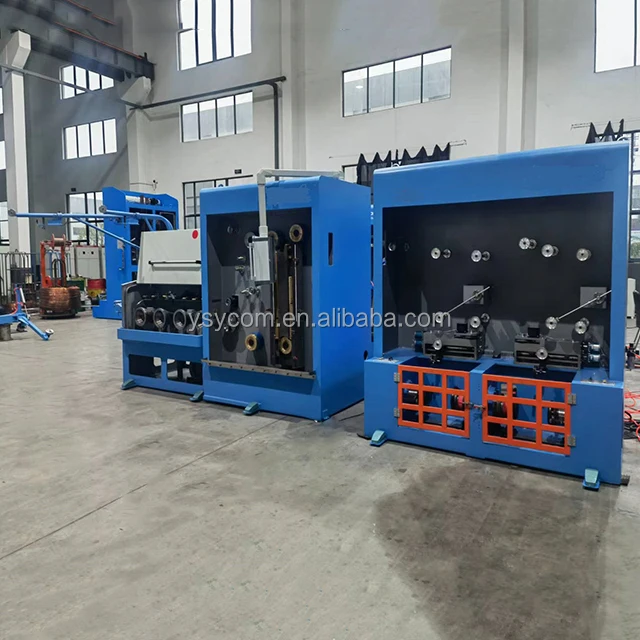

The equipment components:
Pay-off rack | 2 Set |
Roll-pointed&threading dies | 1 Set |
YSY-24-2DT Wire drawing machine host(Including the drawing oil pump) | 1 Set |
Electric Control System | 1 Set |
Annealing machine | 1 Set |
Steam generator | 1 Set |
Tension controller | 2 Set |
Take-up device | 2 Set |
Technical parameter:
Machine type | YSY-22-2 DT | YSY-24-2 DT |
Max. Die No. | 22(Φ25×10) | 24(Φ25×10) |
Max. Inlet Dia.(mm) | Φ0.70-1.4mm / Single wire(max1.6) | |
Outlet Dia.(mm) | Φ0.15-0.5mm / Single wire(max0.12-0.6) | |
Max. Speed | 1500m/min | 1800m/min |
Slip ratio of M/C(%) | 13% | 15% |
Fix speed capstan of M/C(%) | 8% | 8% |
Dia. Of drawing drum | MaxΦ190 | MaxΦ190 |
Fix speed capstan Dia.(mm) | Φ200 | Φ200 |
Main motor power(KW) | 22KW | 22KW |
Traversing Motor power(W) | 750W*2 Servo motor | 750W*2 Servo motor |
Take-up Motor power(KW) | 4KW*2 | 5.5KW*2 |
Steam generator power(KW) | 9KW | 12KW |
0-800A | 0-800A | |
DC Annealing voltage(V) | 0~60V | 0~60V |
Annealing power (KW) | 60V800A | |
Max. Loading weight | Max15kg | Max50kg |
Lubrication system | Spary-type | |
Suitable spool | DIN250(Plastic spool) | DIN300(Steel spool) |
Brake | Electromagnetic brake | |
Machine Diemension(mm) | 6500*2200*2450 | 6500*2200*2450 |
Machine weight(kg) | 6500KG | 6500KG |
Main electrical configuration:
System monitoring device configuration:
SIEMENS Color interface 1set
PLC (Siemens series products) 1set
Main component configuration of transmission system :
Speed regulator for wire drawing motor: 22Kw Inovance AC speed control device 1set
Speed regulator for take-up motor: 4/5.5Kw Inovance AC speed control device 2set
Used for annealing power control: IGBTDC power supply 60V/800A 1set
Users need to provide:
1.Civil engineering and external pipeline engineering for equipment.
2.Lubricating oil, hydraulic oil, and drawing emulsion used for equipment lubrication and wire drawing.
3.Drawing emulsion pool for wire drawing (recommended 20m3).
4.Cooling water tank and circulation system.
5.Copper rods and wire reels used for testing purposes.
6.A complete set of wire drawing dies for equipment wire drawing test run.
7.Power supply, wires, cables, and accessories used for equipment and electrical installation.
8.Gas source with a pressure of 0.6Mpa or above for normal operation of equipment.
Company Information
Suzhou YSY Technology Co., Ltd was founded in May 2017, located at Suzhou City in Jiangsu Province, near Shanghai. It is a professional manufacturer engaged in the research, development, production, sale, and service of wire drawing machines, wire winding machines, Harness automation equipment, solar panels, and so on. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as the Middle East, Europe, Africa, Asia, and North America. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Quality is our culture! Hope for your cooperation soon!
FAQ
1.How to select the best-suited automatic toroid coil winding machine for your toroid coil?
Tell us your toroidal coil data as below please: OD & ID of the coil before winding,Height of the coil before winding,Layers,Turns ,Dia of the copper wire,pictures or videos of products which are better.
2.This is the first time I use this kind of machine, is it easy to operate?
There is an English manual or guide video that shows you how to use the machine.
If you still have any questions, please contact us by e-mail/WhatsApp/WeChat online service.
3.If the machine has any problem after I receive it, how can I do?
Free parts send to you in the machine warranty period. but you need to pay the postage.
4.What's the MOQ?
1 set machine, mixed order is also welcomed.
5.How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product online or by e-mail.
B. Negotiate and confirm the final price, shipping, payment methods, and other terms.
C. send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on the proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
F.Send your order by air or by sea.
