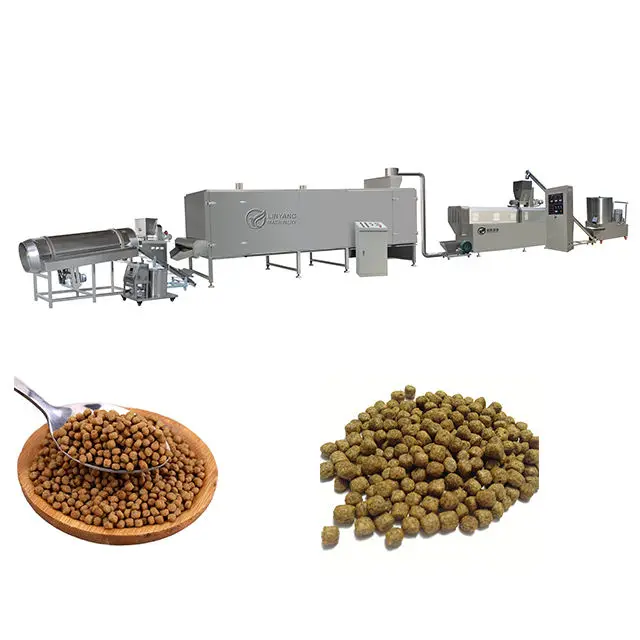

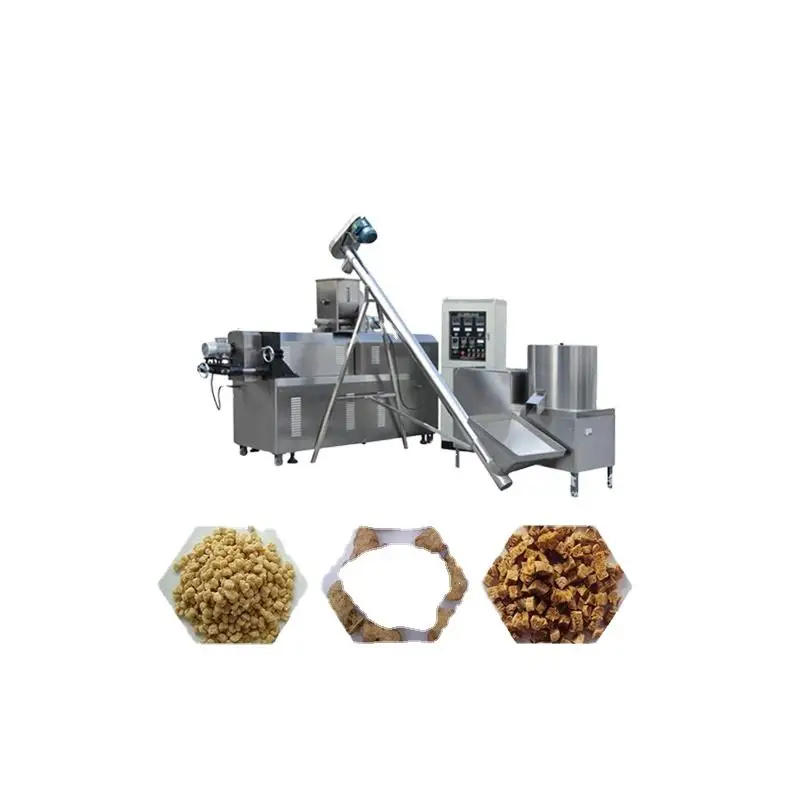

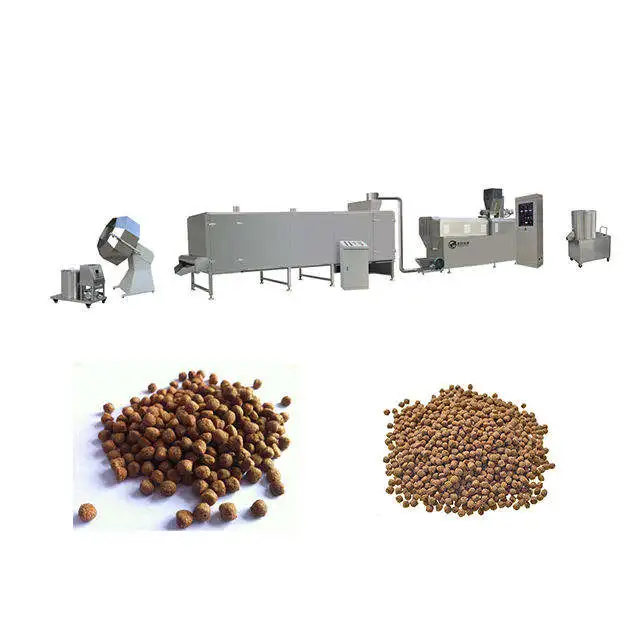

Fish Feed Making Machinery Feed Extruder Aquatic Dog Cat Food Floating Fish Feed Making Line
- Category: >>>
- Supplier: Jinan Linyang Machinery Co. Ltd.
Share on (1601209137402):
Product Overview
Description
Product Description
Pet Feed Pellet Products Making Machine Description:
① According to the market demand, the company has developed and developed various types of expanded feed production lines. According to the different output, the production line also has a variety of configurations.② By adjusting the process parameters such as raw materials, temperature and moisture, the dog food production line can make the products have the characteristics of novel shape, unique taste, rich nutrition and delicate tissue, which are suitable for the tastes of different pets.
③ The dog food production line is widely applicable to the production of fox, mink, monkey food, bird food, dog food, cat food and expanded corn. It is an ideal choice for different manufacturers.
④ Dog food production line, economical, expanded dog food processing equipment, with a production capacity of 100-3000kg/h. The pet food production line can add 20-40% of animal viscera, chicken rack and other ground bone mud to directly puff dog food, which solves the problem of dehydration to crushing from fresh meat, fresh bone and slaughterhouse waste. Deeply loved by customers!
⑥ This dog food production line solves the disadvantages of insufficient swelling degree of small single screw dog food machine, difficult screw cleaning after each production, limited addition proportion of fresh meat and bone mud, fast screw wear and high cost of accessories in the later stage. It is deeply loved by large dog farms and individual entrepreneurs.

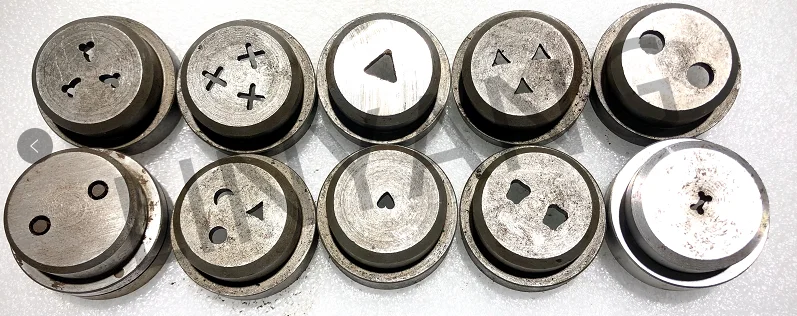

⑦ Different shapes and sizes of feed can change the mold and adjust the expansion degree.
Raw Material: Soybean Meal, Wheat, Flour, Fish Meal, Rice Powder, Meat, bone and others.
Voltage: 380V/50HZ We can customized according our customer's demands.
Product: Dog Feed, Flaoting Fish Feed, Cat Feed, Bird Feed and others.
Machine Material: All the machine are made by stainless steel.
Different Configuration Production Line:
Whole Production Line Parameter
Model | LY65-P | LY70-P | LY85-P | LY95-P |
Installed Power | 74KW | 105KW | 205KW | 255KW |
Power Consumption | 52KW | 75KW | 150KW | 180KW |
Production Capacity | 100-150KG/H | 200-260KG/H | 400-500KG/H | 800-1000KG/H |
Dimension | 17*1.3*2.2M | 20*1.5*2.2M | 30*1.5*2.6M | 35*2.0*2.6M |
Product Presentation
PLC touch screen for Centralized,accurate,convenient control.
Fully automatic control system for heating and circulated cooling accurately.
Direct transmission of motor and distribution box reduces energy loss.

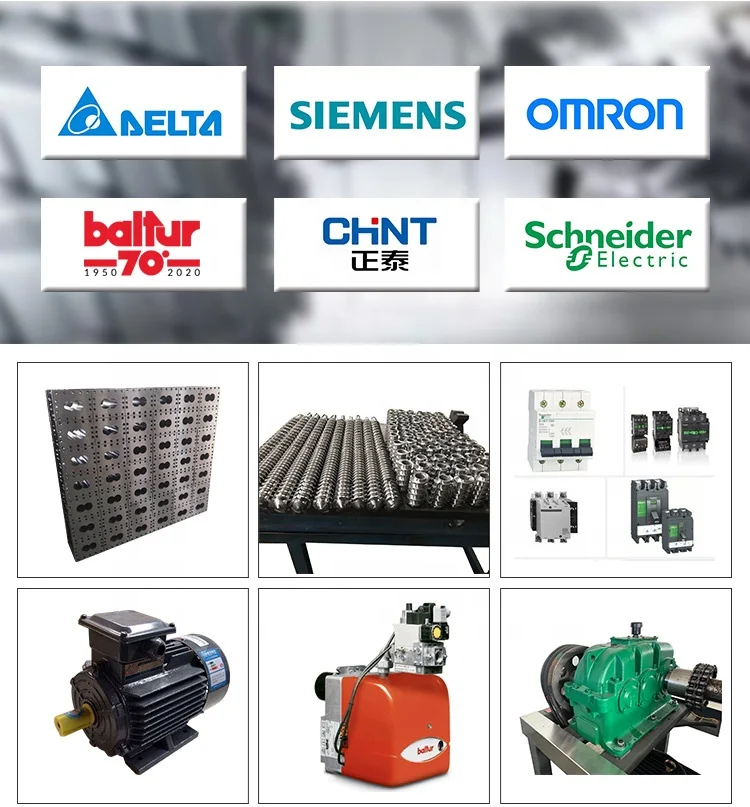

Imported bearing group with higher bearing capacity.
Equip with water injecting device on barrel to meet require of various material and quality.
High-speed tool steel with hardness HRC HRC≥62 to lice a longer life.
Modular combination of screws at will to meet require of different raw material.
Suspension type rotary cutter with bearing adjusting device to ensure quick,safe and accurate.

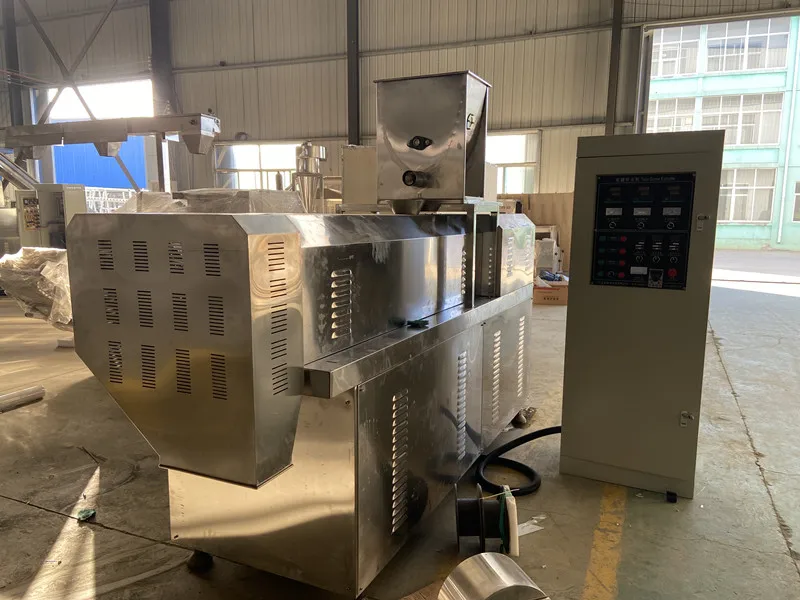

Twin Screw Extruder | |
Stainless Steel | |
Wheat, Flour, Fih Meal, Meat, Soybean Meal and others | |
380V/50HZ Customized | |
1 Year after the machine put into operation. | |
LY65, LY70, LY85, LY95, LY120 | |
Style | Full Automatic |
Twin Screw Extruder Parameter
Model | LY65 | LY70 | LY85 | LY70-T | LY95-T | LY120-T |
Installed Power | 34KW | 46/53/60KW | 99/114KW | 34/41/49KW | 99/119/141KW | 143/171KW |
Power Consumption | 22KW | 30/37/45KW | 75/90KW | 30/37/45KW | 90/110/132KW | 132/160KW |
Capacity | 100-150KG/H | 200-260KG/H | 400-500KG/H | 200-350KG/H | 1-2T | 1.5-2.5T |
Operation
Processing Line Operation:
1.Mixer: the raw material corn flour, rice flour, soybean flour, meat flour, grain flour, additives, etc. are added with a certain proportion of water to mix well.
1.Mixer: the raw material corn flour, rice flour, soybean flour, meat flour, grain flour, additives, etc. are added with a certain proportion of water to mix well.
2. Screw Conveyor: the motor is used as the power for spiral conveying, and the mixed raw materials are transported to the feeding hopper of the extruder to ensure convenient and fast feeding.
3. Twin screw extruder: under the circumstances of high temperature and high pressure and screw extrusion, the die can be changed by adjusting the specific particle size and shape of different feeds in the production department.
4. Air Conveyor: transport the products to oven.

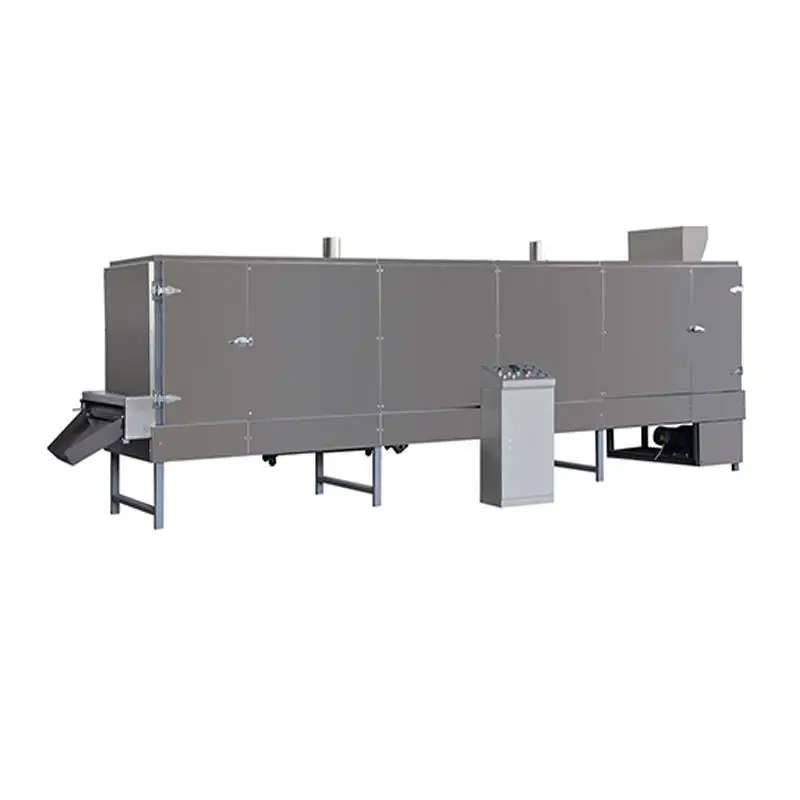

5. Multi layer Dryer: most of the ovens are electric ovens. The temperature is between 0-200 degrees, which can be adjusted by the control cabinet. The inside of the oven is stainless steel double-layer mesh bag, which can reduce the moisture content of feed particles, promote the ripening rate and increase the shelf life.
6. Seasoning line: oil and food attractant are sprayed by fuel injector. The seasoning line includes octagonal drum, single drum, lifting single drum and double drum seasoning line. According to the output and product properties, the oil is sprayed on the feed surface, and the minced meat and spices are sprayed evenly.
7. Cooling conveyor: reduce the temperature of frying and feed, promote the solidification of oil, reduce the temperature of particles, easy to package.
8. Packing machine: manual sealing machine and automatic packing machine can be used.
3. Twin screw extruder: under the circumstances of high temperature and high pressure and screw extrusion, the die can be changed by adjusting the specific particle size and shape of different feeds in the production department.
4. Air Conveyor: transport the products to oven.
5. Multi layer Dryer: most of the ovens are electric ovens. The temperature is between 0-200 degrees, which can be adjusted by the control cabinet. The inside of the oven is stainless steel double-layer mesh bag, which can reduce the moisture content of feed particles, promote the ripening rate and increase the shelf life.
6. Seasoning line: oil and food attractant are sprayed by fuel injector. The seasoning line includes octagonal drum, single drum, lifting single drum and double drum seasoning line. According to the output and product properties, the oil is sprayed on the feed surface, and the minced meat and spices are sprayed evenly.
7. Cooling conveyor: reduce the temperature of frying and feed, promote the solidification of oil, reduce the temperature of particles, easy to package.
8. Packing machine: manual sealing machine and automatic packing machine can be used.

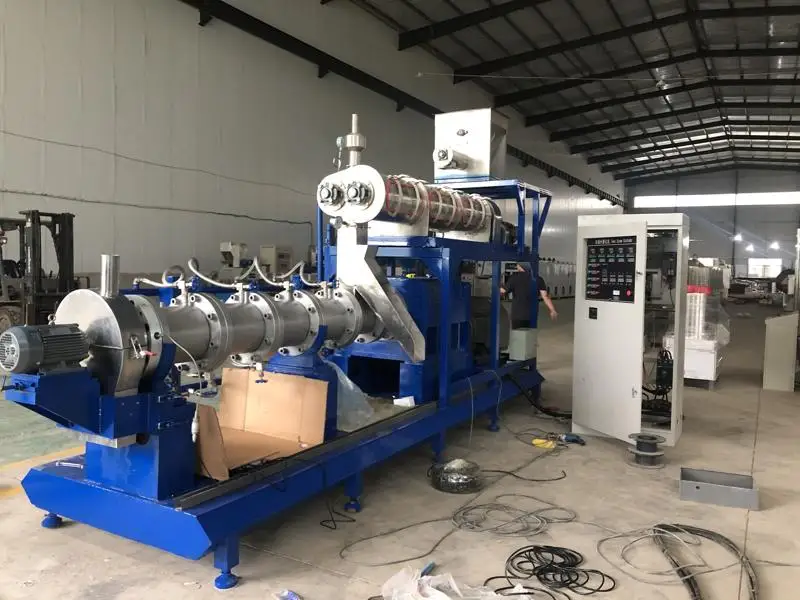

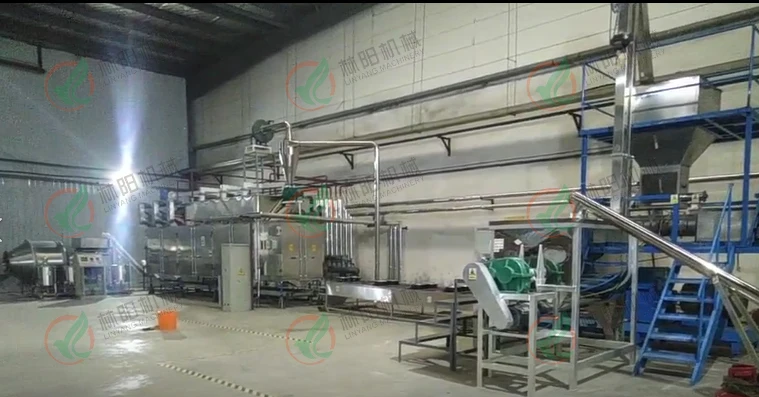

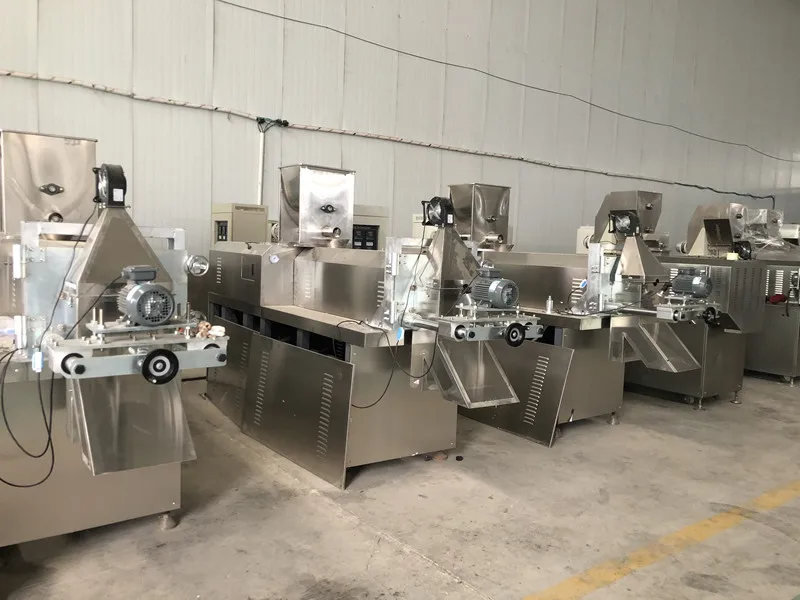

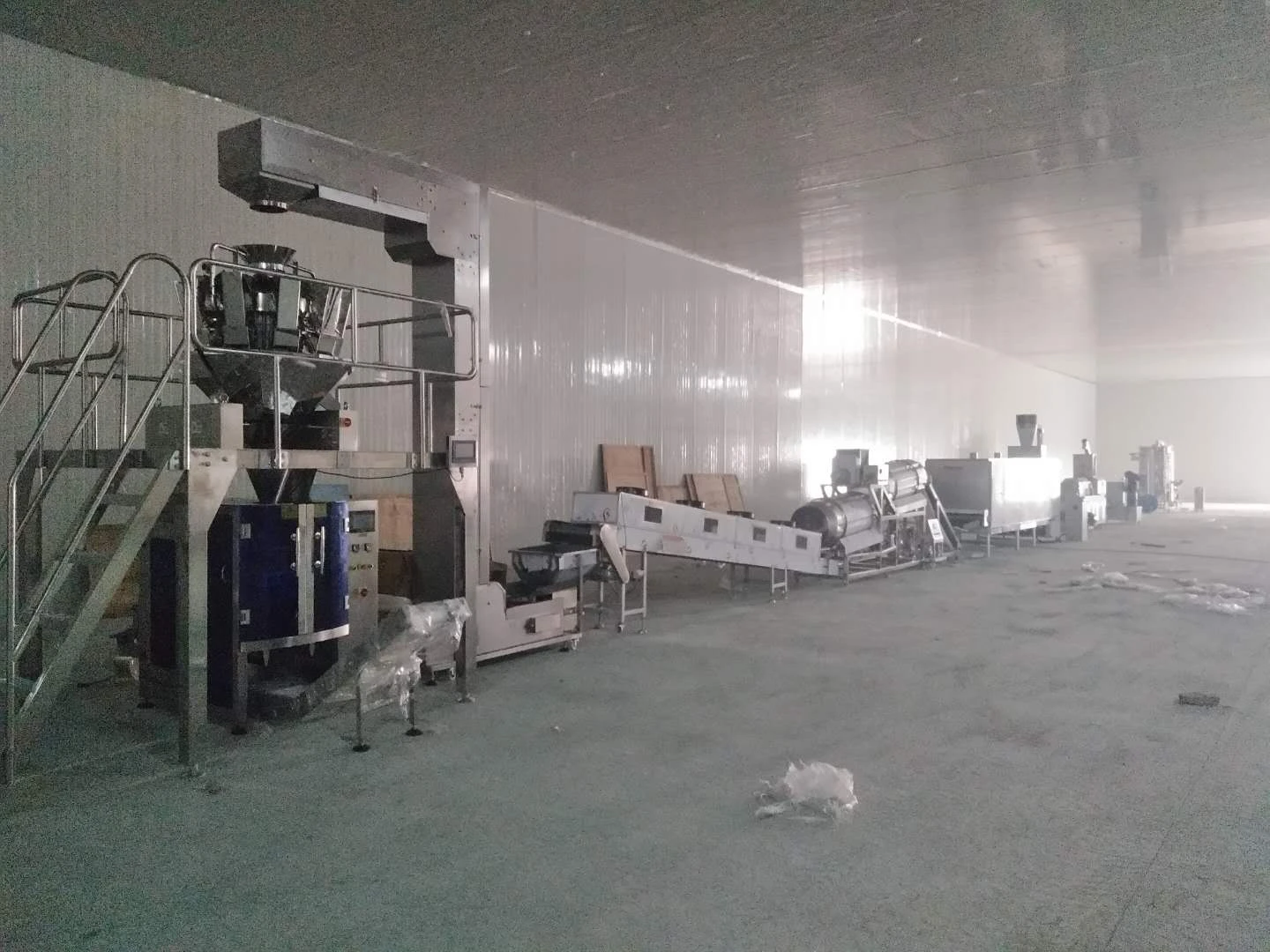

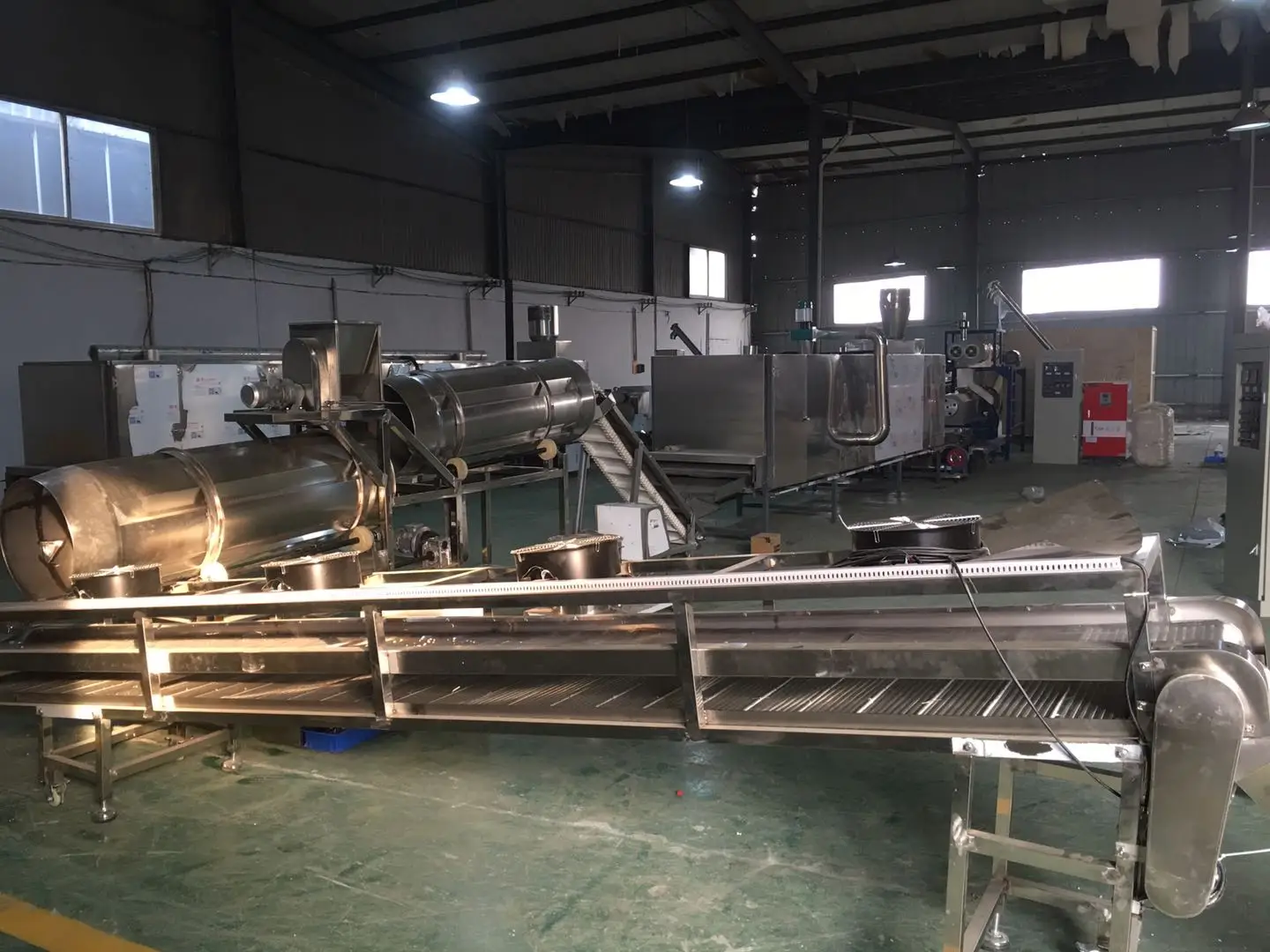

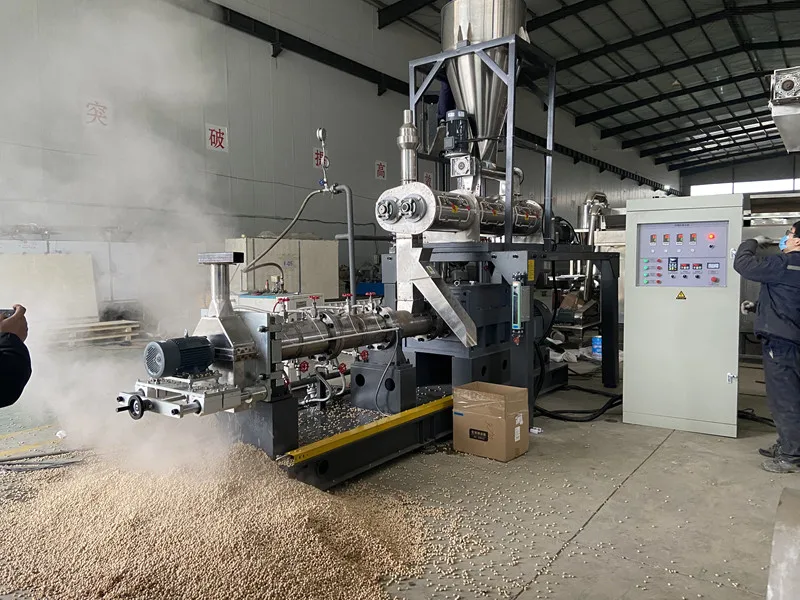

Actual shooting
Samples
Certificate
Company Introduction
Jinan Linyang Machinery Co., Ltd. is a high-tech extrusion enterprise which integrates technical research, production and marketing. Committed to researching, developing, producing of extrusion food processing line over the years. We have already developed dozens of food machinery equipments and technologies, and have become an important professional manufacturer at home and abroad.
The company has owned well-experienced management staff, outstanding engineers as well as well-trained technical workers. We often organize technical exchange with world-renowned enterprises of the same line in the world. We introduced advanced product technology and production processes, And also we have formed powerful technical support system for the company. Since the very beginning, our company adhering to the principle of "Integrity based, coordinated development." business philosophy, we regard product quality as the cornerstone, we think of the technology development as the guide, dedication, professionalism and focus. We adopt sophisticated technology, sincere attitude and wonderful services to supply quality products in the market.
