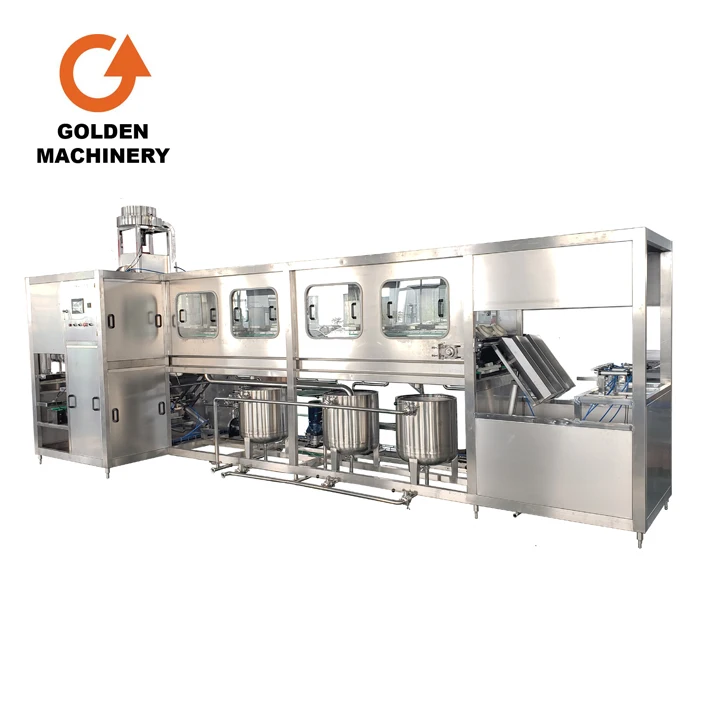

made in China 5 gallon water bucket dispenser filling machine production line
- Category: >>>
- Supplier: Zhangjiagang Golden Machinery Co. Ltd.
Share on (1601209174459):
Product Overview
Description
Product Overview

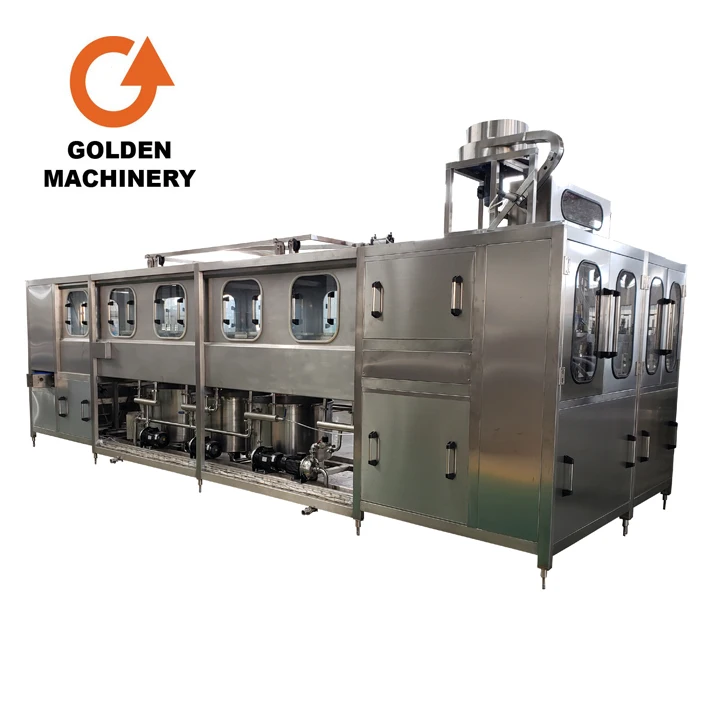

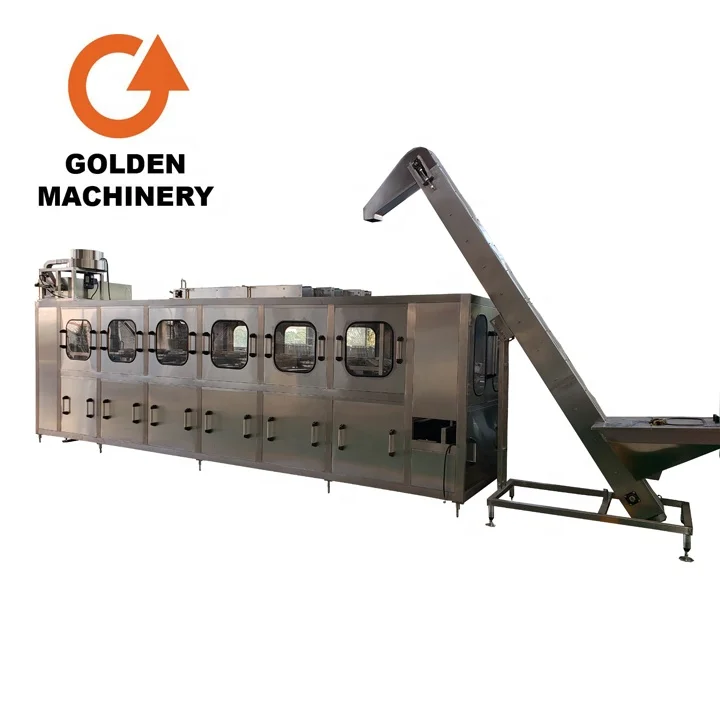

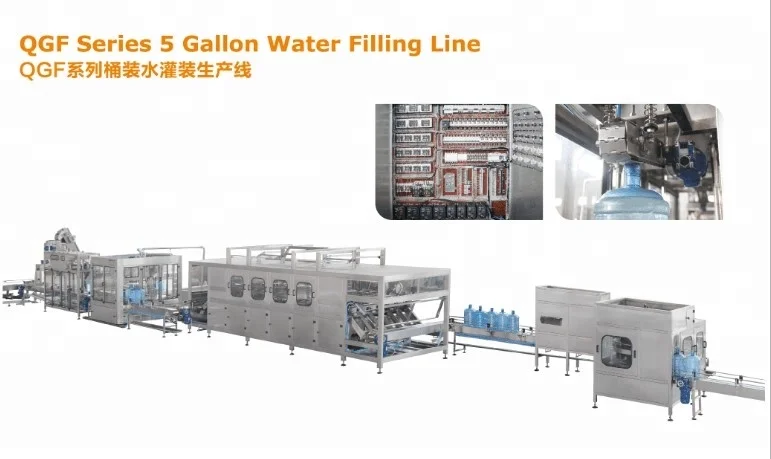

Hot Sale 5 Gallon Automatic Water Filling Machine Bottling Plant Capping Machine

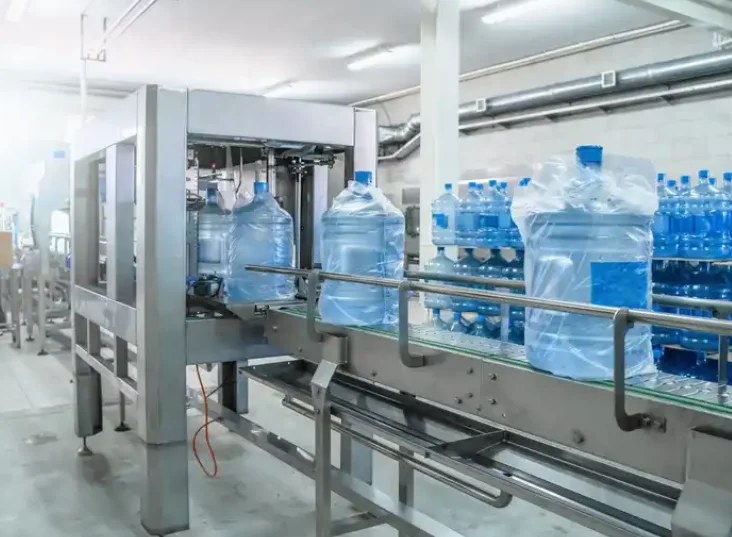

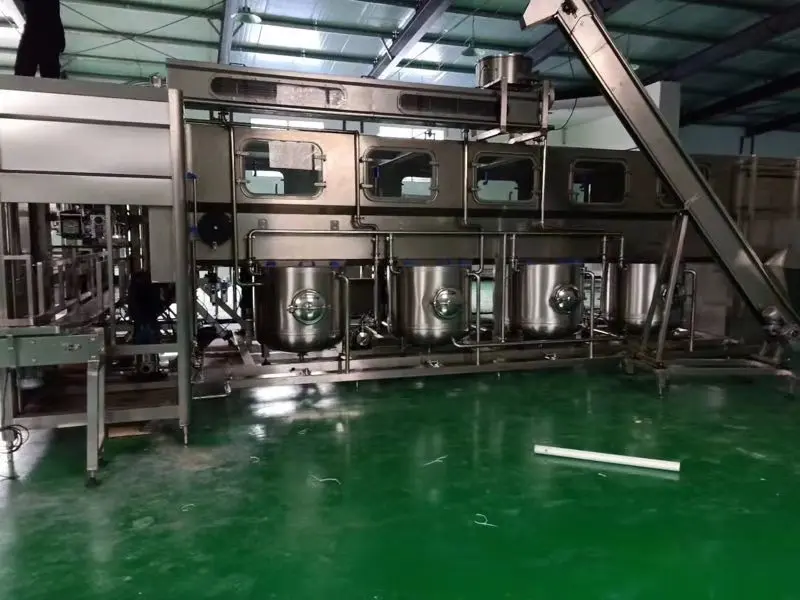

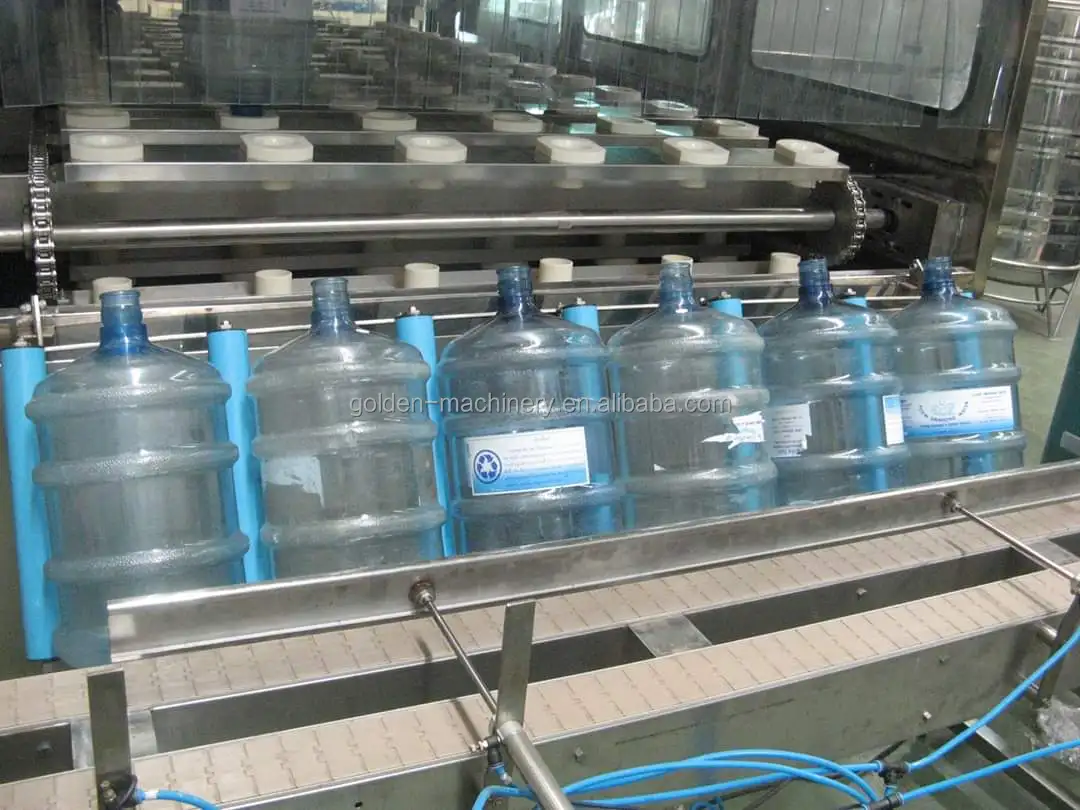

The 5 gallon water filling line specially for 3-5 gallons barreled drinking water .It integrated bottle washing,filling and capping into one unit, in order to achieve the purpose of washing and sterilizing,The washing machine uses multi-washing liquid spray and disinfectant spray, the disinfectant can be used circularly,The capping machine can be cap barrel automatically ,The line equips with water spraying device in order to ensure those caps sterile and clean ,it also can automatically carry out barrel,washing, filling,capping, counting and products discharging,with complete function,modern design and high degree of automation ,It is a new kind of barreled water auto producing line ,which integrates mechanism,electricity and pneumatic technologies together.
☑PET bottle blow molding machine
☑Water treatment system
☑Bottle washing filling and capping machine
☑Ink code printer / Laser code printer
☑PVC shrink sleeve / OPP hot glue / Adhesive sticker labeling machine
☑PE film packaging machine / Carton packaging machine
☑Automatic palletizer
☑Water treatment system
☑Bottle washing filling and capping machine
☑Ink code printer / Laser code printer
☑PVC shrink sleeve / OPP hot glue / Adhesive sticker labeling machine
☑PE film packaging machine / Carton packaging machine
☑Automatic palletizer
We can produce pure water ,mineral water, drinking water, soda water, flavored water , natural water ,spring water ,potable water, flavoured water. Depending on the different packages, we can divide it into two categories: bottled mineral water
line(200ml-2000ml) and barreled mineral water line (1- 5 gallon water line).
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
line(200ml-2000ml) and barreled mineral water line (1- 5 gallon water line).
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FEATURES AT A GLANCE

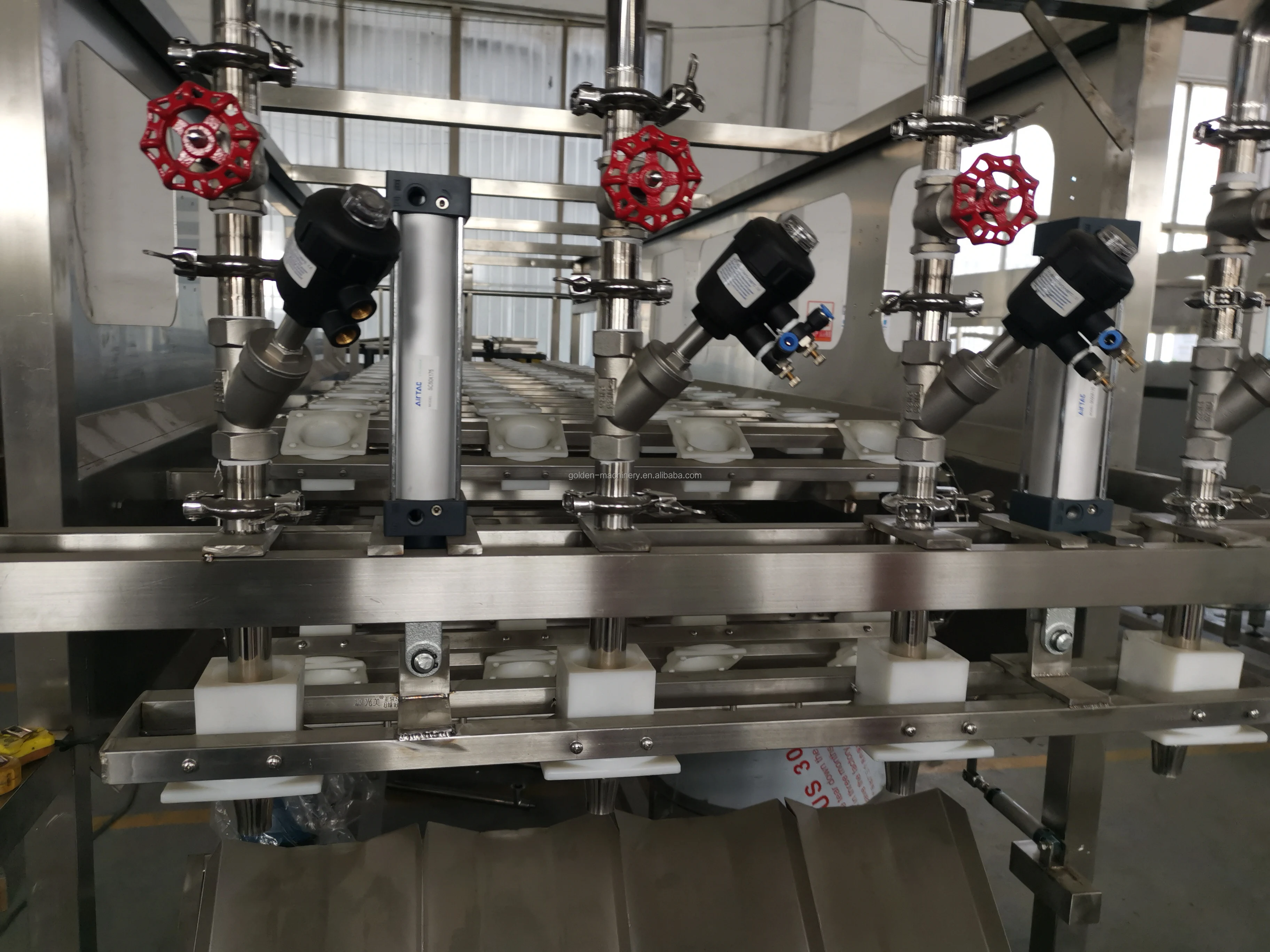

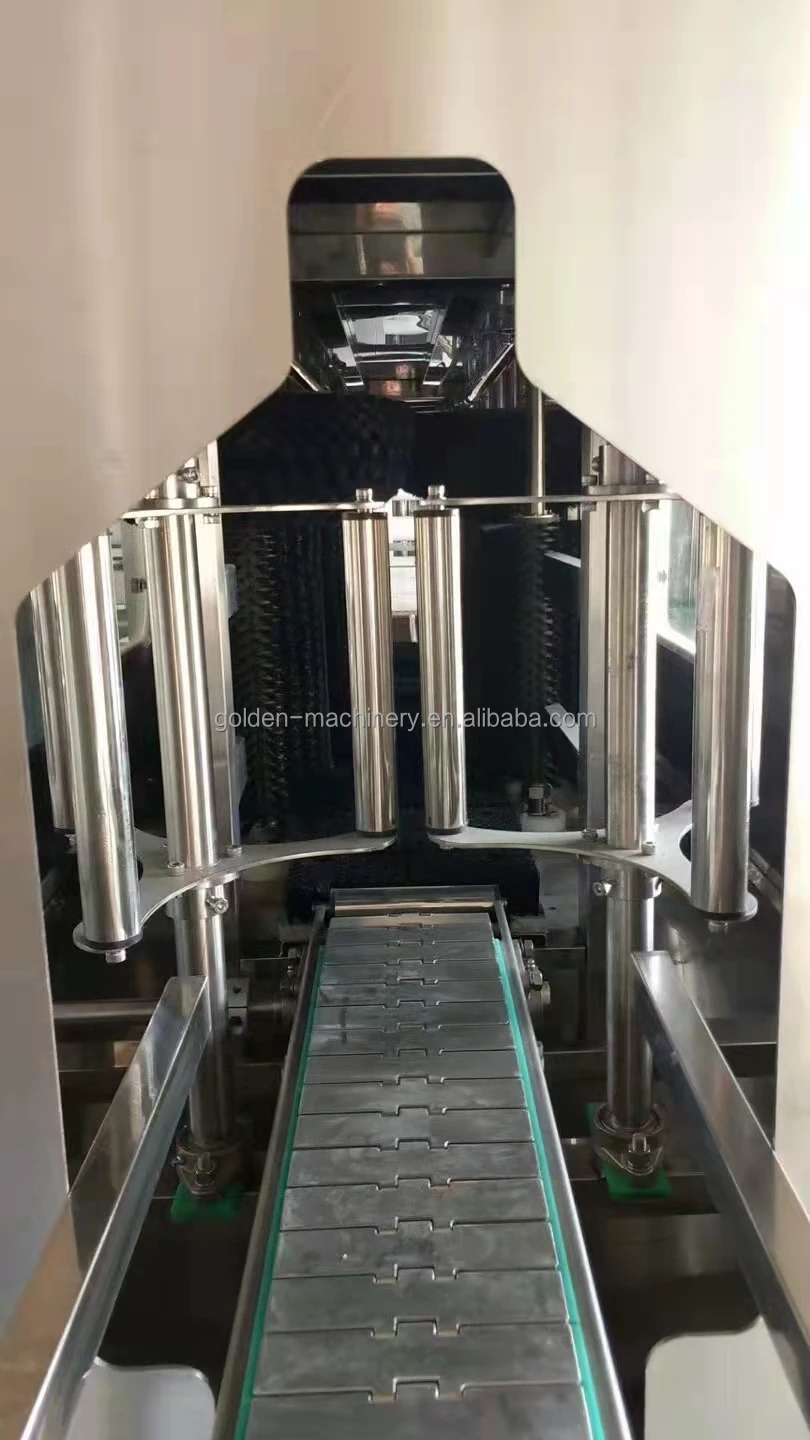

Washing part
Function : washing bottle inside and outside dust .
Function : washing bottle inside and outside dust .
<1>All 304/316stainless steel rinse heads, water spray style inject design,
more save water consumption and more clean <2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during
washing
<3> 304/316 stainless steel washing pump
more save water consumption and more clean <2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during
washing
<3> 304/316 stainless steel washing pump

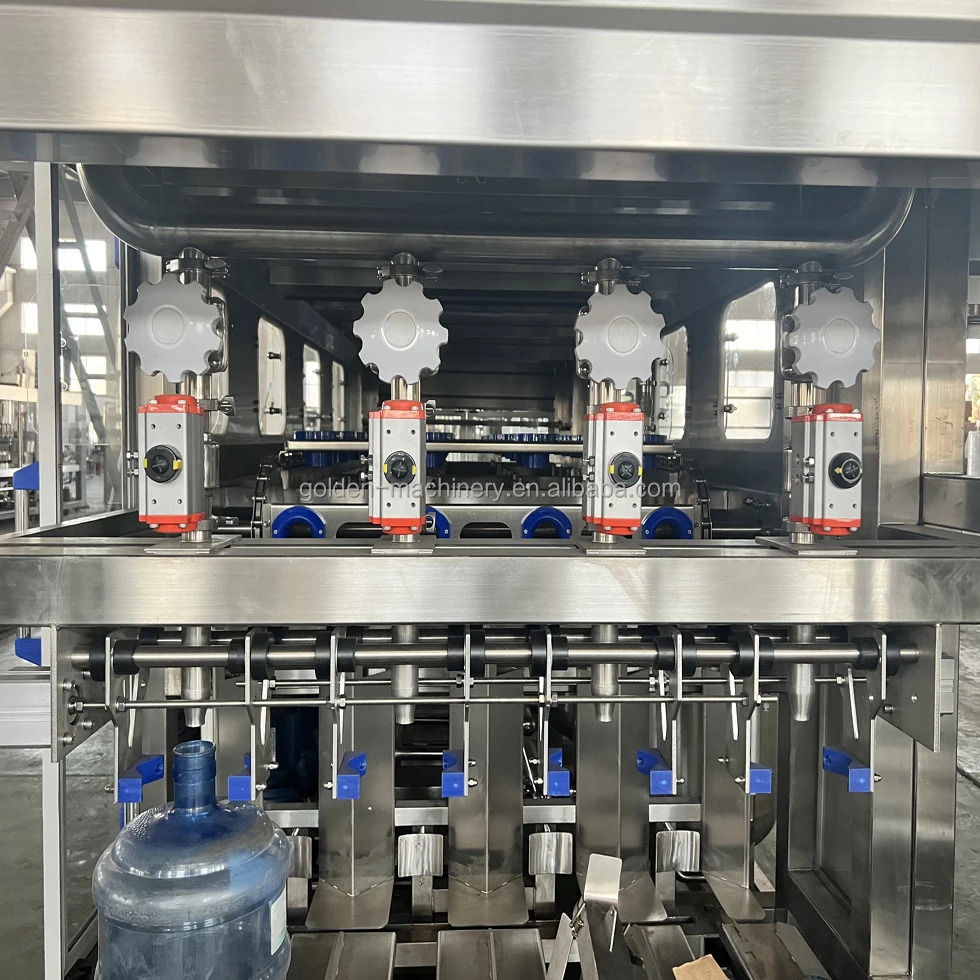

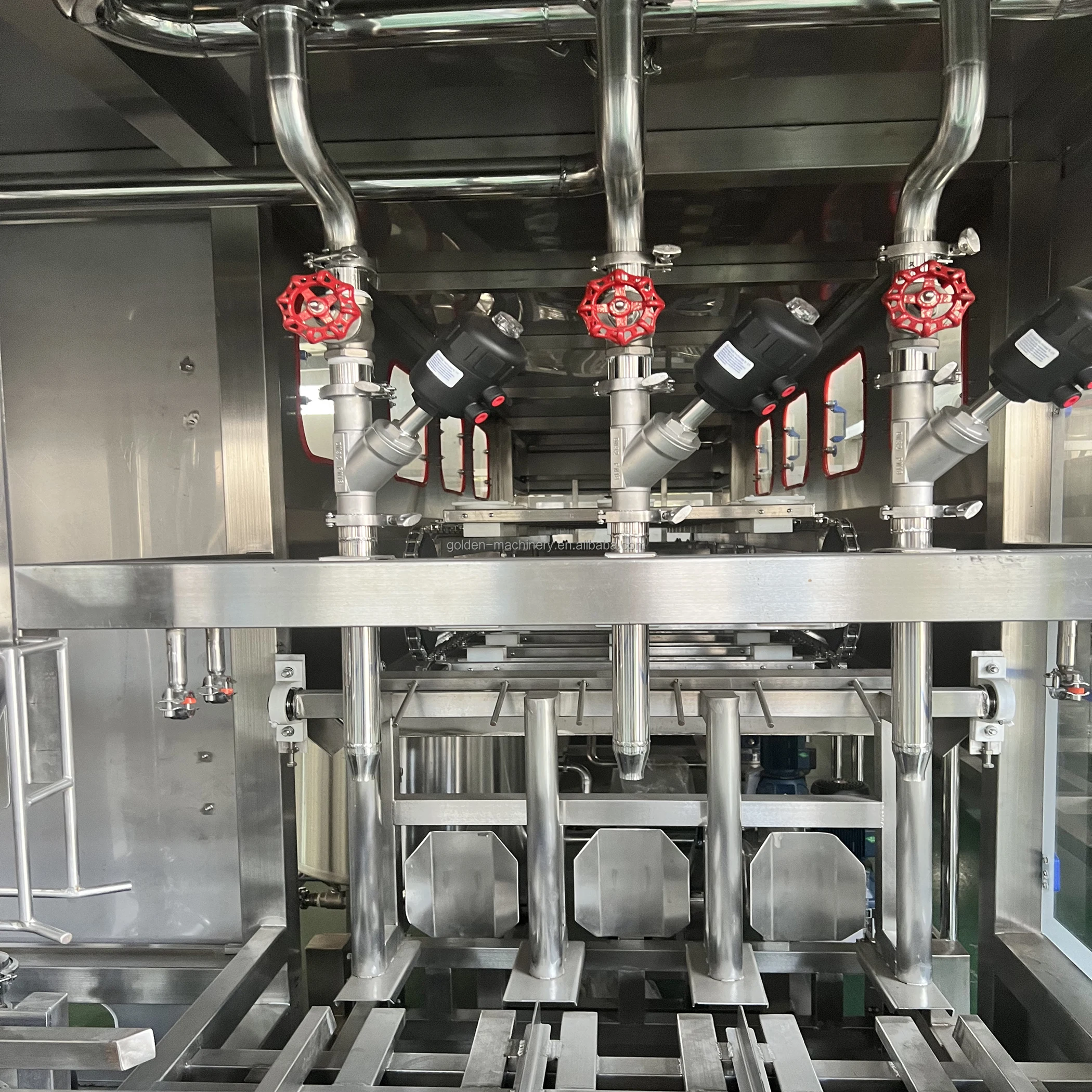

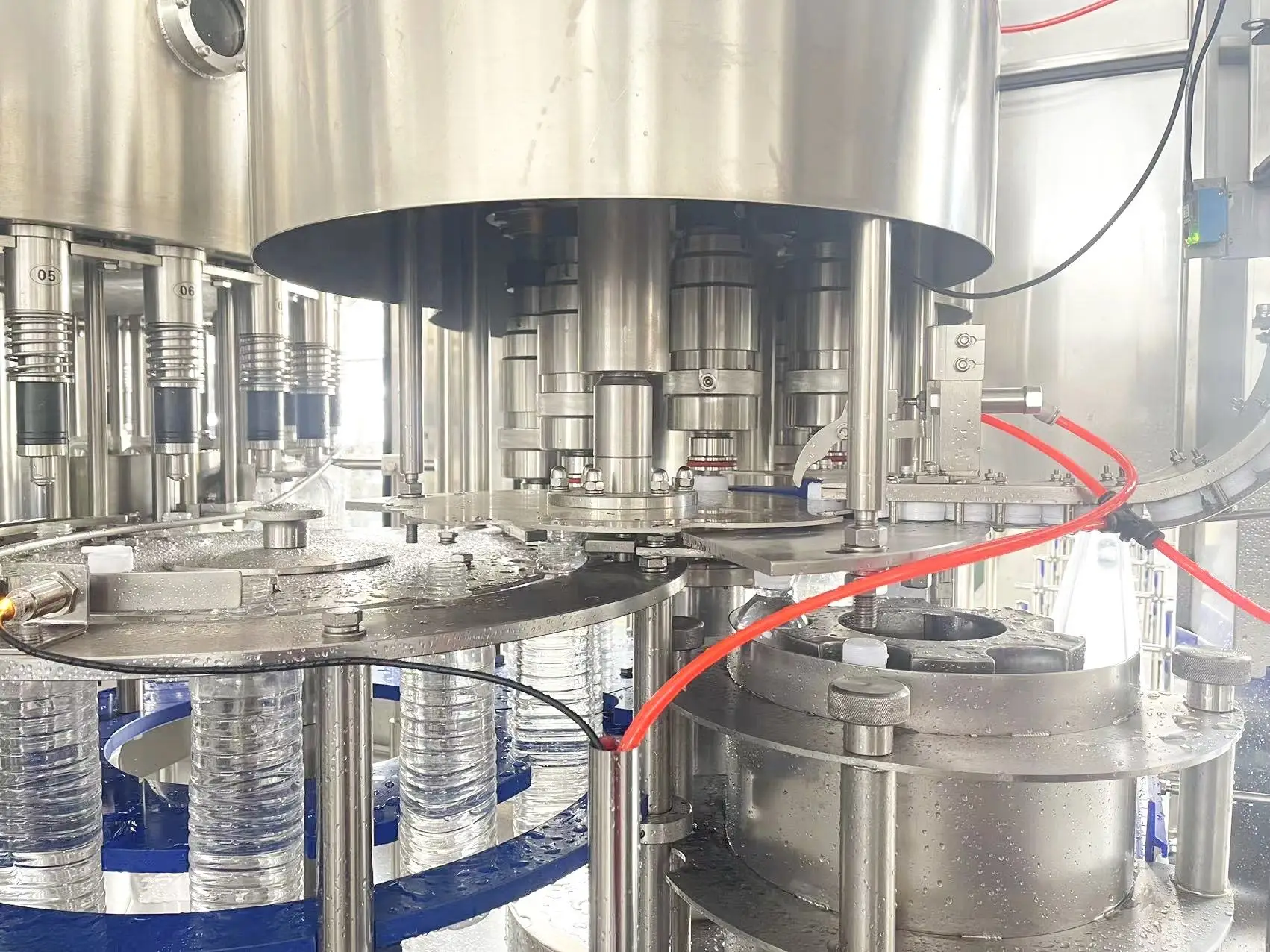

Filling part
Fucntion : filling water into bottle . <1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Fucntion : filling water into bottle . <1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping part
Function : put caps on bottle .
Function : put caps on bottle .
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make
sure minimum bottle crash during capping
sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction <3> No bottle no capping
<4> Automatic stop when lack of bottle
<4> Automatic stop when lack of bottle
PRODUCT SPECIFICATIONS
Model | QGF-120 | QGF-240 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | |||||
Filling heads | 1 | 2 | 3 | 4 | 6 | 8 | |||||
Volume(L) | 18.9 | 200ml-2500ml | 200ml-2500ml | 200ml-2500ml | |||||||
Barrel Size(mm) | φ270×490 | 2.2KW | 3.5KW | 4.5KW | |||||||
capacity(b/h) | 120-150 | 240-300 | 400-450 | 500-600 | 700-800 | 1000-1200 | |||||
Gas Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | |||||
Gas Consumption(m 3 /min) | 0.37 | 0.6 | 0.8 | 1 | 1.2 | 1.5 | |||||
Moto Power(kw) | 1.38 | 1.75 | 3.8 | 7.5 | 9 | 13.5 | |||||
Rated Voltage(V) | 380V/50Hz | ||||||||||
Weight(kg) | 680 | 1200 | 1600 | 2000 | 3500 | 4500 | |||||

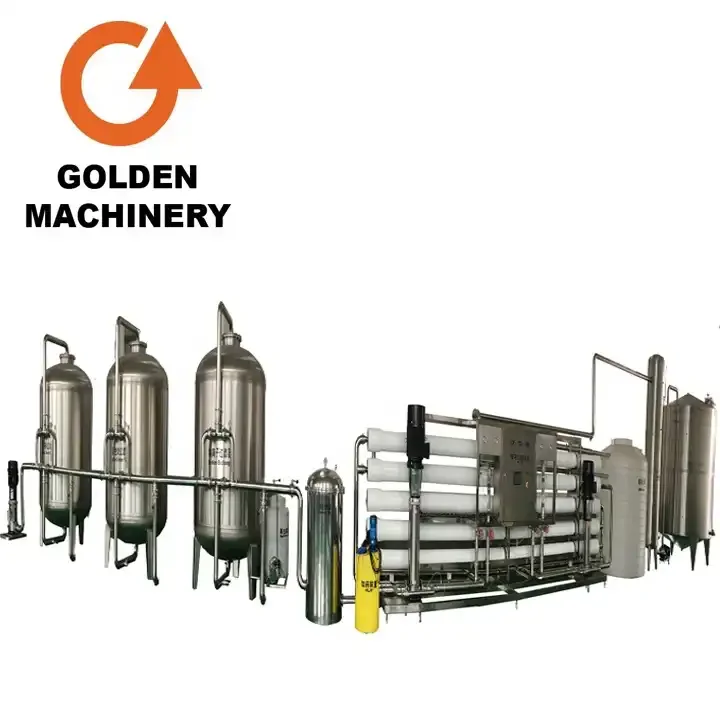

Water Treatment System
source water tank--water pump--silica sand filter-- active carbon filter-- sodium-- ion exchanger-- precision filter --reverseosmosis system-- uv sterilizer --Ozone sterilizer --pure water tank

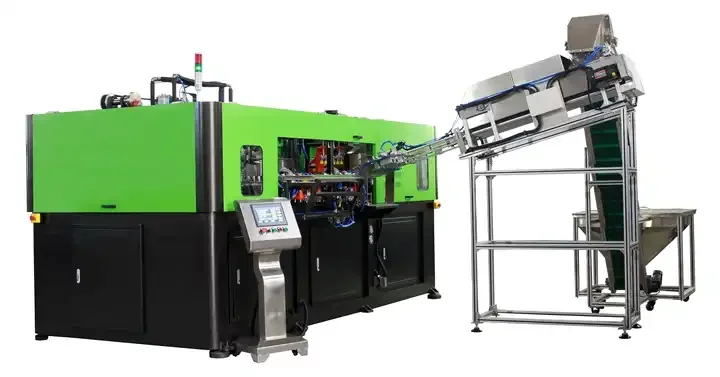

Automatic PET Bottle Blow Molding machine
Automatic blowing machine adopts our most advanced blowing technologies. This machine is a fully automatic,high intelligent,stable
and reliable blowing machine,with simple structure,and low energy consumption. It is very popular and well used in food
,beverages,cosmetics,pharmaceutical industry.
and reliable blowing machine,with simple structure,and low energy consumption. It is very popular and well used in food
,beverages,cosmetics,pharmaceutical industry.

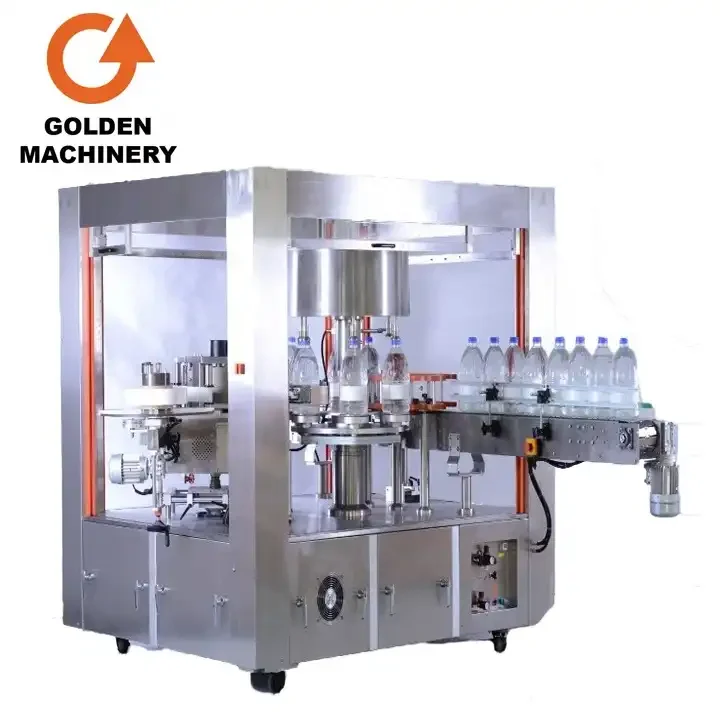

Automatic OPP labeling machine
Application: OPP Hot melting labeling machine
* Stainless steel Main Machine Frame / Famous electrical components
* Stainless steel Main Machine Frame / Famous electrical components

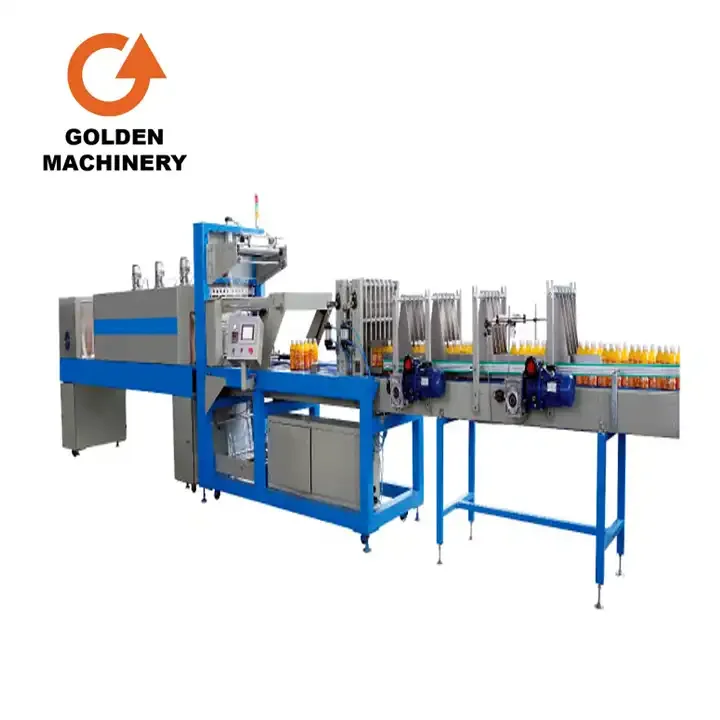

Automatic PE Film Shrink Wrapping Machine
Shrink wrapping machine is suitable for wrapping and packaging of such products as pop-top, mineral water, bottles beer, drinks
etc without bottom-tray(or with bottom-tray). Working with PE shrink tunnel to pack the goods perfectly. The whole producing of
shrink wrapping machine process adopt the Germany advanced technology. It main parts of shrink wrapping machine are imported from
international famous companies, capability stable and using long-time.
etc without bottom-tray(or with bottom-tray). Working with PE shrink tunnel to pack the goods perfectly. The whole producing of
shrink wrapping machine process adopt the Germany advanced technology. It main parts of shrink wrapping machine are imported from
international famous companies, capability stable and using long-time.
Exhibitions in the world
Packing &Shipping

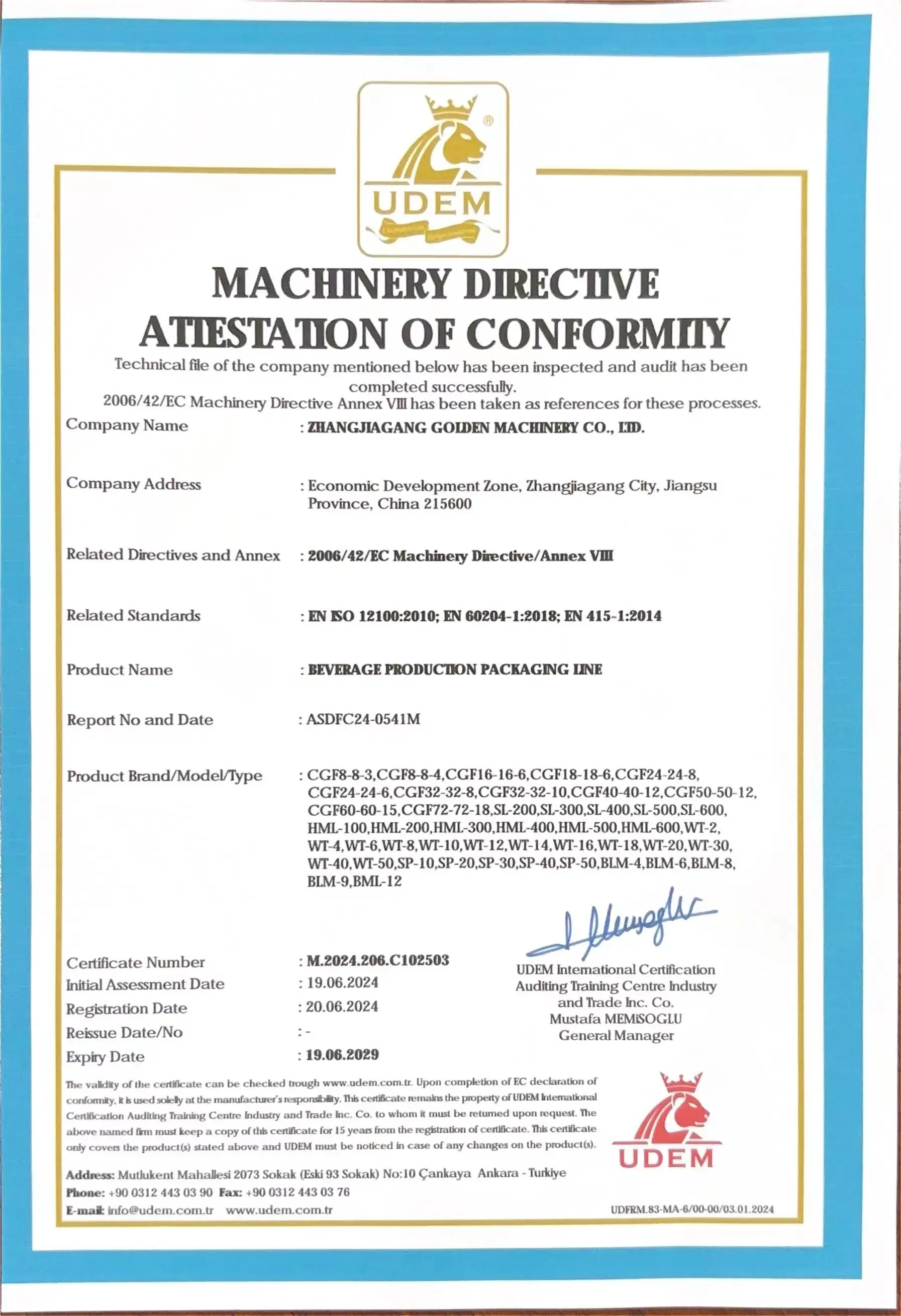

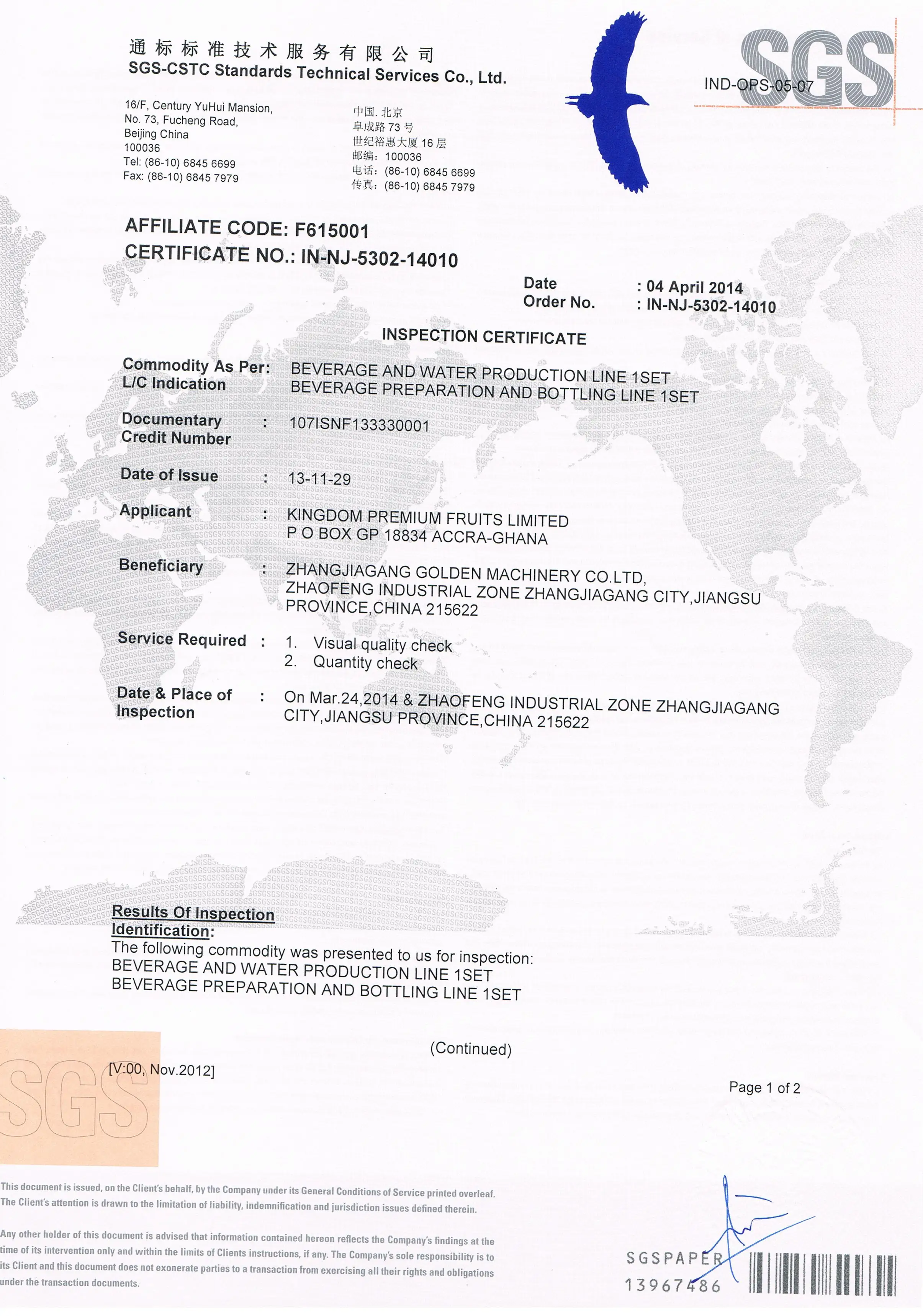

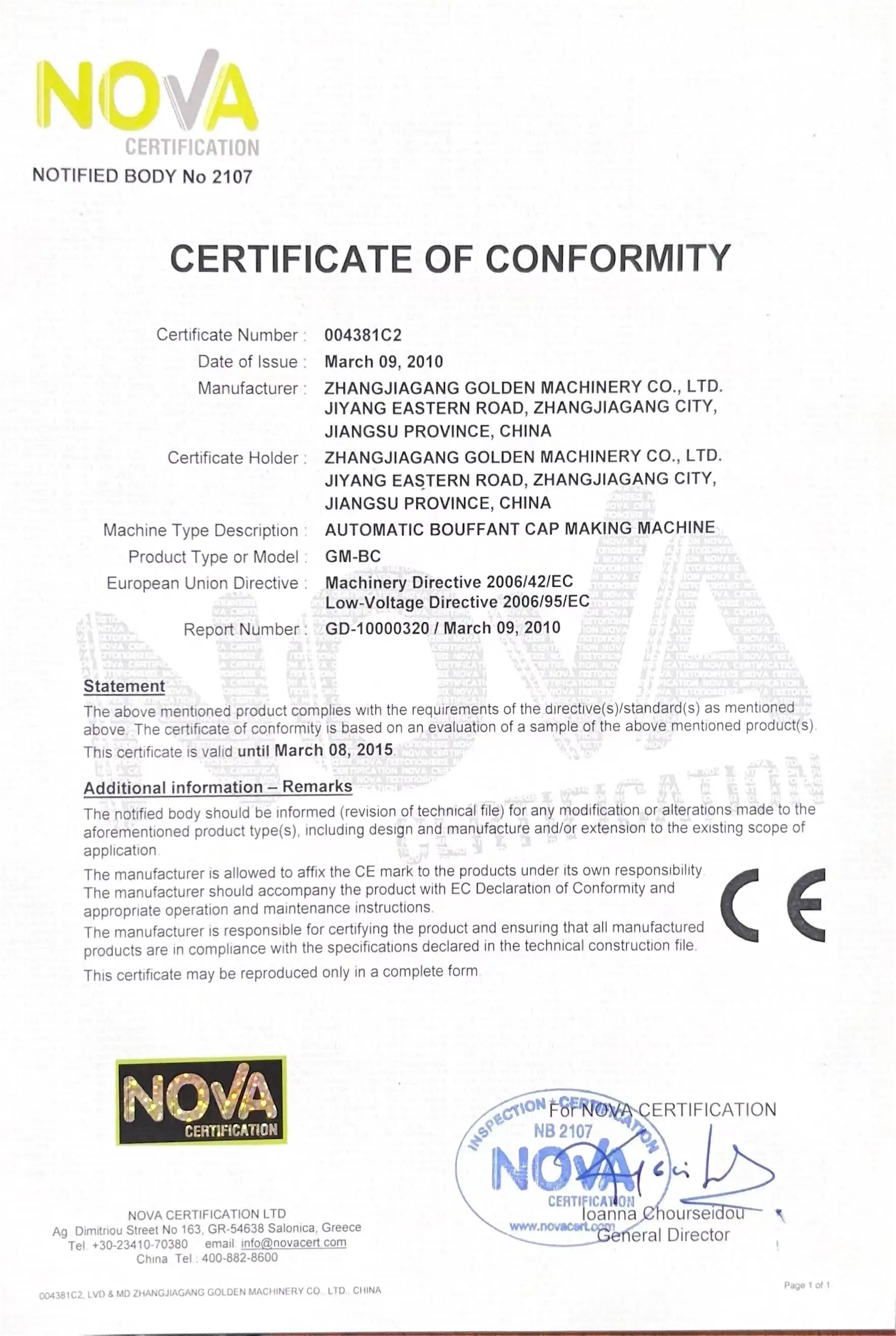

Products Certificate
RFQ
Q For a new starter, how can you help me start and run a water or beverage bottling plant?
Q What is the guarantee or warranty of your machines?
A We can help you do the bottle design, label design and choose the suitable labeling and package type according to your local market. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install the machines, train your staff how to operate, maintain the machines and even help you hire experienced Chinese engineer to work in your factory as a production manager.
Q What is the guarantee or warranty of your machines?
A We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
Q How can we check our machines if we order the machines from you?
A We will test all the machines before shipment, you can come to inspect the machines or we can take videos for you.
Q How can I know the quality of your machines before order?
A We have many projects in different countries, with the customers’ permission, we can guide you to visit the factories
and see the machines running. You are also very welcome to visit our company in China to see the machine running in our factory.
and see the machines running. You are also very welcome to visit our company in China to see the machine running in our factory.
Q Can your company provide turnkey project from A to Z?
A Yes, we can provide the turnkey project for beverage production line, from PET preform and cap making machine, PET bottle blowing machine, water treatment plant, juice or carbonated drink mixing plant, filling and packing machines.
