ZTRFM80 300 Automatic C purlin Steel CZ purlin roll forming machine for solor panel structure
- Category: >>>
- Supplier: Cangzhou Zhongtuo Roll Forming Machinery Co. Ltd.
Share on (1601209259551):
Product Overview
Description
Steel Floor Joist Machine C200 C250 C300 CU Purlin Roll Forming Machine

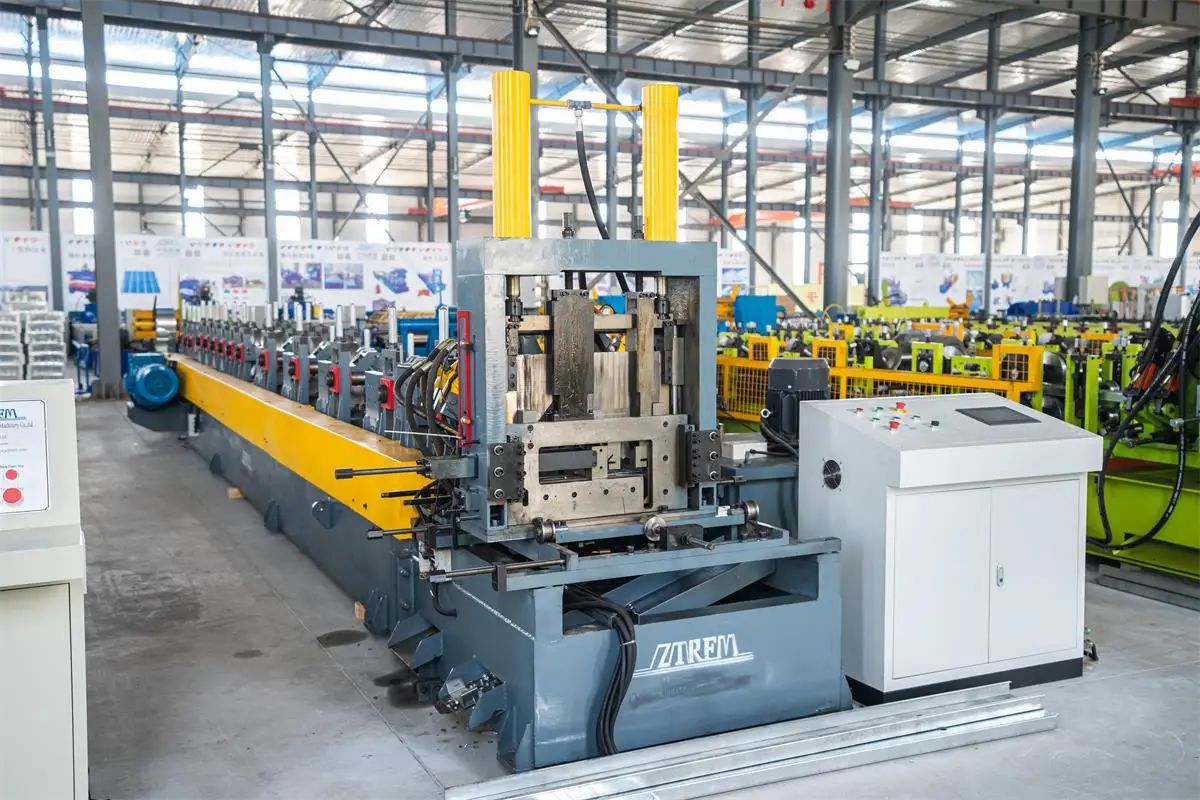

C Joist purlin roll forming machine is an equipment that produces C joist with oval hole C shaped steel channels continuously out of galvanized or cold rolled steel strips from feeding, punching for holes, bending and cutting. This machine is fully automatic and easy to operate with a friendly HMI panel.
C joist with cutouts to pass things such as wires, conduits etc through!
Smart control system C Z U purlin roll forming machine
Fast input software can save time about one hours for users per day. No need tedious input, can fast input by the USD mediam, easy to management and high efficiency!
Working flow:
N/M | Name | Specifications | ||||
Manual decoiler | Carry weight | 3000kg | ||||
Equipment | Handwheel(contribute decoiling) and brake(avoid the deposition) | |||||
Price | Free as gift | |||||
Main roll forming system | Machine dimension | 40*4*5 feet | ||||
Work voltage | 480v/60hz/3p (As Requested) | |||||
Servo power | 20kw | |||||
Feeding thickness | Material thickness: 1-4mm( 15-6 gauge ) | |||||
Material of roller | 45#steel,forging with surface hard chrome plating | |||||
Roller shaft | Φ85mm solid | |||||
Material | PPGI,PPGL | |||||
Number of roller stations | 24 | |||||
Main frame | 350H Beam | |||||
Cutting device | Cutting blade | Cr12 quenched HRC58-62 | ||||
Cutting length tolerance | ±1mm/3m | |||||
Cutting type | Hydraulic cutting | |||||
PLC Control system | Brand | Delta | ||||
Operation | Touch screen | |||||

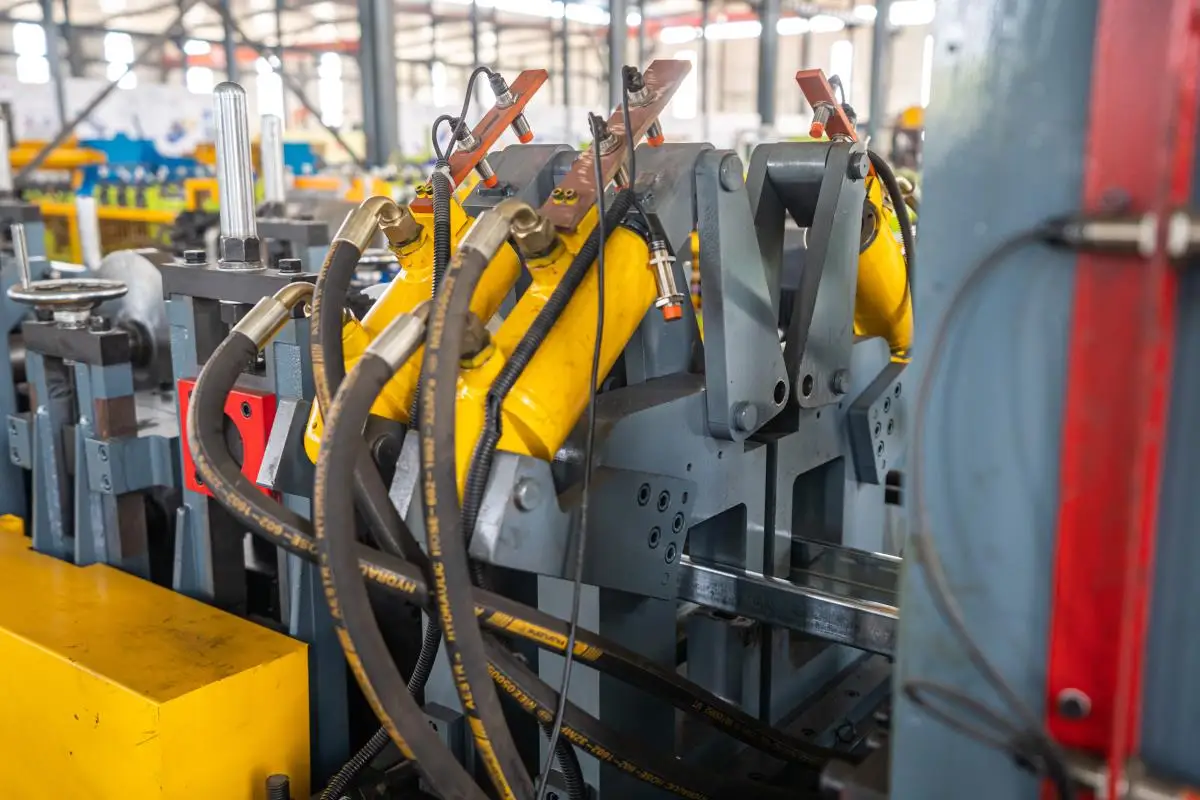

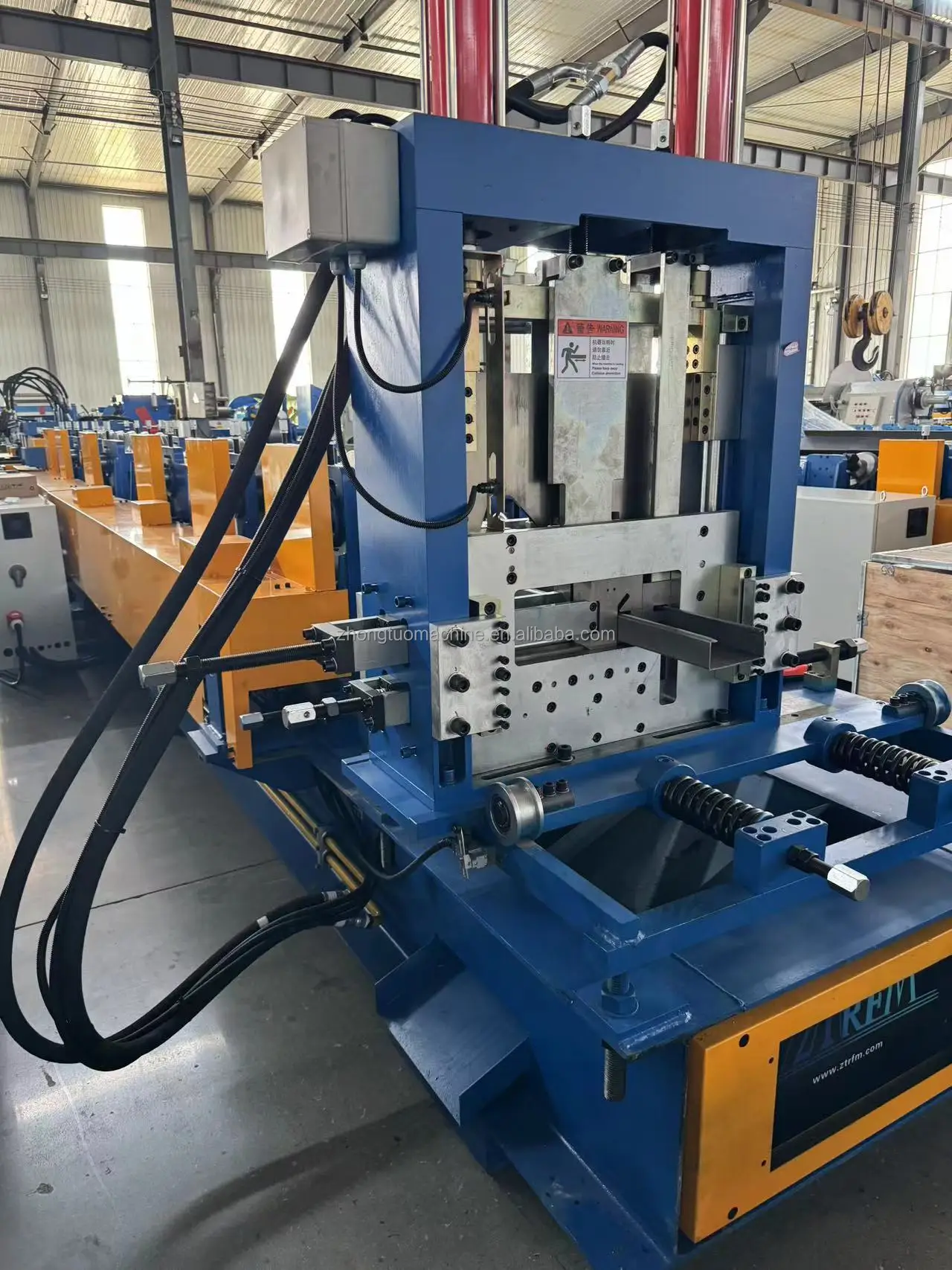

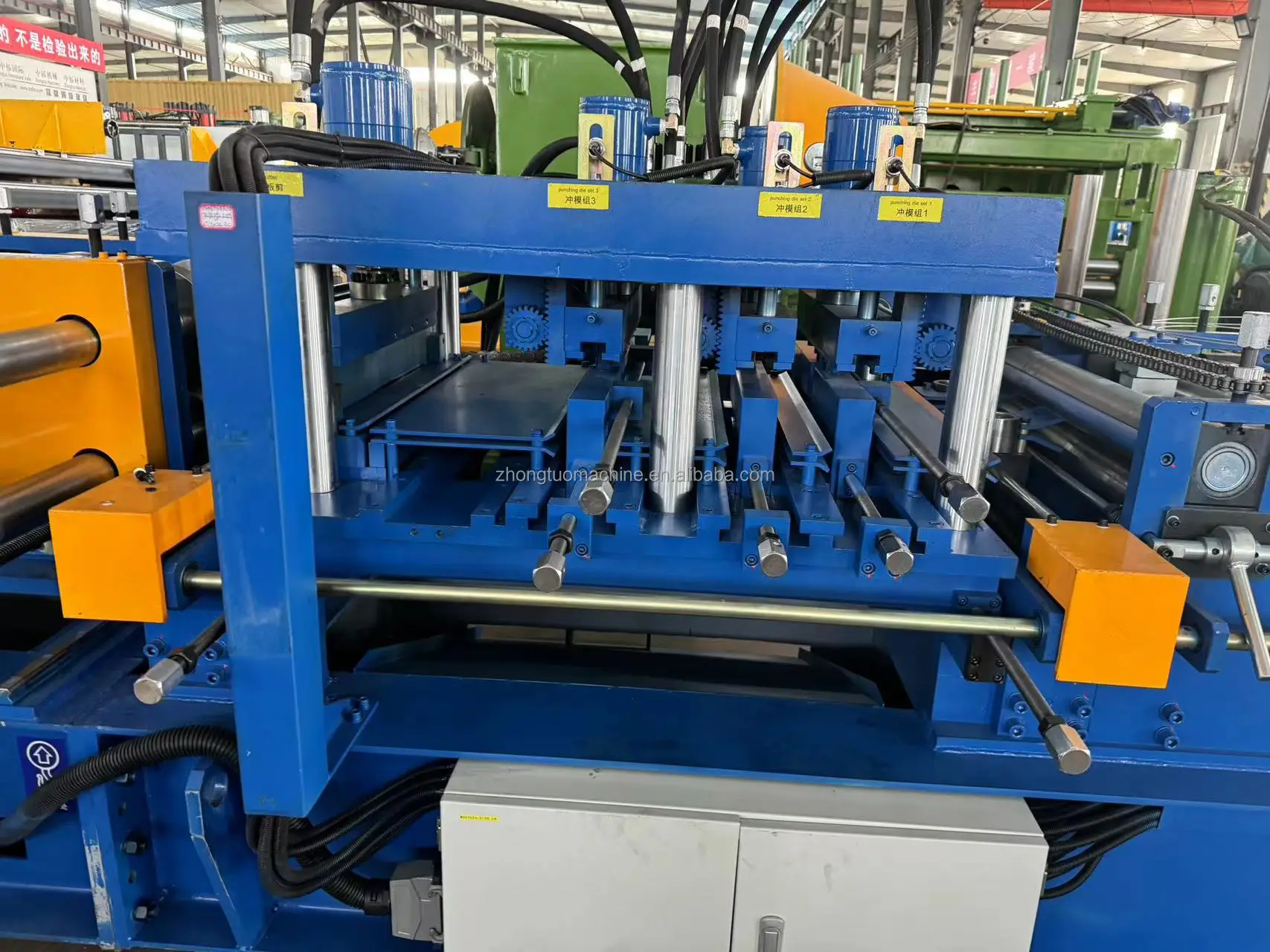

Hydraulic Cutting Blade
1.Material of blade: Cr12mov quench treatment
2.Length measuring: automatic encoder measuring
3.Tolerance of length is 3000mm+- 1.0mm
You can manually adjust the cutter to cut different sizes of c/z purlin. You do not need to change new blade and this cutter is easy to operate.
You can manually adjust the cutter to cut different sizes of c/z purlin. You do not need to change new blade and this cutter is easy to operate.
PLC Control system
PLC brand:Delta(Taiwan) PLC, and transducer and touched screen
● Encoder brand:Omron
● Electrical components:Schneider
● Operating
language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is
really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.
language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is
really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

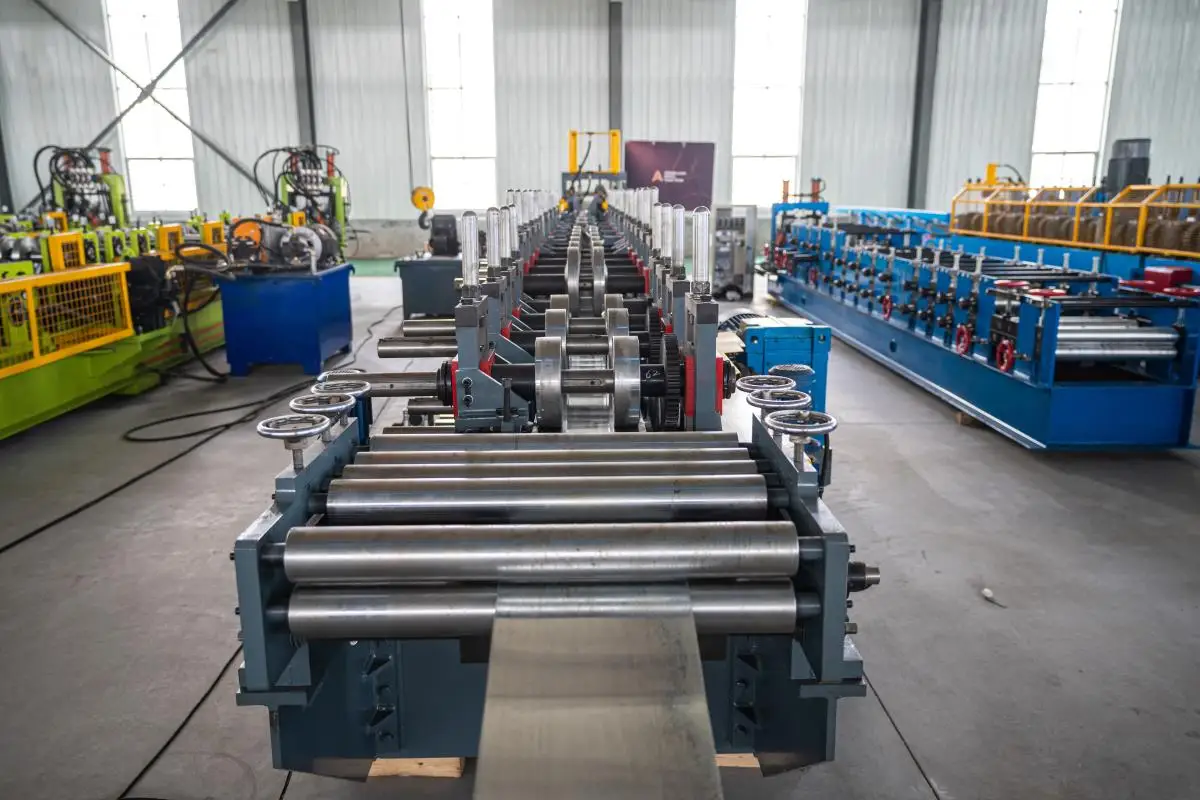

Feeding and leveling device
There is an electric button here, which can automatically adjust the feeding width
Leveling rollers: 3 up 4 down Roller material:Cr15
Roller diameter: 75mm
Feeding width adjustment: automatic by button Make sure inputted steel sheet straight and neat and then roll forming process could be made accurate

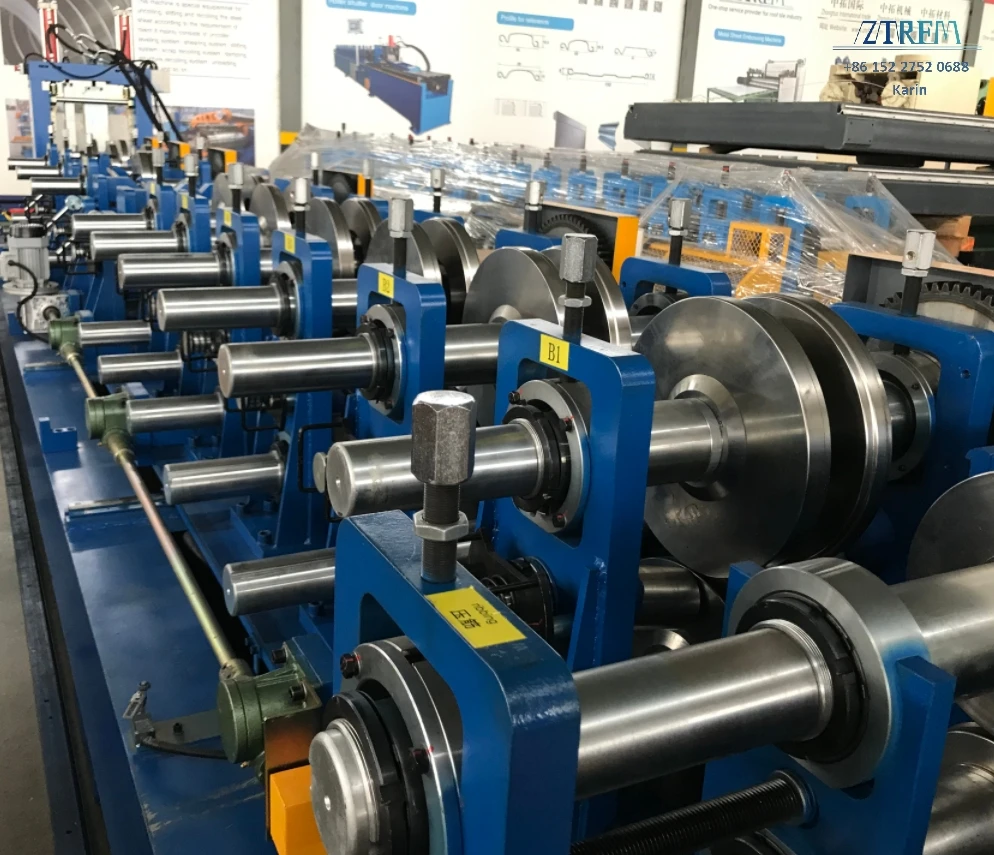

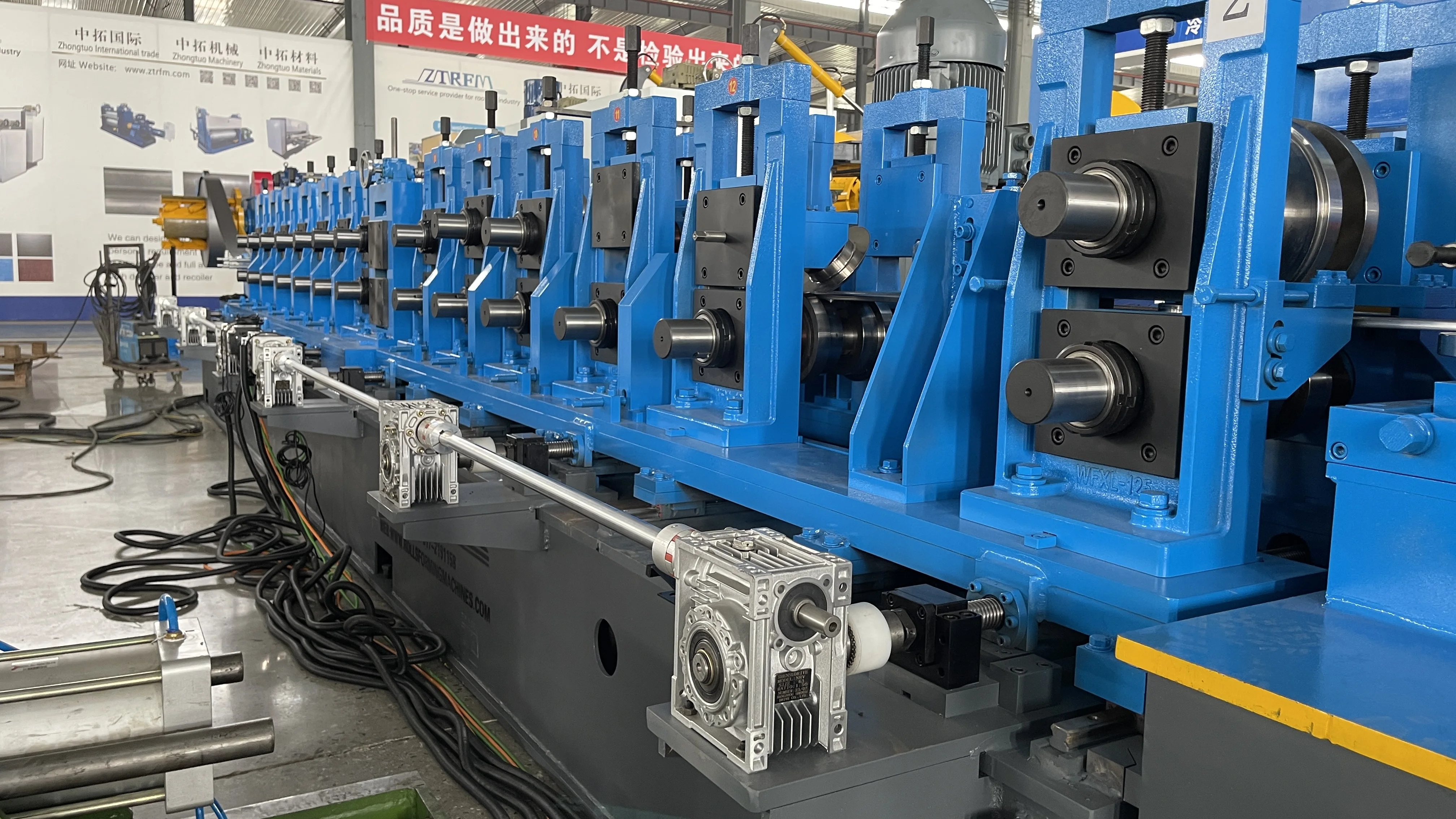

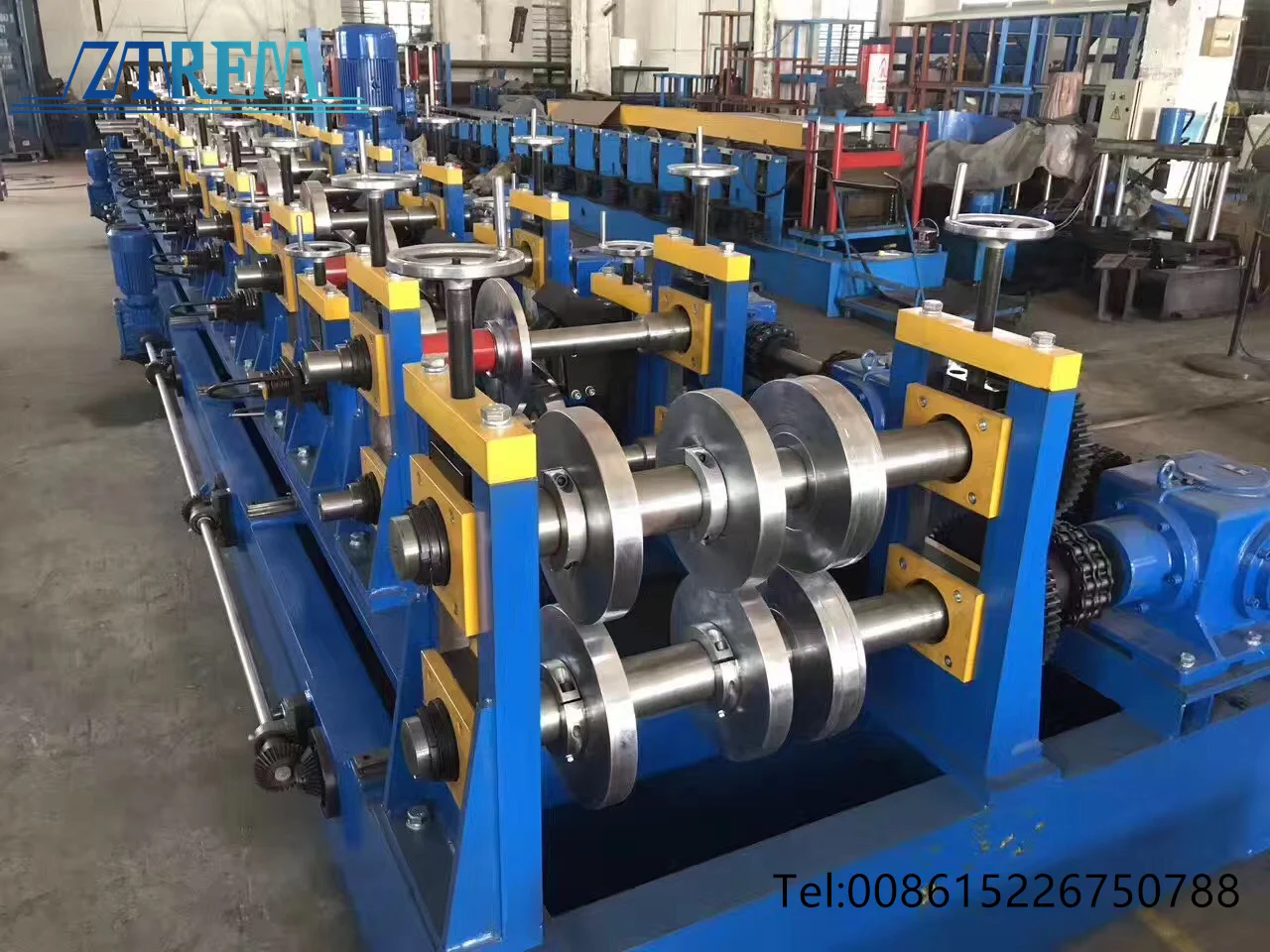

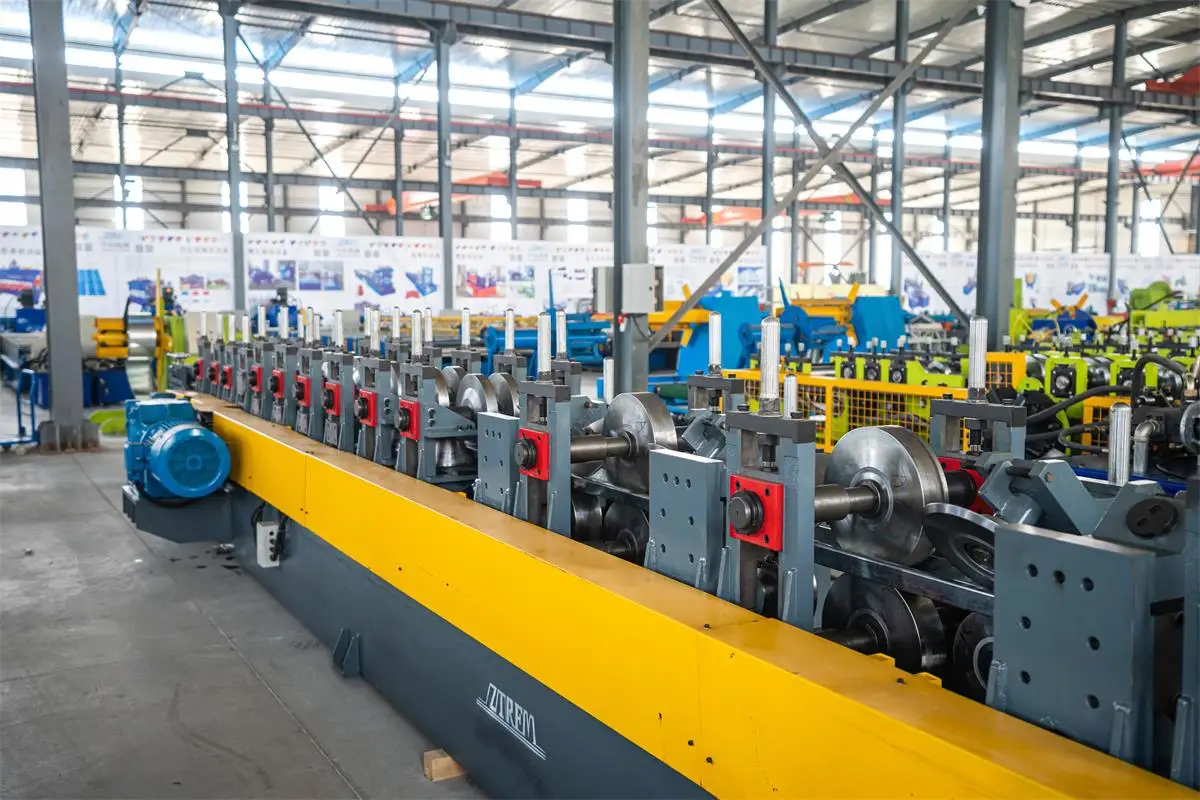

Roll Forming And Transmission Device
Rollers material: Cr12 CNC processing heat treatment to HRC: 58-60 ,finish turning
Roller stations: 24 rows
Shaft material:Shaft material: 40 Cr CNC processing HRC 28-32 ,finish turning and electroplate
Drive by Heavy duty chains: 1.5 inch
Drive by Heavy duty chains: 1.5 inch

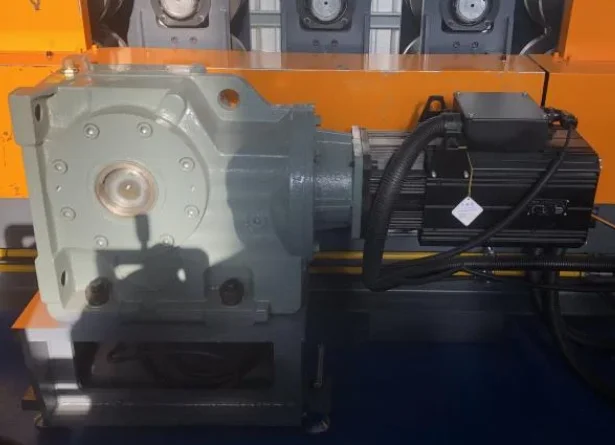

Servo motor
Servo Motors are used throughout many industries and have the following advantages:
1. High efficiency
2. High output power relative to their size More constant torque at higher speed Closed-loop
3. control Quiet operation Highly reliable High ratio of toraue to inertia
4. High acceleration High-speed performance
5. Torque control
6. Smooth running
7. High accuracy
8. Well suited to varving load applications
1. High efficiency
2. High output power relative to their size More constant torque at higher speed Closed-loop
3. control Quiet operation Highly reliable High ratio of toraue to inertia
4. High acceleration High-speed performance
5. Torque control
6. Smooth running
7. High accuracy
8. Well suited to varving load applications

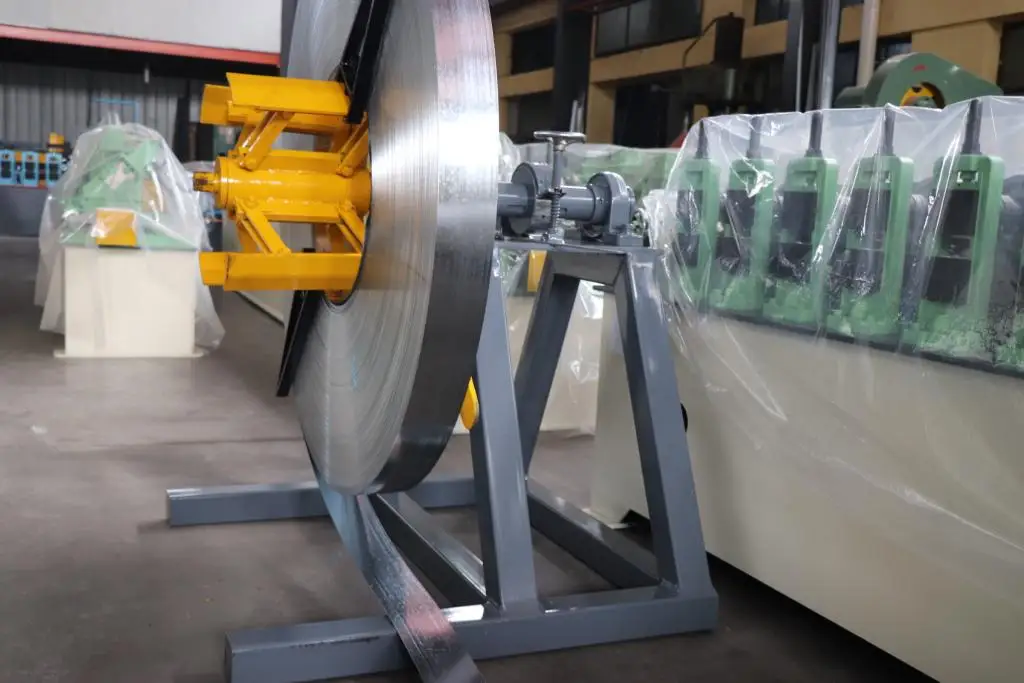

Manual decoiler
Capacity:8 tons Coil inner diameter:450-550mm Feeding width: max 500mm Structure: welded by the steel plates and profiled bar.
CE(NO.OP180719.CZIDC95)
ISO 9001(No:ZL92090220234630)
