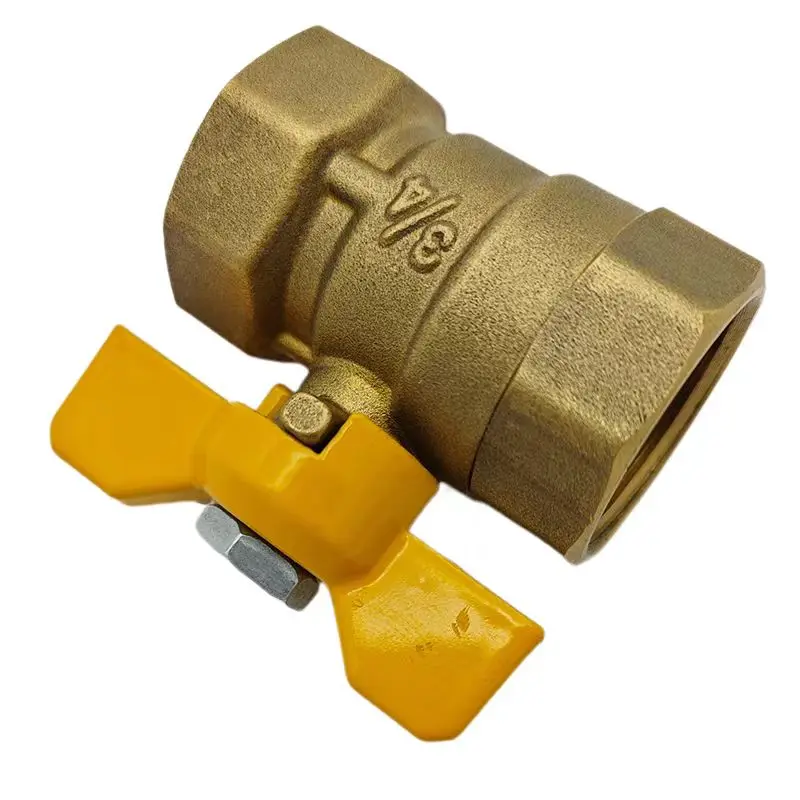

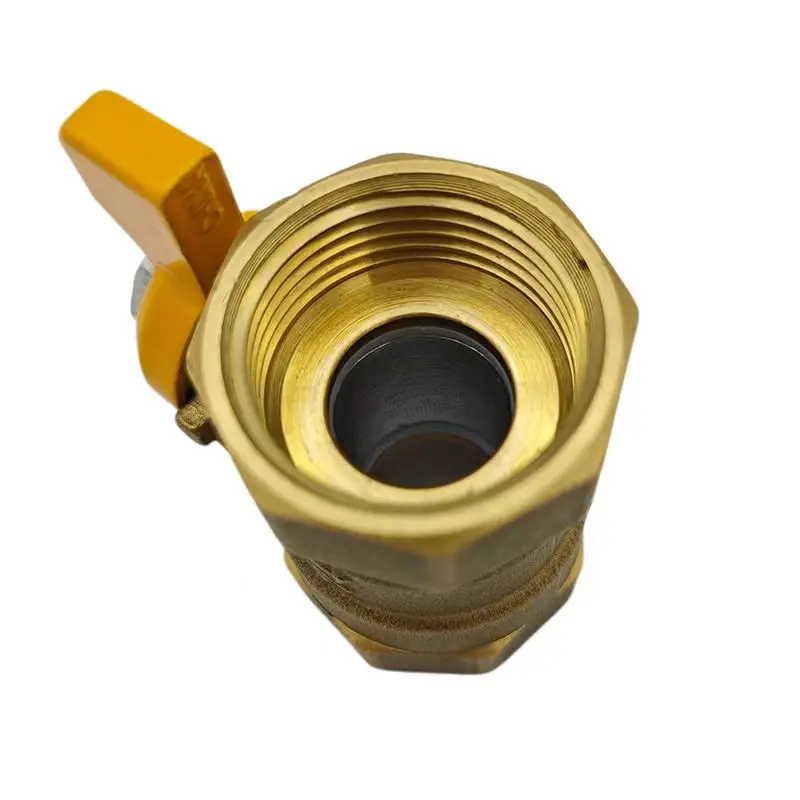

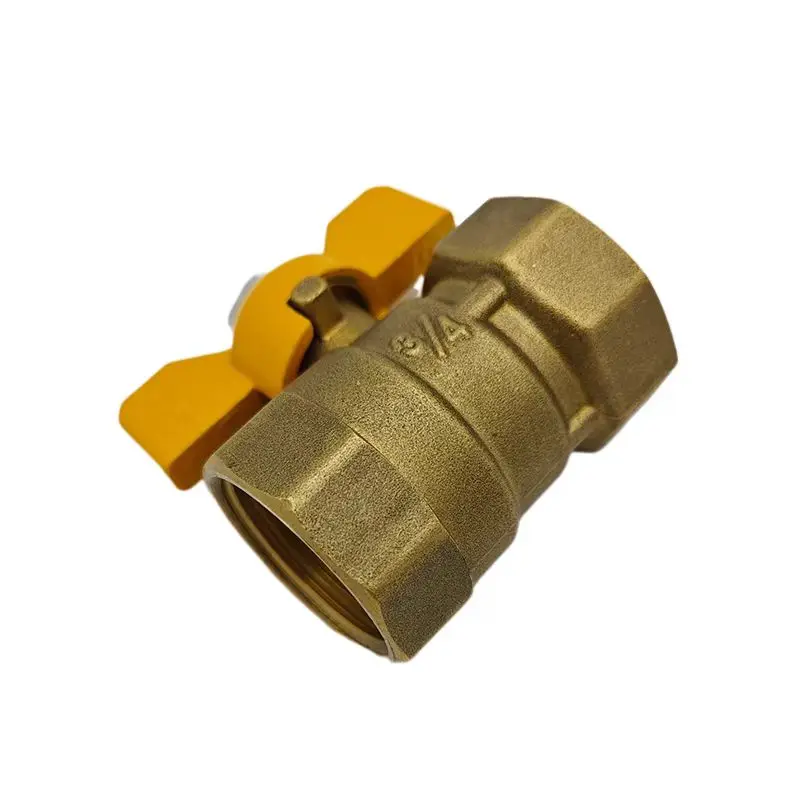

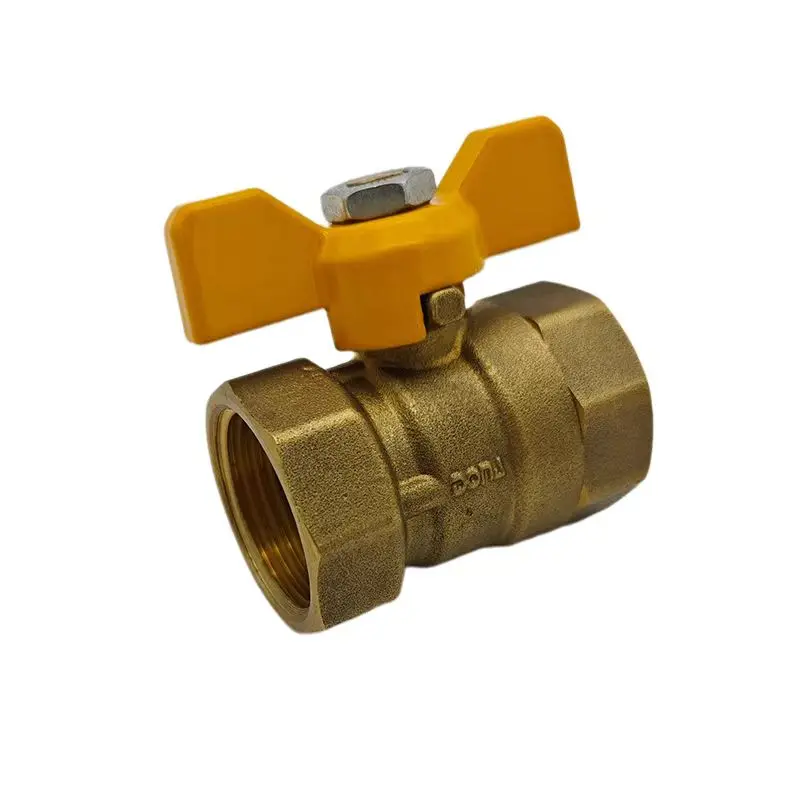

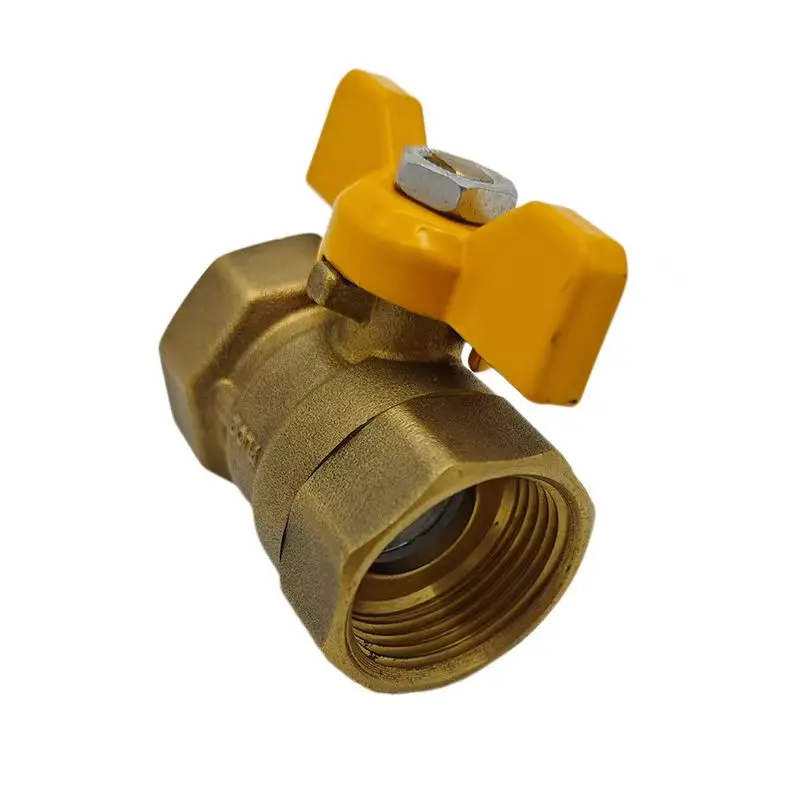

Certificated Approved wholesale Supply Brass Ball Valves With Butterfly Handle For Water Supply And Pipeline Connections
- Category: >>>
- Supplier: Ningbo Texoon Brass Works Co. Ltd.
Share on (1601209281131):
Product Overview
Description
Products Description
Specification
●Full port
●Forged Brass Body
●Blow Out Proof Stem Design
●Double-O-ring
●Butterfly handle
●Forged Brass Body
●Blow Out Proof Stem Design
●Double-O-ring
●Butterfly handle
●Thread:ISO228
Performance Rating
●Max working pressure 1.6Mpa
●Temperature Range:0℃-120℃
●Temperature Range:0℃-120℃
Certification
●cUPC、 NSF/ANSI 61、NSF/ANSI 372 and CSA Approved
Model & Structure Dimension
Model | Size | Port |
2TXG-WH050 | 1/2" | 0.501" |
2TXG-WH075 | 3/4'' | 0.591" |
2TXG-WH100 | 1'' | 0.787" |
Material List
No. | Name | Material | QTY |
1 | Body | Brass | 1 |
2 | Seat | PTFE | 2 |
3 | Ball | Stainless Steel/Brass | 1 |
4 | O-Ring | NBR | 2 |
5 | Stem | Brass | 1 |
6 | Handle Nut | Plated Steel | 1 |
7 | Handle | AL-alloy | 1 |
8 | Cap | Brass | 1 |
Recommend Products
Company Profile
Production Process
FAQ
Q1:Are you a manufacturer or a trading company?
A1:We are a leading manufacturer of all brass valve products. Welcome to visit our factory at any time.
Q2:How about the delivery time?
A2:For big orders, lead time according to order quantities. Normally 45-60 days.
Q3:Do you accept ODM business?
A3:We do ODM .We can customize products according to drawings.
Q4:What kind of certificate do you have?
A4:The products have passed the UL gas valve related certification, FM water valve related certification, UPC, NSF61, NSF371, NSF14 and other lead-free product certification and Canadian CSA gas valve certification.
Q5:Why would I choose you?
A5:Our company has been engaging in manufacturing various kind of brass valves for more than 30 years. We have many customers in US and Canada with good relationship. We provide regular valves and also have the ability to customize.
Q6:How would you choose the shipment way?
A6:Basically, we will select shipment ways based on our factors (order quantity, delivery time,costs and customs policy), then list couples of reasonable options with Pros and Cons to customers, letting them to decide. Most of our customers choose to ship by vessel due to heavy weight. Sometime choose to ship by air due to urgent delivery date.
Q7:How to proceed an order for valve?
A7: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
