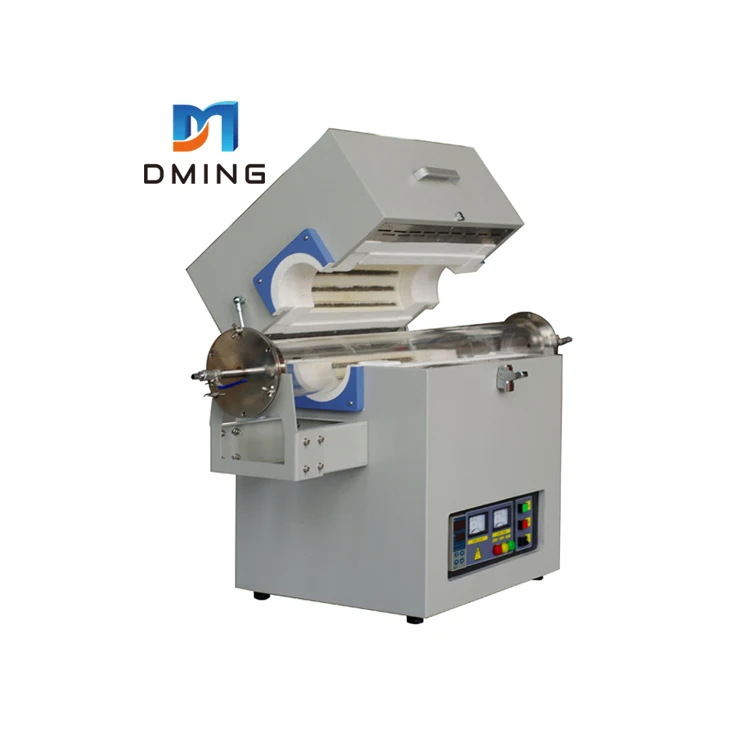

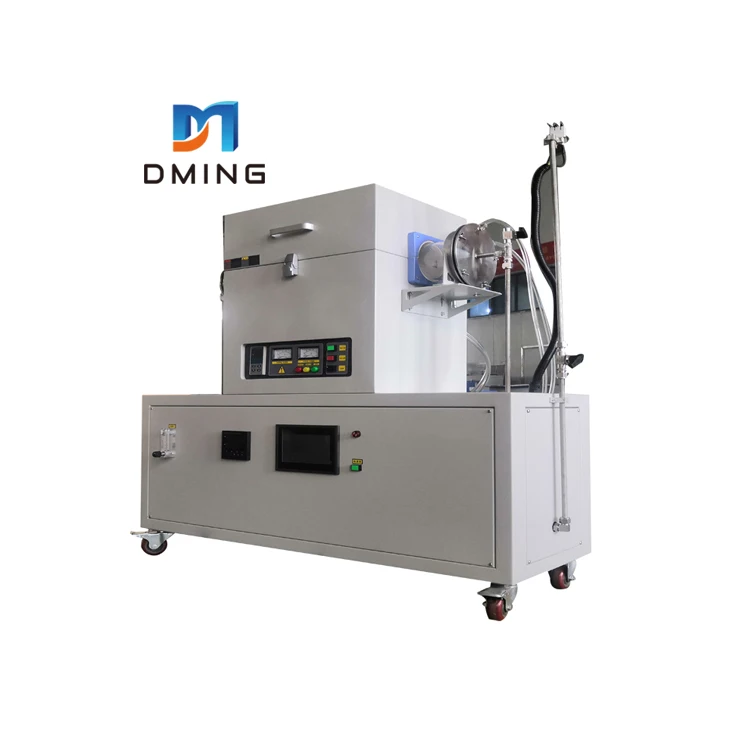

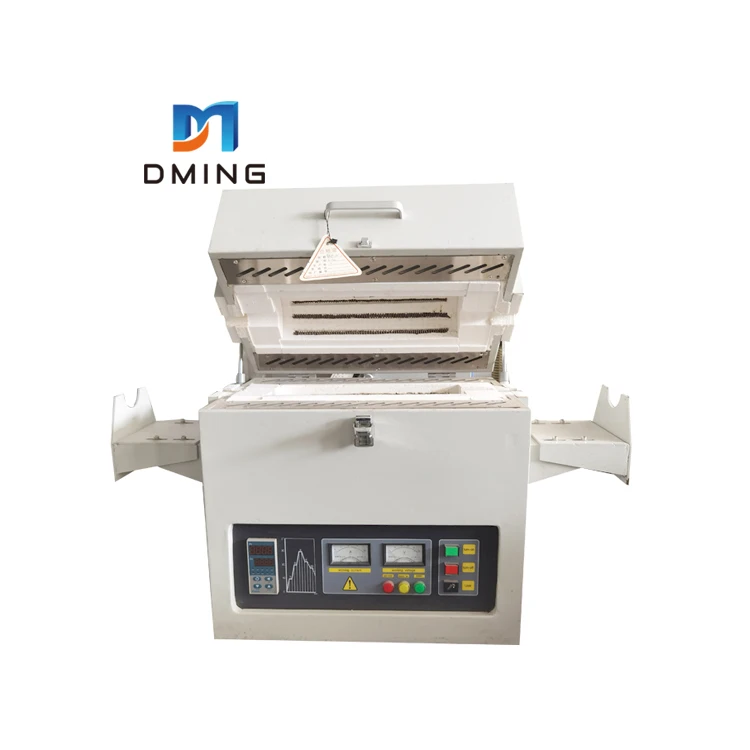

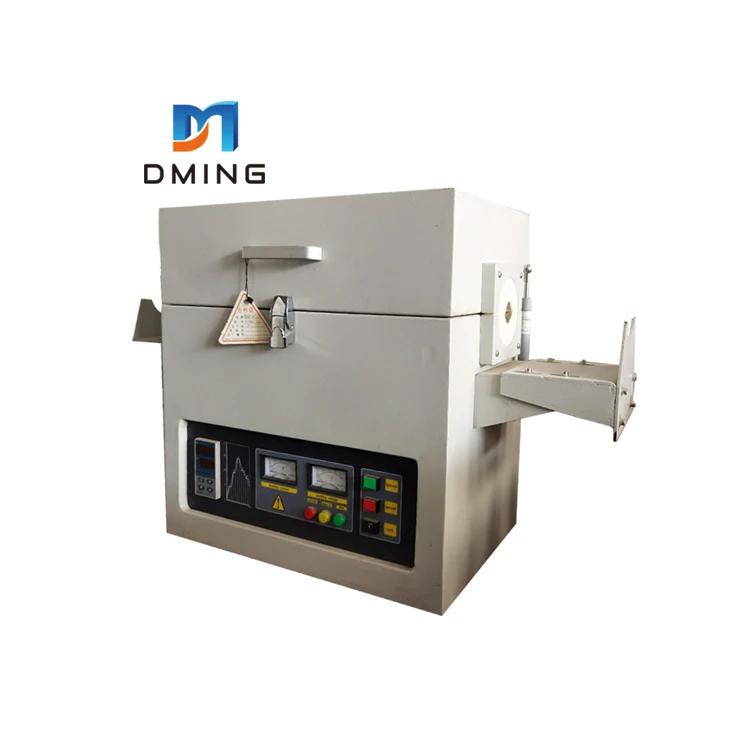

high temperature laboratory rotating tube heat treatment furnace holders tubes with high quality
high-temperature laboratory rotating tube heat treatment furnace holders tubes with high quality
high-temperature laboratory rotating tube heat treatment furnace holders tubes with high quality
high-temperature laboratory rotating tube heat treatment furnace holders tubes with high quality
high-temperature laboratory rotating tube heat treatment furnace holders tubes with high quality
high-temperature laboratory rotating tube heat treatment furnace holders tubes with high quality
high-temperature laboratory rotating tube heat treatment furnace holders tubes with high quality

high temperature laboratory rotating tube heat treatment furnace holders tubes with high quality

Share on (1601209335329):


Price:

Quantity:


Product Overview

Description


Product Description

laboratory 1200c degree high temperature tube furnace price

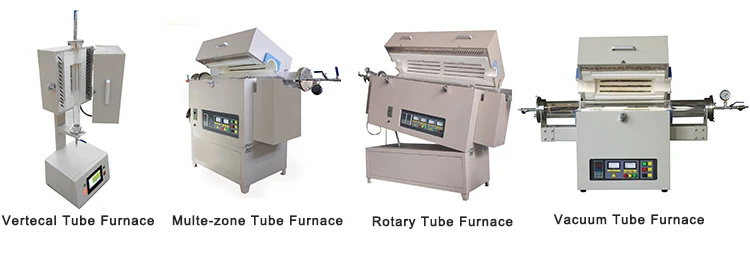

2

Main Parameters:


Tube Size
Customized
Max. Temperature
1200℃ (<2 hrs)
Working Temperature
≤1100℃
Heating Rate
0~20℃/min (suggestion: ≤10℃/min)
Vacuum Level
-0.1Mpa
Vacuum System

Vacuum level can reach -0.1Mpa by quality mechanical vacuum pump.

One vacuum/pressure gauge is installed on one side of flange.

One pair of SS304 vacuum flange with double high temperature silicon O-ring is included.

Rotary Speed
0~15 rpm
Heating Elements
Fe-Cr-Al alloy doped by Mo
Thermocouple
"K" type
Temperature Controller

50 segements programmable PID auto control (can be replaced by touch screen with addtional order)

Temperature Accuracy
±1℃
Cooling system
Double shell with cooling fan
Working Voltage
AC 220V/110V, Single Phase, 60/50Hz (or according to your requirement)



Standard SparesQua
Tube plug4pcs
Thermocouple1pcs
Quartz tube1pcs
Vacuum pump1pcs
Vacuum flange2sets
Vacuum gauge1pcs





Model
Tube Diameter (mm)
Heating Zone Length (mm)
Tube Length (mm)
DM-12NRT-40/300
40
300
1000
DM-12NRT-60/300
60
300
1000
DM-12NRT-80/300
80
300
1000
DM-12NRT-100/300
100
300
1000
DM-12NRT-120/300
120
300
1000
DM-12NRT-40/450
40
450
1200
DM-12NRT-60/450
60
450
1200
DM-12NRT-80/450
80
450
1200
DM-12NRT-100/450
100
450
1200
DM-12NRT-120/450
120
450
1200



Product Details:

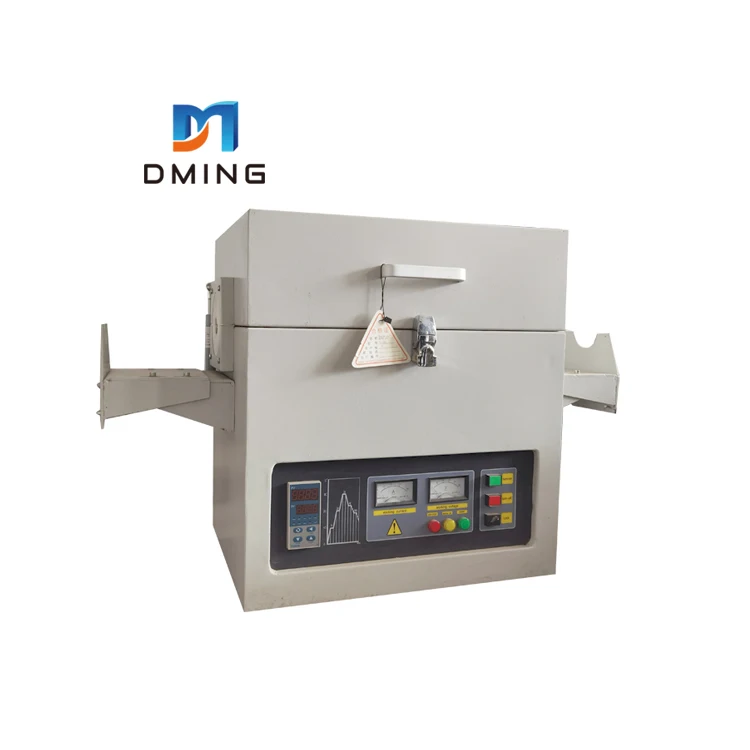

4













Features:



1.Max temperature 1200℃

2.Volume is small, net wieght is light

3. New power regulator, powerful Current-limit function, more stable and accurate temperature control.

4. the heat-gathering ring. Excellent temperature uniformity ensures excellent crystallization.

5.High purity special-made MoSi2 heating element has a higher thermal efficiency. Double shell with fan cooling. Two cooling fans, faster cooling, lower surface temperature,surface temperature below 60C









Packing and shipping:

pack2

Production and stock



Contact us:





FAQ:

Q1. How is your company's product after-sales service system?
A. We have professional pre-sales and after-sales departments and

can respond to you within 8 hours to resolve any technical issues.
Q2. How about the quality guarantee period?
A:2 years, exclude irrationally operating and consumable parts.
Q3. How about your products quality?
CE certification available and twice test before shipping.
Q4. What's your delivery time?
Conventional model needs 3 days.35 days for customized products
Q5. Are you a manufacturer or a trading company?
We are a factory with 10 years experience in the field.
