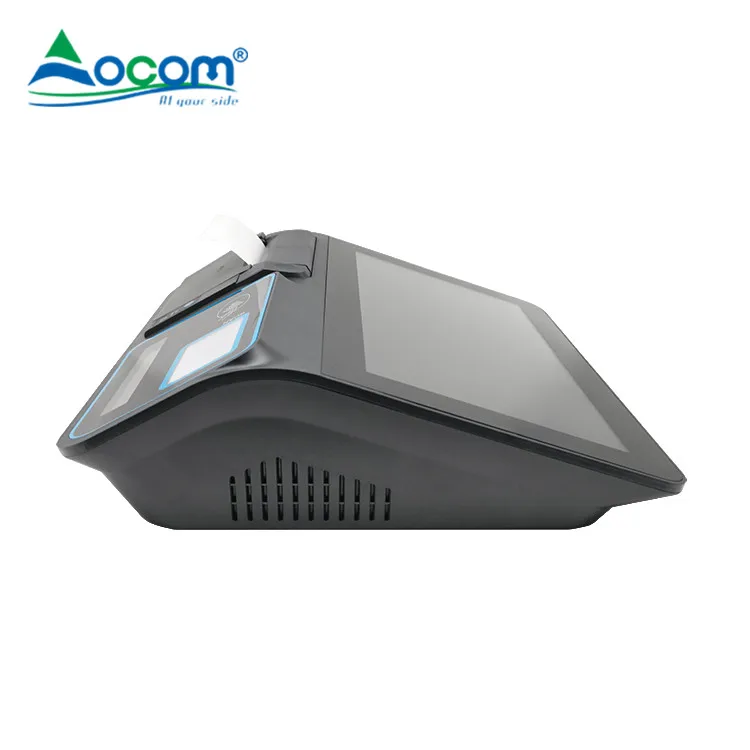

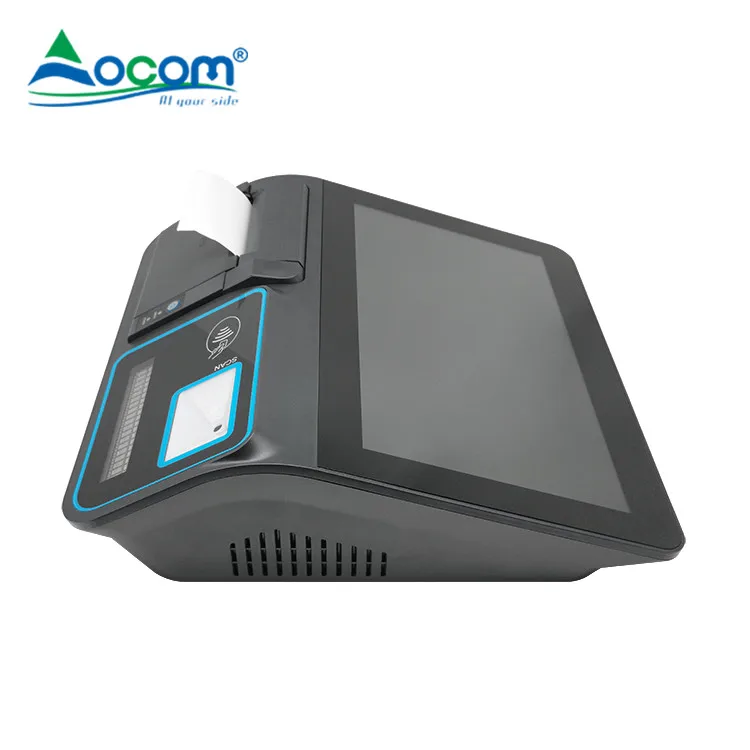

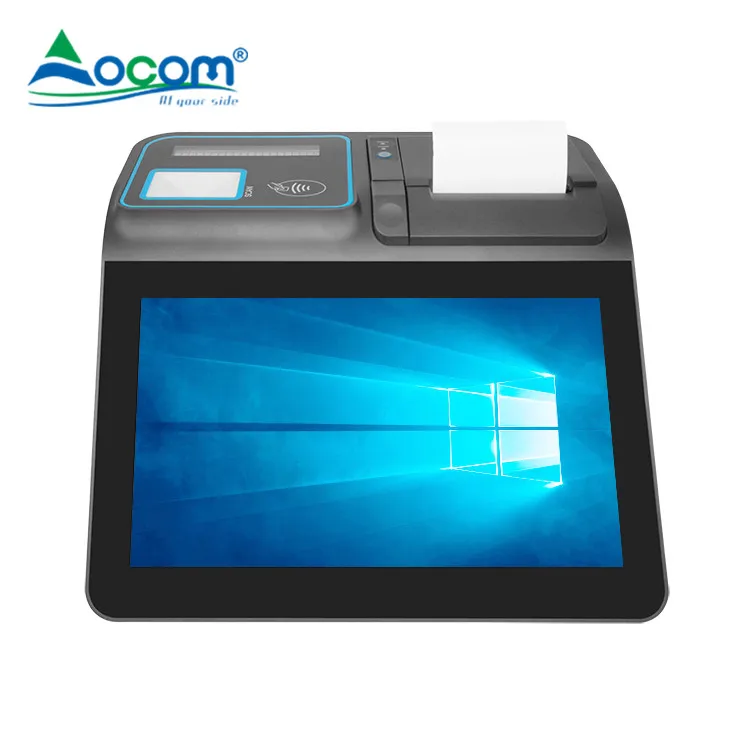

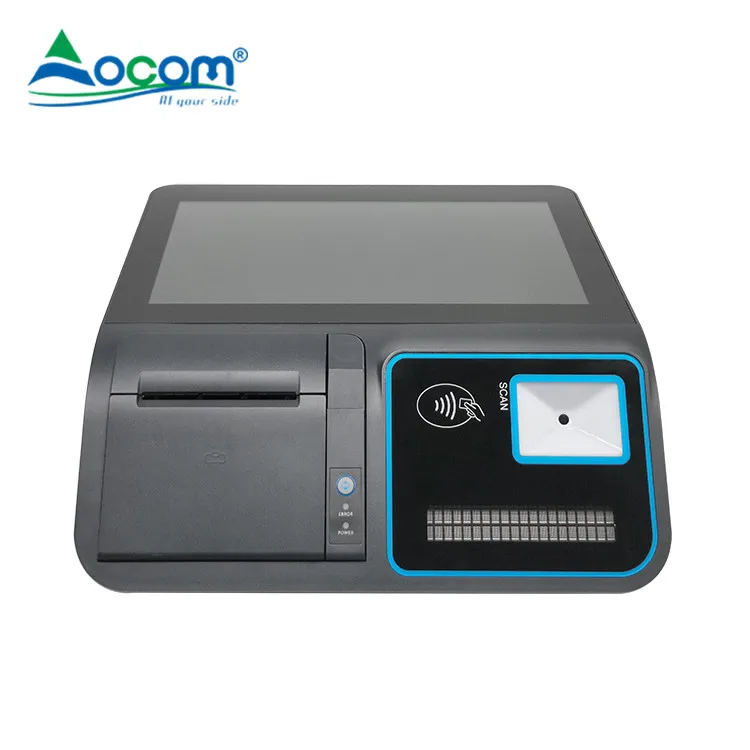

POS M1106 Touch Mobile Desktop POS 11.6 Inch POS Machine with Thermal Printer
- Category: >>>
- Supplier: Shenzhen OCOM Technologies Limited
Share on (1601209336474):
Product Overview
Description
Product details
Model | POS-M1106-W | POS-M1106-A | |||
Name | 11.6inch all in one Windows touch screen POS terminal | 11.6 inch all in one Android touch screen POS terminal | |||
Housing | Plastic with metal combined | ||||
Color | Whole gray color | ||||
Display | |||||
Main screen size | 11.6 inch touch screen monitor | 11.6 inch touch screen monitor | |||
Resolution | 1366*768, 1920*1080 for option | 1366*768, 1920*1080 for option | |||
Brightness | 300cd/m2 | ||||
View angle | Horizon: 160; Vertical: 150 | ||||
Touch screen | Multi-point projected G+G capacitive touch | ||||
Performance | |||||
Motherboard | Intel Celeron J4125, 2.0GHz | RK 3568, Cortex-55, quad core 2.0GHz / RK 3288 quad core 1.8GHz CPU for option | |||
System Memory | 1*SO-DIMM DDR4 slot, support2400mHZ, 4GB (default) 8GB for option | On board 2GB DDR4 | |||
Storage device | Msata SSD 64GB or higer, up to 256GB | 32GB eMMC, support 32GB TF card expanded for option | |||
Audio | On board Real Tek ALC662 audio chip | On board RealTek audio chip ALC5640 | |||
LAN | 10M/100M or 10M/100M/1000M LAN card | 10M/100M or 10M/100M/1000M LAN card | |||
Operating System | Windows10/11 | Android 11 | |||
Connectivity | |||||

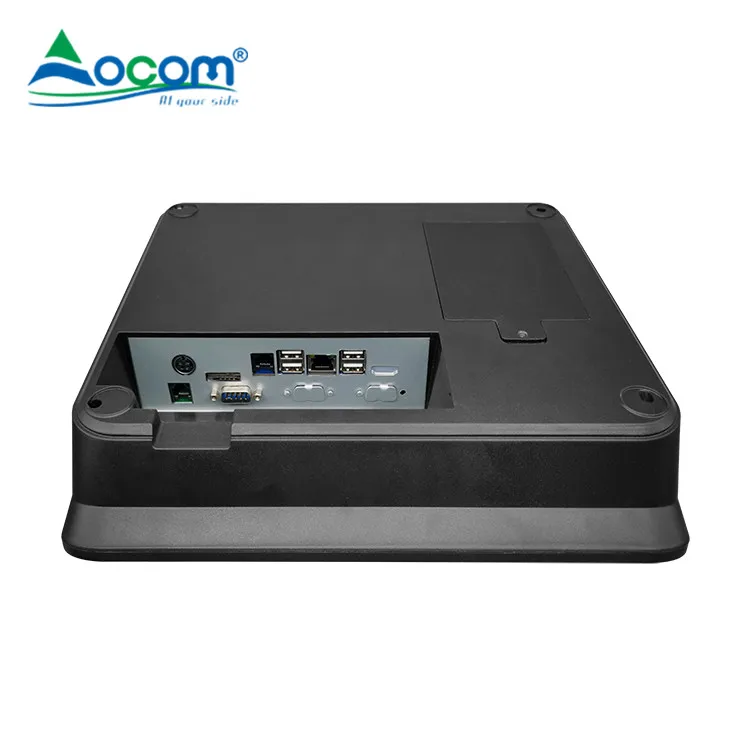

External I/O port(J4125/RK3568) | Power button*1 | ||||
12V DC in jack*1 | |||||
COM(RS232) * 1, up to 4ports | |||||
LAN: RJ-45*1 | |||||
RJ11 for Cash drawer *1 | RJ11 for Cash drawer *2 | ||||
VGA(15Pin D-sub)*1 | TF card slot*1,SIM slot*1 | ||||
USB *5 | USB *5 | ||||
MIC in*1 Audio out*1 | MIC in*1, Audio out*1 | ||||
Options | |||||
80mm thermal printer | Direct thermal printing | ||||
170mm/s printing speed | |||||
79.5 +/- 0.5mm paper width and printable width 72mm | |||||
With auto cutter function and thermal head life 100km | |||||
58mm thermal printer | Direct thermal printing | ||||
70mm/s printing speed | |||||
57.5 +/- 0.5mm paper width and printable width 48mm | |||||
thermal head life 50km | |||||
MSR | ISO7811 1/2/3 Tracks, Support Dual-swiping | ||||
NFC | ISO14443TypeA (function for not installing 5.0 inch display) | ||||
scanner | 1D/2D bar-code (function for not installing 5.0 inch display) | ||||
Customer display | 2*20 VFD ( function for not installing 5.0 inch display) | ||||
2nd display | 5.0 inch 800*600 resolution non-touch display | ||||
Battery | 5200mAh large capacity battery (only for Android version) | ||||
Package | package | ||||
Weight | Net 2.4kg, Gross 3.1kg | ||||
Package with foam inside | 400*390*190mm | ||||
Environment | |||||
Operating temperature | 0 to 40 degrees centigrade | ||||
Storage temperature | -10 to 60 degrees centigrade | ||||
Working humidity | 10%~80% No condensation | ||||
Storage humidity | 10%~90% No condensation | ||||
Accessories | |||||
Power adapter | 110-240V/50-60HZ AC power input, DC12V/5A output adaptor(Mark:DC15V/5A for android with battery) | ||||
Power cable | Power cable plug compatible with USA /EU / UK etc and customized available | ||||
Other | |||||
Compliance | CE Mark/LVD | ||||
