small mini pet food in pouch lab retort machine for sale

Product Overview

Description

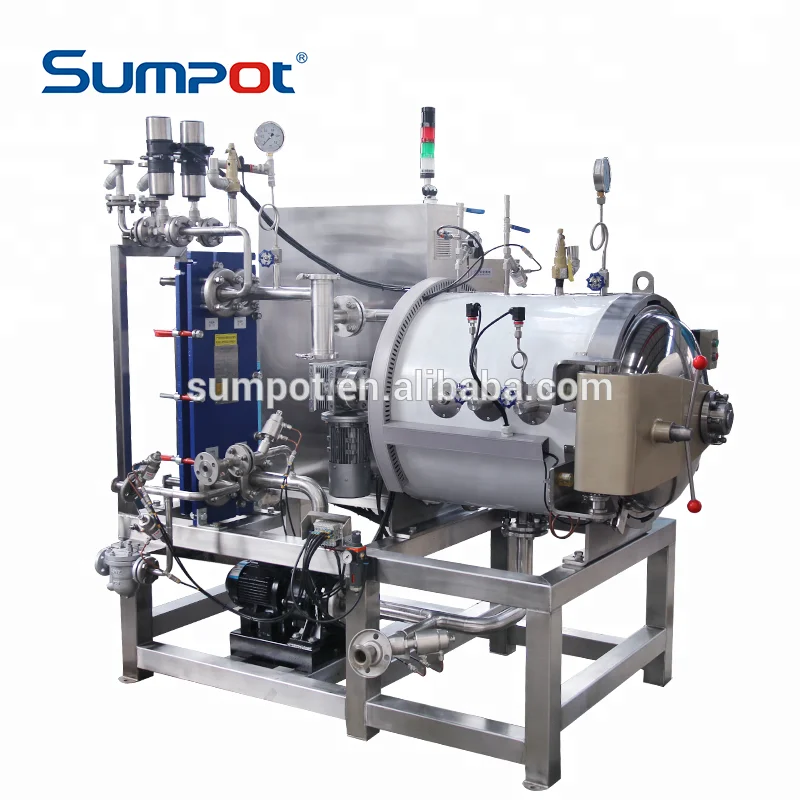

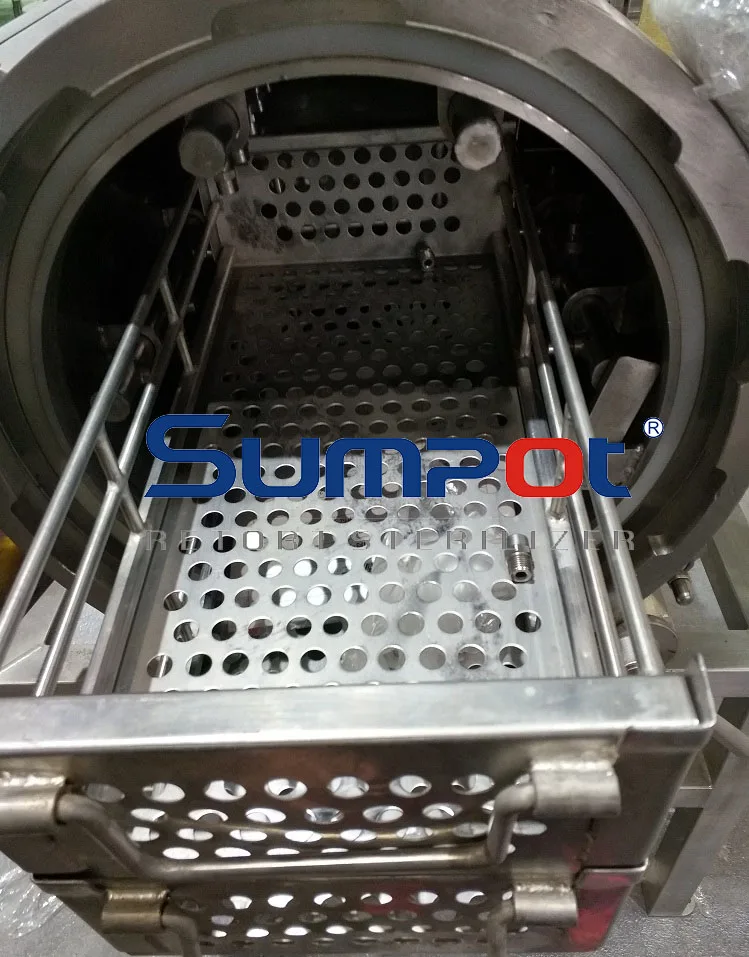

Small retort machine pilot autoclave for new food

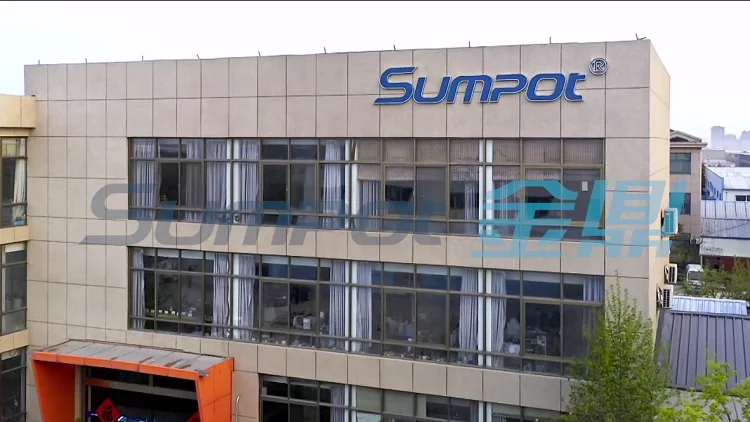

Company information

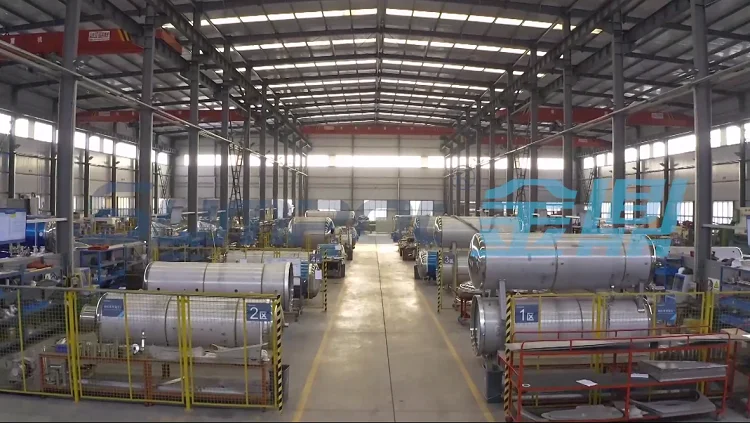

We established at 1996, the company is a set of food sterilization equipment design and development,manufacturing, marketing services in one of pressional operator , has formed raw material of supply, product development,process desgin,  experimental design, finish product inspection, production and operation, storage and transportation, tenical services in one of perfect company operation system.  Now we own welding machine , laser cutting machine, and produce retort sterilizer at systemic production way, select super good sparepart at high quality, we consistently offer retort sterilizer at stable high quality.

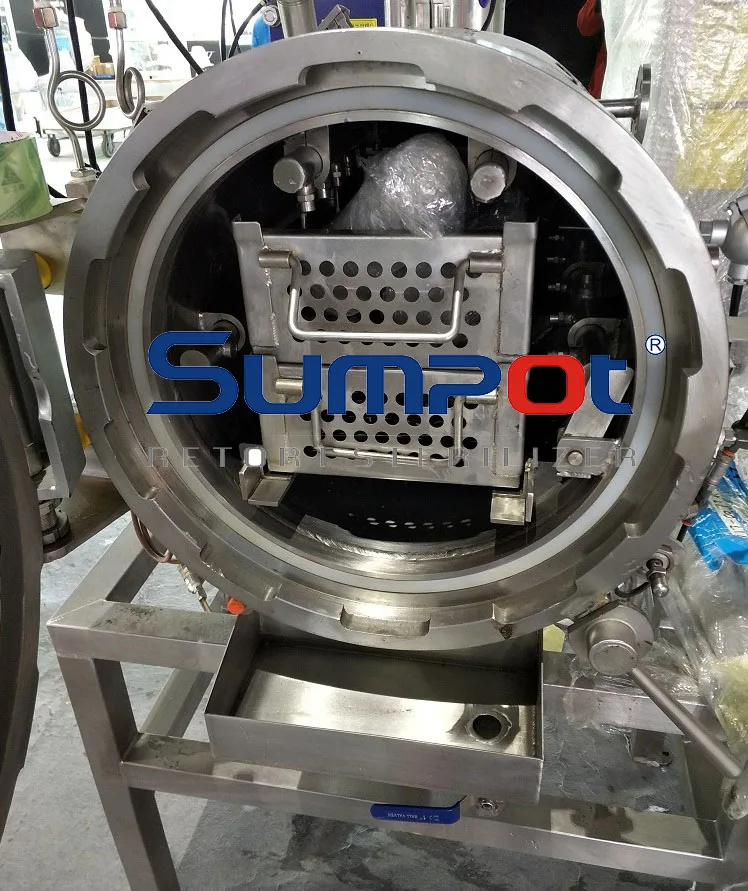

Equipment details

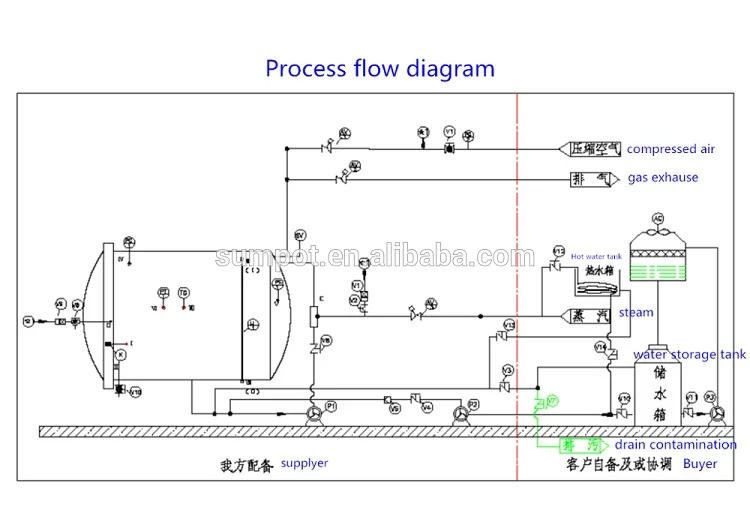

First, when sterilization water is changing heat with steam by heat exchanger, then sterilization is injected into chamber, then sterilization water steadly reach 121 degree centigrade, then sterilization water would be cycled by water pump, and food would absorb heat from water , and when the temperature of food reach 121 degree centigrade for a while, later food would be cooled down by sterilization water. Laboratory retort could help customer to do experiment by few consumption, to find suitable formula.



Consumption (this data is for reference)

Item	Content
Power	4kw/h
Steam	15kg/times
Sterilization Soften water (RO Water)	27L(can be recycled)
Cooling water	540L(can be recycled)

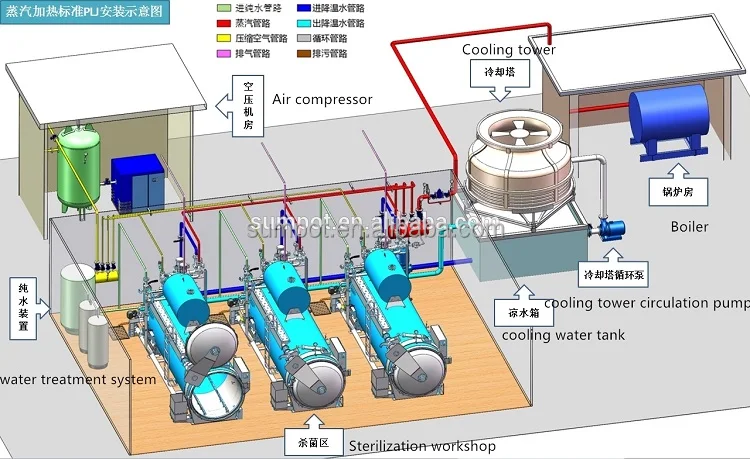

Subsidiary facilities(by user, we recommend customer to buy these facilities by youself)







Content	Type
Air compressor	air output:0.1 m3/min; pressure: 10kg
Soften water system	30L/H
Fiberglass tank for cooling water	0.6m3
Boiler type	0.1T





Certification





Optional choice to help you to develop new food

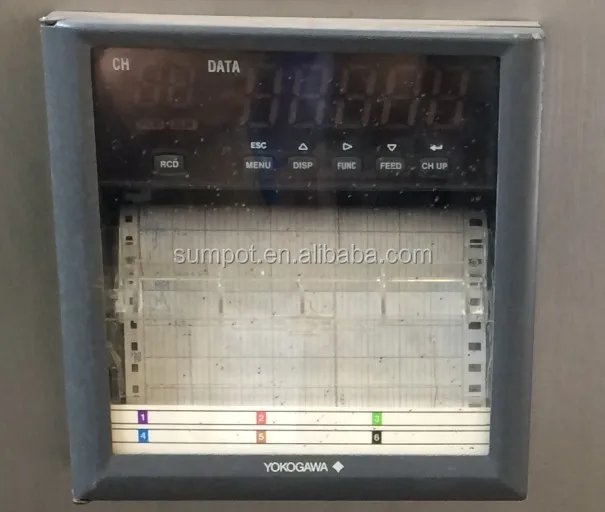

Temperature recorder ( record temperature and pressure for each batch food)

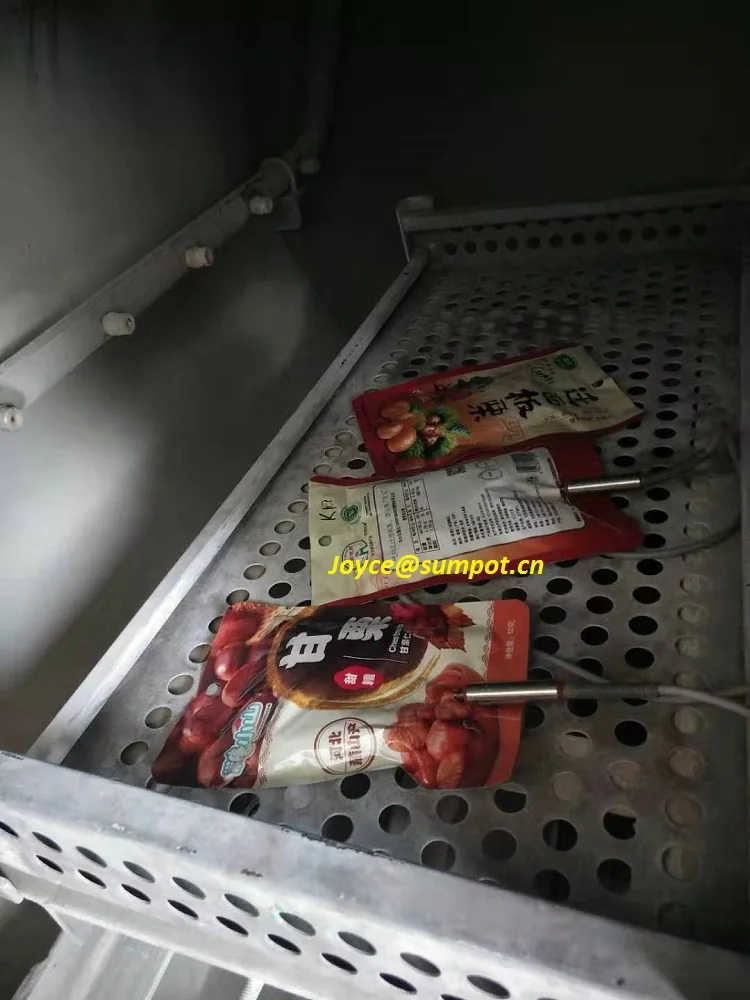

There are 3 probes or 5 probes to check food F0, these probes would be inserted into food center.
