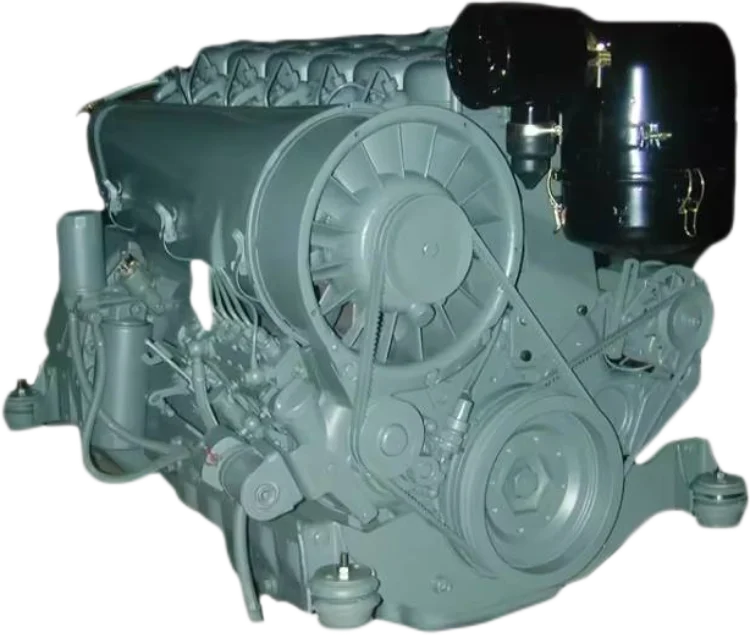

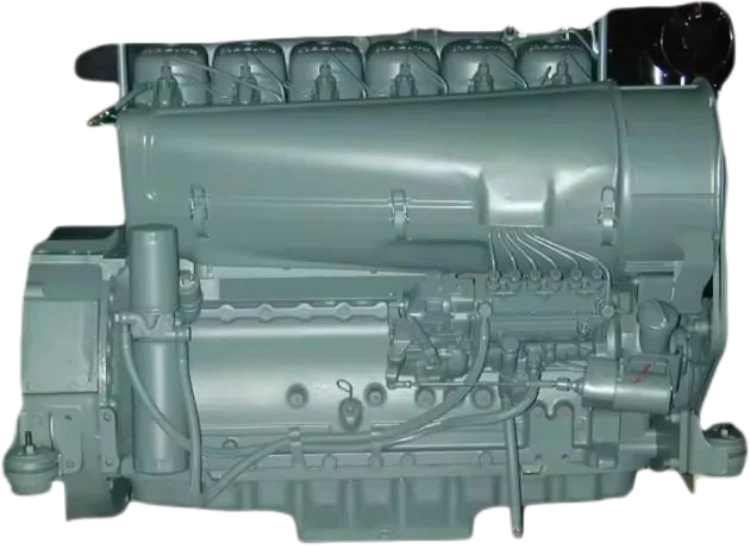

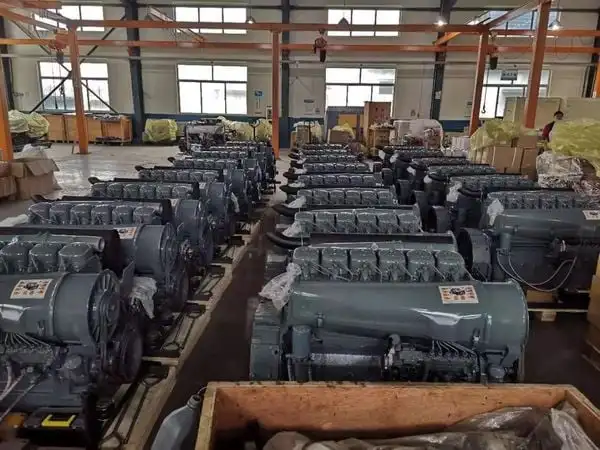

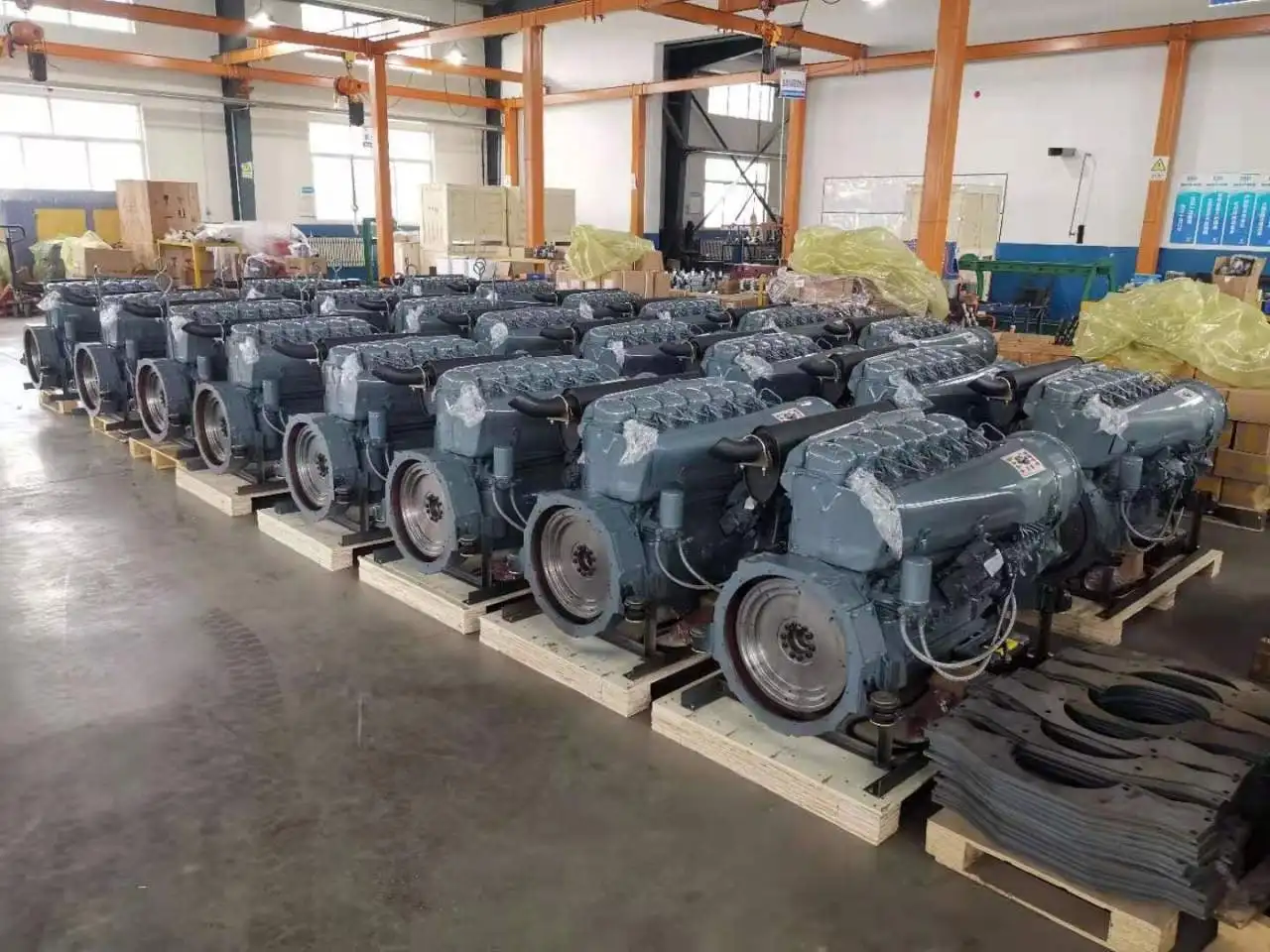

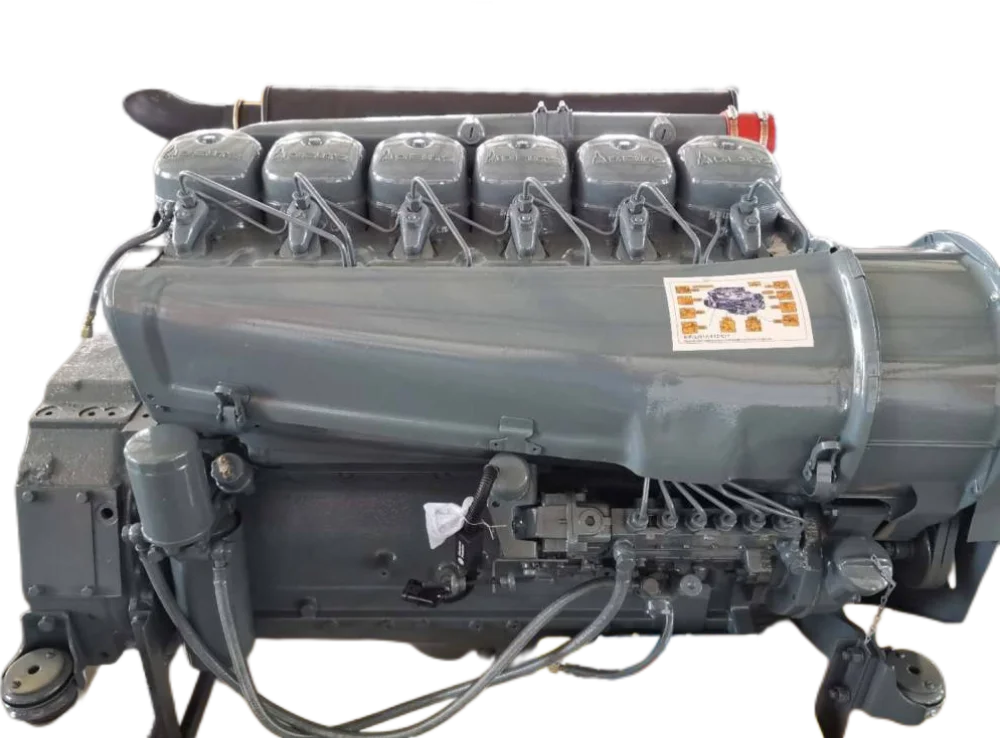

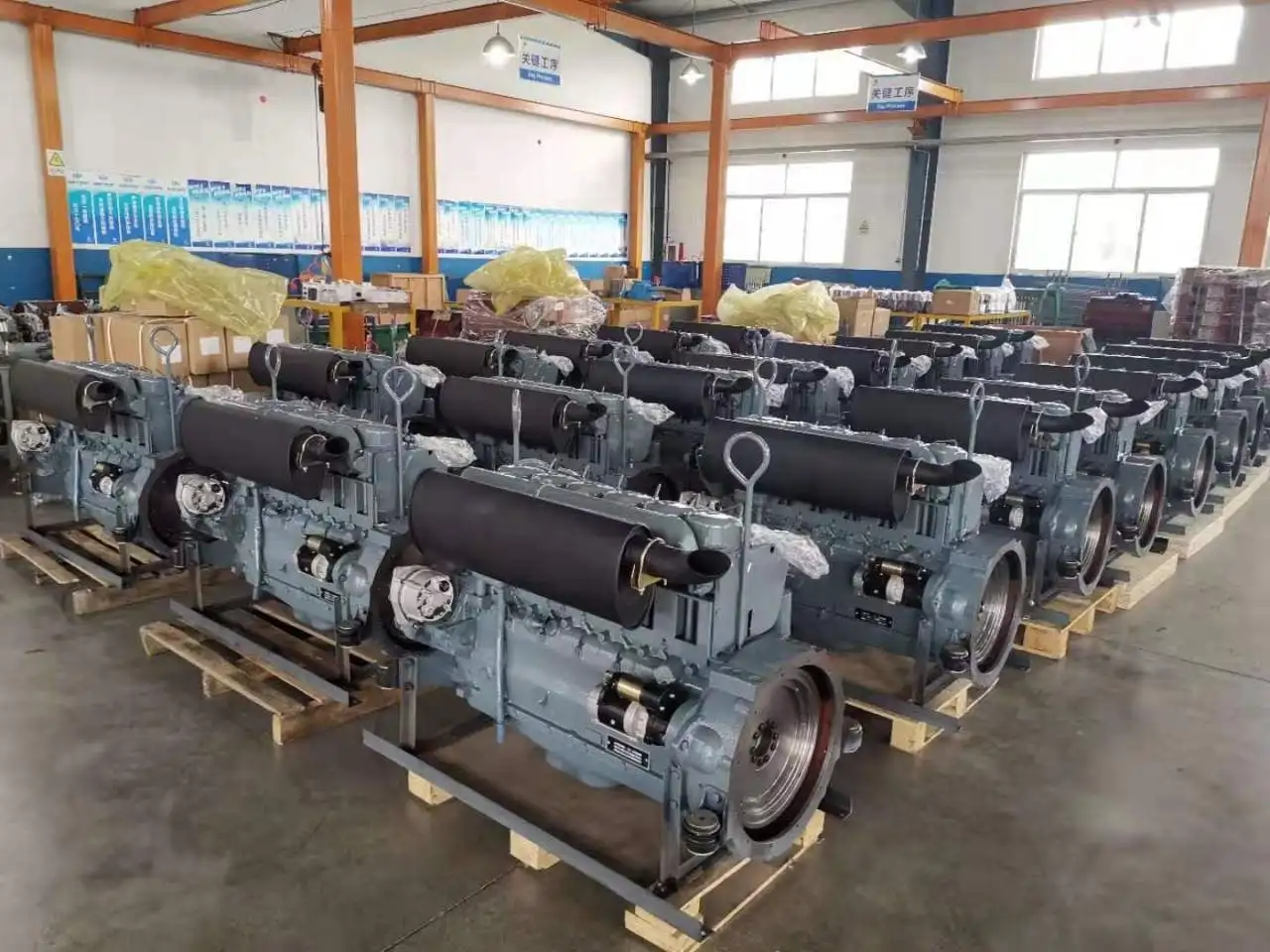

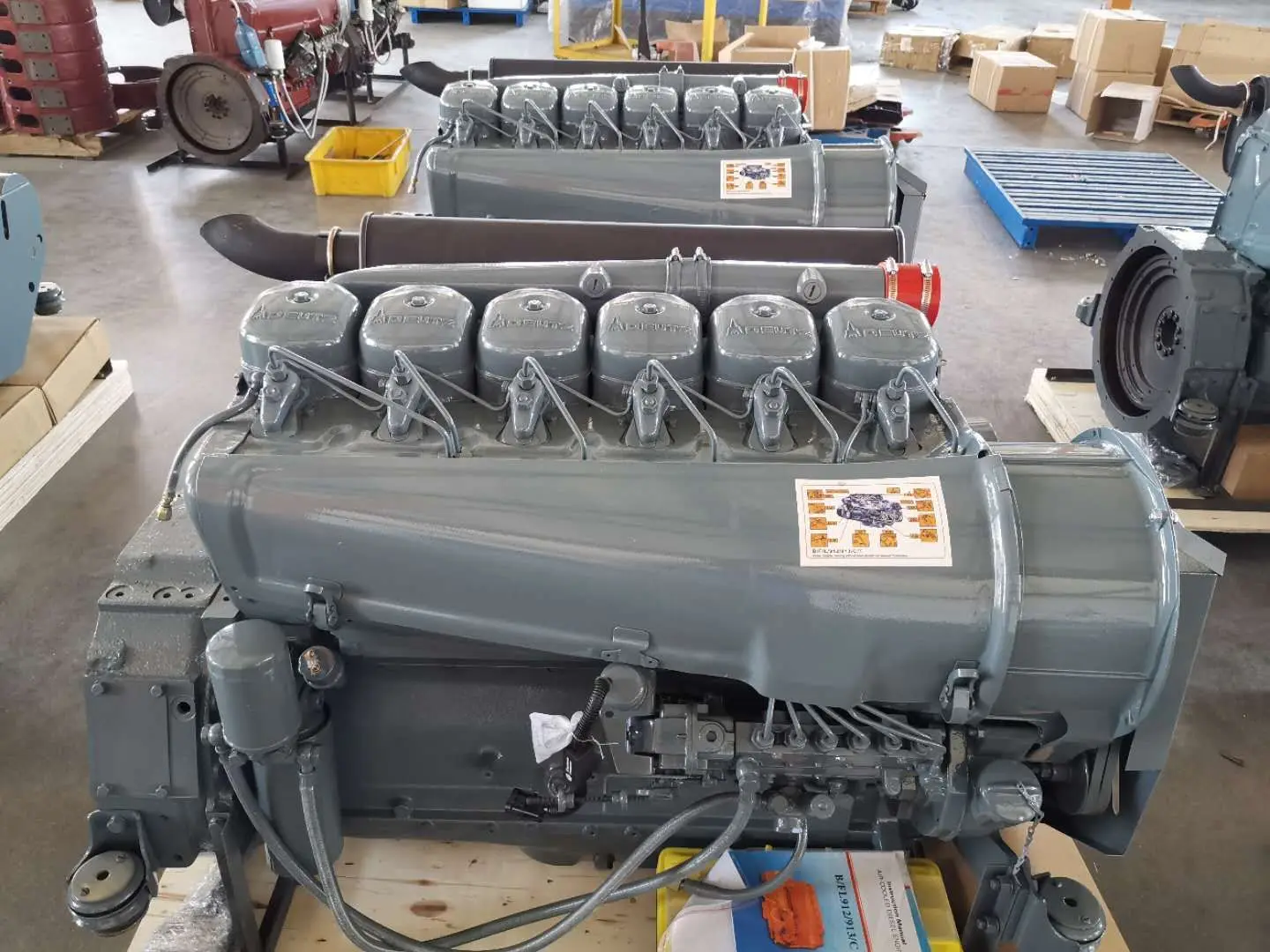

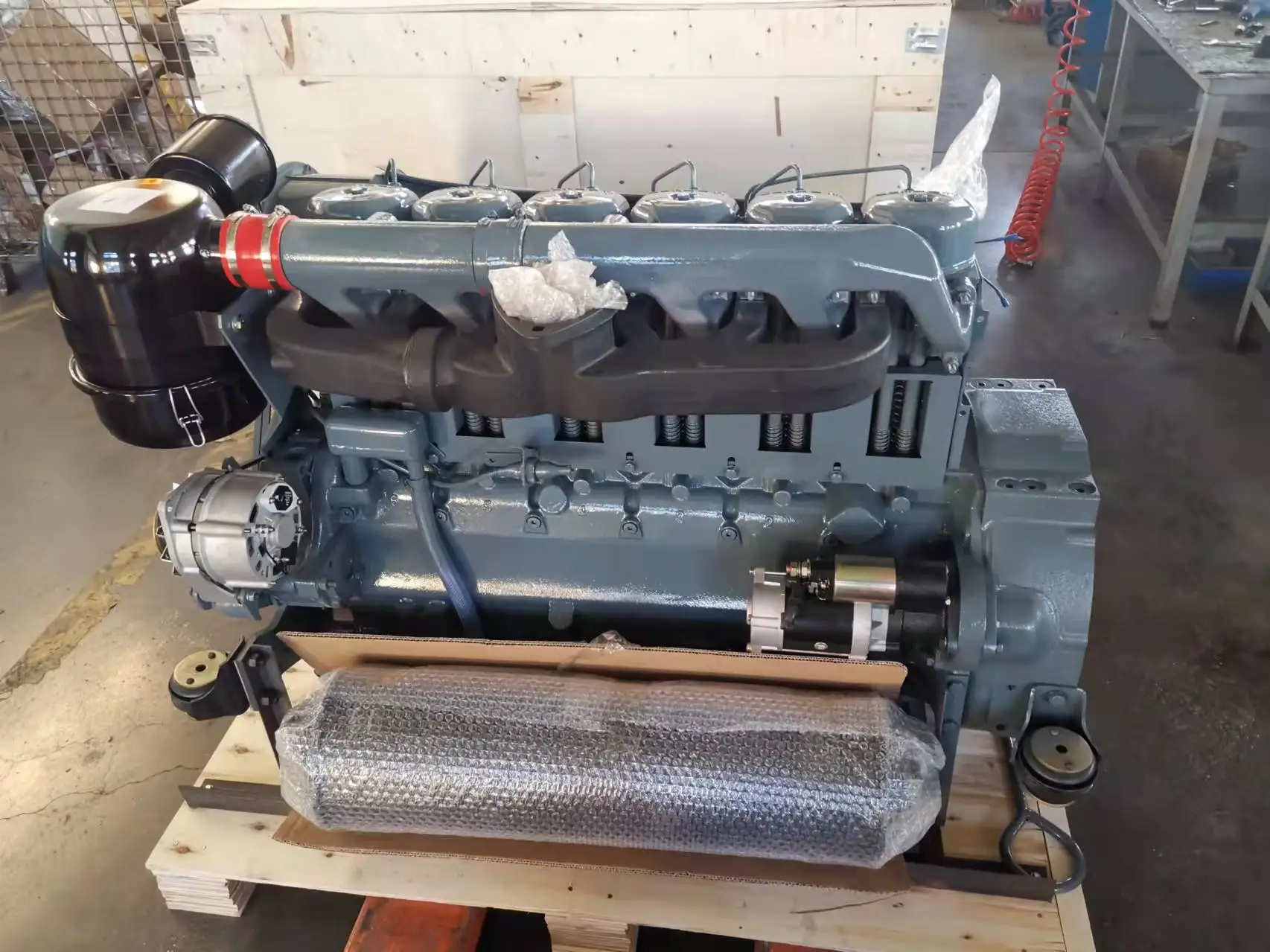

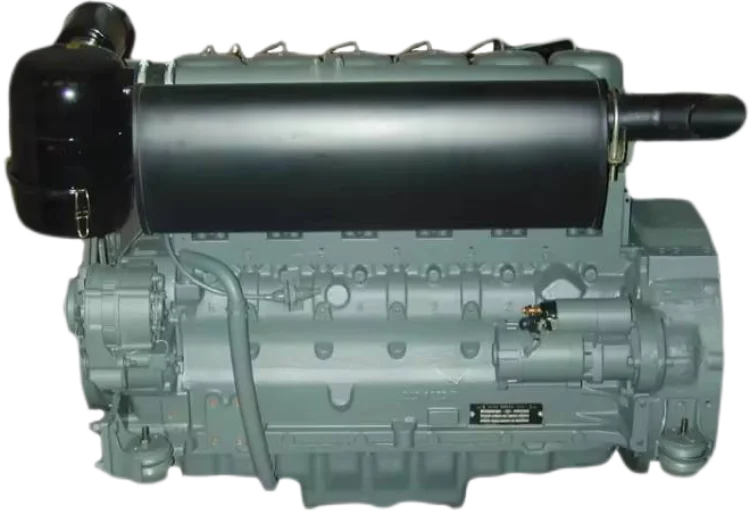

water pump agriculture irrigation pump motor machinery engines dowers air cooled deutz 6 cylinder diesel engine F6L913 for sale

water pump agriculture irrigation pump motor machinery engines dowers air cooled deutz 6 cylinder diesel engine F6L913 for sale

Category: >>>
Supplier: Shijiazhuang Houfeng Trading Co. Ltd.

Price:$2,890.00

Quantity:

Product Overview

Description

F4L912T diesel engine data sheet
In-line, 6Cylinder, 4 Cycle Diesel Engine
Bore×Stroke	102mm×125mm
Displacement	6.128 Liters
Compression Ration	17：1
Cooling Way	Air cooled
Combustion system	Direct injection
Inspiration	Natural intake
Direction of rotation	Counterclockwise(face to flywheel end)
Fuel consumption ratio	235.3g/kwh(limit value)
Oil consumption ratio	2.04g/kwh(limit value)
Lubricant Capacity	12Liters
Net Weight	500kg
Overall Dimension(L×W×H)	1119mm×664mm×799mm

Usage	Power class	Power	Speed(rpm)
Usage	Power class	Power				1500	1800	2000	2150	2300	2500
Construction equipment	ISO 3046/1(IFN) (Highly intermittent)	P(kW)	58	69	76	79	84	89
	ISO 3046/1(IFN) (Highly intermittent)			P(HP)	79	94	103	107	114	121
		ISO 3046/1(IFN) (Intermittent)	P(kW)	55	65	72	76	79	85
		ISO 3046/1(IFN) (Intermittent)		P(HP)	75	88	98	103	107	116
		ISO 3046/1(ICFN) (Continuous)	P(kW)	51	63	68	72	76
		ISO 3046/1(ICFN) (Continuous)		P(HP)	69	86	92	98	103
Genset	ISO 3046/1(ICXN) (Continuous)	P(kW)	55	65
Genset	ISO 3046/1(ICXN) (Continuous)			P(HP)	75	88
Marine	ICXN	P(kW)	51	63	68	72	76
	ICXN			P(HP)	69	86	92	98	103
		I0FN	P(kW)				79	84	89
		I0FN		P(HP)				107	114	121
