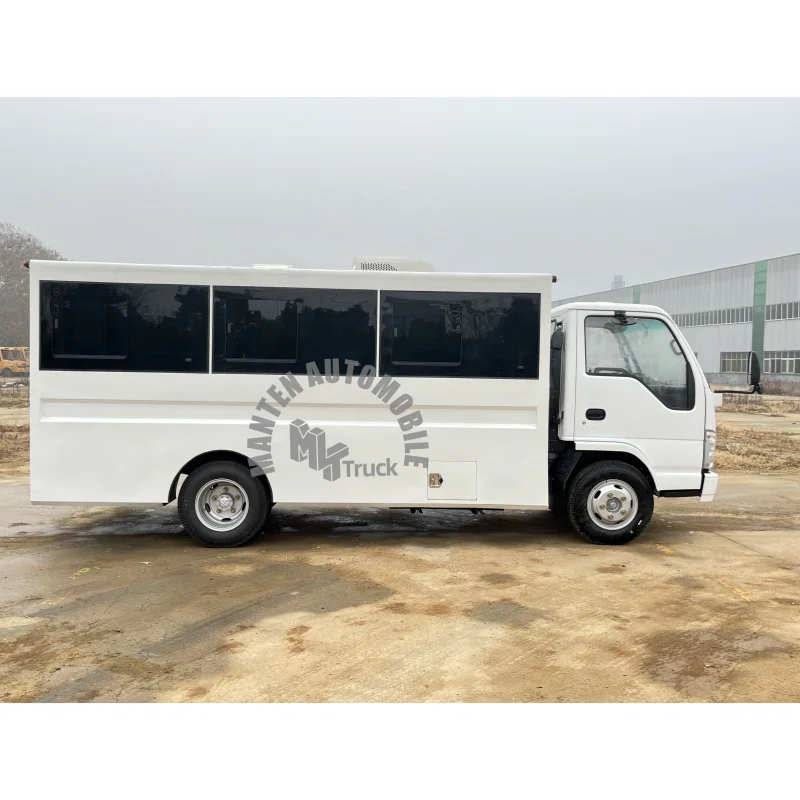

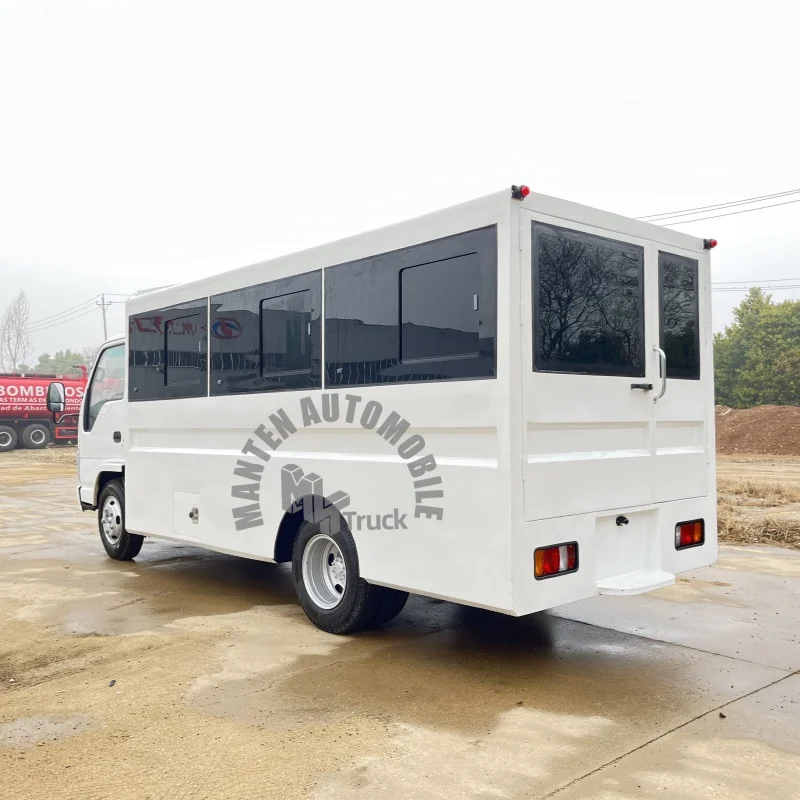

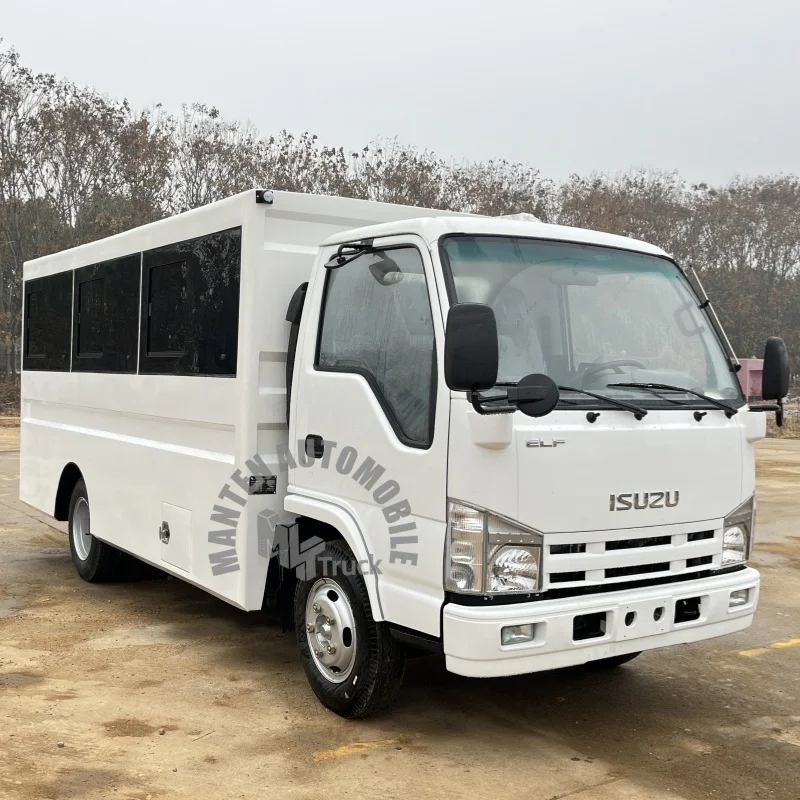

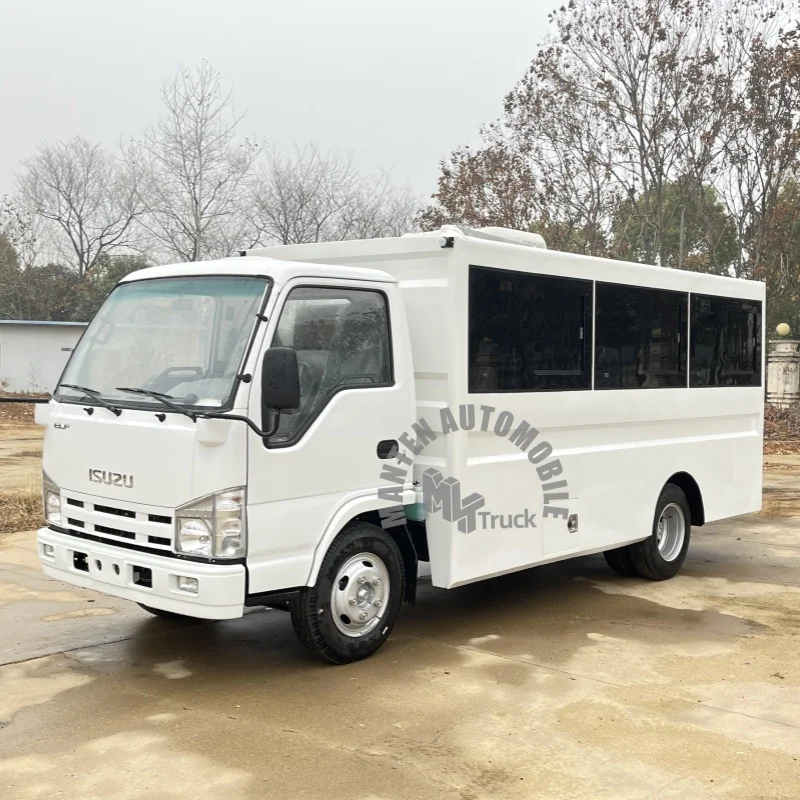

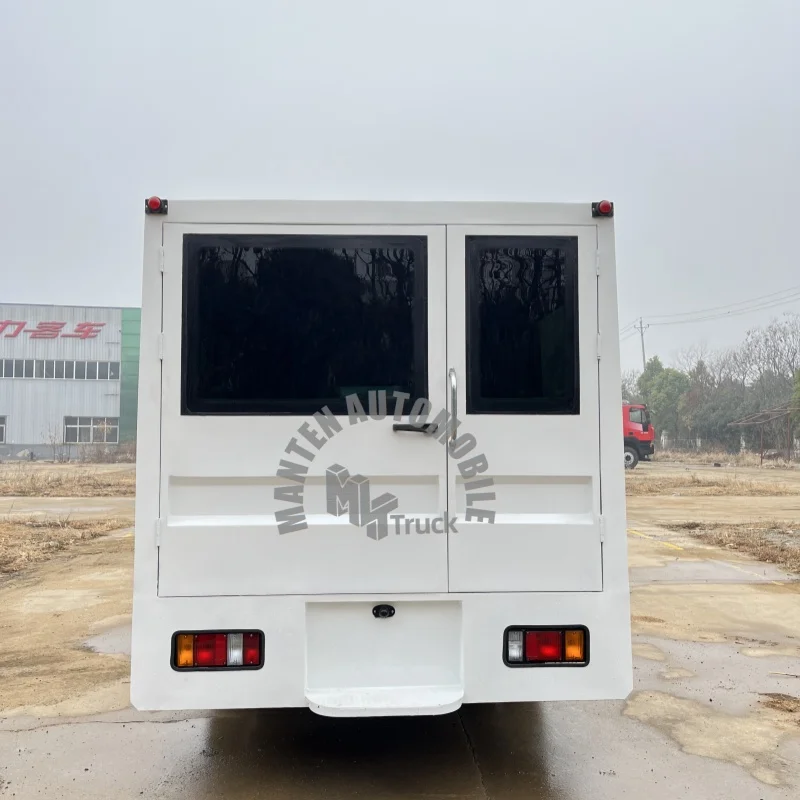

I.Bus Display:
II.Bus Parameters:
Specification of ISUZU 20-40seats City Bus | ||
Chassis | Chassis brand | ISUZU |
Chassis model | 700p | |
Overall dimension(L*W*H) | 7930x2170x2330mm | |
Drive modle | 4X2 left hand drive | |
Front axle | 4ton loading capacity | |
Rear axle | 7ton loading capacity | |
Wheel Base | 3360mm or 3815mm | |
Tyre size & number | 825R20 with one spare tyre | |
Max speed | 105km/h | |
Transmissions | Isuzu MLD six speed transmission,6 speed forward 1 reverse. | |
Engine | Model | 4HK1-TCG40 |
Engine Type | Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail | |
Horse power | 190hp | |
Displacement | 5193ml | |
Emission | Euro 2/3/4/5/6 | |
Body Part | Passenger Door | Eletrcial Foldable Door |
Side Glass | Sliding Side Glass | |
Passage | Passage Between Driver's Cabin and Passenger Area, with the opening of 1400 X 1000 MM | |
Roof Hatch | Ventilated Hatch | |
Emergency Door | Emergency Door In the Rear, 1555 x 1020 MM. | |
Check/Repair Access | Access To Gear Box | |
Luggage Storage | 3 for About 0.4M3 | |
A/C | Denso A/C, DJP-S | |

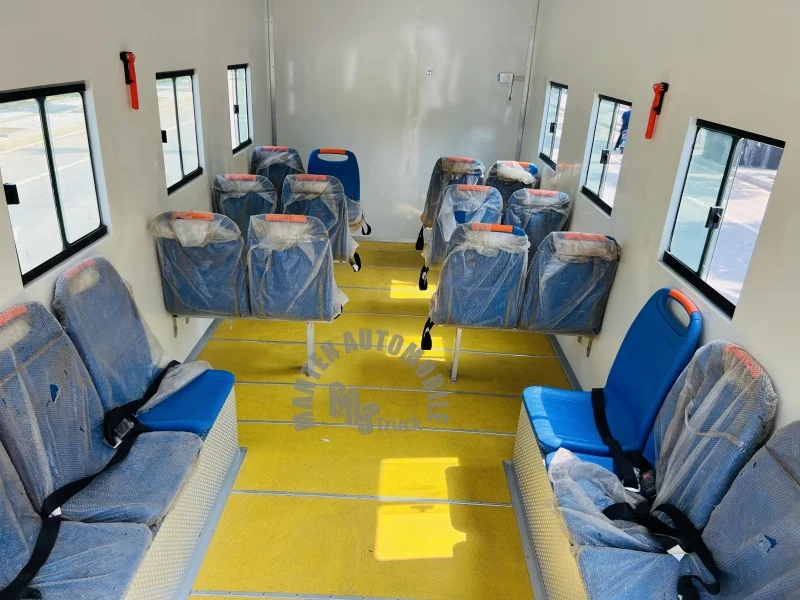

Passenger Seats | 20-23 Urban Bus Seats | |
Floor | Flat Floor, Oak-Grain Flooring Vinyl | |
Safety Hammer | 3 Pieces |

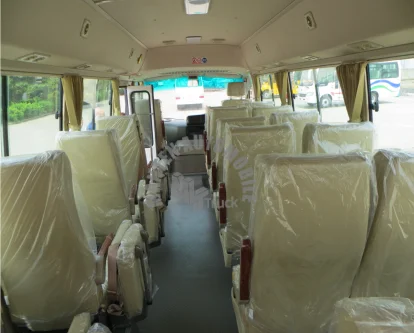

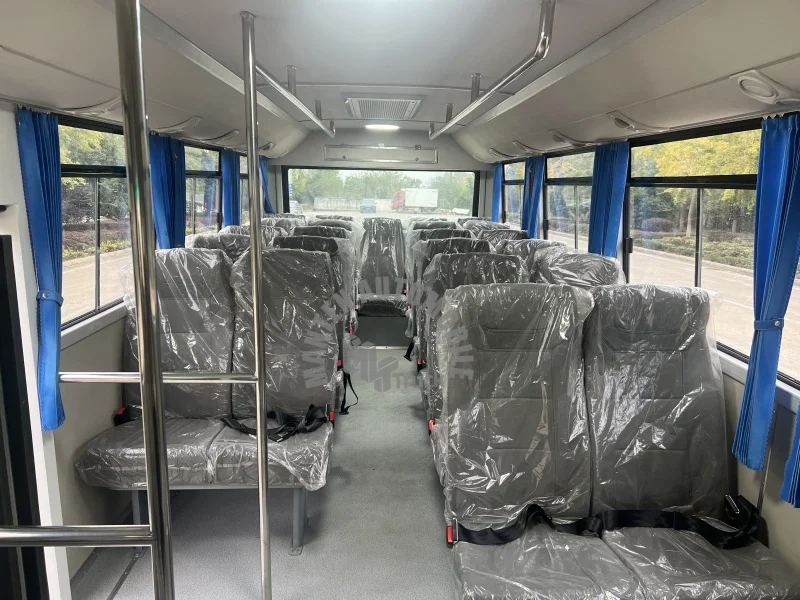

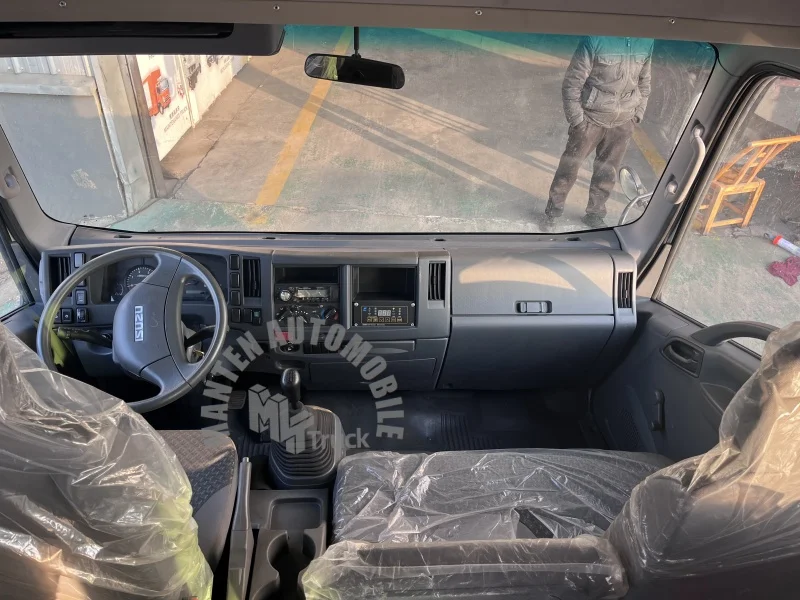

III. Bus Details

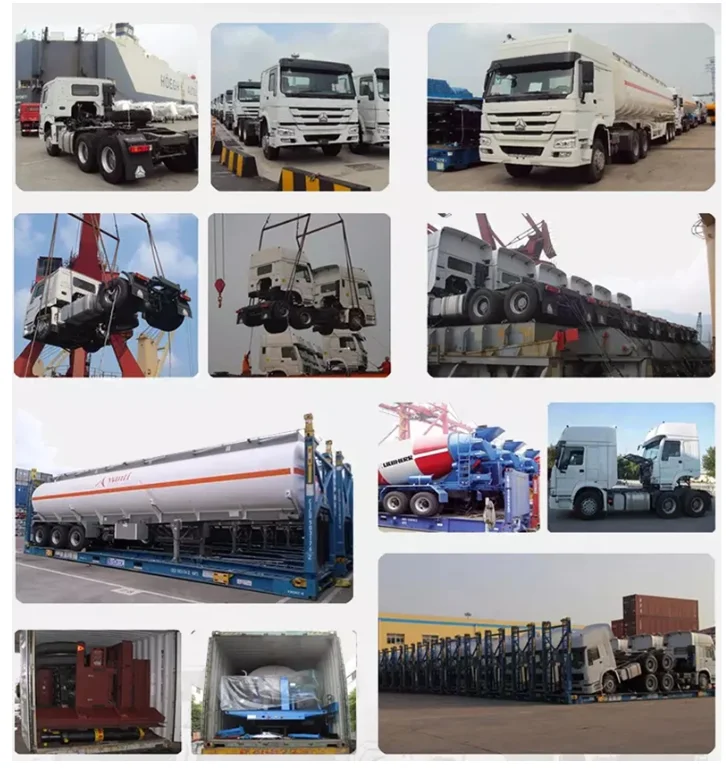

IV.SHIPPING & DELIVERY:
V.Company Profile:
VI. WHY CHOOSE US
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipment;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certificate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruk,shacman,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
If you would like to learn more about our dedicated vehicles, please feel free to contact us at any time, and we will always be happy to serve you - Angel
