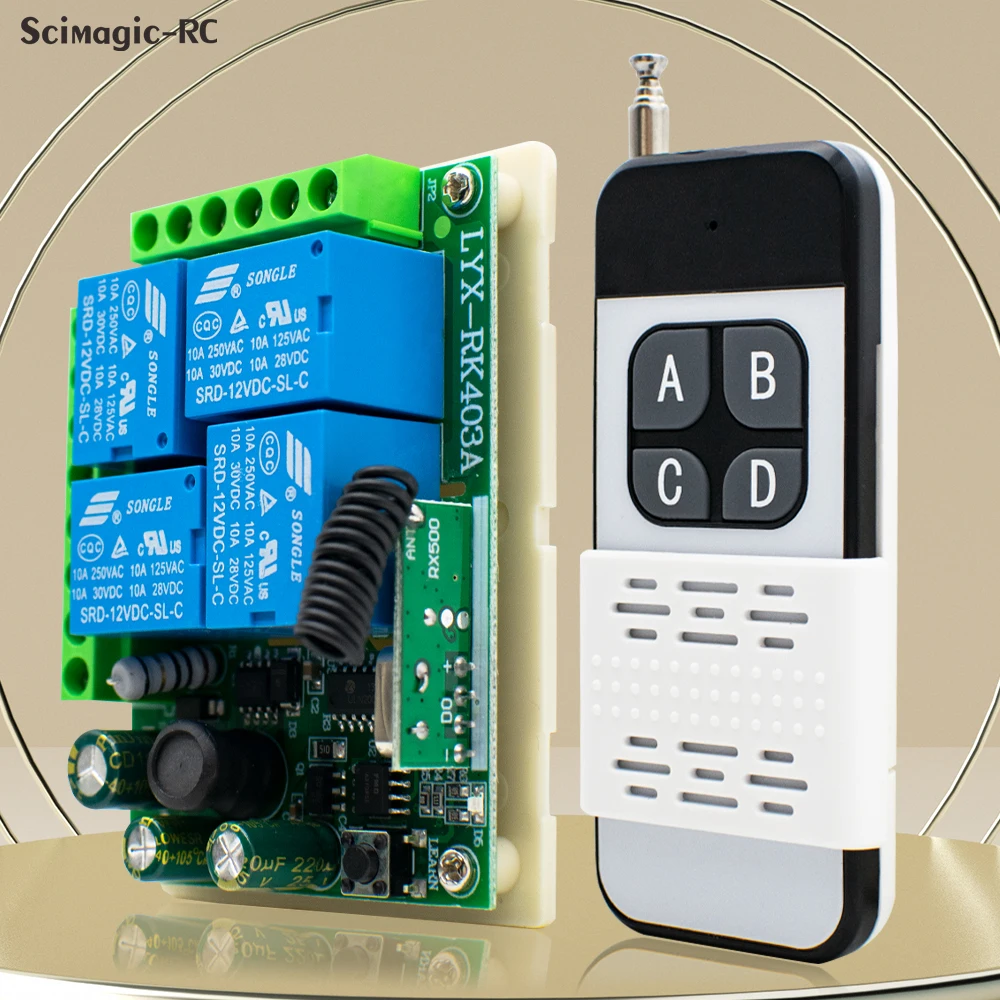

Universal Wireless Remote Control Switch AC 220V 85 256V 4CH Relay Receiver Module & 4 Channel RF Controller 433 Mhz Transmitter
- Category: >>>
- Supplier: Shenzhen Scimagic Development Technology Co. Ltd.
Share on (1601209411497):
Product Overview
Description
Products Description

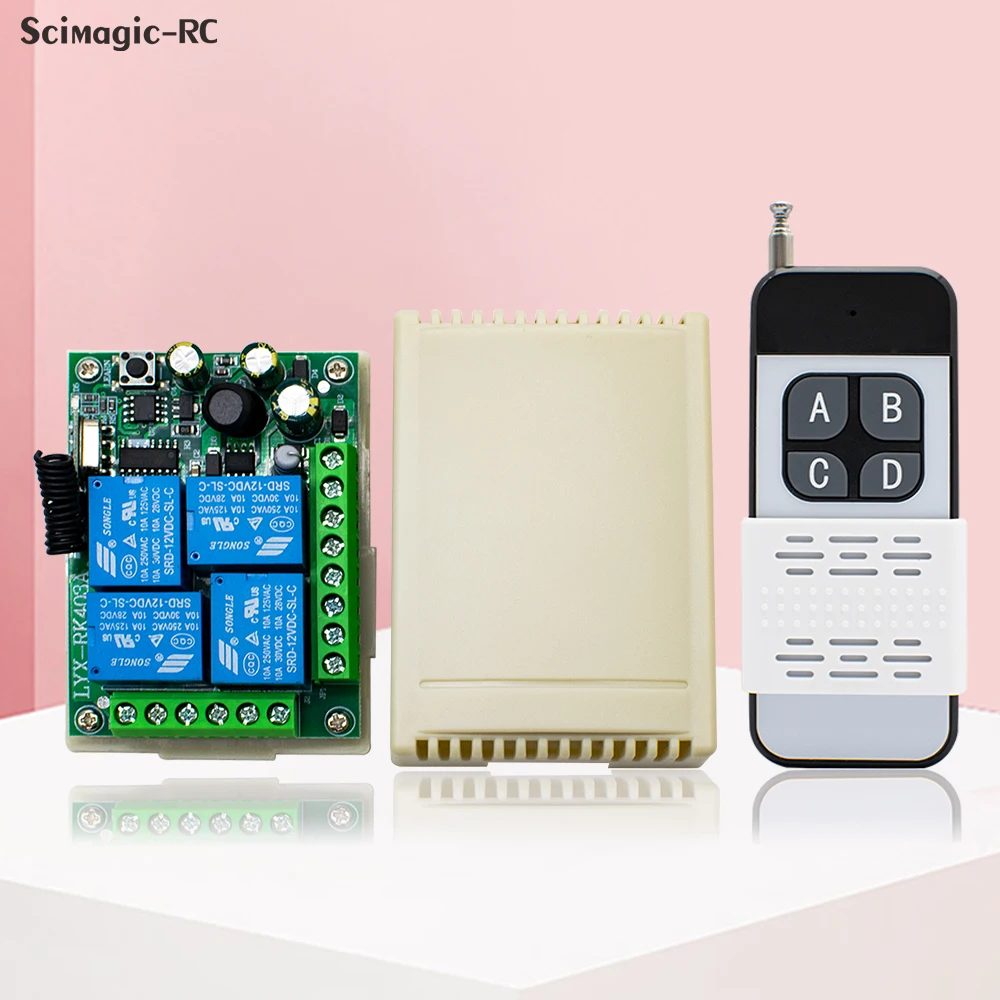

Name | 433MHz Remote Control Switch |
Frequency | 433Mhz |
Channels | 4 |
Code | Learning code |
Model | Momentary/Toggle/Latching |
Voltage | AC 85V-256V |
Distance | 50-100m |
Include | 1pcs receiver +1pcs Remote |
Description

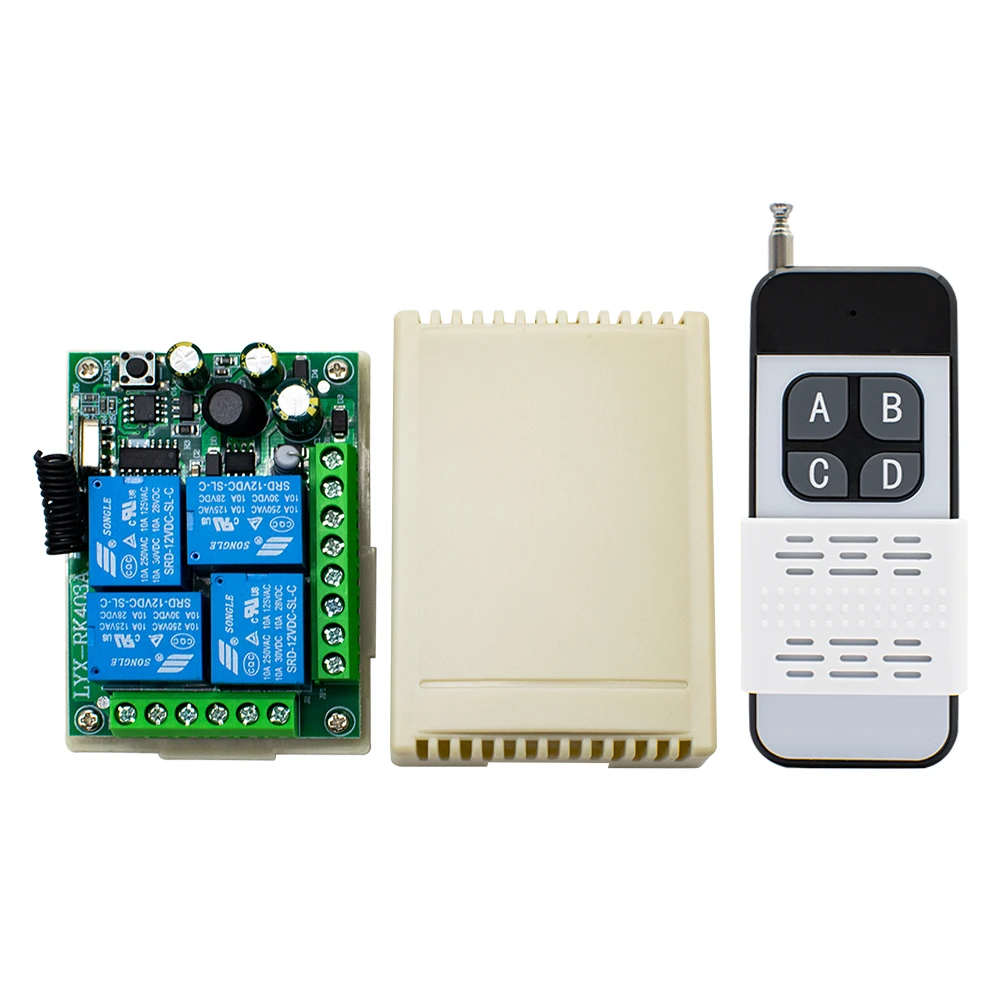

Wireless RF Switch AC 110V 240V 220V 4CH Relay Receiver Module+4 Button RF Remote Control 433Mhz Transmitter for Garage Car Gate
Wireless RF Switch AC 110V 240V 220V 4CH Relay Receiver Module+4 Button RF Remote Control 433Mhz Transmitter for Garage Car Gate

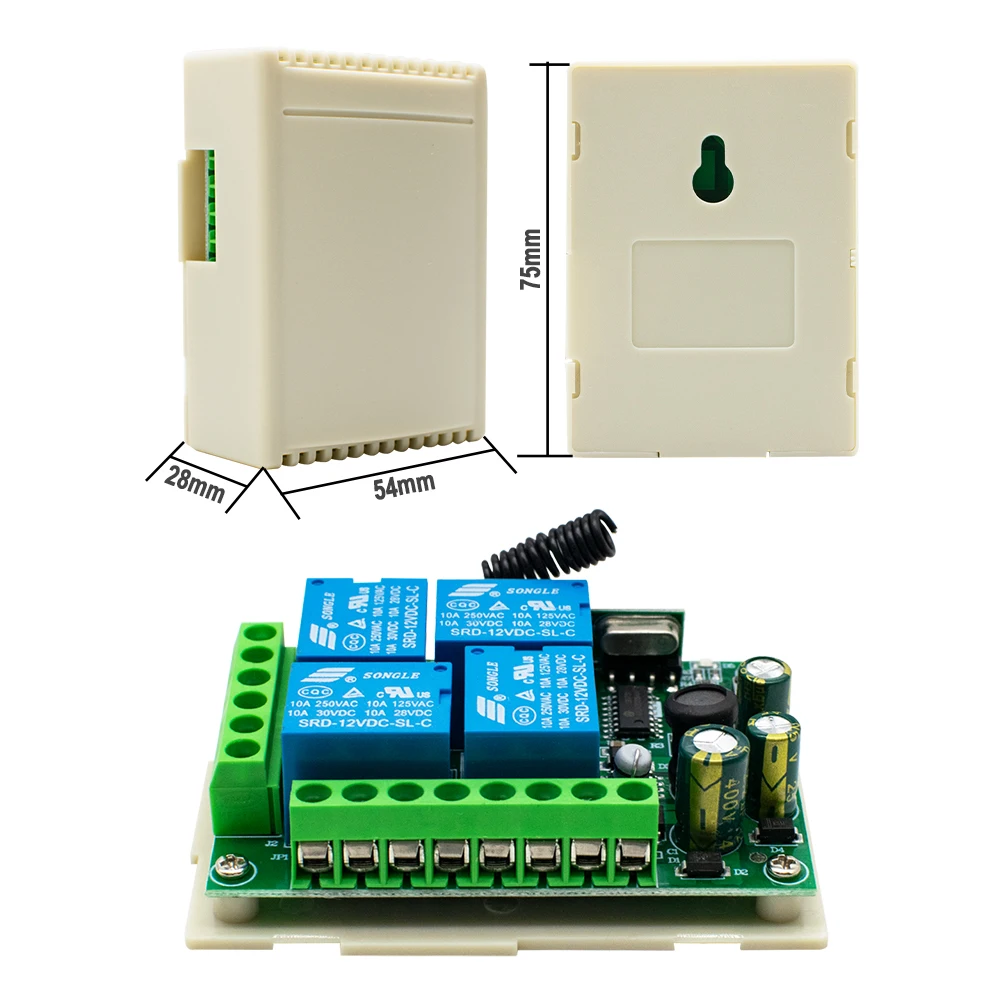

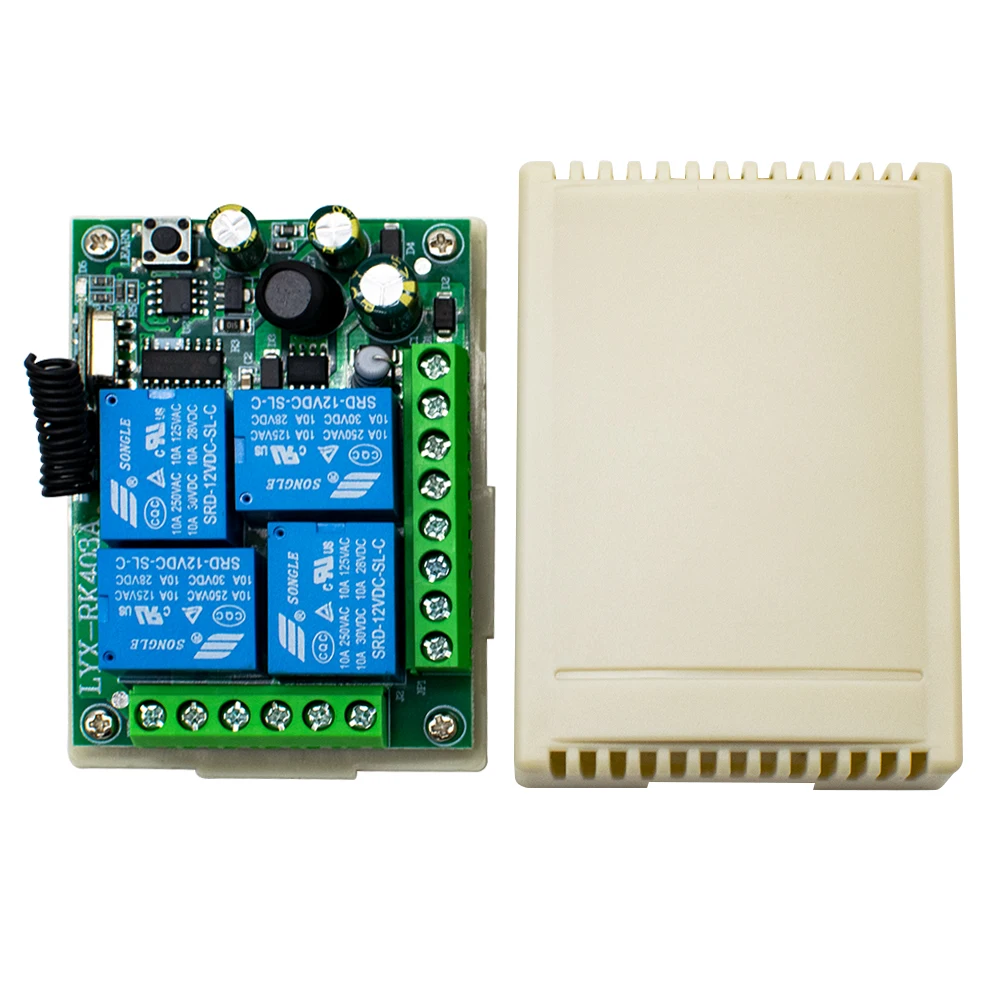

Receiver
Working Voltage : AC 85V~256V
Input vlotage : 1~220V
Output vlotage : 1~220V
Quiescent Current : <5MA
Max current : 10 A
Max load : 2200W
RF frequency : 433MHz
Working temperature : -30~+80
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 25 pieces
Support encoding : 1527 Leaning code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 30 meters
Remote operating mode : Momentary Mode /Toggle Mode /Latched Mode

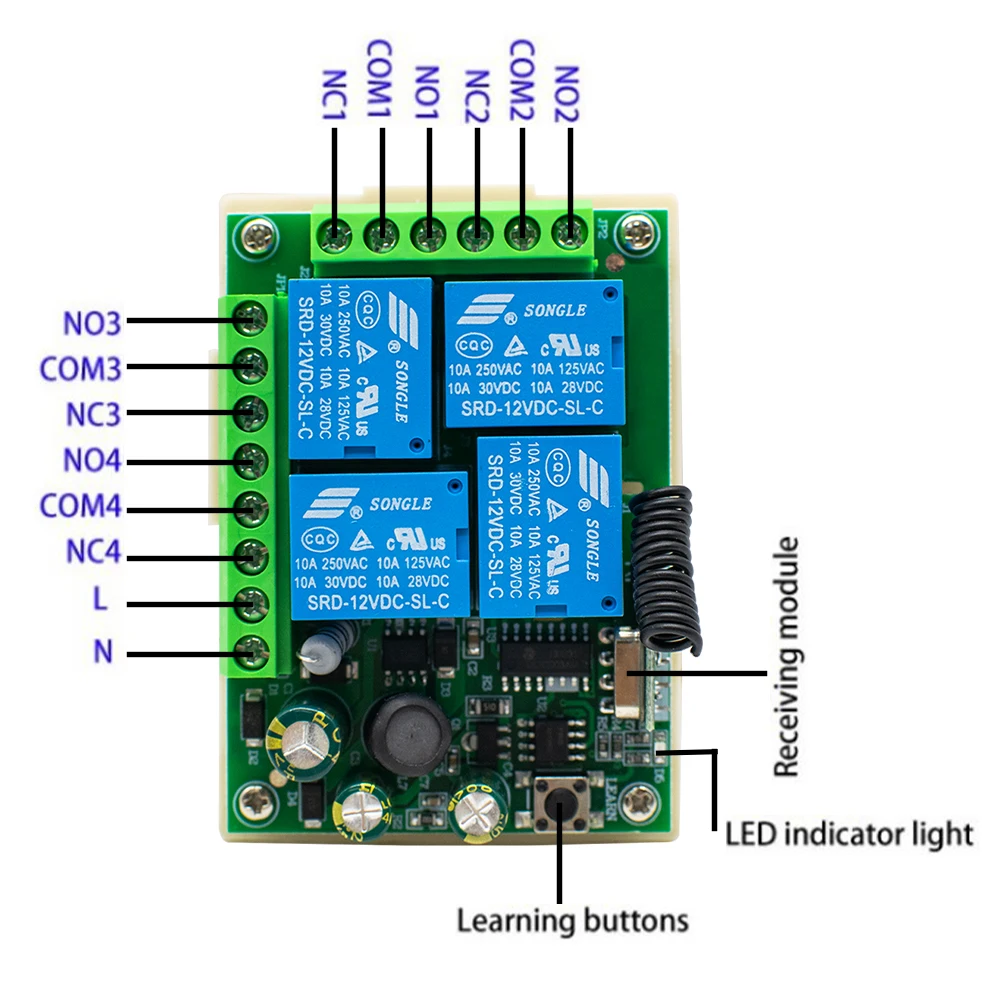

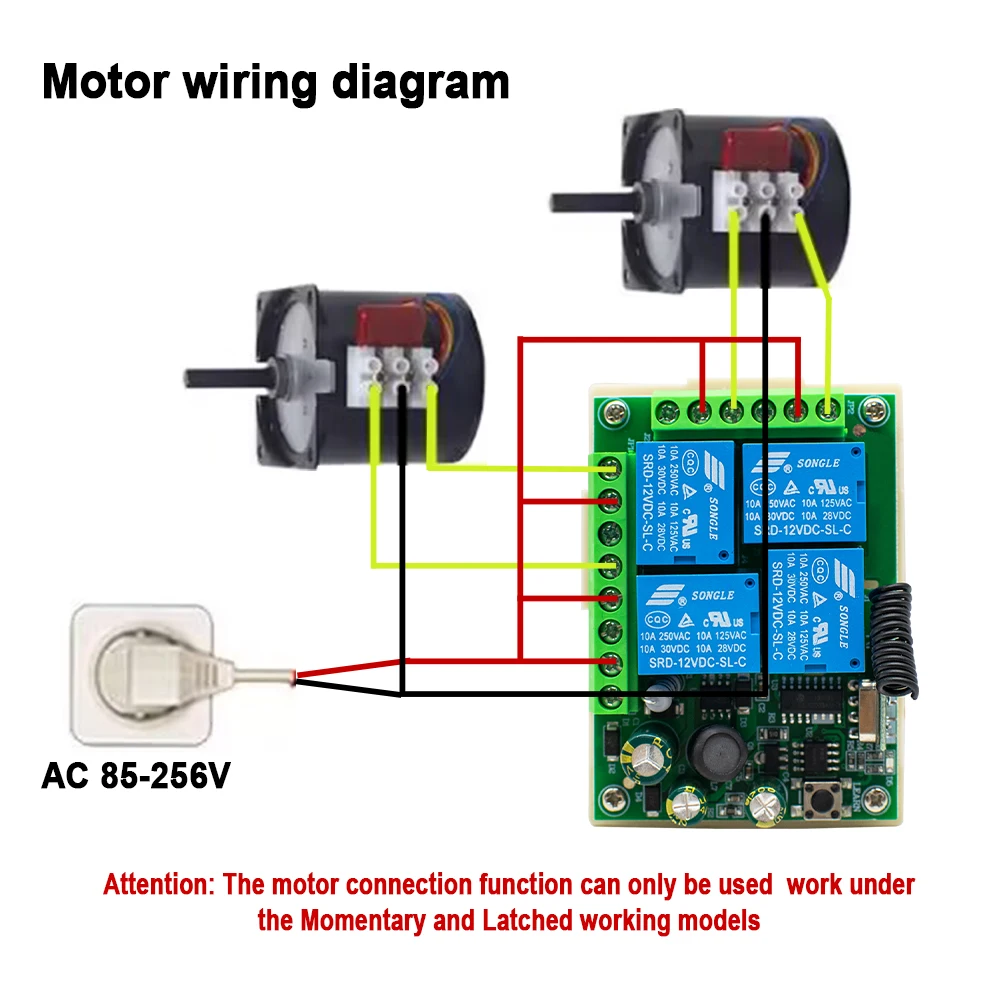

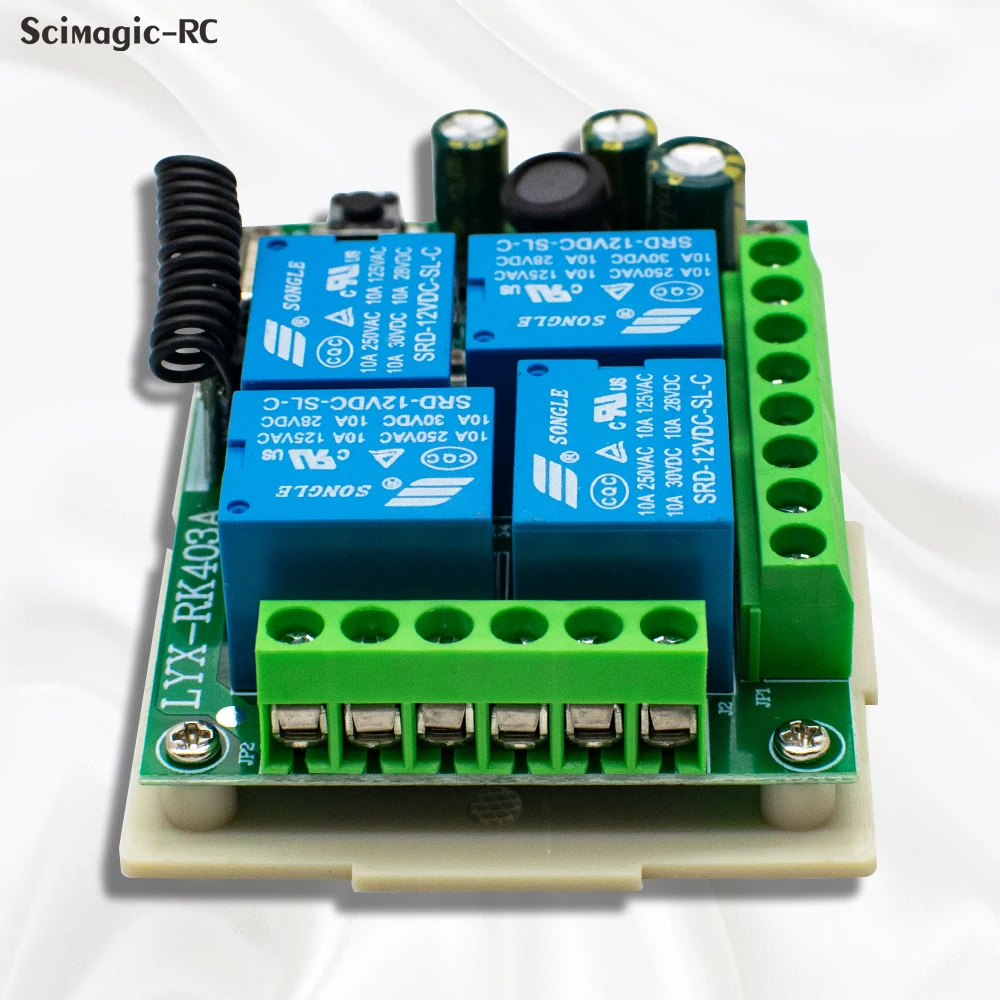

Output Terminal : NO / COM / NC
1 —KC1 Normal Closed of relay (NC)
2 —KC1 Common of relay (COM)
3 —KC1 Normal Open of relay (NO)
4 —KC3 Normal Closed of relay (NC)
5 —KC3 Common of relay (COM)
6 —KC3 Normal Open of relay (NO)
7 —KC2 Normal Closed of relay (NC)
8 —KC2 Common of relay (COM)
9 —KC2 Normal Open of relay (NO)
10 —KC4 Normal Closed of relay (NC)
11 —KC4 Common of relay (COM)
12 —KC4 Normal Open of relay (NO)
Remote Control
RF frequency : 433MHz
Support encoding : 1527 Leaning code
Transmitting range : up to 100 m (theoretical distance)
Battery : 12V 23A (Battery not included)
About Working Mode:
1. Momentary/Joggle:Press and hold->On; Release->Off
Keep pressing one button, the corresponding channel is working /on; Release your finger is stop/OFF. (4 channel switch(receiver)
need 4 button remote control (transmitter )
2. Toggle/Self-Lock:Press->On; Press again->Off
Press one button for one time, the corresponding channel is working/on; Press the same button again to stop/OFF. (4 channel
switch(receiver) need 4 button remote control (transmitter).
3. Latched/Inter-Lock:Press->on; Press other button->Off
Press one button for one time, the corresponding channel is working/on; Press another button is stop/OFF(At the same time, another
corresponding channel works). (4 channel switch( receiver) need 4 buttons remote control (transmitter).
The Setting of Working Mode:
1.Momentary Mode:
Pressing the learning key button on the receiver board once (LED Indicator on receiver board will signaling simultaneously), then
press any of the remote button, signaling three times by remote's LED indicator means setting Momentary Mode successfully.
2. Toggle Mode:
Pressing two times the learning key button on the receiver board twice(LED Indicator on receiver board will signaling
simultaneously),then press any of the remote button , signaling three times by remote's LED means setting Toggle Mode
successfully.
3.Latched Mode:
Pressing the learning key button on the receiver board three times (LED Indicator on receiver board will signaling
simultaneously), then press first remote button, follow on second remote button, signaling three times by remote's LED indicator
means setting Latching Mode successfully (first button stands for on, second button stands for off ).

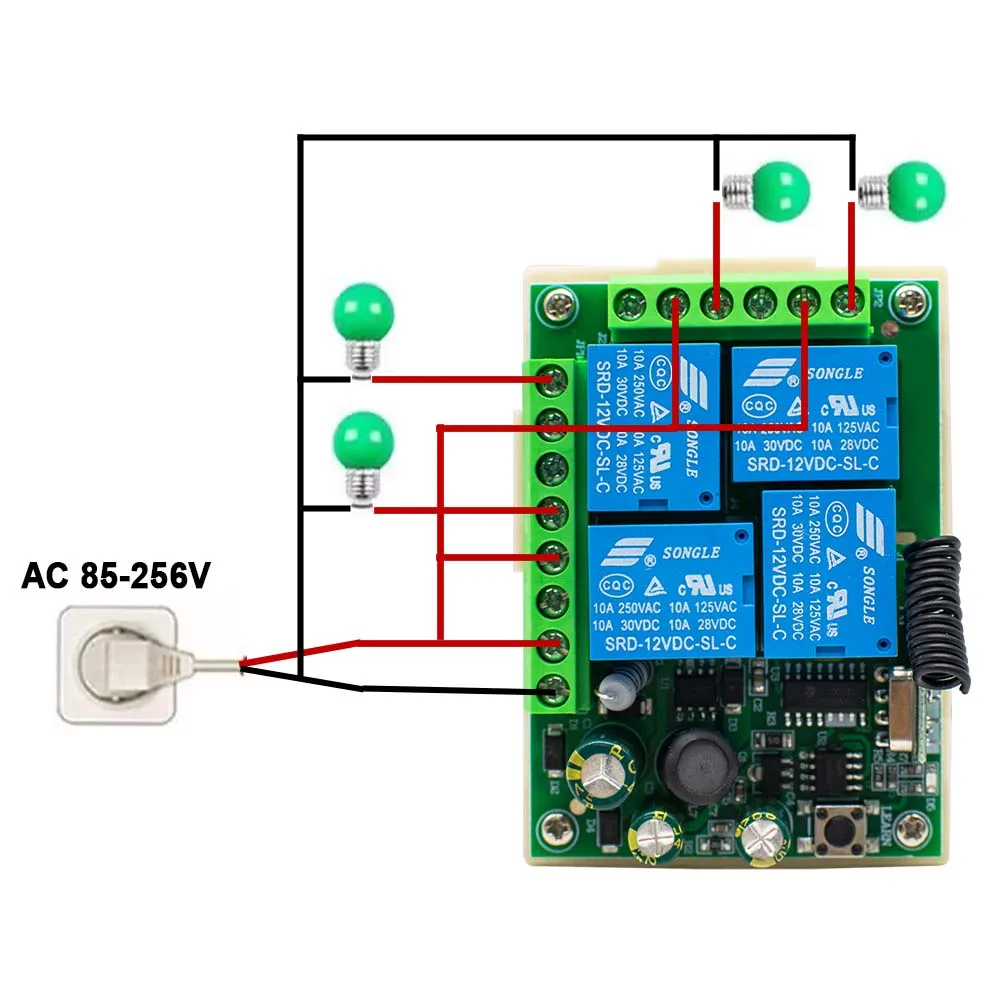

This receiver contain 4 relays, and there are 3 terminals(normally open, common, normally closed) for each relay.This 4 relays are
independent, so that you can remote control each of them independently by pressing the remote button. Each receiver can store
about 25 transmitters. And One transmitter can control multiple receivers( the transmitter need to match with receiver ).For
example you can use two relays to control garege door/ motor and the other two to control Lights.
1. Momentary/Joggle:Press and hold->On; Release->Off
Keep pressing one button, the corresponding channel is working /on; Release your finger is stop/OFF. (4 channel switch(receiver)
need 4 button remote control (transmitter )
2. Toggle/Self-Lock:Press->On; Press again->Off
Press one button for one time, the corresponding channel is working/on; Press the same button again to stop/OFF. (4 channel
switch(receiver) need 4 button remote control (transmitter).
3. Latched/Inter-Lock:Press->on; Press other button->Off
Press one button for one time, the corresponding channel is working/on; Press another button is stop/OFF(At the same time, another
corresponding channel works). (4 channel switch( receiver) need 4 buttons remote control (transmitter).
The Setting of Working Mode:
1.Momentary Mode:
Pressing the learning key button on the receiver board once (LED Indicator on receiver board will signaling simultaneously), then
press any of the remote button, signaling three times by remote's LED indicator means setting Momentary Mode successfully.
2. Toggle Mode:
Pressing two times the learning key button on the receiver board twice(LED Indicator on receiver board will signaling
simultaneously),then press any of the remote button , signaling three times by remote's LED means setting Toggle Mode
successfully.
3.Latched Mode:
Pressing the learning key button on the receiver board three times (LED Indicator on receiver board will signaling
simultaneously), then press first remote button, follow on second remote button, signaling three times by remote's LED indicator
means setting Latching Mode successfully (first button stands for on, second button stands for off ).
This receiver contain 4 relays, and there are 3 terminals(normally open, common, normally closed) for each relay.This 4 relays are
independent, so that you can remote control each of them independently by pressing the remote button. Each receiver can store
about 25 transmitters. And One transmitter can control multiple receivers( the transmitter need to match with receiver ).For
example you can use two relays to control garege door/ motor and the other two to control Lights.
Company Introduction
Our factory ShenZhen Scimagic Development Technology Co. Ltd is a high-tech company that specializes in designing, manufacturing and selling Alarm system ,wireless RF receiver (remote controller), RF Remote control ( key fob and transmitter), RF module (wireless transmitter Module and Receiver Module), Remote Control Duplicator( face to face copying duplicator and machine copy duplicator).
We have been manufacturing electronic product for 10 years . Our professional R&D staff can meet your different request .
We hope to promote mutual benefit and build long term business with customers all over the world by joint efforts.
We have been manufacturing electronic product for 10 years . Our professional R&D staff can meet your different request .
We hope to promote mutual benefit and build long term business with customers all over the world by joint efforts.
Certifications
Packing & Delivery
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, 1000 piece production time needs 1 weeks for order quantity more than.
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Please confirm the frequency first: 315mhz 433mhz or 868mhz
Then please confirm the chip: rolling code : HCS301, HCS300, HCS200 etc.
Learning code: PT2240, EV1527 etc. Fixed code :SC2260 , SC2262, etc.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Please confirm the frequency first: 315mhz 433mhz or 868mhz
Then please confirm the chip: rolling code : HCS301, HCS300, HCS200 etc.
Learning code: PT2240, EV1527 etc. Fixed code :SC2260 , SC2262, etc.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Remote control and receiver product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
