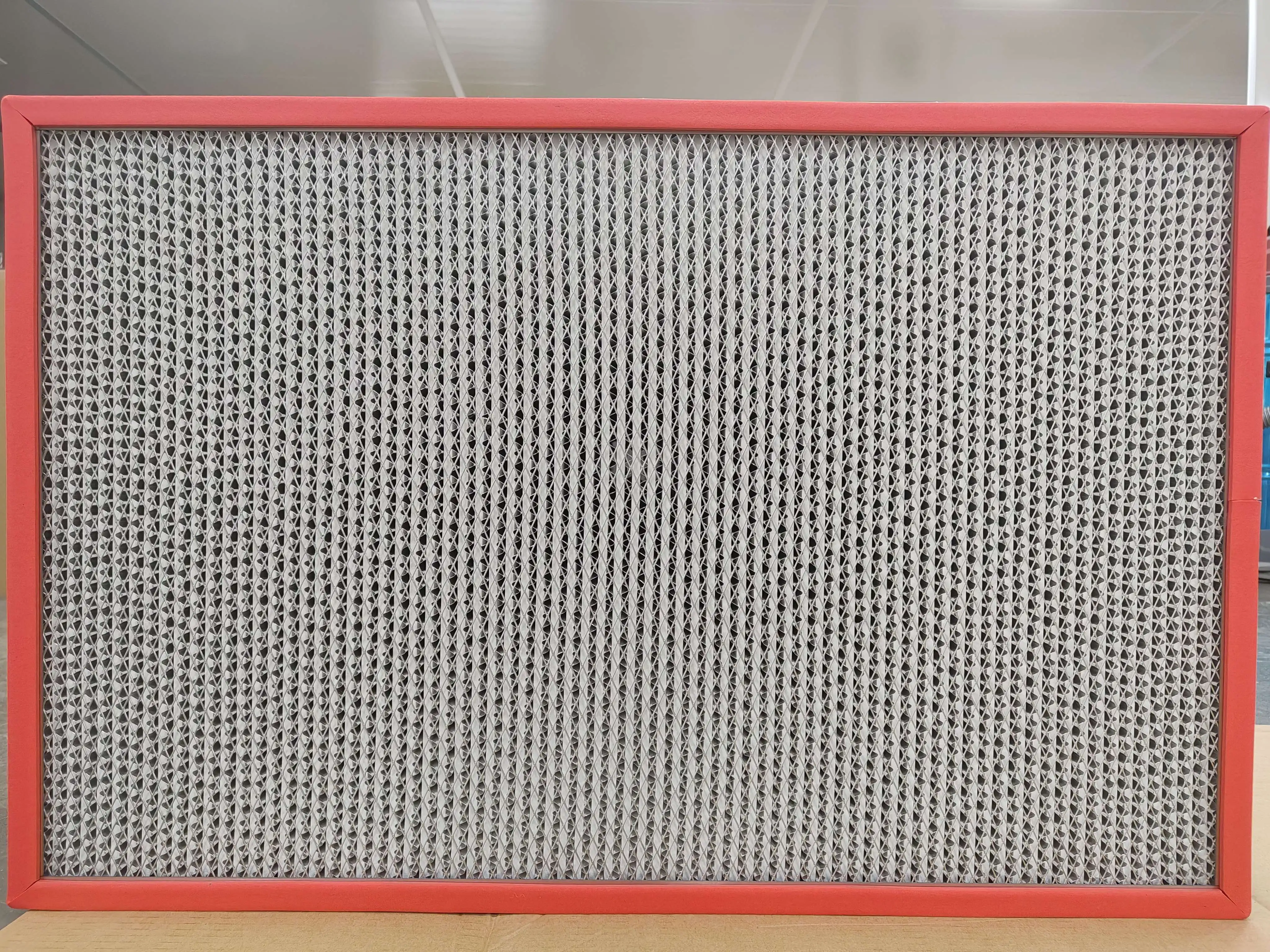

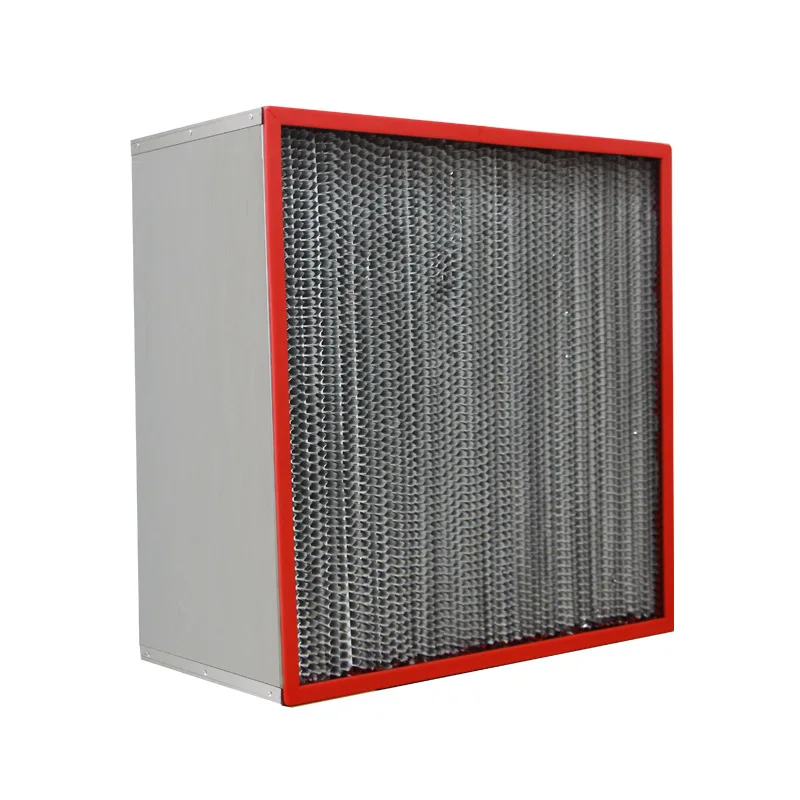

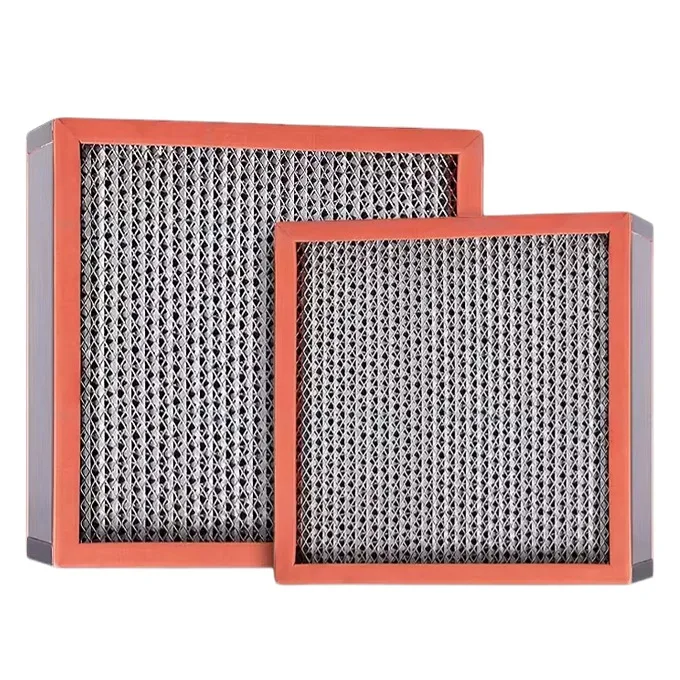

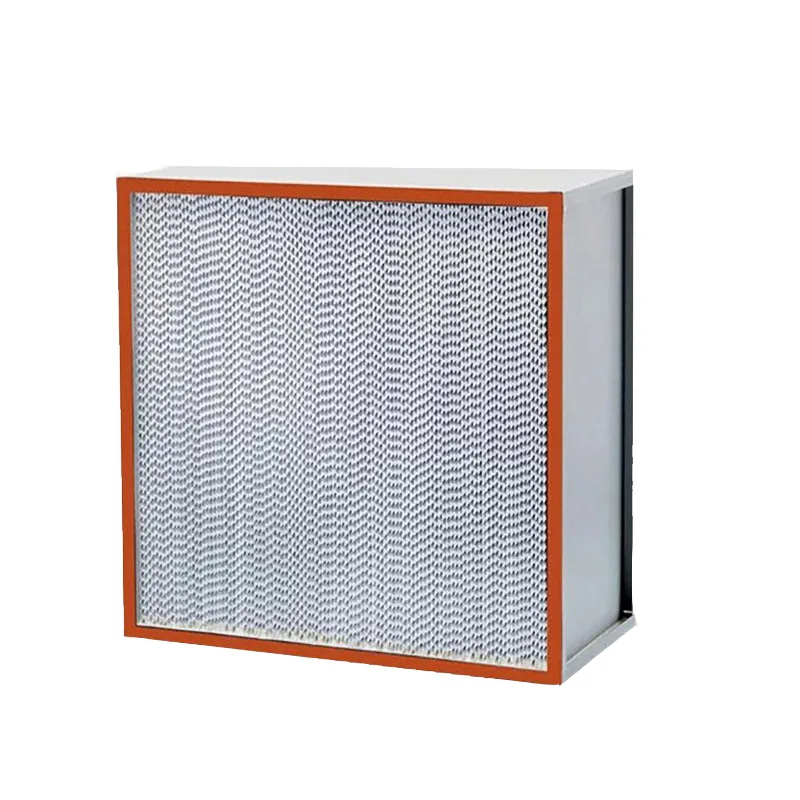

Stainless Steel Frame High Temperature Resistant Deep Pleated Heat Resistant Hepa Air Filter
- Category: >>>
- Supplier: Dongguan Yangyi Environmental Protection Co. Ltd.
Share on (1601209442210):
Product Overview
Description
Material And Operation Conditions
Efficiency: H13 / H14
Media: Micro glass fiber
Frame: Aluminum / GI / SUS / MDF
Sealant: Pu two-component polyurethane glue
Gasket: Pu endless gasket / EVA / EPDM
Separator: 120g/m² offset paper / 0.035mm aluminum foil
Optional thickness: 80 ~ 292mm
Max Temperature: 70℃ ~ 150℃
Max Humidity: 100%
Media: Micro glass fiber
Frame: Aluminum / GI / SUS / MDF
Sealant: Pu two-component polyurethane glue
Gasket: Pu endless gasket / EVA / EPDM
Separator: 120g/m² offset paper / 0.035mm aluminum foil
Optional thickness: 80 ~ 292mm
Max Temperature: 70℃ ~ 150℃
Max Humidity: 100%
Product Feature
● Large media area
● Great sealing property
● Large dust holding capacity
● 100% Factory inspection
● Long life-span
● Distortion-free
● Great sealing property
● Large dust holding capacity
● 100% Factory inspection
● Long life-span
● Distortion-free
OEM
customized design is available
customized design is available
Actual Size HxWxD (mm) | Air Flow (m³/h) | Initial resistance (Pa) | Efficiency | Standard folding height （mm） |
484*484*150 | 950 | 60 | H13 | 113 |
320*320*220 | 650 | 60 | H13 | 178 |
610*610*292 | 3200 | 60 | H13 | 248 |
915*610*292 | 5000 | 60 | H13 | 248 |
484*484*150 | 950 | 80 | H14 | 113 |
320*320*220 | 650 | 80 | H14 | 178 |
610*610*292 | 3200 | 80 | H14 | 248 |
915*610*292 | 5000 | 80 | H14 | 248 |
885*568*292 | 5300 | 200 | H14 | 248 |
1. Q: Are you manufacturer or trader?Where are your factory located?
A: We are manufacturer with professional designers and engineers. Our factory is located in Dongguan city.
2. Q: What information should I provide if I want to order your filters?
A: Please provide us your requirements for dimension, media, frame material, efficiency and application etc, so that we can quote the price as soon as possible.
3. Q: Do you have professional engineer team fordesign and installation?
A: Yes, we have engineer team for ODM and OEM services
4. Q: How about the packing?
A: Regular package is box and customized package is avallable.Welcome to inquiry for detailed information.
5. Q: Are you a manufacturer or trading company? What can I buy from you?
A: We are manufacturer. We focus on cleanroom project, air shower, FFU, pass box, dispensing booth, Laminar air flow,hood and bench, AHU, hermetic door & window.
A: We are manufacturer with professional designers and engineers. Our factory is located in Dongguan city.
2. Q: What information should I provide if I want to order your filters?
A: Please provide us your requirements for dimension, media, frame material, efficiency and application etc, so that we can quote the price as soon as possible.
3. Q: Do you have professional engineer team fordesign and installation?
A: Yes, we have engineer team for ODM and OEM services
4. Q: How about the packing?
A: Regular package is box and customized package is avallable.Welcome to inquiry for detailed information.
5. Q: Are you a manufacturer or trading company? What can I buy from you?
A: We are manufacturer. We focus on cleanroom project, air shower, FFU, pass box, dispensing booth, Laminar air flow,hood and bench, AHU, hermetic door & window.
