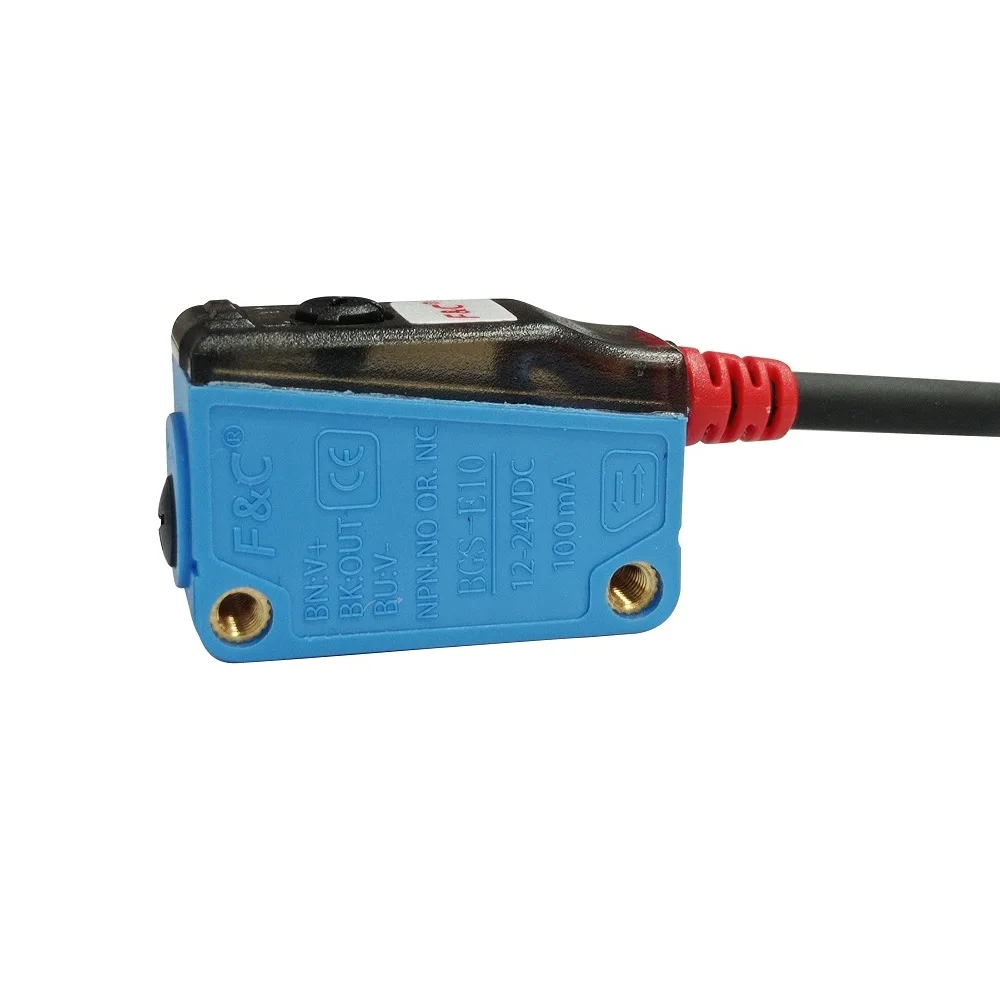

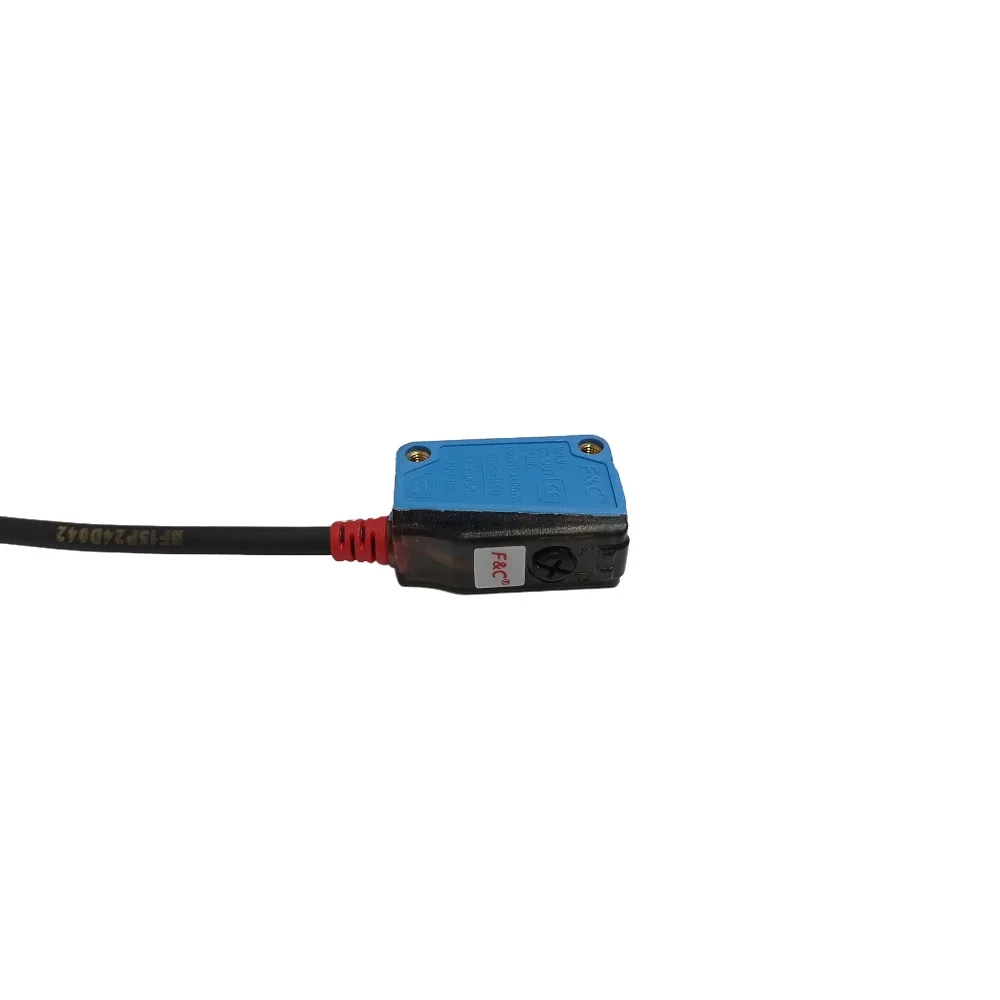

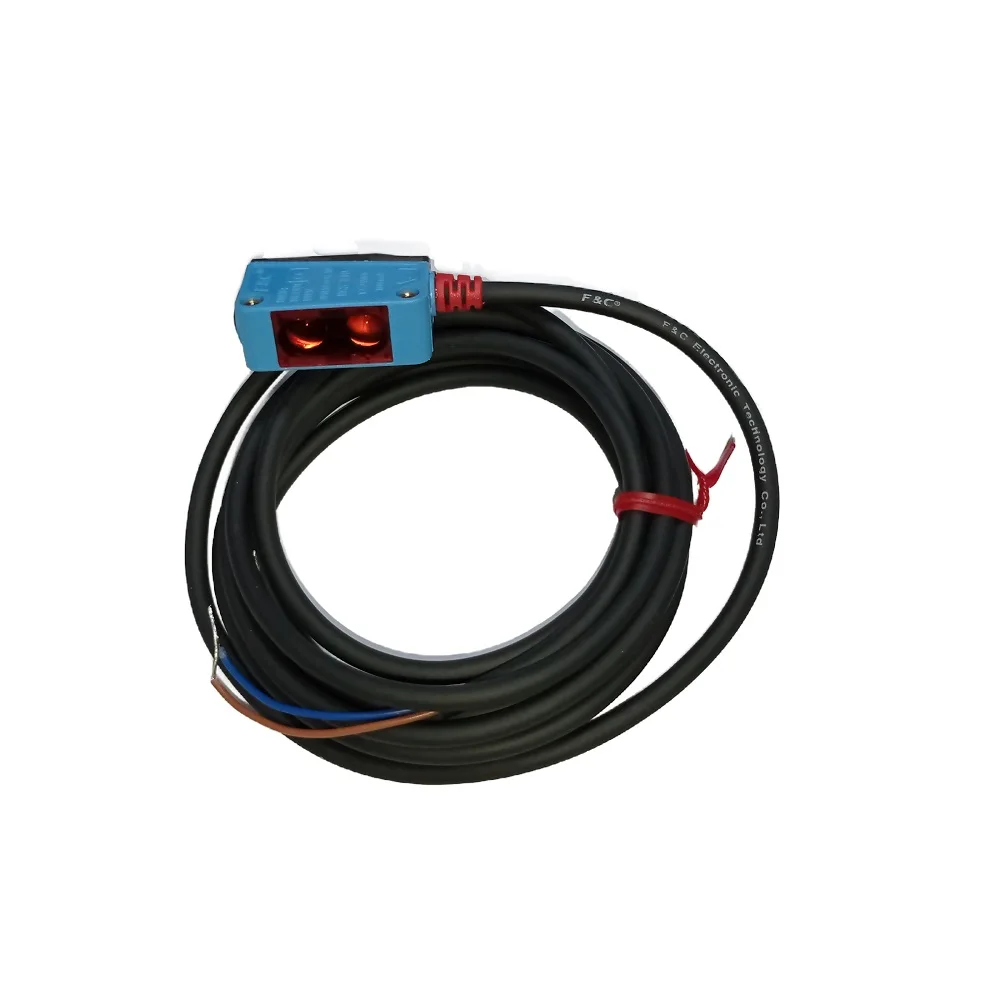

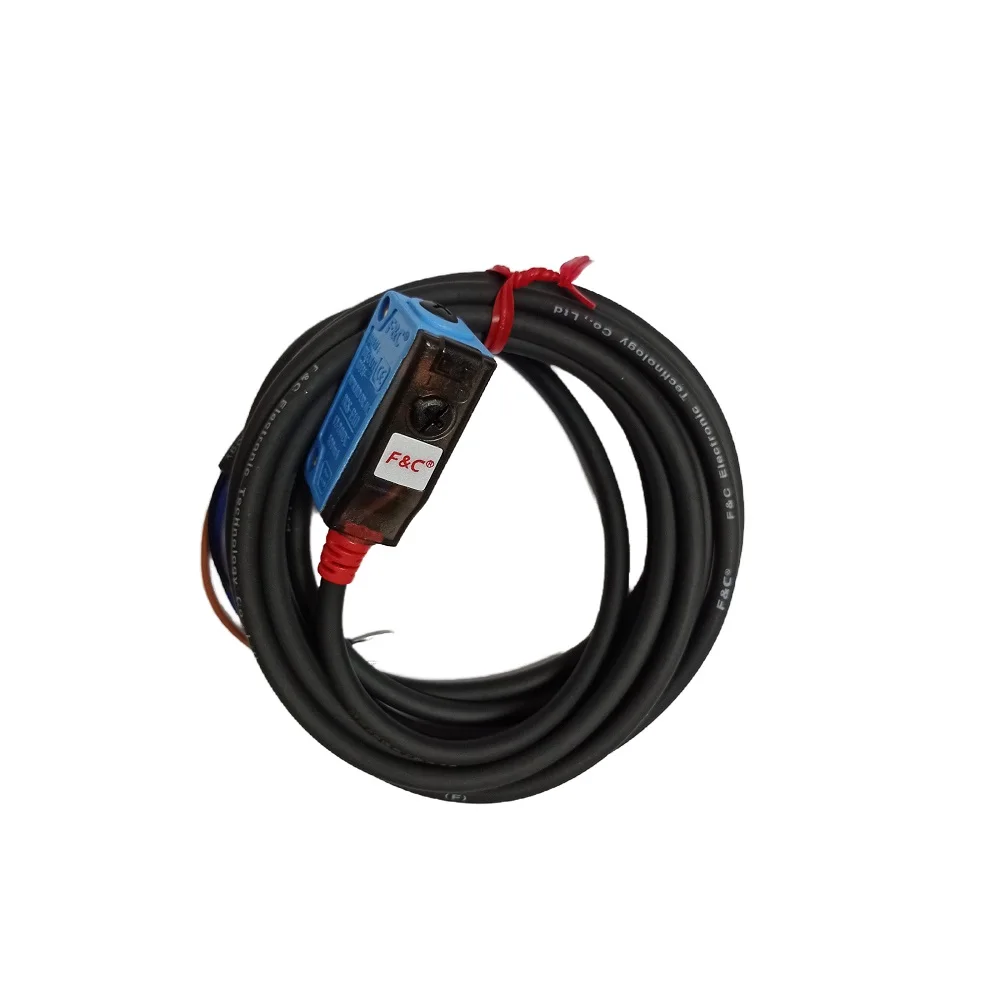

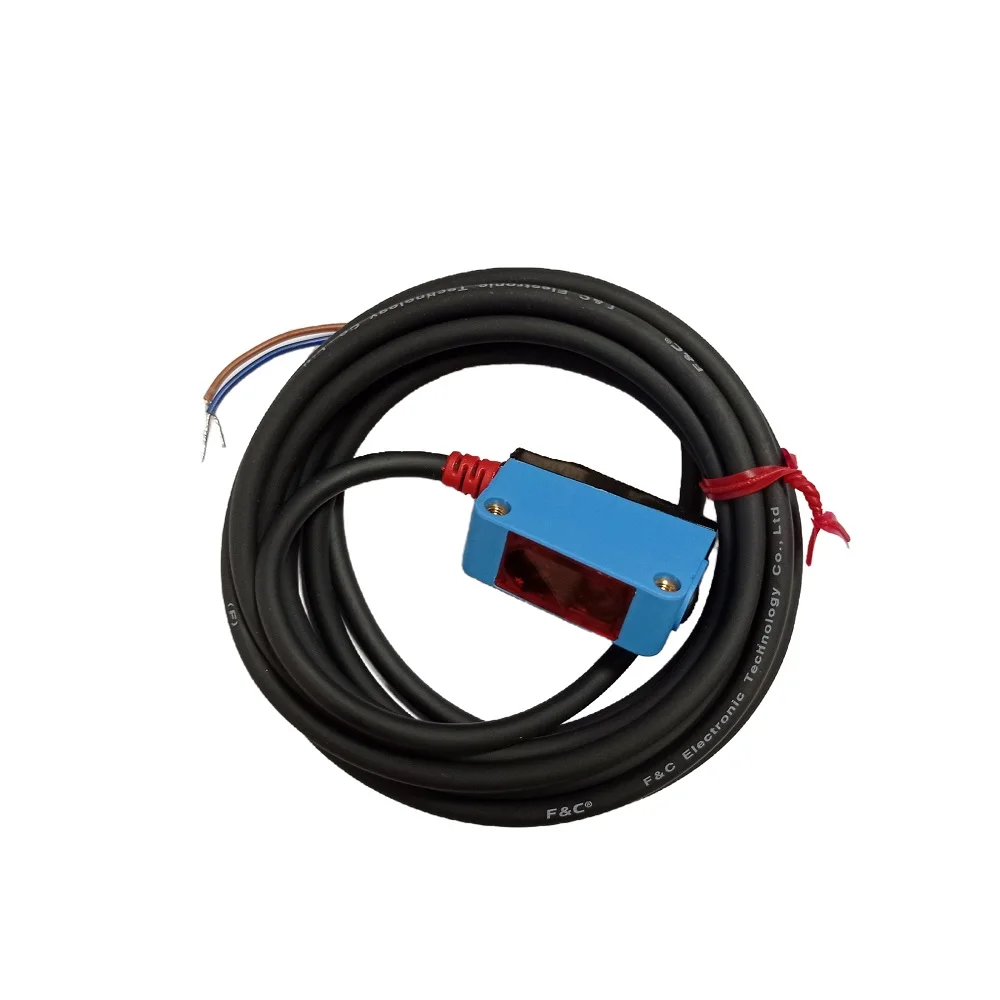

background suppression reflection bgs square pig nose square photocell sensor detect 300mm multiple color detection
- Category: >>>
- Supplier: F&C Sensing Technology(Hunan) Co. Ltd.
Share on (1601209443148):
Product Overview
Description
Product Description
Specification
item | value |
Series | BGS-E30 |
Features | square background suppression bgs sensor |
Mounting Type | stent installation |
Description | rack mounting |
Model Number | BGS-E30-N |
Type | Photoelectric Sensor |
Place of Origin | China |
Brand Name | F&C |
Use | Position detection, detect present |
Theory | photoelectric effect |
Output | NPN.NO/NC |
Description | Photoelectric sensor |
Detection Mode | Background suppression diffuse reflection |
Detect Distance | White 5mm-350mm+20% Black 5mm-300mm+20% |
Non-detection zone | Detec distanc*10% |
Hysteresis Distance | ＜Detect distance*10%（White Object） |
Adjust detect distance | Adjustable |
Standard detect Object | 10*10cm |
Light Source | 650nm visible red light |
Black-white error | <Setting detect distance*10% |
Facula | About 6mm(in 100mm position) |
Operation Voltage | Operation Voltage |
Current consumption | ＜30mA |
Load current | 100mA |
Leakage current | Leakage current |
Residual voltage | ≤1.5VDC(Load current 100mA,2m wire) |
Sensing frequency | 300HZ |
Response time | 2ms |
Reverse polarity protection | Yes |
Output short circuit protection | Output short circuit protection |
Cluster Pulse Level | GB2 |
Output type | NPN.NO.NC |
Connection | Φ4.0*2M/4-wires/Φ4.0*5M/4-wires |
Protection level | IP65 |
Ambient light | Incandescent light bulb：Below 2000LX Sunlight：Below 5000LX |
Ambient temperature | -10～50℃without frosting or icing(storage temperature -20~60℃) |
Relative humidity | 35~80% RH without frosting (storage humidity 35~95%) |
Insulation impedance | Insulation impedance |
Impulse withstand voltage | 1KVDC 50~60Hz 1min (between charging part and housing) |
Dimensional Drawing | 32*20*12mm |
Housing material | PBT+PC |
Net Weight | Net Weight |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
F&C Electronics established a new company in changsha of Hunan province for produce in 2013, we specialized in making sensors. such as: fiber optical sensors, fiber amplifiers, photoelectric sensors, proximity sensors, laser sensors, color sensors etc.
Our current sensors have been widely used in industrial machinery and equipment, light industry, shoemaking industry, textiles, chemical, petroleum, tobacco, food industry, metallurgy,electric power field, for the purpose of limiting, position detection, automatic counting, speed measuring, automatic protection, signal transmission, protection, or isolation.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Our current sensors have been widely used in industrial machinery and equipment, light industry, shoemaking industry, textiles, chemical, petroleum, tobacco, food industry, metallurgy,electric power field, for the purpose of limiting, position detection, automatic counting, speed measuring, automatic protection, signal transmission, protection, or isolation.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
